Model Whirlpool GBS277PDQ0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
02 - CONTROL PANEL, LITERATURE

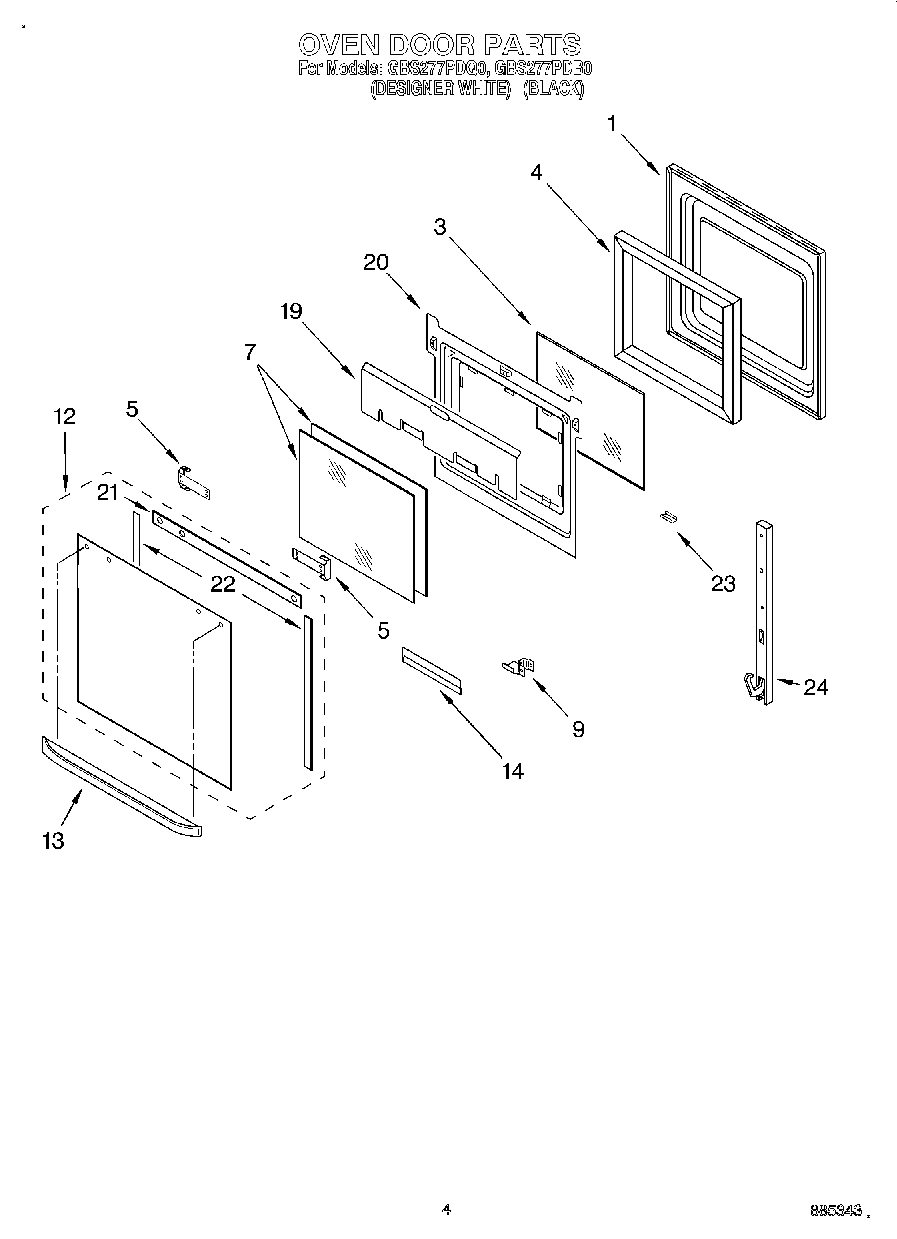

03 - OVEN DOOR

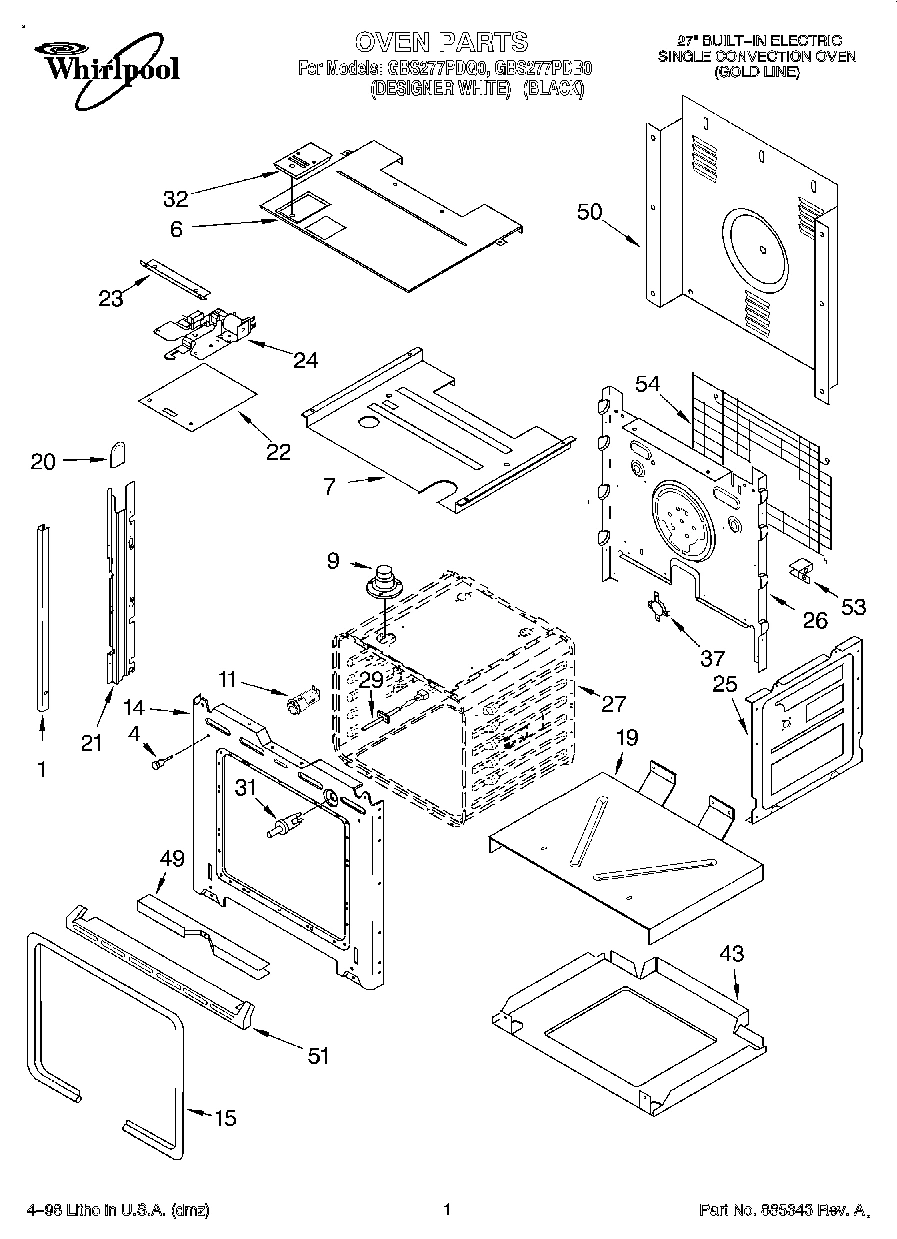

01 - OVEN

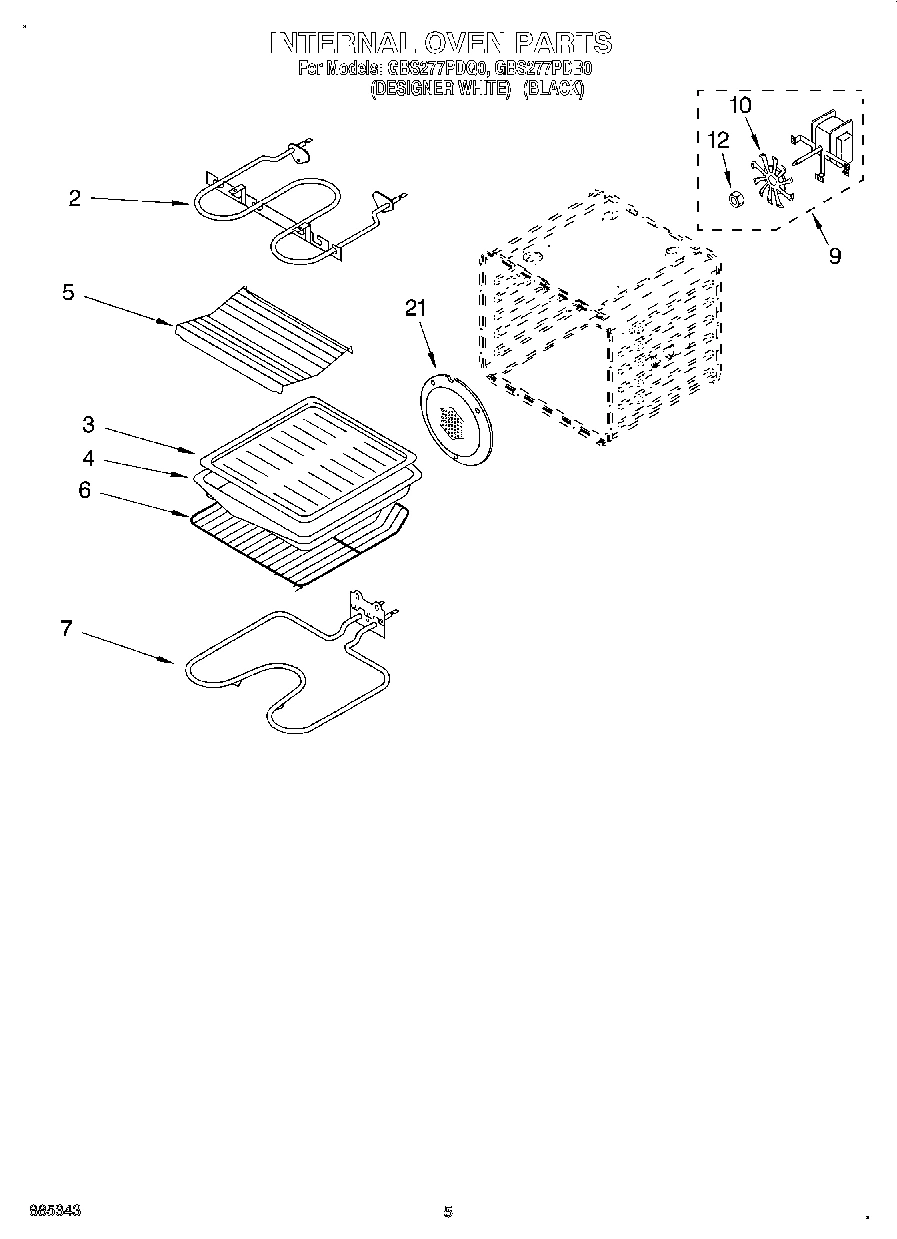

04 - INTERNAL OVEN

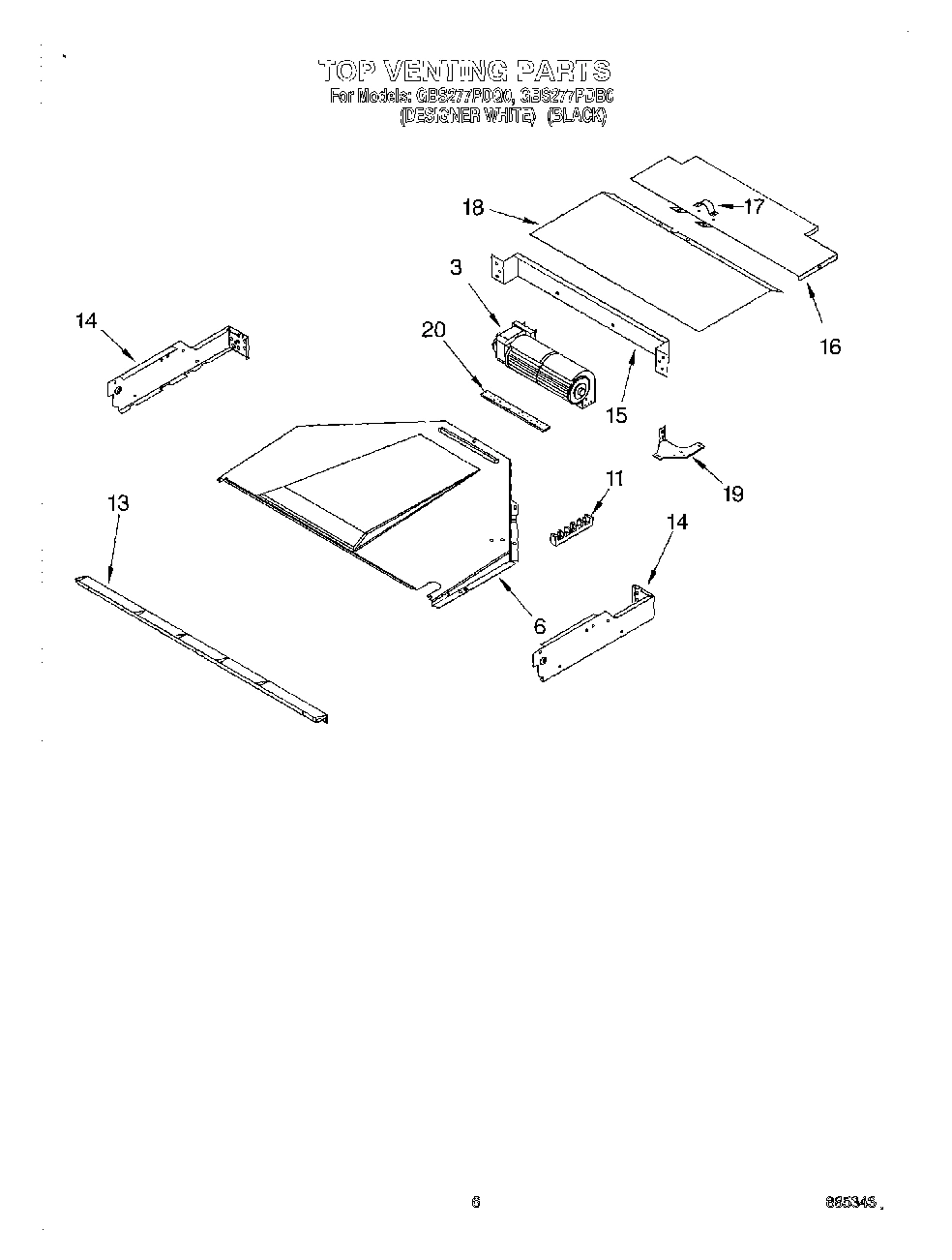

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool GBS277PDQ0 BUILT-IN ELECTRIC SINGLE OVEN
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4451038 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
7
Partition WPL 4454832 Contact Us For Availability
9
Motor Convection WPL 4451583 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Seal, Foam WPL 3182384 Contact Us For Availability
20
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
20
Harness, (Main) WPL 4454857 Contact Us For Availability
20
Harness, Wire (Door Switch) WPL 4454871 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
22
Screw WPL 4450289 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451545 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI58874A4 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
