Model Whirlpool GBS277PDB1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

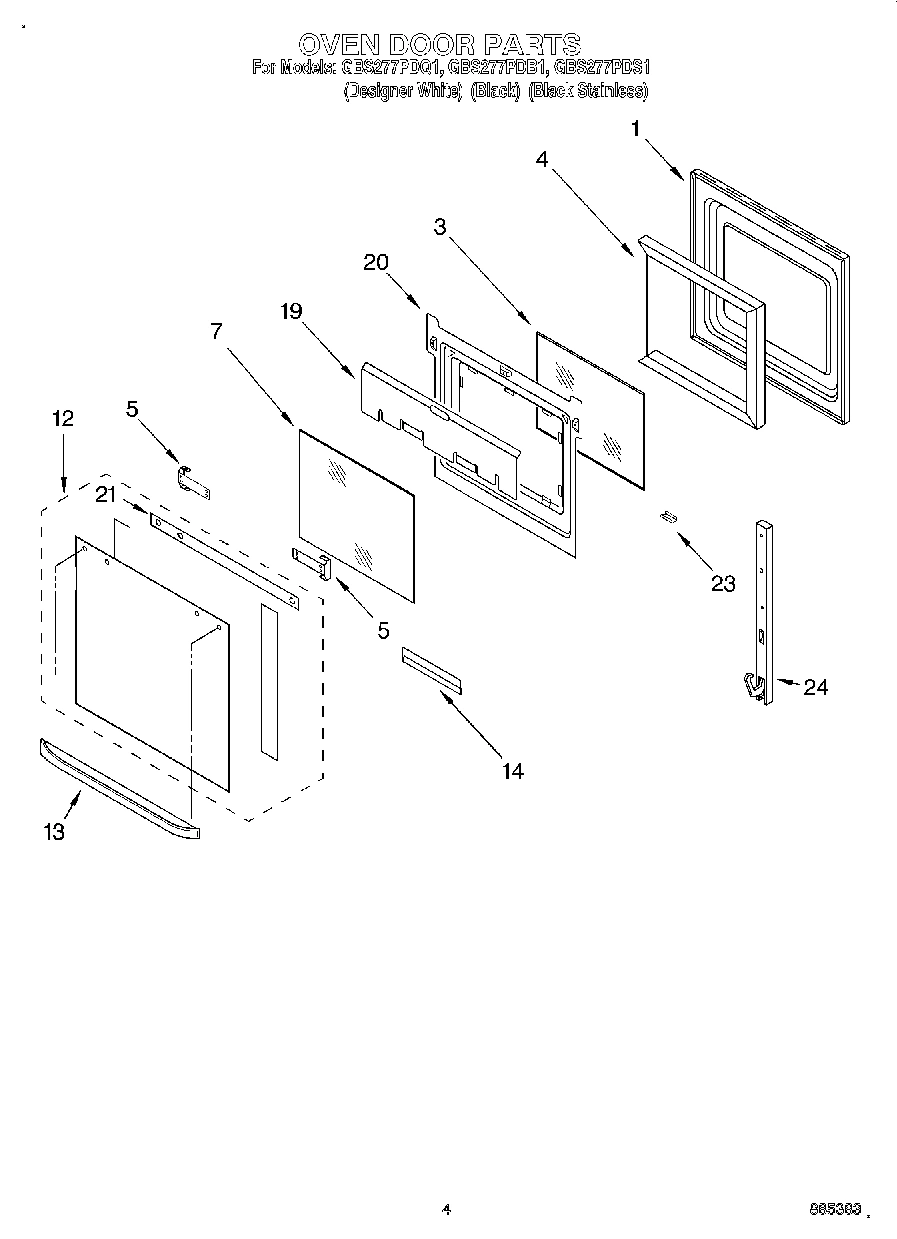

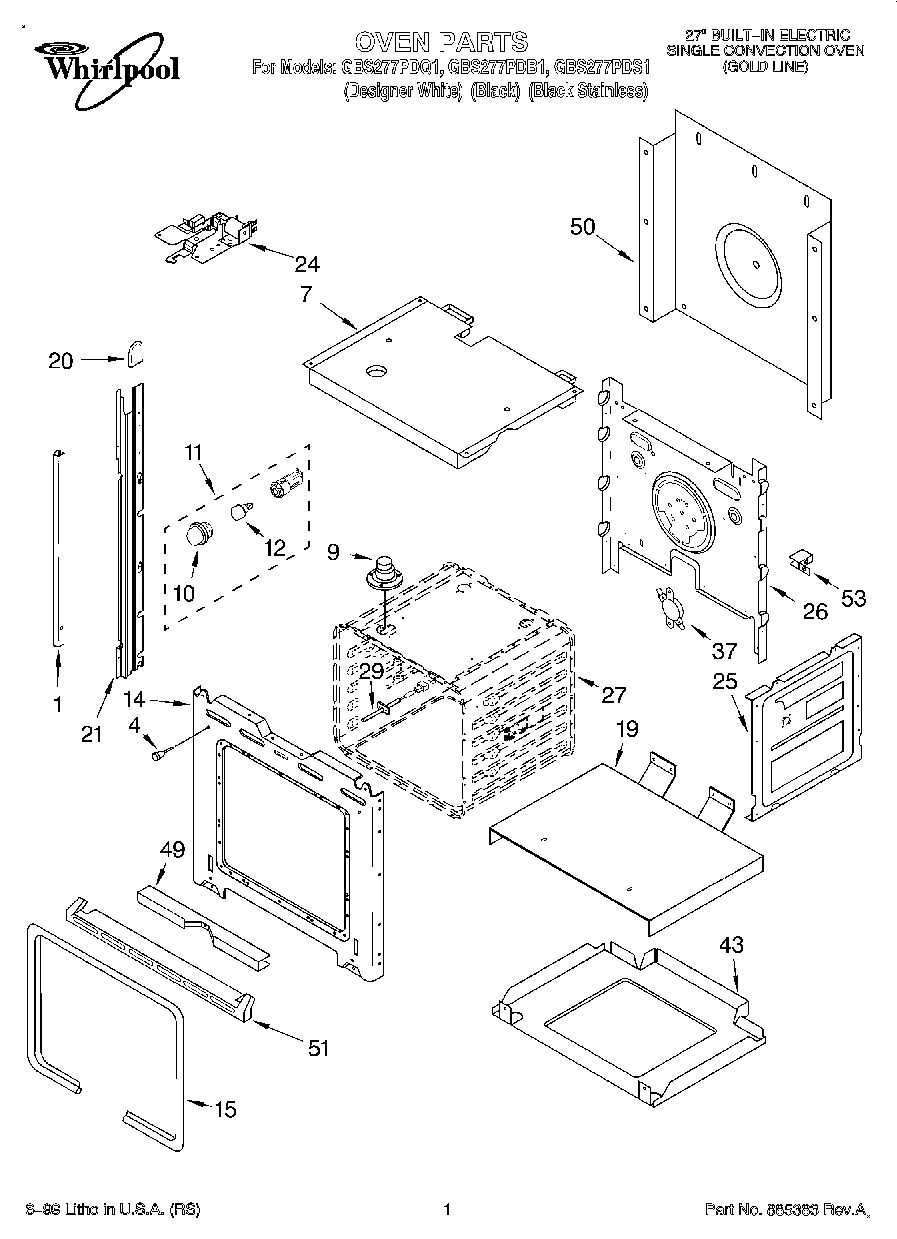

1

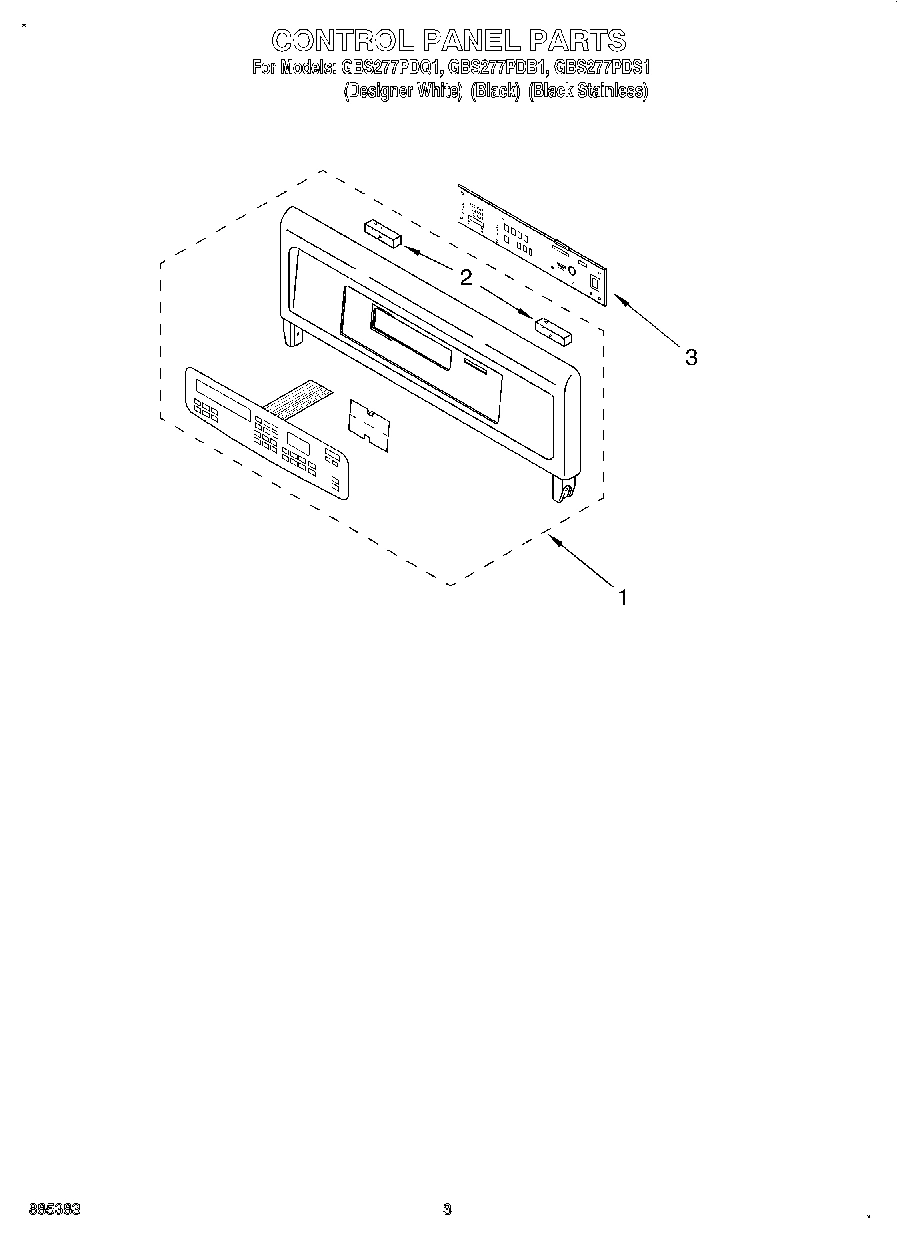

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

1

Trim, Side (LH White) WPL 4450848 Contact Us For Availability

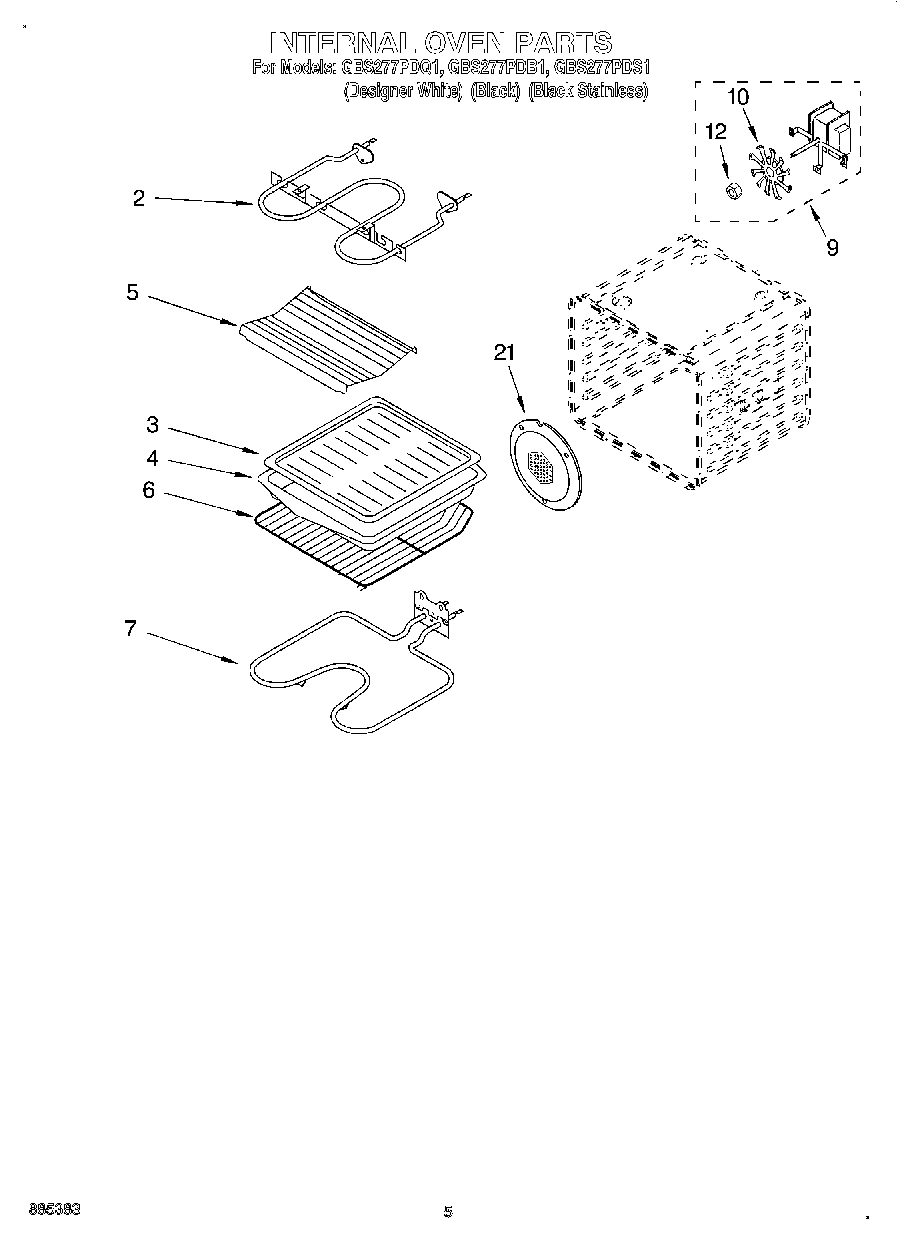

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $113.99

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

5

Bracket, Handle WPL 4450813 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $55.99

7

Top, Chassis WPL 4452043 Contact Us For Availability

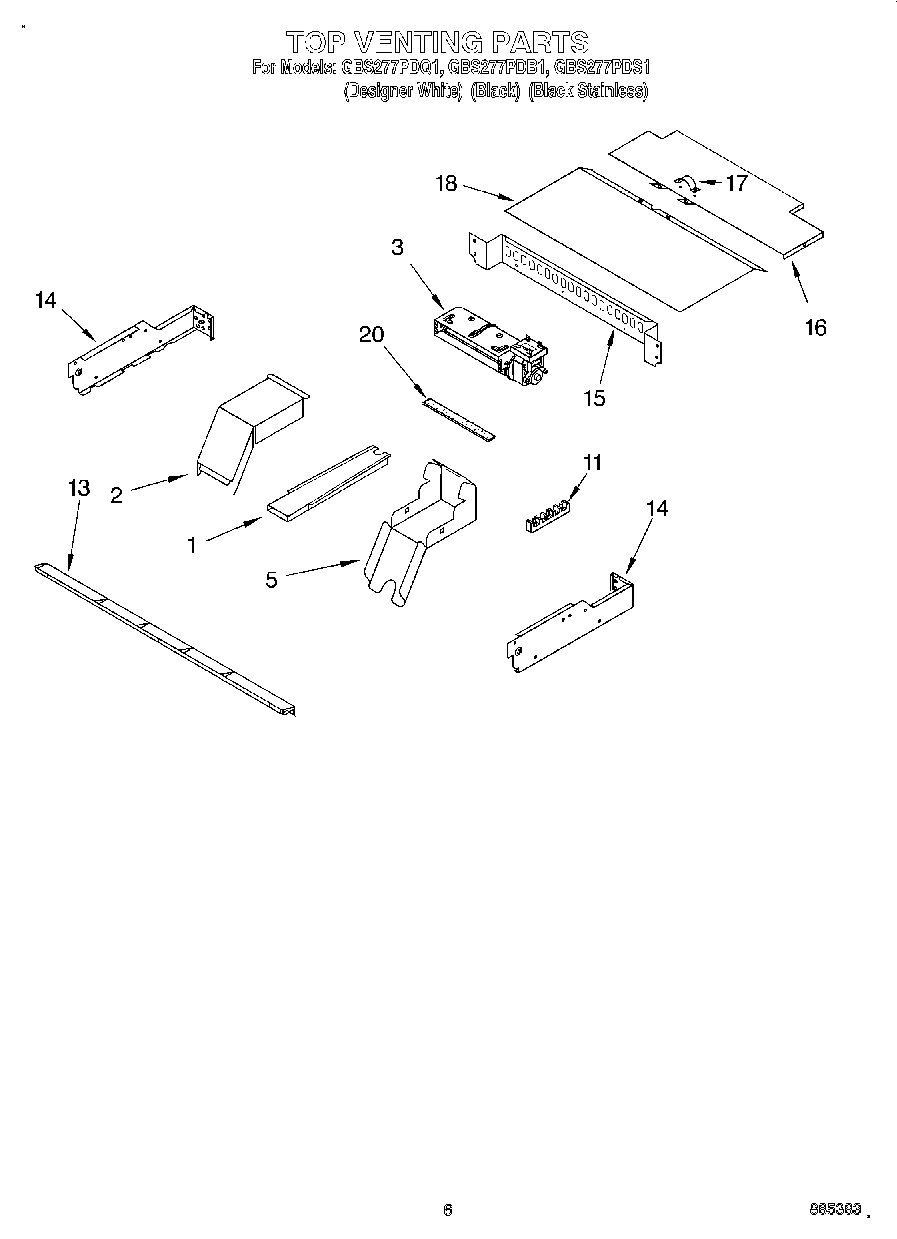

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

Motor Convection WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $66.70

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $58.99

12

Nut WPL 4452227 Contact Us For Availability

13

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

13

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

Retainer, Glass WPL 4451668 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451739 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

Cover, Top Front WPL 4450553 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.46

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $158.38

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Cap, Spacer WPL 4451605 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Seal, Foam WPL 4151758 Contact Us For Availability

Harness, Wire (Main) WPL 4454919 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $74.47

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $74.29

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

Latch Assembly WPL 4451424 Contact Us For Availability

Micro Switch N.C. WPL 4451422 Contact Us For Availability

Microswitch WPL 4451426 Contact Us For Availability

Solenoid WPL 4451663 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4451545 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI58852A6 Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $40.99

43

Base, Chassis WPL 4451397 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

51

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

51

Trim, Bottom (Black) WPL 4448475 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

Insulation, Wrap WPL 4449315 Contact Us For Availability

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability
