Model Whirlpool GBD307PDT6 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

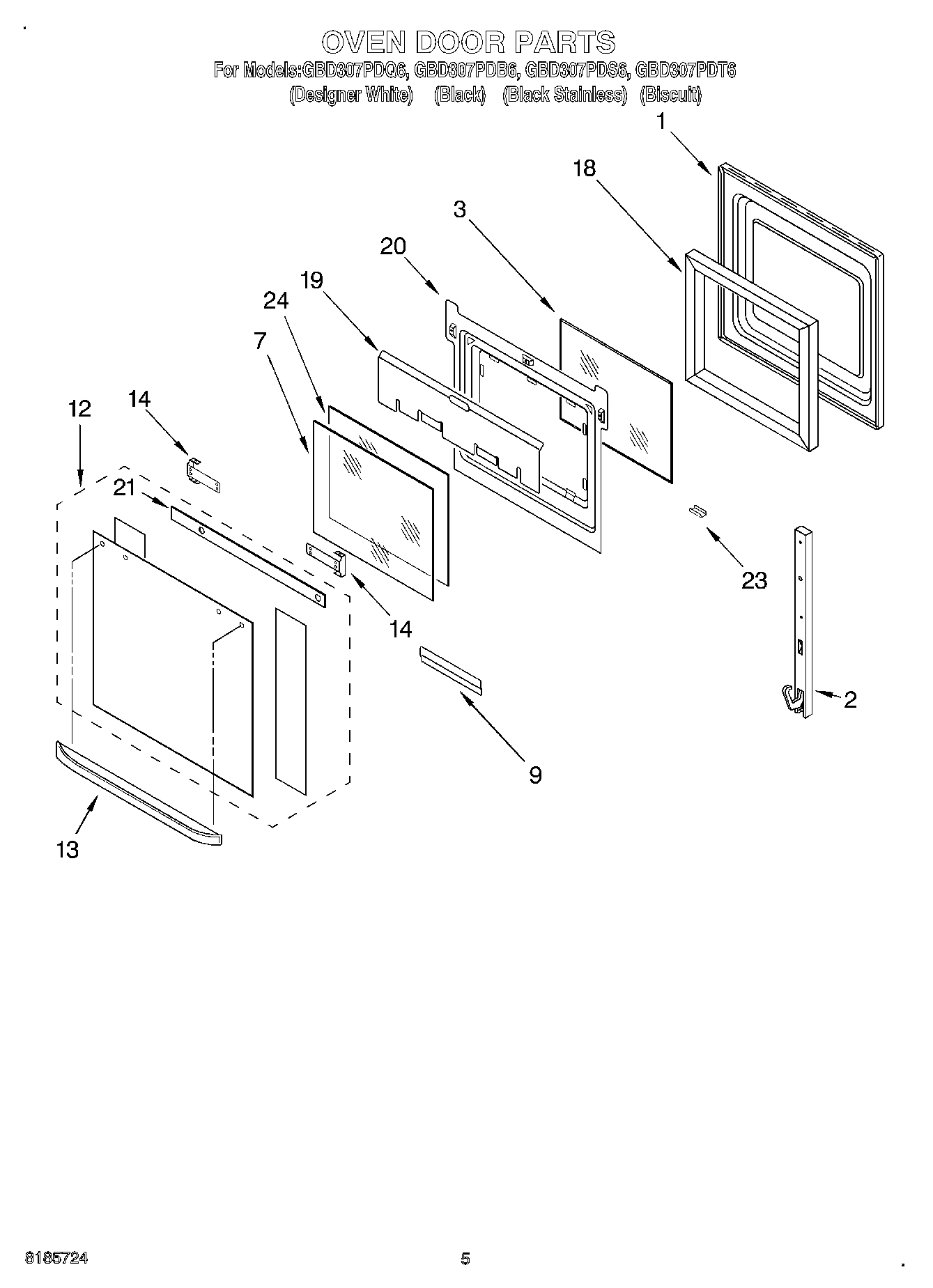

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $214.40

1

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

1

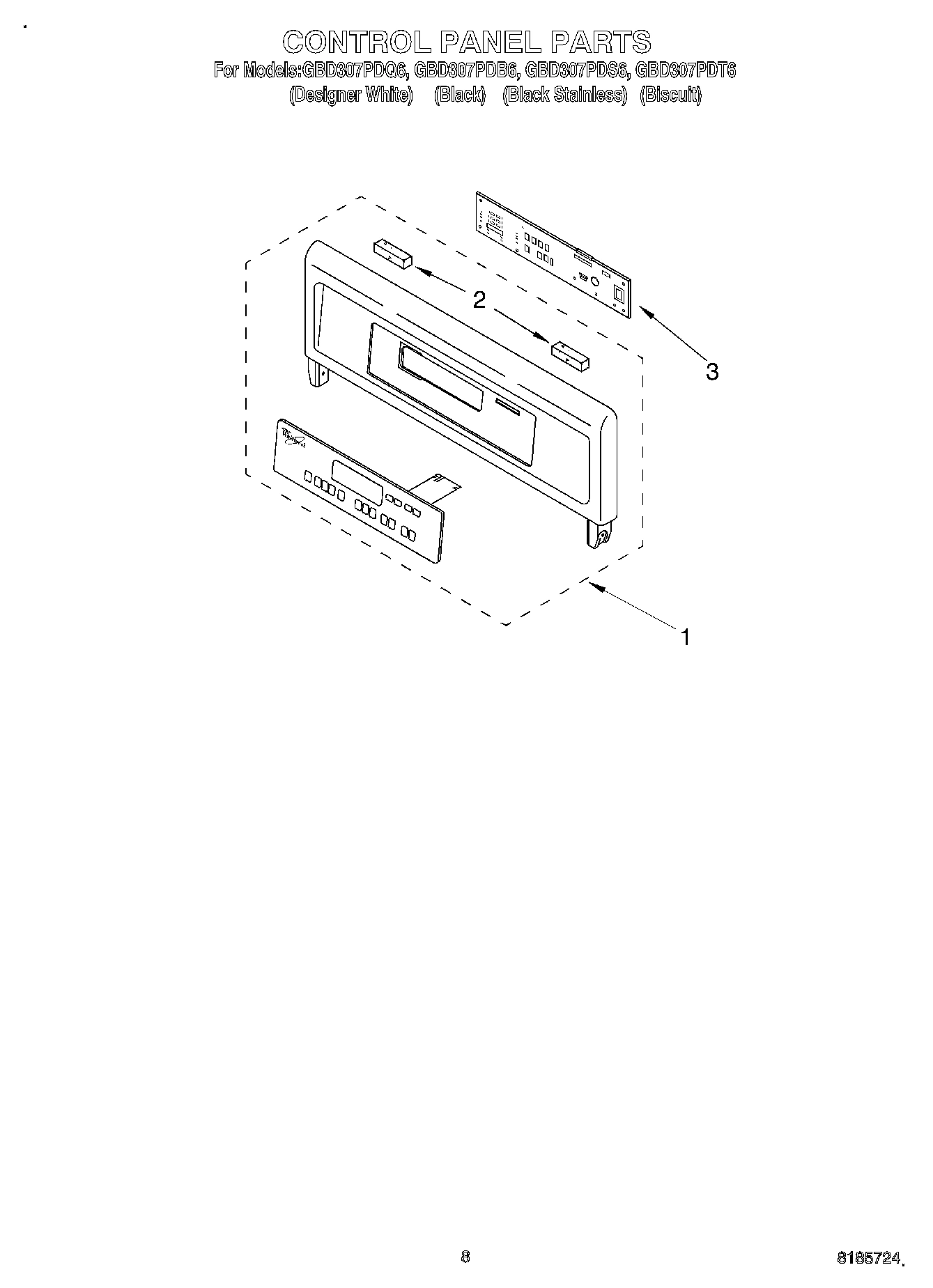

Control Panel Assy W/Membrane, Switch (Black) WPL 8300440 Contact Us For Availability

1

Control Panel Assy W/Membrane, Switch (White) WPL 8300441 Contact Us For Availability

1

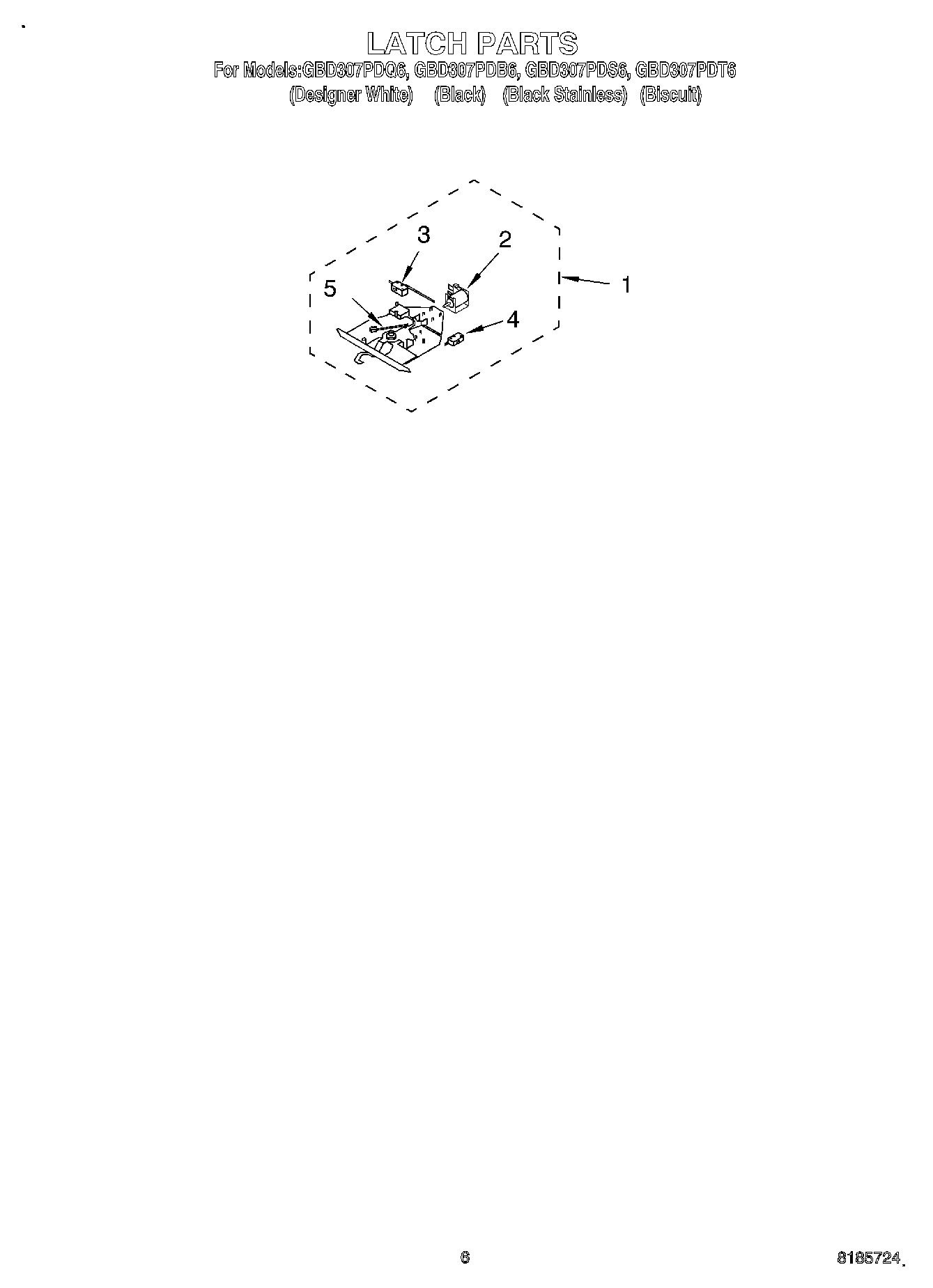

Latch Assembly WPL 4451896 Contact Us For Availability

1

Control Panel Assy. W/Membrane, Switch (Insul WPL 3192690 Contact Us For Availability

1

Control Panel Assy W/Membrane, Switch (Biscui WPL 8300442 Contact Us For Availability

2

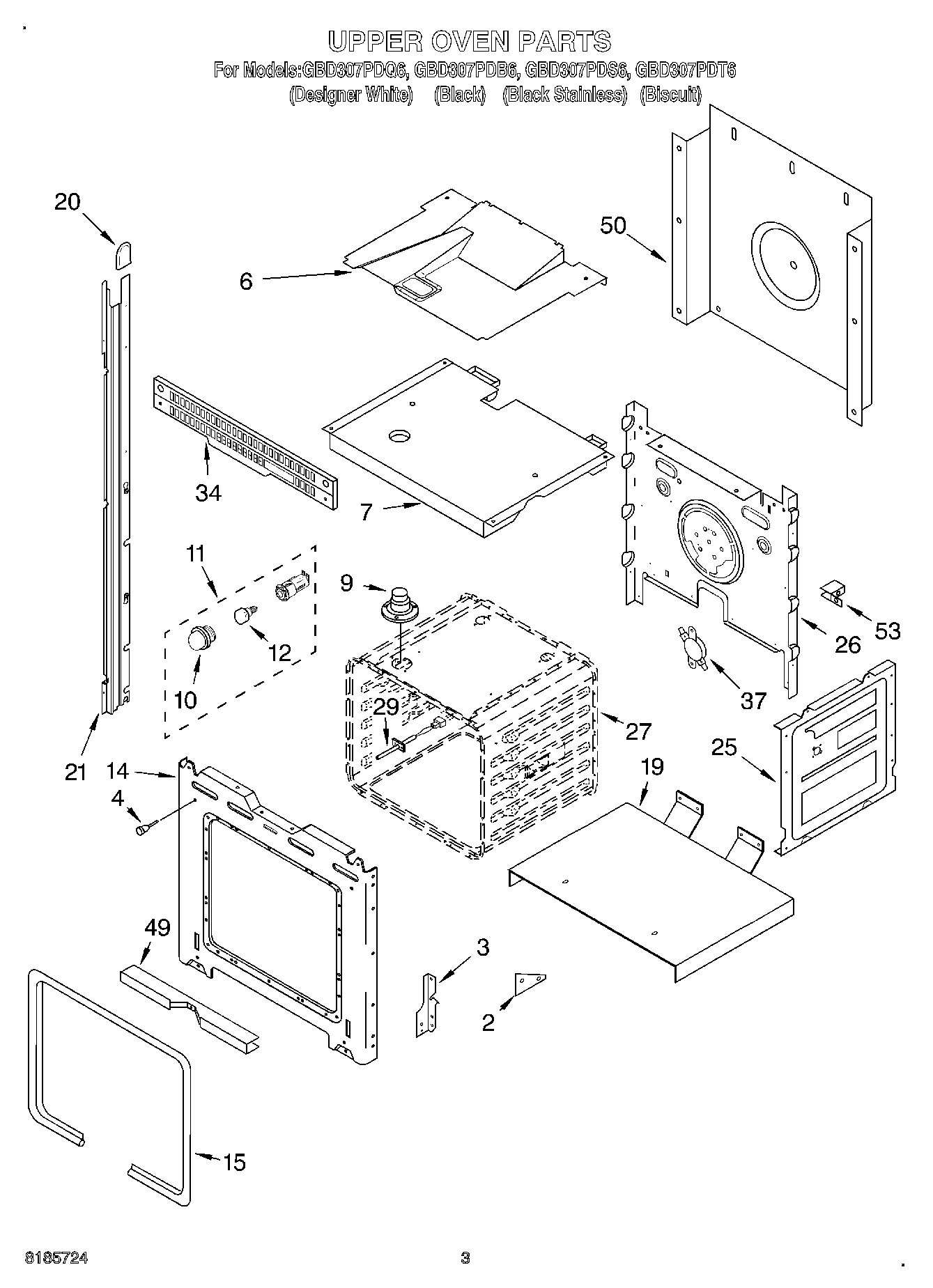

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $56.99

2

WP4455526 Whirlpool Door Hinge In Stock WPL WP4455526 $58.99

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $113.99

2

Solenoid WPL 4452224 Contact Us For Availability

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $139.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

Switch, Micro WPL 4452312 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Microcomputer WPL 4452890 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $22.55

4

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

4

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

4

Switch, Micro WPL 4451426 Contact Us For Availability

5

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

5

Spring, Latch WPL 4451537 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $110.69

6

Transformer, Control WPL 4451891 Contact Us For Availability

7

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $7.98

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $142.57

7

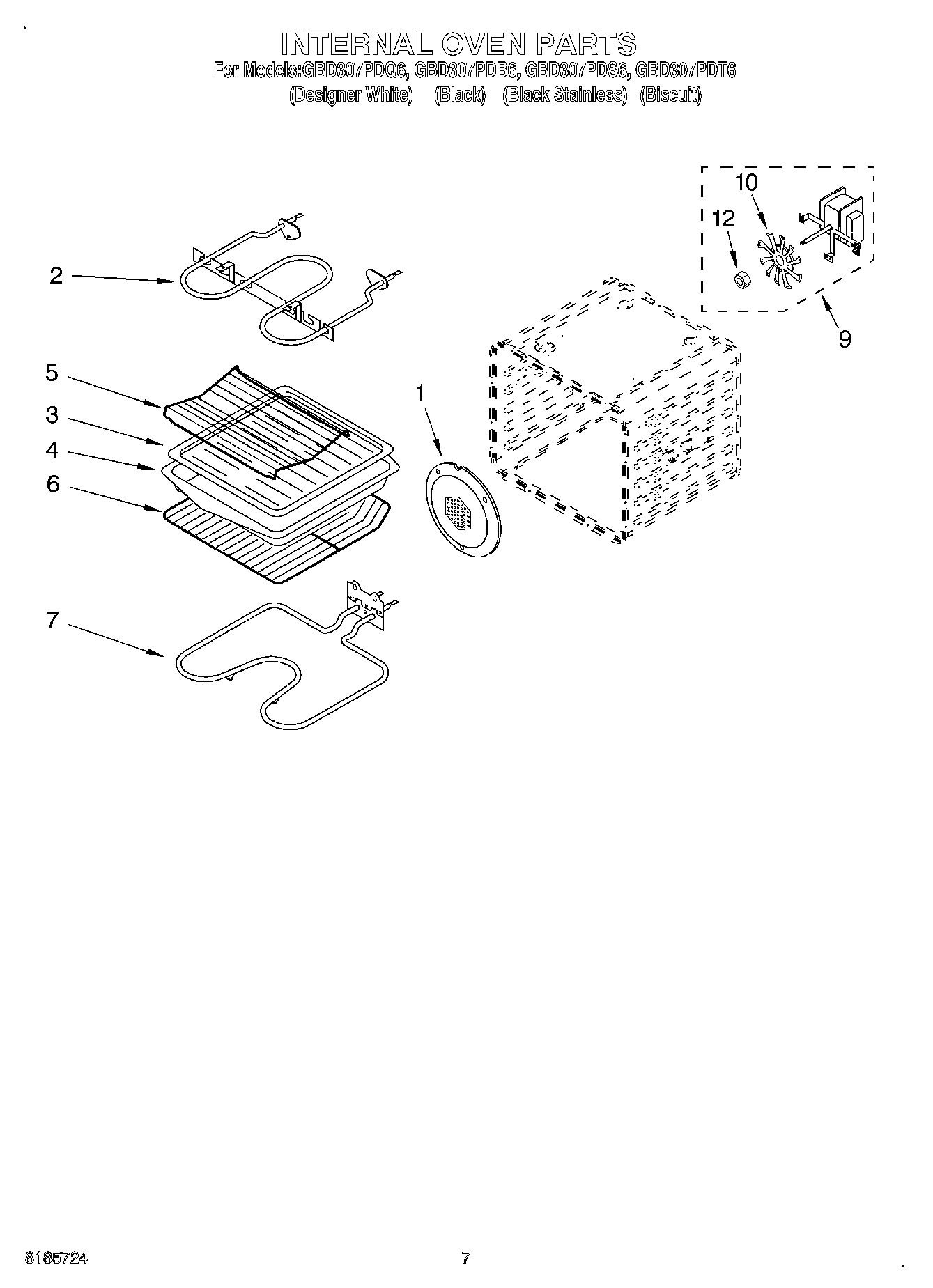

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $55.99

7

Plate, Mounting WPL 4451789 Contact Us For Availability

9

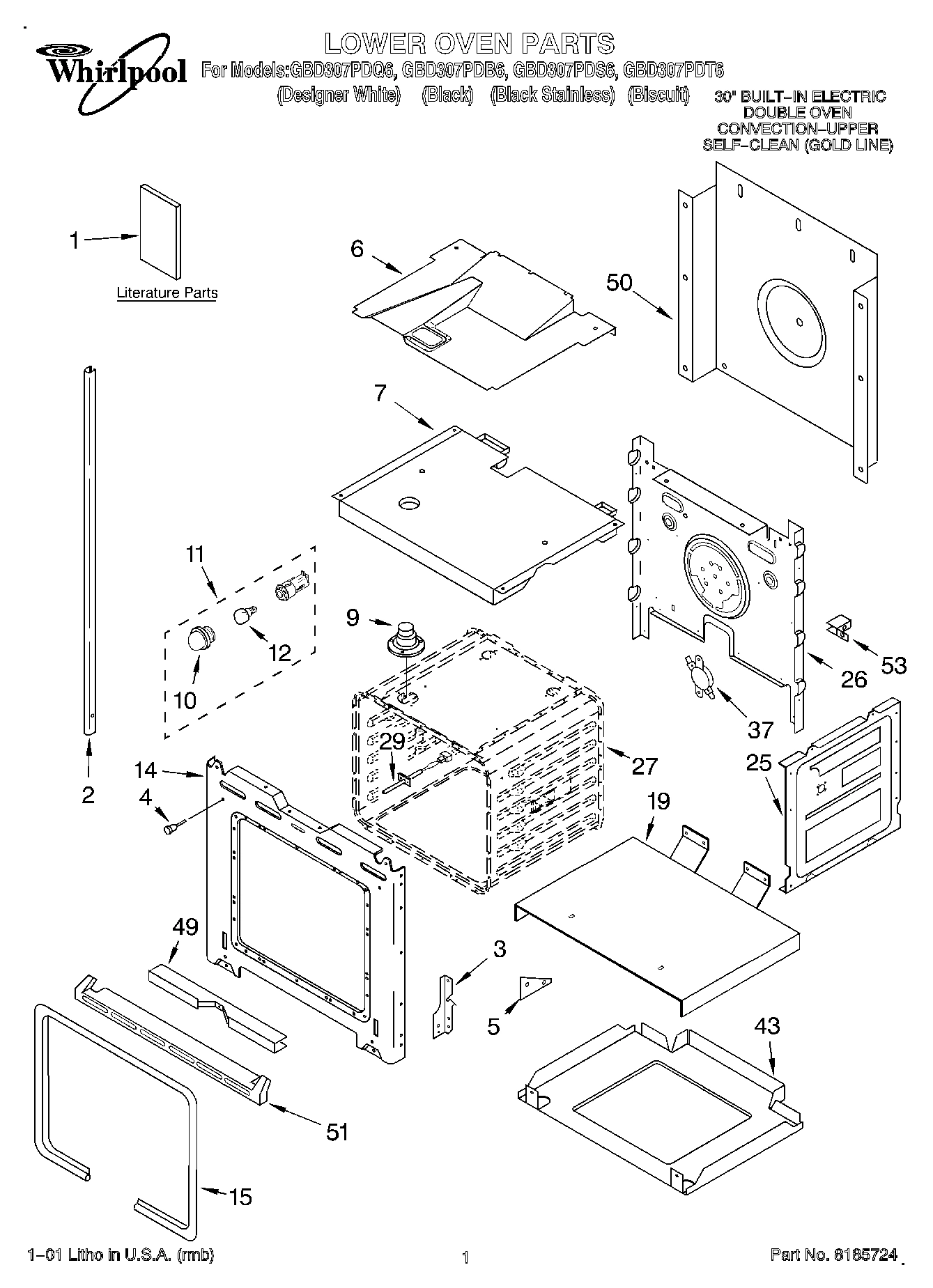

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

11

Screw WPL 3400080 Contact Us For Availability

WP9759074 Whirlpool Outer Door Glass Backorder WPL WP9759074 $285.53

WP9759641 Whirlpool Outer Door Glass Backorder WPL WP9759641 $232.55

Door Glass Assy (White) WPL 4452066 Contact Us For Availability

Door Glass Assy (Biscuit) WPL 4452859 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

Door Handle (Black) WPL 4448854 Contact Us For Availability

Door Handle (White) WPL 4448855 Contact Us For Availability

Handle, Door (Biscuit) WPL 4452860 Contact Us For Availability

Vent, Control Panel WPL 4448549 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

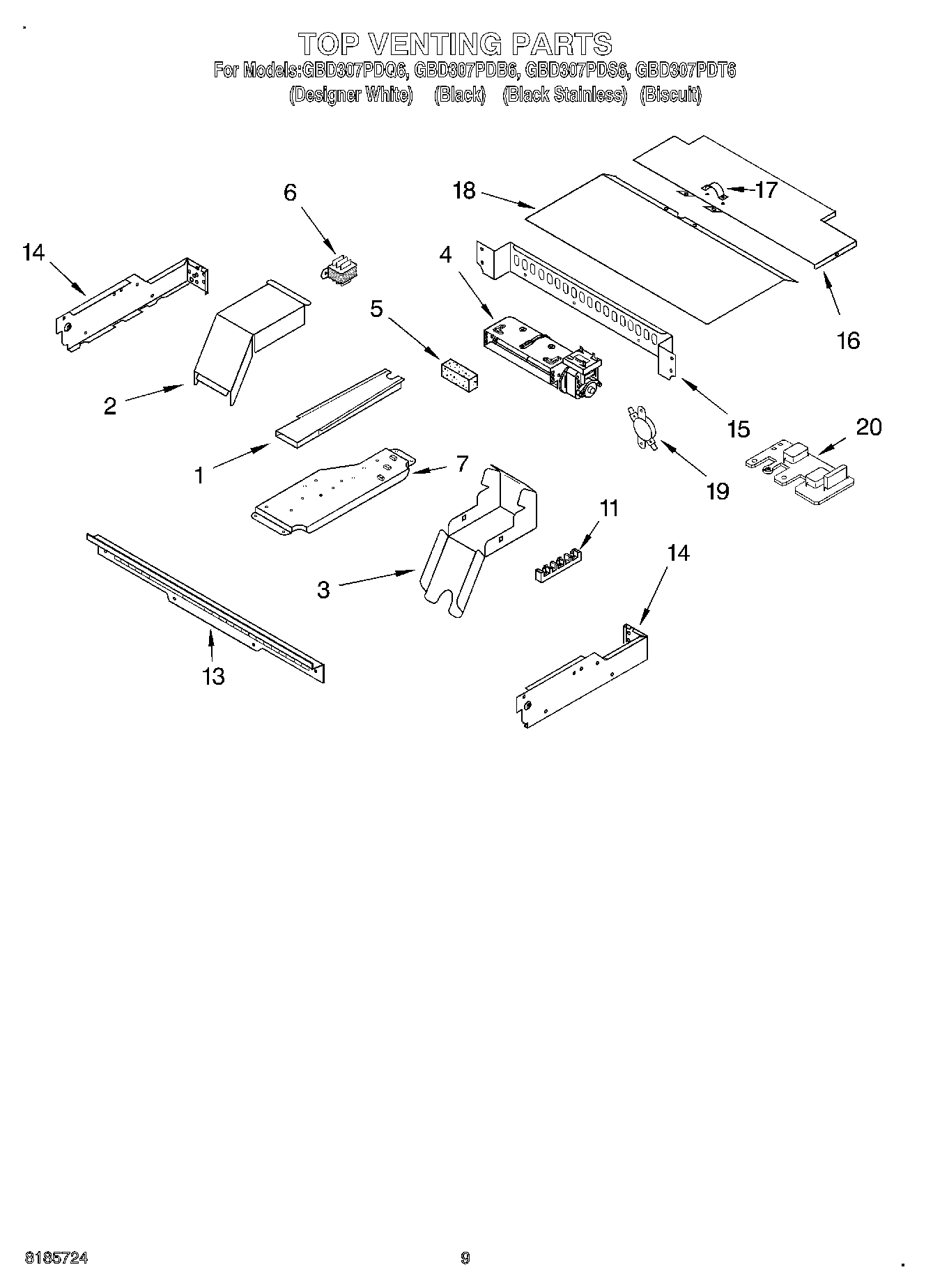

Cover, Top Rear WPL 4450551 Contact Us For Availability

18

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $117.06

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.97

19

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $55.98

19

Shield, Heat WPL 4450362 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.46

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $103.99

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Conduit, Double WPL 4450953 Contact Us For Availability

Retainer, Glass WPL 4451671 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Latch, Lower) WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harn WPL 4455737 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $145.22

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

21

Seal, Door Top WPL 4451674 Contact Us For Availability

23

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $94.56

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI58708A2 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

34

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $40.99

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

51

Trim, Bottom (Black) WPL 4448477 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $76.41

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
