Model Whirlpool GBD307PDB0 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

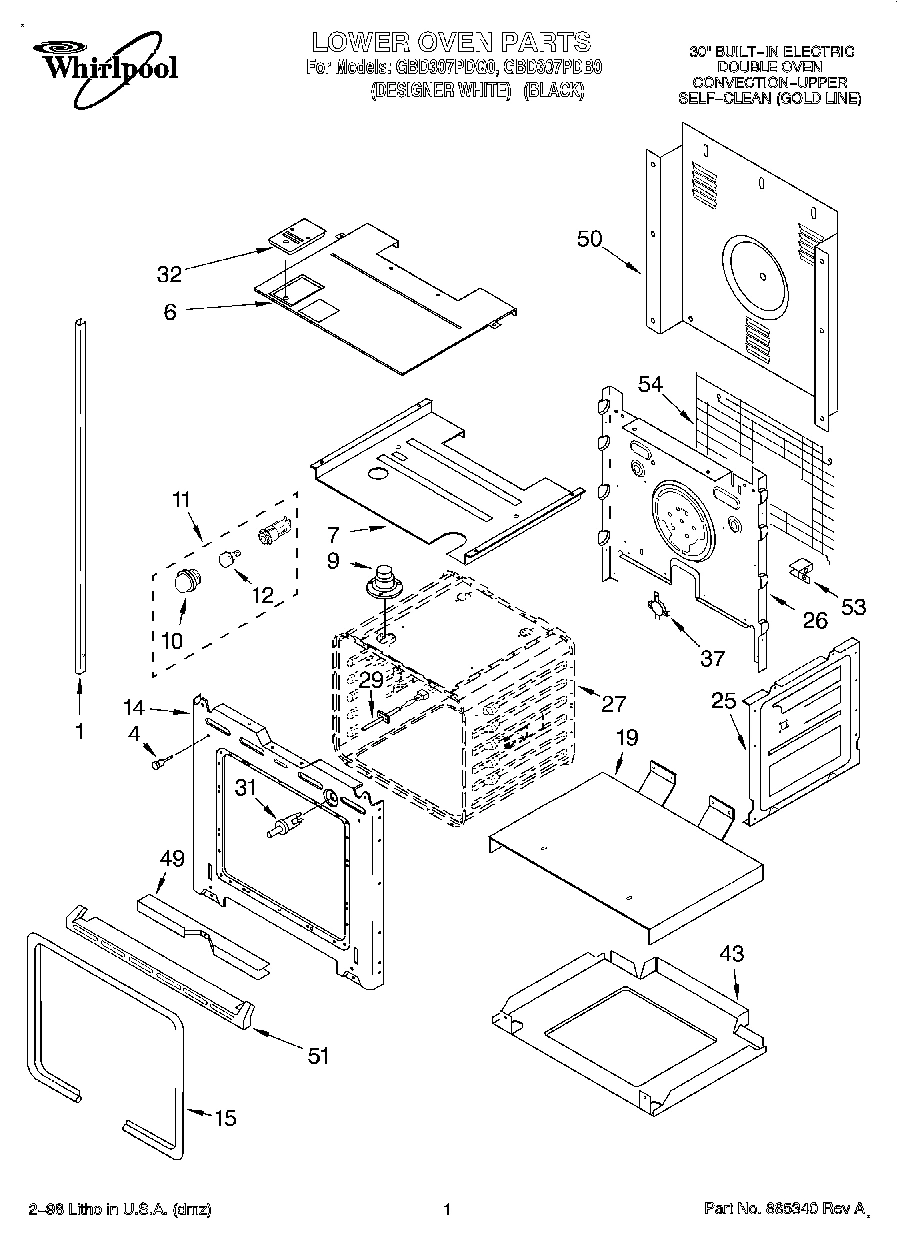

01 - LOWER OVEN

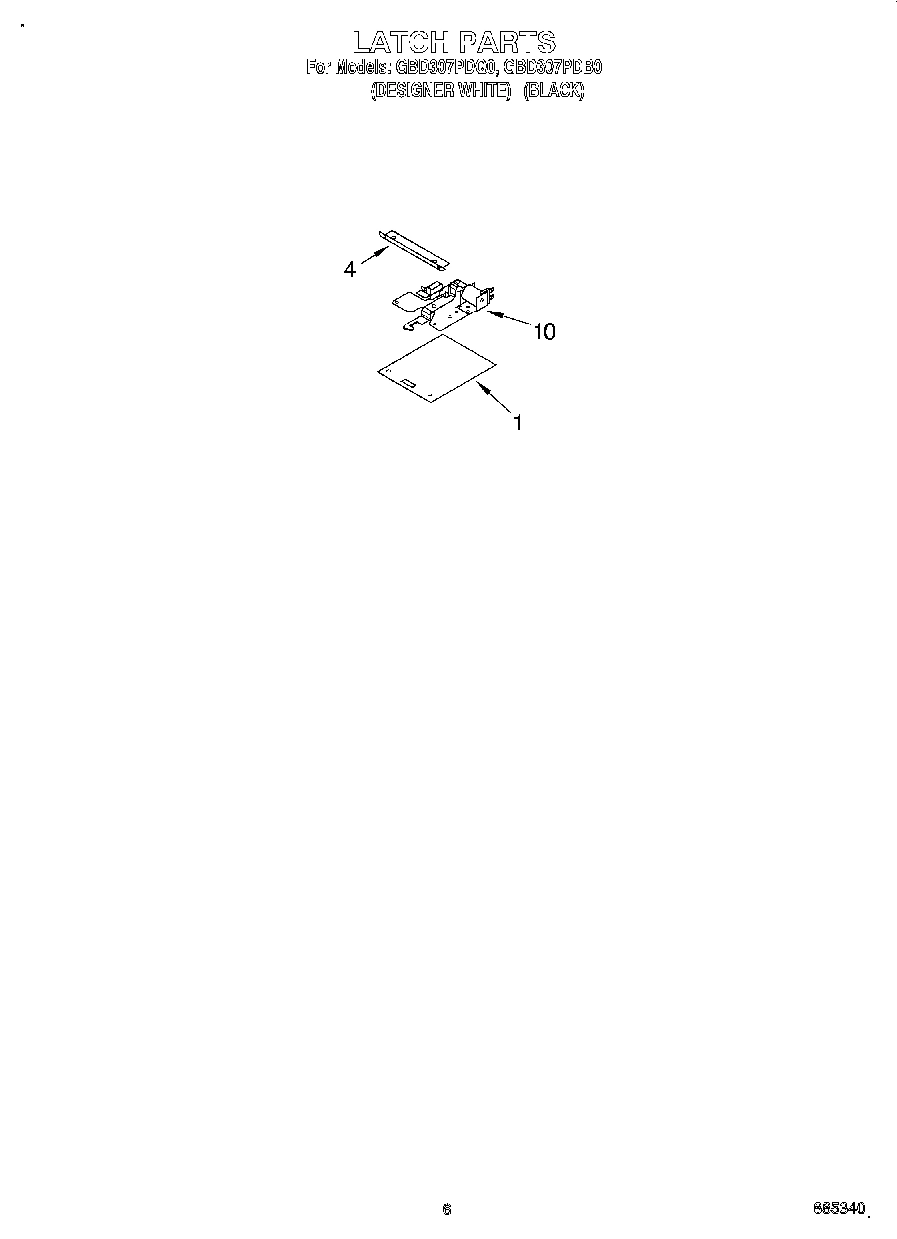

04 - LATCH

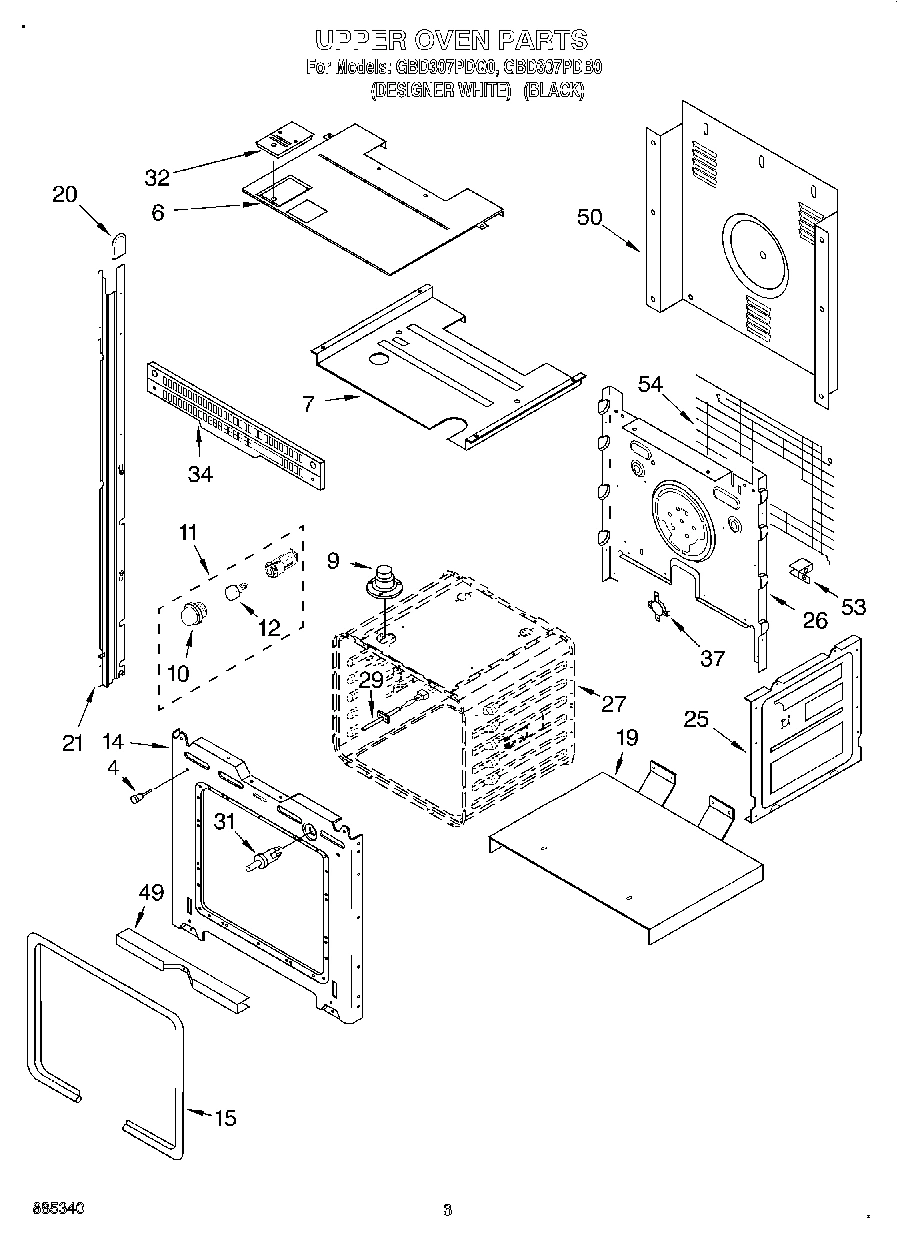

02 - UPPER OVEN

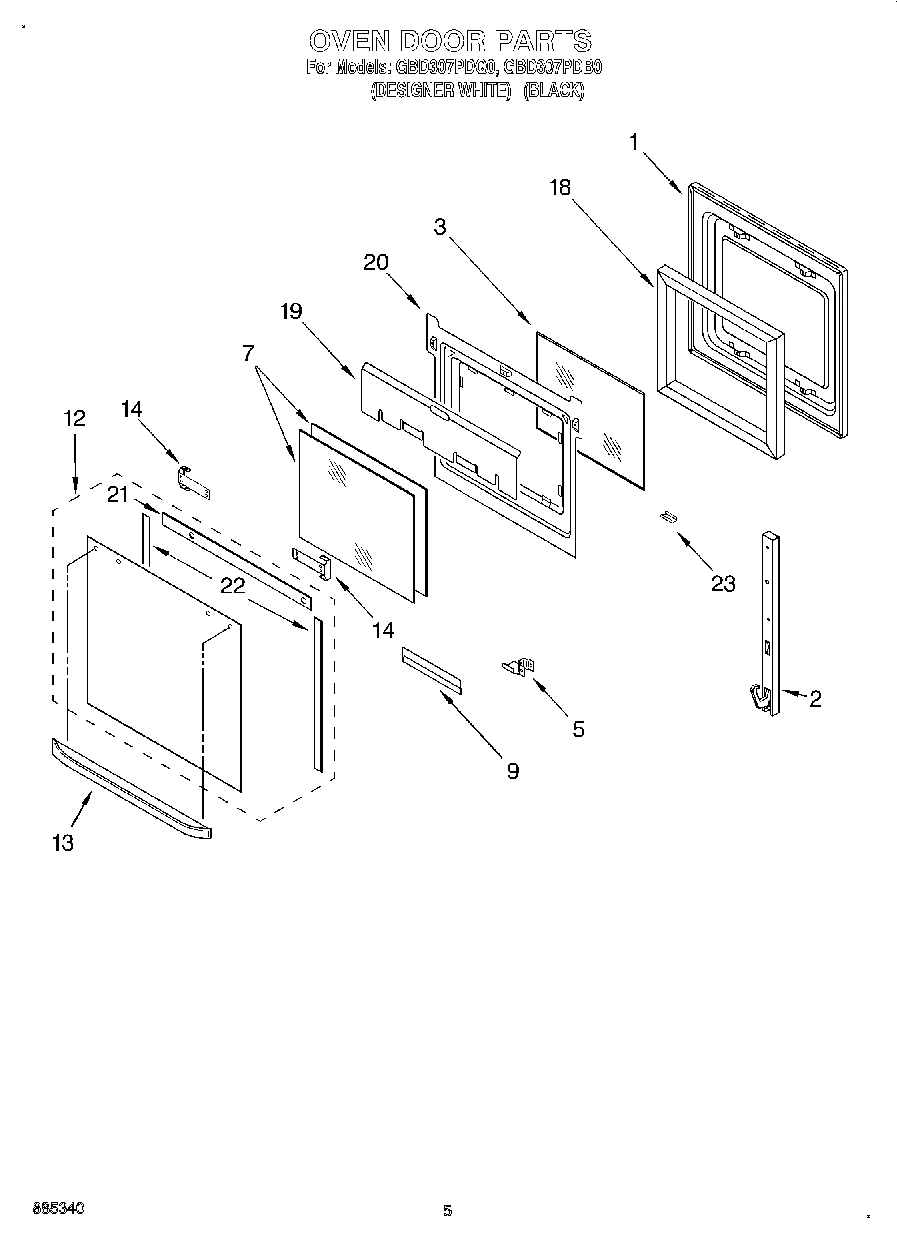

03 - OVEN DOOR

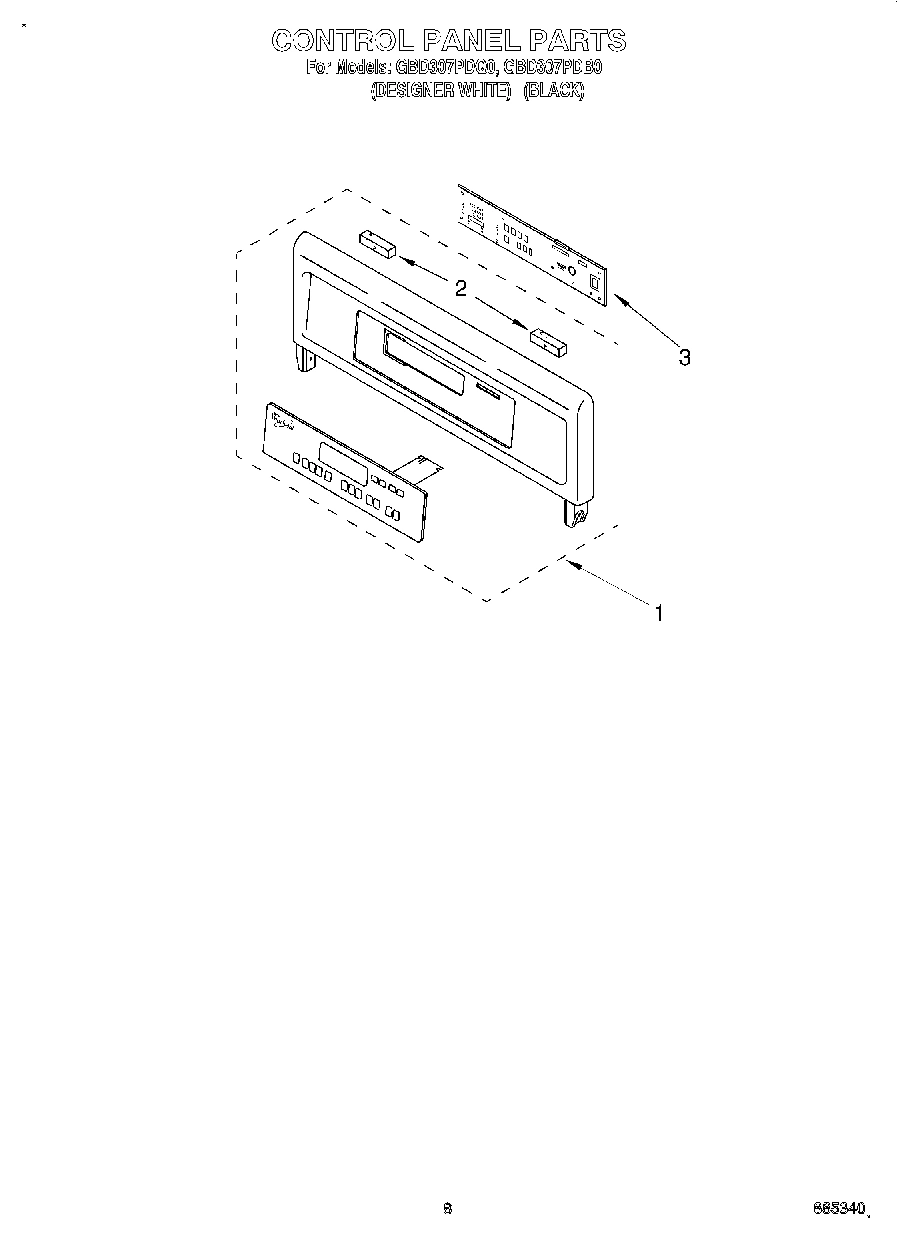

06 - CONTROL PANEL, LITERATURE

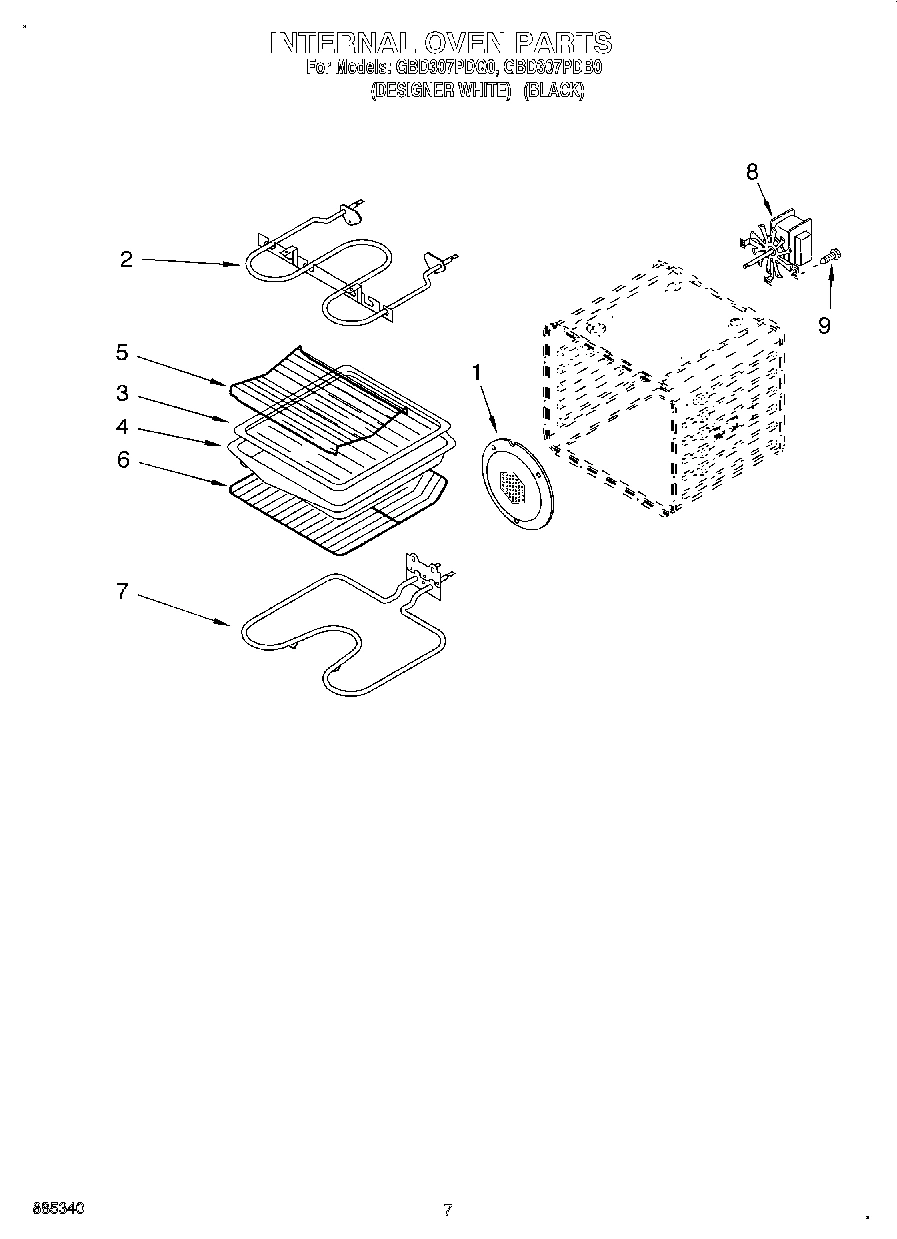

05 - INTERNAL OVEN

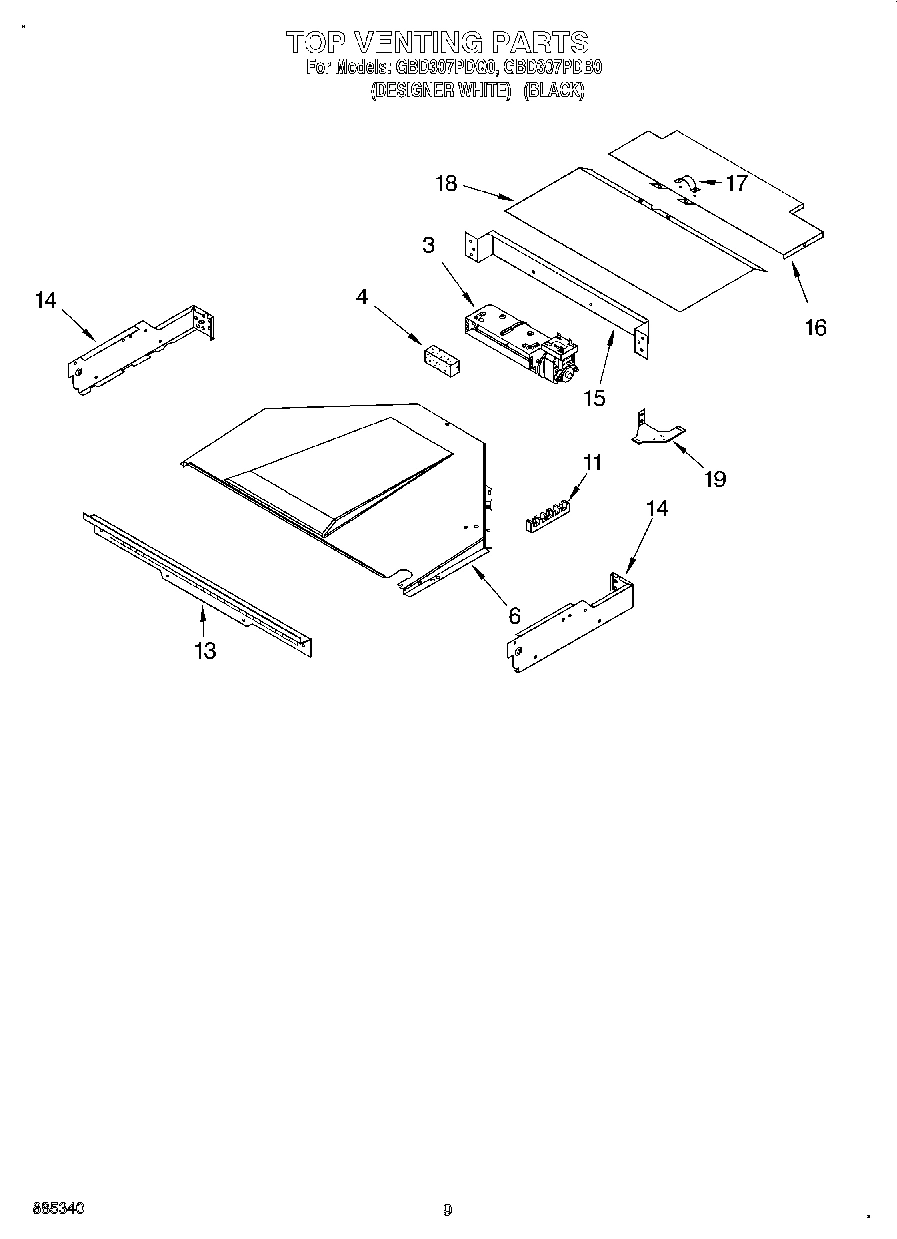

07 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool GBD307PDB0 BUILT-IN ELECTRIC DOUBLE OVEN
Cookbook, WP Conv. WPL LIT4449237 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4452004 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454767 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy W/Membrane, Switch (Black) WPL 4452040 Contact Us For Availability
1
Control Panel Assy W/Membrane, Switch (White) WPL 4452041 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
4
Foam, Block WPL 3182384 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Duct, Exhaust WPL 4451634 Contact Us For Availability
8
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
10
Lens, Light WPL 4452165 Contact Us For Availability
12
Door Glass, Outer (White) WPL 4451213 Contact Us For Availability
13
Door Handle (Black) WPL 4448854 Contact Us For Availability
13
Door Handle (White) WPL 4448855 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450417 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
Harness, Wire (Main) WPL 4454853 Contact Us For Availability
19
Harness, Wire S/C (Door Switch) WPL 4454871 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
20
Retainer, Glass WPL 4450423 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White) WPL 4450864 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451546 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI58578A4 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
34
Vent, Center WPL 4449052 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448477 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Back WPL 4450365 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
