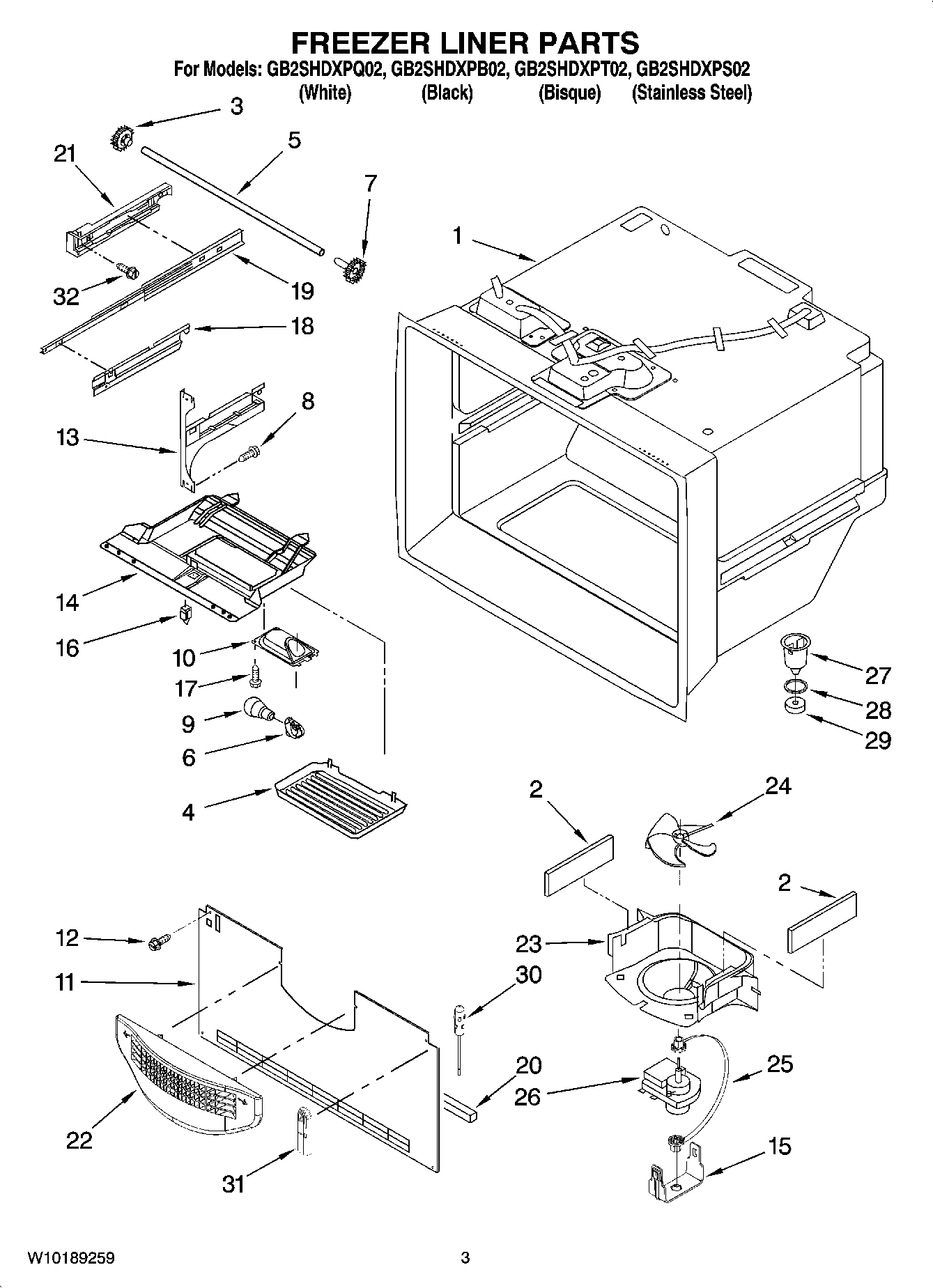

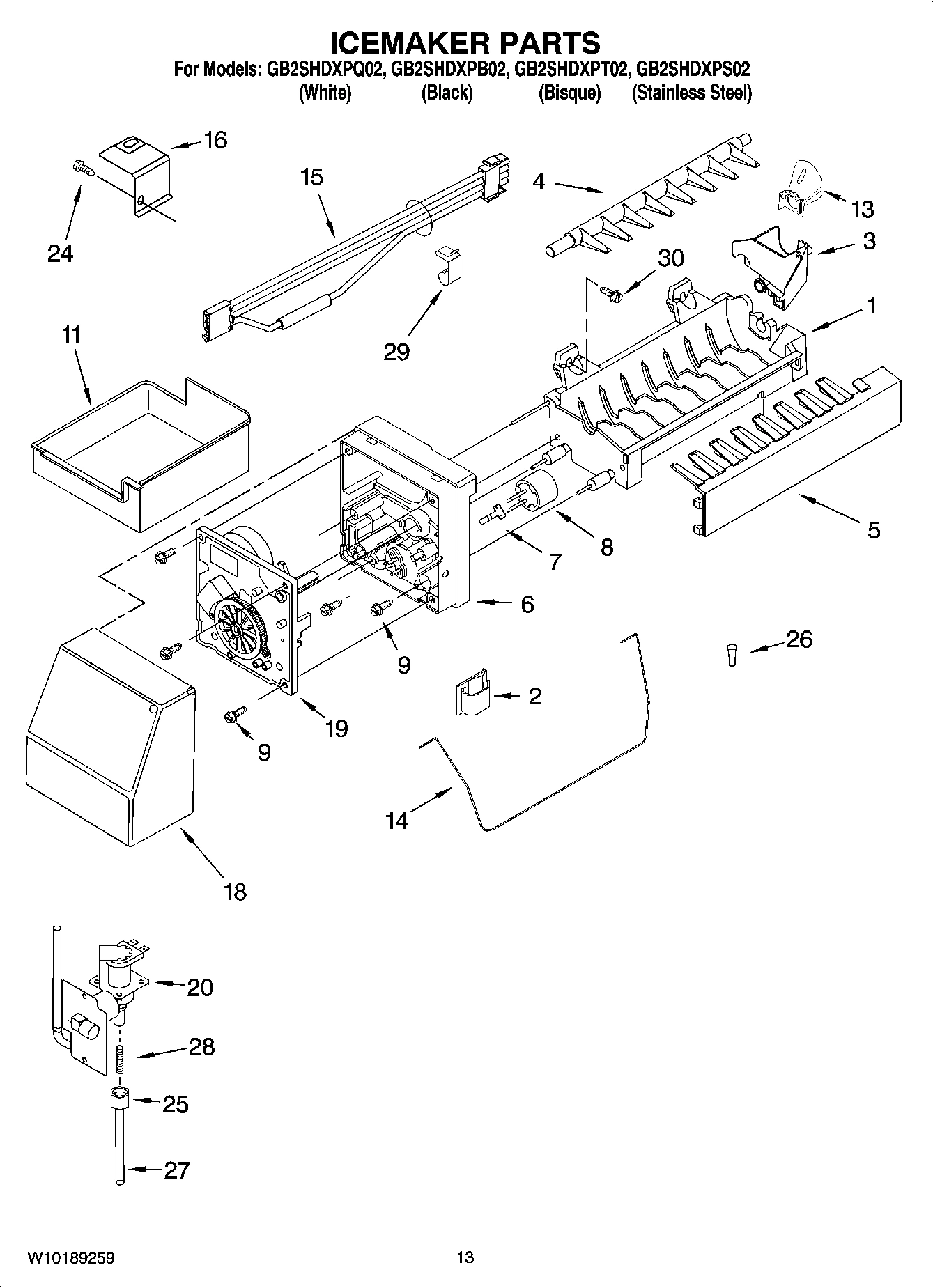

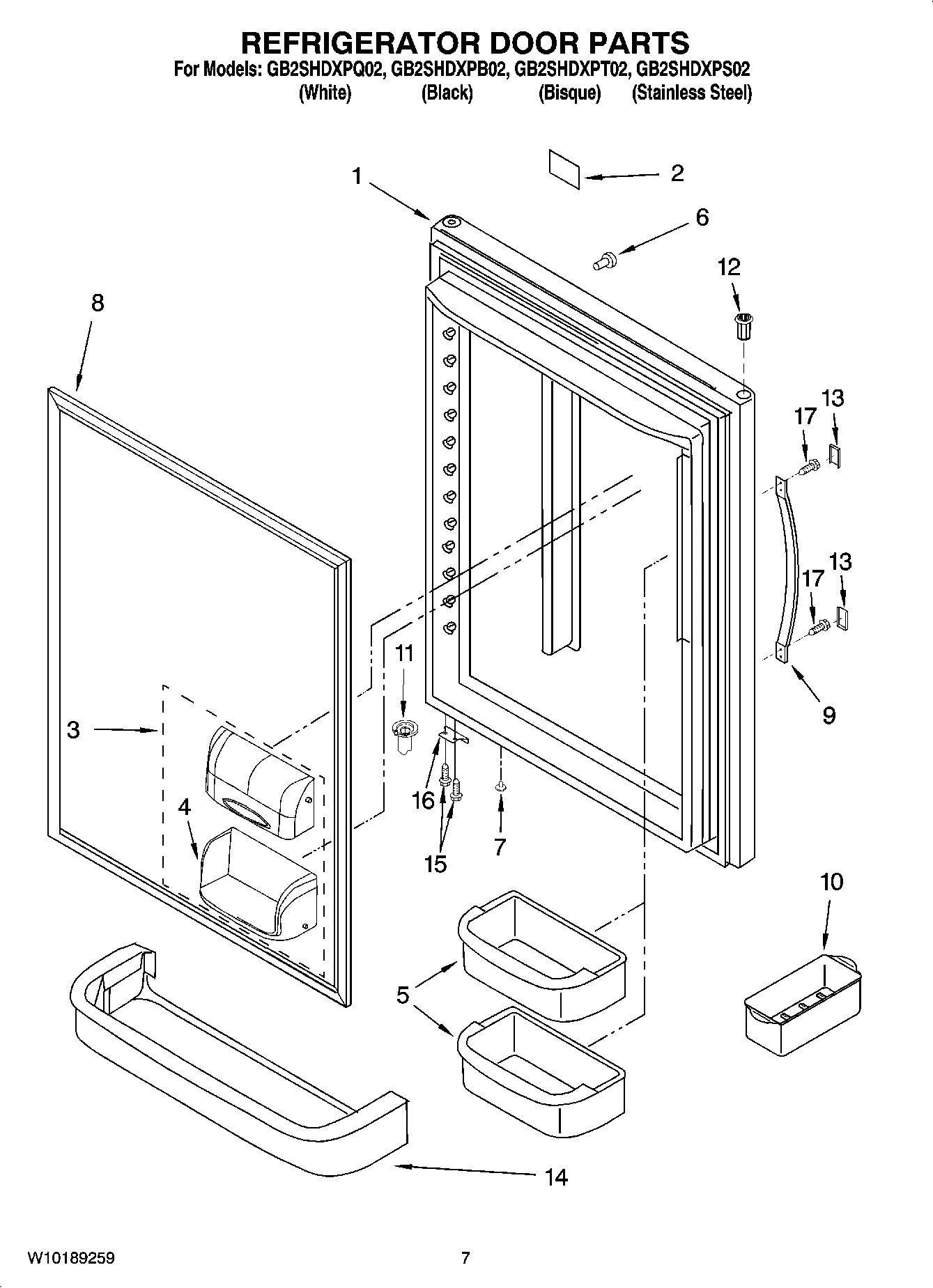

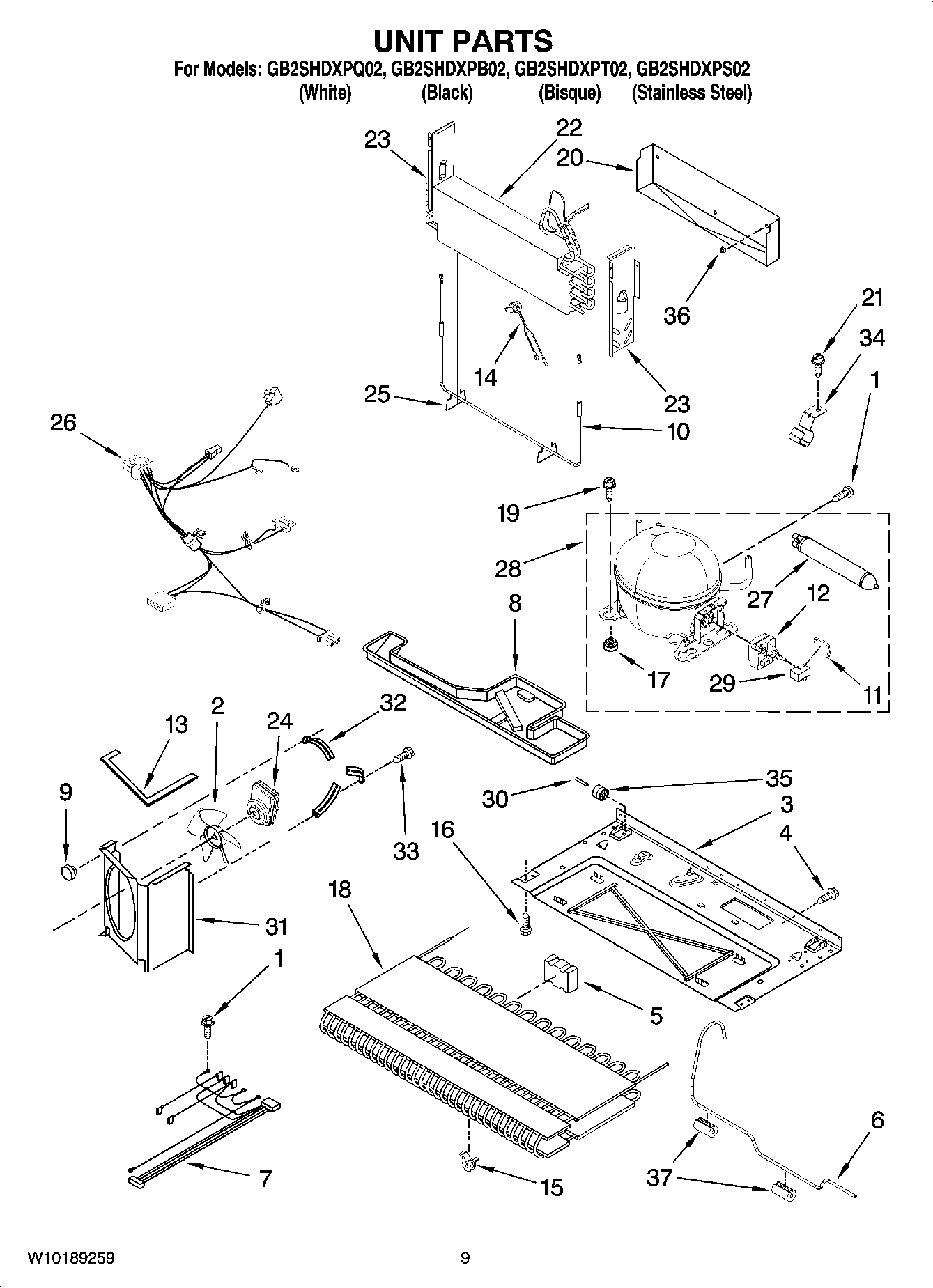

Model Whirlpool GB2SHDXPB02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.99

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI147175A Contact Us For Availability

Following Parts Not Illustrated WPL ARI147177A Contact Us For Availability

Following Parts Not Illustrated WPL ARI147173A Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPA WPL 799833 Contact Us For Availability

WPL ARI147183A WPL ARI147183A Contact Us For Availability

WPL ARI147184A WPL ARI147184A Contact Us For Availability

WPL ARI147185A WPL ARI147185A Contact Us For Availability

WPL ARI147186A WPL ARI147186A Contact Us For Availability

1

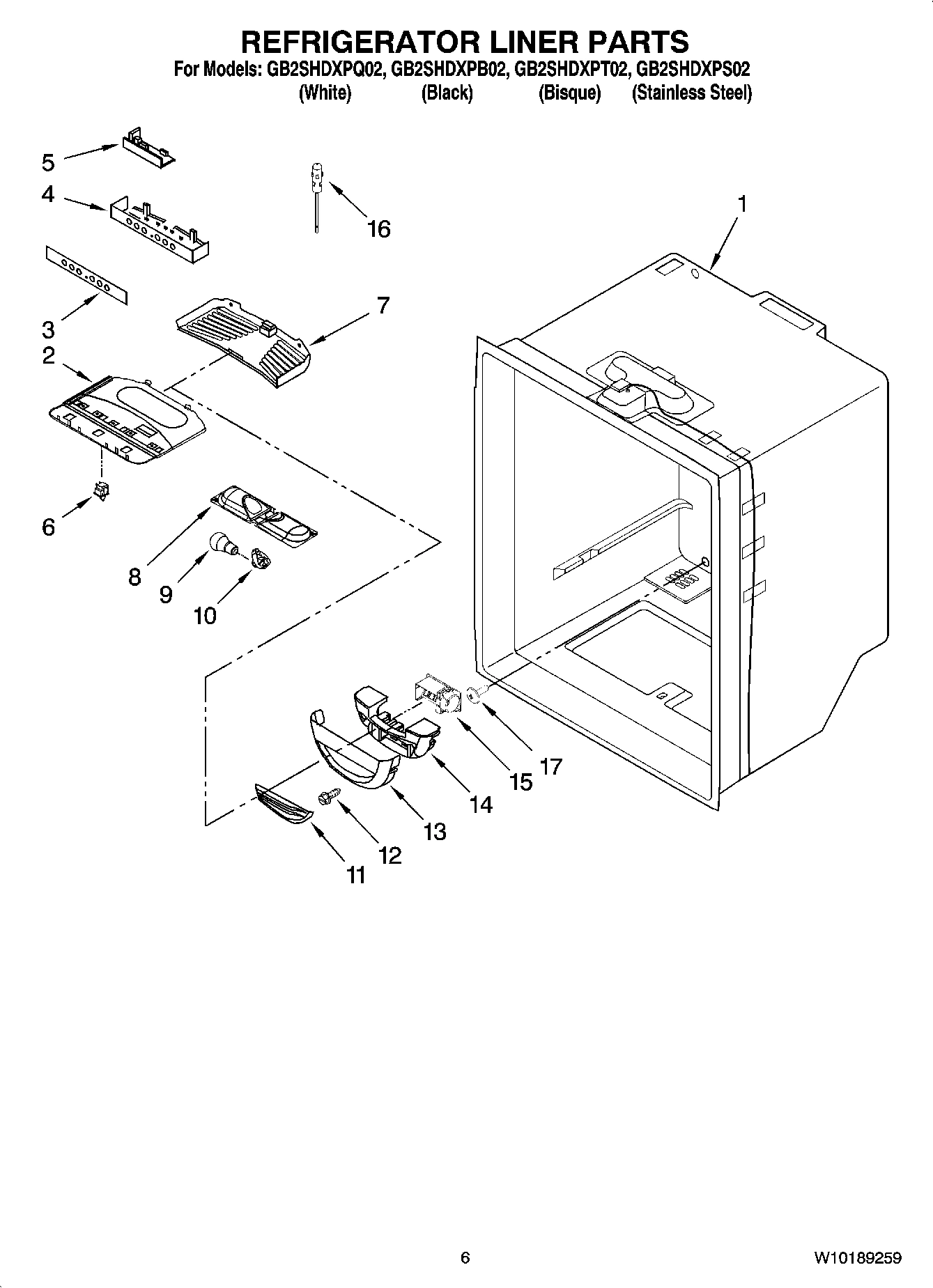

Liner (Not A Seviceable Part) WPL ARI147174A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI147176A Contact Us For Availability

1

Energy Guide WPL W10123933 Contact Us For Availability

1

Use & Care Guide WPL W10137645 Contact Us For Availability

1

Tech Sheet WPL W10165418 Contact Us For Availability

1

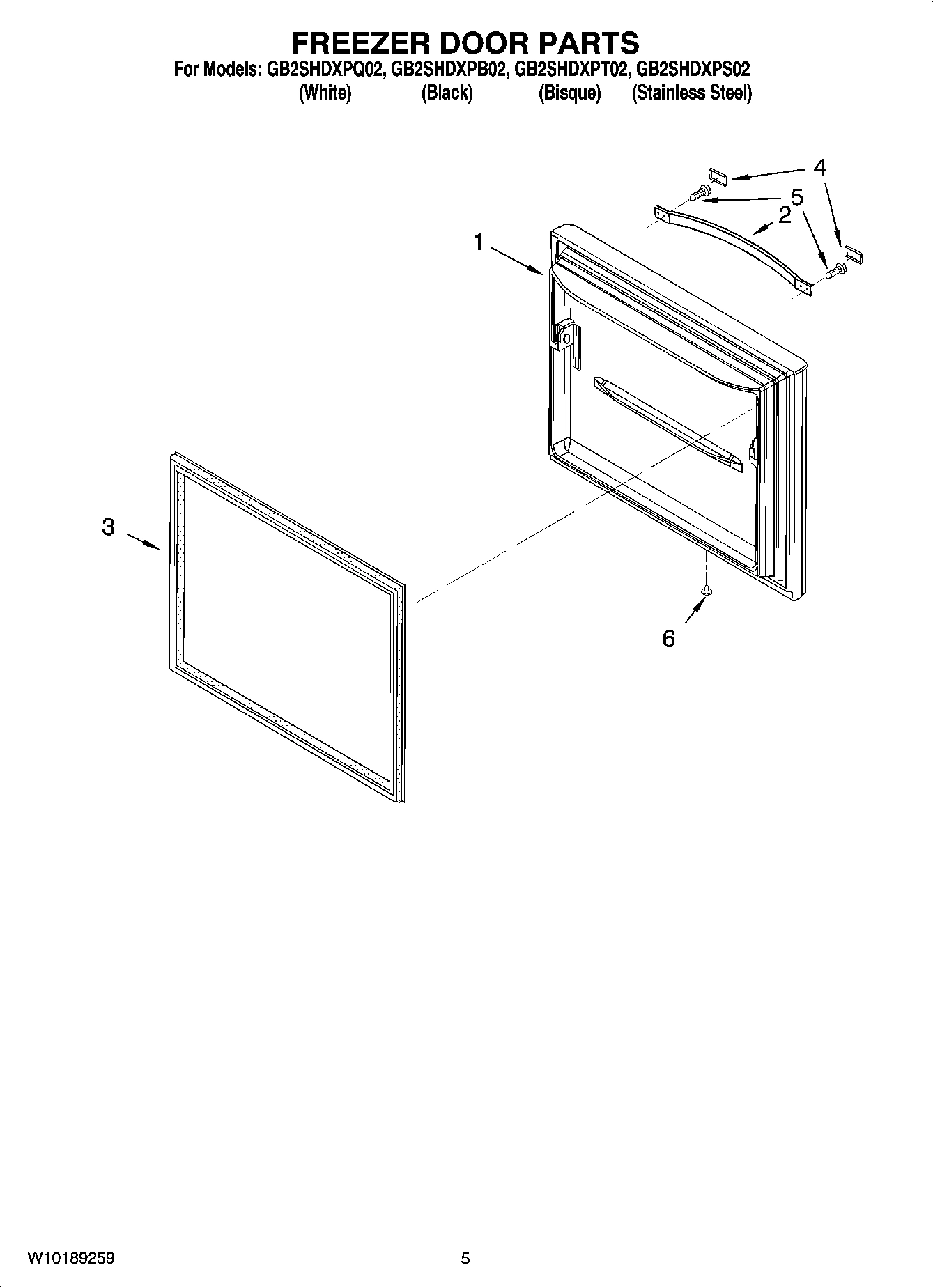

Freezer Door (w/ Insulation) (White) WPL W10189270 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Black) WPL W10189271 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Stainless Steel WPL W10189272 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Bisque) WPL W10189273 Contact Us For Availability

1

Mold & Heater (Not Available, Order 4396418) WPL ARI147180A Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

2

WP2217185B Whirlpool Refrigerator Handle Backorder WPL WP2217185B $119.30

2

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

2

Rack, Wine WPL 12052502 Contact Us For Availability

2

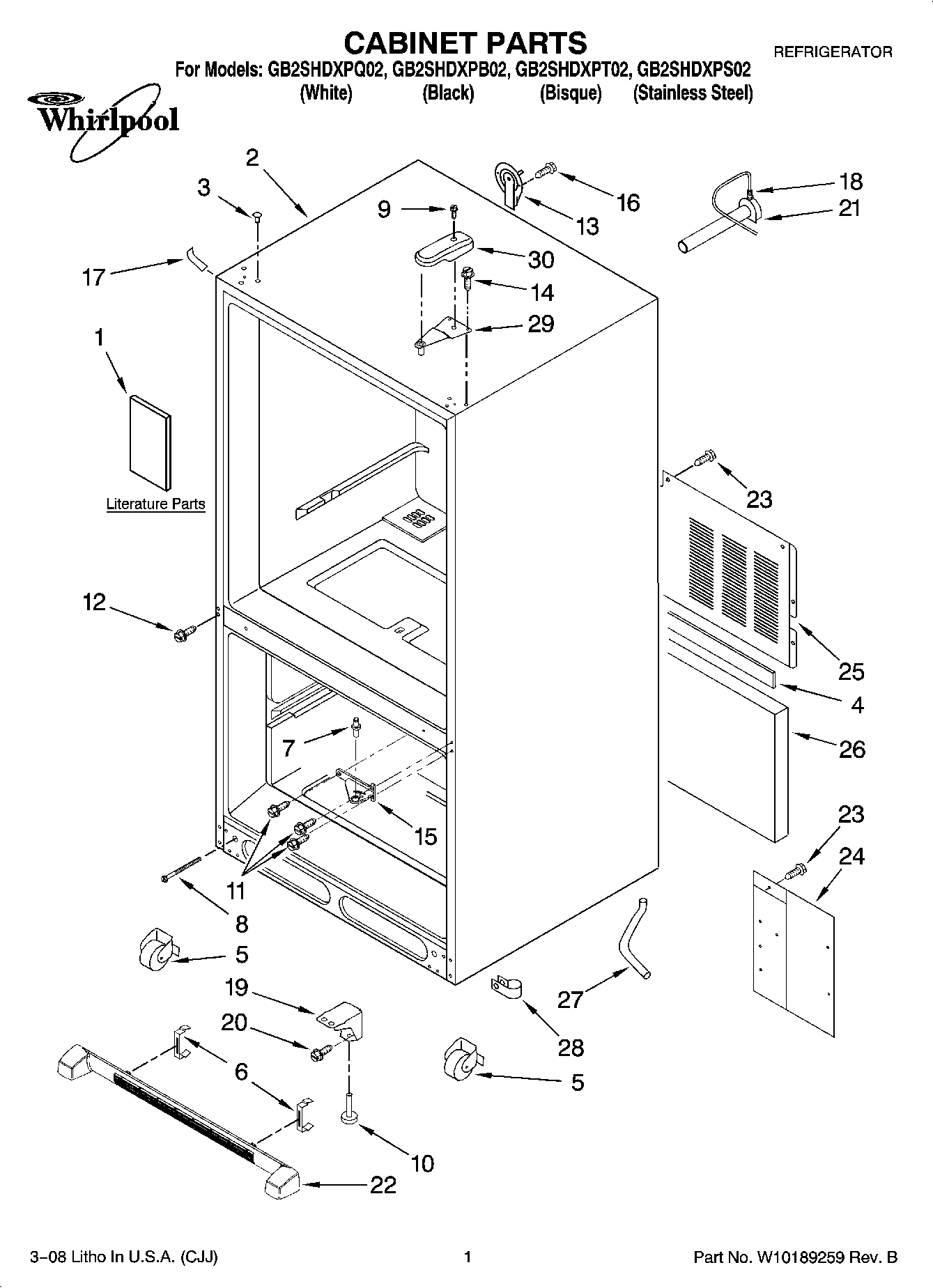

Cabinet (Not A Servicable Part) WPL ARI147172A Contact Us For Availability

2

Handle (White) WPL 67002677 Contact Us For Availability

2

Handle (Bisque) WPL 67002678 Contact Us For Availability

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $177.56

3

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $4.82

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $202.86

3

Overlay WPL 67005190 Contact Us For Availability

3

Divider, Basket (Lower) WPL 67006644 Contact Us For Availability

3

Plug, Button (3) (Bisque) WPL M0310738 Contact Us For Availability

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $70.09

4

Trim, Handle (White) WPL 67002682 Contact Us For Availability

4

Cover, Light WPL 67003905 Contact Us For Availability

4

Basket, Freezer (Upper) WPL 67004986 Contact Us For Availability

4

Gasket WPL B5759649 Contact Us For Availability

4

Trim, Handle (Black) WPL 67002680 Contact Us For Availability

4

Trim, Handle (Bisque) WPL 67002681 Contact Us For Availability

5

W10709784 Whirlpool Refrigerator Handle Plug Backorder WPL W10709784 $11.38

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $41.96

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $209.99

5

Basket, Freezer (Lower) WPL 67006024 Contact Us For Availability

5

Roller Assembly WPL 67006118 Contact Us For Availability

6

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $6.70

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

6

Frame, Glide (3) WPL 2174036 Contact Us For Availability

6

Clip, Grille WPL 12627302 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.99

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $64.80

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $71.00

8

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

8

Thermostat (Not Available, Order 4396418) WPL ARI147181A Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

9

Meat Pan WPL 2225287 Contact Us For Availability

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.78

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $11.79

Housing, Frz. Light WPL 67001035 Contact Us For Availability

Divider, Basket (Upper) WPL 67004127 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $5.99

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $187.17

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $131.36

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $4.99

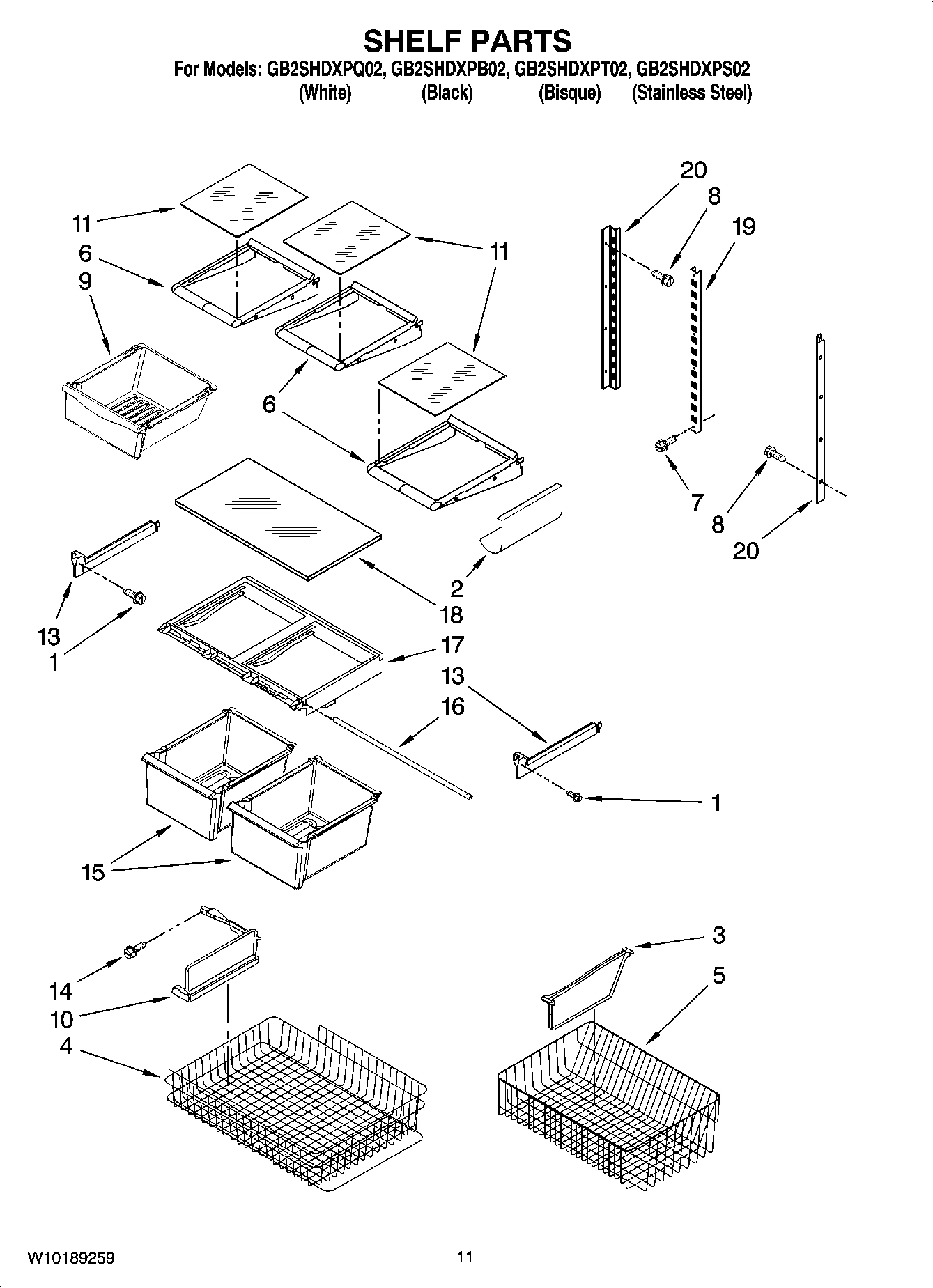

Shelf Glass (3) WPL 2165883 Contact Us For Availability

12

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

12

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.99

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $71.86

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $95.99

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $96.99

Support, Crisper (Left Side) WPL 67004657 Contact Us For Availability

Support, Crisper (Right Side) WPL 67004658 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $77.56

Backorder WPL W11750607 $29.99

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.99

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $75.73

Screw WPL 67006608 Contact Us For Availability

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $42.00

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $94.95

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.99

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $108.45

Crisper (2) WPL 67002851 Contact Us For Availability

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.77

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $63.44

Support, Crisper Cvr WPL 12242501 Contact Us For Availability

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $8.89

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

Frame, Crisper WPL 67002670 Contact Us For Availability

Cover, Corner (Bisque) WPL 67003486 Contact Us For Availability

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $56.63

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $56.63

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Glass, Crisper Cover WPL 2174144 Contact Us For Availability

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $110.99

Ladder, Center WPL 67002854 Contact Us For Availability

Hinge, Bottom (Black) WPL 67001238 Contact Us For Availability

Hinge, Bottom (White) WPL 67001239 Contact Us For Availability

Module Assembly (Not Available, Order 4396418 WPL ARI147182A Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $4.99

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $73.88

Ladder, Side WPL 67002855 Contact Us For Availability

21

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $67.99

21

Bracket, Slide (Left) WPL W10128118 Contact Us For Availability

21

Bracket, Slide (Right) WPL W10128119 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $242.42

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $50.99

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $90.08

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $83.99

Grille Assembly (Includes Clips) (Bisque) WPL 67006791 Contact Us For Availability

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $63.26

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

24

Cover, Water Valve WPL 67001097 Contact Us For Availability

24

SCREW WPL 8170943 Contact Us For Availability

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $31.89

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Cover, Unit WPL 12575101ED Contact Us For Availability

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $221.05

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $14.02

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.88

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $9.35

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.75

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $90.04

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

28

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

28

Spring WPL 4343686 Contact Us For Availability

29

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $28.86

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

29

Clip, Wire WPL 4343984 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.99

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $32.37

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

Cover, Hinge (Bisque) WPL 67001013 Contact Us For Availability

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $46.36

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

36

Clip, Evaporator WPL 10623002 Contact Us For Availability

37

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $125.99
