Model Whirlpool FGS337KW1 GAS RANGE – Common Parts & Diagrams

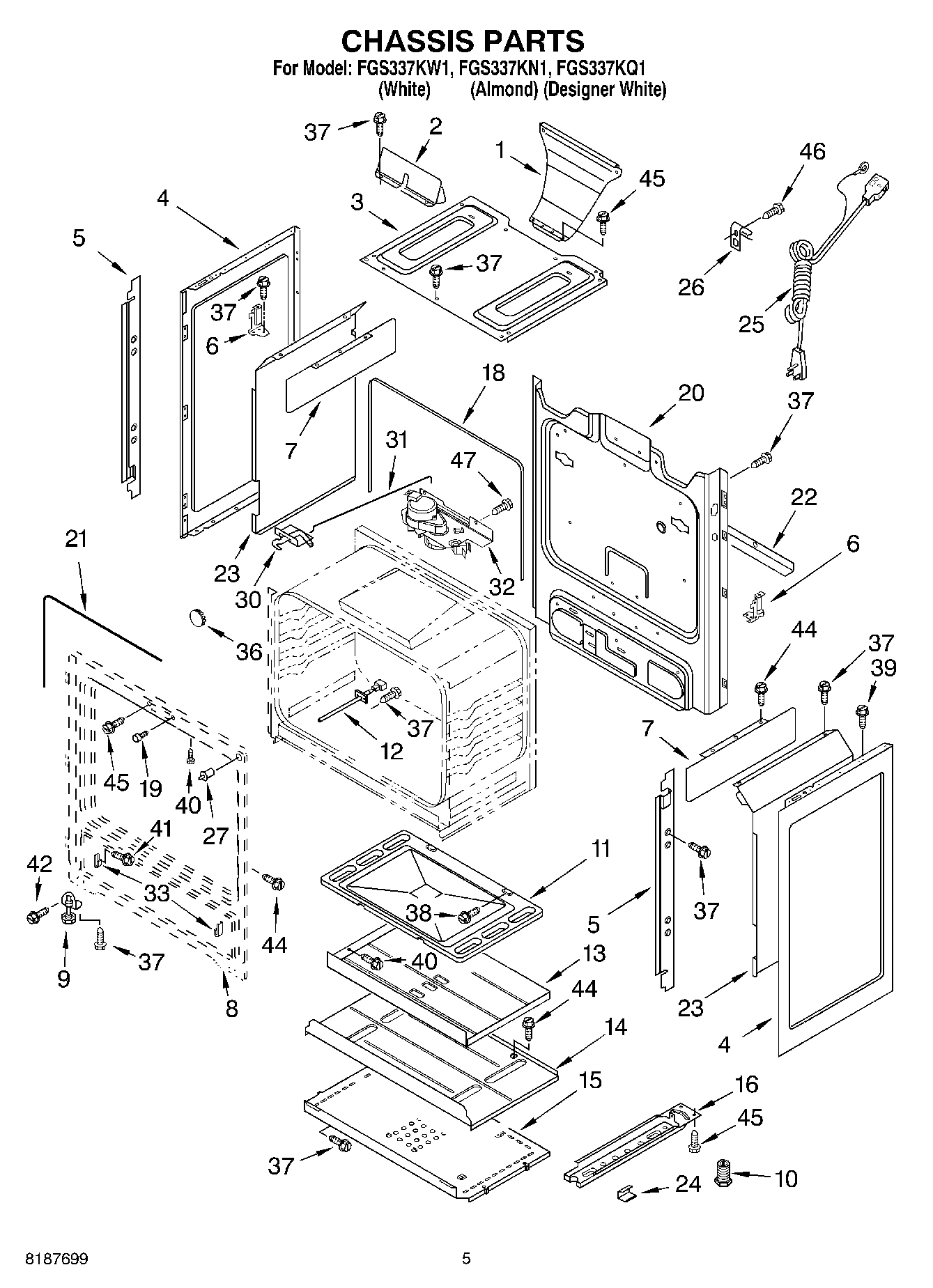

04 - CHASSIS

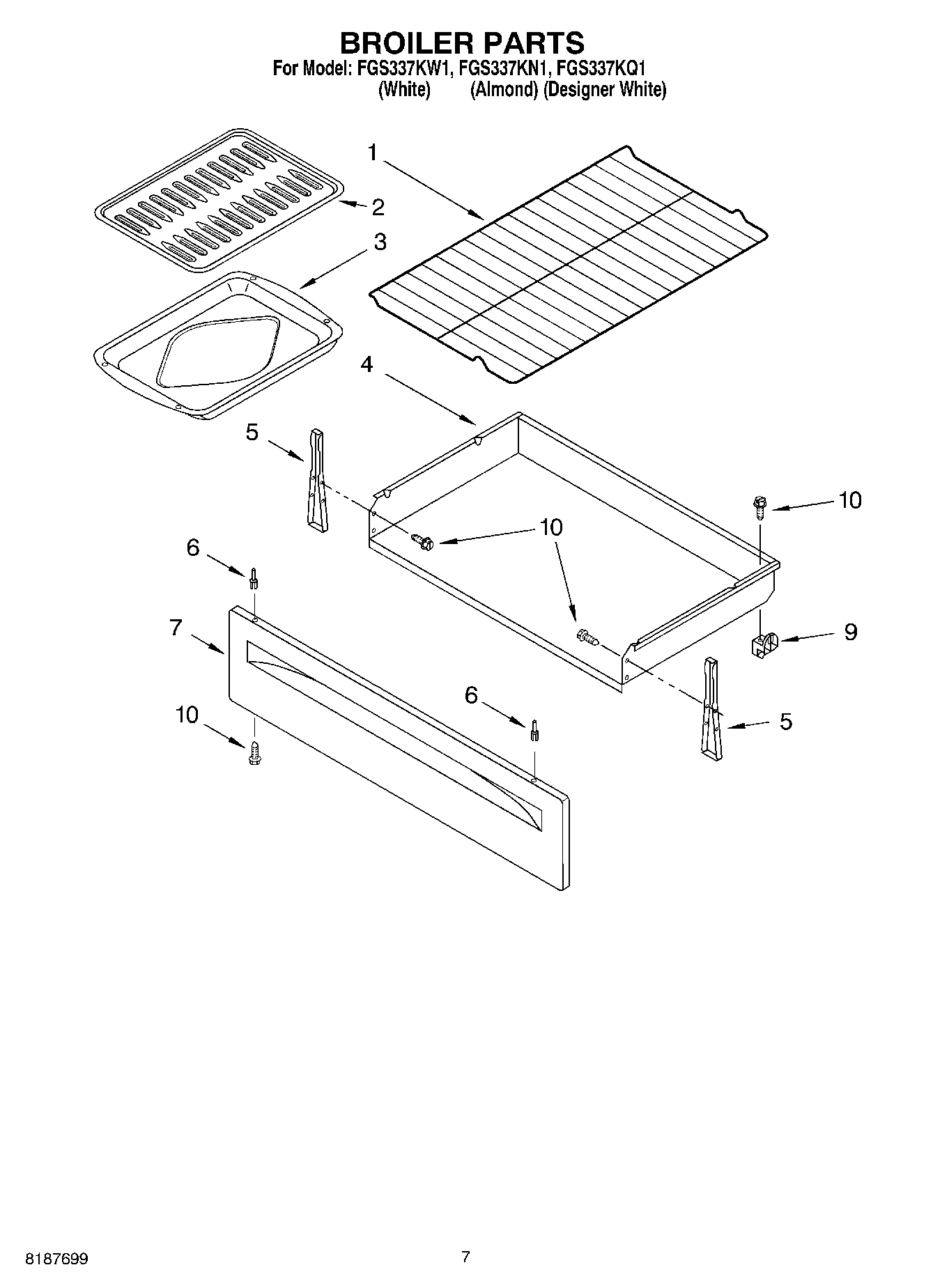

05 - BROILER

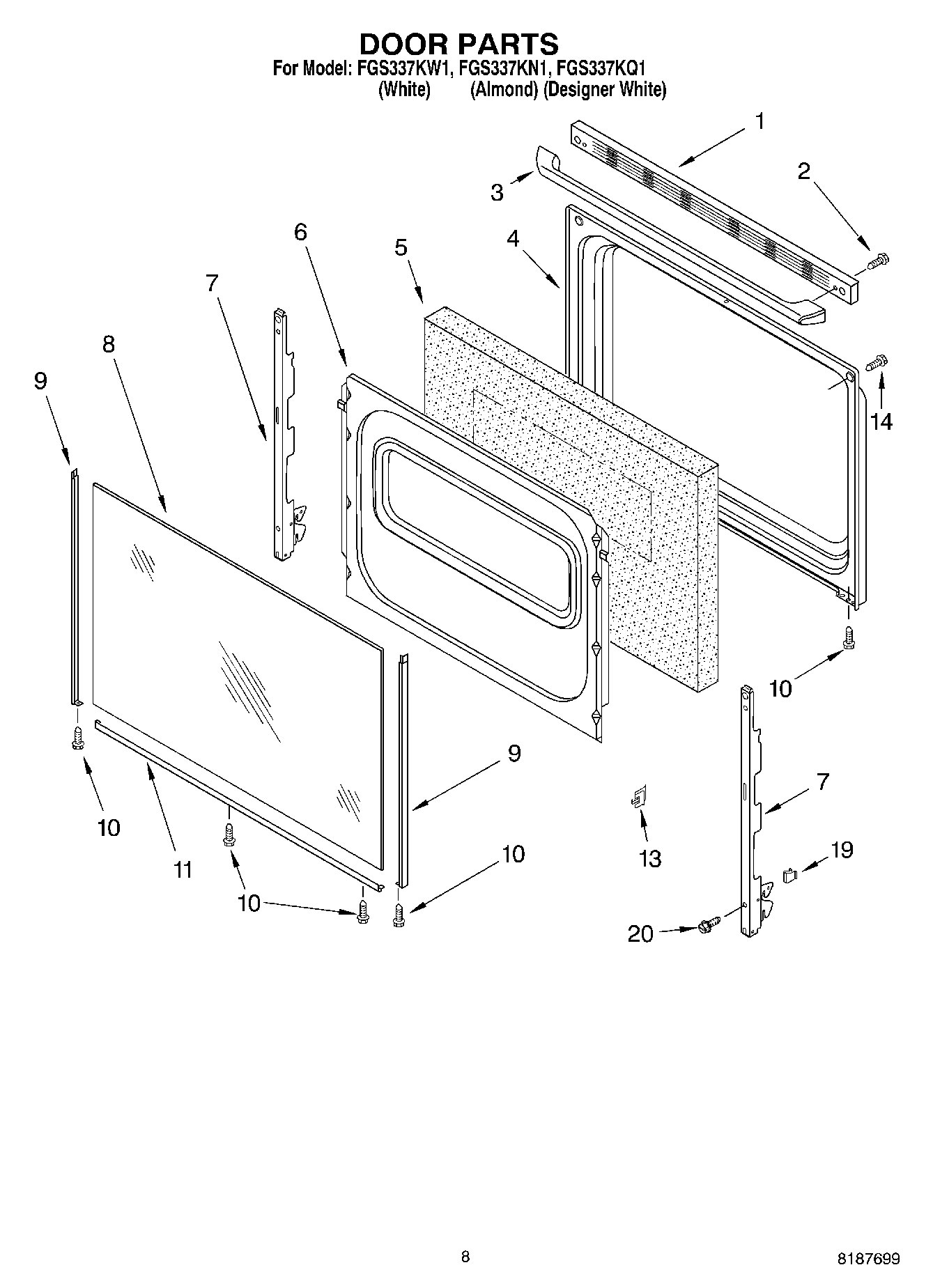

06 - DOOR

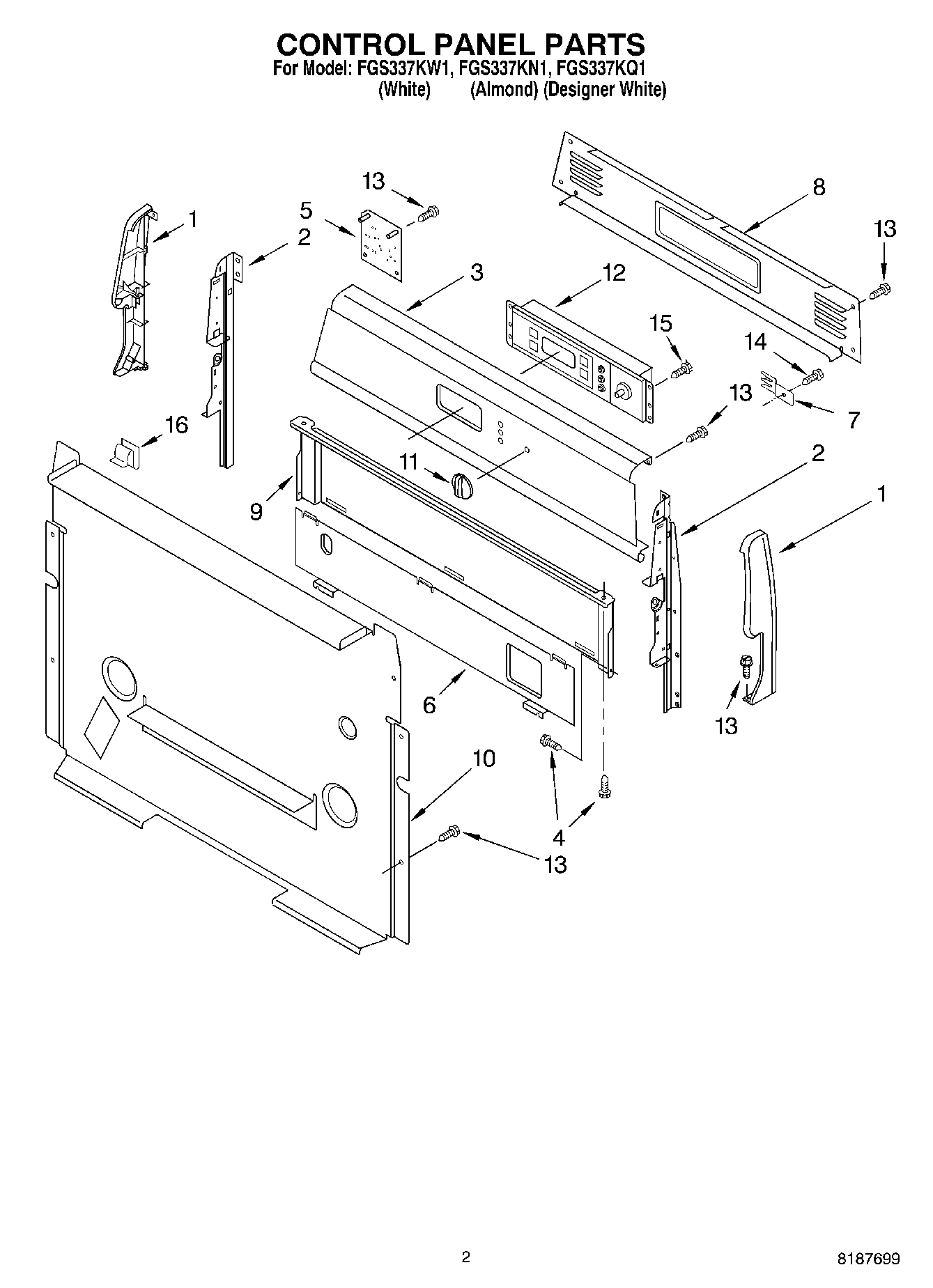

02 - CONTROL PANEL

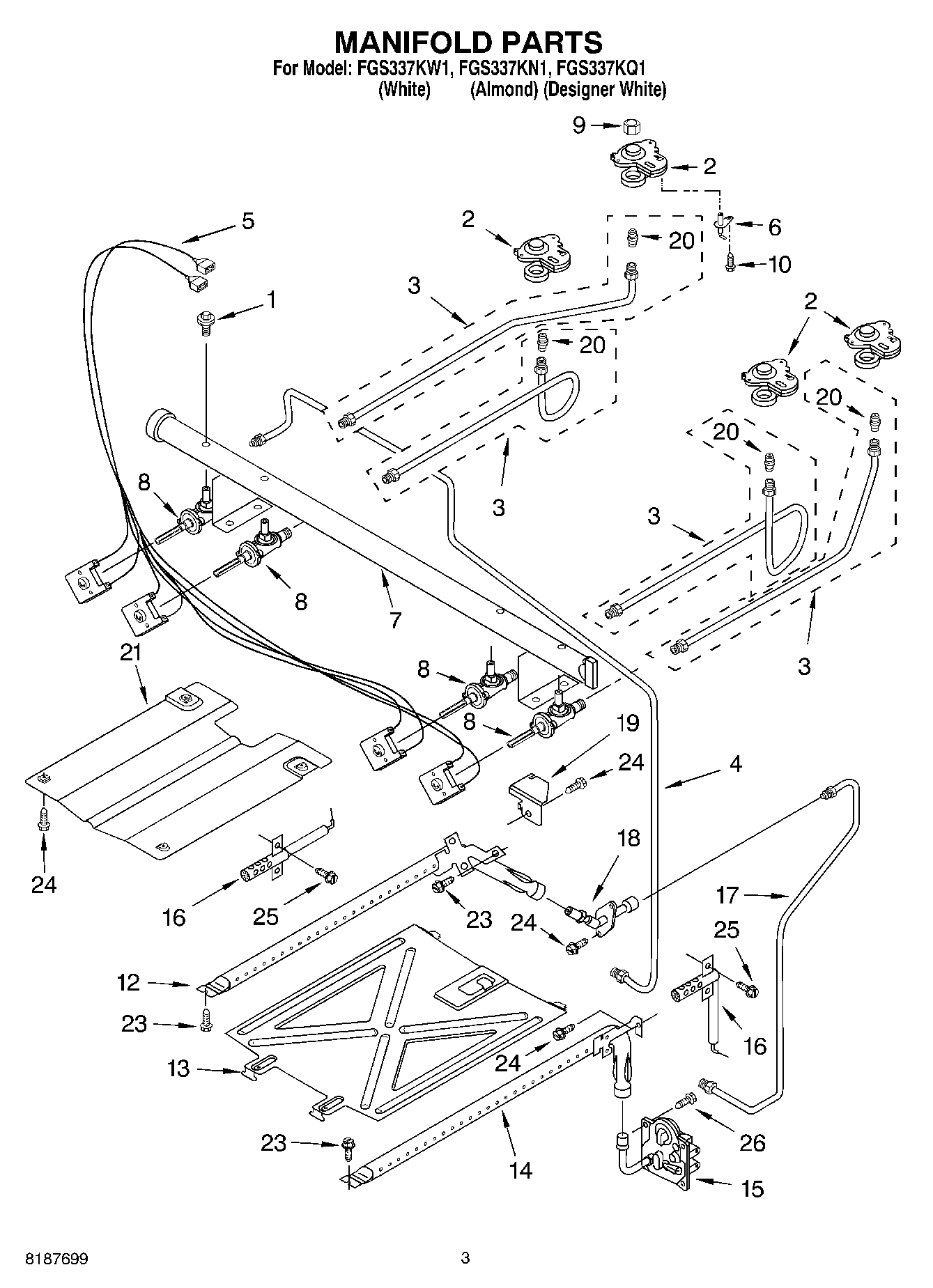

03 - MANIFOLD

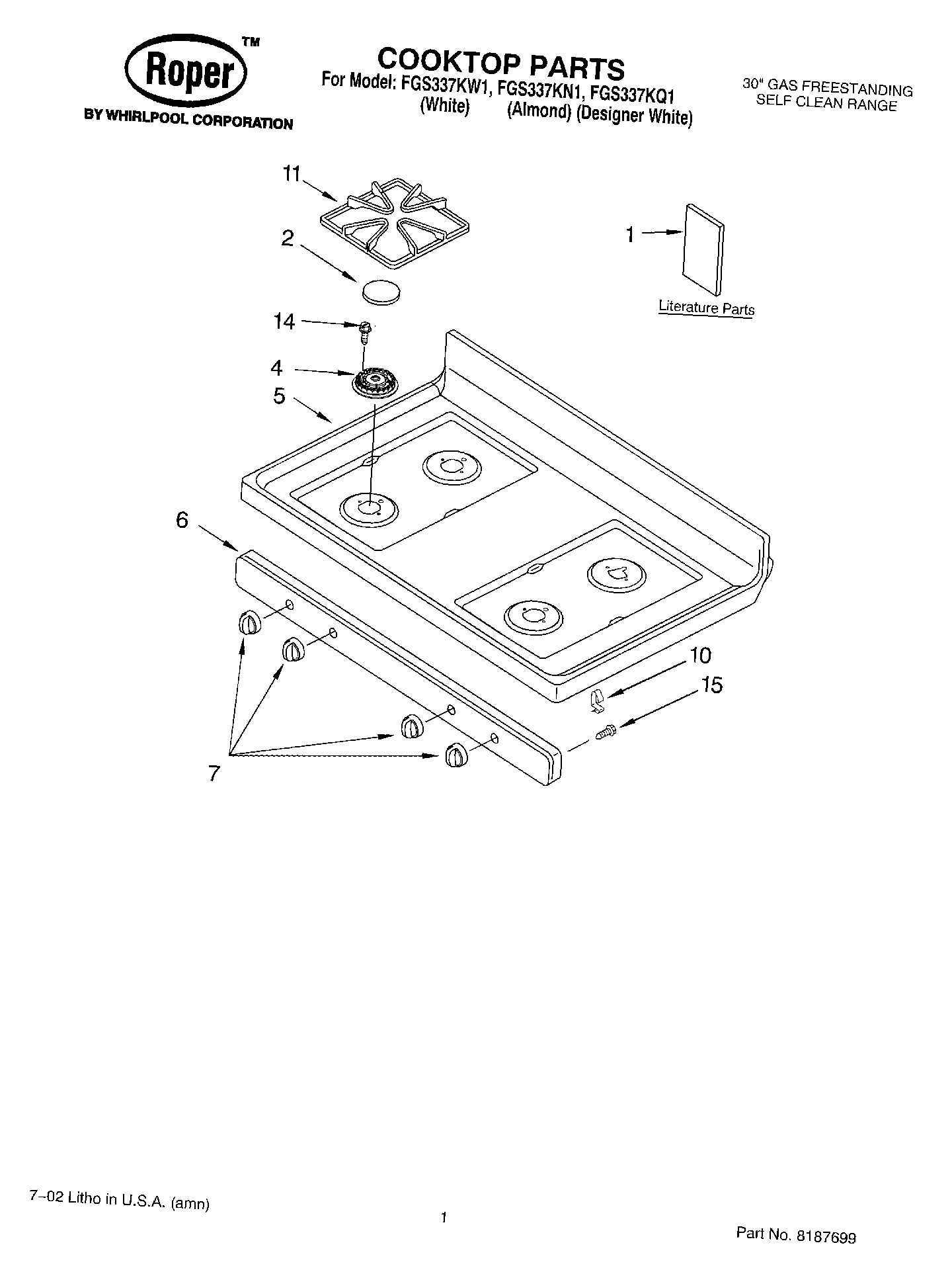

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool FGS337KW1 GAS RANGE
1
Screw, Valve WPL 8273096 Contact Us For Availability
1
Endcap (Left Hand-Black) WPL 3195316 Contact Us For Availability
1
Endcap (Right Hand-Black) WPL 3195317 Contact Us For Availability
1
Endcap (Left Hand-White) WPL 3195318 Contact Us For Availability
1
Endcap (Right Hand-White) WPL 3195319 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8273169 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8273173 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT8522407 Contact Us For Availability
1
Literature Parts (Installation Instr (Templat WPL LIT8523048 Contact Us For Availability
2
Burner Base (Small (1)) WPL 8273701 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 8523408 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 8523409 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Front) WPL 8273695 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability
3
Panel, Backguard (White) WPL 8522385 Contact Us For Availability
3
Panel, Backguard (Black) WPL 8522386 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Rear) WPL 8273698 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Front) WPL 8273699 Contact Us For Availability
4
Screw WPL 4449746 Contact Us For Availability
4
Tubing (Manifold to Regulator) WPL 8523402 Contact Us For Availability
5
Harness, Igniter (W/Switches) WPL 8523405 Contact Us For Availability
5
Cooktop (Almond) WPL 8272252 Contact Us For Availability
6
Panel, Manifold (White) WPL 8273032 Contact Us For Availability
6
Panel, Manifold (Black) WPL 8273034 Contact Us For Availability
7
Hinge, Door (2) WPL 8053808 Contact Us For Availability
7
Pipe, Manifold WPL 8523407 Contact Us For Availability
7
Knob, Burner (4) (Black) WPL 8273118 Contact Us For Availability
7
Knob, Burner (4) (White) WPL 8273119 Contact Us For Availability
8
Glass, Outer Door (White) WPL 3196810 Contact Us For Availability
8
Glass, Outer Door (Black) WPL 3195610 Contact Us For Availability
8
Cover, Upper WPL 8272474 Contact Us For Availability
8
Valve (4) WPL 8273056 Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
9
Shield, Heat WPL 8053910 Contact Us For Availability
10
Cover, Lower WPL 8273132 Contact Us For Availability
10
Clip, Cooktop (2) WPL 3195813 Contact Us For Availability
11
Knob-150 Control (White) WPL 8053355 Contact Us For Availability
11
Knob-150 Control (Black) WPL 8053354 Contact Us For Availability
12
Control, Range (Black) WPL 3196970 Contact Us For Availability
12
Control, Range (White) WPL 3196971 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
19
Cover, Igniter WPL 8272403 Contact Us For Availability
20
WPL 8273901 WPL 8273901 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Orifice, Burner (LF) WPL 8273063 Contact Us For Availability
20
WPL 799344 WPL 799344 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
TIE,WIRE WPL 3195927 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 8053527 WPL 8053527 Contact Us For Availability
20
WPL 8274195 WPL 8274195 Contact Us For Availability
20
WPL 8523423 WPL 8523423 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
26
Spuds, LP Gas (Kit of 4) WPL 8273175 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
× ![]()
