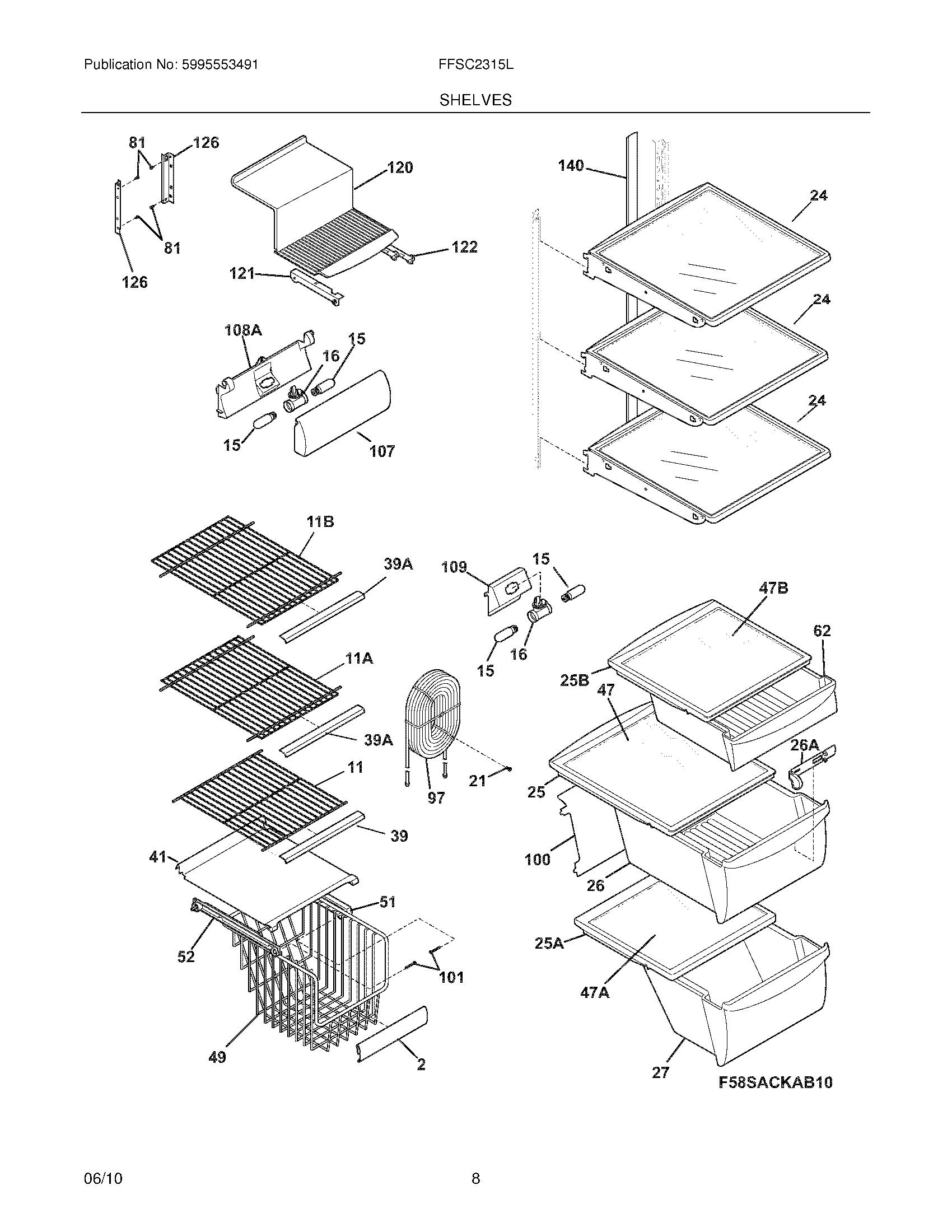

Model Electrolux FFSC2315LE0 REFRIGERATOR – Common Parts &amp; Diagrams

1

241510204 Frigidaire Refrigerator Door Gasket Backorder WCI 241510204 $226.29

2

241510203 Frigidaire Refrigerator Gasket Door In Stock WCI 241510203 $173.08

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $166.61

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $32.71

4

241515202 Frigidaire Refrigerator Container Backorder WCI 241515202 $74.85

4B

241511601 Frigidaire Refrigerator Door Bin Backorder WCI 241511601 $31.61

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $44.94

5

WCI 241516101 WCI 241516101 Contact Us For Availability

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $31.04

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $28.28

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $40.48

7

241515301 Frigidaire Refrigerator Cover Backorder WCI 241515301 $93.71

7

241515606 Frigidaire Refrigerator Door-Dairy In Stock WCI 241515606 $32.73

7

WCI 5304458382 WCI 5304458382 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

9

241518301 Frigidaire Refrigerator Bushing In Stock WCI 241518301 $46.05

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $16.62

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $46.00

10A

241719711 Frigidaire Refrigerator Evaporator Backorder WCI 241719711 $85.40

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $33.28

11

5304458400 Frigidaire Refrigerator Thermal Cu Backorder WCI 5304458400 $48.27

11

WCI 241657605 WCI 241657605 Contact Us For Availability

11A

WCI 241657505 WCI 241657505 Contact Us For Availability

11B

241657506 Frigidaire Refrigerator Freezer She Backorder WCI 241657506 $50.49

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $44.87

13

5304456665 Frigidaire Refrigerator Thermostat In Stock WCI 5304456665 $98.14

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $100.27

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $50.47

14

240505801 Frigidaire Light Switch Backorder WCI 240505801 $52.14

14A

242060201 Frigidaire Refrigerator Light Switc In Stock WCI 242060201 $28.44

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $14.94

15

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $436.59

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $67.67

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $50.24

16

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $46.57

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.81

17

241679801 Frigidaire Screw Backorder WCI 241679801 $11.09

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $12.72

18

WCI 242059104 No Longer Available

18

WCI 242059102 WCI 242059102 Contact Us For Availability

19

WCI 5304458378 WCI 5304458378 Contact Us For Availability

20

241675502 Frigidaire Refrigerator Motor Cover Backorder WCI 241675502 $107.06

21

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $20.06

21

5304458390 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304458390 $42.02

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.67

241856502 Frigidaire Door Closer Plate In Stock WCI 241856502 $17.18

242015302 Frigidaire Refrigerator Bearing Hin In Stock WCI 242015302 $7.77

WCI 5304458375 WCI 5304458375 Contact Us For Availability

22A

242000502 Frigidaire Hinge Bearing In Stock WCI 242000502 $4.44

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $16.64

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $33.26

23

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $65.45

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $117.03

24

241682003 Frigidaire Refrigerator Black Water In Stock WCI 241682003 $43.27

24A

241681903 Frigidaire Refrigerator Ice Dispens In Stock WCI 241681903 $65.43

25

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $10.50

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $76.55

25

WCI 240491503 WCI 240491503 Contact Us For Availability

25A

240350903 Frigidaire Refrigerator Crisper Pan In Stock WCI 240350903 $72.11

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $5.52

26

240351061 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351061 $83.99

26

241697502 Frigidaire Defrost Drain Pan Backorder WCI 241697502 $123.03

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $54.34

27

240351207 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351207 $143.13

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $38.83

30

241707709 Frigidaire Refrigerator Starter Backorder WCI 241707709 $58.80

30

242034601 Frigidaire Refrigerator Lower Hinge In Stock WCI 242034601 $45.48

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $39.37

30A

242034604 Frigidaire Refrigerator Lower Hinge In Stock WCI 242034604 $38.24

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $43.75

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $29.95

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $6.61

34

240405201 Frigidaire Refrigerator Grommet In Stock WCI 240405201 $13.71

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $6.09

35

241689301 Frigidaire Refrigerator Rotary Damp Backorder WCI 241689301 $51.55

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $12.72

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $13.29

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $6.09

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $16.07

37B

241684108 Frigidaire Washer Poly V-Belt Backorder WCI 241684108 $16.07

37C

241684109 Frigidaire Ice Crusher Blade Backorder WCI 241684109 $16.07

38

240327207 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327207 $44.92

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $6.09

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $33.82

39

WCI 240430709 WCI 240430709 Contact Us For Availability

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $39.21

40

WCI 5304458401 WCI 5304458401 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount Backorder WCI 241550801 $46.57

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $17.18

41

WCI 241637601 WCI 241637601 Contact Us For Availability

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $22.73

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $11.07

43

241720601 Frigidaire Refrigerator Extension In Stock WCI 241720601 $16.05

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $18.27

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.96

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $54.88

45C

241676101 Frigidaire Refrigerator Solenoid-Ac Backorder WCI 241676101 $50.46

46

WCI 241684402 WCI 241684402 Contact Us For Availability

47

240350649 Frigidaire Refrigerator Glass Inser In Stock WCI 240350649 $97.60

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $62.86

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $11.09

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $90.42

47B

240443391 Frigidaire Refrigerator Glass Pan C Backorder WCI 240443391 $90.40

48

241511706 Frigidaire Refrigerator Door Bin In Stock WCI 241511706 $56.58

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $83.77

49

241505306 Frigidaire Refrigerator Door Bin In Stock WCI 241505306 $55.54

49

241515001 Frigidaire Refrigerator Basket Slid Backorder WCI 241515001 $147.52

49

WCI 241676501 WCI 241676501 Contact Us For Availability

49A

241505506 Frigidaire Refrigerator Door Bin Backorder WCI 241505506 $70.46

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $62.67

51

241514501 Frigidaire Refrigerator Basket Hang Backorder WCI 241514501 $57.69

51

WCI 241676301 WCI 241676301 Contact Us For Availability

52

241514601 Frigidaire Refrigerator Basket Hang Backorder WCI 241514601 $59.88

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $22.19

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $14.94

54

241532401 Frigidaire Refrigerator Channel In Stock WCI 241532401 $18.24

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $15.51

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $38.83

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $10.50

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $14.97

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $10.79

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

241755401 Frigidaire Refrigerator Air Diffuse Backorder WCI 241755401 $29.36

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $16.05

62

241974604 Frigidaire Refrigerator Meat Pan In Stock WCI 241974604 $103.15

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $8.31

66

241861301 Frigidaire Refrigerator Damper Hous Backorder WCI 241861301 $80.96

66A

WCI 241861201 WCI 241861201 Contact Us For Availability

70

241515801 Frigidaire Refrigerator Compartment Backorder WCI 241515801 $139.21

70

WCI 241504601 WCI 241504601 Contact Us For Availability

72

240324411 Frigidaire Grille Kickplate Backorder WCI 240324411 $53.23

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $47.70

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $15.51

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $15.51

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $54.36

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

100

240326304 Frigidaire Refrigerator Cover Backorder WCI 240326304 $57.71

100

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $6.77

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $4.21

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.00

107

WCI 241753601 WCI 241753601 Contact Us For Availability

108

WCI 241753701 WCI 241753701 Contact Us For Availability

115

241853801 Frigidaire Refrigerator Damper Cont In Stock WCI 241853801 $122.37

120

241691701 Frigidaire Refrigerator Ice Cream S Backorder WCI 241691701 $58.86

121

241504701 Frigidaire Refrigerator Ice Cream S Backorder WCI 241504701 $50.49

122

WCI 241504702 WCI 241504702 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $37.17

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $33.82

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $51.81

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $28.28

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $11.64

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

218976421 Frigidaire Refrigerator Water Inlet Backorder WCI 218976421 $16.05

218976429 Frigidaire Refrigerator Tube Backorder WCI 218976429 $31.63

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $23.27

240346703 Frigidaire Refrigerator Foam Tape Backorder WCI 240346703 $1.68

240349801 Frigidaire Refrigerator Clip Backorder WCI 240349801 $14.99

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $34.37

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.76

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $12.28

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $16.07

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $6.61

241522901 Frigidaire Refrigerator Electrical Backorder WCI 241522901 $85.99

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $13.29

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $36.59

241595202 Frigidaire Refrigerator Clip Backorder WCI 241595202 $13.29

241781601 Frigidaire Refrigerator Air Return Backorder WCI 241781601 $6.61

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $27.17

241914702 Frigidaire Refrigerator Ice Contain In Stock WCI 241914702 $199.54

241987601 Frigidaire Refrigerator Wiring Harn Backorder WCI 241987601 $83.18

5303321321 Frigidaire Refrigerator Black Touc In Stock WCI 5303321321 $16.66

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $461.95

5303918327 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918327 $216.33

WCI 5303918222 WCI 5303918222 Contact Us For Availability

WCI 241519902 WCI 241519902 Contact Us For Availability
