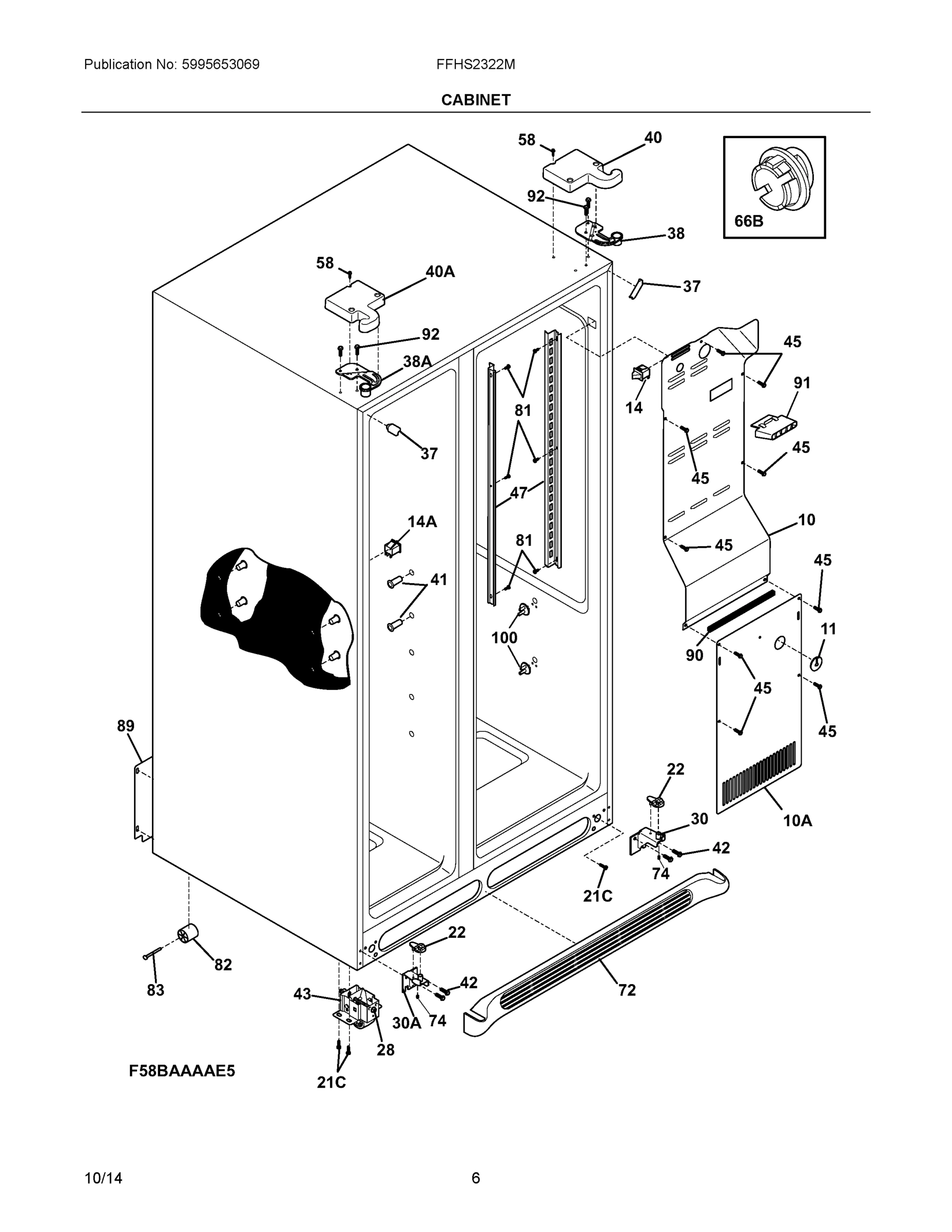

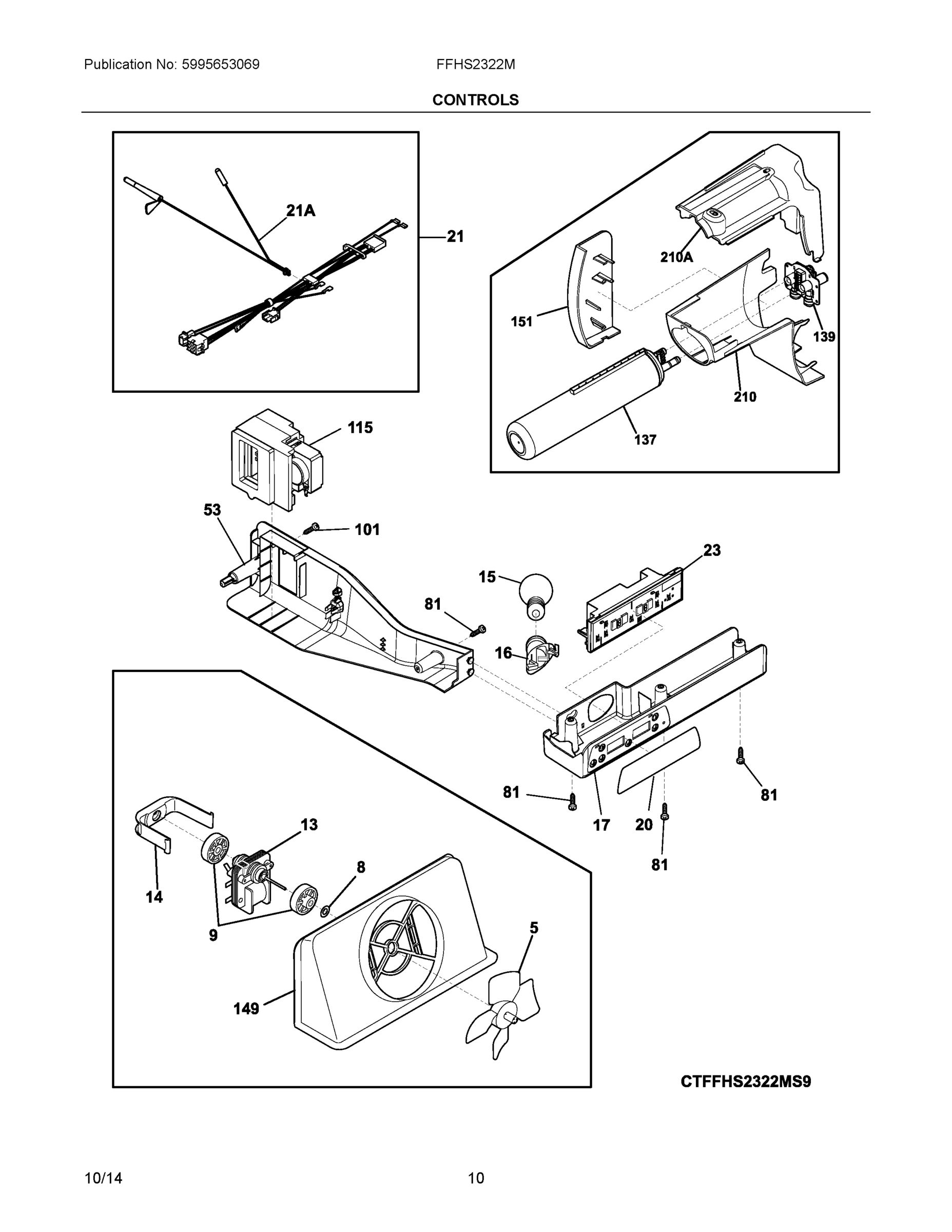

Model Electrolux FFHS2322MWEA REFRIGERATOR – Common Parts &amp; Diagrams

1

241786016 Frigidaire Door Gasket Backorder WCI 241786016 $69.39

1

242106606 Frigidaire Refrigerator Condenser Backorder WCI 242106606 $131.47

2

241716101 Frigidaire Refrigerator Ice Auger In Stock WCI 241716101 $84.29

2

241786015 Frigidaire Door Gasket Backorder WCI 241786015 $70.55

2

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $144.03

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $32.71

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $46.59

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $82.64

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $9.48

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $33.28

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $52.68

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $44.94

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $40.48

6

5304521699 Frigidaire Refrigerator Machine Wi Backorder WCI 5304521699 $106.52

7

241734201 Frigidaire Refrigerator Front Ice C Backorder WCI 241734201 $48.25

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

8

WCI 242083401 WCI 242083401 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $13.86

10

240435911 Frigidaire Refrigerator Cover Backorder WCI 240435911 $82.66

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $16.62

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $46.00

10A

241719710 Frigidaire Refrigerator Evaporator Backorder WCI 241719710 $92.60

11

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $62.10

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $33.28

11

DOOR-FRZR, WHITE, COMPLETE ASSY WCI 242026492 Contact Us For Availability

11A

5304532465 Frigidaire Refrigerator Shelf and Backorder WCI 5304532465 $39.53

11B

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $40.16

13

241942603 Frigidaire Refrigerator Black Door Backorder WCI 241942603 $14.19

13

242077705 Frigidaire Refrigerator Fan Motor In Stock WCI 242077705 $105.37

13A

241942604 Frigidaire Refrigerator Black Door Backorder WCI 241942604 $16.05

240505801 Frigidaire Light Switch Backorder WCI 240505801 $52.14

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $80.96

242083001 Frigidaire Refrigerator Module Cove Backorder WCI 242083001 $68.21

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $6.09

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $19.49

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $14.94

15

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $287.58

15

DOOR-REFR, WHITE, COMPLETE ASSY WCI 242038892 Contact Us For Availability

16

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $13.86

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $50.24

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.81

17

241633512 Frigidaire Refrigerator Control Box Backorder WCI 241633512 $79.31

17

241679801 Frigidaire Screw Backorder WCI 241679801 $11.09

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $12.72

18

242059101 Frigidaire Refrigerator Door Handle Backorder WCI 242059101 $92.08

18

242221501 Frigidaire Refrigerator Auger Motor In Stock WCI 242221501 $115.46

18

WCI 242059103 WCI 242059103 Contact Us For Availability

20

241604010 Frigidaire Refrigerator Control Box Backorder WCI 241604010 $3.31

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $120.92

21

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $20.06

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

21A

241990302 Frigidaire Freezer Hinge Bearing Backorder WCI 241990302 $5.52

21A

242278801 Frigidaire Refrigerator Thermistor In Stock WCI 242278801 $67.67

22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.67

22

241917801 Frigidaire Refrigerator Closer Plat In Stock WCI 241917801 $5.52

22

241990301 Frigidaire Hinge Bearing In Stock WCI 241990301 $5.52

22B

241760403 Frigidaire Refrigerator Bearing Backorder WCI 241760403 $14.97

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $14.94

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $117.03

23

241947001 Frigidaire Refrigerator Drip Tray Backorder WCI 241947001 $15.51

24

240355277 Frigidaire Refrigerator "Spill-Safe Backorder WCI 240355277 $156.42

24

ACTUATOR-WATER, WHITE WCI 242083606 Contact Us For Availability

24A

ACTUATOR-ICE, WHITE WCI 242083501 Contact Us For Availability

25

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $10.50

25

241974201 Frigidaire Cover-Crisper Pan In Stock WCI 241974201 $74.30

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $69.30

26

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $149.76

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $7.35

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $62.12

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $34.37

29

5304524545 Frigidaire Refrigerator Compressor In Stock WCI 5304524545 $450.90

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $38.83

30

241918001 Frigidaire Lower Door Hinge In Stock WCI 241918001 $51.57

30

297259515 Frigidaire Refrigerator Start Relay In Stock WCI 297259515 $58.25

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $39.37

30A

241918004 Frigidaire Lower Bracket Hinge Backorder WCI 241918004 $41.02

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $43.75

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $29.95

32

216954300 Frigidaire Refrigerator Clip Backorder WCI 216954300 $11.76

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $6.61

34

240405201 Frigidaire Refrigerator Grommet In Stock WCI 240405201 $13.71

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $6.09

35

241689301 Frigidaire Refrigerator Rotary Damp Backorder WCI 241689301 $51.55

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $12.72

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $13.29

37

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $2.31

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $16.07

37B

241684108 Frigidaire Washer Poly V-Belt Backorder WCI 241684108 $16.07

37C

241684109 Frigidaire Ice Crusher Blade Backorder WCI 241684109 $16.07

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $51.57

38A

241689104 Frigidaire Refrigerator Micro Switc Backorder WCI 241689104 $92.08

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $50.46

38C

242053503 Frigidaire Refrigerator Control Boa In Stock WCI 242053503 $195.13

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $33.82

40

241946711 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946711 $23.84

40A

241946712 Frigidaire Refrigerator Upper Hinge Backorder WCI 241946712 $26.60

41

241550801 Frigidaire Refrigerator Shelf Mount Backorder WCI 241550801 $46.57

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $11.07

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $18.27

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.96

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.98

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $54.88

45C

241676101 Frigidaire Refrigerator Solenoid-Ac Backorder WCI 241676101 $50.46

45D

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $81.27

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $34.37

47

240350613 Frigidaire Refrigerator Insert Backorder WCI 240350613 $90.40

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $11.09

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $122.46

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $83.77

49

240324501 Frigidaire Bin Door Shelf Backorder WCI 240324501 $61.58

49

240564301 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564301 $108.72

49

241734401 Frigidaire Refrigerator Rail Assemb Backorder WCI 241734401 $162.53

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $62.67

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $47.70

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $13.71

51

WCI 241676301 WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger Backorder WCI 240343102 $51.03

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $22.19

53

241608902 Frigidaire Refrigerator Control Box Backorder WCI 241608902 $75.44

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $14.94

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $15.51

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $38.83

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $87.81

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $29.75

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $10.50

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $14.97

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $37.72

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $10.79

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $114.51

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $9.96

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $16.05

66B

WCI 240374301 WCI 240374301 Contact Us For Availability

74

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.86

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $16.64

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

85

241856909 Frigidaire Refrigerator Connector T Backorder WCI 241856909 $120.35

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $15.51

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $15.51

89

COVER-ACCESS, W/LABEL WCI 241733901 Contact Us For Availability

90

241732703 Frigidaire Refrigerator Light Pipe Backorder WCI 241732703 $24.95

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $54.90

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

97

242220208 Frigidaire Refrigerator Water Inlet In Stock WCI 242220208 $33.82

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $4.21

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.00

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.87

115

242303001 Frigidaire Refrigerator Damper Asse In Stock WCI 242303001 $184.72

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $37.17

126A

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $33.82

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $51.81

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $76.55

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $19.40

210

241983814 Frigidaire Refrigerator Water Housi In Stock WCI 241983814 $58.18

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $10.35

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $22.73

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.76

240494001 Frigidaire Refrigerator Plug Button Backorder WCI 240494001 $13.29

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $48.79

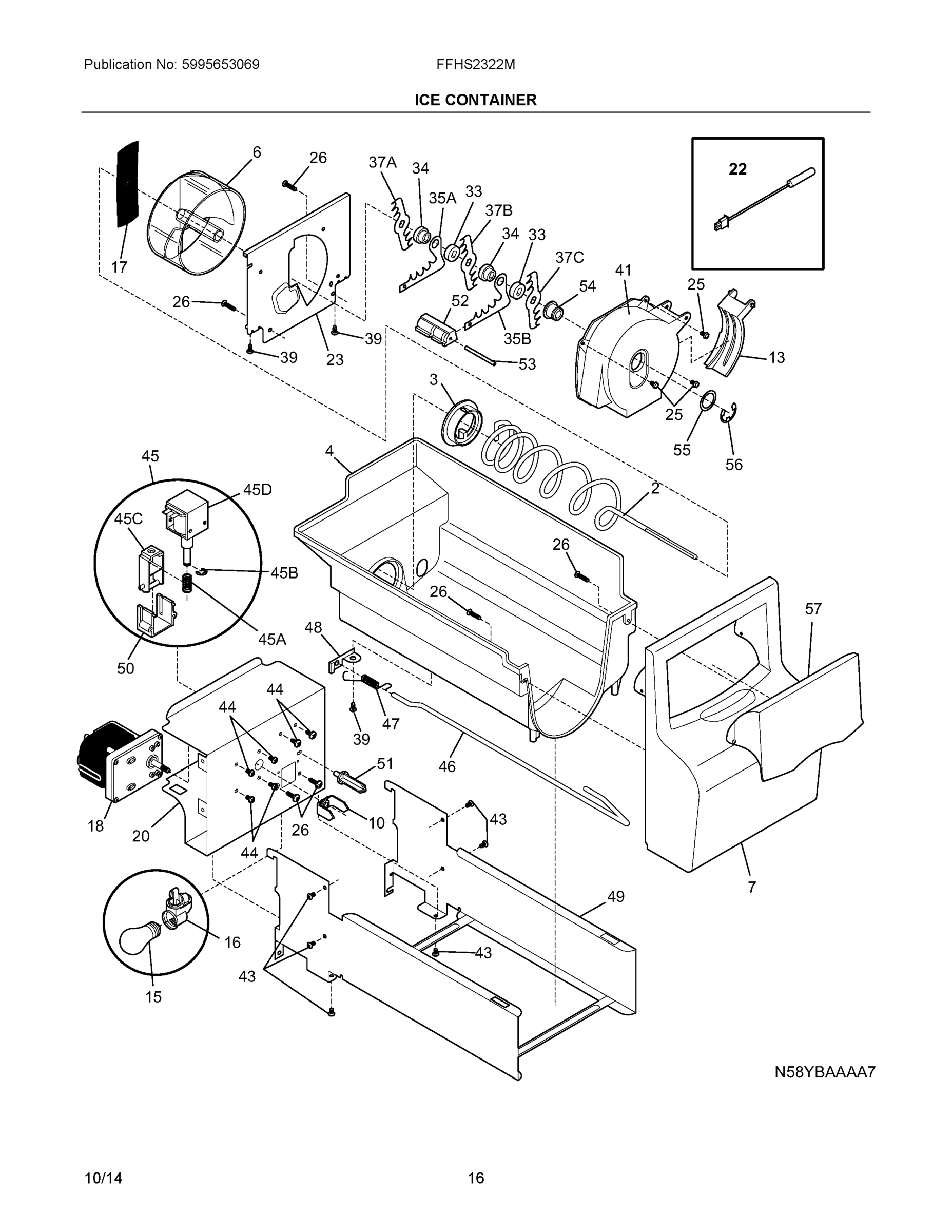

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $150.92

5303321319 Frigidaire Refrigerator White Touc Backorder WCI 5303321319 $11.30

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $461.95

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $278.43

HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

218976439 Frigidaire Refrigerator Water Inlet Backorder WCI 218976439 $14.97

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $23.27

240349801 Frigidaire Refrigerator Clip Backorder WCI 240349801 $14.99

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $34.37

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $6.61

241522901 Frigidaire Refrigerator Electrical Backorder WCI 241522901 $85.99

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $13.29

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $6.77

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $75.41

5304521761 Frigidaire Refrigerator Harness Backorder WCI 5304521761 $46.57

5304521777 Frigidaire Refrigerator Wiring Har In Stock WCI 5304521777 $74.33

NIB

218976440 Frigidaire Refrigerator Tubing Backorder WCI 218976440 $37.15

NIB

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

NIB

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

NIBA

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $11.28

NIC

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $12.28

NIC

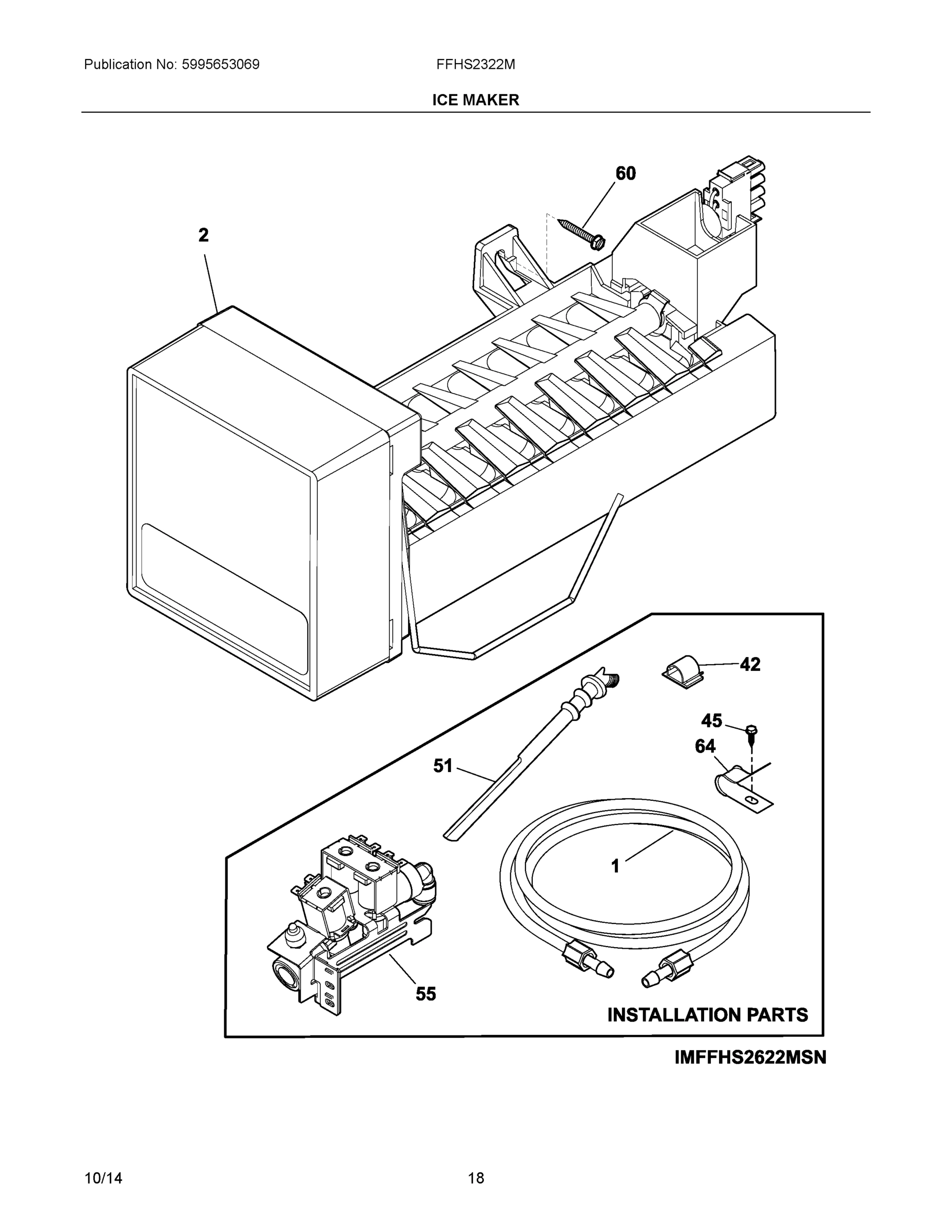

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $27.17

NICA

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $13.31

NID

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $16.07

NIE

242220206 Frigidaire Refrigerator Water Inlet In Stock WCI 242220206 $35.10
