Model FFHS2322MW8 – Common Parts & Diagrams

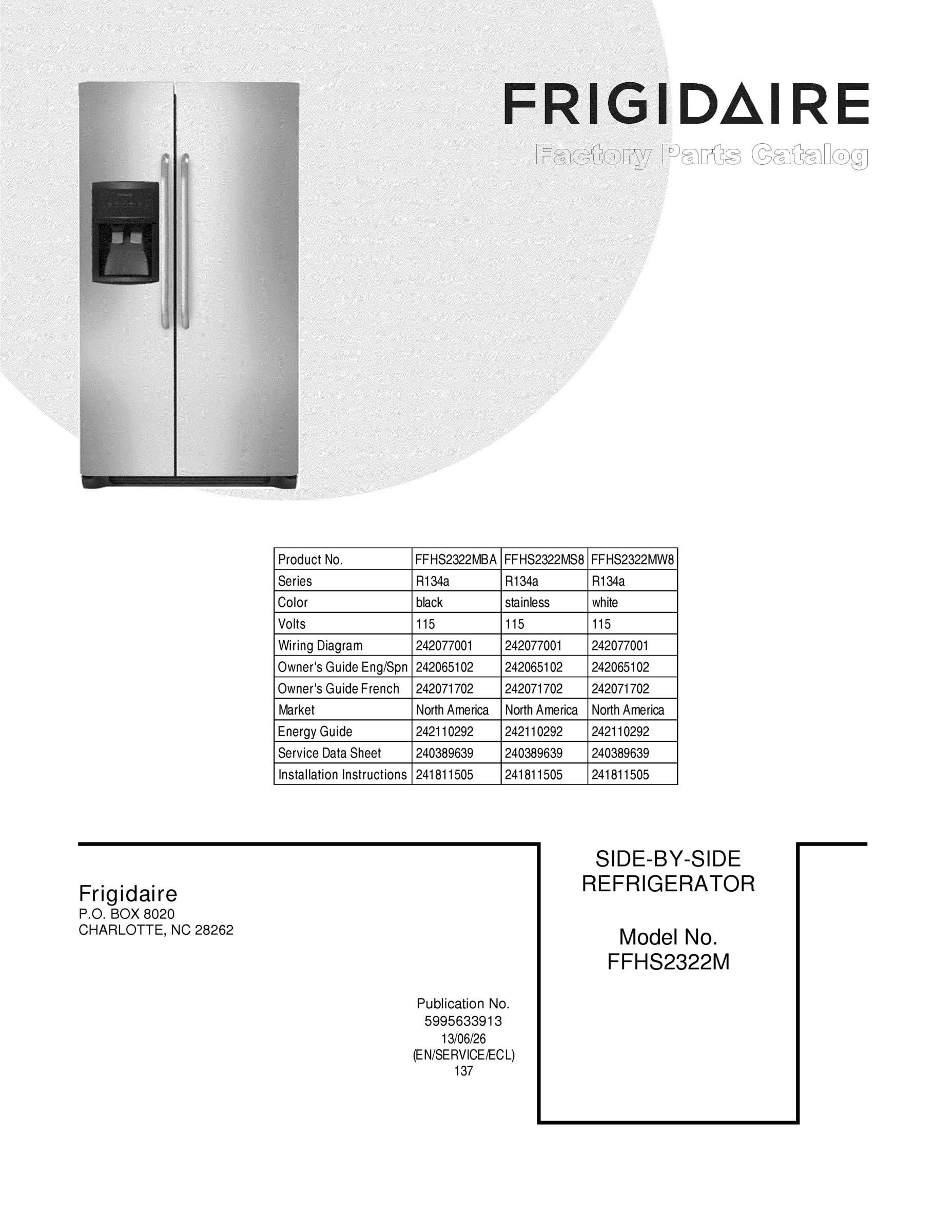

01 - COVER

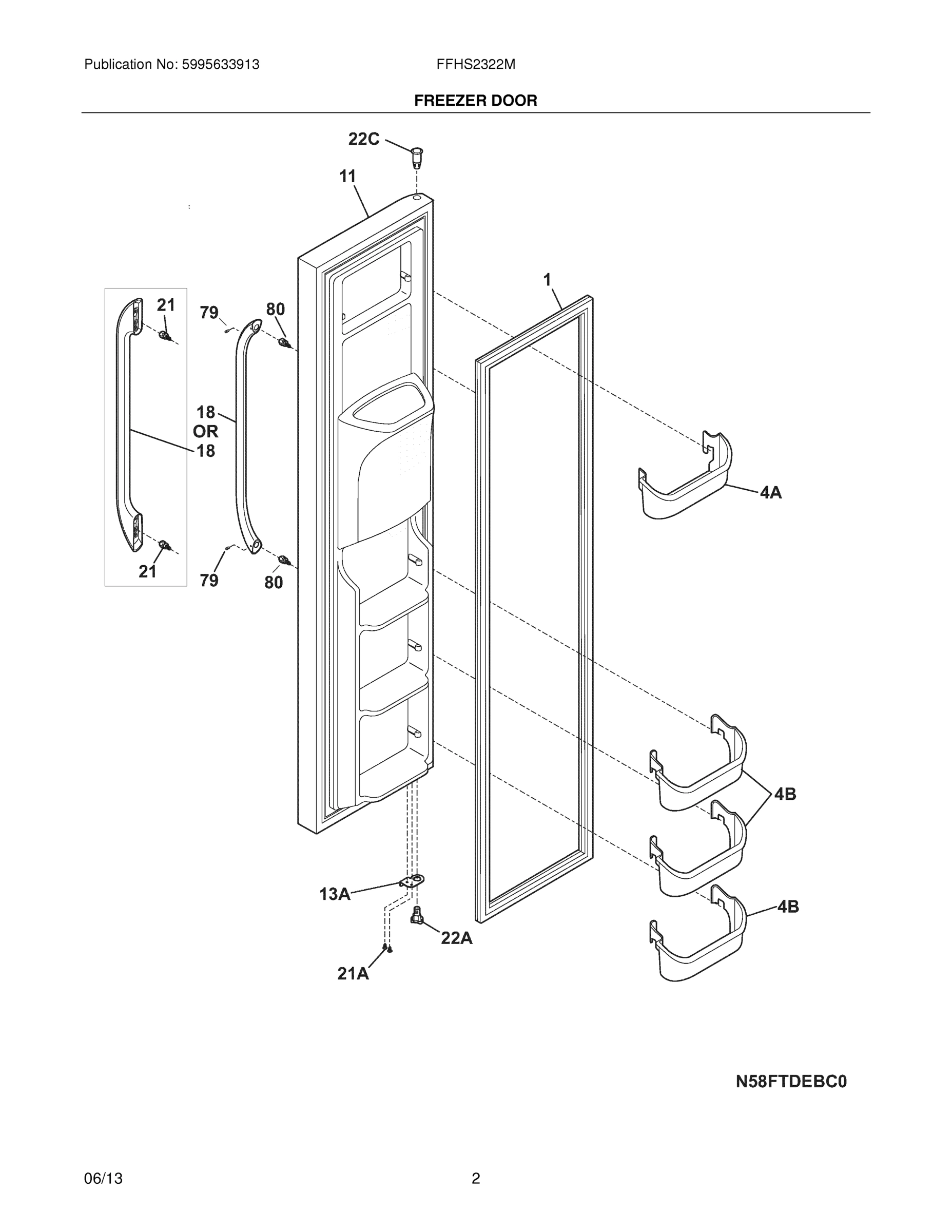

03 - FREEZER DOOR
05 - REFRIGERATOR DOOR
07 - CABINET

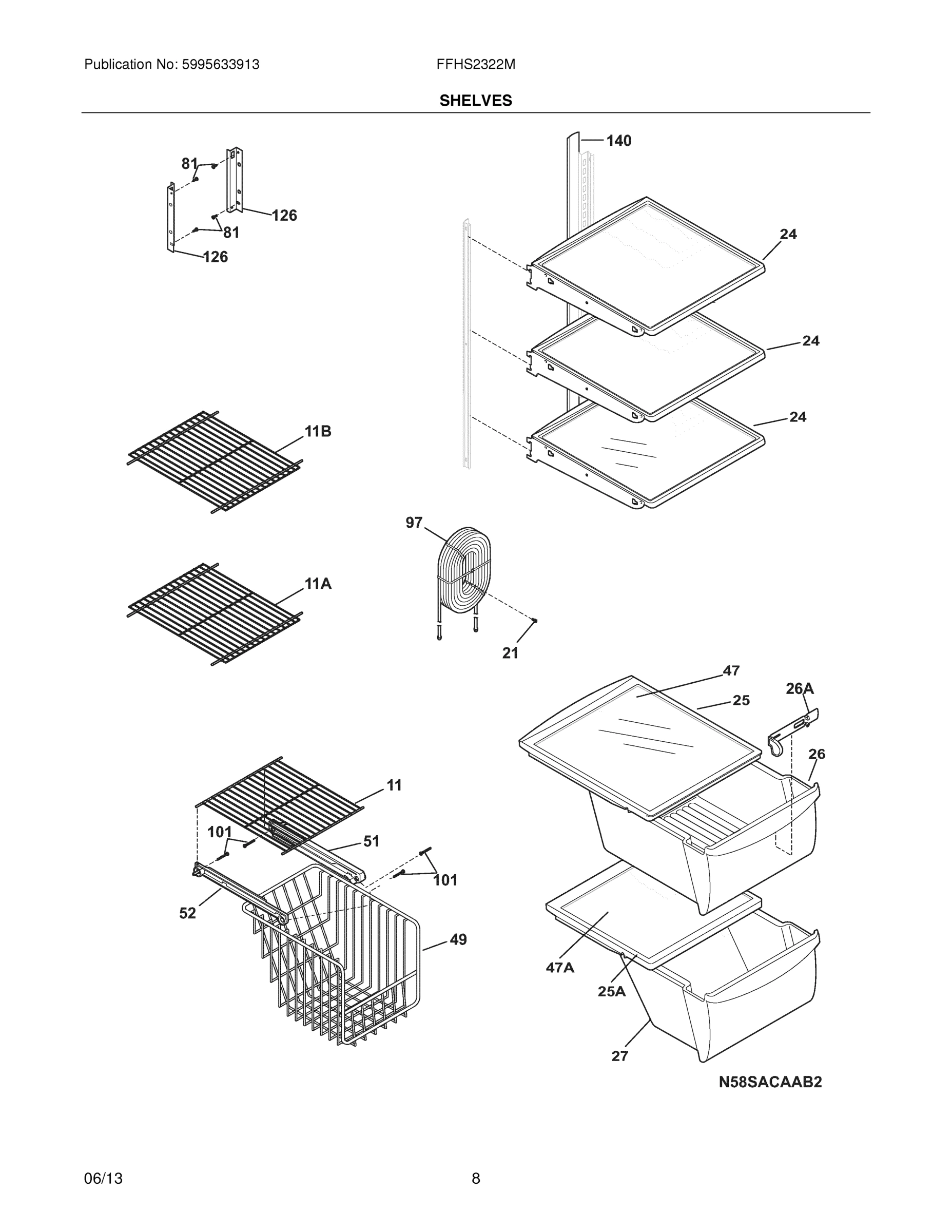

09 - SHELVES
11 - CONTROLS
13 - SYSTEM

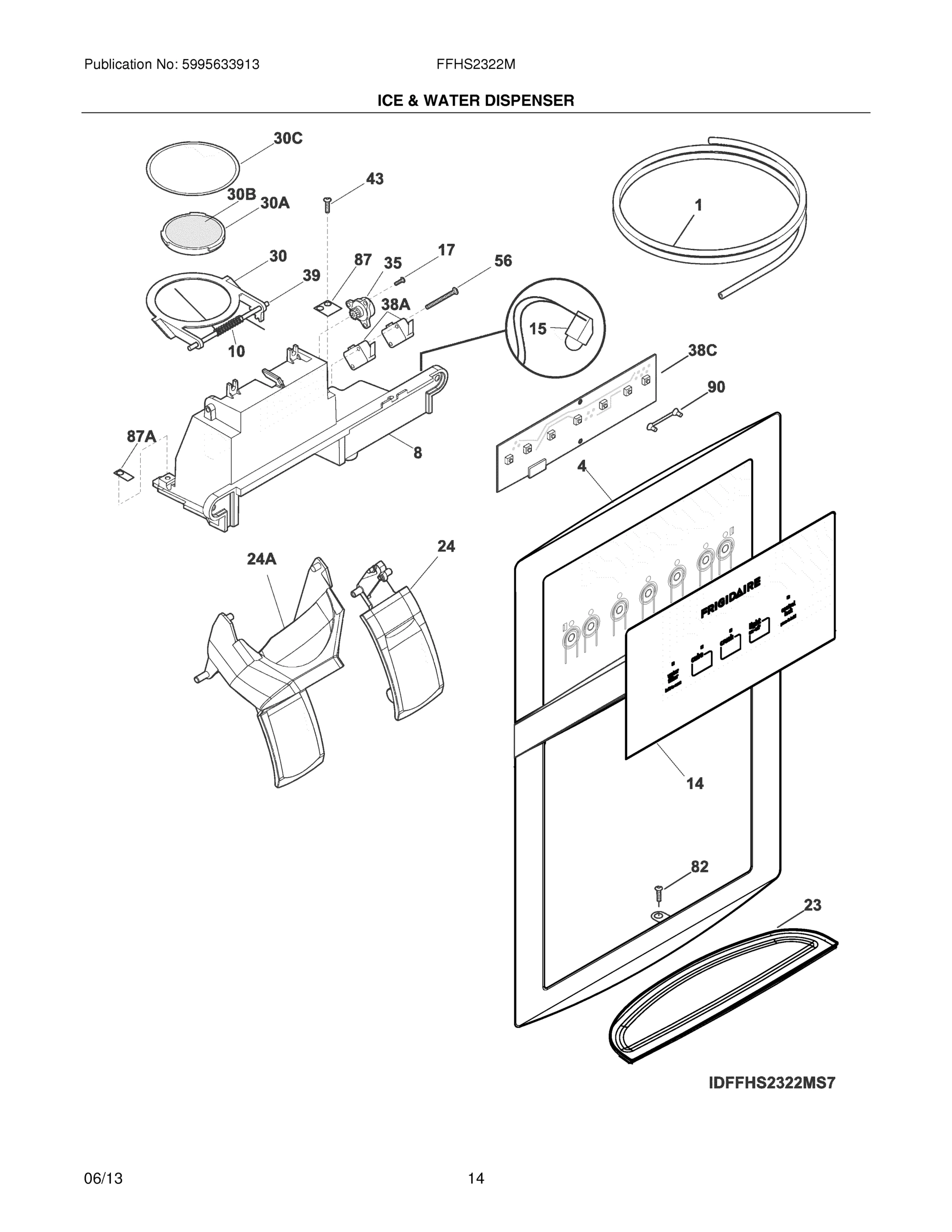

15 - ICE & WATER DISPENSER
17 - ICE CONTAINER

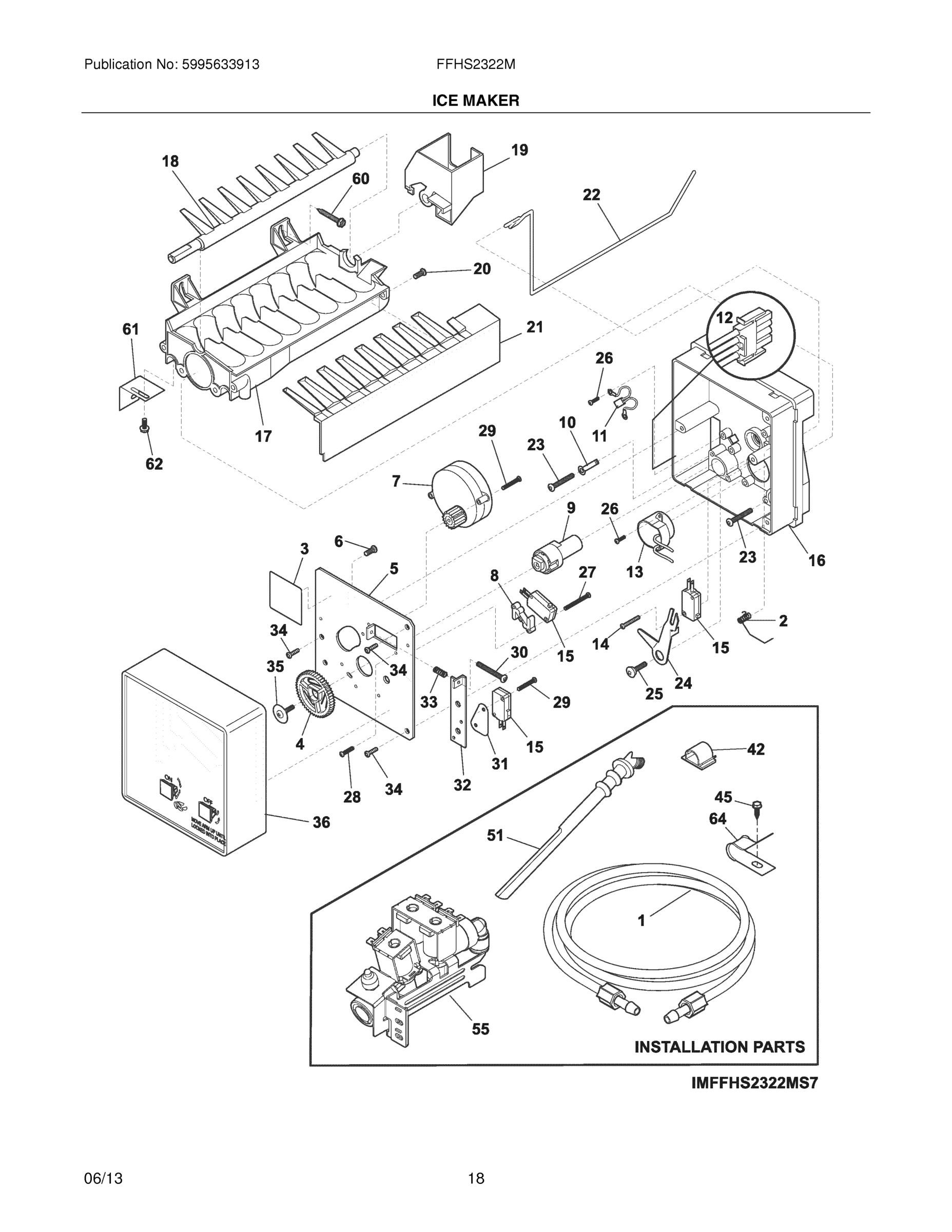

19 - ICE MAKER

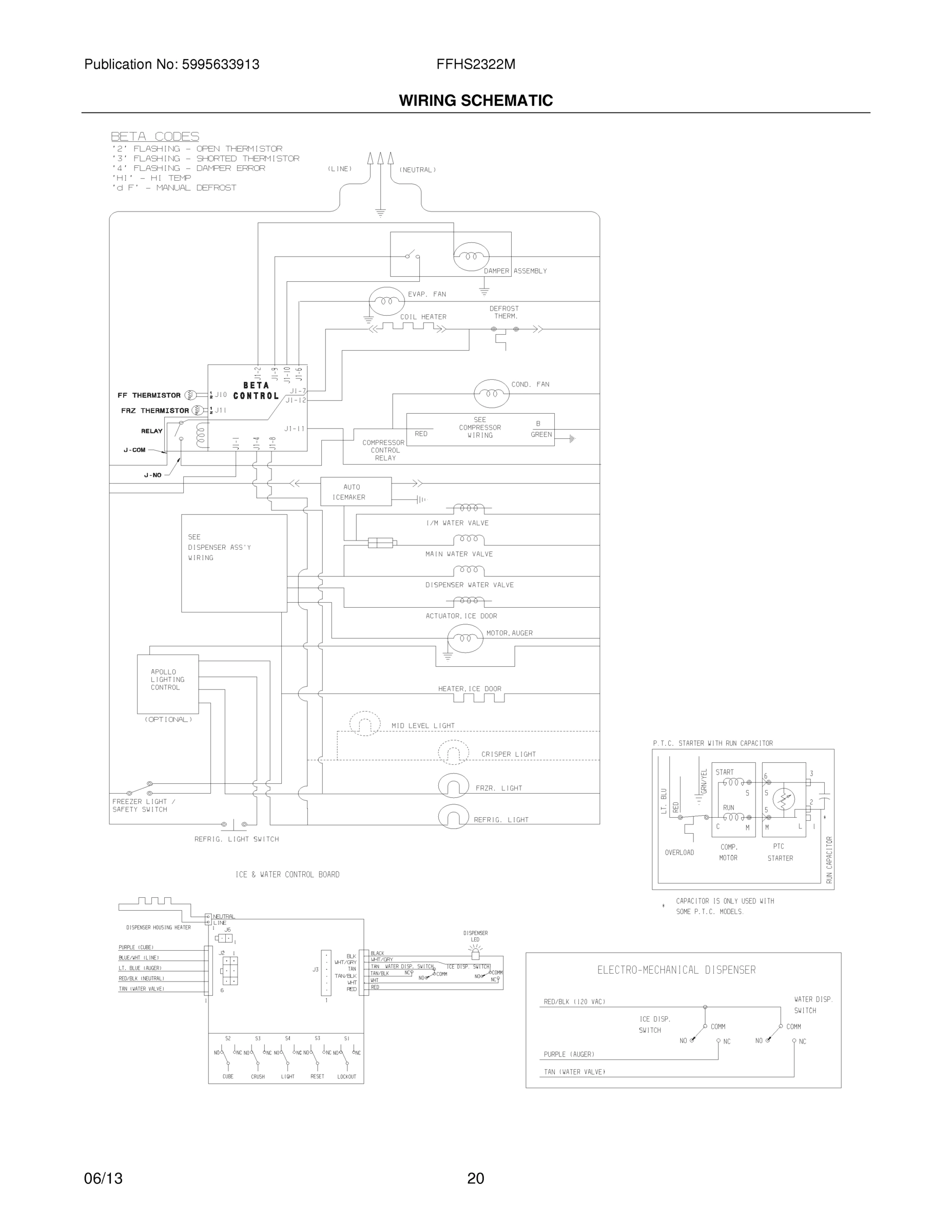

20 - WIRING SCHEMATIC

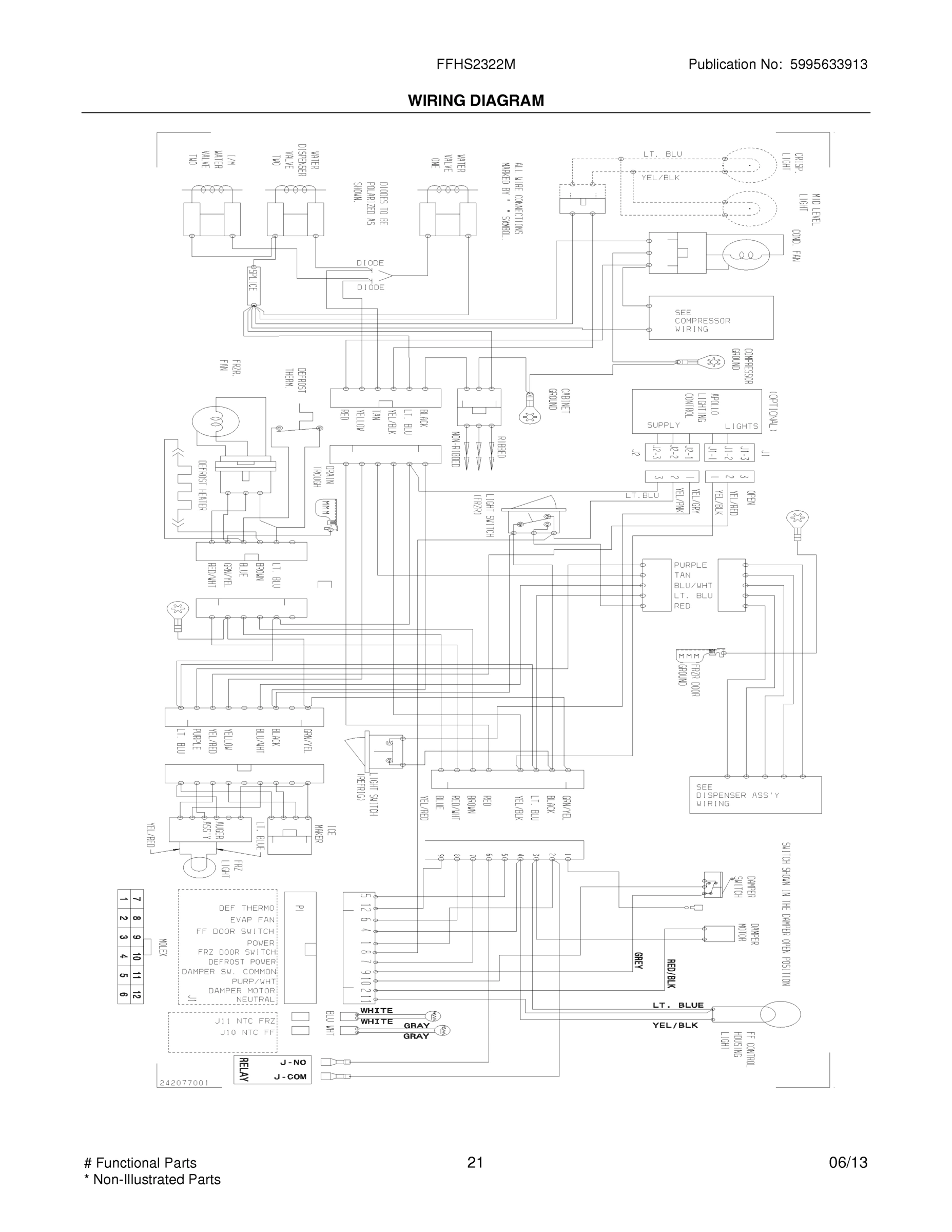

21 - WIRING DIAGRAM
