Model FFHS2322MS9 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

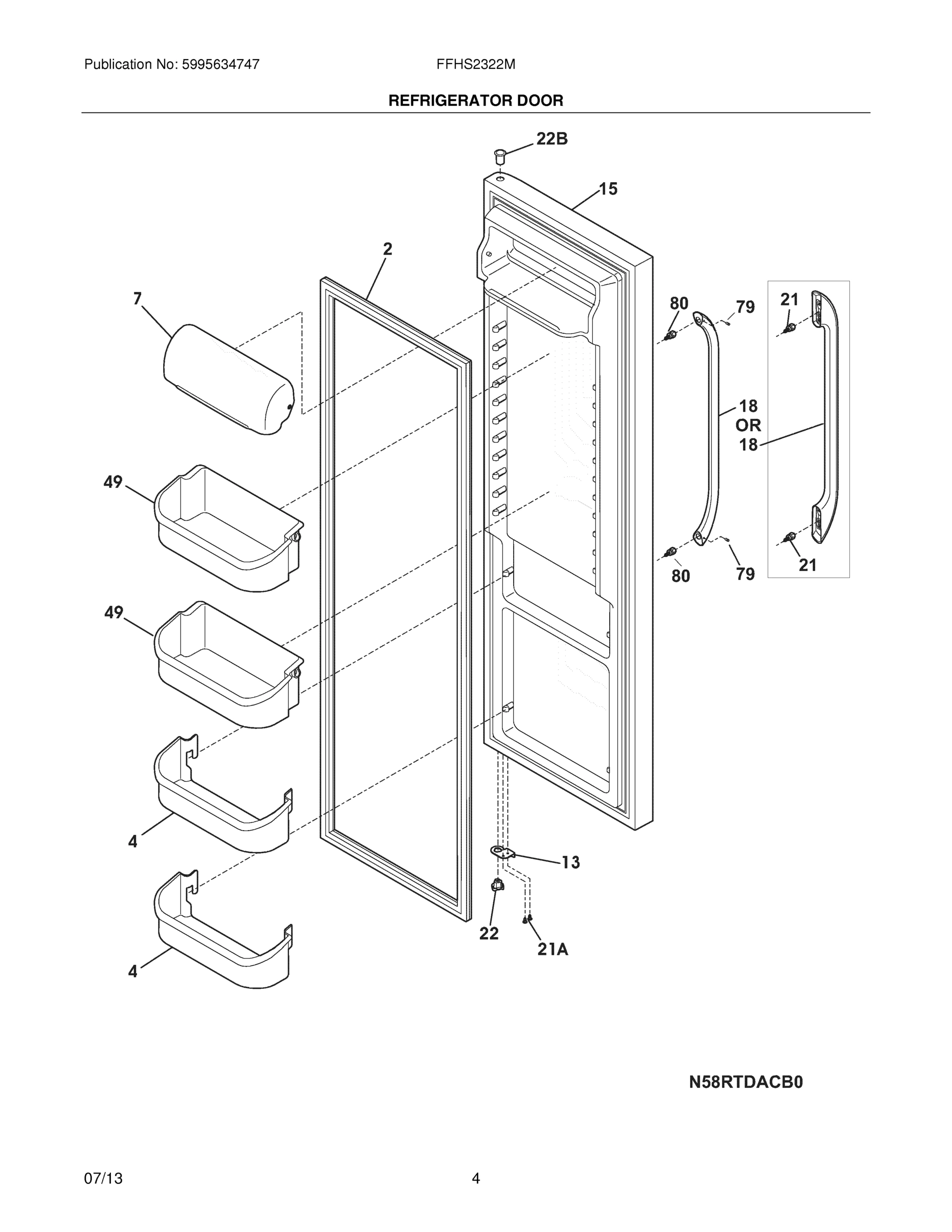

05 - REFRIGERATOR DOOR

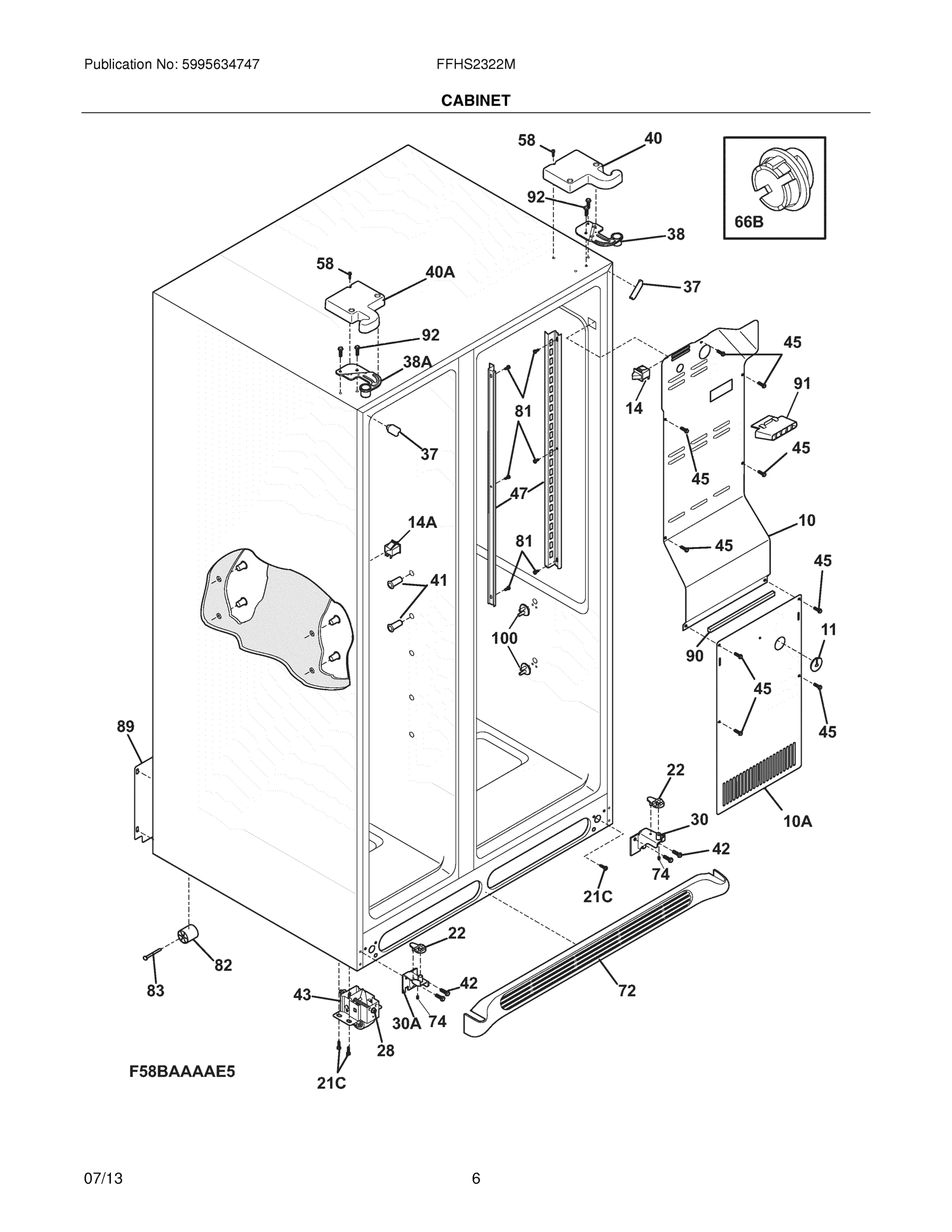

07 - CABINET

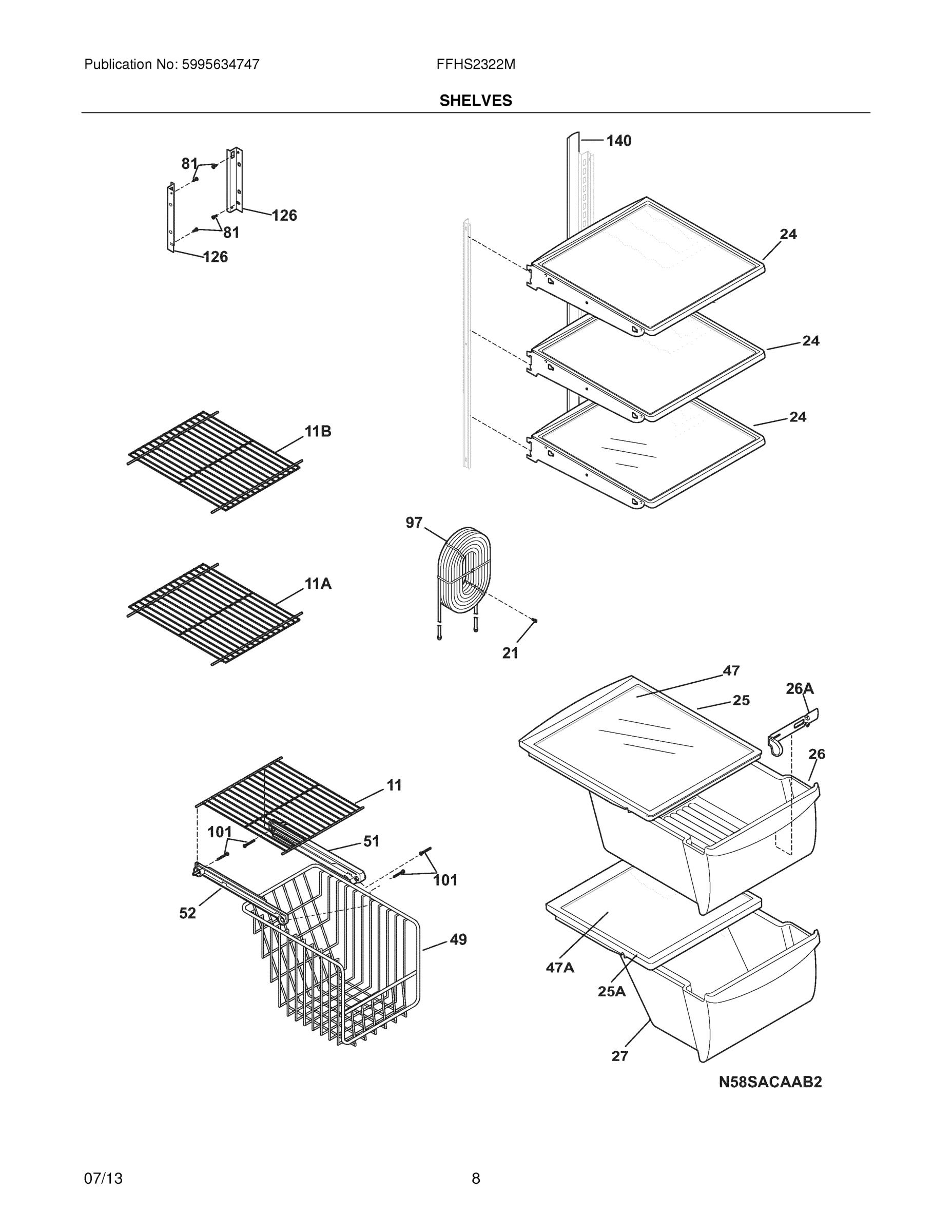

09 - SHELVES

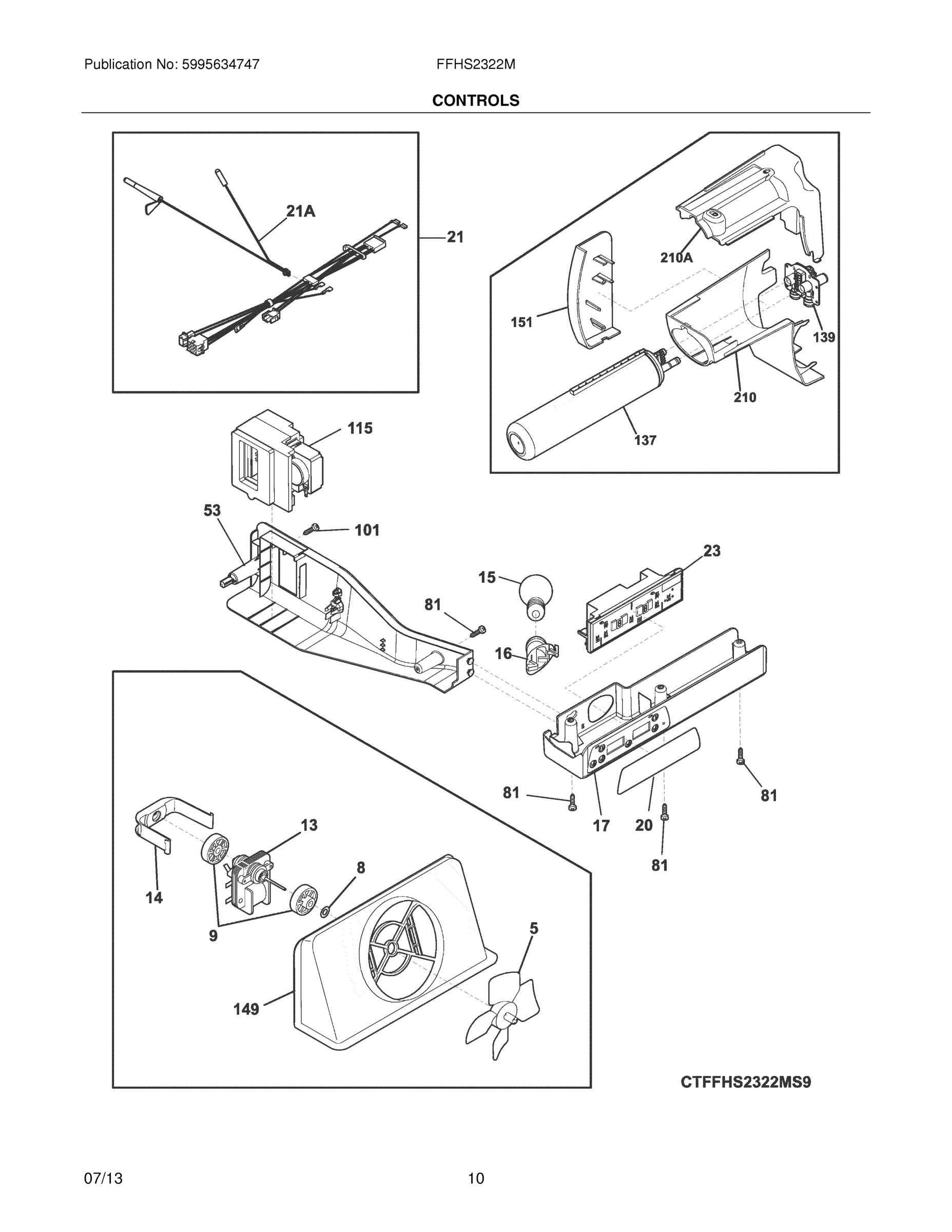

11 - CONTROLS
13 - SYSTEM

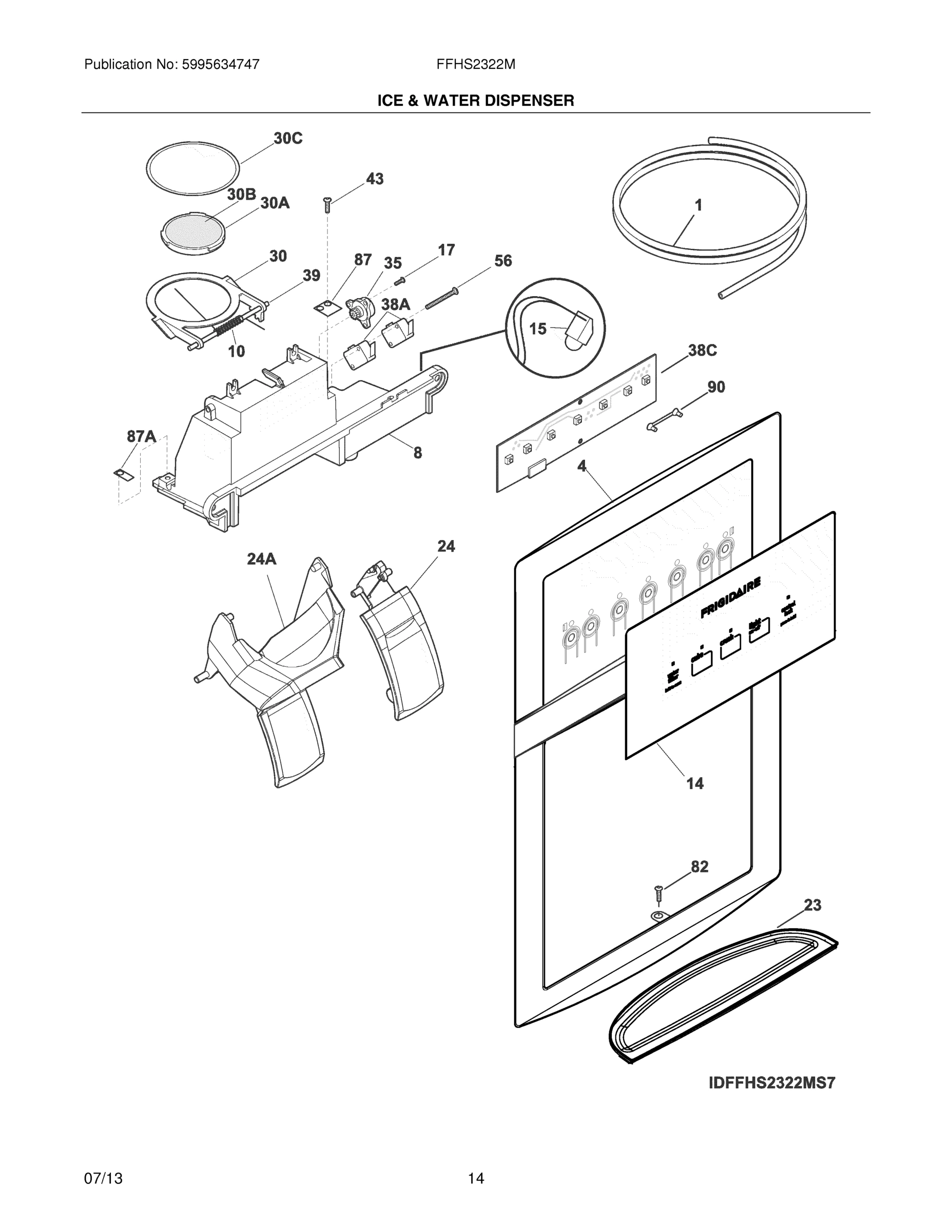

15 - ICE & WATER DISPENSER
17 - ICE CONTAINER

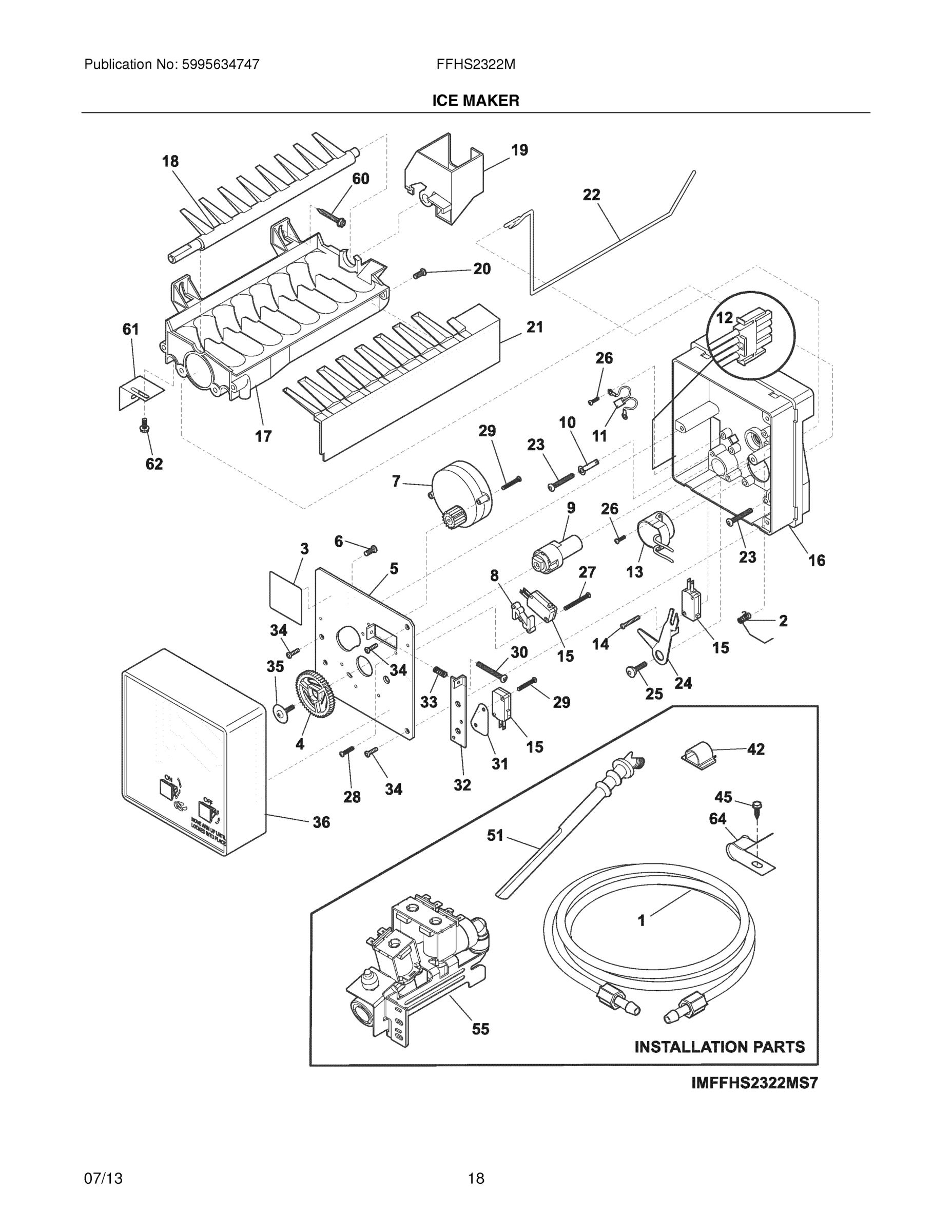

19 - ICE MAKER

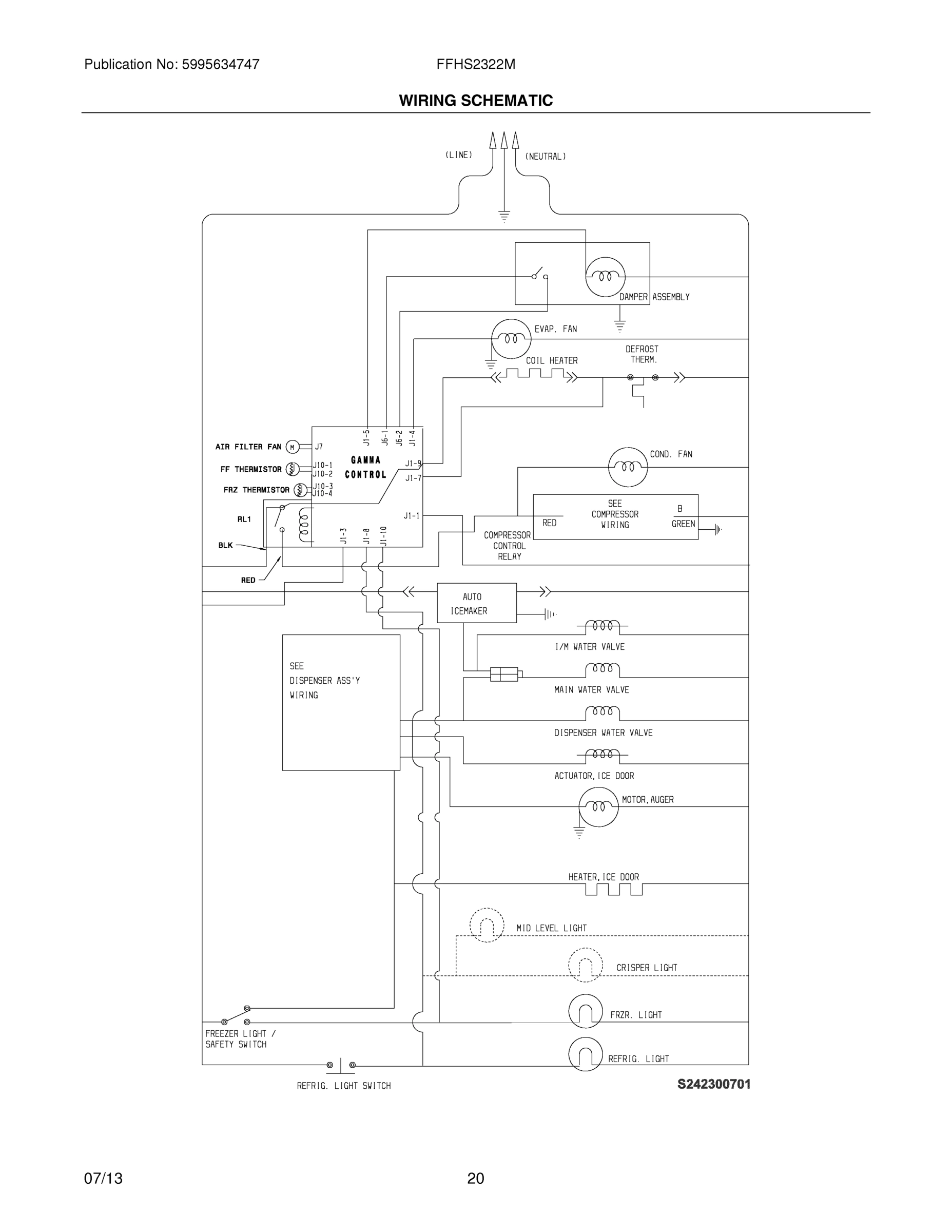

20 - WIRING SCHEMATIC
21 - WIRING DIAGRAM
