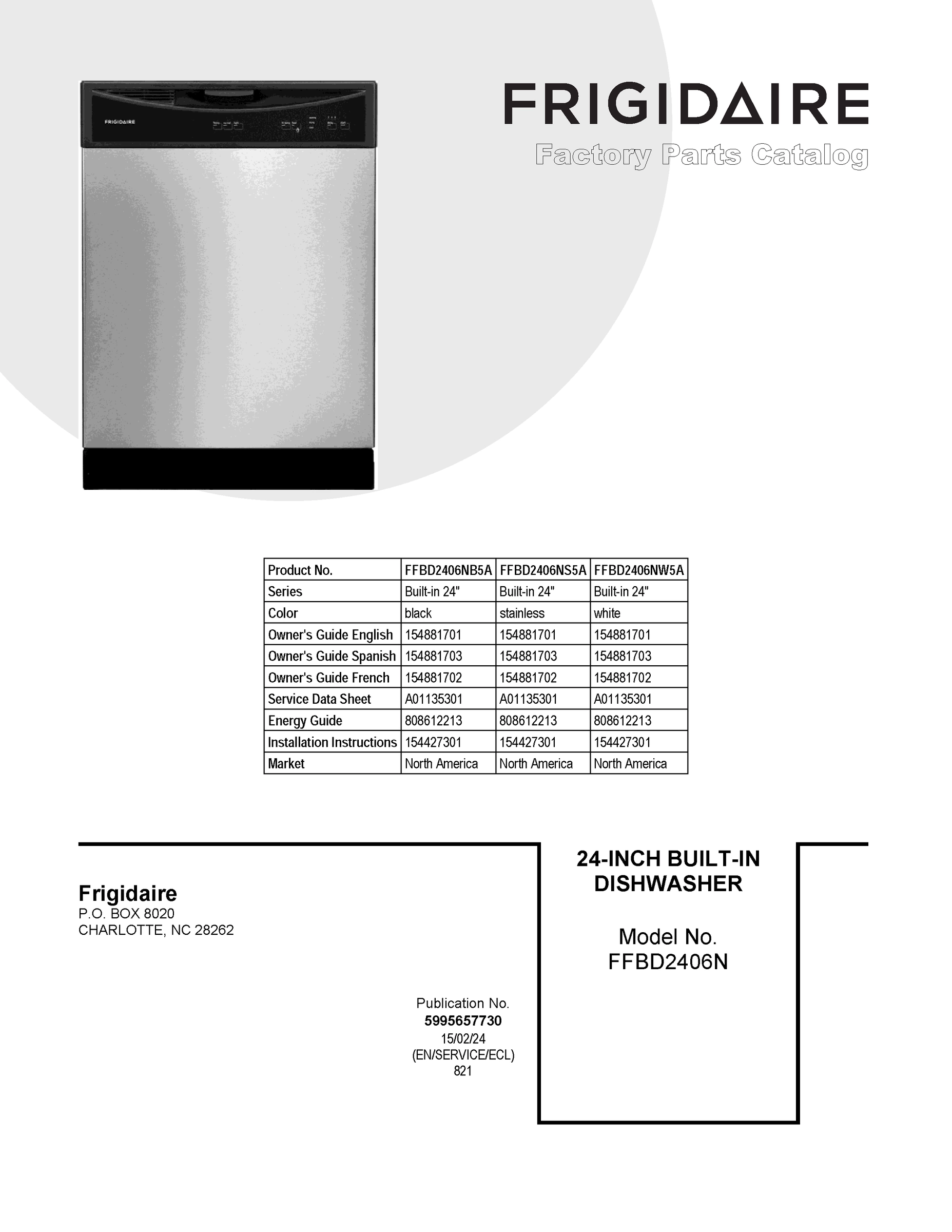

Model Electrolux FFBD2406NW5A DISHWASHER – Common Parts &amp; Diagrams

1

154825001 Frigidaire Dishwasher Round Heater In Stock WCI 154825001 $68.86

1

5304535379 Frigidaire Lower Dishrack Assembly In Stock WCI 5304535379 $86.72

1

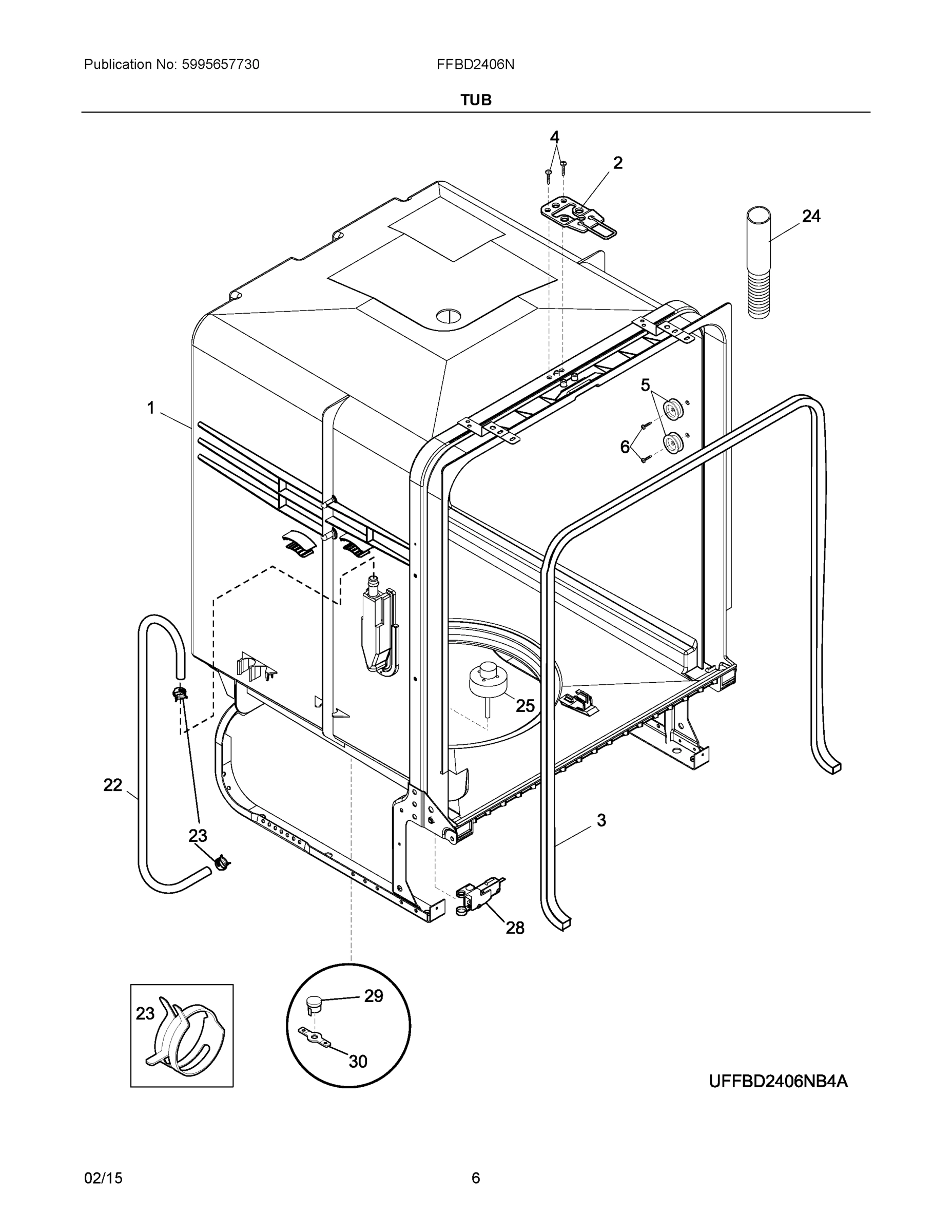

TUB ASSY, W/FRAME PARTS, WHITE, DF WCI 154729401 Contact Us For Availability

1

PANEL, CONSOLE (WHITE) (10 BUTTON) WCI 154788801 Contact Us For Availability

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $16.47

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.65

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $8.87

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $43.59

2

5304509753 Frigidaire Silverware Basket In Stock WCI 5304509753 $39.80

2

OVERLAY, CONSOLE PANEL (WHITE) WCI 154877801 Contact Us For Availability

3

154827601 Frigidaire Dishwasher Tub Gasket In Stock WCI 154827601 $24.97

3

5304512731 Frigidaire Dishwasher Control Boar In Stock WCI 5304512731 $124.23

3

5304535380 Frigidaire Upper Dishrack Assembly In Stock WCI 5304535380 $98.16

3

807047901 Frigidaire Dishwasher Inlet Water V In Stock WCI 807047901 $46.54

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $53.22

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $32.21

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $22.19

4

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $2,263.98

4

COVER, CONTROL WCI 154552101 Contact Us For Availability

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $11.31

5

5304506916 Frigidaire Dishwasher Assembly-Rol In Stock WCI 5304506916 $23.64

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $4.01

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $13.86

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $10.40

7

WCI 5304500205 WCI 5304500205 Contact Us For Availability

8

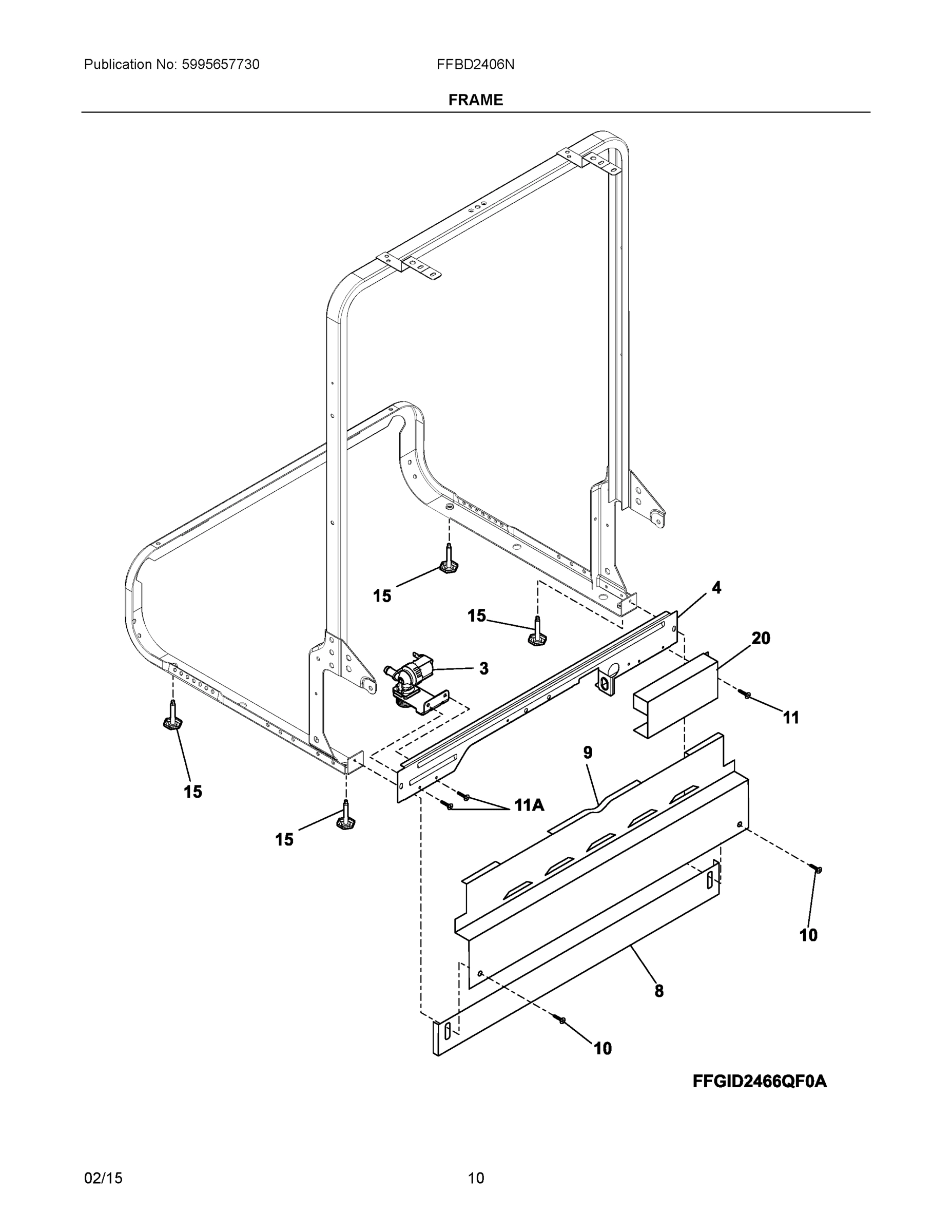

154745501 Frigidaire Dishwasher Toekick Plate In Stock WCI 154745501 $16.64

8

154887201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154887201 $64.34

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $39.94

9

5304506521 Frigidaire Dishwasher Dispenser In Stock WCI 5304506521 $75.96

10

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $10.53

10

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $9.96

10

807145201 Frigidaire Dishwasher Cover-Volute In Stock WCI 807145201 $23.67

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $10.53

11

807111601 Frigidaire Sump Cover and Filter In Stock WCI 807111601 $24.62

12

5304525220 Frigidaire Dishwasher Assembly-Lat In Stock WCI 5304525220 $59.12

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $38.83

14

154728201 Frigidaire Dishwasher Sump Assembly In Stock WCI 154728201 $48.81

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $8.31

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $31.58

20

154758501 Frigidaire Power Cord Cover In Stock WCI 154758501 $15.51

20

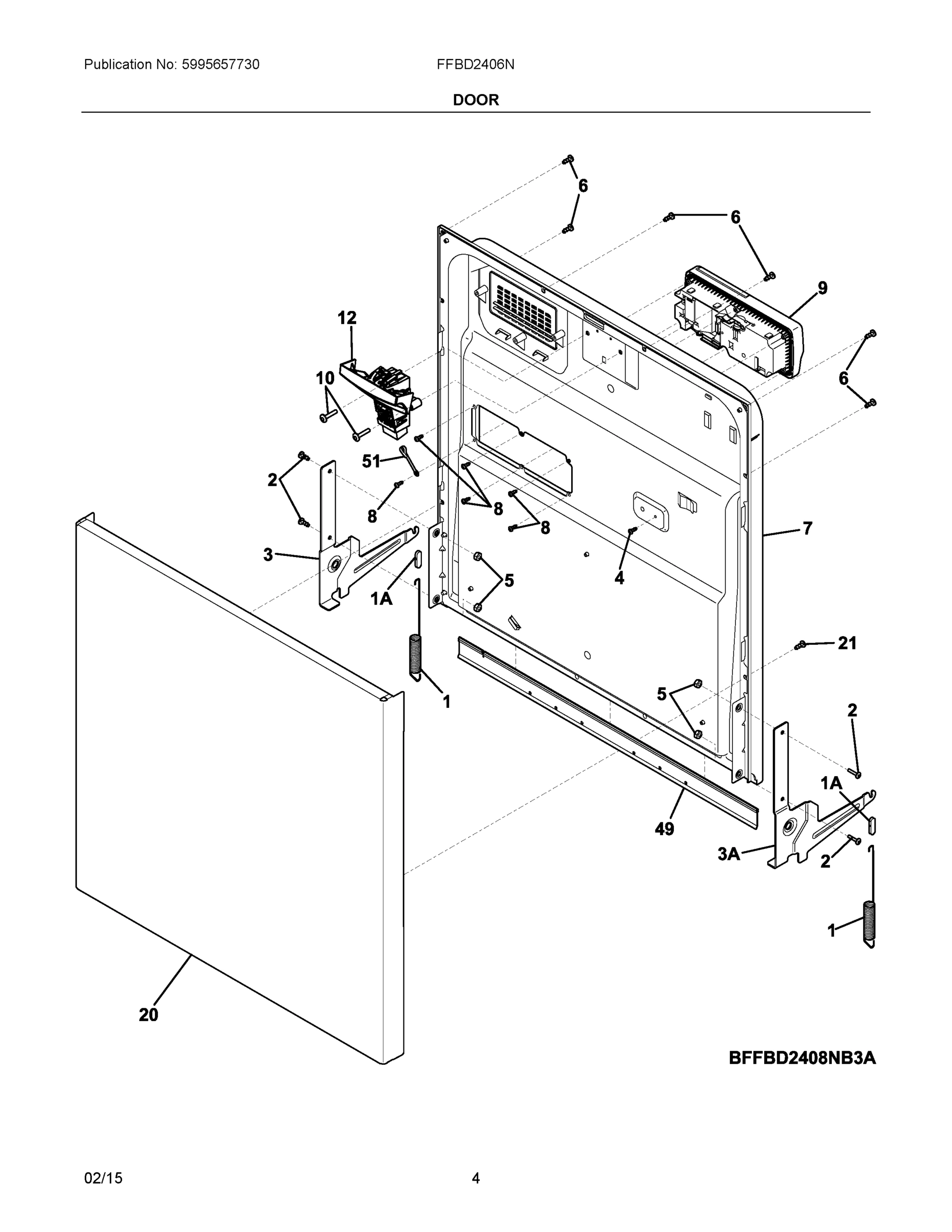

154829001 Frigidaire Dishwasher Door Assembly Backorder WCI 154829001 $111.46

20

VENT ASSY, STATIC DRY WCI 154433001 Contact Us For Availability

21

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.76

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $19.87

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.81

24

5304517203 Frigidaire Dishwasher Lower Wash A In Stock WCI 5304517203 $30.52

24

807117001 Frigidaire Dishwasher Drain Hose In Stock WCI 807117001 $36.95

24A

5304506740 Frigidaire Dishwasher Spray Arm Ce In Stock WCI 5304506740 $29.85

24B

5304506516 Frigidaire Dishwasher Upper Spray In Stock WCI 5304506516 $17.73

25

5304532207 Frigidaire Float In Stock WCI 5304532207 $5.28

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $51.87

29

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $12.11

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.76

32

5304507087 Frigidaire Dishwasher Tube In Stock WCI 5304507087 $50.67

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $5.45

33

154553501 Frigidaire Dishwasher Gasket Backorder WCI 154553501 $33.12

49

5304500204 Frigidaire Gasket Bottom Door Seal In Stock WCI 5304500204 $24.18

51

CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $11.32

58

154246402 Frigidaire Dishwasher P-1 Ball Asse Backorder WCI 154246402 $43.81

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $52.81

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $52.81

61

5304506517 Frigidaire Dishwasher Grommet Asse In Stock WCI 5304506517 $12.18

62

5304532235 Frigidaire Support Assembly In Stock WCI 5304532235 $5.59

63

5304532205 Frigidaire Base Assembly In Stock WCI 5304532205 $10.50

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $36.00

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 $47.39

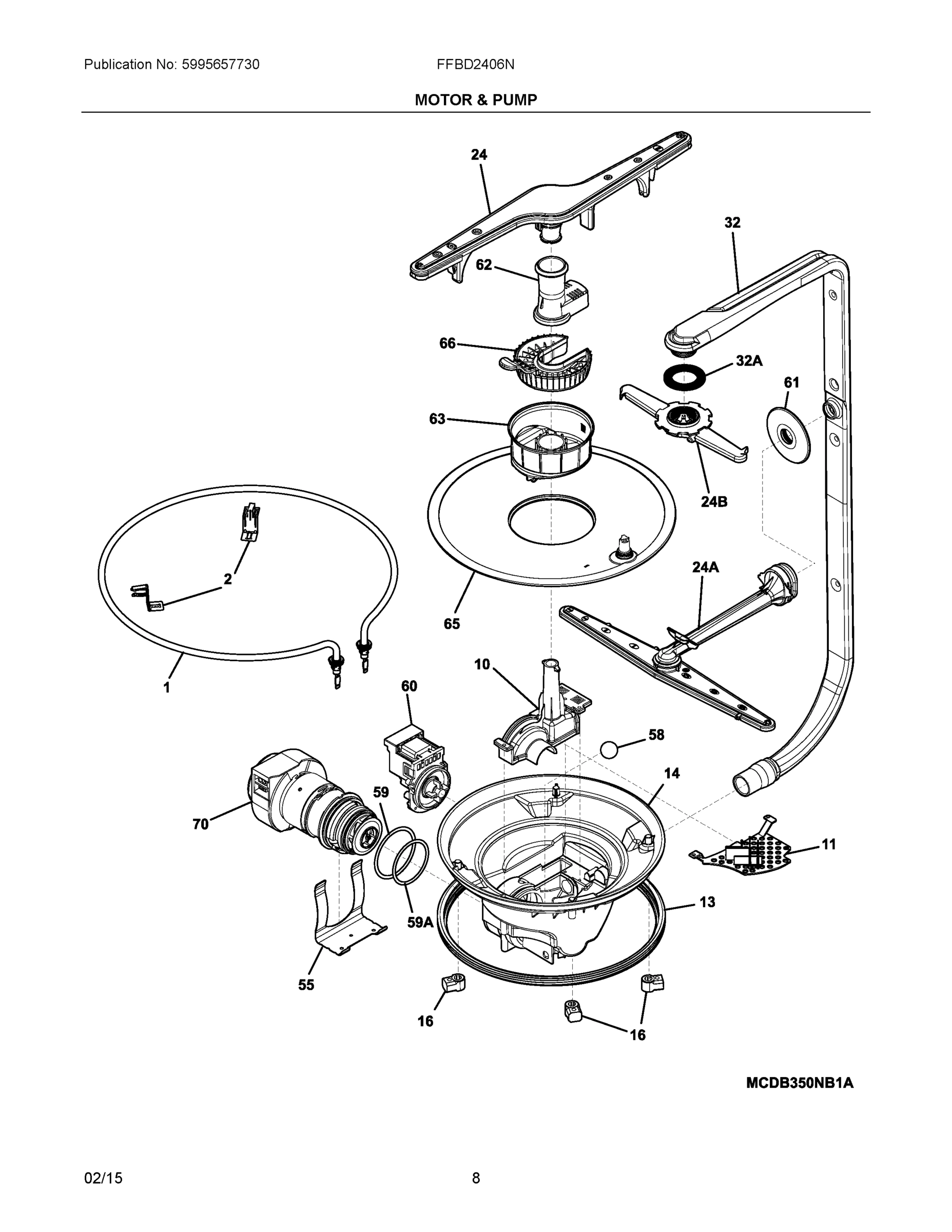

70

154844301 Frigidaire Dishwasher Motor Kit In Stock WCI 154844301 $191.27

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $7.18

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $57.66

154406801 Frigidaire Dishwasher Anchor Kit (A Backorder WCI 154406801 $82.64

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $11.09

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $8.31

154753101 Frigidaire Dishwasher Thermistor In Stock WCI 154753101 $25.57

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $5.52

5304525043 Frigidaire Dishwasher Insulation Backorder WCI 5304525043 $34.93

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.76

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $12.28

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $10.53

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $10.53

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $3.31

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $1.06

5304525214 Frigidaire Dishwasher Shield In Stock WCI 5304525214 $7.74

SCREW, DRY DUCT, (3) WCI 154793401 Contact Us For Availability

NIB

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $6.09

NIB

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.76

NIB

807048001 Frigidaire Dishwasher Check Valve In Stock WCI 807048001 $14.88
