Model Whirlpool FCE30610A ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN/BASE

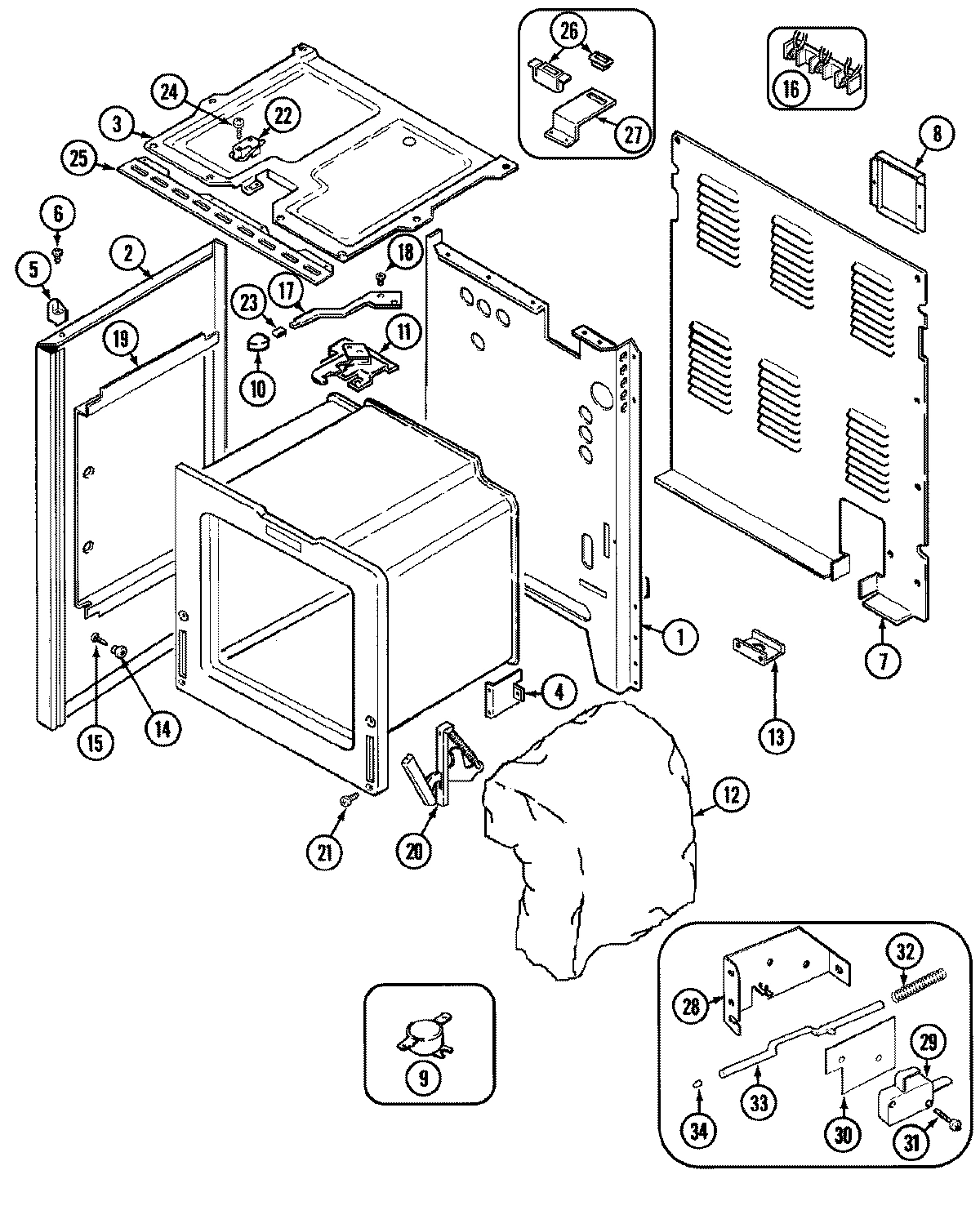

01 - BODY

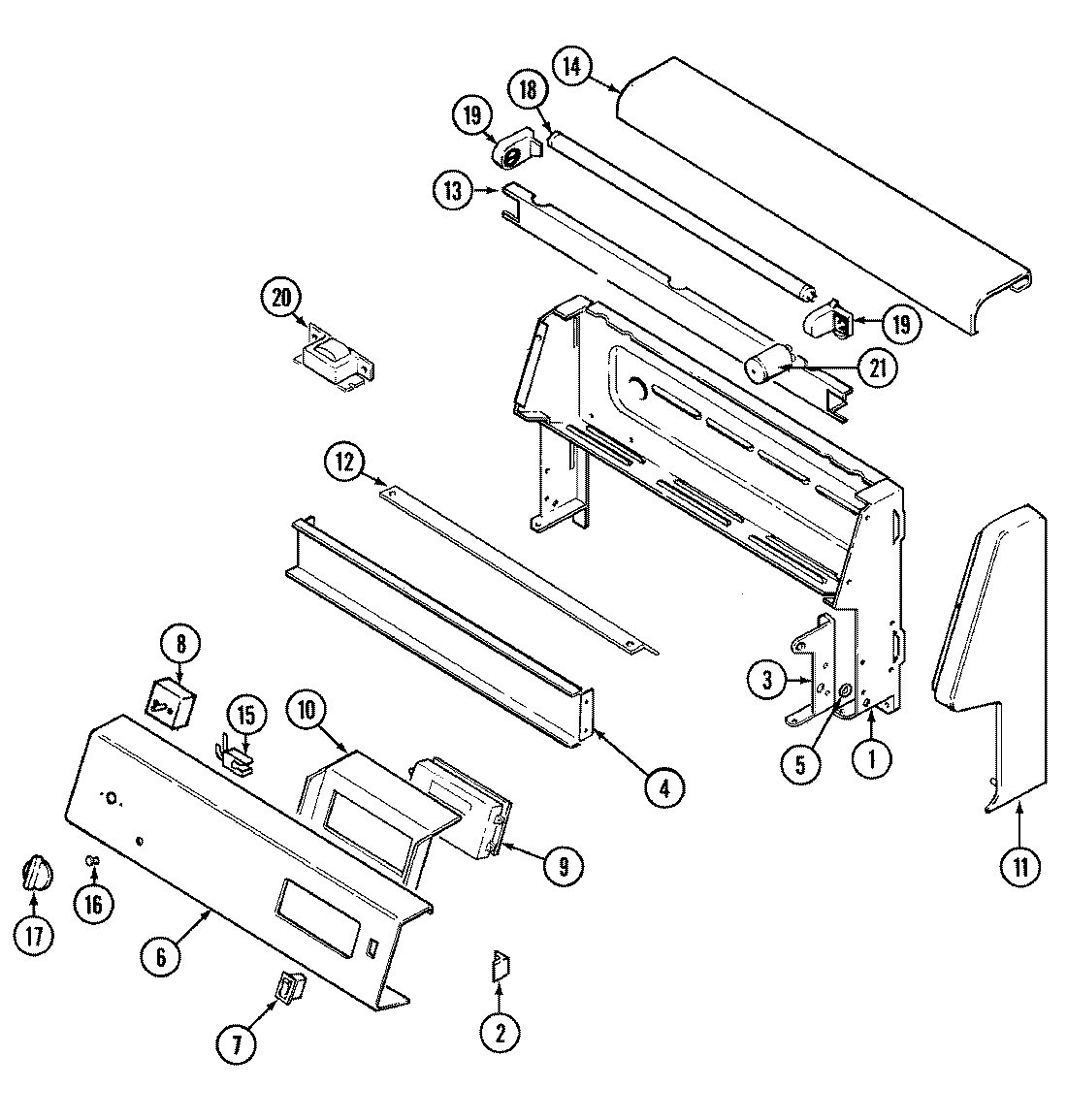

02 - CONTROL PANEL

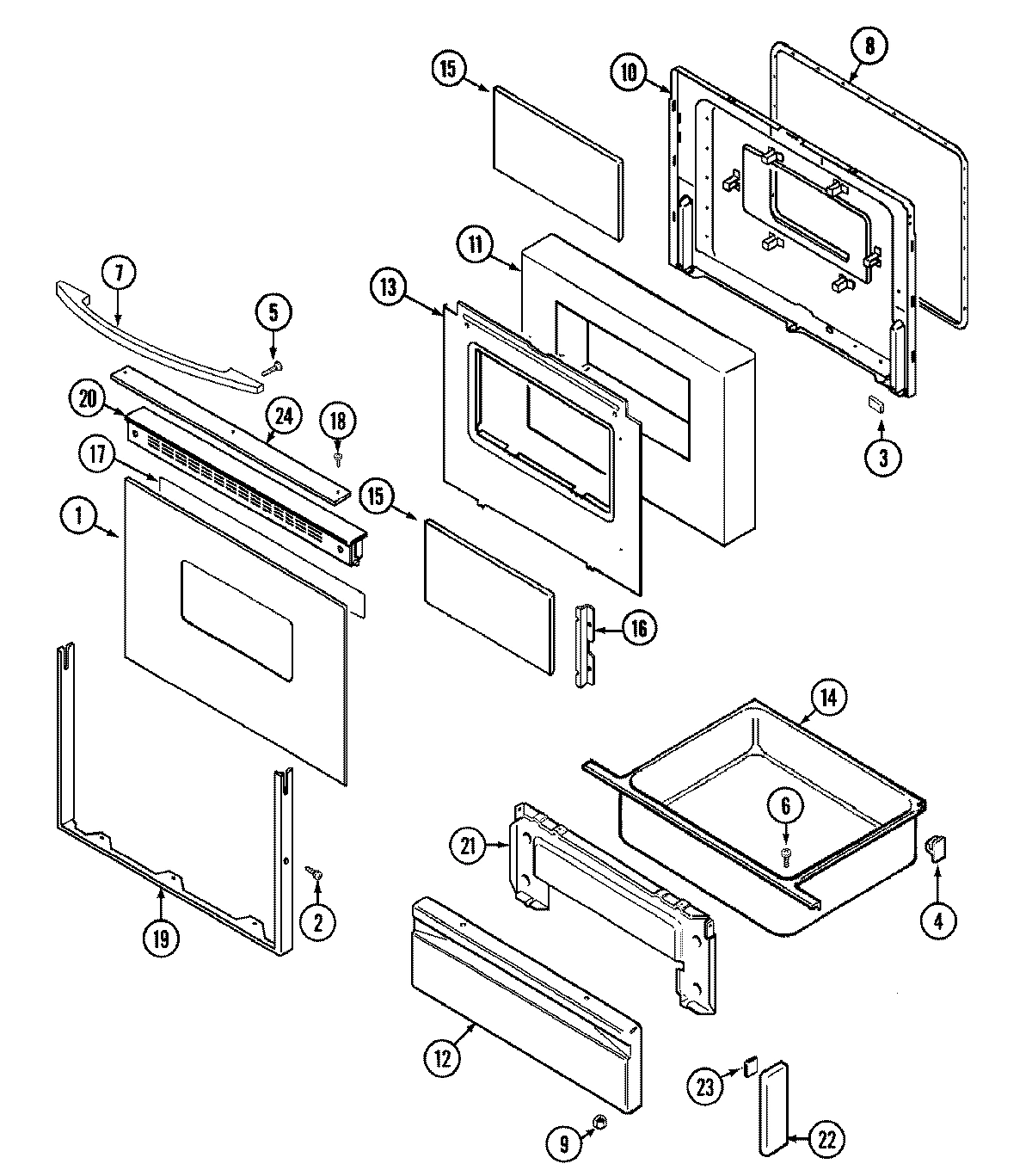

03 - DOOR/DRAWER

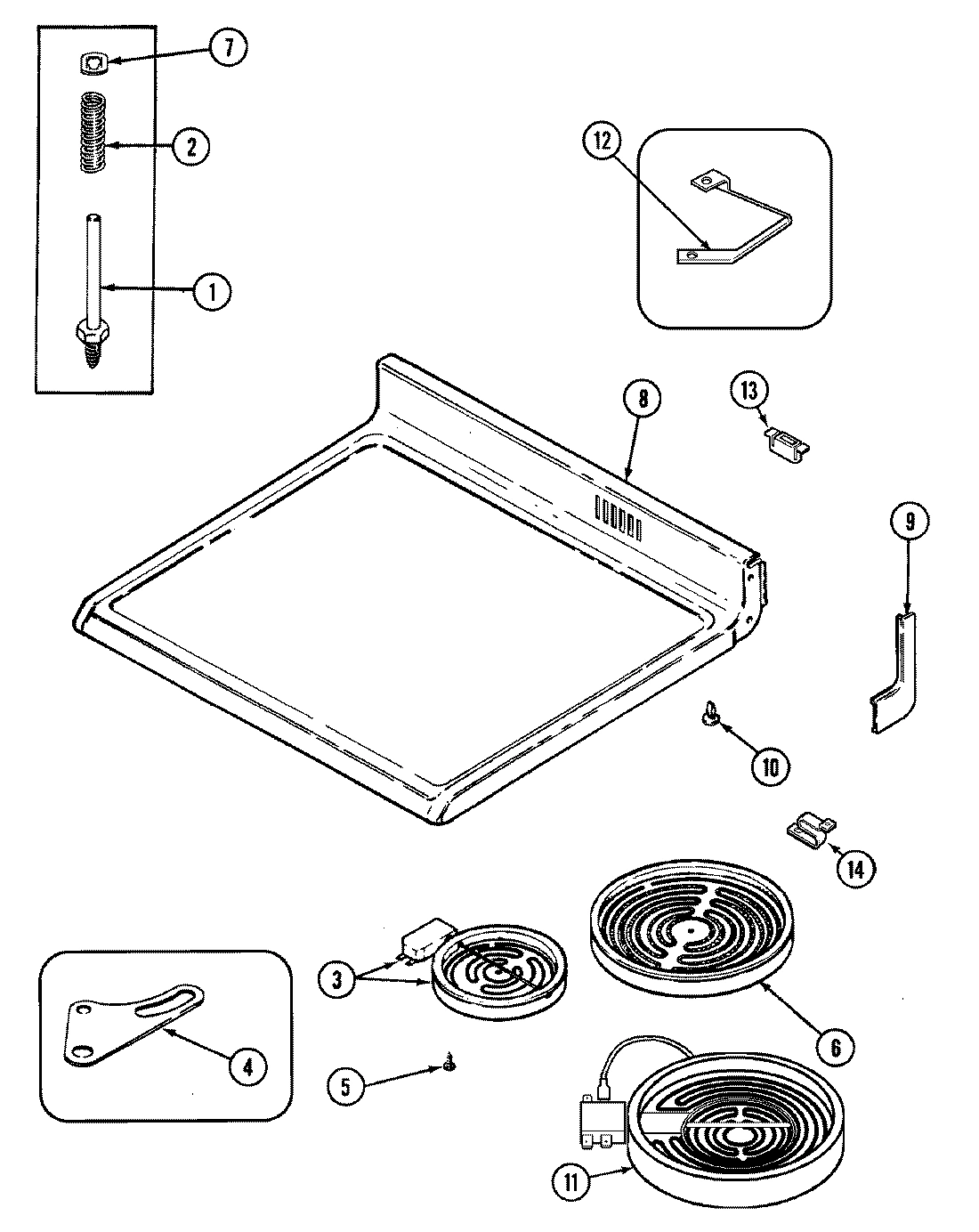

05 - TOP ASSEMBLY

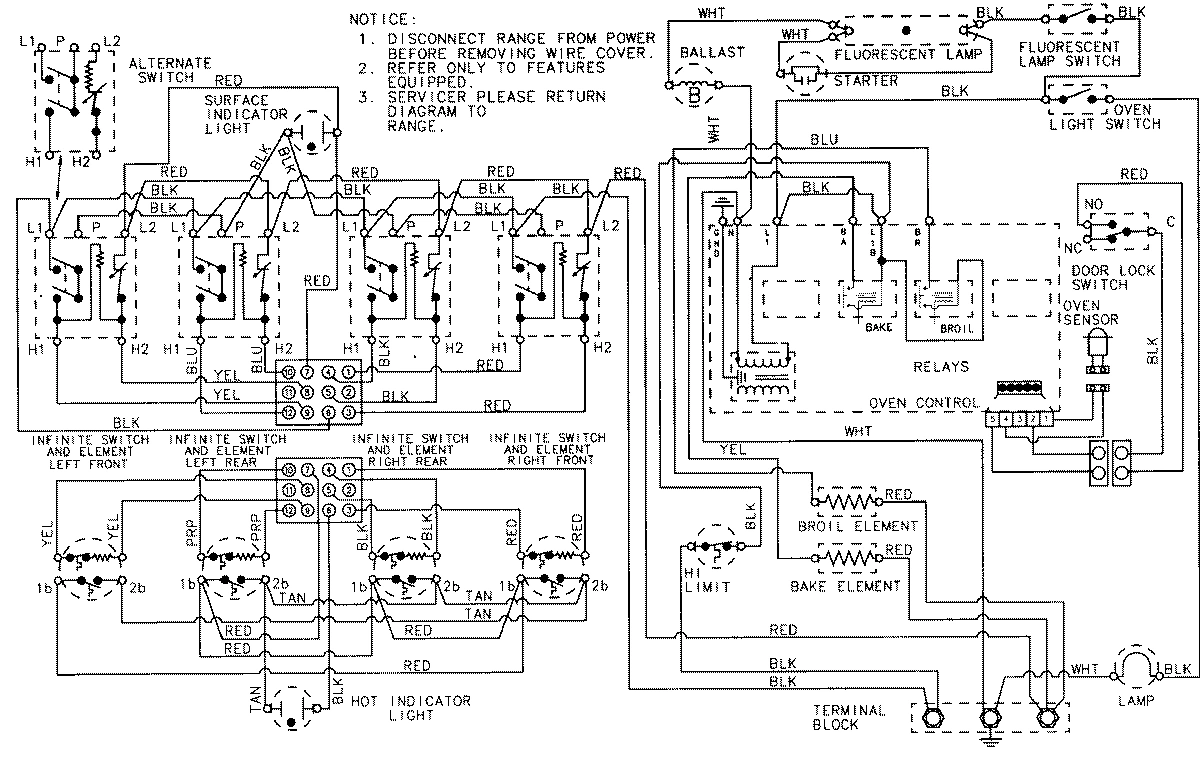

06 - WIRING INFORMATION
Common parts from model Whirlpool FCE30610A ELECTRIC RANGE
1
SHIELD, WIRE WPL 3604F21851 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
GLASS, DOOR (ALM) WPL 74002056 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
3
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
4
NUT WPL 7103P08260 Contact Us For Availability
4
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
5
PAN, BROIL WPL 3401F01419 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
6
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
PANEL, CONTROL (ALM) WPL 74002160 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
SWITCH, ROCKER (ALM) WPL 7403P35860 Contact Us For Availability
7
HANDLE (ALM) WPL 74002060 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SWITCH, DUAL ELEMENT WPL 74002144 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
TOP, MAIN GLASS ASSY. (ALM) WPL 74002149 Contact Us For Availability
8
TOP, MAIN (BLK GLASS/ALM TOP) WPL 74003099 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
NUT, SPEED WPL 7103P04460 Contact Us For Availability
9
CLOCK (ALM) WPL 74002124 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
END CAP (LT-ALM) WPL 7746P03660 Contact Us For Availability
9
END CAP (RT-ALM) WPL 7746P03760 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
HANDLE, LATCH (ALM) WPL 7701P15160 Contact Us For Availability
10
BRACKET, CLOCK WPL 74002099 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
LINING, DOOR WPL 74003244 Contact Us For Availability
10
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
END CAP (RT-ALM) WPL 74002037 Contact Us For Availability
11
END CAP (LT-ALM) WPL 74002038 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
11
LIMITER (DUAL) WPL 74002176 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
PANEL, STORAGE DRAWER (ALM) WPL 2416W00174 Contact Us For Availability
12
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
13
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
COVER, CNTRL PNL (ALM) WPL 74002044 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
15
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
15
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability
17
KNOB, SWITCH (ALM) WPL 74002102 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
COVER, RECEPTACLE WIRES WPL 74002824 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
FRAME, DOOR (ALM) WPL 7706P31160 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
BALLAST WPL 74003033 Contact Us For Availability
20
BALLAST WPL 7412P00760 Contact Us For Availability
20
TRIM, TOP (ALM) WPL 74002064 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
STARTER WPL 7415P00160 Contact Us For Availability
21
LINING WPL 2404F04380 Contact Us For Availability
22
GASKET, VENT WPL 7201P05460 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
INSULATOR, SWITCH WPL 74001999 Contact Us For Availability
22
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
22
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
22
HARNESS, CTL PNL/TOP WPL 74002145 Contact Us For Availability
22
HARNESS, BURNER BOX WPL 74002147 Contact Us For Availability
22
HARNESS, CONTROL PANEL WPL 74002161 Contact Us For Availability
22
END CAP (ALM) WPL 7744P09460 Contact Us For Availability
23
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
24
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
MANUAL, USE & CARE WPL 16007438 Contact Us For Availability
24
SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability
24
INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability
25
FAN, CONVECTION ASSY. WPL 74002125 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
25
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
26
SCREW WPL 74001161 Contact Us For Availability
26
COVER, FAN ASSY. WPL 74002126 Contact Us For Availability
26
LIGHT, IND WPL 7407P10660 Contact Us For Availability
27
WPL 3801F31245 WPL 3801F31245 Contact Us For Availability
28
WPL 74001632 WPL 74001632 Contact Us For Availability
29
WPL 74001802 WPL 74001802 Contact Us For Availability
30
WPL 74001872 WPL 74001872 Contact Us For Availability
31
WPL 7101P33060 WPL 7101P33060 Contact Us For Availability
32
WPL 74001629 WPL 74001629 Contact Us For Availability
33
WPL 74001630 WPL 74001630 Contact Us For Availability
34
WPL 74001631 WPL 74001631 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001556 Contact Us For Availability
× ![]()
