Model Whirlpool FCE10610W ELECTRIC RANGE – Common Parts &amp; Diagrams

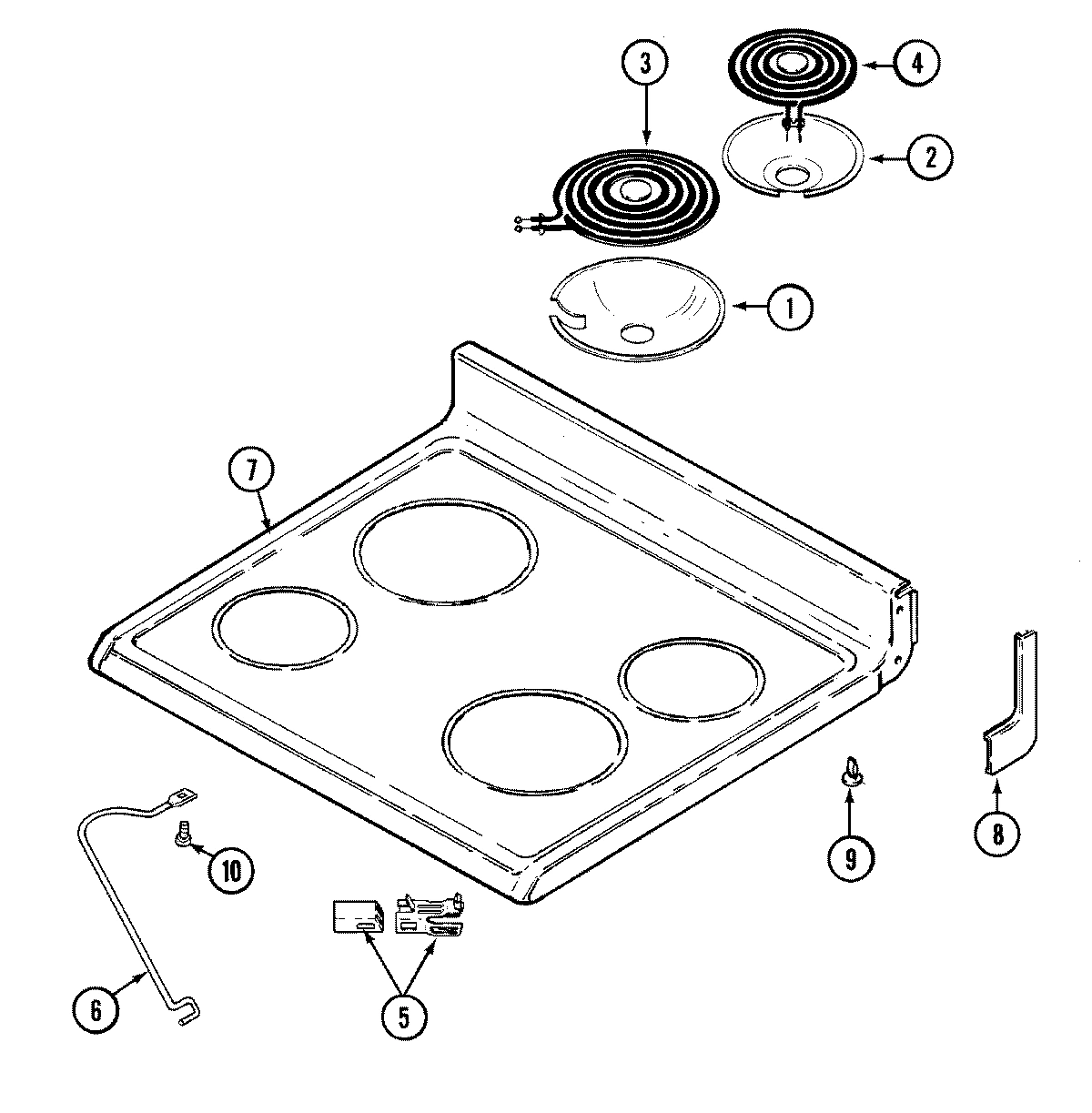

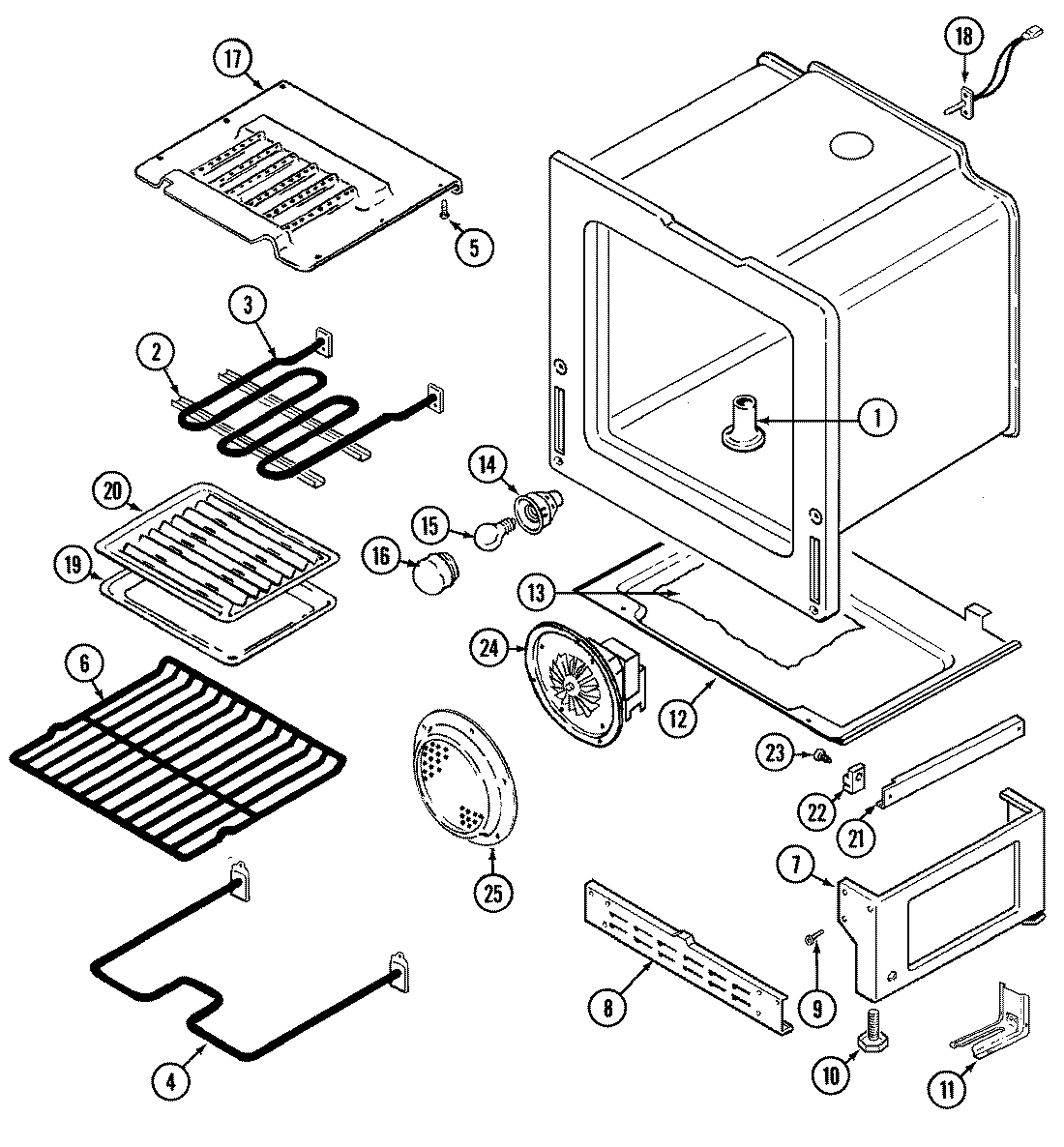

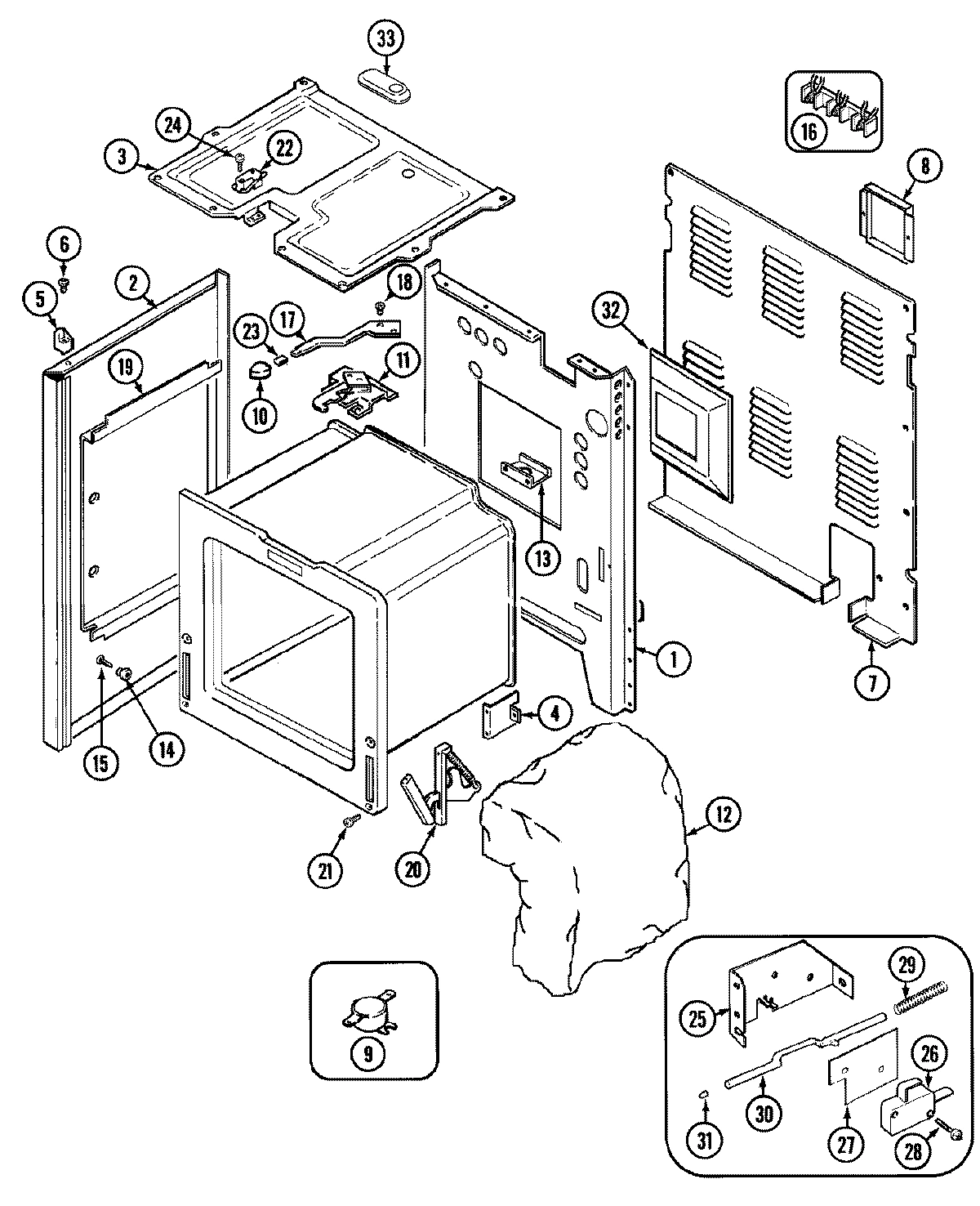

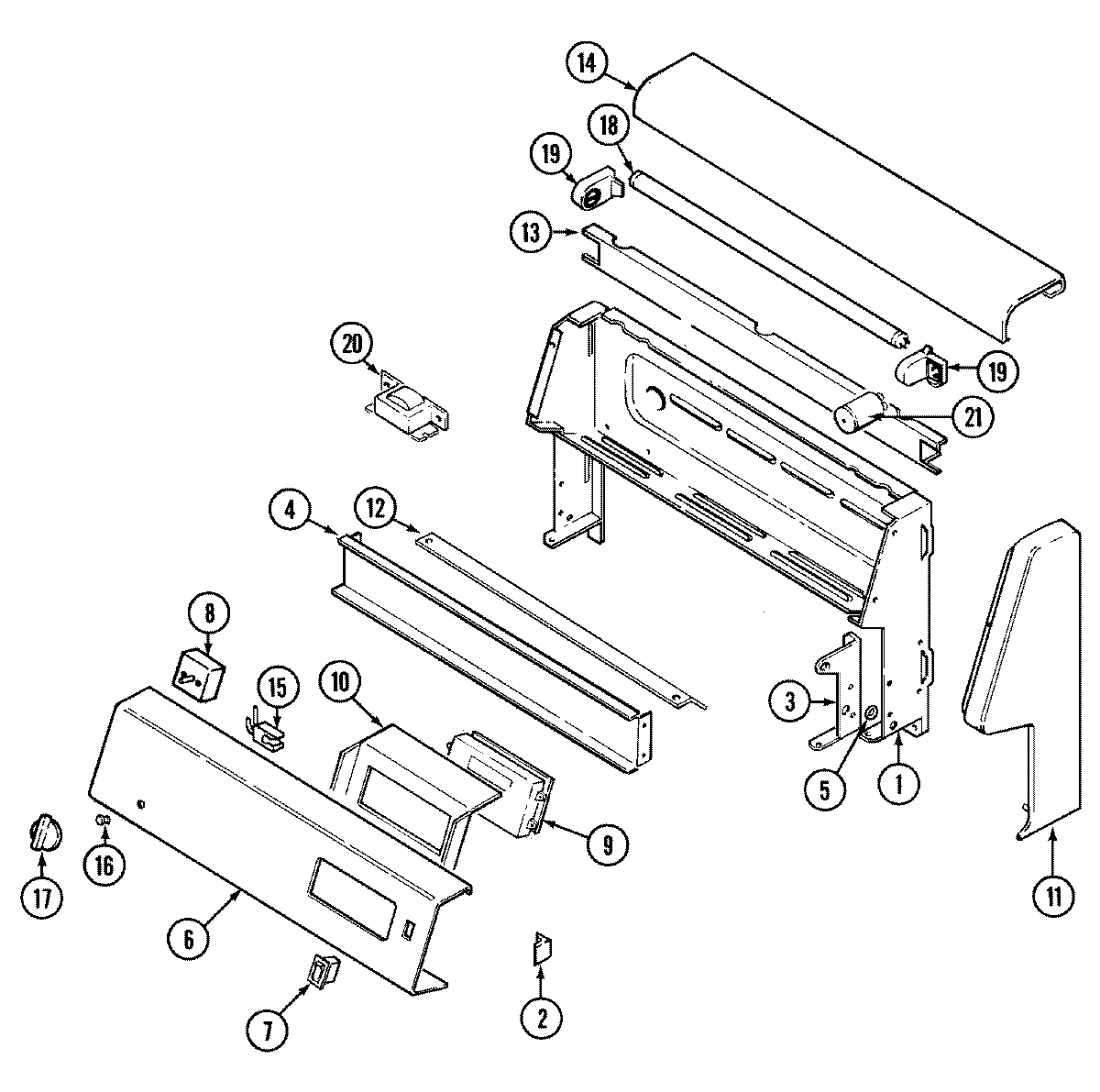

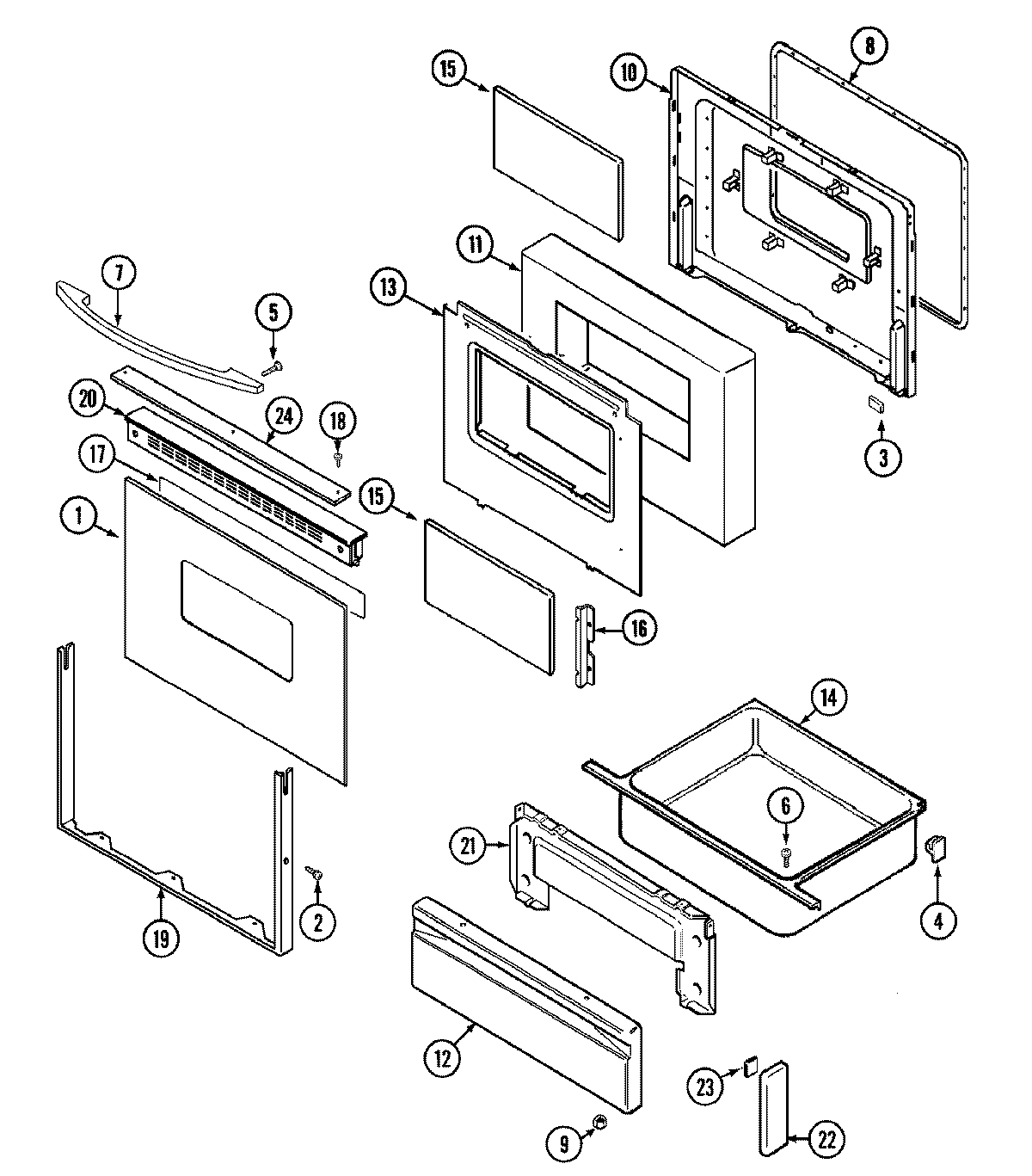

1

HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability

1

SHIELD, WIRE WPL 3604F21851 Contact Us For Availability

1

SCREW WPL 7101P33760 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

GLASS, DOOR (WHT) WPL 74002057 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability

2

SPACER WPL 8010P08360 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability

2

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

3

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $141.27

3

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $130.46

3

HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability

3

HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability

3

BOX, BURNER----NA WPL 74001753 Contact Us For Availability

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

4

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $52.85

4

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

4

BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SCREW WPL 7118P01360 Contact Us For Availability

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

6

PANEL, CONTROL (WHT) WPL 74002751 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

SUPPORT, TOP WPL 74001170 Contact Us For Availability

7

PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003016 Contact Us For Availability

7

SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability

7

COVER, WIRE WPL 4005F45551 Contact Us For Availability

7

HANDLE (WHT) WPL 74002062 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

NUT, SPEED WPL 7103P04460 Contact Us For Availability

8

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

8

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

8

END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability

8

END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability

9

CLOCK (WHT) WPL 74002123 Contact Us For Availability

9

SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability

9

NUT, LOCK WPL 7103P13960 Contact Us For Availability

9

GLIDE WPL 8016P01360 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

LEG, LEVELING WPL 74001311 Contact Us For Availability

BRACKET, CLOCK WPL 74002099 Contact Us For Availability

HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

LINING, DOOR WPL 2402W20919 Contact Us For Availability

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

NUT, SNAP WPL 7103P11460 Contact Us For Availability

NUT, SNAP WPL 7103P13660 Contact Us For Availability

BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability

SCREW, BRACKET WPL 7101P28960 Contact Us For Availability

END CAP (RT-WHT) WPL 74002033 Contact Us For Availability

END CAP (LT-WHT) WPL 74002034 Contact Us For Availability

INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

LATCH ASSY. WPL 74003032 Contact Us For Availability

LATCH ASSY. WPL 8002P02560 Contact Us For Availability

INSULATION, DOOR WPL 74001842 Contact Us For Availability

RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability

SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

INSULATION, WRAP WPL 4804F03660 Contact Us For Availability

INSULATION, BACK WPL 74001800 Contact Us For Availability

PANEL, STORAGE DRAWER (WHT) WPL 2416W00171 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

RECEPTACLE, BULB WPL 74003125 Contact Us For Availability

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

COVER, BACKGUARD (WHT) WPL 74002043 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

BULB-OVEN WPL 7407P10360 Contact Us For Availability

LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability

GLASS, INNER WPL 74001841 Contact Us For Availability

COVER, BULB WPL 7724P04760 Contact Us For Availability

LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

RETAINER, GLASS WPL 74001844 Contact Us For Availability

WP74003611 Whirlpool Range White Knob Backorder WPL WP74003611 $13.00

BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability

LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SENSOR, OVEN WPL 7430P01060 Contact Us For Availability

LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

PAN, BROIL WPL 3401F01419 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability

RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability

COVER, WIRE (LIGHT) WPL 7724P06660 Contact Us For Availability

RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability

FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability

INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

BALLAST WPL 74003033 Contact Us For Availability

BALLAST WPL 7412P00760 Contact Us For Availability

HINGE WPL 7106P05660 Contact Us For Availability

TRIM, TOP (WHT) WPL 74002066 Contact Us For Availability

RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability

STARTER WPL 7415P00160 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

LINING WPL 2404F04380 Contact Us For Availability

SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, CONTROL/TOP WPL 74001013 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 74002121 Contact Us For Availability

SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability

INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability

END CAP (ALM) WPL 7744P09460 Contact Us For Availability

SCREW WPL 7101P33460 Contact Us For Availability

MANUAL, USE & CARE WPL 16007438 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability

TAPE WPL 8270P09860 Contact Us For Availability

FAN, CONVECTION ASSY. WPL 74002125 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability

SCREW (WHT) WPL 74001278 Contact Us For Availability

INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability

25

COVER, FAN ASSY. WPL 74002126 Contact Us For Availability

25

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

25

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

26

SWITCH WPL 74001802 Contact Us For Availability

27

INSULATOR, SWI WPL 74001872 Contact Us For Availability

28

WPL 7101P33060 WPL 7101P33060 Contact Us For Availability

29

WPL 74001629 WPL 74001629 Contact Us For Availability

30

WPL 74001630 WPL 74001630 Contact Us For Availability

31

WPL 74001631 WPL 74001631 Contact Us For Availability

32

WPL 74001801 WPL 74001801 Contact Us For Availability

33

WPL 74001449 WPL 74001449 Contact Us For Availability

33

WPL 4005F43245 WPL 4005F43245 Contact Us For Availability

NI

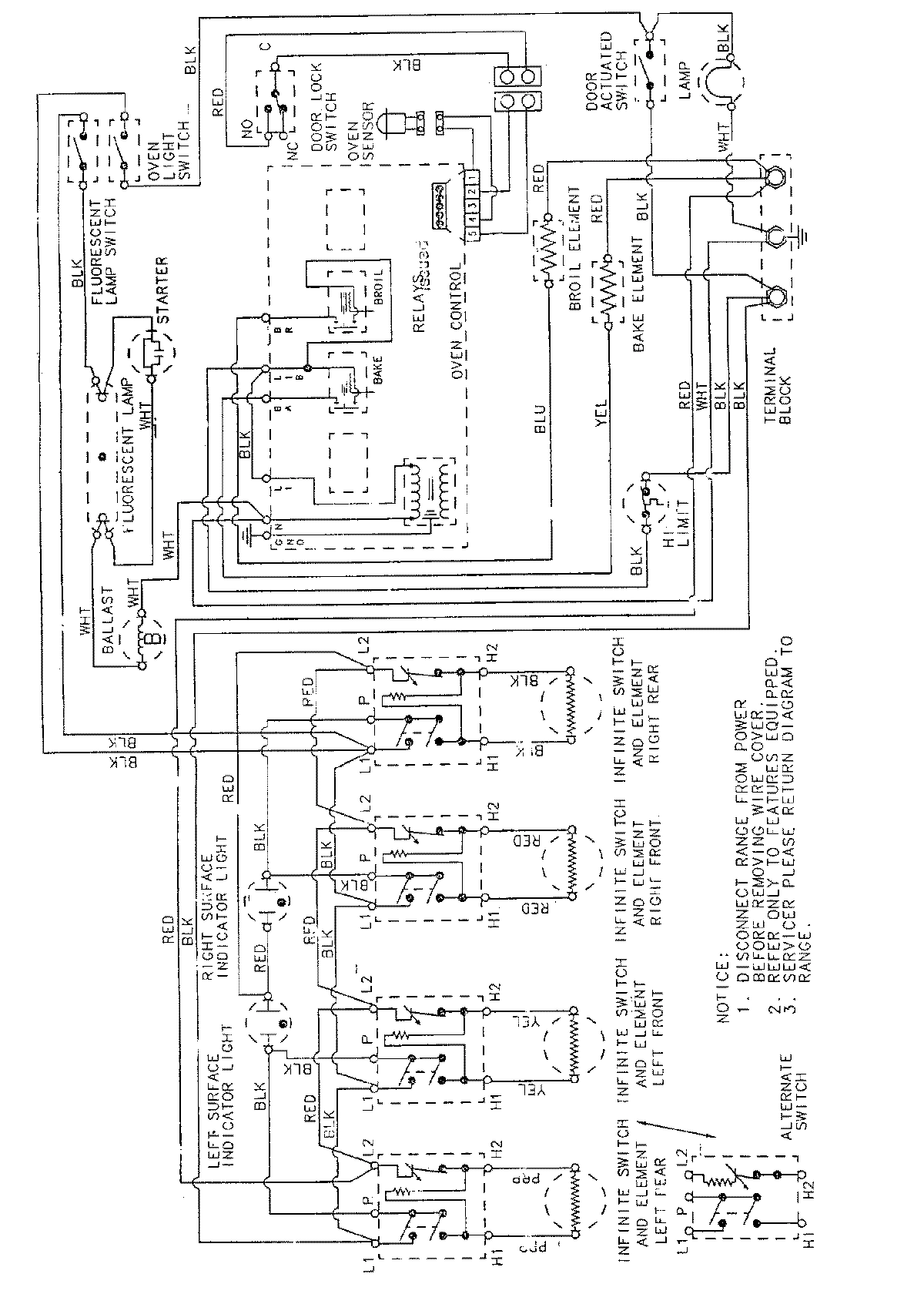

WIRING INFORMATION WPL 15001551 Contact Us For Availability
