Model Whirlpool EV209NBTQ01 VERTICAL FREEZER – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

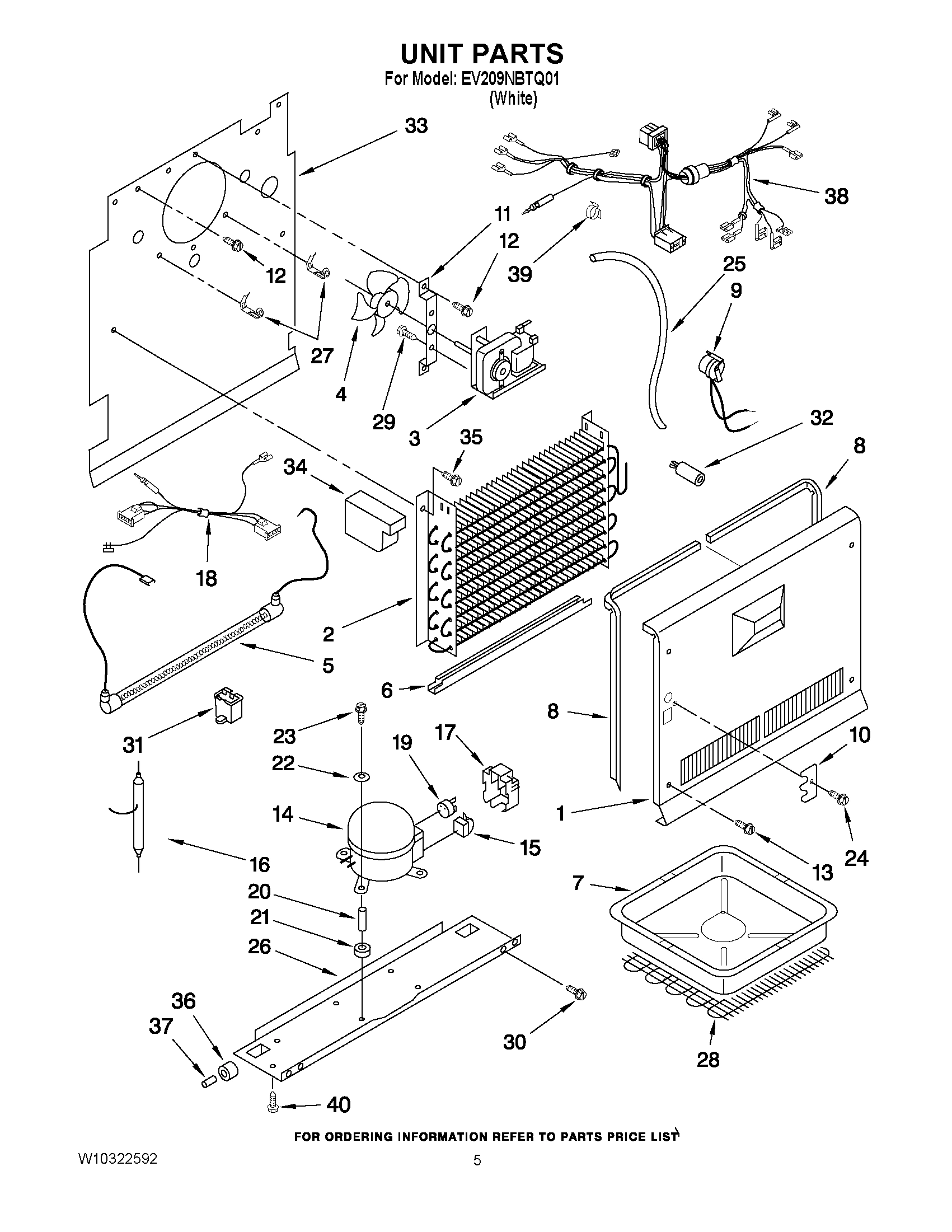

03 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

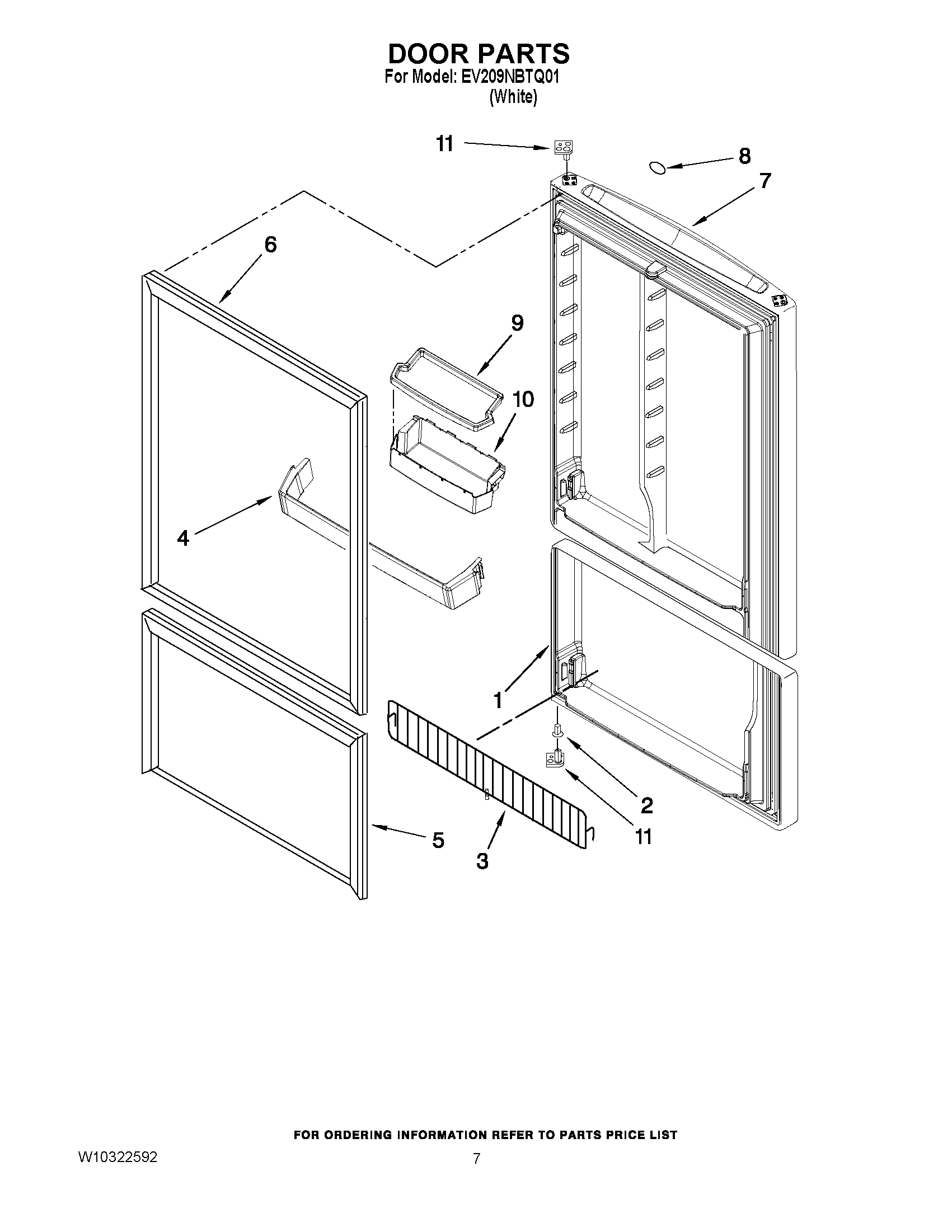

04 - DOOR PARTS
Common parts from model Whirlpool EV209NBTQ01 VERTICAL FREEZER
1
COVER, EVAPORATOR WPL 482699002 Contact Us For Availability
1
Door Assembly (Includes Interior Door Liner) WPL W10164616 Contact Us For Availability
2
Hinge, Center WPL W10164537 Contact Us For Availability
2
Bushing, Hinge WPL W10207408 Contact Us For Availability
3
Harness, Wire (Control Box) WPL W10164510 Contact Us For Availability
3
Rail, Door (Wire) WPL W10164620 Contact Us For Availability
5
Screw WPL 4390511 Contact Us For Availability
5
GASKET, LOWER DOOR WPL 465151007 Contact Us For Availability
6
Shield, Heater WPL W10164624 Contact Us For Availability
6
GASKET, DOOR (UPPER) WPL 465151006 Contact Us For Availability
7
Basket, Large WPL W10164543 Contact Us For Availability
7
Door Assy. (Top) (Includes Interior Door Line WPL W10164614 Contact Us For Availability
8
Cover, Hinge WPL 4357279 Contact Us For Availability
8
Alarm, Door Ajar WPL W10164512 Contact Us For Availability
9
SWITCH, ALARM WPL W10264530 Contact Us For Availability
9
Cover, Door Bin (4) WPL W10164622 Contact Us For Availability
10
Baffle, Short (2) WPL W10164560 Contact Us For Availability
10
Cap, Icemaker Water Tube WPL W10164568 Contact Us For Availability
13
Lens, Light WPL 8210349 Contact Us For Availability
14
COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21) WPL 432812264 Contact Us For Availability
15
Grommet, Drain WPL W10164544 Contact Us For Availability
16
Cord, Power WPL W10164631 Contact Us For Availability
16
Shield, Light WPL 8210351 Contact Us For Availability
17
Box, Control WPL W10164503 Contact Us For Availability
18
Harness, Fan WPL W10164626 Contact Us For Availability
19
Baffle, Long (1) WPL W10164558 Contact Us For Availability
20
Shield, Drain Trough WPL W10164550 Contact Us For Availability
20
Bin, Ice WPL W10164561 Contact Us For Availability
21
Cover, Ice Bin WPL W10164562 Contact Us For Availability
21
Compressor Grommet WPL 4356335 Contact Us For Availability
22
Basket (Non-I/M Unit) WPL W10164565 Contact Us For Availability
22
Washer WPL 4356847 Contact Us For Availability
23
Basket, Divider (Non-Icemaker) WPL W10164583 Contact Us For Availability
24
Cover (I/M Units) WPL W10164566 Contact Us For Availability
25
Exchanger, Heat WPL 4357263 Contact Us For Availability
25
Support, Basket WPL W10164584 Contact Us For Availability
26
Slide, Basket WPL W10164570 Contact Us For Availability
26
PAN, COMPRESSOR WPL W10261376 Contact Us For Availability
27
Clip, Thermostat WPL 4356952 Contact Us For Availability
28
Divider, Basket WPL W10183189 Contact Us For Availability
29
Arm, Shut-Off (I/M Model) WPL W10164580 Contact Us For Availability
30
Tube, Fill (I/M Model) WPL W10164581 Contact Us For Availability
31
Gasket, Fill Tube WPL W10164582 Contact Us For Availability
32
Shelf, Half (I/M Units) WPL W10164564 Contact Us For Availability
32
Grommet WPL 4357020 Contact Us For Availability
33
Plate, Evaporator Mount WPL 4357123 Contact Us For Availability
37
Axle WPL 4390755 Contact Us For Availability
39
Clip, Harness WPL W10164630 Contact Us For Availability
40
Screw WPL W10164633 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
NI
REFRIGERANT CHARGE 6.2 OZ. (R-134A) WPL NP Contact Us For Availability
× ![]()
