Model Whirlpool EV200NXKW3 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

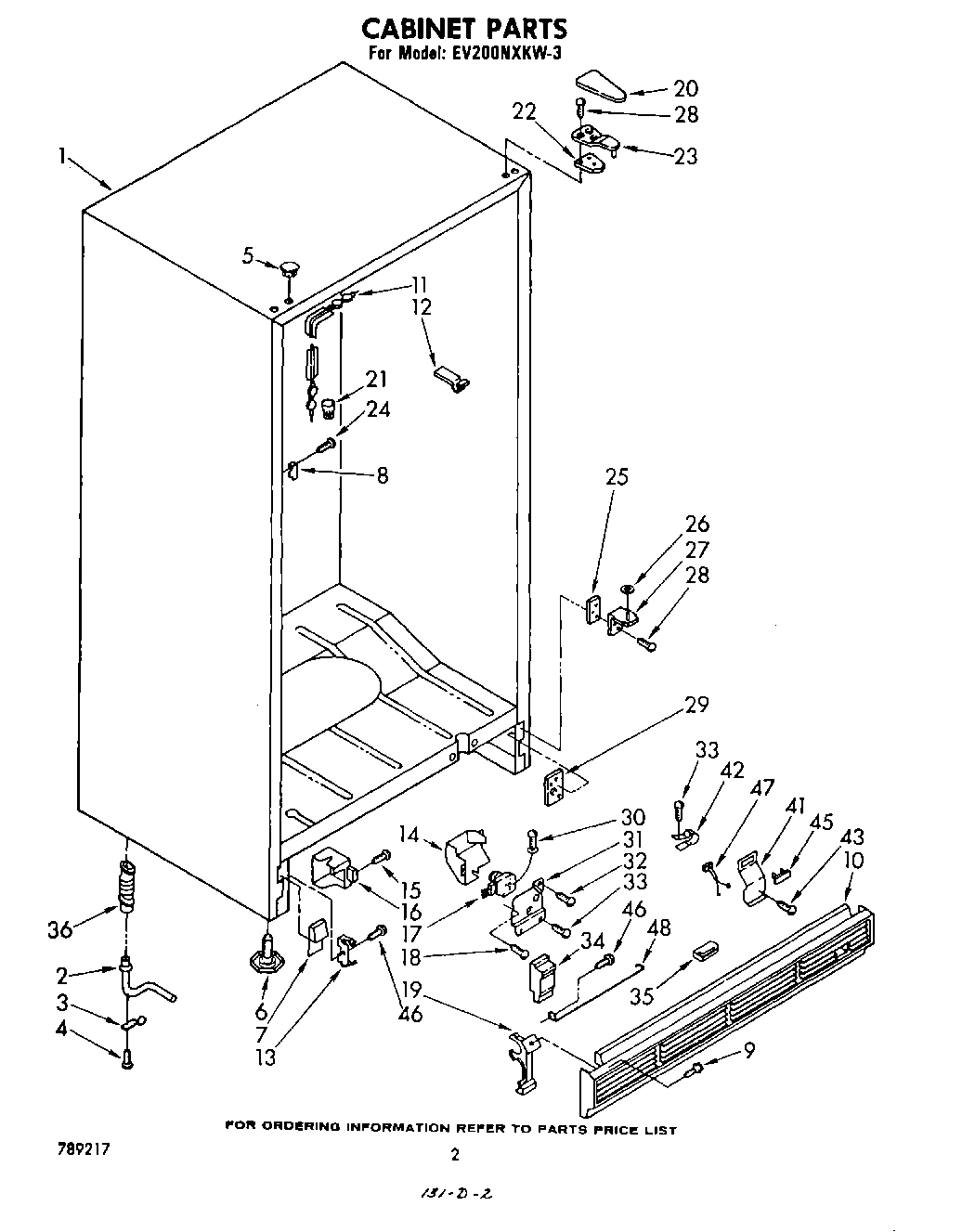

Cabinet (Not A Serviceable Part) WPL ARI56352A7 Contact Us For Availability

1

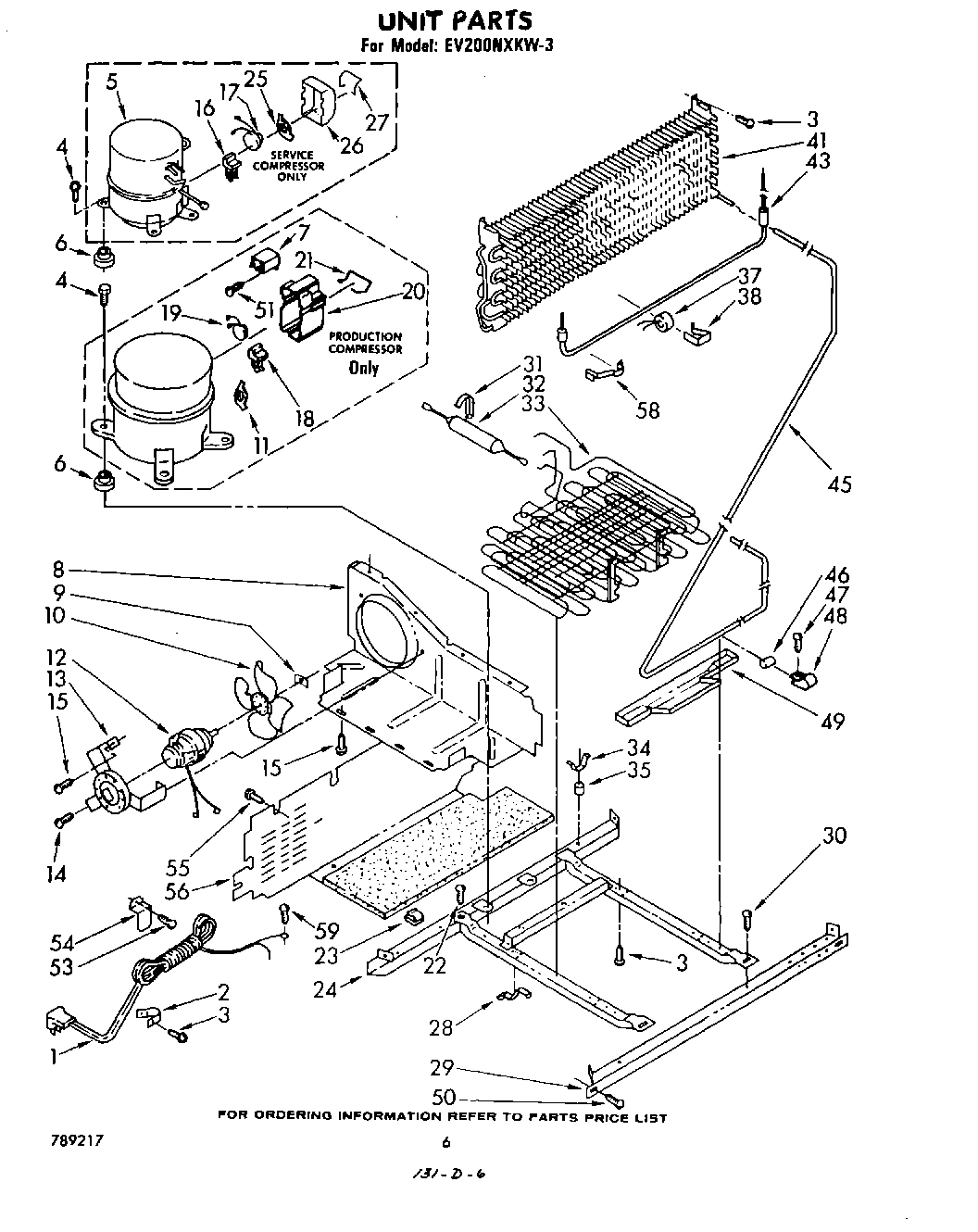

Cord, Service WPL 850626 Contact Us For Availability

1

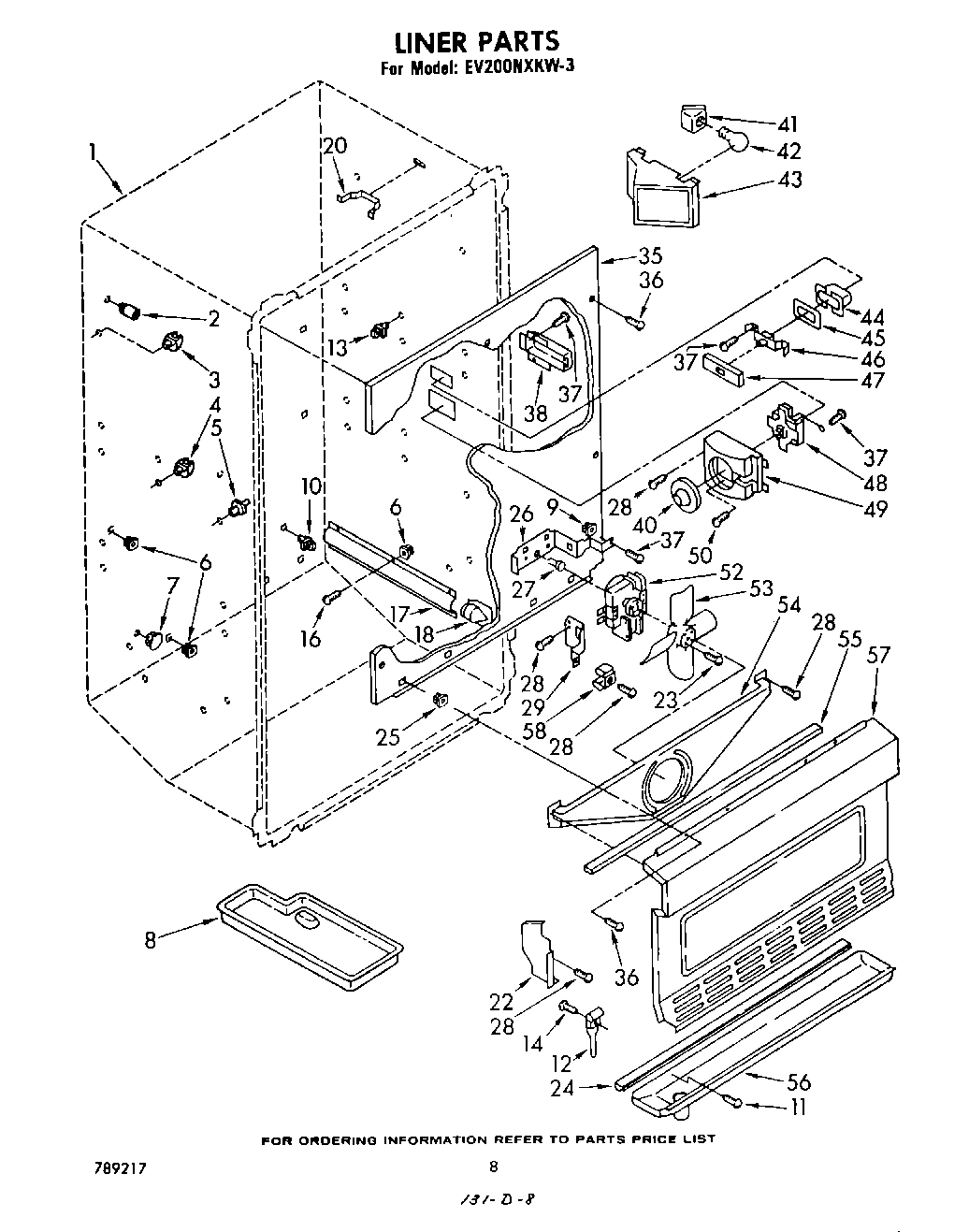

Liner (Not A Serviceable Part) WPL ARI56353A9 Contact Us For Availability

1

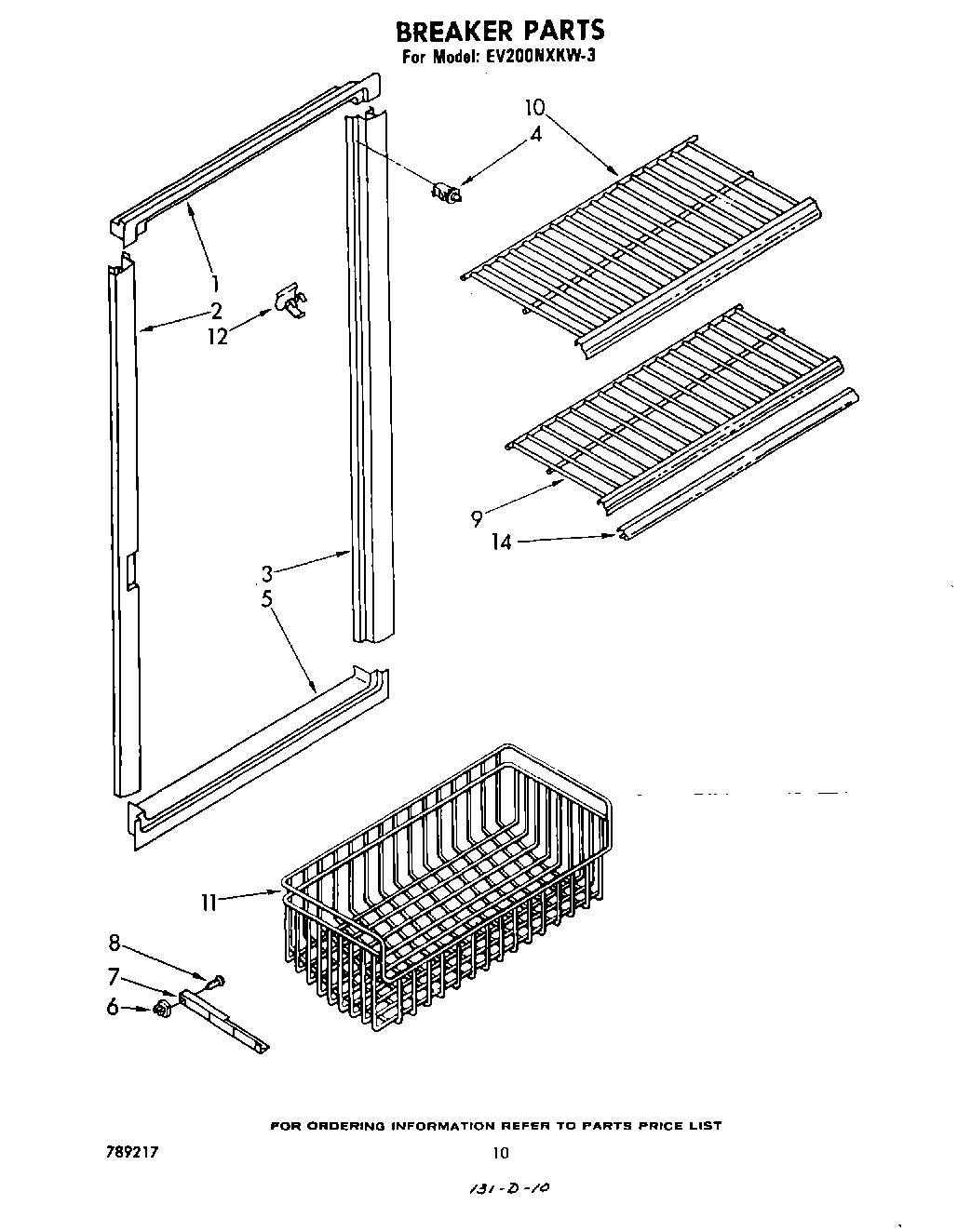

Breaker, Top WPL 940918 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $10.80

2

Extension Fitting WPL 841646 Contact Us For Availability

2

Spacer, Evaporator Mounting (9) WPL 657544 Contact Us For Availability

2

Breaker, L.S. WPL 839831 Contact Us For Availability

3

Clip, Drain WPL 841648 Contact Us For Availability

3

Stud, Saddle (R.S.) (4) WPL 523263 Contact Us For Availability

3

Stud, Saddle (L.S.) (4) WPL 523264 Contact Us For Availability

3

Breaker, R.S. WPL 836635 Contact Us For Availability

4

Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability

4

Stud, Shelf (6) WPL 509108 Contact Us For Availability

4

Switch, Light WPL 549191 Contact Us For Availability

5

Plug, Hole (3) (White) WPL 842031 Contact Us For Availability

5

Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability

5

Plug, Hole (3) (Coffee) WPL 989875 Contact Us For Availability

5

Plug, Hole (3) (New Gold) WPL 989876 Contact Us For Availability

5

Plug, Hole (3) (New Avocado) WPL 989877 Contact Us For Availability

5

Compressor WPL 482614 Contact Us For Availability

5

Stud, Shelf (8) WPL 529758 Contact Us For Availability

5

Breaker, Bottom WPL 839829 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.19

6

Leveler (2) WPL 836392 Contact Us For Availability

6

Grommet WPL 842339 Contact Us For Availability

7

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.57

7

Filler Grille (White) WPL 838535 Contact Us For Availability

7

Filler, Grille (Coffee) WPL 989928 Contact Us For Availability

7

Filler, Grille (New Gold) WPL 989929 Contact Us For Availability

7

Filler, Grille (New Avocado) WPL 989930 Contact Us For Availability

7

Filler Grille (Almond) WPL 989931 Contact Us For Availability

7

Plug, Hole (13) WPL 519890 Contact Us For Availability

7

Track, Shelf (R.S.) WPL 837554 Contact Us For Availability

7

Track, Shelf (L.S.) WPL 837557 Contact Us For Availability

8

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $9.14

8

Tray, Evaporating WPL 842041 Contact Us For Availability

8

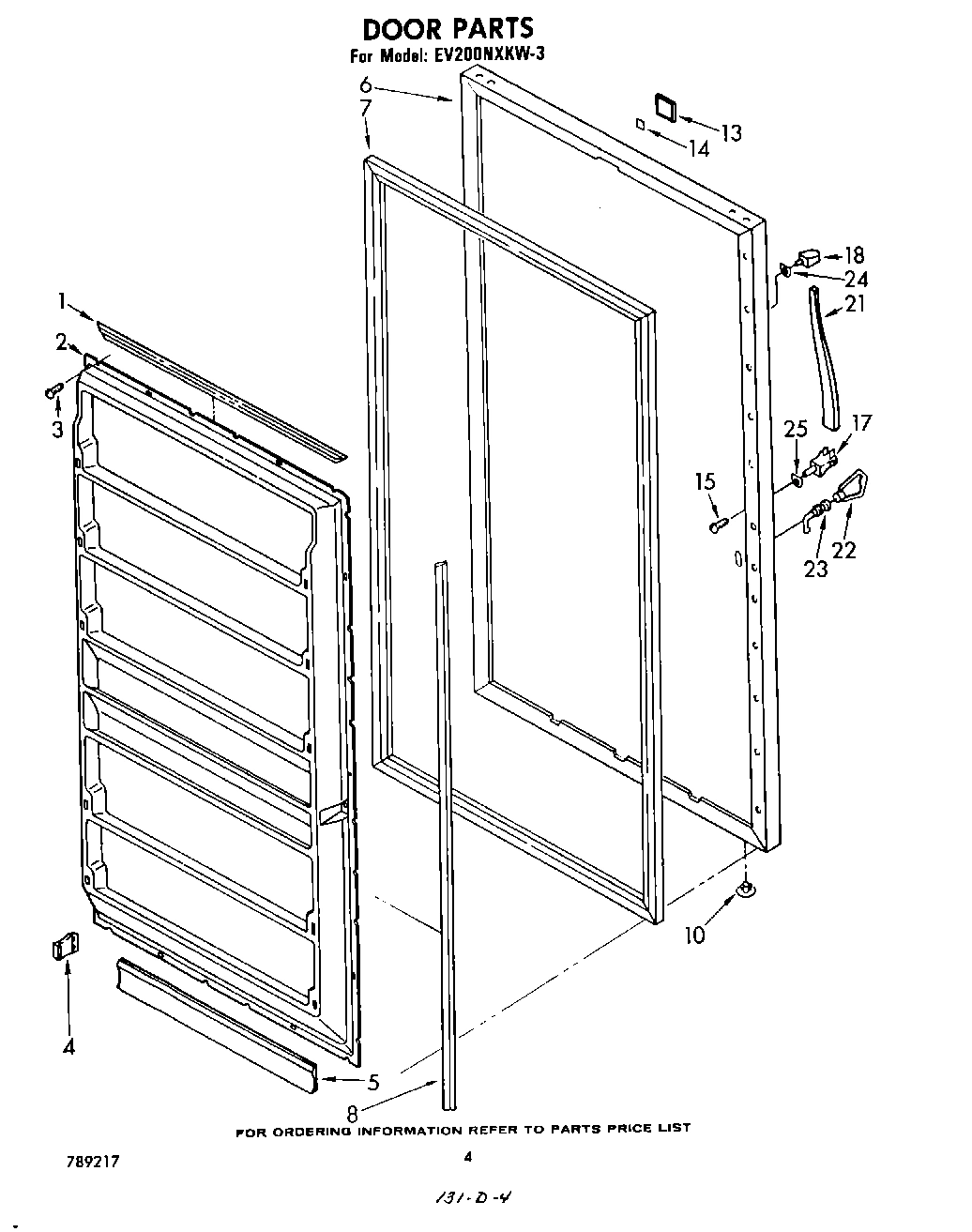

Lock, Strike WPL 991992 Contact Us For Availability

8

Baffle WPL 850764 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.19

9

Screw, 8-22 x .312 WPL 489085 Contact Us For Availability

9

Grommet WPL 538449 Contact Us For Availability

9

Shelf (1) WPL 849691 Contact Us For Availability

Grille, Exterior (White) WPL 945600 Contact Us For Availability

Grille, Exterior (Coffee) WPL 945601 Contact Us For Availability

Grille, Exterior (New Gold) WPL 945602 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 945603 Contact Us For Availability

Grille, Exterior (Almond) WPL 945604 Contact Us For Availability

Blade, Fan WPL 989524 Contact Us For Availability

Stud, Hook (2) WPL 653172 Contact Us For Availability

Shelf (3) WPL 849690 Contact Us For Availability

Heater, Stile WPL 936129 Contact Us For Availability

Spring, Overload WPL 943320 Contact Us For Availability

Screw, 8-15 x 1/2 (5) WPL 486214 Contact Us For Availability

Basket, Slide-Out WPL 839852 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.06

Clip, Retainer (10) WPL 935663 Contact Us For Availability

Probe, Heat (Includes Illus. 14) WPL 849689 Contact Us For Availability

Clip (3) WPL 939139 Contact Us For Availability

Nameplate WPL 945108 Contact Us For Availability

Clip, Grille Retainer WPL 989068 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

Stud, Hook (2) WPL 651590 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

Guard, Timer WPL 548708 Contact Us For Availability

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

Trim, Shelf (4) (Snap-On) WPL 942645 Contact Us For Availability

15

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

15

Screw, .190DT x 3/4 (2) WPL 488818 Contact Us For Availability

15

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

16

Box, Junction WPL 549947 Contact Us For Availability

16

Relay (Used W/Service Compressor) WPL 589509 Contact Us For Availability

End, Handle (Bottom) WPL 982947 Contact Us For Availability

Timer, Defrost WPL 851160 Contact Us For Availability

Overload (Used W/Service Compressor) WPL 589518 Contact Us For Availability

Cover, Tube WPL 839827 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $3.38

End, Handle (Top) WPL 982948 Contact Us For Availability

Relay WPL 1101014 Contact Us For Availability

Cover, Tube WPL 839826 Contact Us For Availability

19

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $5.76

19

Overload WPL 1101039 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $19.07

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

Cover, Hinge (New Gold) WPL 989896 Contact Us For Availability

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

Case WPL 943321 Contact Us For Availability

Clip, Speed (3) WPL 533998 Contact Us For Availability

21

Handle, Center WPL 982978 Contact Us For Availability

21

Connector, Screw-On WPL 547217 Contact Us For Availability

21

Spring WPL 943322 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $7.24

Key WPL 941380 Contact Us For Availability

Shim, Hinge WPL 836151 Contact Us For Availability

Baffle, Evaporator (2) WPL 839883 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.19

Lock WPL 941379 Contact Us For Availability

Hinge, Top WPL 842038 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

24

Shim, Handle End WPL 941918 Contact Us For Availability

24

Frame WPL 945457 Contact Us For Availability

24

Gasket, Drain Pan WPL 849480 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.68

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $118.74

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $44.61

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Tech Sheet WPL 1101097 Contact Us For Availability

Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability

Booklet, Freezing WPL 656493 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

List, Parts WPL 789217 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Thiner, Blend (1 Gal.) WPL 799351 Contact Us For Availability

K WPL 799833 Contact Us For Availability

WPL 941917 WPL 941917 Contact Us For Availability

WPL 942647 WPL 942647 Contact Us For Availability

WPL 946720 WPL 946720 Contact Us For Availability

Shim, Hinge WPL 836196 Contact Us For Availability

Spring, Overload (Used W/Service Compressor) WPL 549086 Contact Us For Availability

Grommet (2) WPL 509812 Contact Us For Availability

26

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $3.22

26

Cover (Used W/ Service Compressor) WPL 549505 Contact Us For Availability

26

Bracket (Single) WPL 548264 Contact Us For Availability

27

Hinge (Bottom) WPL 836686 Contact Us For Availability

27

Strap, Cover (Used W/Service Compressor) WPL 549342 Contact Us For Availability

27

Grommet (3) WPL 548268 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $14.93

Screw (Repair) WPL 488949 Contact Us For Availability

Screw, 10-32 x 3/4 WPL 589105 Contact Us For Availability

Clip (2) WPL 548744 Contact Us For Availability

29

Tap Plate WPL 836162 Contact Us For Availability

29

Rail, Front WPL 941697 Contact Us For Availability

29

Bracket (Double) WPL 548263 Contact Us For Availability

30

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $5.84

31

Plate, Timer WPL 548705 Contact Us For Availability

31

Clamp WPL 548508 Contact Us For Availability

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $26.71

32

Screw, 6-20 x 3/8 (2) WPL 488424 Contact Us For Availability

33

Condenser WPL 943480 Contact Us For Availability

34

Insert, Grille WPL 836372 Contact Us For Availability

34

Clamp (4) WPL 548738 Contact Us For Availability

35

Bumper (2) WPL 546131 Contact Us For Availability

35

Grommet (4) WPL 943447 Contact Us For Availability

35

Duct, Air WPL 839888 Contact Us For Availability

36

Fitting, D WPL 839861 Contact Us For Availability

36

Screw, 8 x 1-1/8 (9) WPL 488876 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $38.81

37

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

38

Clamp WPL 513584 Contact Us For Availability

38

Cover, Insulation WPL 836553 Contact Us For Availability

40

Knob, Thermostat WPL 981928 Contact Us For Availability

41

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

41

WPL 946731 WPL 946731 Contact Us For Availability

41

Evaporator WPL 482060 Contact Us For Availability

42

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

42

WPL 653037 WPL 653037 Contact Us For Availability

43

Heater, Defrost WPL 989698 Contact Us For Availability

43

Shield, Light WPL 848158 Contact Us For Availability

44

Container, Power Saver Switch WPL 845051 Contact Us For Availability

45

WPL 530584 WPL 530584 Contact Us For Availability

45

Exchanger, Heat WPL 1100838 Contact Us For Availability

45

Gasket, Container WPL 845052 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

46

Switch, Power Saver WPL 845049 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

47

WPL 549538 WPL 549538 Contact Us For Availability

47

Escutcheon, Power Saver WPL 934924 Contact Us For Availability

48

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $140.30

48

WPL 850156 WPL 850156 Contact Us For Availability

48

Clamp, Tube (2) WPL 510716 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

49

Escutcheon, Thermostat WPL 843953 Contact Us For Availability

50

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

52

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $96.58

53

Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability

53

Blade, Fan WPL 839859 Contact Us For Availability

54

Clip, Plug WPL 653035 Contact Us For Availability

54

Cover, Fan Orifice WPL 984684 Contact Us For Availability

55

Gasket WPL 659202 Contact Us For Availability

56

Cover WPL 850457 Contact Us For Availability

56

Pan, Drain WPL 839818 Contact Us For Availability

57

Cover, Evaporator WPL 839846 Contact Us For Availability

58

Clip, Heater WPL 548459 Contact Us For Availability

58

Clip, Expansion (2) WPL 537095 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
