Model Whirlpool EV200NXKW1 VERTICAL FREEZER – Common Parts & Diagrams

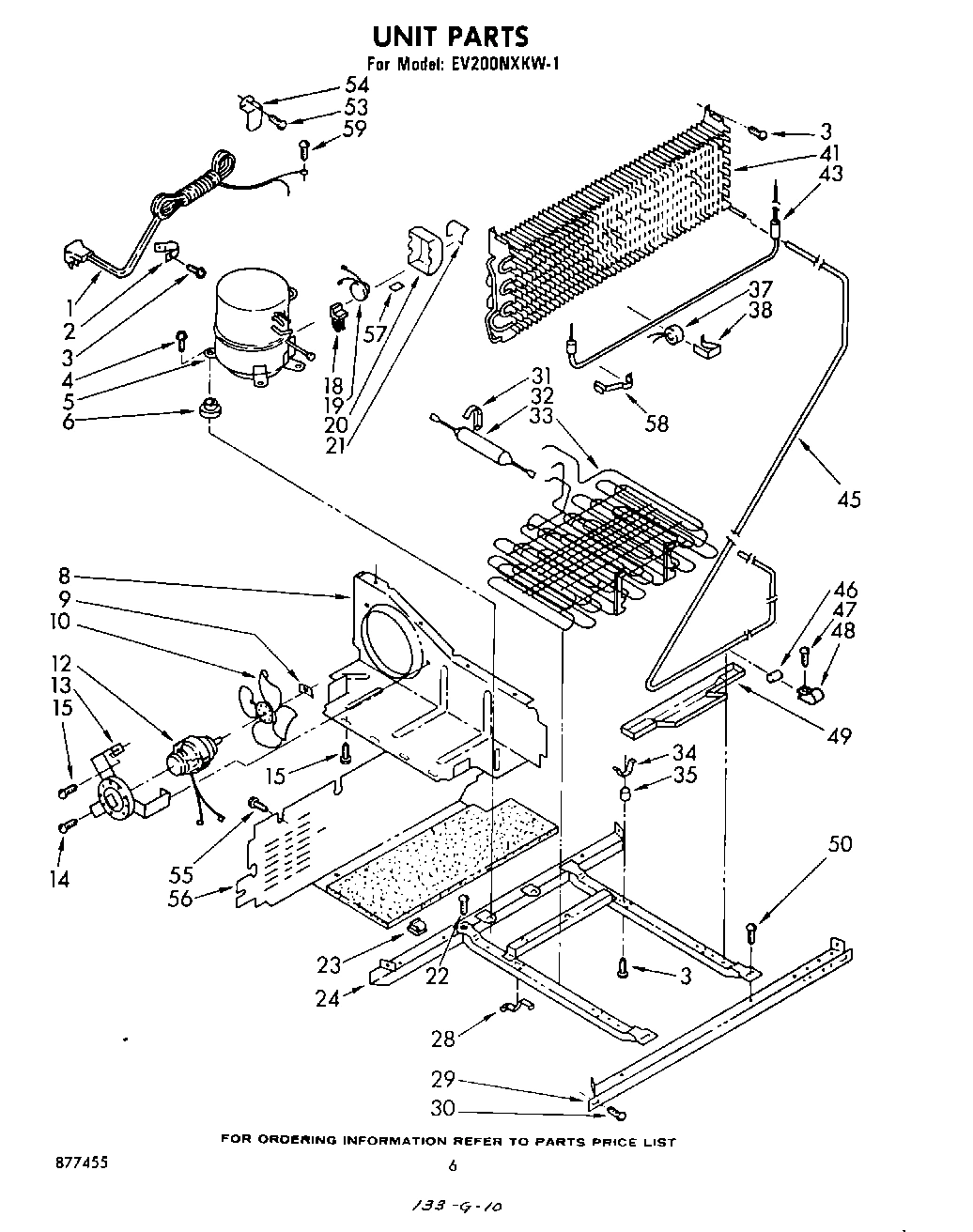

04 - UNIT

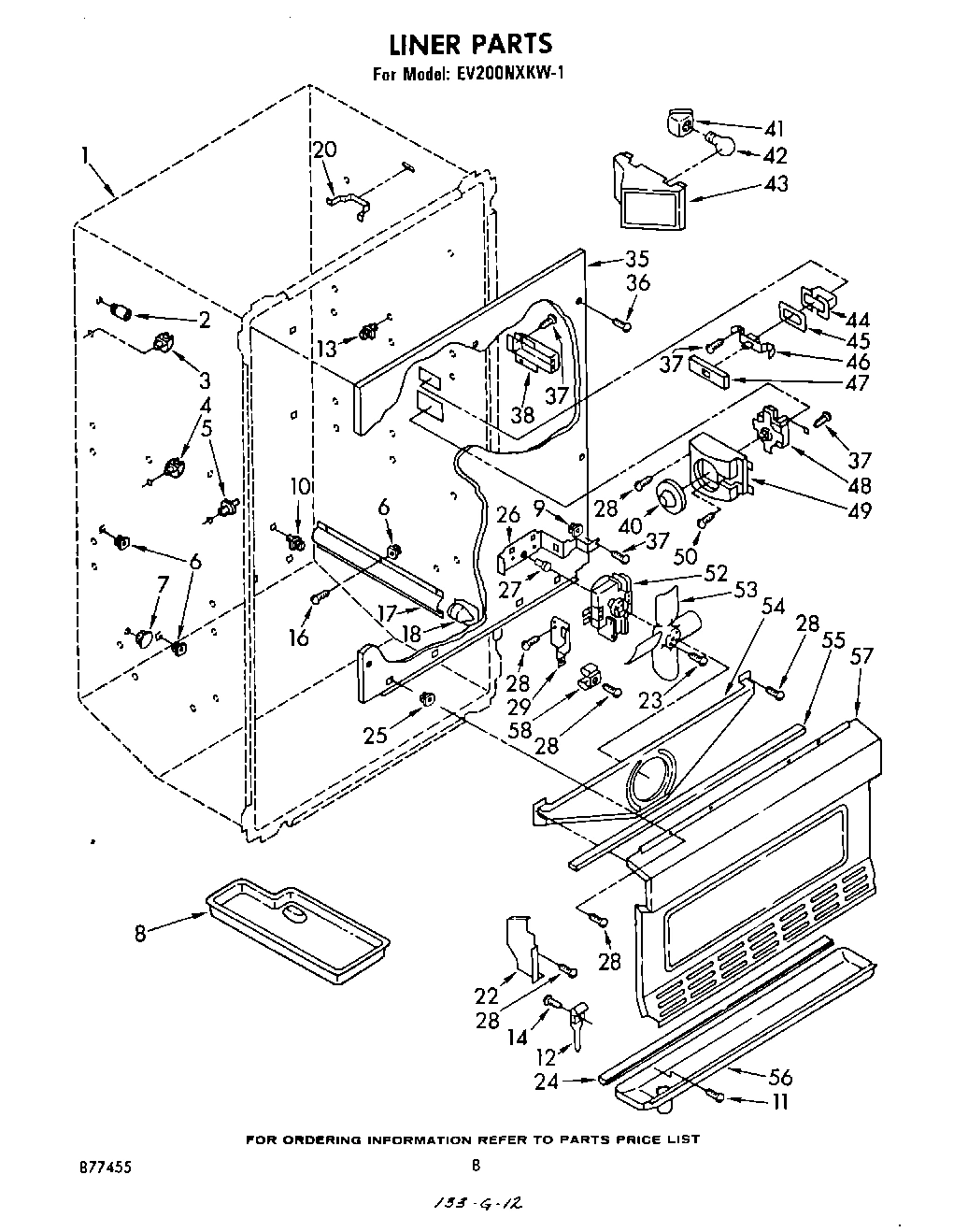

05 - LINER

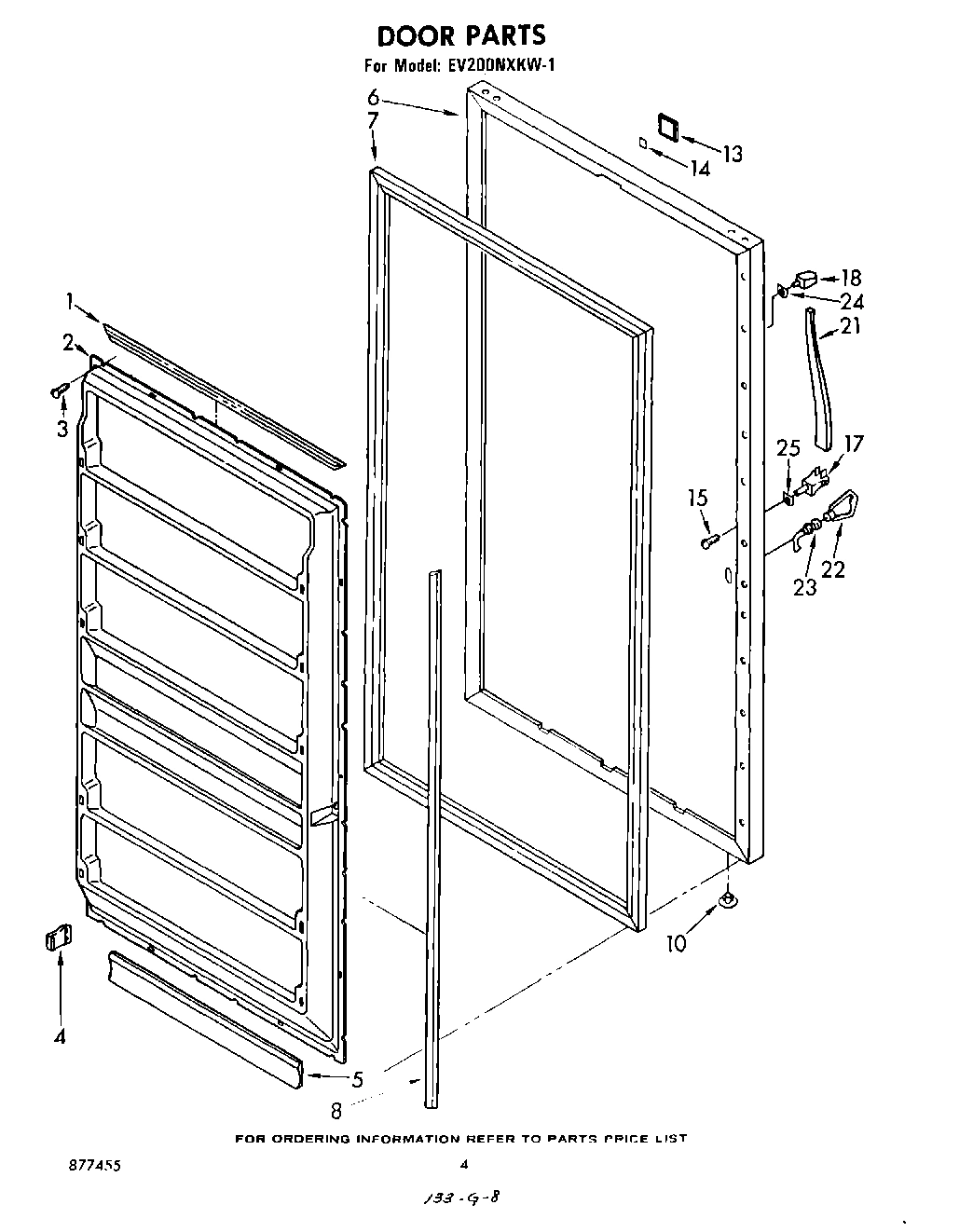

03 - DOOR, LIT/OPTIONAL

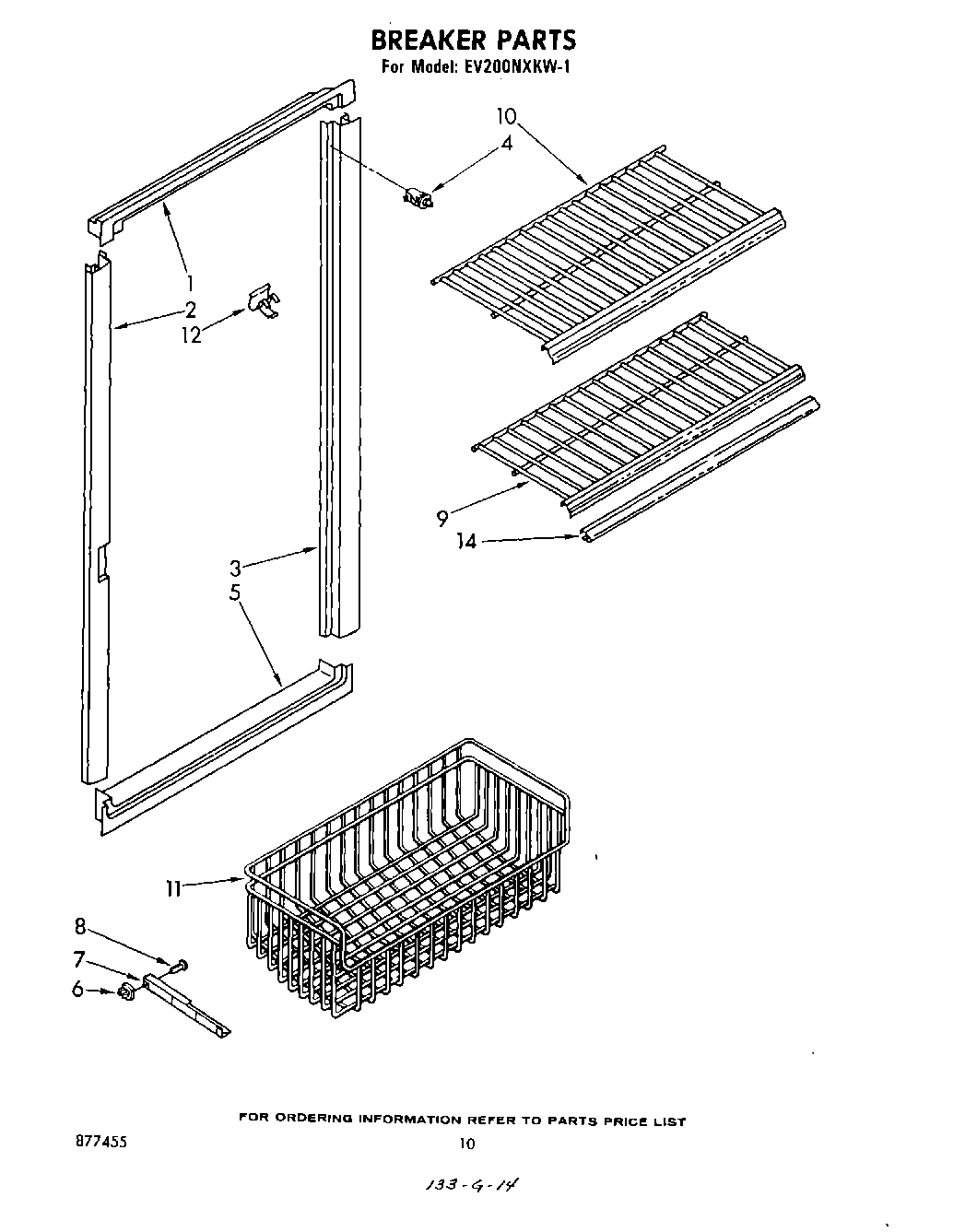

06 - BREAKER

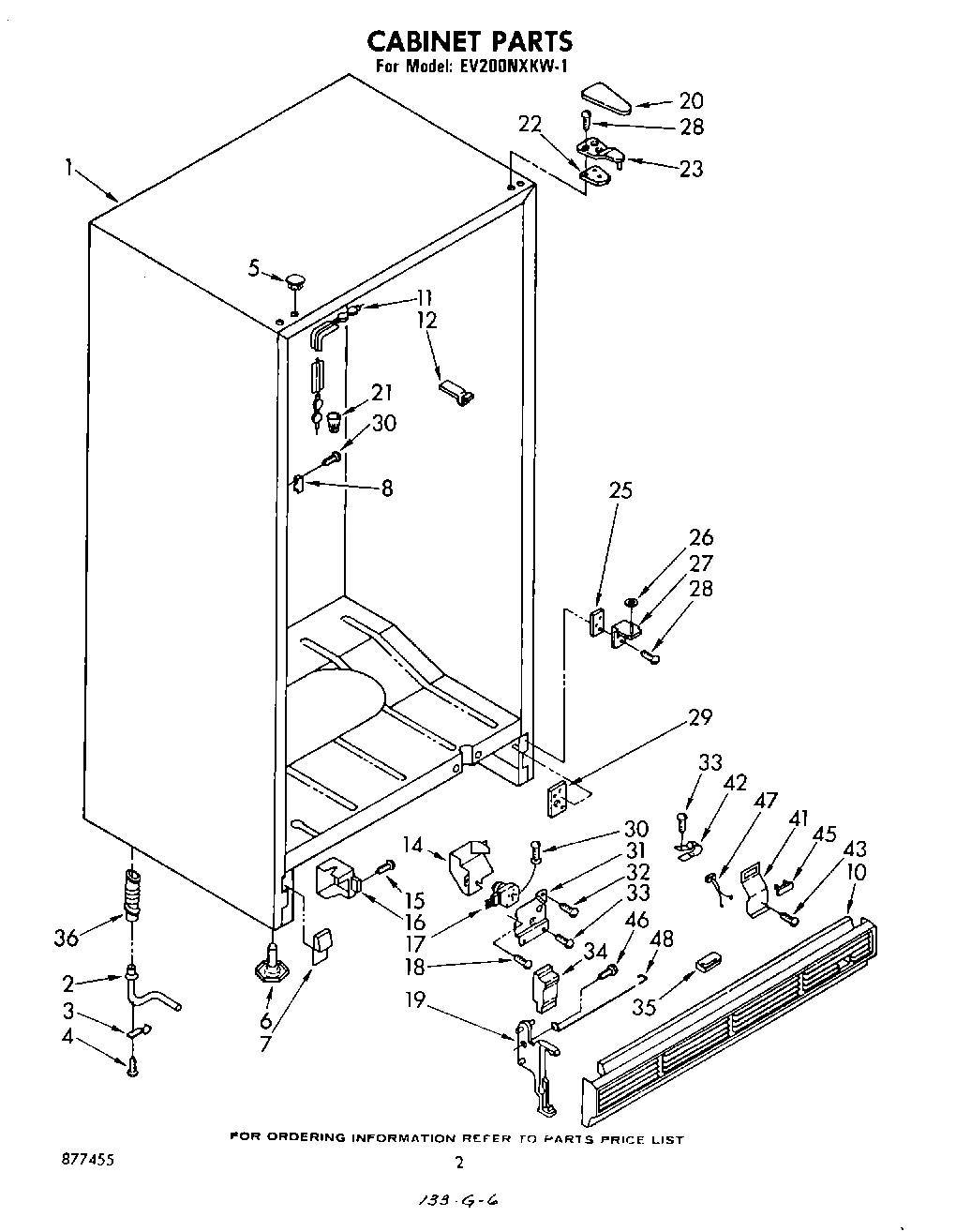

02 - CABINET
Common parts from model Whirlpool EV200NXKW1 VERTICAL FREEZER
WPL 206925 WPL 206925 Contact Us For Availability
WPL 261886 WPL 261886 Contact Us For Availability
WPL 261888 WPL 261888 Contact Us For Availability
WPL 261890 WPL 261890 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI56349A6 Contact Us For Availability
1
Retainer, Gasket (2) (Top & Bottom) WPL 836118 Contact Us For Availability
1
Breaker, Top WPL 940918 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI56348A9 Contact Us For Availability
2
Spacer, Evaporator Mounting (9) WPL 657544 Contact Us For Availability
2
Panel WPL 942677 Contact Us For Availability
2
Breaker, L.S. WPL 839831 Contact Us For Availability
2
Extension Fitting WPL 841646 Contact Us For Availability
3
Stud, Saddle (R.S.) (4) WPL 523263 Contact Us For Availability
3
Stud, Saddle (L.S.) (4) WPL 523264 Contact Us For Availability
3
Breaker, R.S. WPL 836635 Contact Us For Availability
3
Clip, Drain WPL 841648 Contact Us For Availability
4
Stud, Shelf (6) WPL 509108 Contact Us For Availability
4
Switch, Light WPL 549191 Contact Us For Availability
4
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
5
Stud, Shelf (8) WPL 529758 Contact Us For Availability
5
Trim, Shelf (5) WPL 984900 Contact Us For Availability
5
Breaker, Bottom WPL 839829 Contact Us For Availability
5
Plug, Hole (3) (White) WPL 842031 Contact Us For Availability
5
Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability
5
Plug, Hole (3) (Coffee) WPL 989875 Contact Us For Availability
5
Plug, Hole (3) (New Gold) WPL 989876 Contact Us For Availability
5
Plug, Hole (3) (New Avocado) WPL 989877 Contact Us For Availability
6
Grommet WPL 842339 Contact Us For Availability
6
Door, Exterior (White) WPL 942619 Contact Us For Availability
6
Door, Exterior (Coffee) WPL 942620 Contact Us For Availability
6
Door, Exterior (New Gold) WPL 942621 Contact Us For Availability
6
Door, Exterior (New Avocado) WPL 942622 Contact Us For Availability
6
Door, Exterior (Almond) WPL 942623 Contact Us For Availability
6
Leveler (2) WPL 836392 Contact Us For Availability
7
Plug, Hole (13) WPL 519890 Contact Us For Availability
7
Track, Shelf (R.S.) WPL 837554 Contact Us For Availability
7
Track, Shelf (L.S.) WPL 837557 Contact Us For Availability
7
Filler Grille (White) WPL 838535 Contact Us For Availability
7
Filler, Grille (Coffee) WPL 989928 Contact Us For Availability
7
Filler, Grille (New Gold) WPL 989929 Contact Us For Availability
7
Filler, Grille (New Avocado) WPL 989930 Contact Us For Availability
7
Filler Grille (Almond) WPL 989931 Contact Us For Availability
8
Tray, Evaporating WPL 842041 Contact Us For Availability
8
Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability
8
Lock, Strike WPL 991992 Contact Us For Availability
9
Grommet WPL 538449 Contact Us For Availability
9
Shelf (1) WPL 849691 Contact Us For Availability
10
Stud, Hook (2) WPL 653172 Contact Us For Availability
10
Plug, Hole (2) WPL 534927 Contact Us For Availability
10
Shelf (3) WPL 849690 Contact Us For Availability
10
Grille, Exterior (White) WPL 842208 Contact Us For Availability
10
Grille, Exterior (Coffee) WPL 989948 Contact Us For Availability
10
Grille, Exterior (New Gold) WPL 989949 Contact Us For Availability
10
Grille, Exterior (New Avocado) WPL 989950 Contact Us For Availability
10
Grille, Exterior (Almond) WPL 989951 Contact Us For Availability
11
Screw, 8-15 x 1/2 (5) WPL 486214 Contact Us For Availability
11
Basket, Slide-Out WPL 839852 Contact Us For Availability
11
Heater, Stile WPL 936129 Contact Us For Availability
12
Probe, Heat (Includes 14) WPL 849689 Contact Us For Availability
12
Clip (3) WPL 939139 Contact Us For Availability
12
Clip, Retainer (10) WPL 935663 Contact Us For Availability
13
Stud, Hook (2) WPL 651590 Contact Us For Availability
13
Nameplate WPL 945108 Contact Us For Availability
14
Tape Strip WPL 991259 Contact Us For Availability
14
Trim, Shelf (4) (Snap-On) WPL 942645 Contact Us For Availability
14
Guard, Timer WPL 548708 Contact Us For Availability
15
Screw, .190DT x 3/4 (2) WPL 488818 Contact Us For Availability
16
Box, Junction WPL 549947 Contact Us For Availability
17
Cover, Tube WPL 839827 Contact Us For Availability
17
End, Handle (Bottom) WPL 982947 Contact Us For Availability
17
Timer, Defrost WPL 851160 Contact Us For Availability
18
Cover, Tube WPL 839826 Contact Us For Availability
18
End, Handle (Top) WPL 982948 Contact Us For Availability
19
Support, Grille (2) WPL 844614 Contact Us For Availability
20
Clip, Speed (3) WPL 533998 Contact Us For Availability
20
Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability
20
Cover, Hinge (New Gold) WPL 989896 Contact Us For Availability
20
Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability
21
Handle, Center WPL 982978 Contact Us For Availability
21
Connector, Screw-On WPL 547217 Contact Us For Availability
22
Baffle, Evaporator (2) WPL 839883 Contact Us For Availability
22
Key WPL 941380 Contact Us For Availability
22
Shim, Hinge WPL 836151 Contact Us For Availability
23
Lock WPL 941379 Contact Us For Availability
23
Hinge, Top WPL 842038 Contact Us For Availability
24
Gasket, Drain Pan WPL 849480 Contact Us For Availability
24
Shim, Handle End WPL 941918 Contact Us For Availability
25
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
25
Grommet (2) WPL 509812 Contact Us For Availability
25
Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability
25
Booklet, Freezing WPL 656493 Contact Us For Availability
25
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
25
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
25
Thiner, Blend (1 Gal.) WPL 799351 Contact Us For Availability
25
KIT, EVAPORATOR REPAIR ( WPL 799833 Contact Us For Availability
25
WPL 877455 WPL 877455 Contact Us For Availability
25
WPL 941917 WPL 941917 Contact Us For Availability
25
WPL 942647 WPL 942647 Contact Us For Availability
25
WPL 942656 WPL 942656 Contact Us For Availability
25
Shim, Hinge WPL 836196 Contact Us For Availability
26
Bracket (Single) WPL 548264 Contact Us For Availability
27
Grommet (3) WPL 548268 Contact Us For Availability
27
Hinge (Bottom) WPL 836686 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
28
Screw (Repair) WPL 488949 Contact Us For Availability
29
Rail, Front WPL 941697 Contact Us For Availability
29
Bracket (Double) WPL 548263 Contact Us For Availability
29
Tap Plate WPL 836162 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
31
Plate, Timer WPL 548705 Contact Us For Availability
32
Screw, 6-20 x 3/8 (2) WPL 488424 Contact Us For Availability
33
Condenser & Precooler WPL 481851 Contact Us For Availability
33
Screw, 8 x 3/8 (2) WPL 488624 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
34
Insert, Grille WPL 836372 Contact Us For Availability
35
Grommet (4) WPL 548737 Contact Us For Availability
35
Duct, Air WPL 839888 Contact Us For Availability
35
Bumper (2) WPL 546131 Contact Us For Availability
36
Screw, 8 x 1-1/8 (9) WPL 488876 Contact Us For Availability
36
Fitting, Drain WPL 839861 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
38
Cover, Insulation WPL 836553 Contact Us For Availability
40
Knob, Thermostat WPL 981928 Contact Us For Availability
41
Evaporator WPL 482060 Contact Us For Availability
41
Bracket, Pilot Light WPL 842250 Contact Us For Availability
42
Cleat, Cord WPL 653037 Contact Us For Availability
43
Heater, Defrost WPL 989698 Contact Us For Availability
43
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
43
Shield, Light WPL 848158 Contact Us For Availability
44
Container, Power Saver Switch WPL 845051 Contact Us For Availability
45
Exchanger, Heat WPL 943363 Contact Us For Availability
45
Gasket, Container WPL 845052 Contact Us For Availability
45
Ligh WPL 530584 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
46
Switch, Power Saver WPL 845049 Contact Us For Availability
47
Escutcheon, Power Saver WPL 934924 Contact Us For Availability
47
WPL 549538 WPL 549538 Contact Us For Availability
48
Clamp, Tube (2) WPL 510716 Contact Us For Availability
48
WPL 850156 WPL 850156 Contact Us For Availability
49
Pan, Drip WPL 989269 Contact Us For Availability
49
Escutcheon, Thermostat WPL 843953 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
53
Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability
53
Blade, Fan WPL 839859 Contact Us For Availability
54
Clip, Plug WPL 653035 Contact Us For Availability
54
Cover, Fan Orifice WPL 984684 Contact Us For Availability
55
Gasket WPL 659202 Contact Us For Availability
56
Cover WPL 850457 Contact Us For Availability
56
Pan, Drain WPL 839818 Contact Us For Availability
57
Bumper WPL 547272 Contact Us For Availability
57
Cover, Evaporator WPL 839846 Contact Us For Availability
58
Clip, Heater WPL 548459 Contact Us For Availability
58
Clip, Expansion (2) WPL 537095 Contact Us For Availability
59
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
