Model Whirlpool EV190FXWW00 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

W11501419 Whirlpool Refrigerator Clip Backorder WPL W11501419 $6.86

1

Precooler, Assembly WPL 1127649 Contact Us For Availability

1

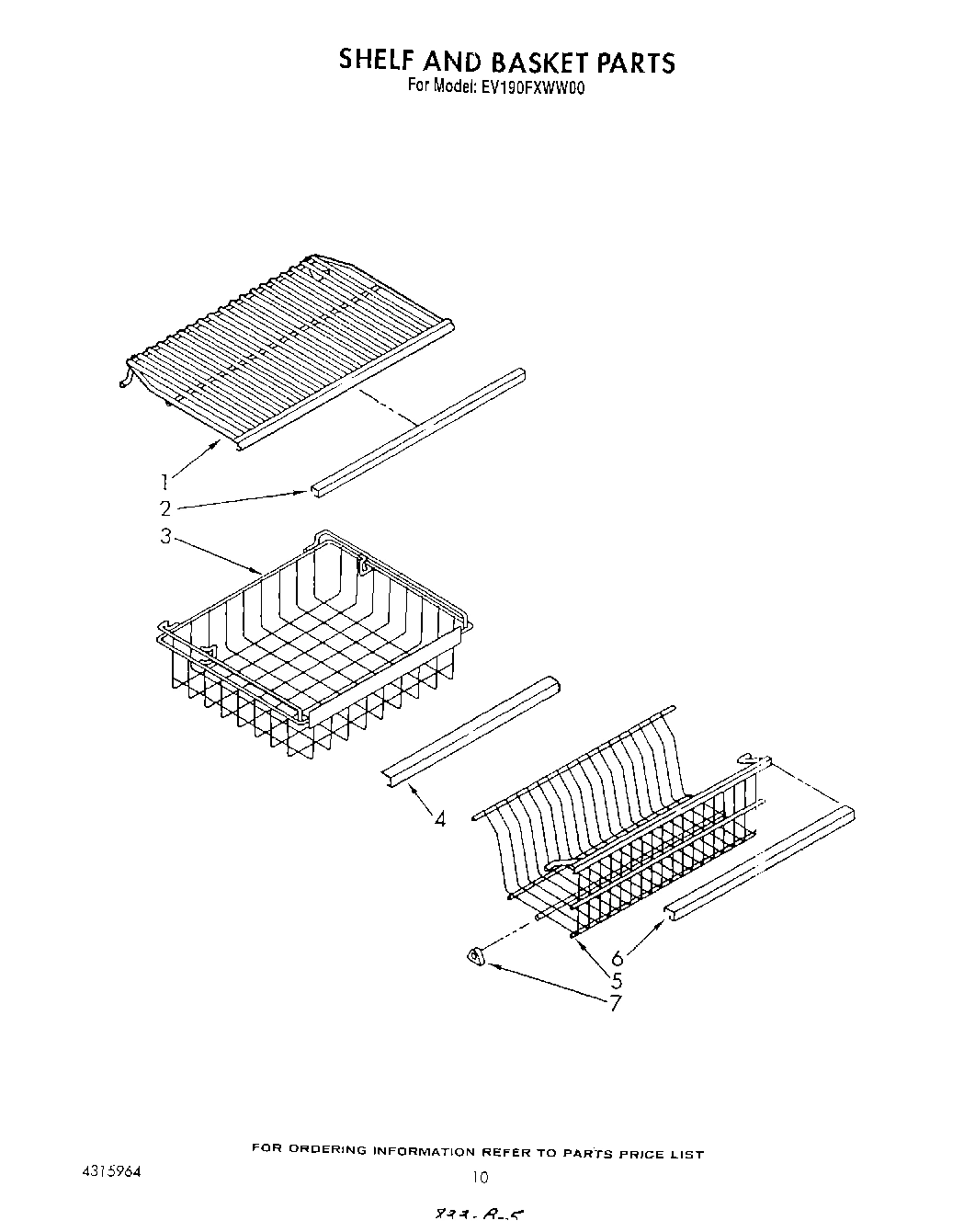

Shelf, Pullout WPL 1100629 Contact Us For Availability

1

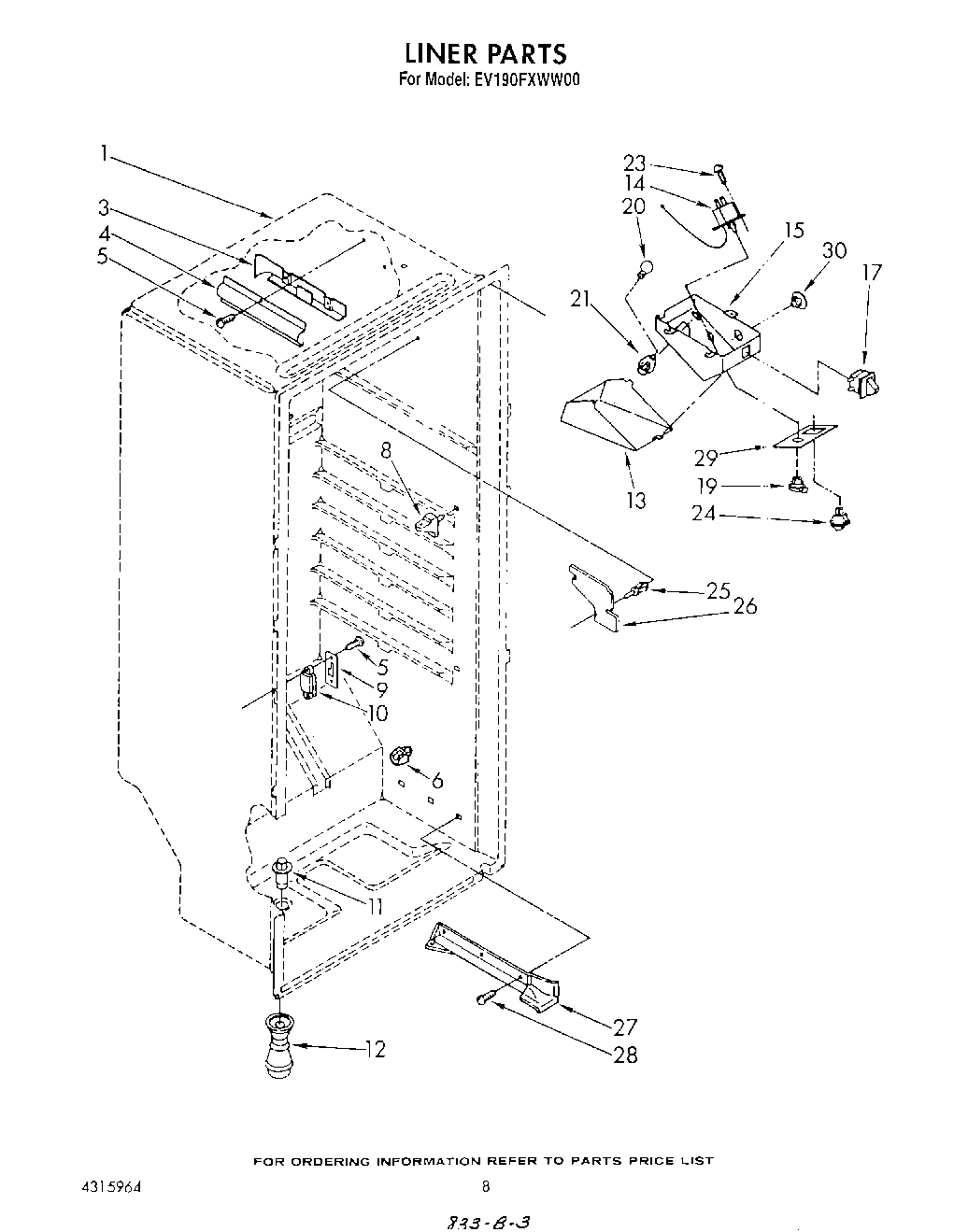

Liner (Not A Serviceable Part) WPL ARI56197A4 Contact Us For Availability

2

Harness, Cabinet WPL 1118925 Contact Us For Availability

2

Sleeve, Heat Exchanger WPL 1114262 Contact Us For Availability

2

Trim, Snap-On WPL 1103650 Contact Us For Availability

3

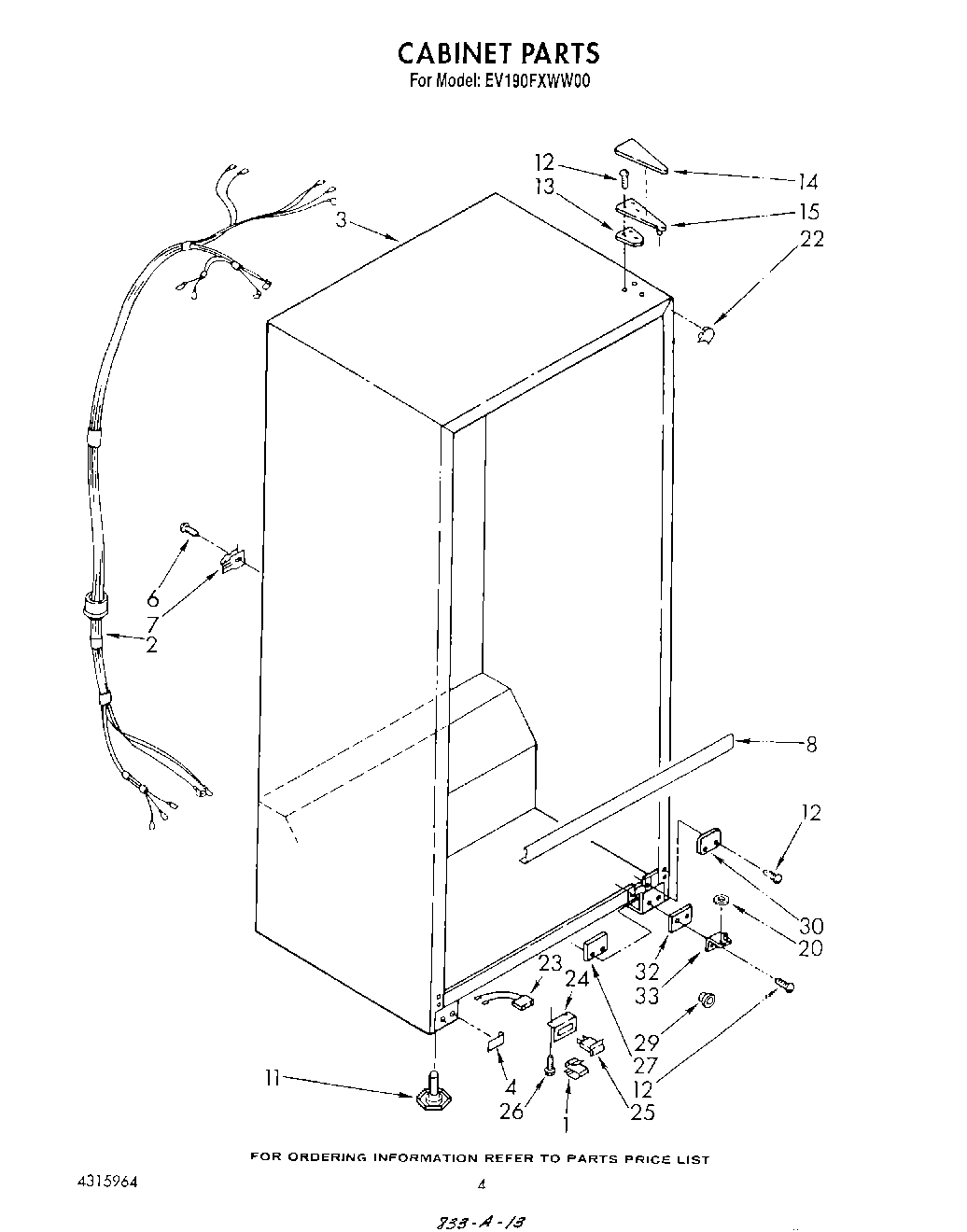

Cabinet (Not A Serviceable Part) WPL ARI56196A4 Contact Us For Availability

3

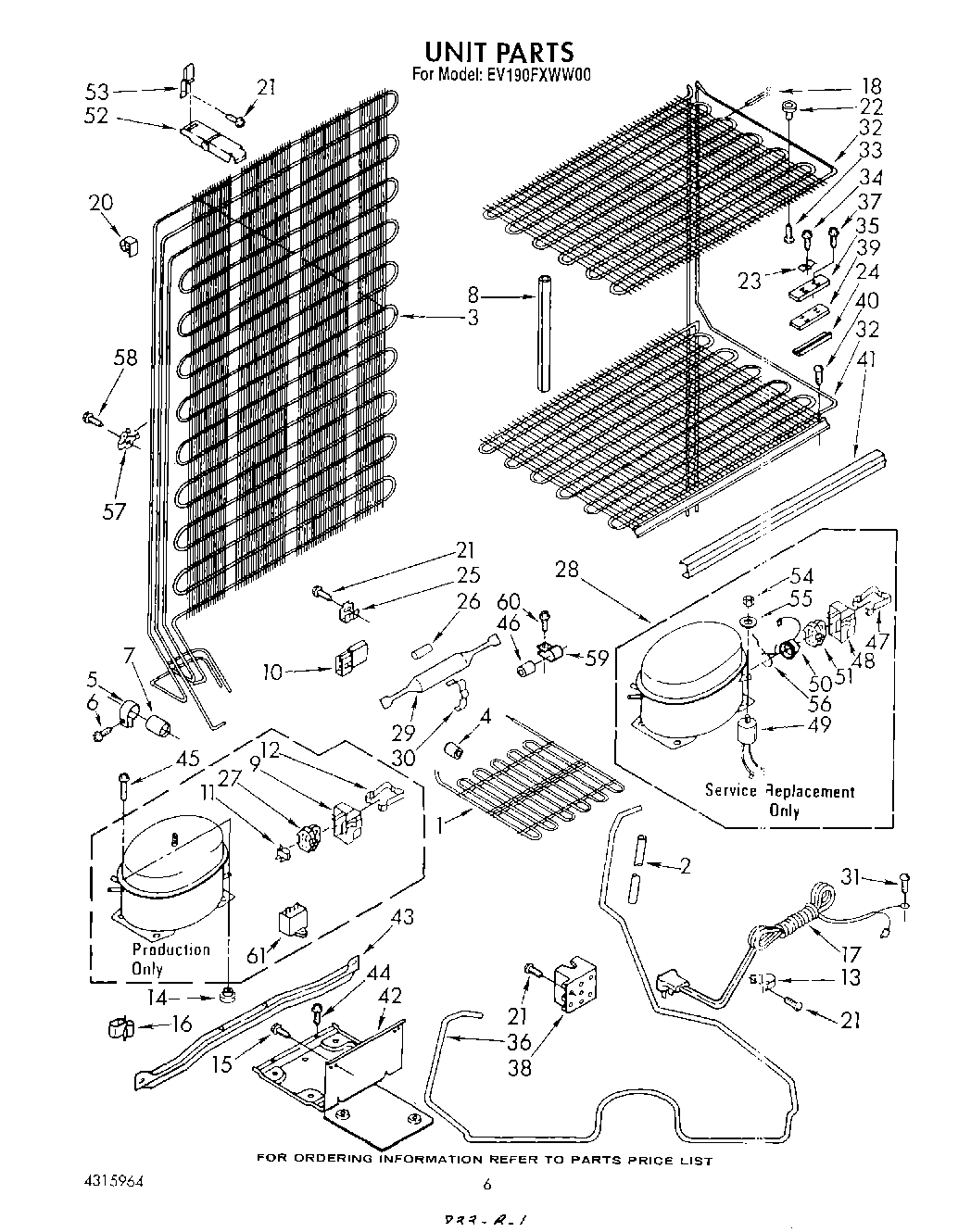

Condenser Assembly WPL 1127646 Contact Us For Availability

3

Basket, Pullout WPL 1100632 Contact Us For Availability

3

Wire, Cover (Rear) WPL 1100600 Contact Us For Availability

4

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

4

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

4

Dampener (4) WPL 1115558 Contact Us For Availability

4

Trim, Snap-On WPL 1103652 Contact Us For Availability

4

Wire, Cover WPL 1100601 Contact Us For Availability

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Trivet WPL 1103835 Contact Us For Availability

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

6

Trim, Snap-On WPL 1103648 Contact Us For Availability

6

Shelf, Stud Saddle (R.S) WPL 939063 Contact Us For Availability

6

Shelf, Stud Saddle (L.S) WPL 939064 Contact Us For Availability

7

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

7

Clamp WPL 937357 Contact Us For Availability

7

Grommet (2) WPL 216446 Contact Us For Availability

8

Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability

8

Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability

8

Cover, Connecting Lines (11.5 Inches) WPL 1103817 Contact Us For Availability

8

Cover, Connecting Lines (15 Inches) WPL 1103818 Contact Us For Availability

8

Cover, Connecting Lines (10 Inches) WPL 941447 Contact Us For Availability

8

Stud, Shelf (6) WPL 940142 Contact Us For Availability

9

Cover, Terminal WPL 1108115 Contact Us For Availability

9

Strike, Lock WPL 940167 Contact Us For Availability

10

Receptacle Housing WPL 943646 Contact Us For Availability

10

Lock Strike, Back-Up WPL 940168 Contact Us For Availability

11

Leveler (2) WPL 944766 Contact Us For Availability

11

Overload WPL 1127886 Contact Us For Availability

11

Drain, Ferrule Cap WPL 934607 Contact Us For Availability

Cover, End (2) WPL 1110070 Contact Us For Availability

Screw (Repair) WPL 489297 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

Hole Plug (White) WPL 534927 Contact Us For Availability

Hole Plug (Almond) WPL 989197 Contact Us For Availability

Shim, Hinge Top WPL 1100511 Contact Us For Availability

Light, Lens WPL 1100466 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $186.68

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

Lock WPL 940165 Contact Us For Availability

Shim, Hinge Top WPL 1100513 Contact Us For Availability

Control Box WPL 1100458 Contact Us For Availability

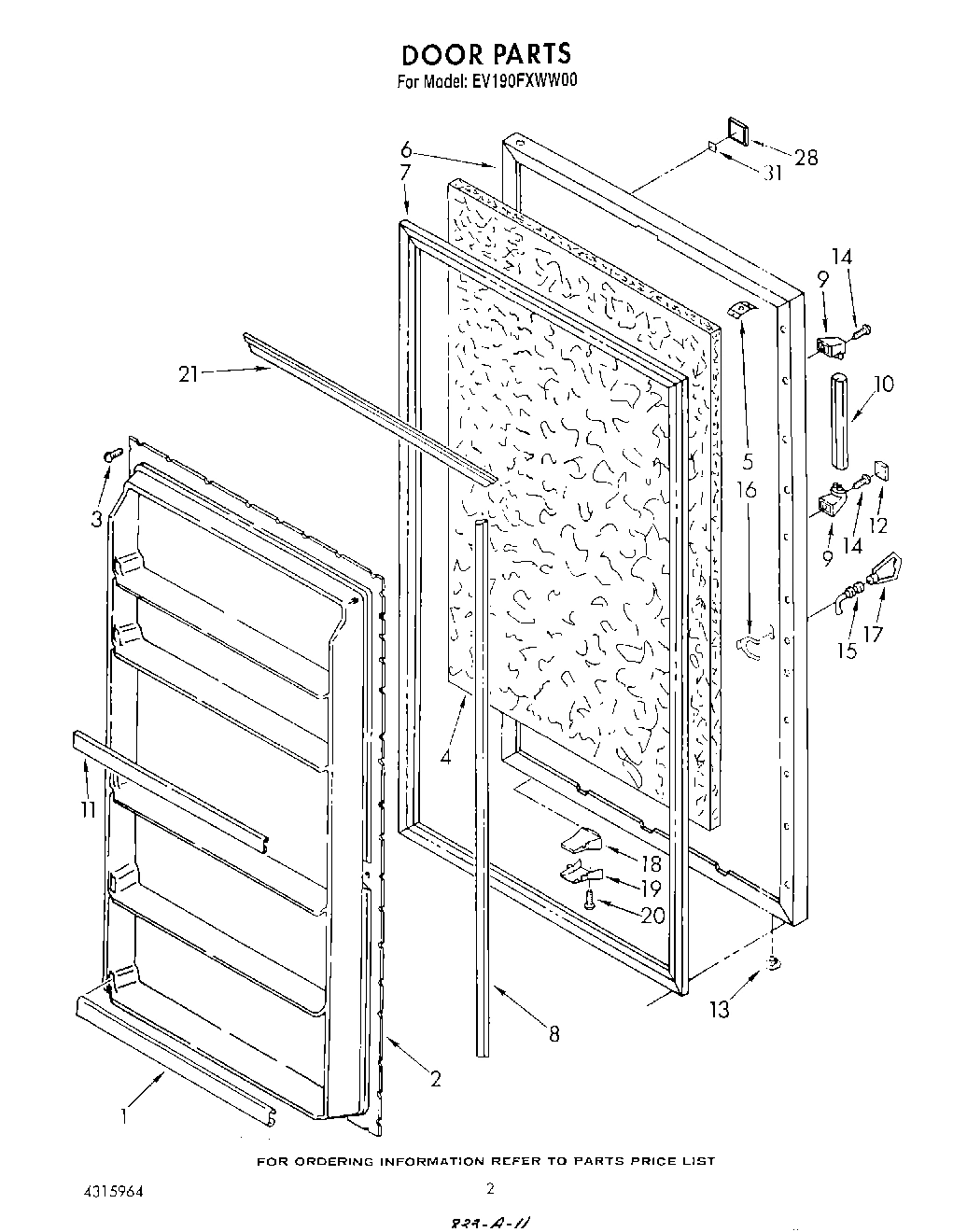

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $6.42

16

Clip, Lock WPL 983465 Contact Us For Availability

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

17

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.99

17

Cord, Service WPL 1100646 Contact Us For Availability

18

Transmitter, Light WPL 1103638 Contact Us For Availability

18

Strap (2) WPL 851095 Contact Us For Availability

19

Cover, Light Transmitter WPL 1103726 Contact Us For Availability

19

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

Screw WPL 489132 Contact Us For Availability

Washer, 7/64 WPL 489201 Contact Us For Availability

Bumper WPL 1103640 Contact Us For Availability

21

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

21

Gasket Retainer, Top & Bottom WPL 1120616 Contact Us For Availability

22

Filler, Corner Wrap (White) WPL 1110684 Contact Us For Availability

22

Filler, Corner Wrap (Almond) WPL 1110685 Contact Us For Availability

22

Spacer (3) WPL 1103816 Contact Us For Availability

23

Wire Assembly, Signal Light WPL 1114708 Contact Us For Availability

23

Header Clamp Plate (2) WPL 510614 Contact Us For Availability

23

Screw, 8 x 1/2 WPL 488974 Contact Us For Availability

24

Bracket, Signal Light WPL 1103637 Contact Us For Availability

24

Clip, Thermostat WPL 510754 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $4.55

25

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.67

25

Light, Signal WPL 1103639 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

26

Electric Shield WPL 1100609 Contact Us For Availability

27

Tap Plate WPL 2147312 Contact Us For Availability

27

Tube, Entry Cover (Bottom) WPL 1100585 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

Nameplate WPL 942669 Contact Us For Availability

Compressor (Includes Items 47, 48, 49, 50, 51 WPL 482981 Contact Us For Availability

screw (repair) WPL 488706 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

Grommet WPL 940172 Contact Us For Availability

29

Insert, Control Panel WPL 1100789 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $44.99

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

T WPL 991259 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Shim, Bottom Hinge WPL 943708 Contact Us For Availability

Evaporator Assembly (Shelf, Top) WPL 1100554 Contact Us For Availability

Evaporator Assembly (Shelf, 2nd) WPL 1100557 Contact Us For Availability

Evaporator Assembly (Shelf, 3rd) WPL 1100560 Contact Us For Availability

Evaporator Assembly (Shelf, Bottom) WPL 1100563 Contact Us For Availability

33

Butt, Hinge (Bottom) WPL 1123880 Contact Us For Availability

33

Screw, 8 x 1A WPL 488748 Contact Us For Availability

34

Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability

35

Shim, Thermostat Plate WPL 987316 Contact Us For Availability

36

Heat Exchanger WPL 1127653 Contact Us For Availability

37

Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability

38

Junction Box WPL 1100606 Contact Us For Availability

39

Plate, Thermostat WPL 851289 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

40

Screw (Repair) WPL 489036 Contact Us For Availability

41

Trim, Shelf WPL 1103653 Contact Us For Availability

42

Plate, Unit Mounting WPL 1115533 Contact Us For Availability

43

Unit Mounting Rail WPL 1118783 Contact Us For Availability

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

46

Dampener (2) WPL 1118552 Contact Us For Availability

47

Strap WPL 938384 Contact Us For Availability

48

Cover, Terminal WPL 1105015 Contact Us For Availability

49

Capacitor WPL 482996 Contact Us For Availability

50

Overload WPL 483037 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $83.99

52

Stand-Of WPL 1100636 Contact Us For Availability

53

WPL 1100707 WPL 1100707 Contact Us For Availability

54

WPL 489142 WPL 489142 Contact Us For Availability

55

WPL 489143 WPL 489143 Contact Us For Availability

56

WPL 1114190 WPL 1114190 Contact Us For Availability

57

WPL 1105406 WPL 1105406 Contact Us For Availability

59

WPL 1115557 WPL 1115557 Contact Us For Availability

60

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
