Model Whirlpool ET18SCXMWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

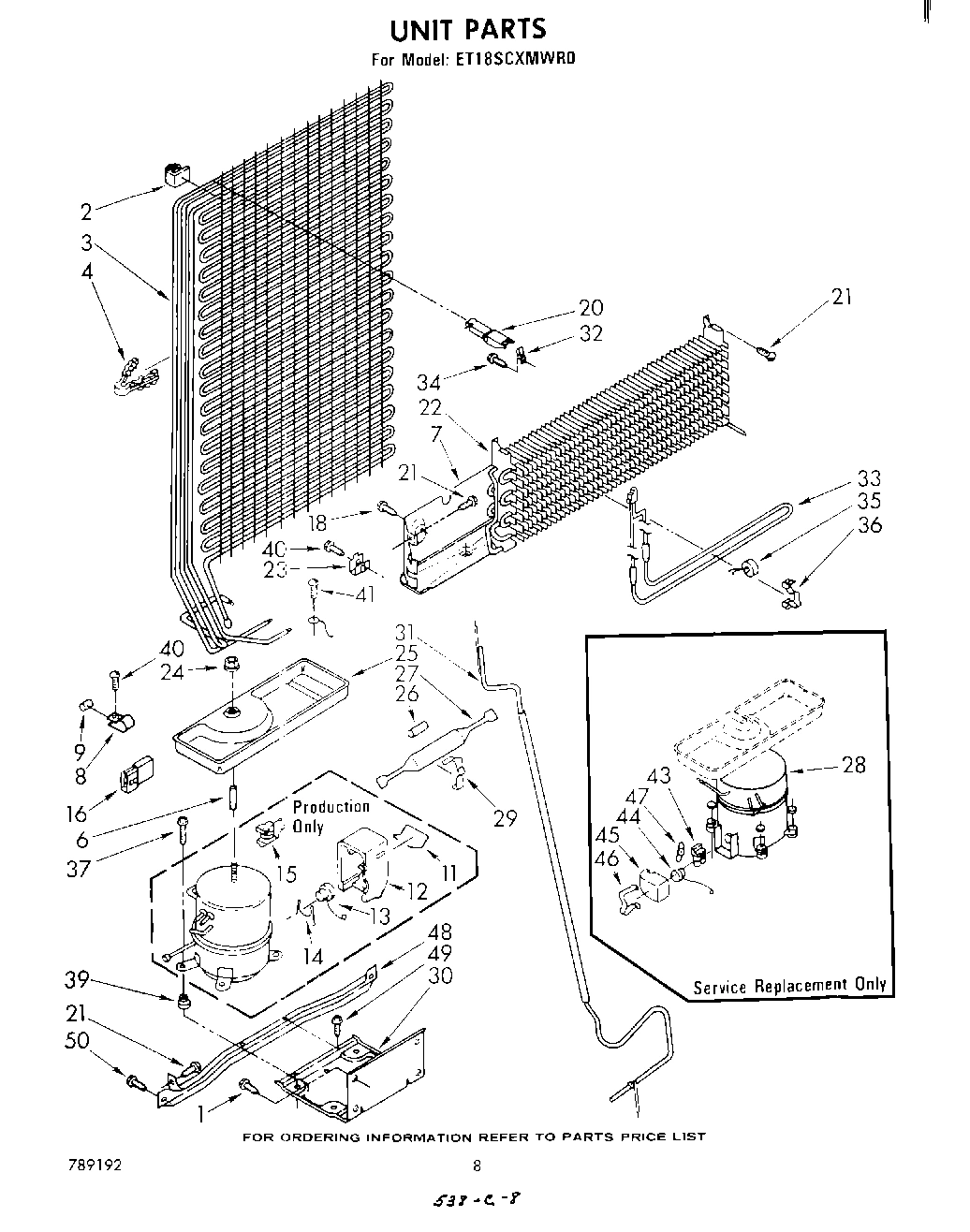

07 - UNIT

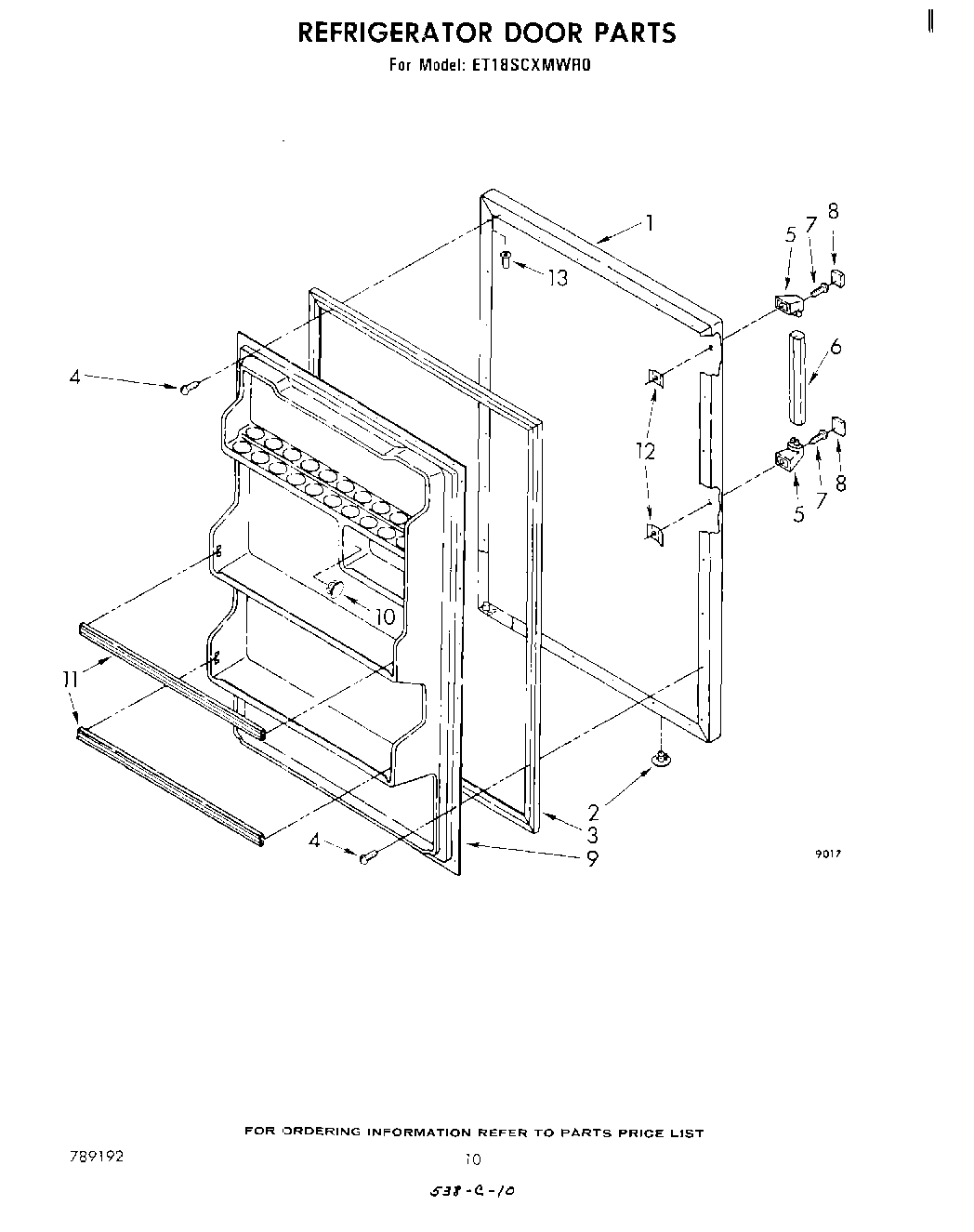

08 - REFRIGERATOR DOOR , MISCELLANEOUS

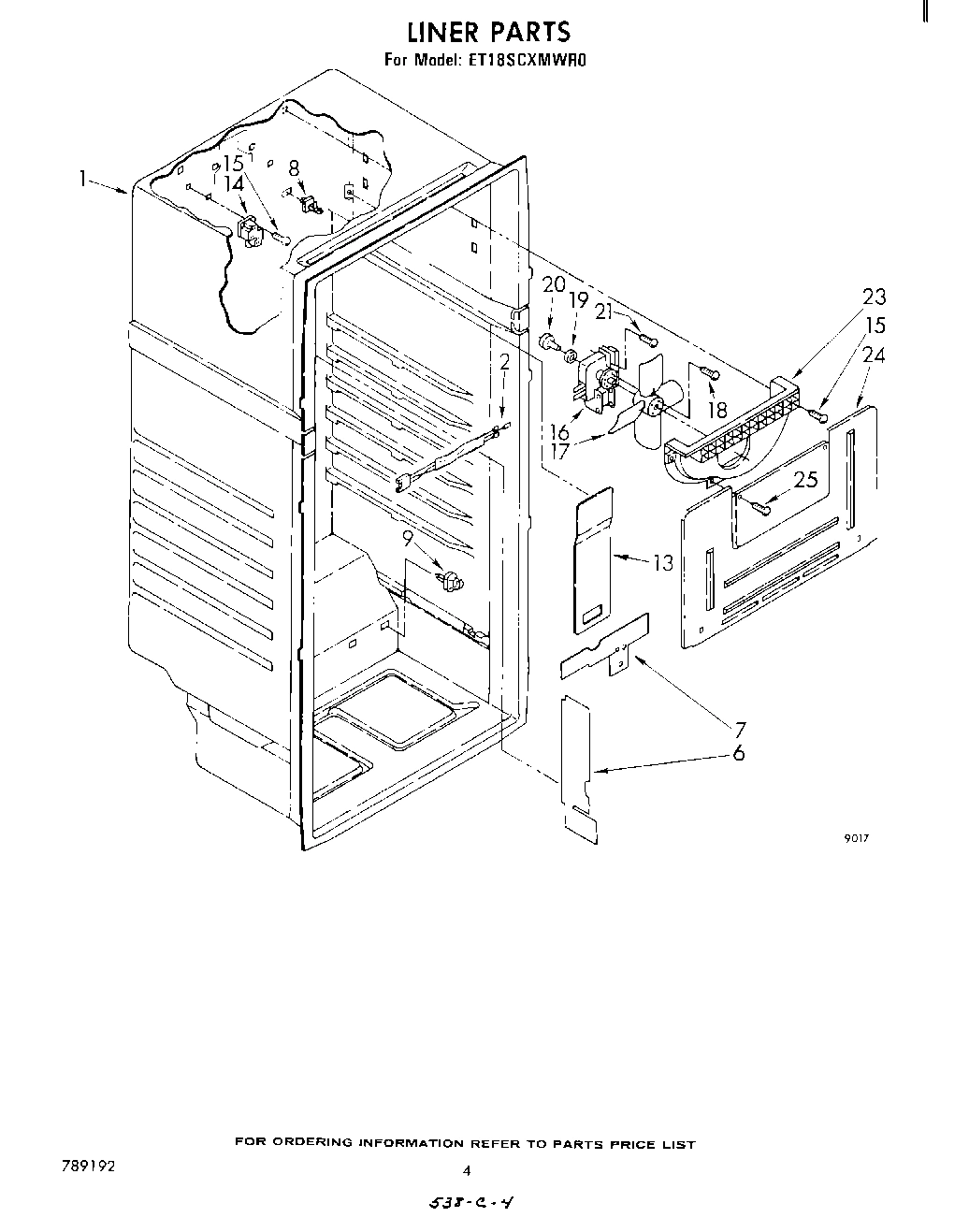

03 - LINER

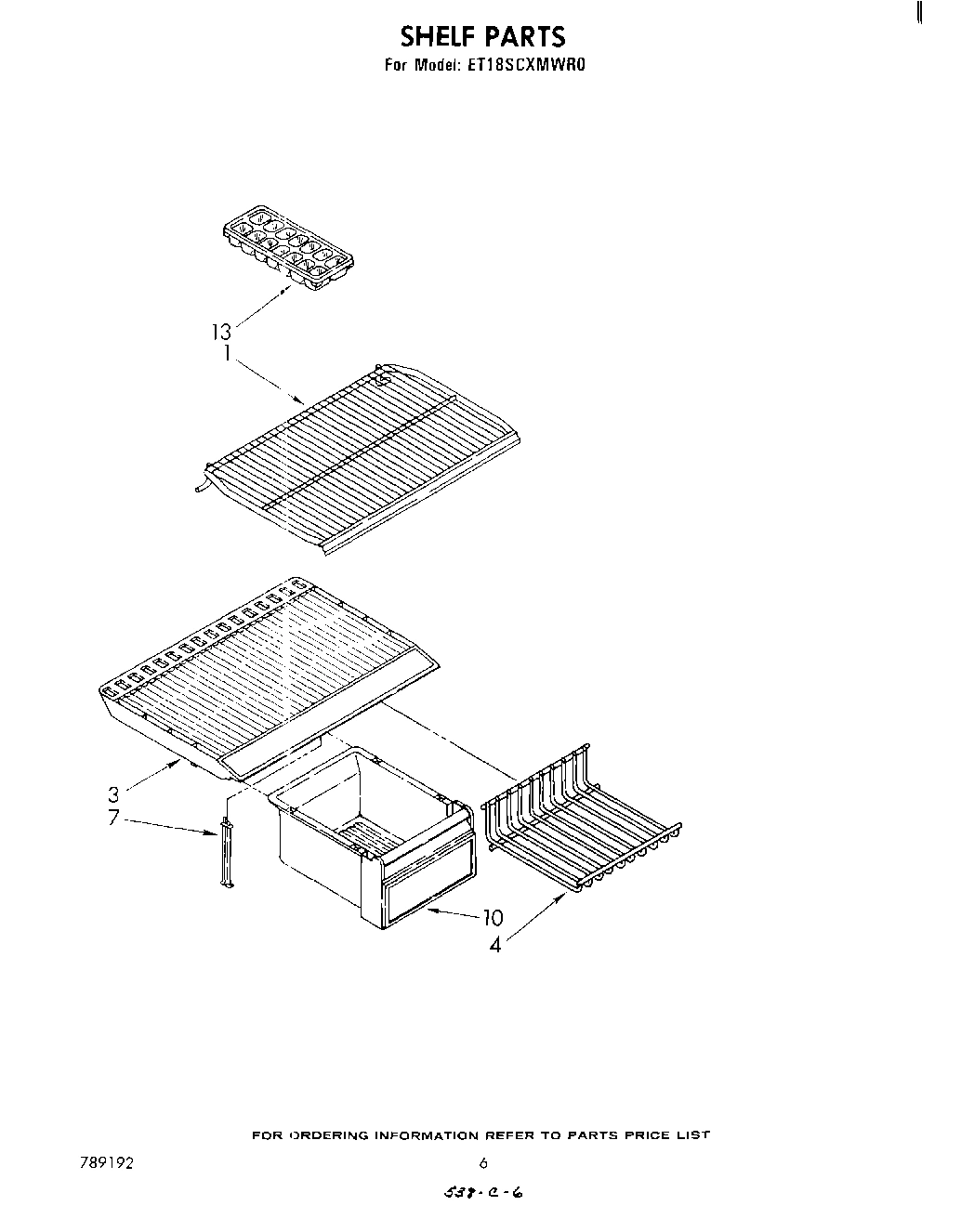

05 - SHELF

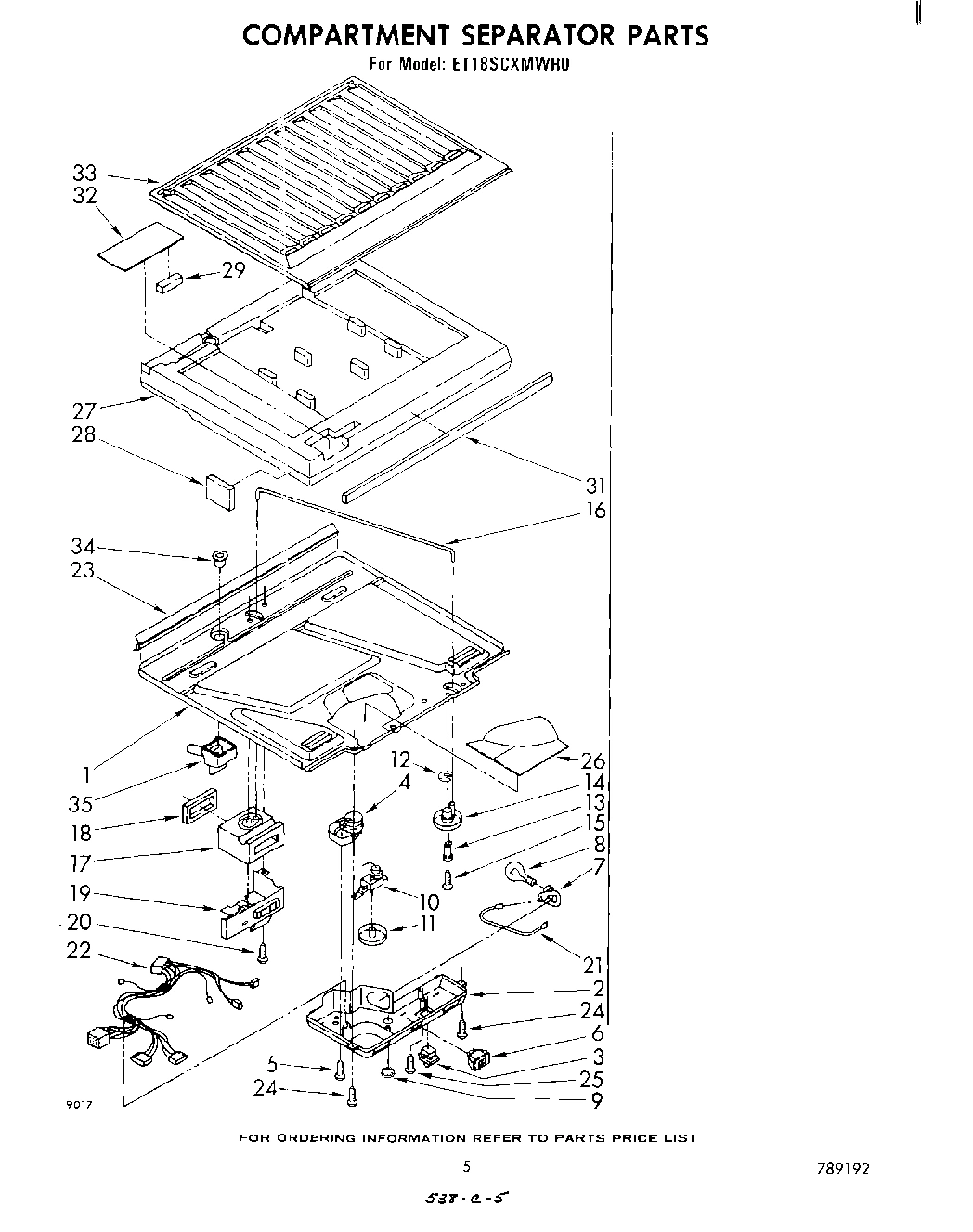

04 - COMPARTMENT SEPARATOR

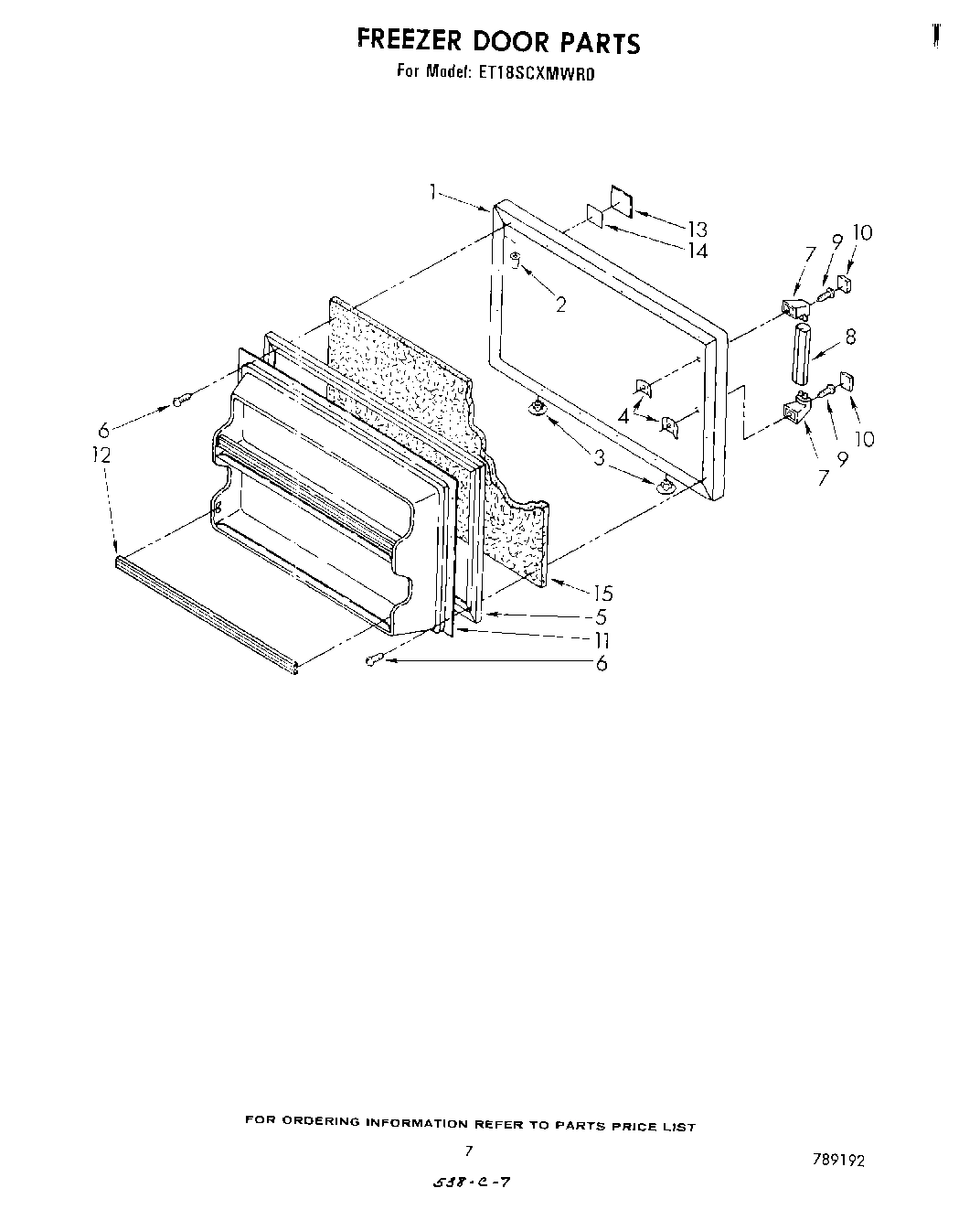

06 - FREEZER DOOR

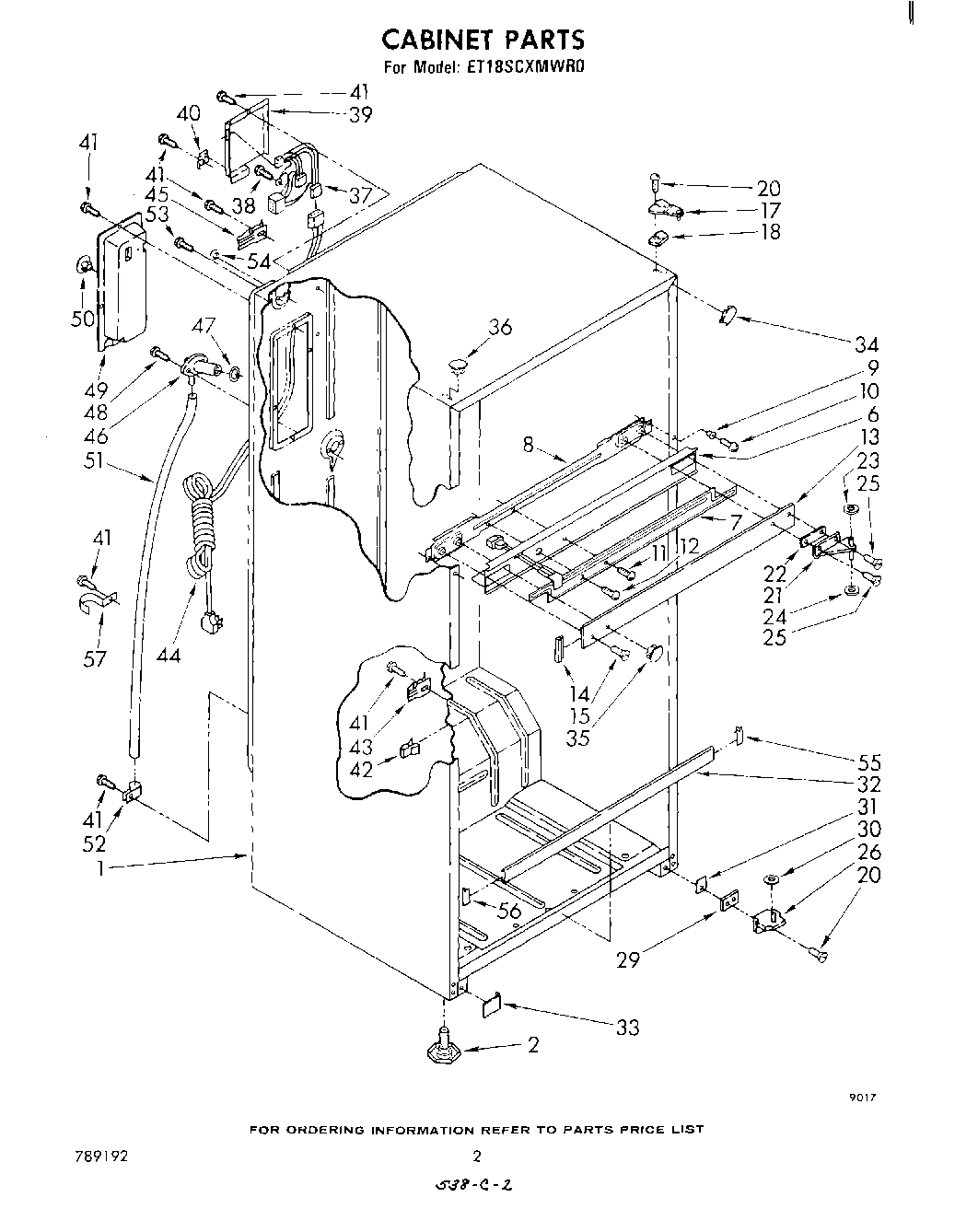

02 - CABINET
Common parts from model Whirlpool ET18SCXMWR0 TOP MOUNT REFRIGERATOR
1
Panel, Refrigerator Door (White) WPL 1100026 Contact Us For Availability
1
Panel, Refrigerator Door (Coffee) WPL 1100027 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1100028 Contact Us For Availability
1
Panel, Refrigerator Door (New Avocado) WPL 1100029 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1100030 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45040A1 Contact Us For Availability
1
Shelf, Pullout WPL 943719 Contact Us For Availability
1
Bottom, Compartment Separator WPL 943711 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Whi WPL 1100032 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Cof WPL 1100033 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Gol WPL 1100034 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (New WPL 1100035 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Alm WPL 1100036 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45039A8 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
2
Box, Control WPL 942757 Contact Us For Availability
2
Leveler (2) WPL 944766 Contact Us For Availability
3
Hole Plug WPL 534927 Contact Us For Availability
3
Door Gasket, Magnetic WPL 946991 Contact Us For Availability
3
Cover, Crisper WPL 943731 Contact Us For Availability
4
Trivet WPL 943732 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability
5
Door Gasket (Magnetic) WPL 946995 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Frame, Center Rail WPL 943698 Contact Us For Availability
7
End Cap, Handle WPL 992814 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
7
Support Post WPL 1100462 Contact Us For Availability
7
Heater, Mullion WPL 943691 Contact Us For Availability
8
Handle, Center WPL 1100023 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Center Rail, Bracket WPL 943699 Contact Us For Availability
9
Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability
9
Interior Door Panel WPL 945886 Contact Us For Availability
9
Shelf Stud WPL 652581 Contact Us For Availability
9
Screw (Repair) WPL 488923 Contact Us For Availability
9
Ferrule, Center Rail WPL 942737 Contact Us For Availability
10
Door Handle, Cover WPL 1100024 Contact Us For Availability
10
Hole Plug (2) WPL 655410 Contact Us For Availability
10
Pan, Crisper WPL 943737 Contact Us For Availability
11
Trim, Door Shelf (2) WPL 946819 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
11
Interior Door Panel WPL 945802 Contact Us For Availability
12
Lockwasher WPL 489053 Contact Us For Availability
12
Trim, Door Shelf WPL 946824 Contact Us For Availability
12
Screw, 8-15 x 3/8 WPL 489113 Contact Us For Availability
13
WPL 876029 WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
Energy Guide Label WPL 1101603 Contact Us For Availability
13
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
13
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
13
Enamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
13
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
13
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
13
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
13
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
13
CEMENT, ALUMILASTIC WPL 542639 Contact Us For Availability
13
WPL 72108 WPL 72108 Contact Us For Availability
13
WPL 789192 WPL 789192 Contact Us For Availability
13
WPL 799340 WPL 799340 Contact Us For Availability
13
WPL 799832 WPL 799832 Contact Us For Availability
13
WPL 799833 WPL 799833 Contact Us For Availability
13
WPL 946417 WPL 946417 Contact Us For Availability
13
WPL 946424 WPL 946424 Contact Us For Availability
13
WPL 946604 WPL 946604 Contact Us For Availability
13
WPL 978883 WPL 978883 Contact Us For Availability
13
Cover, Air Duct WPL 943707 Contact Us For Availability
13
Spacer, Knob WPL 937105 Contact Us For Availability
13
Nameplate Assembly WPL 945114 Contact Us For Availability
13
Center Rail (White) WPL 943692 Contact Us For Availability
13
Center Rail (Coffee) WPL 943694 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 943695 Contact Us For Availability
13
Center Rail (New Avocado) WPL 943696 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Knob, Air Control WPL 935727 Contact Us For Availability
14
Tape WPL 991259 Contact Us For Availability
14
Filler, Center Rail (2) (White) WPL 946320 Contact Us For Availability
14
Filler, Center Rail (2) (Almond) WPL 946321 Contact Us For Availability
14
Filler, Center Rail (2) (Coffee) WPL 946322 Contact Us For Availability
14
Filler, Center Rail (2) (Golden Harvest) WPL 946323 Contact Us For Availability
14
Filler, Center Rail (2) (New Avocado) WPL 946324 Contact Us For Availability
15
Screw, 10-32 x 3/8 WPL 489097 Contact Us For Availability
16
Rod, Connecting WPL 943713 Contact Us For Availability
17
Air Diffuser Assembly WPL 942762 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Gasket, Air Diffuser WPL 942765 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 942767 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 942769 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943734 Contact Us For Availability
24
Evaporator Cover WPL 943743 Contact Us For Availability
25
Screw, 8-15 x 1-1/2 WPL 488864 Contact Us For Availability
25
Screw (Repair) WPL 488949 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Hinge Butt, Bottom WPL 944776 Contact Us For Availability
27
Insulation, Compartment Separator WPL 943714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Protector, Wiring WPL 944998 Contact Us For Availability
29
Shim, Bottom Hinge (White) WPL 1100778 Contact Us For Availability
29
Shim, Bottom Hinge (Almond) WPL 1100779 Contact Us For Availability
29
Shim, Bottom Hinge (Coffee) WPL 1100780 Contact Us For Availability
29
Shim, Bottom Hinge (Golden Harvest) WPL 1100781 Contact Us For Availability
29
Shim, Bottom Hinge (New Avocado) WPL 1100782 Contact Us For Availability
31
Insulation, Center Rail WPL 943715 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Coffee) WPL 942819 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (New Avocado) WPL 942821 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Shield, Compartment Separator WPL 942772 Contact Us For Availability
32
Cover, Deck Rail (Whi WPL 943685 Contact Us For Availability
32
WPL 943686 WPL 943686 Contact Us For Availability
32
WPL 943687 WPL 943687 Contact Us For Availability
32
WPL 943688 WPL 943688 Contact Us For Availability
32
WPL 943689 WPL 943689 Contact Us For Availability
33
Separator, Compartment (Top) WPL 943716 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944832 WPL 944832 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
WPL 944834 WPL 944834 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
WPL 942807 WPL 942807 Contact Us For Availability
34
WPL 942808 WPL 942808 Contact Us For Availability
34
WPL 942809 WPL 942809 Contact Us For Availability
34
WPL 942810 WPL 942810 Contact Us For Availability
34
WPL 942811 WPL 942811 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940088 WPL 940088 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
35
WPL 940090 WPL 940090 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989875 WPL 989875 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
WPL 989877 WPL 989877 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 944741 WPL 944741 Contact Us For Availability
43
Relay WPL 549500 Contact Us For Availability
44
Overload WPL 936073 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
cover WPL 549336 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
Strap WPL 549342 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
Overload Spring WPL 549086 Contact Us For Availability
47
WPL 940121 WPL 940121 Contact Us For Availability
48
Rail, Unit Mounting WPL 943755 Contact Us For Availability
49
WPL 942853 WPL 942853 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
55
WPL 944700 WPL 944700 Contact Us For Availability
55
WPL 944701 WPL 944701 Contact Us For Availability
55
WPL 944702 WPL 944702 Contact Us For Availability
55
WPL 944703 WPL 944703 Contact Us For Availability
55
WPL 944704 WPL 944704 Contact Us For Availability
56
WPL 944705 WPL 944705 Contact Us For Availability
56
WPL 944706 WPL 944706 Contact Us For Availability
56
WPL 944707 WPL 944707 Contact Us For Availability
56
WPL 944708 WPL 944708 Contact Us For Availability
56
WPL 944709 WPL 944709 Contact Us For Availability
57
WPL 1103015 WPL 1103015 Contact Us For Availability
× ![]()
