Model Whirlpool ET12CCLSM00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

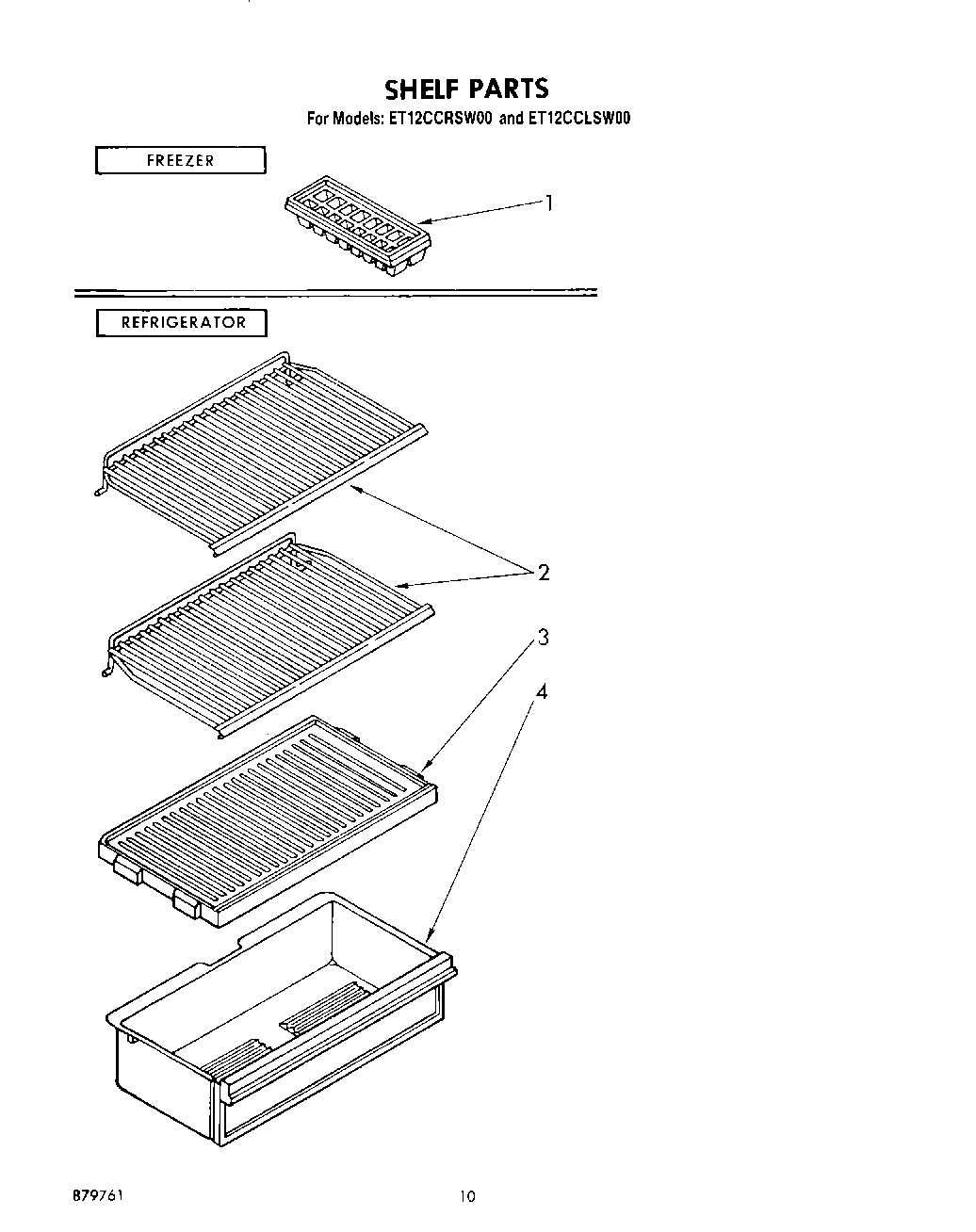

06 - SHELF, LIT/OPTIONAL

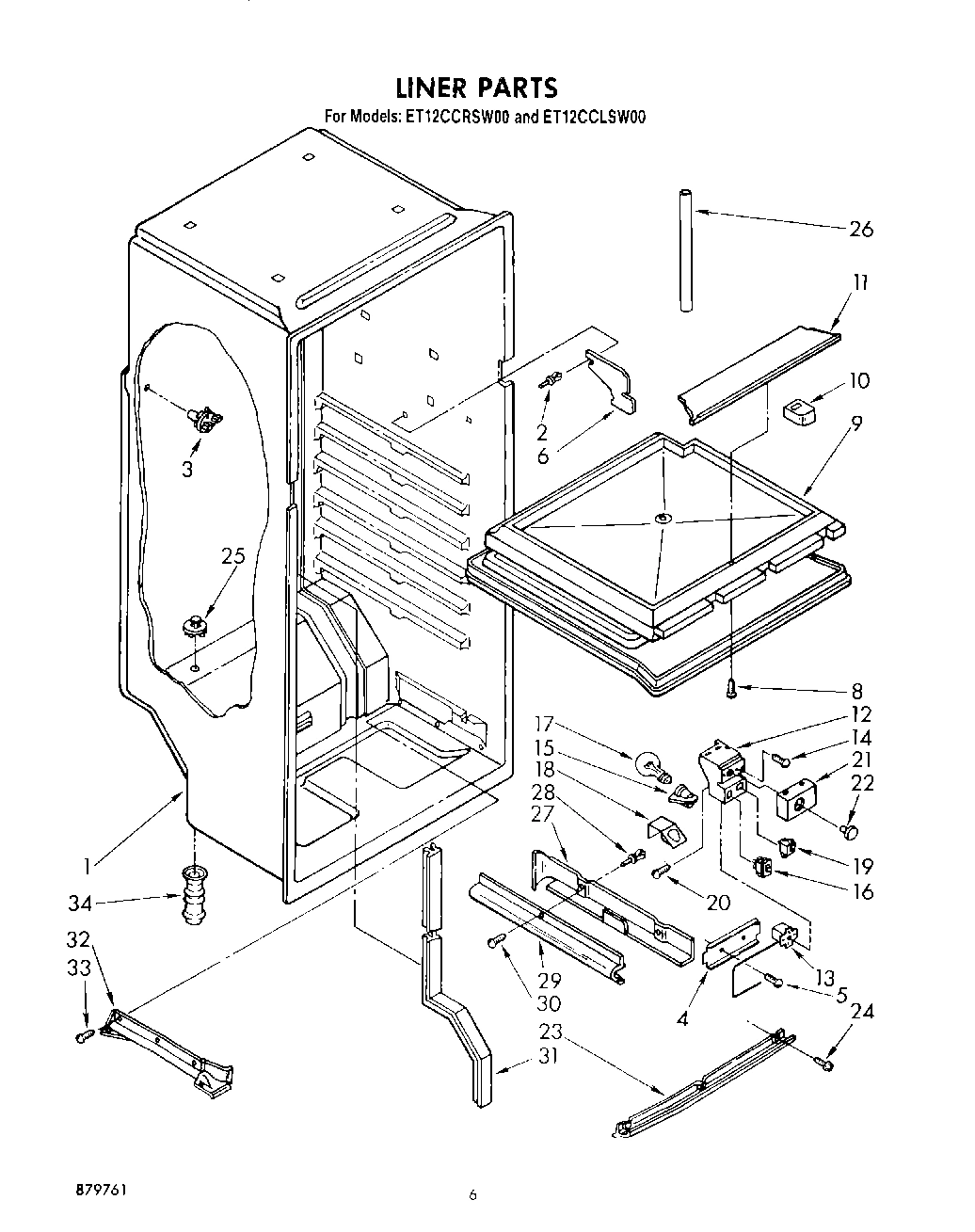

04 - LINER

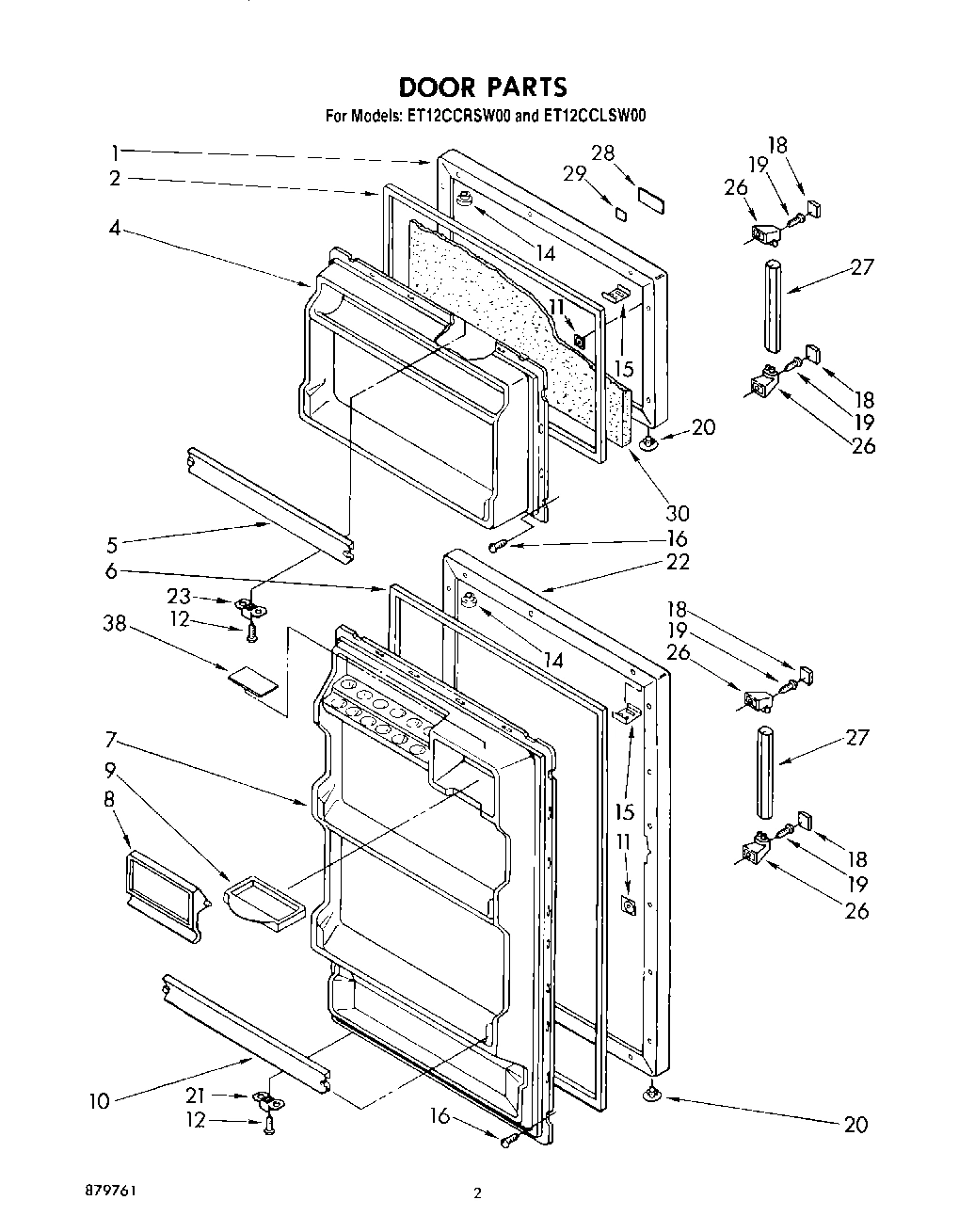

02 - DOOR

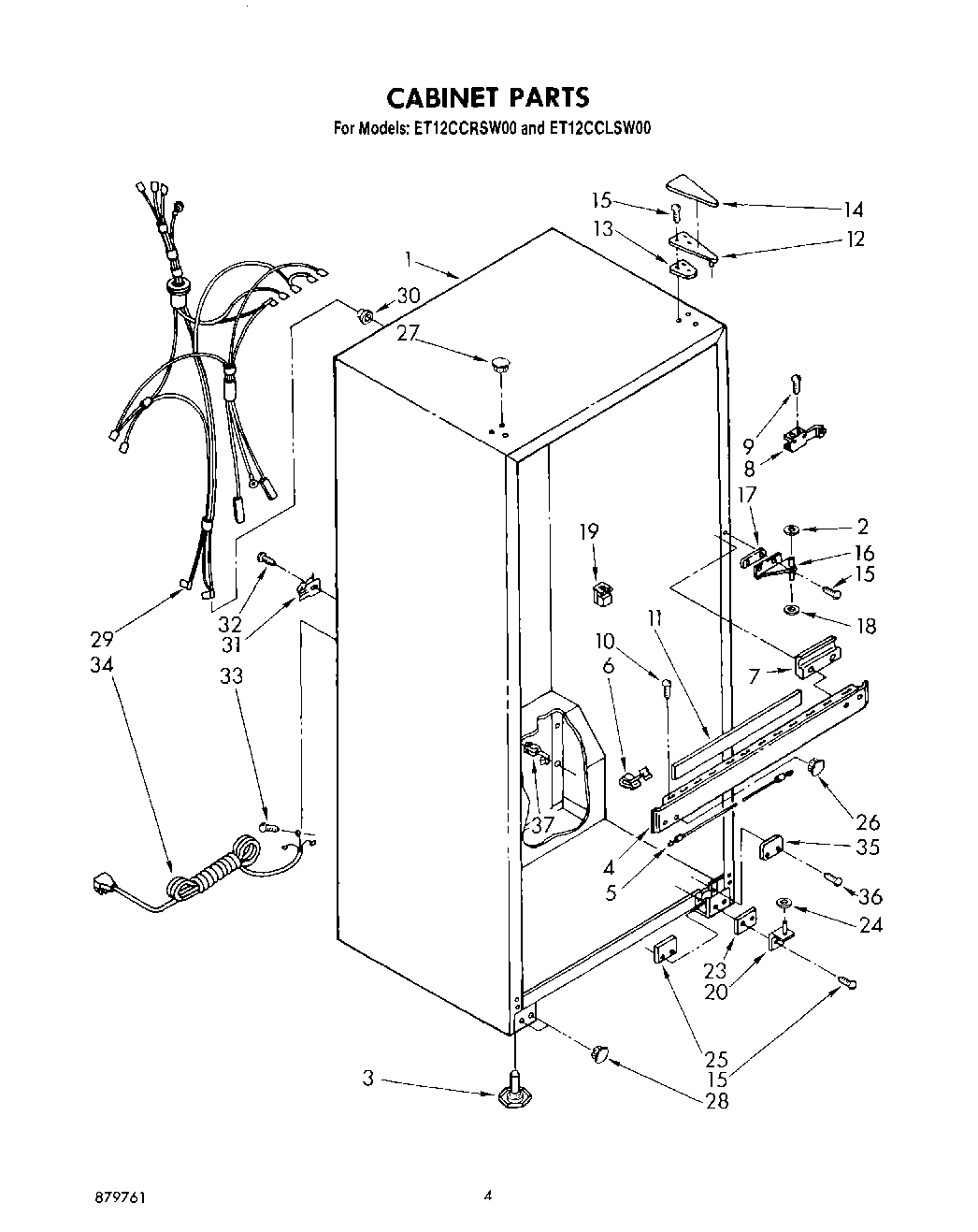

03 - CABINET

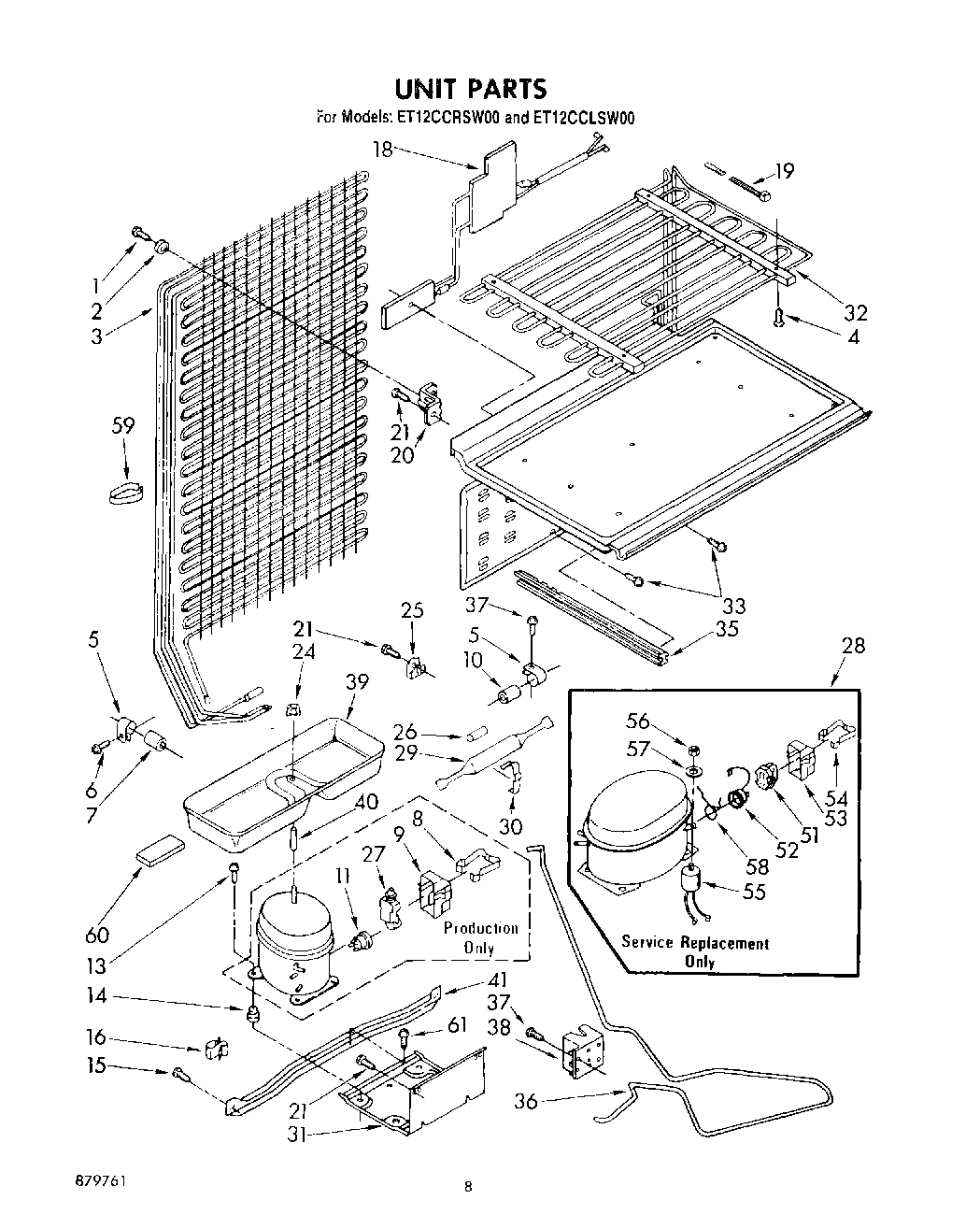

05 - UNIT
Common parts from model Whirlpool ET12CCLSM00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Toas WPL 1124100 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Plat WPL 1124101 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Toas WPL 1124102 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Plat WPL 1124103 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Whit WPL 944932 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Gold WPL 944935 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Almo WPL 944937 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Whit WPL 944938 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Gold WPL 944941 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 30) (Almo WPL 944943 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41602A8 Contact Us For Availability
1
Screw, 8 x 3/4 (2) WPL 487888 Contact Us For Availability
2
Freezer Door Gasket WPL 1110568 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 943635 Contact Us For Availability
4
WPL 876029 WPL 876029 Contact Us For Availability
4
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
4
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
4
Panel, Interior Door (Freezer) WPL 1104910 Contact Us For Availability
4
Center, Rail (Toast) WPL 1103691 Contact Us For Availability
4
Center, Rail (Platinum) WPL 1103692 Contact Us For Availability
4
Center, Rail (White) WPL 944868 Contact Us For Availability
4
Center Rail (Golden Harvest) WPL 944871 Contact Us For Availability
4
Center, Rail (Almond) WPL 944873 Contact Us For Availability
4
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
5
Trim, Door Shelf WPL 1116120 Contact Us For Availability
5
Heater, Mullion WPL 944874 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
6
Refrigerator Door Gasket WPL 1104905 Contact Us For Availability
6
Clip, Mullion (3) WPL 534365 Contact Us For Availability
7
Panel, Interior Door WPL 1104904 Contact Us For Availability
7
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
7
Dampener WPL 1108064 Contact Us For Availability
8
Butter Door WPL 1110148 Contact Us For Availability
8
Bracket, Center Rail (2) WPL 935692 Contact Us For Availability
9
Terminal Cover WPL 1108144 Contact Us For Availability
10
Insulation, Crossover Tube WPL 944886 Contact Us For Availability
10
Trim, Door WPL 1116116 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
11
Breaker Trim, Mullion WPL 944890 Contact Us For Availability
11
Seal, Strip WPL 944888 Contact Us For Availability
11
Overload WPL 941605 Contact Us For Availability
12
Control Box WPL 939089 Contact Us For Availability
12
Screw (Repair) WPL 489221 Contact Us For Availability
12
Shim, Hinge Top WPL 1100513 Contact Us For Availability
13
Thermostat WPL 1100623 Contact Us For Availability
13
Shim, Hinge WPL 1100509 Contact Us For Availability
14
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
14
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
14
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
15
Screw (Repair) WPL 488949 Contact Us For Availability
16
Hinge, Center WPL 944788 Contact Us For Availability
17
Shim, Hinge Center WPL 836155 Contact Us For Availability
18
Light Shield WPL 937230 Contact Us For Availability
18
Cover, Screw WPL 946742 Contact Us For Availability
18
Defrost Heater WPL 944971 Contact Us For Availability
19
Screw WPL 489246 Contact Us For Availability
19
Spacer WPL 940024 Contact Us For Availability
19
Strap (2) WPL 851095 Contact Us For Availability
20
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
20
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
20
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
20
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
20
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
20
Hinge Butt (Bottom R.H.) WPL 944776 Contact Us For Availability
20
Hinge Butt (Bottom L.H.) WPL 944778 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Cover, Control Box WPL 1116113 Contact Us For Availability
21
Bracket, Door Stop WPL 944036 Contact Us For Availability
22
Control Knob WPL 845233 Contact Us For Availability
22
Refrigerator Door Panel (Toast) WPL 1120996 Contact Us For Availability
22
Refrigerator Door Panel (Platinum Refrigerato WPL 1120997 Contact Us For Availability
22
WPL 1120998 WPL 1120998 Contact Us For Availability
22
WPL 1120999 WPL 1120999 Contact Us For Availability
22
WPL 944910 WPL 944910 Contact Us For Availability
22
WPL 944913 WPL 944913 Contact Us For Availability
22
WPL 944915 WPL 944915 Contact Us For Availability
22
WPL 944916 WPL 944916 Contact Us For Availability
22
WPL 944919 WPL 944919 Contact Us For Availability
22
WPL 944921 WPL 944921 Contact Us For Availability
23
Drain Trough WPL 944978 Contact Us For Availability
23
WPL 944035 WPL 944035 Contact Us For Availability
23
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
25
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
25
Tap Plate WPL 935743 Contact Us For Availability
26
Tube Cover WPL 946459 Contact Us For Availability
26
WPL 946737 WPL 946737 Contact Us For Availability
26
Hole Plug (2) (White) WPL 1119707 Contact Us For Availability
26
Hole Plug (2) (Golden Harvest) WPL 1119708 Contact Us For Availability
26
Hole Plug (2) (Almond) WPL 1119709 Contact Us For Availability
26
Hole Plug (2) (Toast) WPL 1119710 Contact Us For Availability
26
Hole Plug (2) (Platinum) WPL 1119711 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Wire Cover (Rear) WPL 939957 Contact Us For Availability
27
WPL 1110069 WPL 1110069 Contact Us For Availability
27
Hole Plug (3) (Toast) WPL 1100176 Contact Us For Availability
27
Hole Plug (3) (Platinum) WPL 1100177 Contact Us For Availability
27
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability
27
Hole Plug (3) (Golden Harvest) WPL 989876 Contact Us For Availability
27
Relay WPL 938385 Contact Us For Availability
28
Plastic, Rivet WPL 939961 Contact Us For Availability
28
WPL 945119 WPL 945119 Contact Us For Availability
28
Hole Plug (2) (Toast) WPL 1100223 Contact Us For Availability
28
Hole Plug (2) (Platinum) WPL 1100224 Contact Us For Availability
28
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
28
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
28
Hole Plug (2) (Golden Harvest) WPL 941419 Contact Us For Availability
28
Compressor (Includes Illus. 51, 52, 53, 54, 5 WPL 482980 Contact Us For Availability
29
Wire Cover (Front) WPL 939960 Contact Us For Availability
29
WPL 991259 WPL 991259 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 944974 Contact Us For Availability
30
Gromm WPL 938284 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
31
Tube Entry Cover (Rear) WPL 937032 Contact Us For Availability
31
WPL 939009 WPL 939009 Contact Us For Availability
31
Unit, Frame WPL 942860 Contact Us For Availability
32
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
32
Evaporator Assembly WPL 944991 Contact Us For Availability
33
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
33
WPL 488474 WPL 488474 Contact Us For Availability
34
Fitting, Drain WPL 842256 Contact Us For Availability
34
WPL 850626 WPL 850626 Contact Us For Availability
35
WPL 1100697 WPL 1100697 Contact Us For Availability
35
WPL 1100698 WPL 1100698 Contact Us For Availability
35
WPL 935707 WPL 935707 Contact Us For Availability
35
WPL 935709 WPL 935709 Contact Us For Availability
35
WPL 935711 WPL 935711 Contact Us For Availability
35
Gasket, Evaporator WPL 946364 Contact Us For Availability
36
WPL 488895 WPL 488895 Contact Us For Availability
36
Heat Exchanger WPL 946307 Contact Us For Availability
37
WPL 544108 WPL 544108 Contact Us For Availability
38
WPL LIT1114003 WPL LIT1114003 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
39
Tray, Evaporator WPL 935781 Contact Us For Availability
40
Spacer WPL 941517 Contact Us For Availability
41
Unit Rail WPL 945449 Contact Us For Availability
52
Overload WPL 483036 Contact Us For Availability
53
Cover, Terminal WPL 1105015 Contact Us For Availability
54
Strap WPL 938384 Contact Us For Availability
55
Capacitor WPL 482996 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Clip, Tube WPL 942739 Contact Us For Availability
60
Pad, Sound WPL 301774 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
