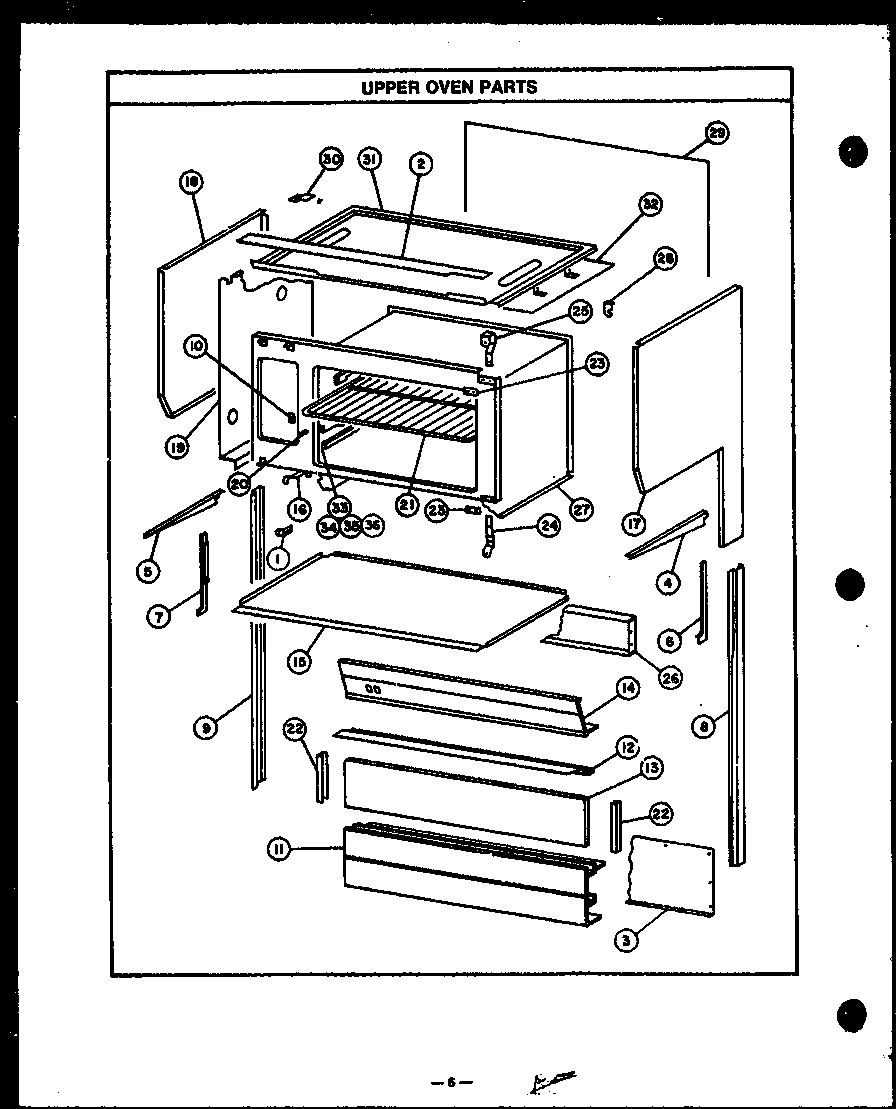

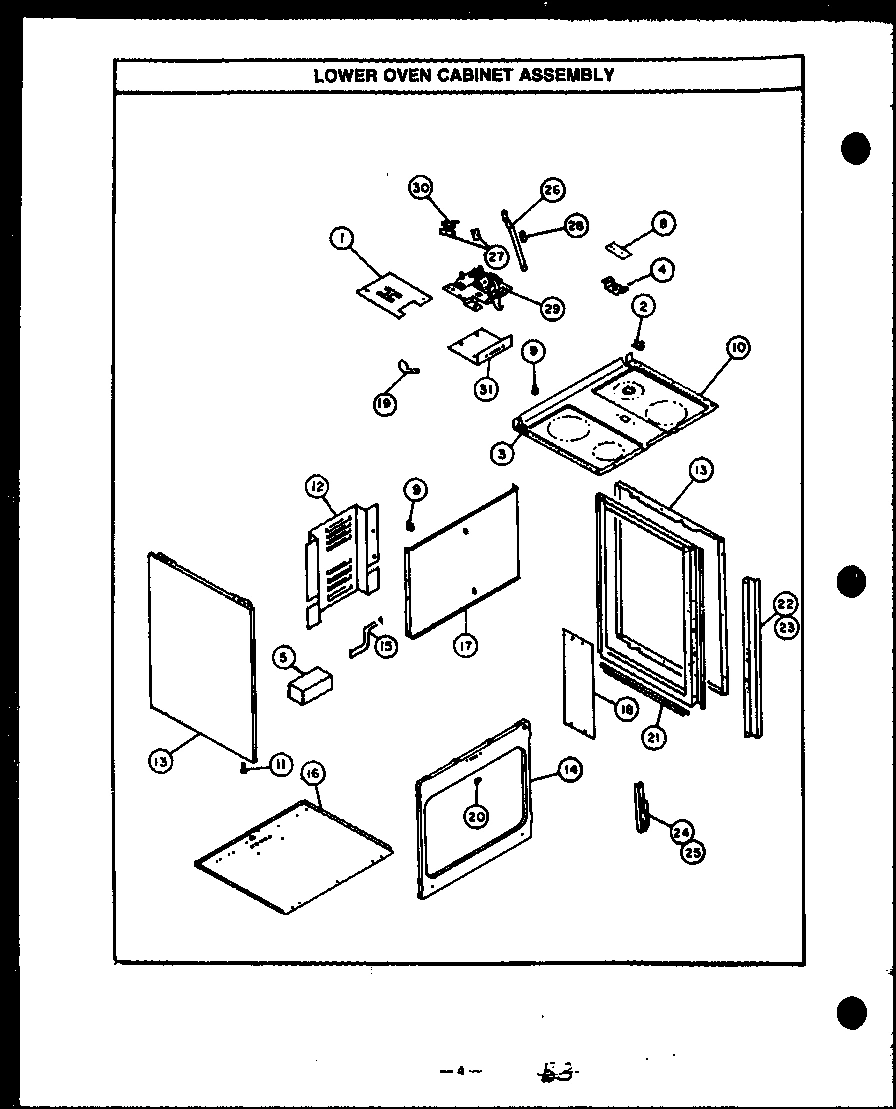

Model Whirlpool ESS394 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BRACKET ASSEMBLY WPL 0091517 Contact Us For Availability

1

RETAINER, OVEN LIGHT WPL Y63353 Contact Us For Availability

1

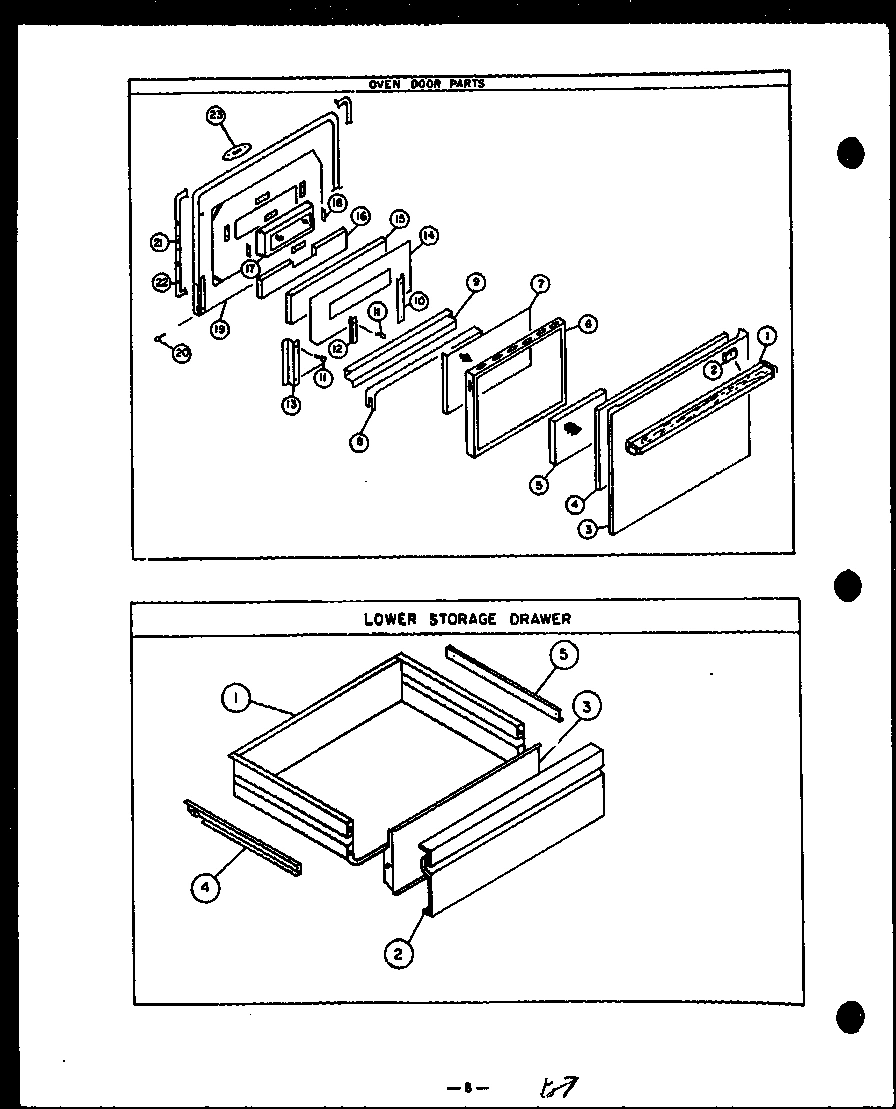

DRAWER ASSEMBLY WPL 0061234 Contact Us For Availability

1

HANDLE, OVEN DOOR WPL 68150 Contact Us For Availability

1

TRIM FRAME, CONTROL PANEL WPL 0096761 Contact Us For Availability

1

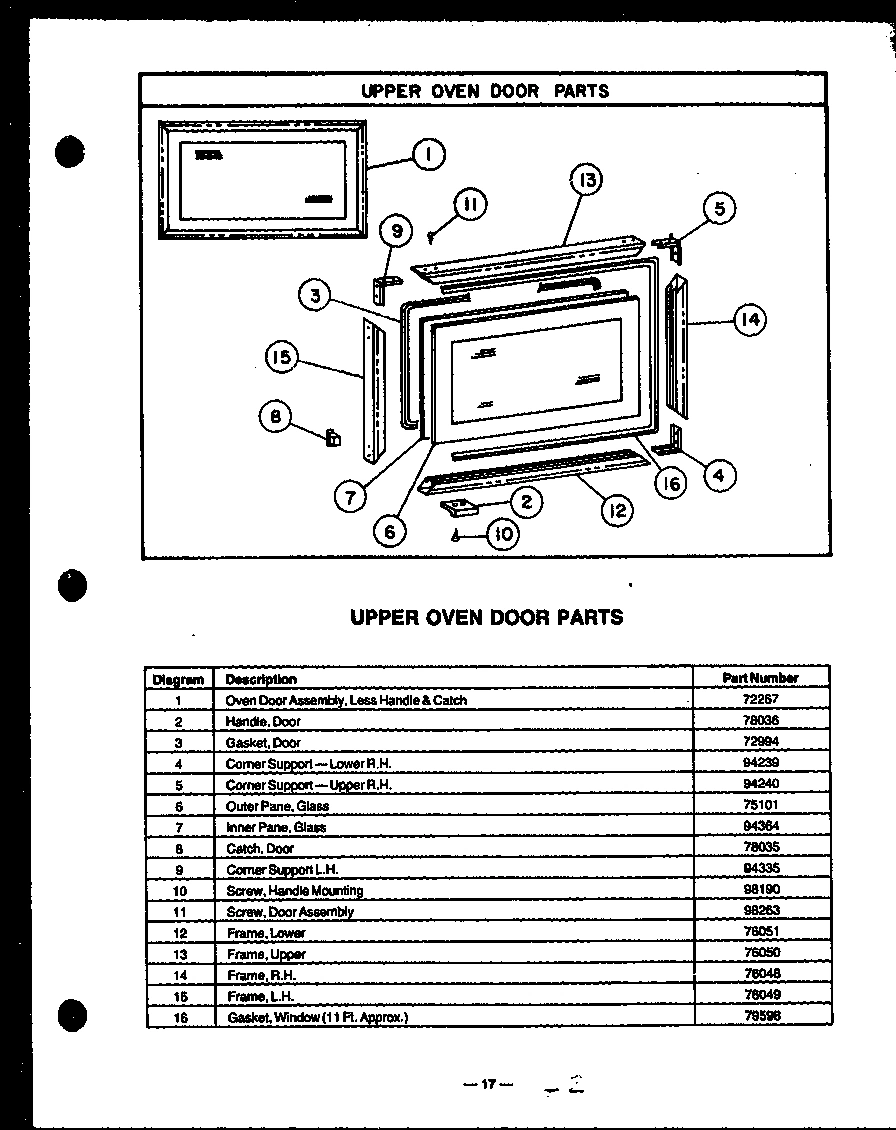

OVEN DOOR ASSEMBLY, LESS HANDL WPL 72267 Contact Us For Availability

1

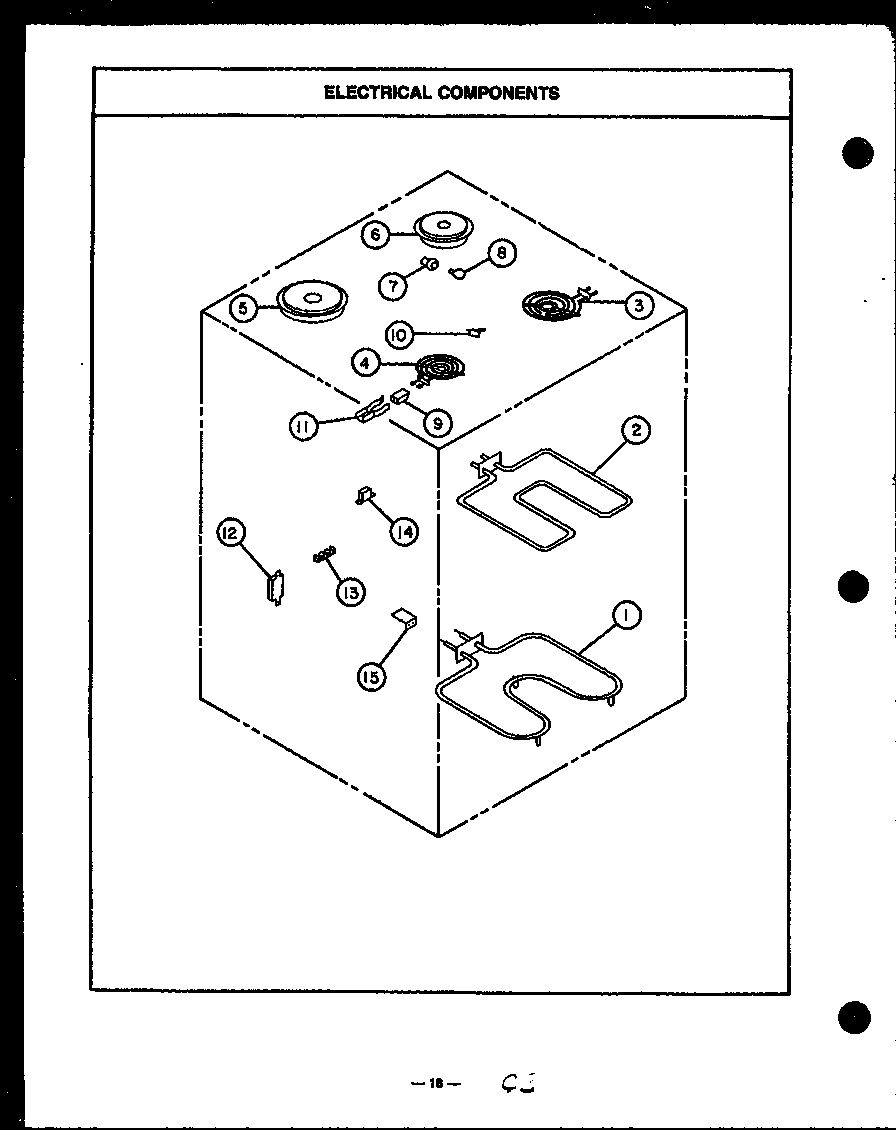

BAKE ELEMENT WPL 64288 Contact Us For Availability

1

BRACKET WPL Y0099913 Contact Us For Availability

2

BRACKET ASSEMBLY WPL 0091518 Contact Us For Availability

2

BRACKET WPL Y0091519 Contact Us For Availability

2

PANEL, DRAWER L WPL 063702L Contact Us For Availability

2

PANEL, DRAWER WHT WPL 063702W Contact Us For Availability

2

SPACER WPL 79978 Contact Us For Availability

2

DRAWER PANEL, HARVEST WPL Y576370241H Contact Us For Availability

2

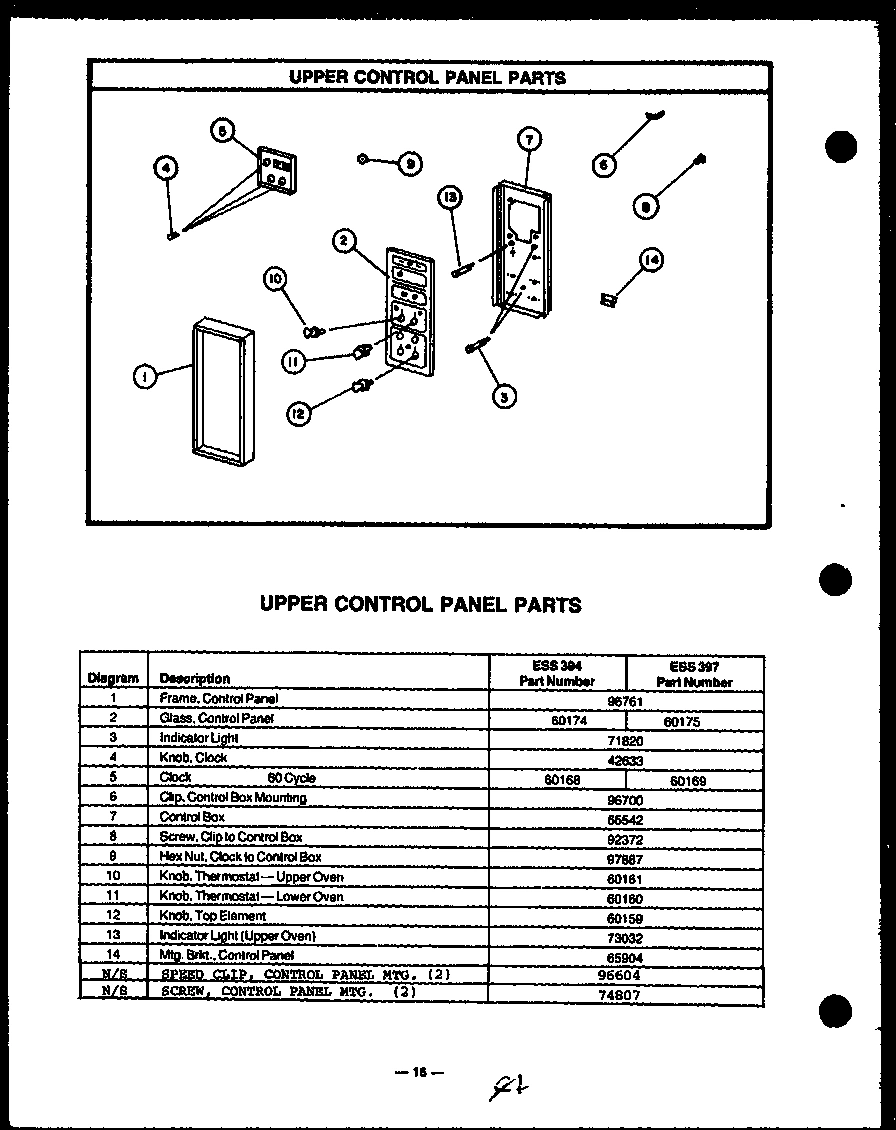

GLASS, CONTROL PANEL WPL Y60174 Contact Us For Availability

2

HANDLE, DOOR WPL 78036 Contact Us For Availability

2

BROIL ELEMENT WPL Y69057 Contact Us For Availability

2

CATCH WPL 73061 Contact Us For Availability

3

PKG. 80, ELEMENT, 8`` WPL X051571 Contact Us For Availability

3

SMOKE ELIMINATOR WPL Y0063337 Contact Us For Availability

3

BRACKET WPL Y0091520 Contact Us For Availability

3

SUB 57441CG, DRAWER PANEL WPL 0061930 Contact Us For Availability

3

PANEL,GRAPHIC WPL Y60168 Contact Us For Availability

3

GASKET, DOOR (2 PER DOOR) WPL Y72994 Contact Us For Availability

3

SEE NOTE OVEN BOTTOM - GRAY, PART OF ITEM NO. WPL Y00000000 Contact Us For Availability

4

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

4

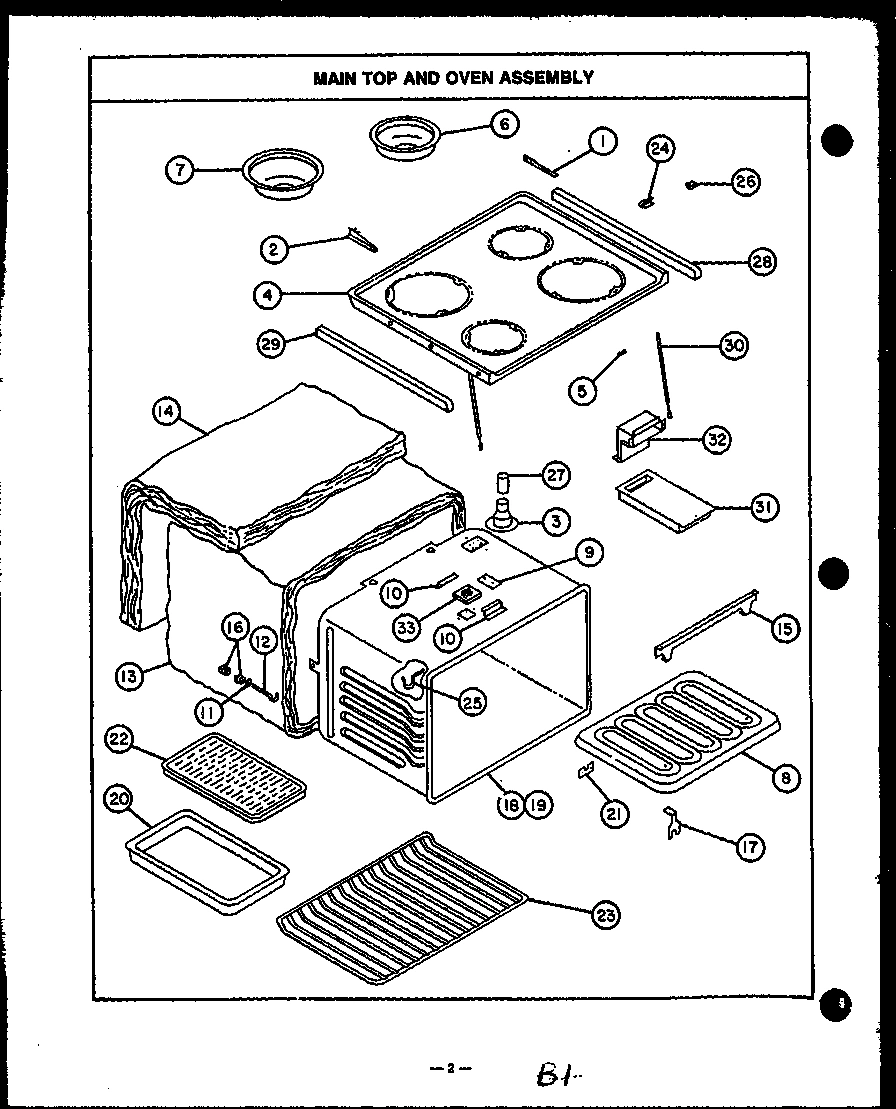

MAIN TOP, ALMOND WPL 5107107742L Contact Us For Availability

4

HOUSING, OVEN LAMP WPL 67880 Contact Us For Availability

4

SUB 300031, DRAWER TRACK LH WPL 0061254 Contact Us For Availability

4

KNOB, CLOCK W/O SPRING WPL Y0042633 Contact Us For Availability

4

CORNER SUPPORT LOWER, R.H. WPL 0094239 Contact Us For Availability

4

STARTER WPL 71920 Contact Us For Availability

4

TRIM STRIP, R.H. WPL Y71972 Contact Us For Availability

5

PIN, SUPPORT ROD WPL 0071668 Contact Us For Availability

5

MAIN TOP, HARVEST WPL W10124591 Contact Us For Availability

5

MAIN TOP, WHITE WPL W10124592 Contact Us For Availability

5

ELECTRICAL BOX WPL 0095790 Contact Us For Availability

5

DRAWER TRACK RH WPL 0061255 Contact Us For Availability

5

INDICATOR LIGHT WPL Y71820 Contact Us For Availability

5

CORNER SUPPORT UPPER, R.H. WPL Y0094240 Contact Us For Availability

5

TRIM STRIP, L.H. WPL Y71973 Contact Us For Availability

6

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.60

6

FRAME, OVEN DOOR WPL Y63703 Contact Us For Availability

6

MTG CLIPS, CONTROL BOX WPL Y0096700 Contact Us For Availability

6

GLASS SPLASHER WPL 73032 Contact Us For Availability

6

HOUSING WPL 75101 Contact Us For Availability

6

TRIM SUPPORT WPL Y0091477 Contact Us For Availability

7

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

7

SOCKET, LAMP WPL 0079394 Contact Us For Availability

7

BLACK GLASS PANEL WPL Y63653 Contact Us For Availability

7

CONTROL BOX WPL Y65542 Contact Us For Availability

7

INNER GLASS PANE-UPPER DOOR WPL Y0094364 Contact Us For Availability

7

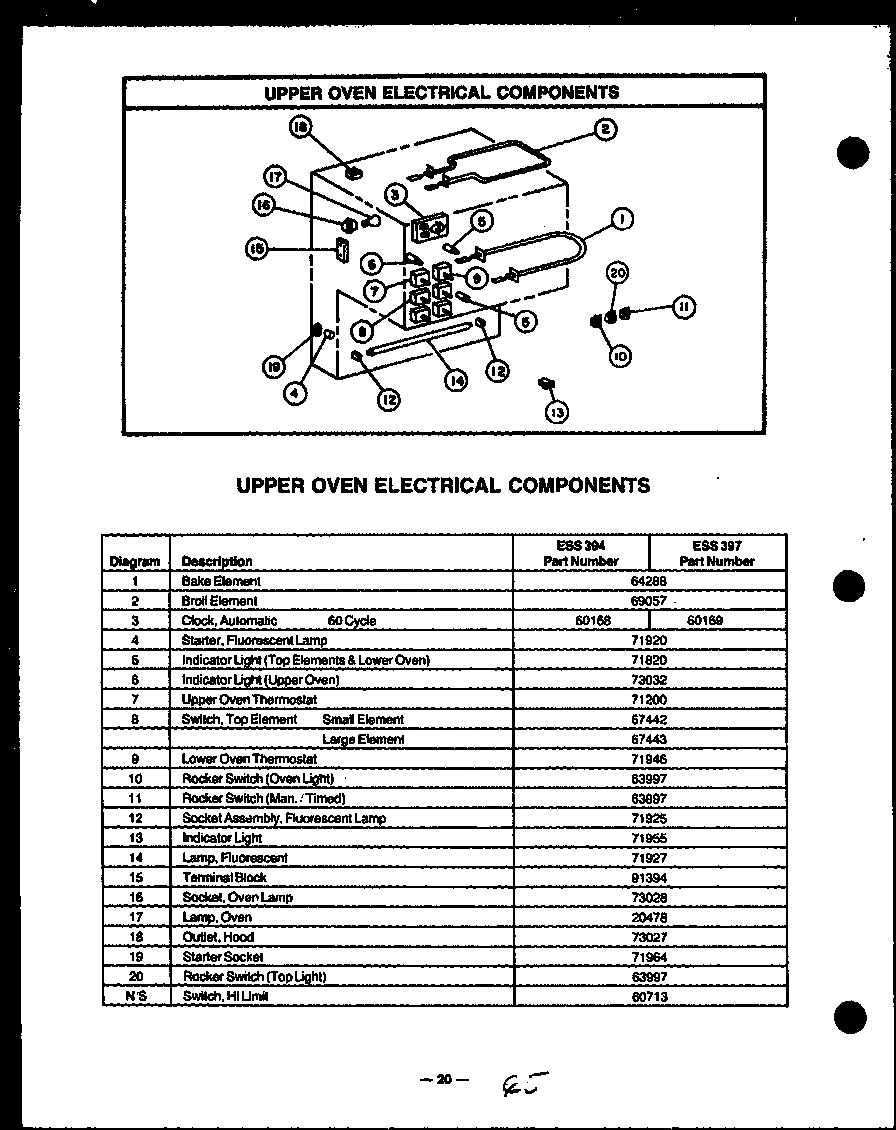

UPPER OVEN THERMOSTAT WPL 71200 Contact Us For Availability

7

TRIM SUPPORT WPL Y0091478 Contact Us For Availability

8

BULB, LIGHT WPL Y0042175 Contact Us For Availability

8

COVER PLATE, OVEN LAMP WPL Y67879 Contact Us For Availability

8

GLASS, TRIM WPL Y63195 Contact Us For Availability

8

SCREW 6X1/4 PHIL PAN HD WPL 0092372 Contact Us For Availability

8

CATCH, DOOR WPL 78035 Contact Us For Availability

8

SWITCH, INFINITE, 6-INCH WPL 67442 Contact Us For Availability

8

SWITCH, INFINITE, 8-INCH WPL 67443 Contact Us For Availability

8

SUPPORT CHANNEL - R.H. WPL 71096 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.57

9

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

9

CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability

9

AIR BAFFLE WPL Y63193 Contact Us For Availability

9

CORNER SUPPORT, L.H. WPL 0094335 Contact Us For Availability

9

THERMOSTAT, LOWER OVEN WPL Y71946 Contact Us For Availability

9

SUPPORT CHANNEL - L.H. WPL 71095 Contact Us For Availability

SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability

CLIP, LENS WPL 0067972 Contact Us For Availability

DRIP BAFFLE, GRAY WPL 67871 Contact Us For Availability

KNOB, THERMOSTAT - UPPER OVEN WPL 60161 Contact Us For Availability

SCREW, OVEN DOOR WPL 0098190 Contact Us For Availability

PLATE, DOOR STRIKE WPL Y75826 Contact Us For Availability

MOUNTING BRKT. PLUG BLOCK WPL Y0053131 Contact Us For Availability

WASHER WPL Y0071876 Contact Us For Availability

LEVELING LEG WPL 76205 Contact Us For Availability

RUBBER BUMPER WPL Y63661 Contact Us For Availability

CAP,END-R.H.-BRONZE WPL 60160 Contact Us For Availability

MTG SCREW UPPER DOOR WPL Y0098263 Contact Us For Availability

LOWER TRIM, SPLASHPLATE WPL Y71781 Contact Us For Availability

PKG 36 RELAY WPL X091669 Contact Us For Availability

HOOK BOLT WPL Y0091536 Contact Us For Availability

COVER BOX, WIRING WPL Y63689 Contact Us For Availability

SUPPORT BRACKET WPL Y63196 Contact Us For Availability

CAP,END-L.H.-BRONZE WPL 60159 Contact Us For Availability

FRAME, LOWER WPL 76051 Contact Us For Availability

SOCKET ASSEMBLY, FLOURESCENT L WPL 71925 Contact Us For Availability

REAR TRIM WPL Y71971 Contact Us For Availability

TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability

SUB 41966, INSULATION WPL Y0062781 Contact Us For Availability

MAIN END - HARVEST WPL 63260H Contact Us For Availability

MAIN END - ALMOND WPL 63260L Contact Us For Availability

MAIN END - WHITE WPL 63260W Contact Us For Availability

SUPPORT BRACKET WPL 63658 Contact Us For Availability

FRAME, UPPER WPL 76050 Contact Us For Availability

INDICATOR LIGHT WPL Y71955 Contact Us For Availability

GLASS, SPLASHPLATE WPL Y71968 Contact Us For Availability

BALLAST WPL Y0071869 Contact Us For Availability

SUB 41966, INSULATION WPL Y0062780 Contact Us For Availability

INSULATION RETAINER WPL Y63657 Contact Us For Availability

MTG. BRKT., CONTROL PANEL WPL Y65904 Contact Us For Availability

FRAME - R.H. WPL 76048 Contact Us For Availability

LAMP, FLOURESCENT WPL Y71927 Contact Us For Availability

DECORATIVE PANEL WPL Y62976 Contact Us For Availability

INSULATOR, TERMINALS WPL Y2063234060 Contact Us For Availability

TUBING ASSY. BALLAST WPL Y63173 Contact Us For Availability

INSULATION WPL Y63663 Contact Us For Availability

FRAME - L.H. WPL 76049 Contact Us For Availability

TERMINAL BLOCK WPL 0091394 Contact Us For Availability

JACKET BOTTOM, GRAY WPL 713173 Contact Us For Availability

SUB 41847, HEX NUT WPL 0071881 Contact Us For Availability

INSULATION RETAINER WPL 91309 Contact Us For Availability

GASKET, WINDOW WPL 79598 Contact Us For Availability

FASTENER WPL 73028 Contact Us For Availability

DOOR GUIDE WPL 71092 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

BRACKET, MOUNTING WPL 0061556 Contact Us For Availability

REAR PANEL WPL 62950 Contact Us For Availability

JACKET END - R.H., HARVEST WPL 71087H Contact Us For Availability

JACKET END - R.H., ALMOND WPL 71087L Contact Us For Availability

JACKET END - R.H., WHITE WPL 71087W Contact Us For Availability

SUB 58784CG, OVEN SHELL WPL 0063498 Contact Us For Availability

INSULATION RETAINER SIDES WPL Y63168 Contact Us For Availability

OUTLET, MOTOR WPL 73027 Contact Us For Availability

JACKET END - L.H., HARVEST WPL 71086H Contact Us For Availability

JACKET END - L.H., ALMOND WPL 71086L Contact Us For Availability

JACKET END - L.H., WHITE WPL 71086W Contact Us For Availability

OVEN SHELL ASSY, GRAY (ESS 380 WPL W10124604 Contact Us For Availability

CLAMP, POWER CORD WPL 68513 Contact Us For Availability

OVEN DR BACKER ( WPL Y63578 Contact Us For Availability

SOCKET STARTER WPL Y71964 Contact Us For Availability

SUB 60714, RETAINER, INSUL. WPL Y0094391 Contact Us For Availability

SUB 11161CG, BROILER PAN WPL Y0011161 Contact Us For Availability

WASHER, LATCH PLATE WPL 76733 Contact Us For Availability

RIVET WPL 0091632 Contact Us For Availability

SWITCH, OVEN LIGHT WPL Y63997 Contact Us For Availability

STRIKE, OVEN DOOR WPL Y78034 Contact Us For Availability

CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability

TRACK - STORAGE DRAWER - R. H. WPL 61252 Contact Us For Availability

TRACK - STORAGE DRAWER - L. H. WPL 61253 Contact Us For Availability

GASKET ASSEMBLY WPL 71637 Contact Us For Availability

OVEN RACK WPL 78001 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

ASSY,WIRING HARNESS-UP WPL Y61812 Contact Us For Availability

SPEED CLIP WPL Y68429 Contact Us For Availability

TRIM, SPLASHPLATE WPL Y71954 Contact Us For Availability

WP314763J Whirlpool Oven Rack Backorder WPL WP314763J $55.64

FRONT TRIM, L.H. WPL 61811 Contact Us For Availability

SUB 52039, LATCH PLATE WPL Y0040748 Contact Us For Availability

COVER PLATE FRONT FRAME WPL 0093625 Contact Us For Availability

WIRE CLAMP WPL 0071203 Contact Us For Availability

OVEN HINGE, R.H. WPL 67795 Contact Us For Availability

OVEN DOOR HINGE - R.H. WPL Y66954 Contact Us For Availability

HINGE, BOTTOM WPL Y0094356 Contact Us For Availability

25

CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability

25

OVEN DOOR HINGE - L.H. WPL Y66953 Contact Us For Availability

25

HINGE, TOP WPL Y0094357 Contact Us For Availability

26

LATCH HANDLE WPL Y65779 Contact Us For Availability

26

COVER, WIRE WPL Y91508 Contact Us For Availability

27

TUBE, VENT EXT. WPL 0063336 Contact Us For Availability

27

WRAPPER WPL W10126776 Contact Us For Availability

27

INSULATION, ESM WPL Y0091523 Contact Us For Availability

28

KNOB, DOOR LATCH WPL 67844 Contact Us For Availability

28

SWITCH WPL 73057 Contact Us For Availability

29

LATCH ASSEMBLY - OVEN DOOR WPL Y68102 Contact Us For Availability

29

MANUAL,SERVICE-EE,EG WPL Y62955 Contact Us For Availability

30

SUPPORT, MAINTOP WPL Y0091542 Contact Us For Availability

30

SWITCH, OVEN DOOR LATCH WPL 65780 Contact Us For Availability

30

OVEN VENT WPL 73060 Contact Us For Availability

31

FLUE BOX WPL Y0060627 Contact Us For Availability

31

BRACKET, SWITCH WPL 68101 Contact Us For Availability

31

JACKET TOP WPL 74091 Contact Us For Availability

32

FLUE BOX WPL Y0060631 Contact Us For Availability

32

INSULATION RETAINER, JACKET TO WPL 78701 Contact Us For Availability

33

LENS, OVEN LIGHT WPL 0067985 Contact Us For Availability

33

PANEL, SIDE RH WPL 711463 Contact Us For Availability

34

SIDE PANEL, L.H. - GRAY WPL 714473 Contact Us For Availability

35

SUB 78172CG REAR PANEL WPL 781723 Contact Us For Availability

36

PANEL, SURFACE LIGHT WPL 71064 Contact Us For Availability

INFINITE SWITCH WPL Y0061389 Contact Us For Availability

NUT, TYPE ``U`` WPL Y0096604 Contact Us For Availability

RACK, PANEL SUPPORT WPL Y71828 Contact Us For Availability

PLUG BUTTON WPL 0059798 Contact Us For Availability

BRACKET - CLEAN SWITCH MFG. WPL Y68091 Contact Us For Availability

SCREW, TAPPING WPL 74807 Contact Us For Availability

HI-LIMIT THERMOSTAT WPL 60713 Contact Us For Availability

CLIP, SPRING WPL Y79740 Contact Us For Availability
