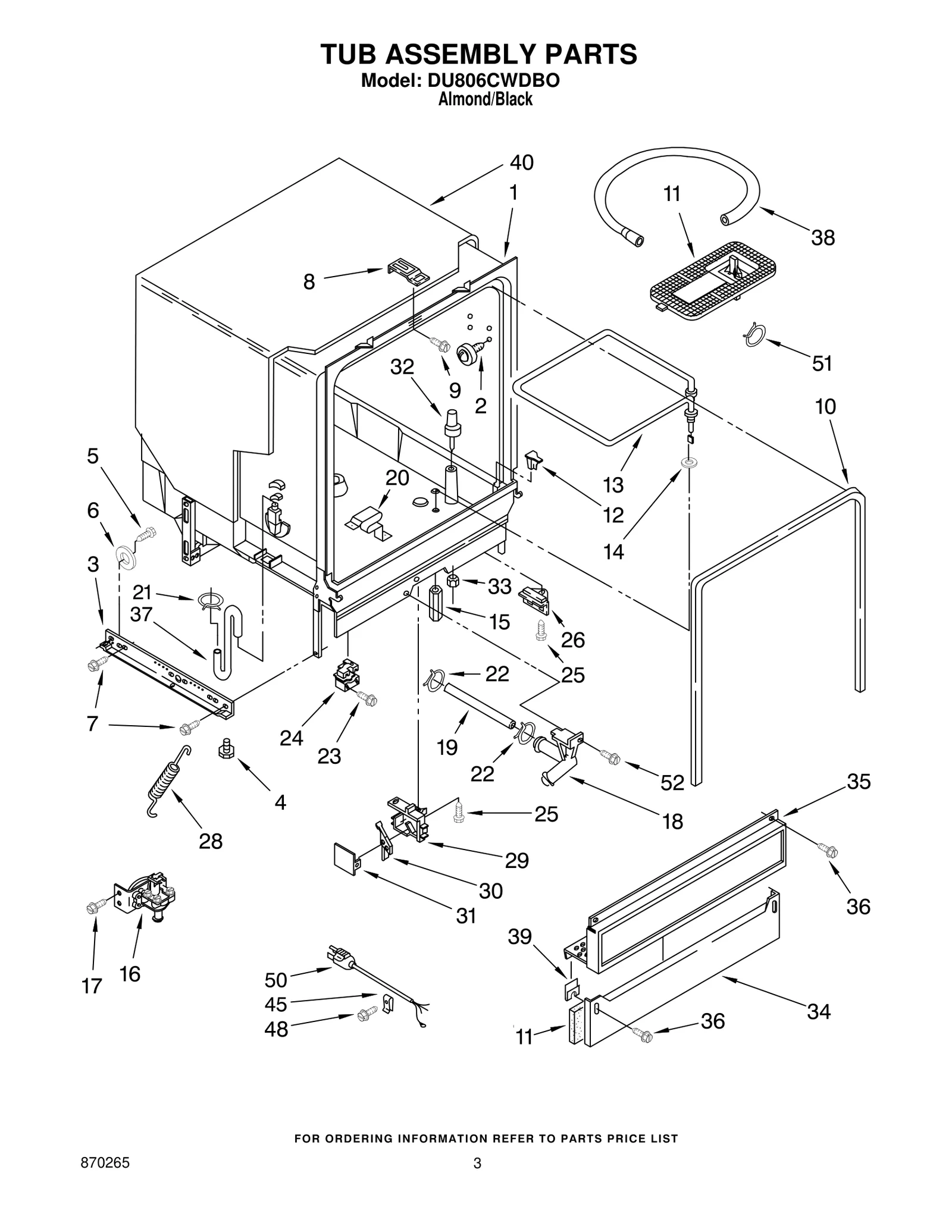

Model Whirlpool DU806CWDBO Undercounter Dishwasher – Common Parts & Diagrams

1
Heavy Duty PAINT, TOUCH−UP (1/2oz.)
Heavy Duty PAINT, TOUCH−UP (1/2oz.) WPL 4318050 Contact Us For Availability
View on Model
1

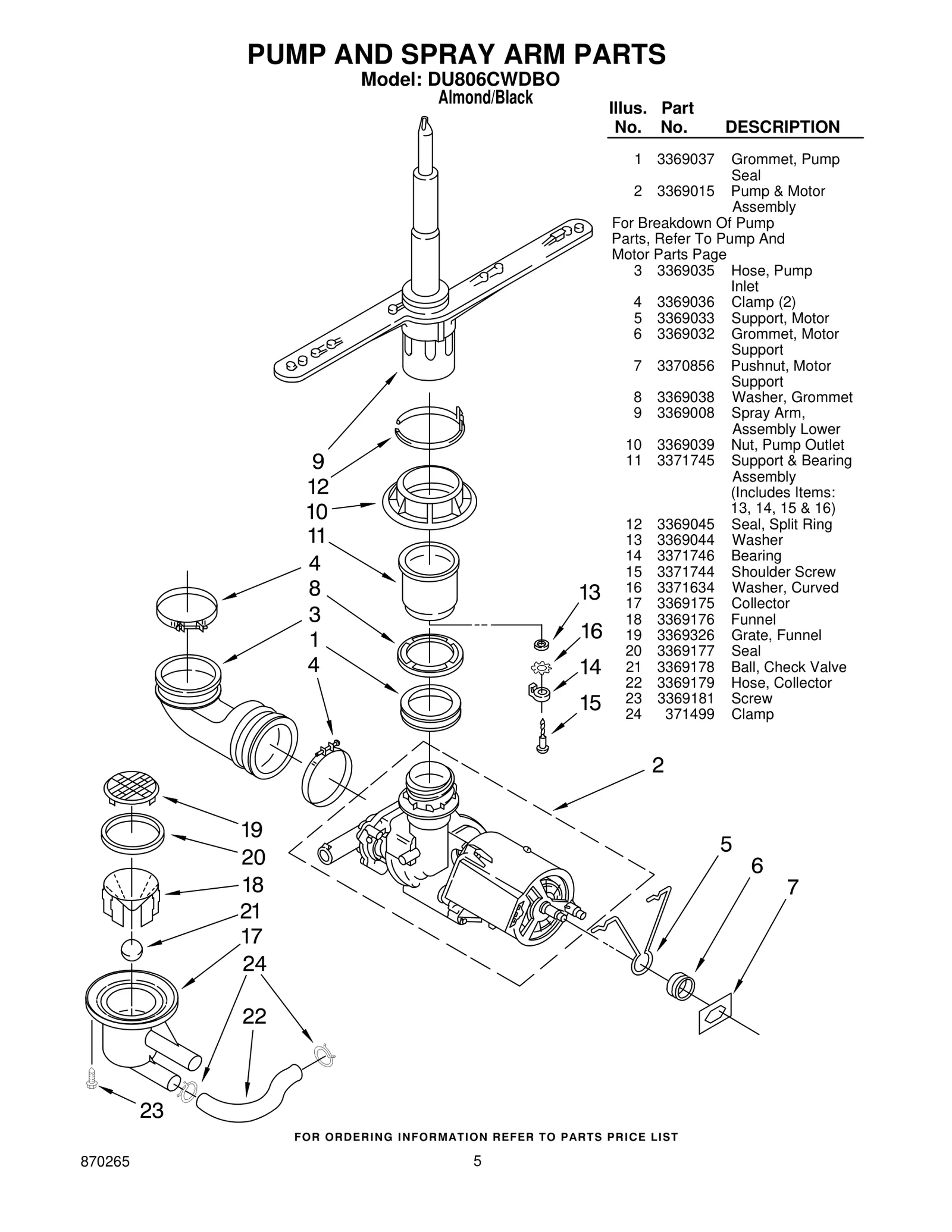

Grommet, Pump Seal
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
View on Model
1

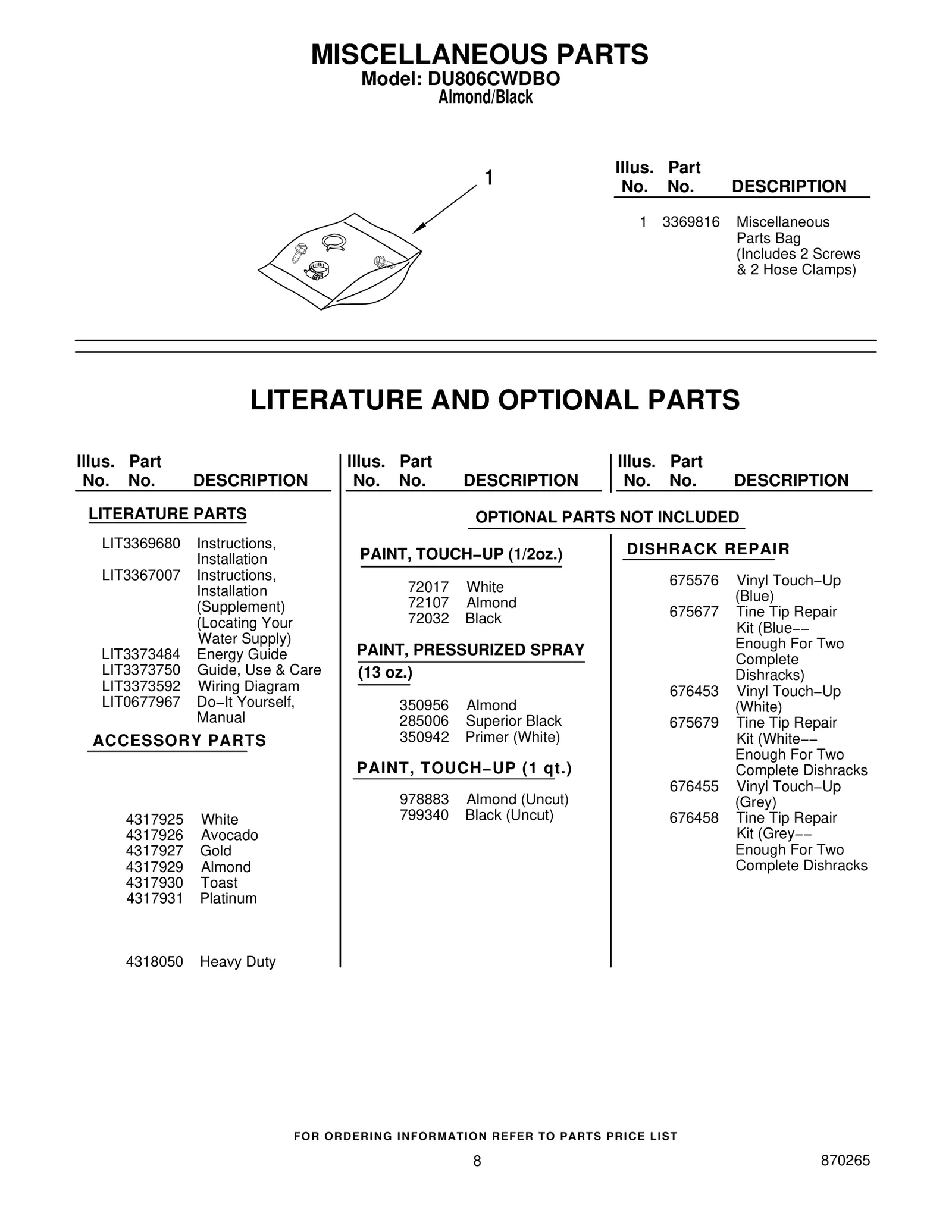

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
1
White
White WPL 4317925 Contact Us For Availability
View on Model
1
Avocado
Avocado WPL 4317926 Contact Us For Availability
View on Model
1
Gold
Gold WPL 4317927 Contact Us For Availability
View on Model
1
Almond
Almond WPL 4317929 Contact Us For Availability
View on Model
1
Toast
Toast WPL 4317930 Contact Us For Availability
View on Model
1
Platinum
Platinum WPL 4317931 Contact Us For Availability
View on Model
1
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
1
Black (Uncut) DISHRACK REPAIR
Black (Uncut) DISHRACK REPAIR WPL 799340 Contact Us For Availability
View on Model
1
Tine Tip Repair Kit (Blue−− Enough For Tw
Tine Tip Repair Kit (Blue−− Enough For Tw WPL 675677 Contact Us For Availability
View on Model
2
Seal, Drain Cover
Seal, Drain Cover WPL 3369031 Contact Us For Availability
View on Model
3
Diaphragm
Diaphragm WPL 3369028 Contact Us For Availability
View on Model
4
Ring, Diaphragm
Ring, Diaphragm WPL 3369029 Contact Us For Availability
View on Model
5
Cover, Drain Valve
Cover, Drain Valve WPL 3369030 Contact Us For Availability
View on Model
5
Basket, Silverware
Basket, Silverware WPL 3369762 Contact Us For Availability
View on Model
6
Draw Bar (Upper Dispenser)
Draw Bar (Upper Dispenser) WPL 3369000 Contact Us For Availability
View on Model
6
Wheel (2)
Wheel (2) WPL 302819 Contact Us For Availability
View on Model
6

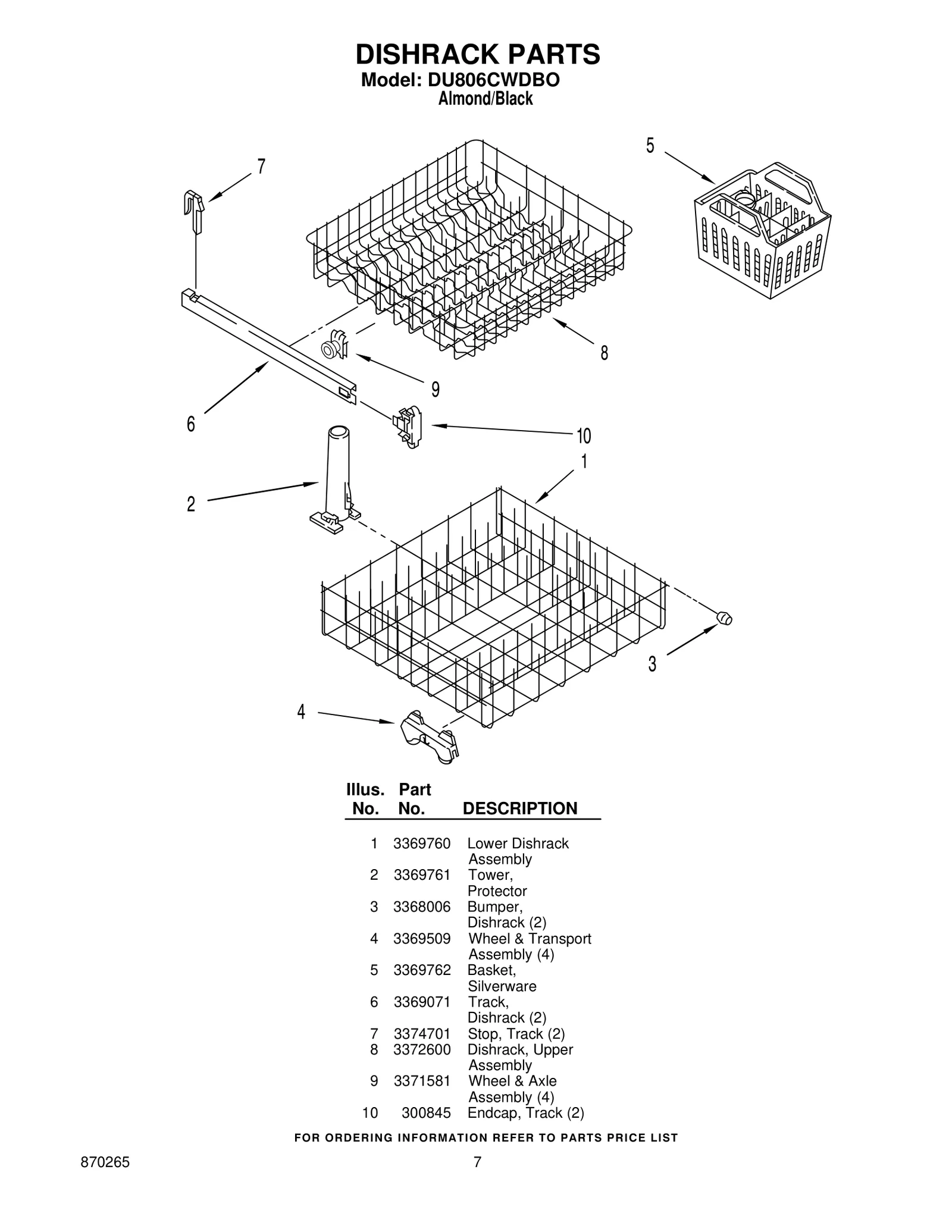

Track, Dishrack (2)
Track, Dishrack (2) WPL 3369071 Contact Us For Availability
View on Model
7
Seal Seat
Seal Seat WPL 3369020 Contact Us For Availability
View on Model
7
Stop, Track (2)
Stop, Track (2) WPL 3374701 Contact Us For Availability
View on Model
8
Washer, Grommet
Washer, Grommet WPL 3369038 Contact Us For Availability
View on Model
8
Door Frame
Door Frame WPL 3374711 Contact Us For Availability
View on Model
9
Wheel & Axle Assembly (4)
Wheel & Axle Assembly (4) WPL 3371581 Contact Us For Availability
View on Model
10

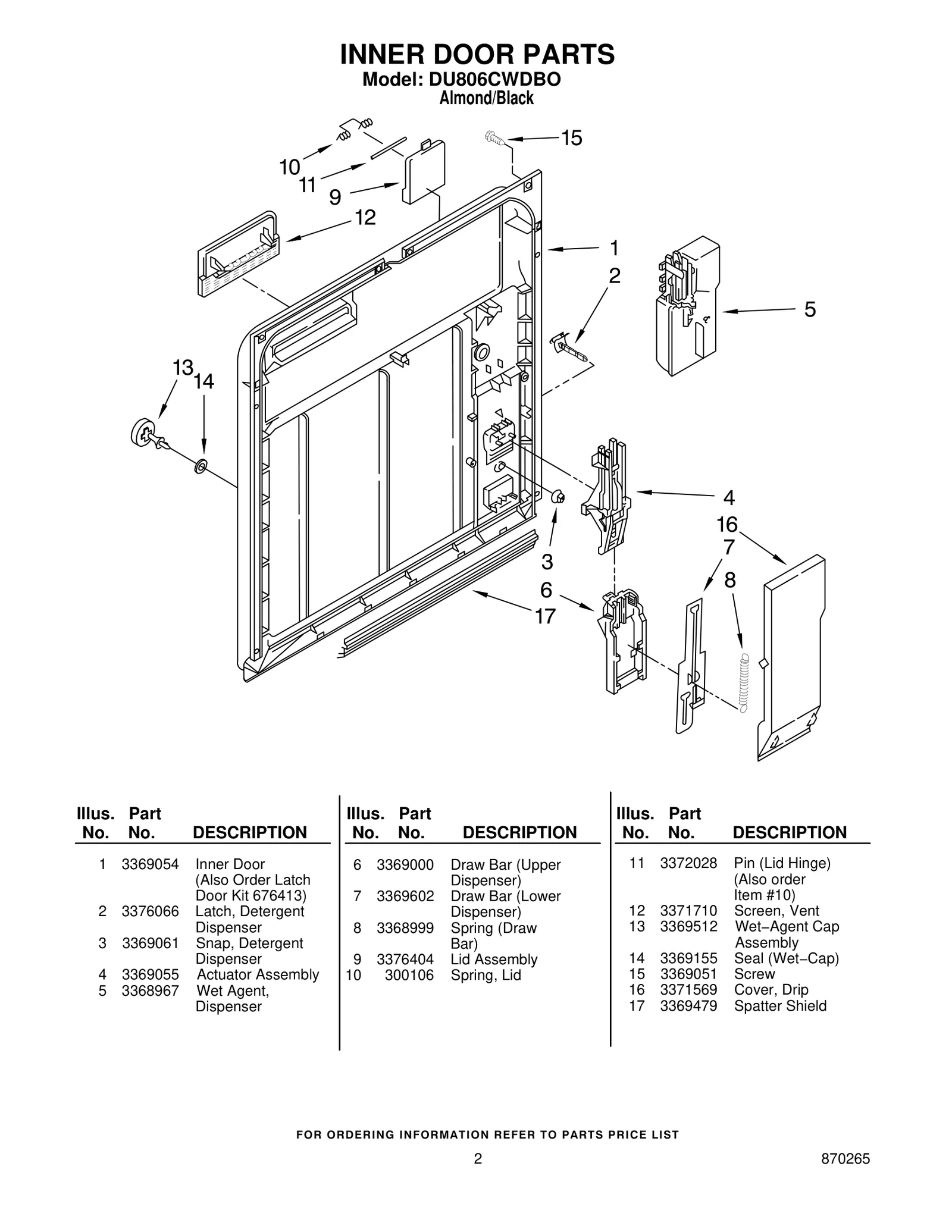

Lever, Latch
Lever, Latch WPL 3369457 Contact Us For Availability
View on Model
10
Endcap, Track (2) Model: DU806CWDBO Almond/Bl
Endcap, Track (2) Model: DU806CWDBO Almond/Bl WPL 300845 Contact Us For Availability
View on Model
11
Support & Bearing Assembly (Includes Items: 1
Support & Bearing Assembly (Includes Items: 1 WPL 3371745 Contact Us For Availability
View on Model
11

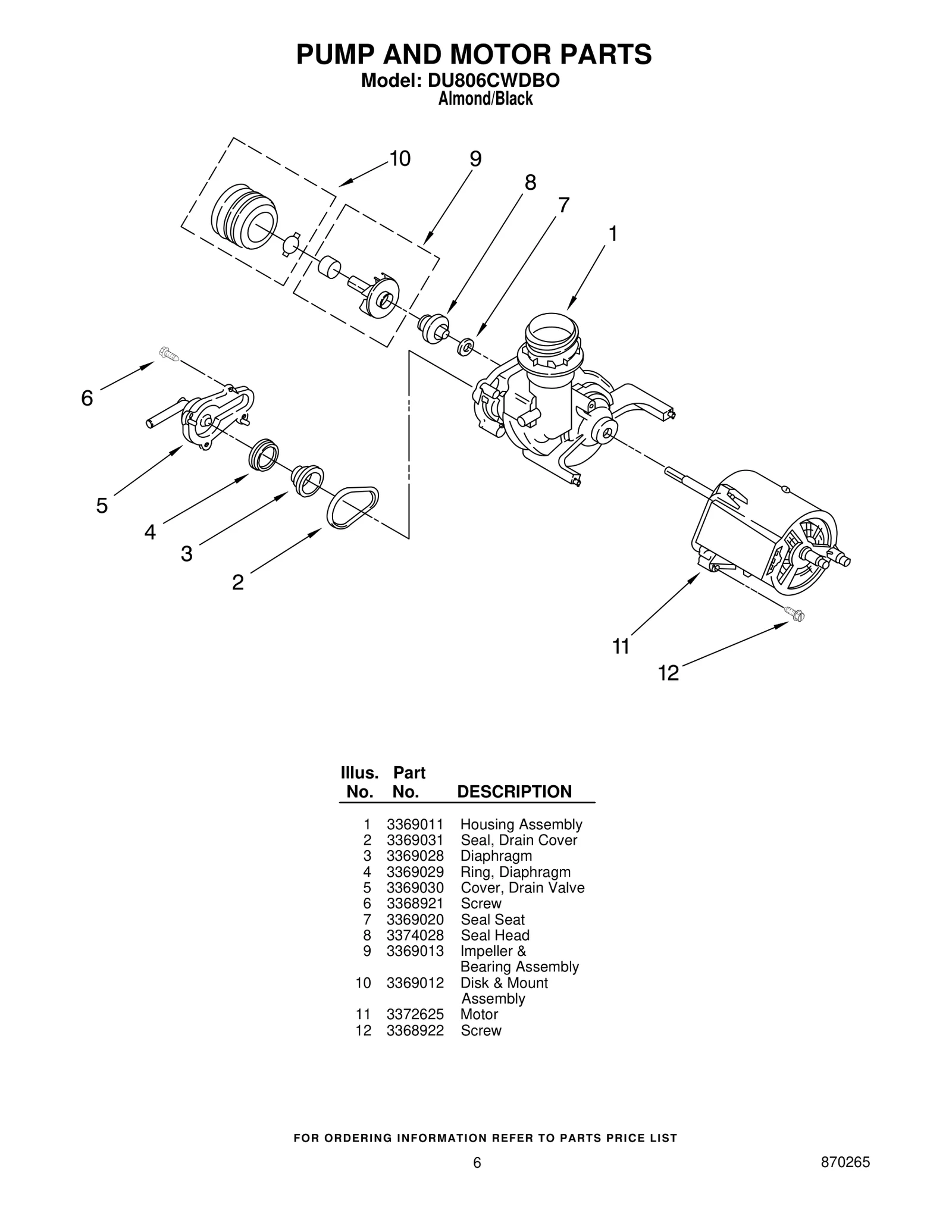

Motor
Motor WPL 3372625 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
12
Screw Model: DU806CWDBO Almond/Black
Screw Model: DU806CWDBO Almond/Black WPL 3368922 Contact Us For Availability
View on Model
13
Washer
Washer WPL 3369044 Contact Us For Availability
View on Model
14
Elbow, Harness
Elbow, Harness WPL 3376405 Contact Us For Availability
View on Model
16
Water Valve
Water Valve WPL 3374621 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
16
Washer, Curved
Washer, Curved WPL 3371634 Contact Us For Availability
View on Model
17
Knob, Timer
Knob, Timer WPL 3375348 Contact Us For Availability
View on Model
18
Spacer, Corrugated
Spacer, Corrugated WPL 3368979 Contact Us For Availability
View on Model
18
Funnel
Funnel WPL 3369176 Contact Us For Availability
View on Model
19
Grate, Funnel
Grate, Funnel WPL 3369326 Contact Us For Availability
View on Model
20
Retainer, Panel
Retainer, Panel WPL 3374010 Contact Us For Availability
View on Model
22
Hose, Collector
Hose, Collector WPL 3369179 Contact Us For Availability
View on Model
23
Screw
Screw WPL 3369181 Contact Us For Availability
View on Model
24
Clamp Model: DU806CWDBO Almond/Black
Clamp Model: DU806CWDBO Almond/Black WPL 371499 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
