Model Whirlpool DE16CT ELECTRIC DRYER – Common Parts & Diagrams

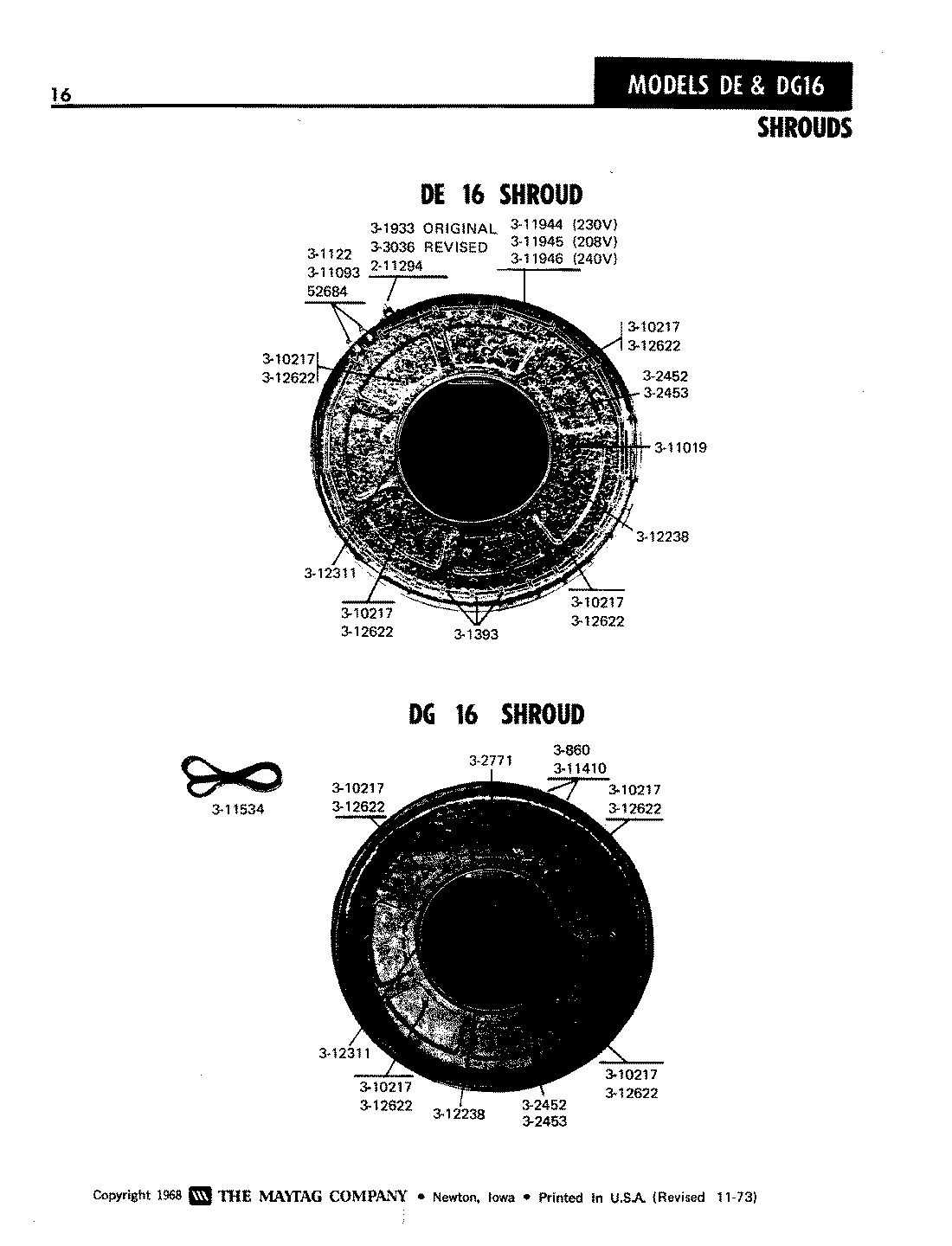

10 - SHROUDS

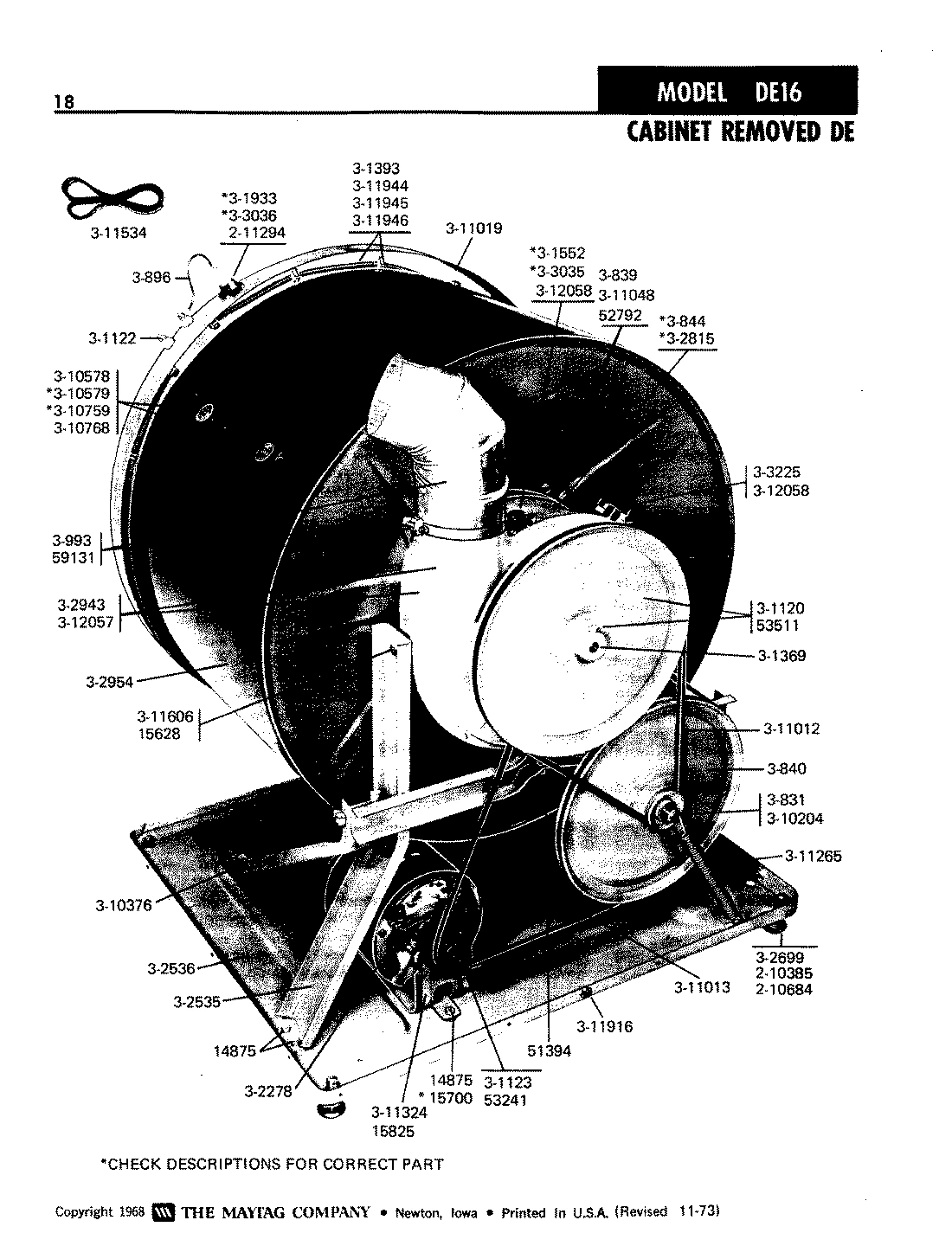

02 - CABINET REMOVED

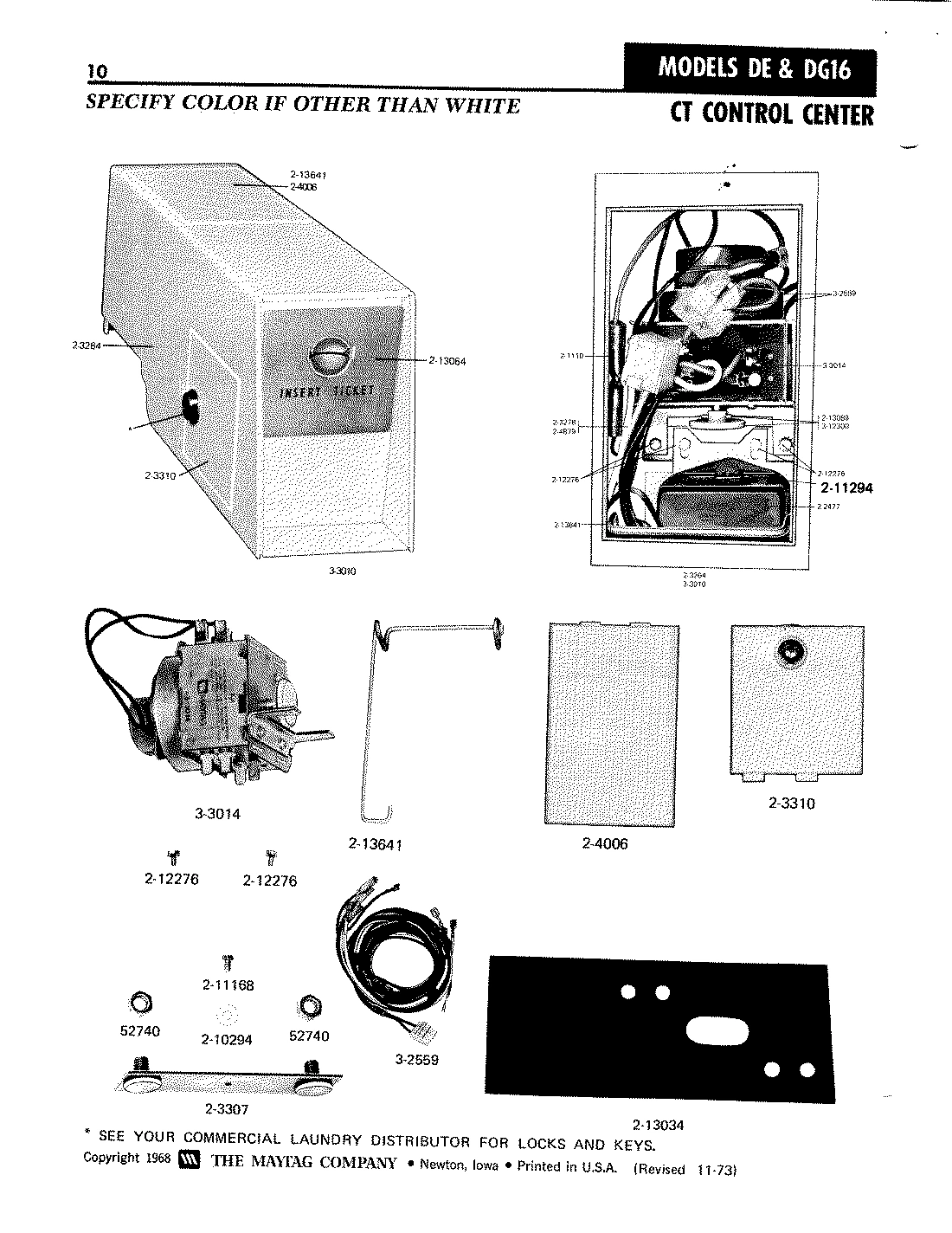

03 - CT CONTROL CENTER

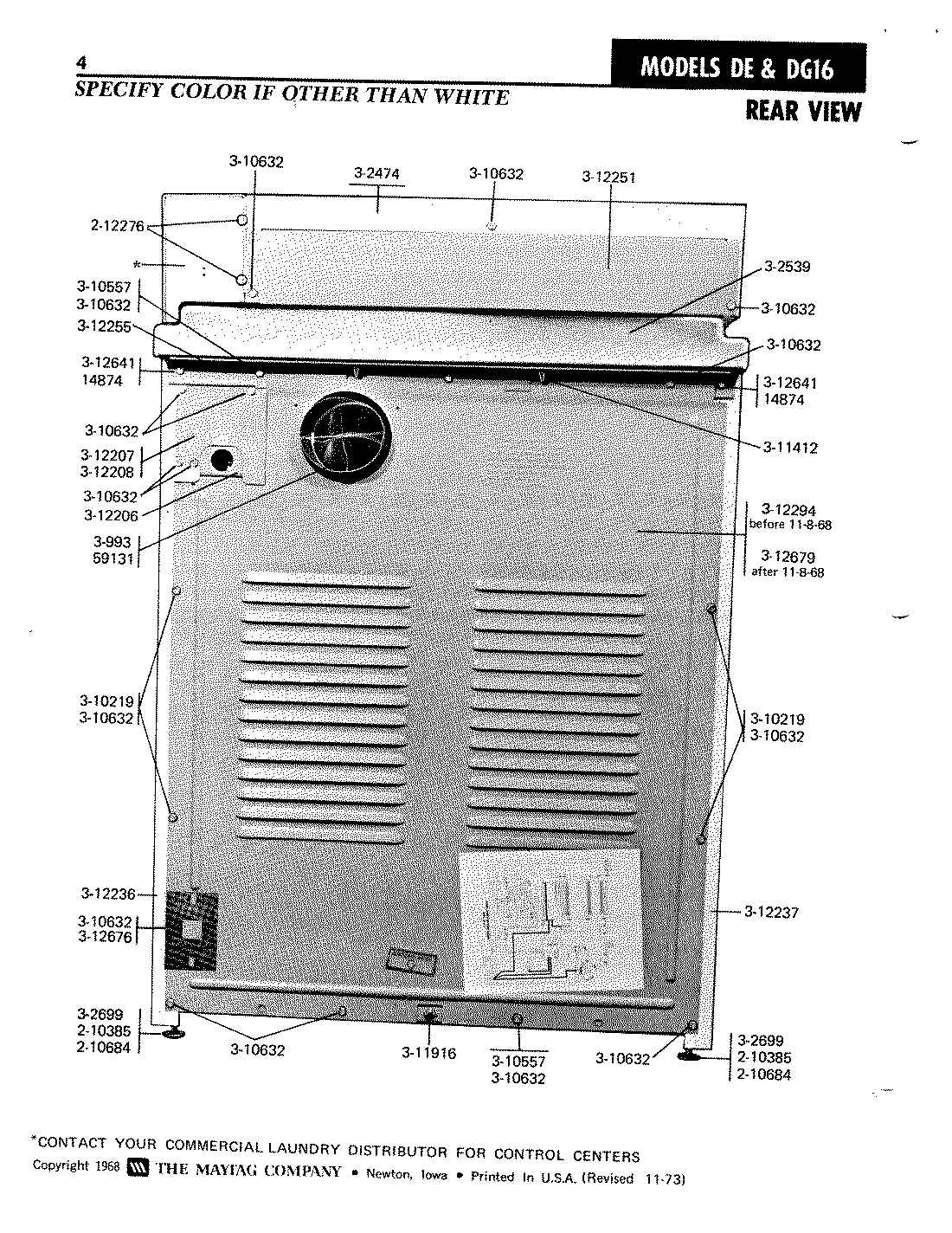

09 - REAR VIEW

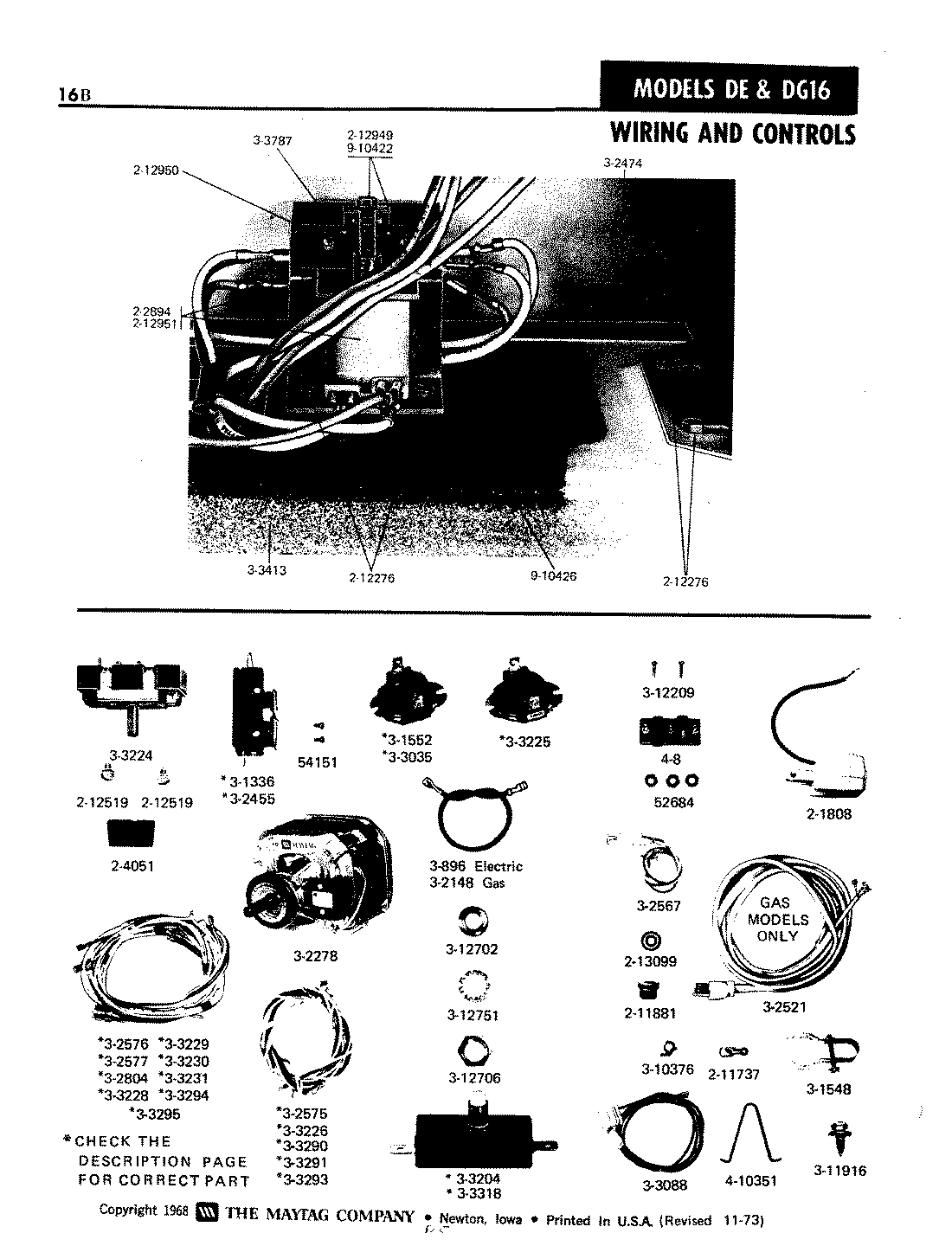

11 - WIRING & CONTROLS

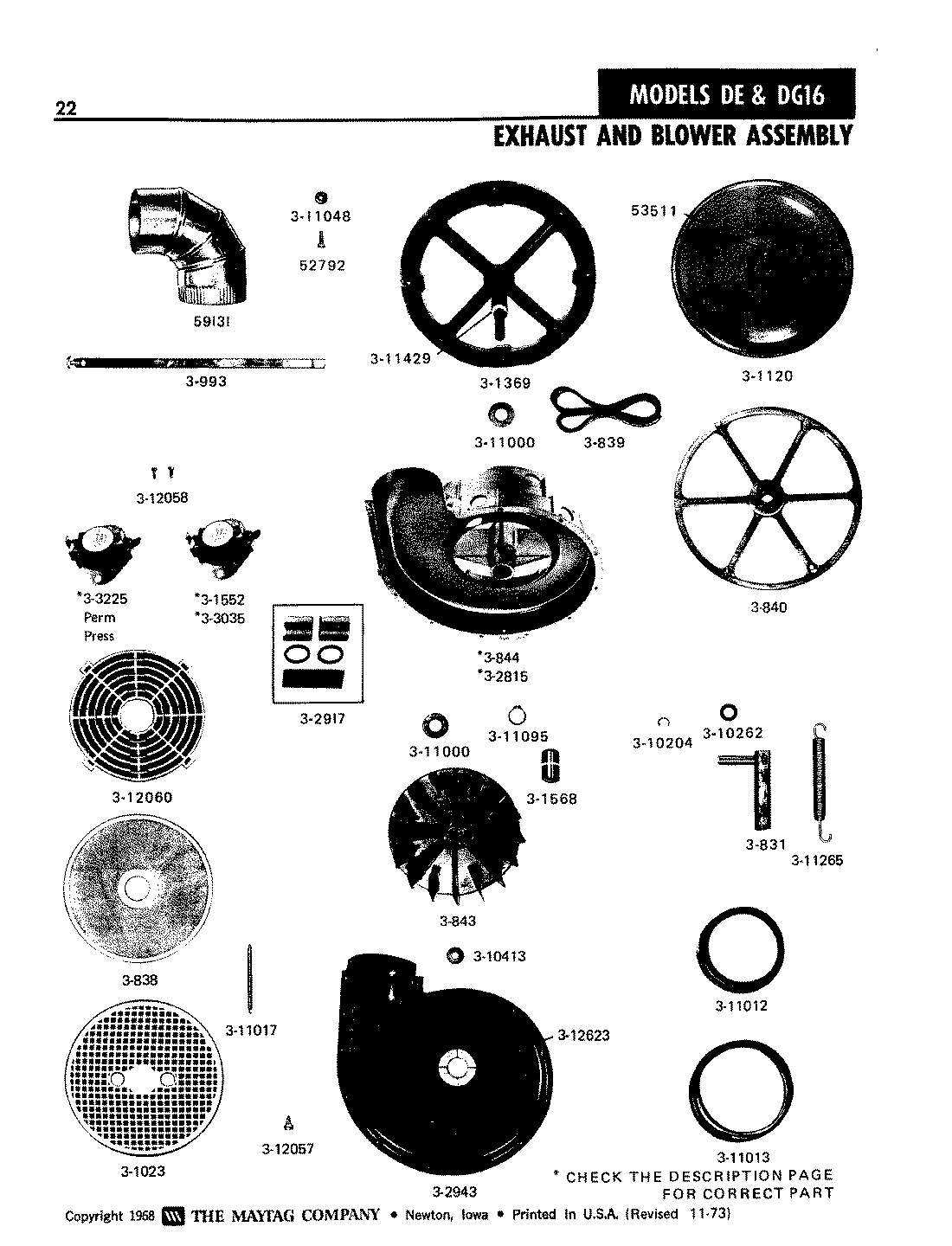

06 - EXHAUST & BLOWER ASSEMBLY

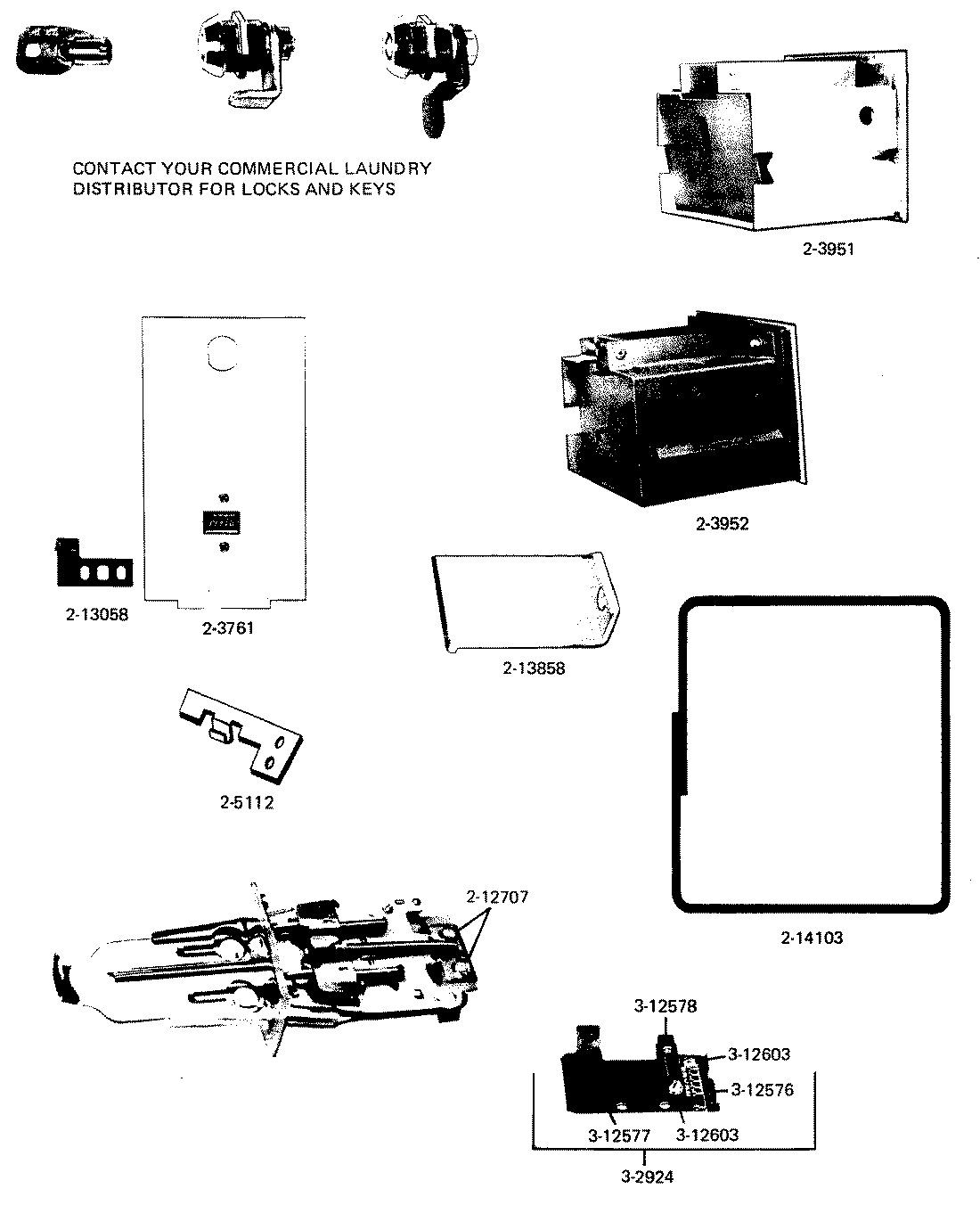

01 - ACCESSORIES

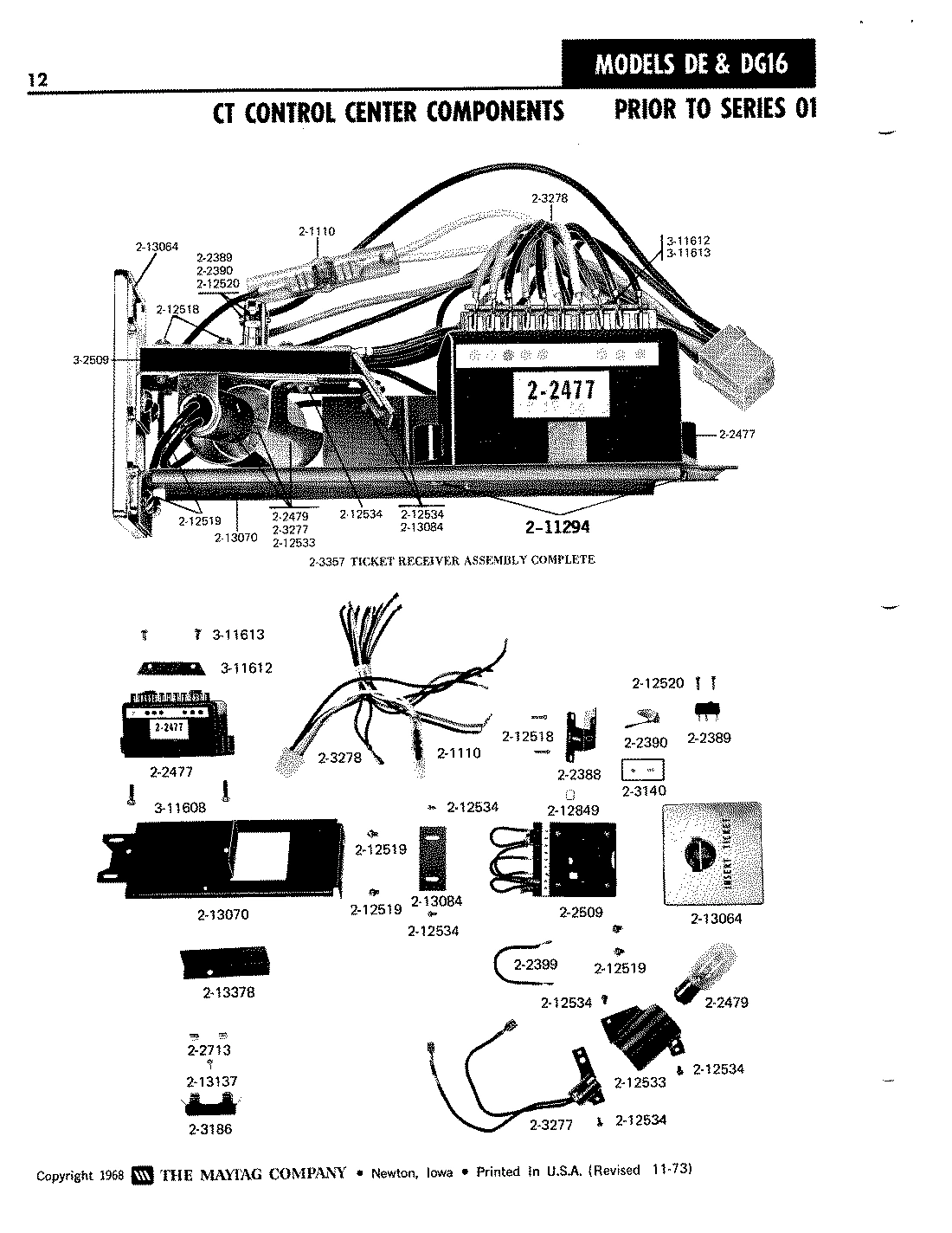

04 - CT CONTROL CENTER COMPONENTS

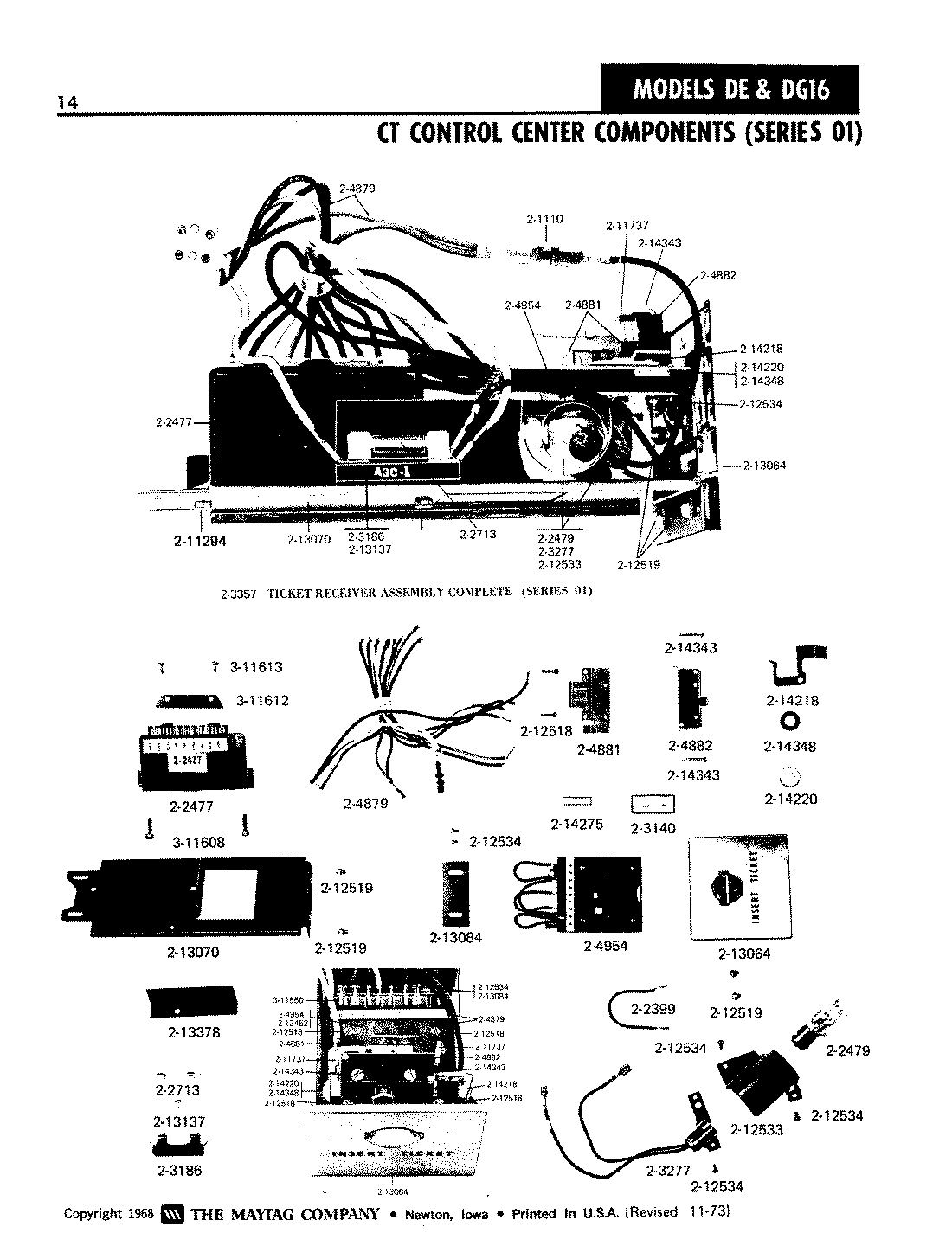

05 - CT CONTROL CNTR COMPONENTS-SERIES 01

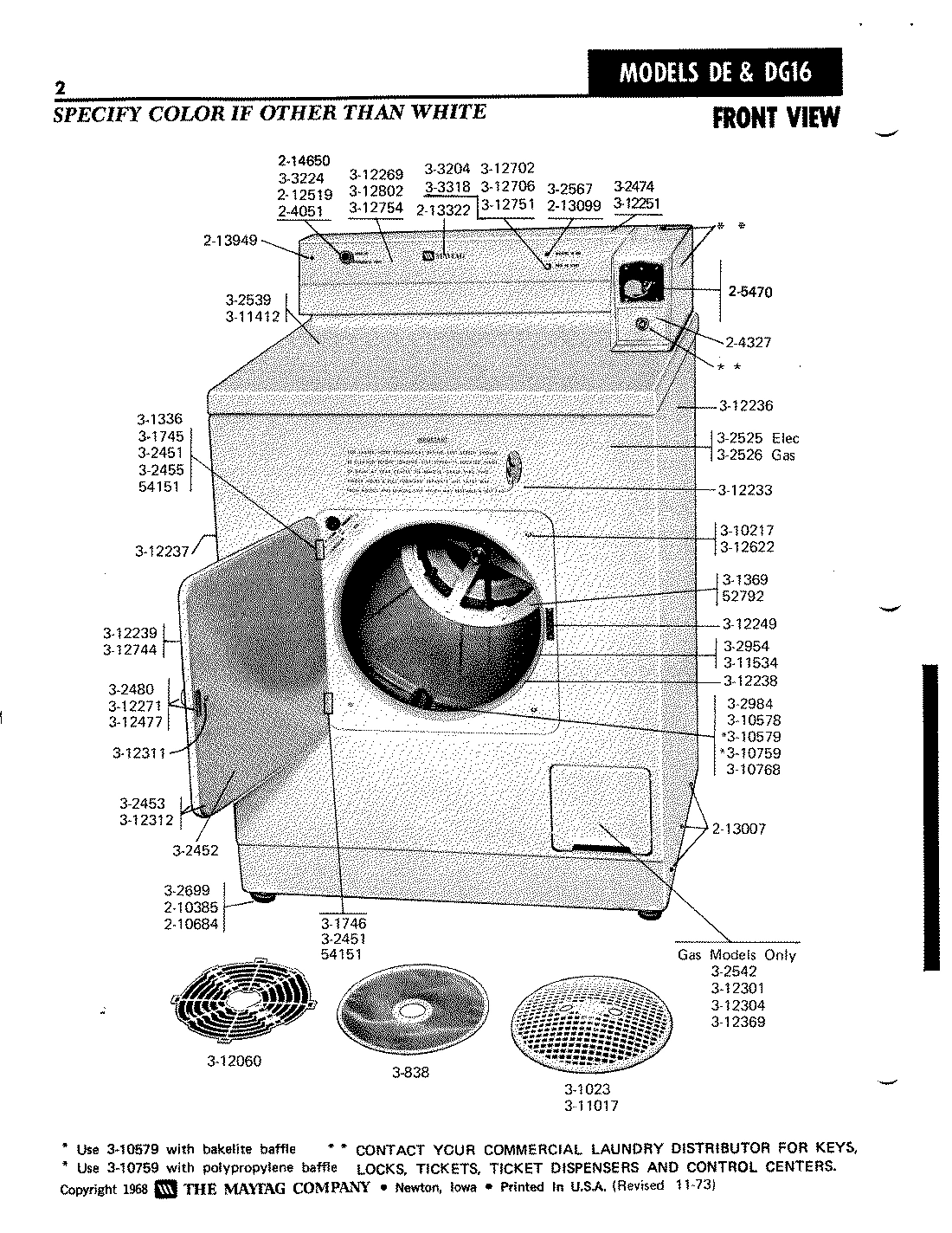

07 - FRONT VIEW

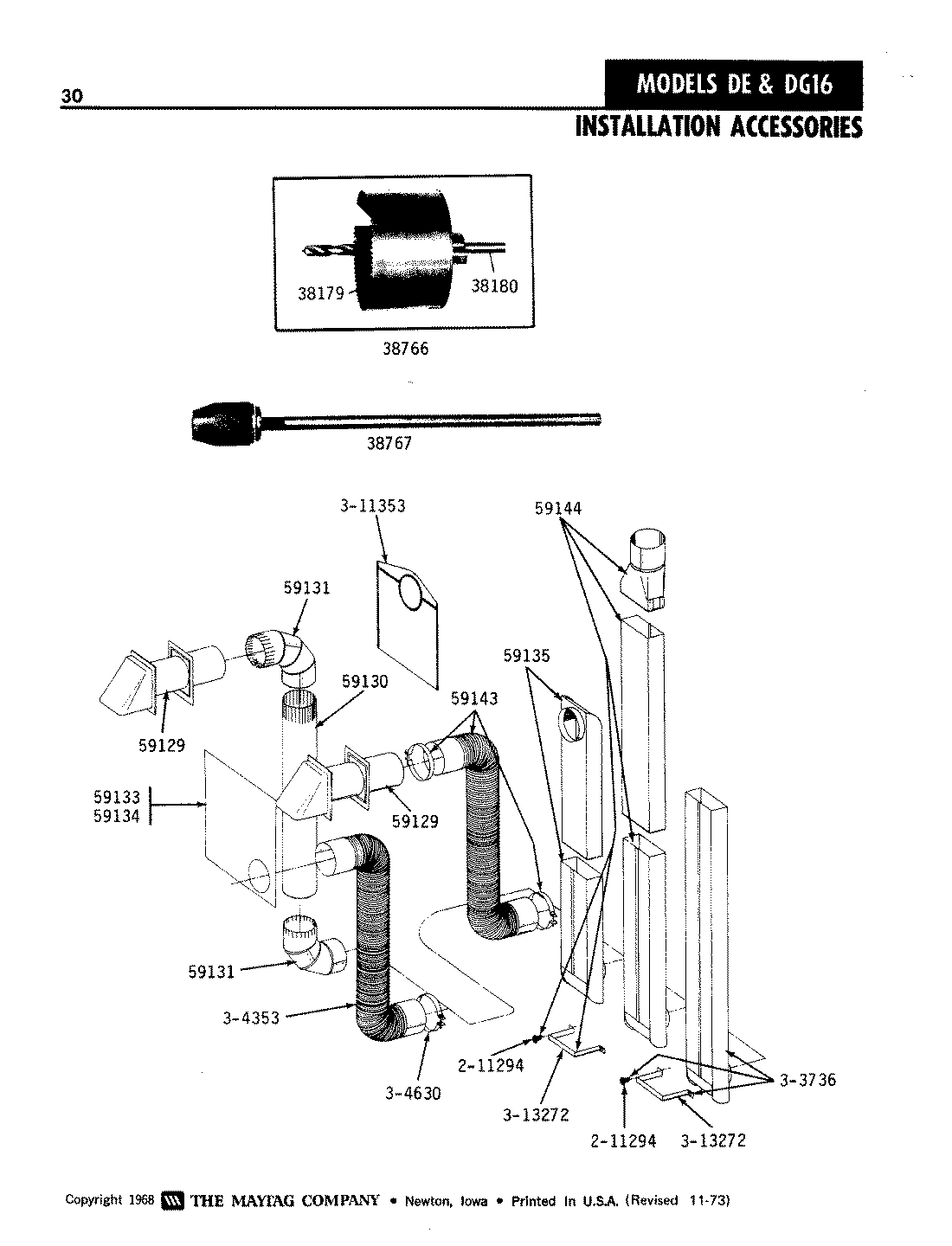

08 - INSTALLATION ACCESSORIES
Common parts from model Whirlpool DE16CT ELECTRIC DRYER
1
SHAFT AND SLIDE WPL 300831 Contact Us For Availability
1
No.2 WIRE WPL Y300896 Contact Us For Availability
1
HARNESS FOR TIMER WPL Y302559 Contact Us For Availability
1
ACTUATOR KIT-DRYER SLIDES WPL Y302924 Contact Us For Availability
1
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
1
MAYTAG COIN SLIDE WPL 205470 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
2
CONTROL CENTER COMPLETE WPL 303010 Contact Us For Availability
2
LINT SCREEN WPL 300838 Contact Us For Availability
2
ZERO SLIDE ADJUSTMENT WPL Y312576 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
3
SEAL WPL 300839 Contact Us For Availability
3
TIMER WITH KNOB AND PIN WPL 303014 Contact Us For Availability
3
FRONT PANEL-WHITE WPL 302526 Contact Us For Availability
3
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
3
LINT SCREEN RETAINER WPL 301023 Contact Us For Availability
3
BRACKET FOR SLIDE WPL Y312577 Contact Us For Availability
3
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
4
REDUCTION PULLEY WPL 300840 Contact Us For Availability
4
DOOR SWITCH WPL Y301336 Contact Us For Availability
4
SLIDE ADJUSTMENT WPL Y312578 Contact Us For Availability
4
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
5
SHAFT WITH SPIDER WPL 301369 Contact Us For Availability
5
No.4 WIRE W/RECEPTACLES GAS WPL 302148 Contact Us For Availability
5
IMPELLER WPL 300843 Contact Us For Availability
5
SCREW ADJUSTMENT ASSEMBLY WPL 312603 Contact Us For Availability
5
CAM PLATE ASSEMBLY WPL 202388 Contact Us For Availability
6
EXHAUST HOUSING WPL Y300844 Contact Us For Availability
6
MOTOR WPL Y302278 Contact Us For Availability
6
PIPE AND BRACKET ASSEMBLY WPL 303074 Contact Us For Availability
6
ACCESS DOOR-WHITE WPL 203761 Contact Us For Availability
6
SWITCH FOR TICKET CONTROL WPL 202389 Contact Us For Availability
6
SWITCH ACTUATOR WPL 202390 Contact Us For Availability
6
DOOR HINGE ON CABINET WPL 301745 Contact Us For Availability
6
PIPE, VENTING WPL Y059130 Contact Us For Availability
7
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
7
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
7
No.10Z FASTENER WPL 310219 Contact Us For Availability
7
COIN BOX-WHITE WPL 203951 Contact Us For Availability
7
JUMPER WIRE - BLACK WPL 202399 Contact Us For Availability
7
DOOR HINGE ON CABINET WPL 301746 Contact Us For Availability
8
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
8
OUTER CASE-WHITE WPL 203264 Contact Us For Availability
8
WASHER WPL 310557 Contact Us For Availability
8
SUPER SECURITY COIN BOX WPL 203952 Contact Us For Availability
8
HINGE ASSEMBLY WPL 302451 Contact Us For Availability
8
ALUMINUM WINDOW 4X12X18 WPL 059133 Contact Us For Availability
9
DOOR LINER WPL 302452 Contact Us For Availability
9
DRUM PULLEY WPL Y301120 Contact Us For Availability
9
MOTOR PULLEY WPL 301123 Contact Us For Availability
9
SCREW WPL Y310632 Contact Us For Availability
9
DOOR SWITCH HARNESS WPL 302575 Contact Us For Availability
9
DOUBLE MELT CLIP W/DEFLECTO WPL 205112 Contact Us For Availability
9
LAMP FOR TICKET CONTROL WPL 202479 Contact Us For Availability
9
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
10
DOOR-WHITE WPL 302453 Contact Us For Availability
10
MTG. STRAP----NA WPL 203307 Contact Us For Availability
10
WIRE HARNESS WPL 302576 Contact Us For Availability
10
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
11
INSULATOR WPL 301393 Contact Us For Availability
11
REGULATING THERMOSTAT WPL 301552 Contact Us For Availability
11
ACCESS DOOR-WHITE WPL 203310 Contact Us For Availability
11
ACTUATOR FOR COUNTER WPL 213058 Contact Us For Availability
11
TICKET CONTROL WPL 202509 Contact Us For Availability
11
CONTACT BALL KIT WPL 203140 Contact Us For Availability
11
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
12
ACCESS DOOR-WHITE WPL 204006 Contact Us For Availability
12
CONTROL COVER-WHITE WPL 302474 Contact Us For Availability
12
TERMINAL BRACKET WPL 312206 Contact Us For Availability
12
GAS VALVE WIRES WITH PLUG WPL 303088 Contact Us For Availability
12
BEARING F/BAKELITE IMPELLER NA WPL 301568 Contact Us For Availability
12
GUARD WPL 213858 Contact Us For Availability
12
FUSE BLOCK WITH FUSE WPL 203186 Contact Us For Availability
12
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
13
HIGH LIMIT THERMOSTAT WPL Y301933 Contact Us For Availability
13
BLOWER HOUSING WITH BEARING WPL Y302815 Contact Us For Availability
13
TERMINAL COVER WPL 312207 Contact Us For Availability
13
LAMP SOCKET WITH BRACKET WPL 203277 Contact Us For Availability
13
LATCH WPL 302480 Contact Us For Availability
14
WASHER WPL 210294 Contact Us For Availability
14
BEARING KIT - DRUM WPL 302917 Contact Us For Availability
14
TICKET RECEIVER ASSEMBLY WPL 203357 Contact Us For Availability
14
FRONT PANEL-WHITE WPL 302525 Contact Us For Availability
14
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
15
SUPPORT WPL 302535 Contact Us For Availability
15
COVER WITH LINT SEAL-BLOWER WPL 302943 Contact Us For Availability
15
HARNESS FOR TICKET CONTROL WPL 204879 Contact Us For Availability
15
TOP COVER-WHITE WPL 302539 Contact Us For Availability
16
BASE WPL 302536 Contact Us For Availability
16
HARNESS FOR TICKET CONTROL WPL 203278 Contact Us For Availability
16
PILOT LIGHT WPL 302567 Contact Us For Availability
16
WIRE HARNESS FOR DOOR SWITC WPL 303226 Contact Us For Availability
16
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
16
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
17
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
17
SWITCH FOR TICKET CONTROL WPL 204882 Contact Us For Availability
17
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
18
DRUM W/FELT - PORCELAIN WPL 302954 Contact Us For Availability
18
SNAP RING WPL 310204 Contact Us For Availability
18
BACK FOR CABINET WPL 312294 Contact Us For Availability
18
MAIN WIRE HARNESS WPL 303228 Contact Us For Availability
18
TICKET CONTROL WPL 204954 Contact Us For Availability
18
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
19
WASHER WPL 310262 Contact Us For Availability
19
PIN RECEPTICLE WPL 212457 Contact Us For Availability
19
GASKET UNDER CONTROL CENTER WPL 213034 Contact Us For Availability
19
GROUND CLIP SPEED NUT WPL Y312641 Contact Us For Availability
19
BAFFLE ASSEMBLY - POLY WPL 302984 Contact Us For Availability
20
BACK PANEL WPL 312679 Contact Us For Availability
20
DOOR SWITCH HARNESS WPL 303290 Contact Us For Availability
20
CIRCUIT BOARD WPL 212452 Contact Us For Availability
21
SELECTOR SWITCH WPL Y303224 Contact Us For Availability
21
O RING SEAL WPL 310988 Contact Us For Availability
21
SEMS SCREW, No.4-40 X 1/2 INC WPL 212518 Contact Us For Availability
22
HIGH LIMIT THERMOSTAT WPL Y303036 Contact Us For Availability
22
LATCH FOR ACCESS DOOR WPL 213641 Contact Us For Availability
22
RELAY HARNESS WPL 303293 Contact Us For Availability
22
SWITCH ASSEMBLY WITH HEX NU WPL Y303318 Contact Us For Availability
22
WASHER WPL 311000 Contact Us For Availability
22
SCREW-MICRO SWITCH WPL 212520 Contact Us For Availability
23
NO LONGER AVAILABLE WPL 310217 Contact Us For Availability
23
DRIVE BELT WPL Y311012 Contact Us For Availability
23
MAIN WIRE HARNESS WPL 303294 Contact Us For Availability
23
SHIELD FOR HEAT LAMP WPL 212533 Contact Us For Availability
24
WASHER WPL 310578 Contact Us For Availability
24
MOTOR BELT WPL Y311013 Contact Us For Availability
24
SCREW, SHIELD TO CONTROL WPL 212534 Contact Us For Availability
25
SCREW, No.10-24 X 11/16 INCH WPL 310579 Contact Us For Availability
25
FRONT PLATE F/TICKET CONTRO WPL 213064 Contact Us For Availability
25
ROLLER FOR CAM WPL 212849 Contact Us For Availability
26
SCREW WPL Y310759 Contact Us For Availability
26
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
26
WASHER, ALUMINUM WPL 311048 Contact Us For Availability
26
BRACKET FOR TICKET ASSEMBLY WPL 213070 Contact Us For Availability
27
WASHER WPL 310768 Contact Us For Availability
27
RETAINING RING WPL 311095 Contact Us For Availability
27
TICKET DEFLECTOR WPL 213084 Contact Us For Availability
28
SPRING WPL 311265 Contact Us For Availability
28
RETAINER SPRING WPL Y311017 Contact Us For Availability
28
SCREW, No.6 X 1/4 INCH WPL 213137 Contact Us For Availability
29
SCREW WPL 311412 Contact Us For Availability
29
NYLON SPACER COLLAR WPL Y311429 Contact Us For Availability
29
SHIELD WPL 213378 Contact Us For Availability
30
FELT SEAL WPL 311534 Contact Us For Availability
30
SWITCH LEVER WPL 214218 Contact Us For Availability
31
FASTENER WPL 310933 Contact Us For Availability
31
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
31
CLIP FOR DOOR HARNESS WPL 311551 Contact Us For Availability
32
CONVERTER WPL Y201808 Contact Us For Availability
32
SHIELD FOR SPIDER WPL Y312060 Contact Us For Availability
32
ROLLER FOR CAM WPL 214275 Contact Us For Availability
33
LINT SEAL - BLOWER COVERS WPL Y312623 Contact Us For Availability
33
SCREW WPL 214343 Contact Us For Availability
33
DRYING INSTRUCTION OVERLAY WPL 312233 Contact Us For Availability
34
DRUM COVER WPL 311019 Contact Us For Availability
34
PANEL-WHITE WPL 312236 Contact Us For Availability
34
SPRING WASHER WPL 214348 Contact Us For Availability
35
SET SCREW WPL Y053511 Contact Us For Availability
35
PANEL-WHITE WPL 312237 Contact Us For Availability
36
DOOR SEAL WPL 312238 Contact Us For Availability
37
MOTOR BASE WPL 311324 Contact Us For Availability
37
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
37
DOOR PANEL-WHITE WPL 312239 Contact Us For Availability
38
HARNESS RETAINER WPL 410351 Contact Us For Availability
38
STRIKE PLATE WPL 312249 Contact Us For Availability
39
LOCK WASHER WPL 311606 Contact Us For Availability
39
BACK FOR CONTROL PANEL WPL 312251 Contact Us For Availability
40
ANGLE FOR CABINET - DRYER WPL 312255 Contact Us For Availability
41
ELEMENT - 230V WPL 311944 Contact Us For Availability
41
CONTROL PANEL WPL 312269 Contact Us For Availability
42
HEATER WIRE 208 VOLT WPL Y311945 Contact Us For Availability
42
HANDLE WPL 312271 Contact Us For Availability
43
HEATER WIRE 240 VOLT WPL Y311946 Contact Us For Availability
43
SCREW----NA WPL 312311 Contact Us For Availability
44
INSULATION - DOOR WPL 312312 Contact Us For Availability
45
MAGNETIC LATCH RETAINER WPL 312477 Contact Us For Availability
47
KNURLED NUT WPL Y312702 Contact Us For Availability
48
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
49
DOOR PANEL-WHITE WPL Y312744 Contact Us For Availability
50
CAP SCREW, No.14 X 1/2 WPL 014875 Contact Us For Availability
51
BOLT, 5/16 X 3/4 HEX WPL 015628 Contact Us For Availability
51
CONTROL PANEL WPL 312754 Contact Us For Availability
52
CAP SCREW, 1/4-20 X 1/2 WPL 015700 Contact Us For Availability
52
CONTROL PANEL WPL 312802 Contact Us For Availability
53
KNOB WPL 204051 Contact Us For Availability
54
BOLT, 5/16 X 2-1/8 WPL 051394 Contact Us For Availability
54
COIN BOX-WHITE----NA WPL 204327 Contact Us For Availability
56
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
58
LOCK WASHER, 5/16 X 3/32 WPL 054865 Contact Us For Availability
61
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
62
MAYTAG DECAL WPL 213322 Contact Us For Availability
64
SCREW, 1 1/4-20 X 5/16 WPL 052792 Contact Us For Availability
65
SCREW, No.4-40 X WPL 054151 Contact Us For Availability
66
WPL 214650 WPL 214650 Contact Us For Availability
× ![]()
Login and Registration Form
