Model Whirlpool CLY1620BDS12 RV GAS RANGE – Common Parts & Diagrams

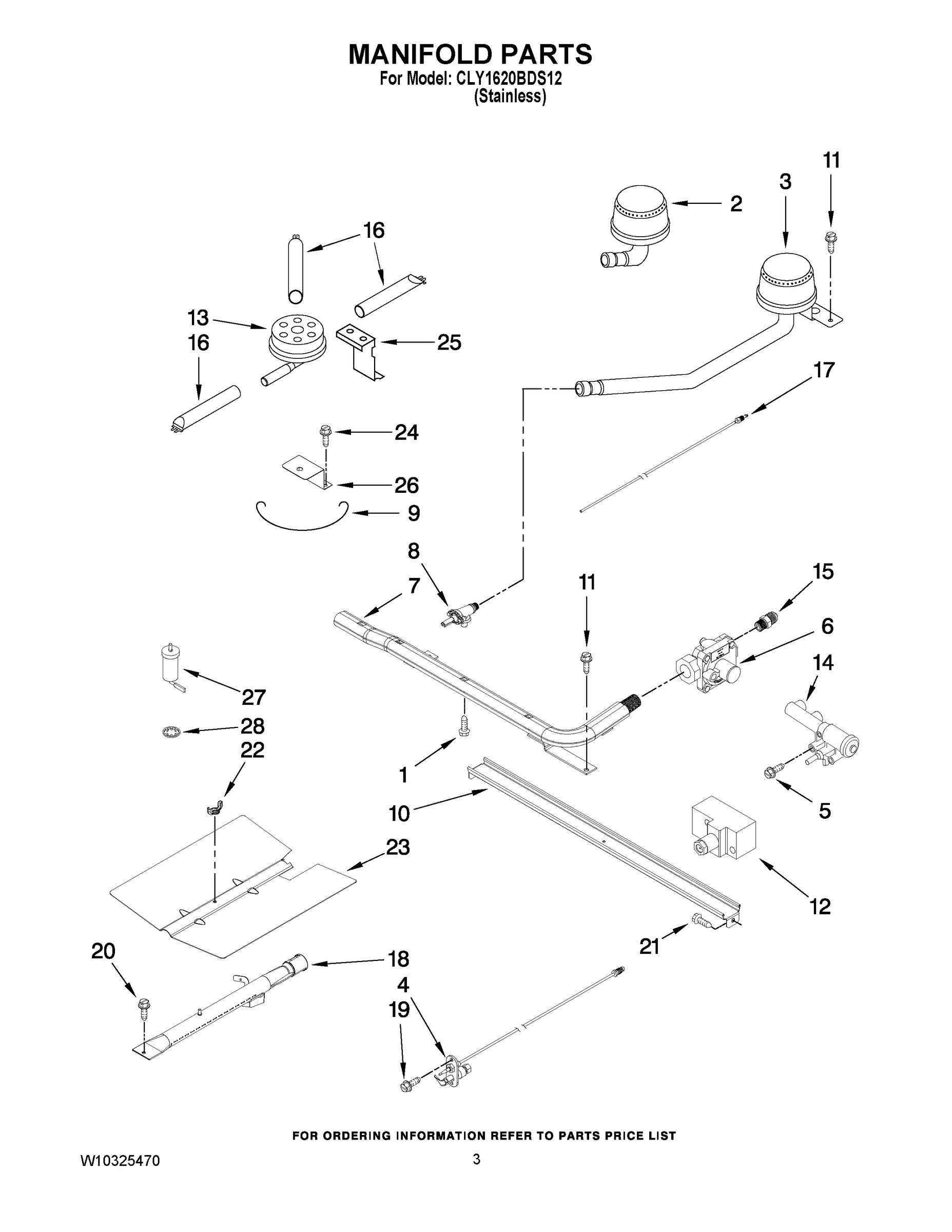

03 - MANIFOLD PARTS

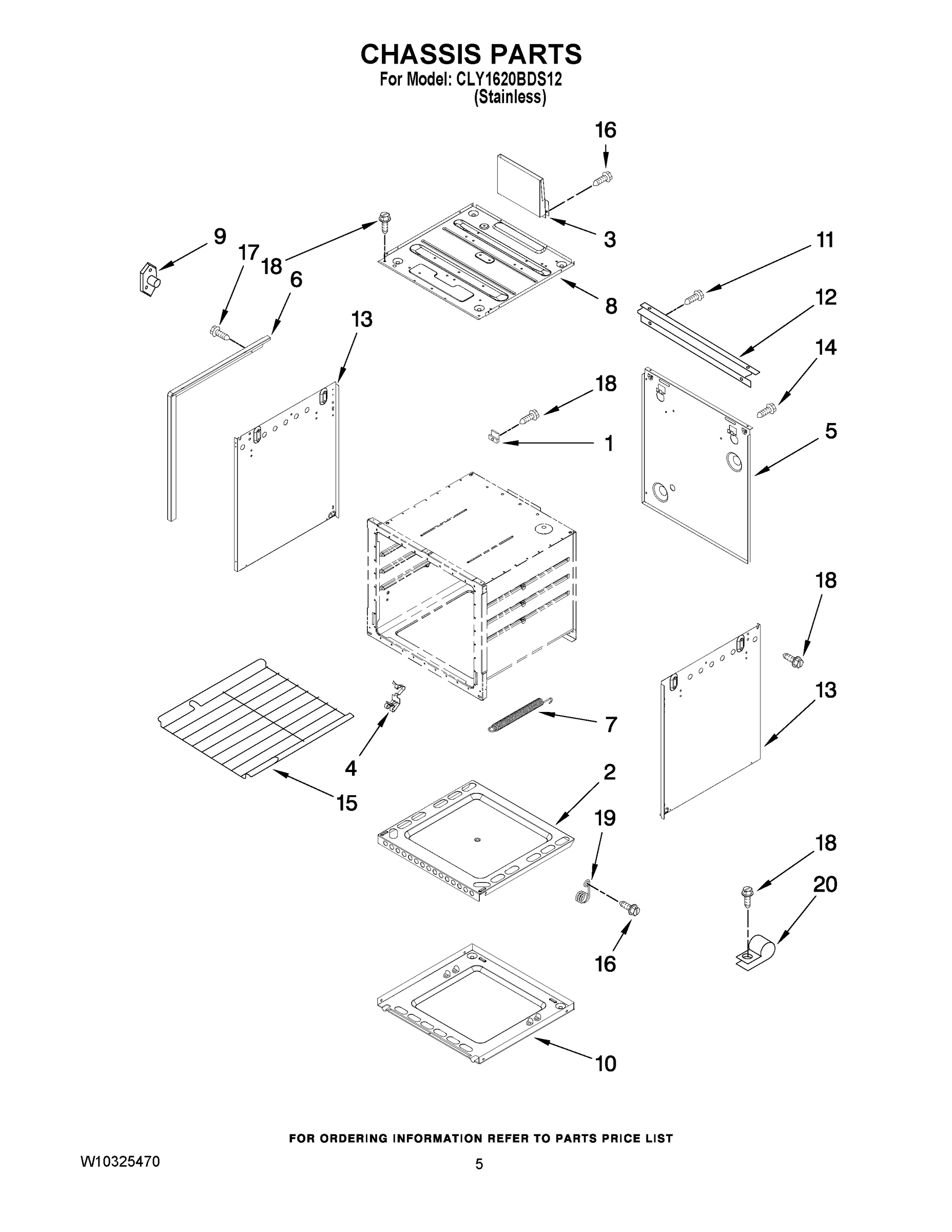

04 - CHASSIS PARTS

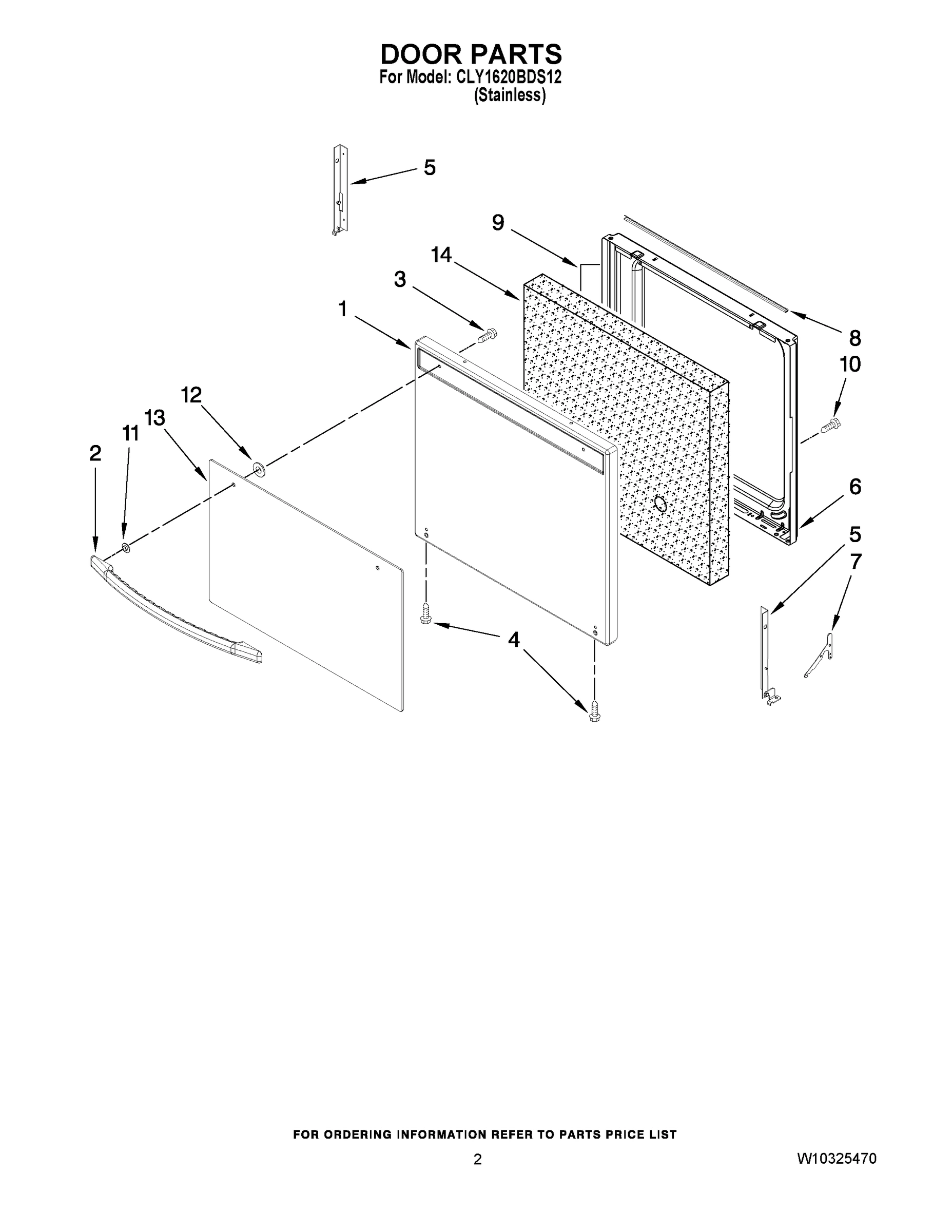

02 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

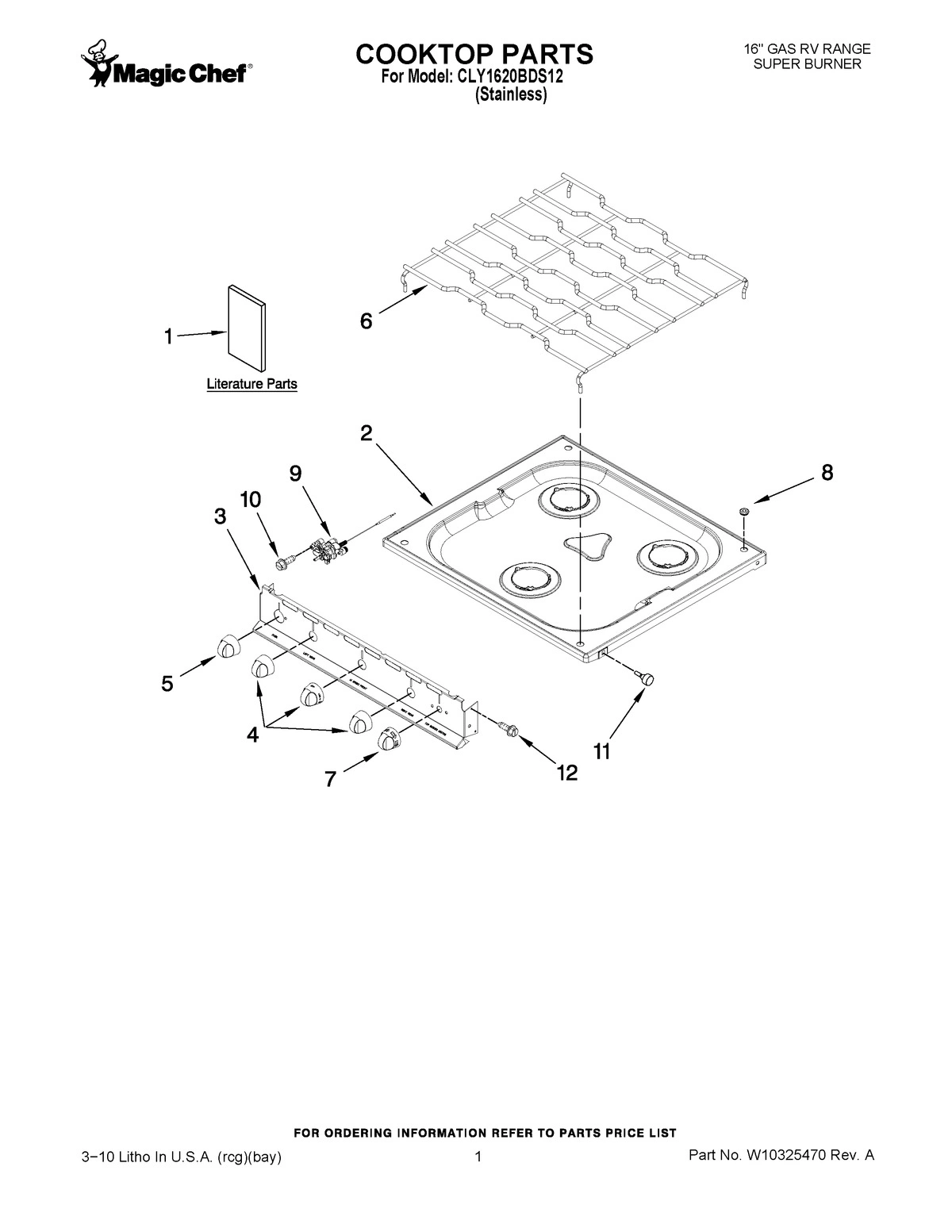

01 - COOKTOP PARTS
Common parts from model Whirlpool CLY1620BDS12 RV GAS RANGE
1
CLIP, TOP WPL 7112P14260 Contact Us For Availability
1
PANEL-DOOR WPL 2401F12970 Contact Us For Availability
1
INSTRUCTIONS INSTALLATION WPL 8101P57360 Contact Us For Availability
1
USE & CARE GUIDE WPL 8110P27460 Contact Us For Availability
1
SAFER COOKING TIPS WPL W10065852 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F05019 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P23060 Contact Us For Availability
2
COOKTOP WPL 2001F30209 Contact Us For Availability
3
BOX, FLUE WPL 4006W23751 Contact Us For Availability
3
SCREW WPL 7101P51060 Contact Us For Availability
3
PANEL, MANIFOLD WPL 2616F31670 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
Screw WPL 7101P63360 Contact Us For Availability
4
KNOB, BURNER (3) (FRONT) WPL 7733P19960 Contact Us For Availability
4
KNOB, BURNER (3) (LR, RR) WPL 7733P20060 Contact Us For Availability
5
BACK-MAIN WPL 4002F32951 Contact Us For Availability
5
HINGE, DOOR (LEFT) WPL 3418D09134 Contact Us For Availability
5
HINGE, DOOR (RIGHT) WPL 3418D09234 Contact Us For Availability
5
KNOB, OVEN WPL 7731P18260 Contact Us For Availability
6
TRIM, SIDE (RIGHT) WPL 3608F14970 Contact Us For Availability
6
TRIM, SIDE (LEFT) WPL 3608F15070 Contact Us For Availability
6
LINING, DOOR WPL 2402F27219 Contact Us For Availability
6
GRATE, BURNER WPL 7518P41860 Contact Us For Availability
7
SPRING, DOOR WPL 7803P05260 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
7
KNOB, IGNITOR WPL 7739P11760 Contact Us For Availability
8
VALVE, BURNER (LR, RR) WPL 7502P52360 Contact Us For Availability
8
VALVE, BURNER (FRONT) WPL 7502P52460 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F46051 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
9
CLIP WPL 7112P06860 Contact Us For Availability
9
T-NUT WPL 7103P10960 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03860 Contact Us For Availability
9
THERMOSTAT WPL 7515P04660 Contact Us For Availability
10
SUPPORT, BURNER WPL 3807F74745 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F32551 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
SCREW WPL 7101P65160 Contact Us For Availability
11
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
11
BUMPER WPL 8003P00860 Contact Us For Availability
12
ELBOW, BLOCK WPL 7527P11560 Contact Us For Availability
12
SHIELD, DEFLECTOR WPL 3604F27370 Contact Us For Availability
12
SPACER, NYLON WPL 8010P12560 Contact Us For Availability
12
SCREW WPL 7101P22960 Contact Us For Availability
13
CUP/TUBE, ASSEMBLY WPL 7506P15460 Contact Us For Availability
13
PANEL, SIDE (RIGHT) WPL 4016F05951 Contact Us For Availability
13
PANEL, SIDE (LEFT) WPL 4016F06051 Contact Us For Availability
13
PANEL, OUTER WPL W10164711 Contact Us For Availability
14
IGNITOR, PIEZO WPL 7432P08560 Contact Us For Availability
14
Screw WPL 7101P33860 Contact Us For Availability
14
INSULATION, DOOR WPL 7002P42860 Contact Us For Availability
15
FITTING, UNION WPL 7507P38860 Contact Us For Availability
15
RACK, OVEN WPL 7801P15560 Contact Us For Availability
16
EXTENSION, TUBING (FRONT) WPL 7506P15260 Contact Us For Availability
16
EXTENSION, TUBING (REAR) WPL 7506P15360 Contact Us For Availability
17
TUBING, GAS (1/4`` OD X 32.25``) WPL 7506P41160 Contact Us For Availability
17
TUBING, GAS (3/16`` OD X 37.75``) WPL 7506P41560 Contact Us For Availability
17
SCREW WPL 7101P30160 Contact Us For Availability
18
SCREW WPL 7101P37660 Contact Us For Availability
18
BURNER, OVEN WPL 7505P36060 Contact Us For Availability
19
SCREW WPL 7101P18860 Contact Us For Availability
19
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
20
CLAMP, WIRE WPL 7111P00960 Contact Us For Availability
21
SCREW WPL 7101P49860 Contact Us For Availability
22
WING NUT WPL 7103P03060 Contact Us For Availability
23
SPREADER, FLAME WPL 3601P36045 Contact Us For Availability
24
SCREW WPL 7101P35660 Contact Us For Availability
25
SHIELD WPL 3604F21145 Contact Us For Availability
26
SUPPORT, TOP BURNER WPL 3807F46245 Contact Us For Availability
27
IGNITOR, TOP WPL 7432P07760 Contact Us For Availability
28
CLIP, IGNITOR WPL 7104P00260 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P09560 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
HARNESS WPL 5111P71960 Contact Us For Availability
× ![]()
