Model Whirlpool CGS1740ADL GAS RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER

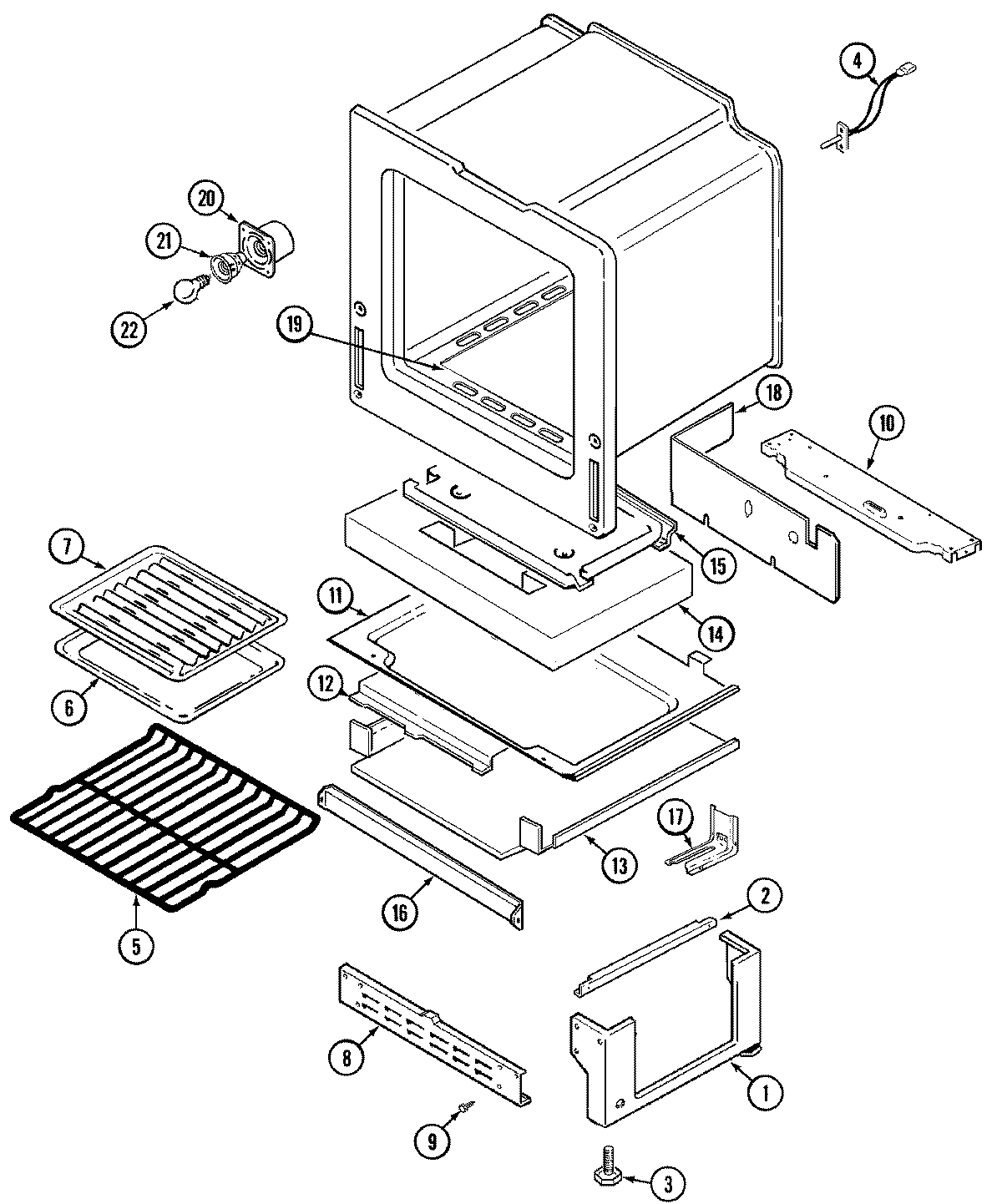

04 - OVEN/BASE

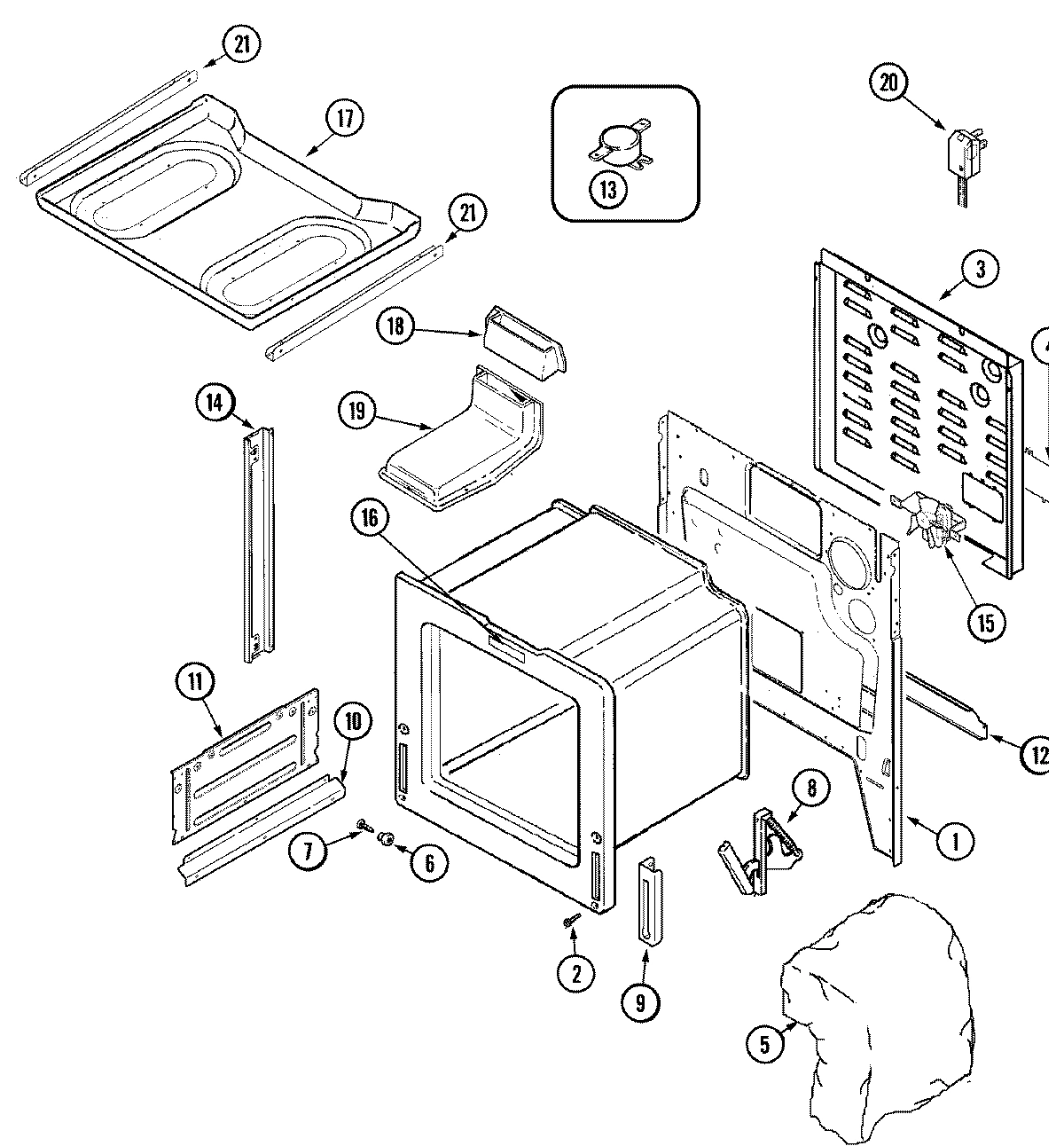

01 - BODY

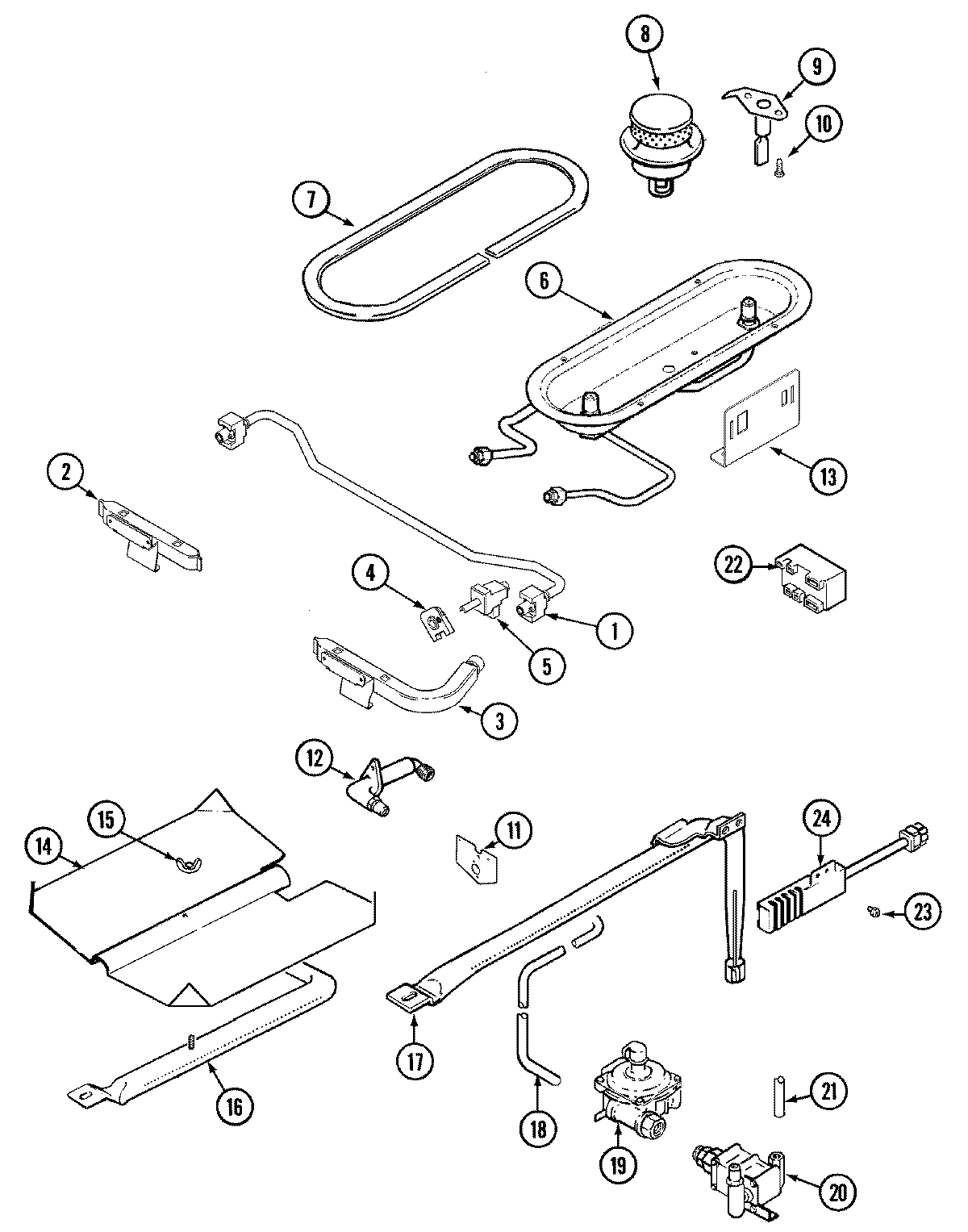

03 - GAS CONTROLS

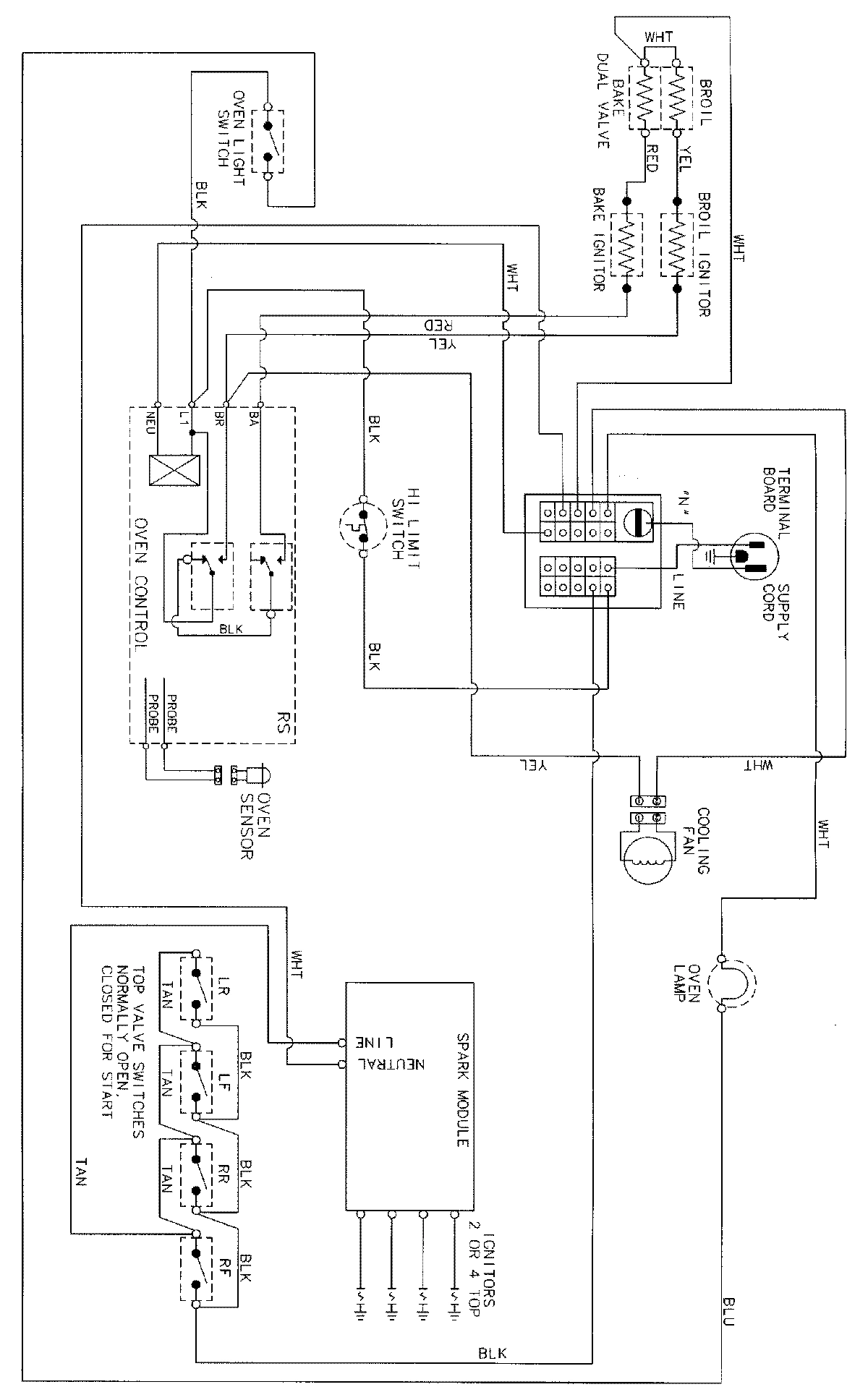

06 - WIRING INFORMATION

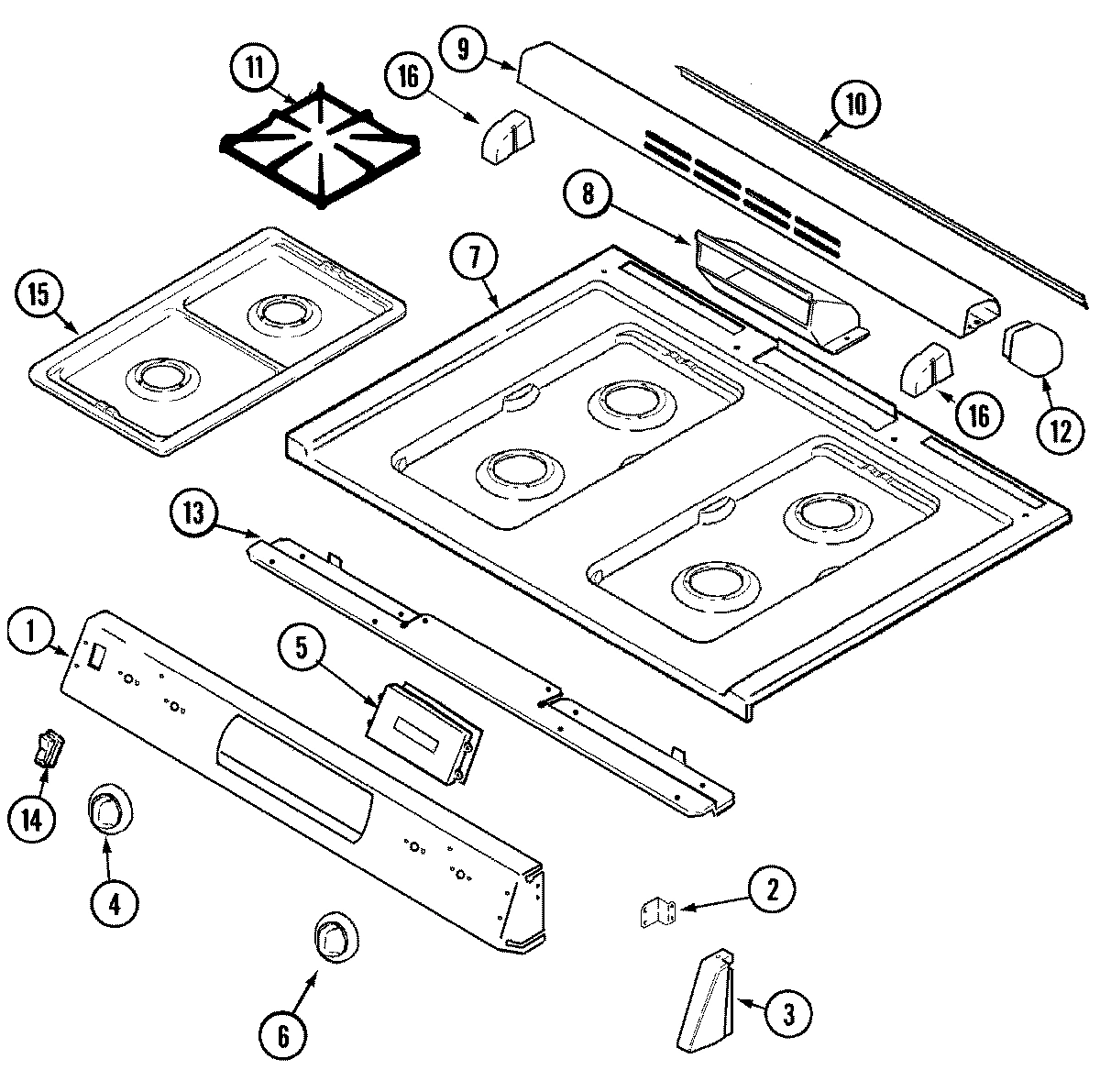

05 - TOP ASSEMBLY (ADH, ADL)
Common parts from model Whirlpool CGS1740ADL GAS RANGE
1
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
1
BACK, MAIN WPL 74004174 Contact Us For Availability
1
TUBING, MANIFOLD CROSSOVER WPL 74004298 Contact Us For Availability
1
GASKET, TUBING WPL 74004299 Contact Us For Availability
1
PANEL, MANIFOLD (BLK) WPL 74004398 Contact Us For Availability
2
INSULATION, DOOR WPL 74002458 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
PIPE, MANIFOLD (LT) WPL 74004300 Contact Us For Availability
2
BRACKET, END CAP WPL 74004186 Contact Us For Availability
3
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
3
SCREW WPL 74004208 Contact Us For Availability
3
PIPE, MANIFOLD (RT) WPL 74004301 Contact Us For Availability
3
CAP, END (RT-BLK) WPL 74004196 Contact Us For Availability
3
CAP, END (LT-BLK) WPL 74004197 Contact Us For Availability
3
CAP, END (RT-BLK) WPL 74004601 Contact Us For Availability
3
CAP, END (LT-BLK) WPL 74004602 Contact Us For Availability
3
CAP, END (BLK-RT) WPL 74004819 Contact Us For Availability
3
CAP, END (BLK-LT) WPL 74004820 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
4
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
4
KNOB, VALVE (BLK) WPL 74004286 Contact Us For Availability
5
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
5
INSULATION, OVEN WPL 74003503 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
5
VALVE, TOP BURNER WPL 74004302 Contact Us For Availability
5
VALVE, TOP BURNER WPL 74004303 Contact Us For Availability
5
CLOCK W/OVERLAY (BLK) WPL 74004399 Contact Us For Availability
6
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
ORIFICE PAN ASSY. (LT) WPL 74004304 Contact Us For Availability
6
ORIFICE PAN ASSY. (RT) WPL 74004305 Contact Us For Availability
6
GROMMET WPL 74004306 Contact Us For Availability
6
TAPE, ORIFICE ASSY. WPL 74004366 Contact Us For Availability
6
KNOB, VALVE (BLK) WPL 74004287 Contact Us For Availability
7
LINING, DOOR WPL 74003248 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE TAPE NOT REQUIR WPL W10124350 Contact Us For Availability
7
TAPE, DOUBLE STICK WPL 74004351 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 74004352 Contact Us For Availability
8
SCREW WPL 7101P20960 Contact Us For Availability
8
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
9
SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability
9
PLATE, HINGE WPL 74004173 Contact Us For Availability
9
COVER, VENT (BLK) WPL 74004406 Contact Us For Availability
10
GLASS, DOOR (OUTER-BLK) WPL 74002463 Contact Us For Availability
10
SUPPORT WPL 74004167 Contact Us For Availability
10
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
10
GASKET WPL 7201P06160 Contact Us For Availability
11
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 74004296 Contact Us For Availability
11
SHIELD, HEAT WPL 74004177 Contact Us For Availability
11
SCREW WPL 71001395 Contact Us For Availability
11
PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
12
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
12
EXTENSION, MAIN BACK WPL 74004175 Contact Us For Availability
12
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
12
END CAP, VENT (LT-BLK) WPL 74004364 Contact Us For Availability
12
END CAP, VENT (RT-BLK) WPL 74004365 Contact Us For Availability
13
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
13
SWITCH, HI LIMIT WPL 74004440 Contact Us For Availability
13
SUPPORT, SPARK MODULE WPL 74004297 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
SUPPORT, CONTROL PANEL WPL 74004185 Contact Us For Availability
14
NUT WPL 7103P08260 Contact Us For Availability
14
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
14
TRIM, SIDE (ALM) WPL 74004217 Contact Us For Availability
14
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
14
SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
15
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
15
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
15
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
15
NUT, WING WPL 7103P03060 Contact Us For Availability
15
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 74003522 Contact Us For Availability
16
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
16
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
16
BURNER, BROIL WPL 74004076 Contact Us For Availability
17
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
17
SCREW WPL 7101P34460 Contact Us For Availability
17
BOX, BURNER WPL 74004293 Contact Us For Availability
17
ASSY., BURNER BOX WPL 74004826 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
17
BURNER, BAKE WPL 74003960 Contact Us For Availability
18
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
18
COVER, BURNER VALVE WPL 74003329 Contact Us For Availability
18
EXTENSION, FLUE BOX WPL 74004294 Contact Us For Availability
18
TUBING, REGULATOR/PIPE (3/8``) WPL 74004309 Contact Us For Availability
19
SCREW WPL 7101P07260 Contact Us For Availability
19
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
19
BOX, VENT WPL 74002367 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
20
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
20
HOUSING, BULB WPL 74003388 Contact Us For Availability
20
CORD, POWER WPL 74004295 Contact Us For Availability
20
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
21
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
21
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
21
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
22
BULB-OVEN WPL 7407P10360 Contact Us For Availability
23
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
24
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
24
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002571 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004396 Contact Us For Availability
NI
HARNESS, SENSOR WPL 74004439 Contact Us For Availability
× ![]()
