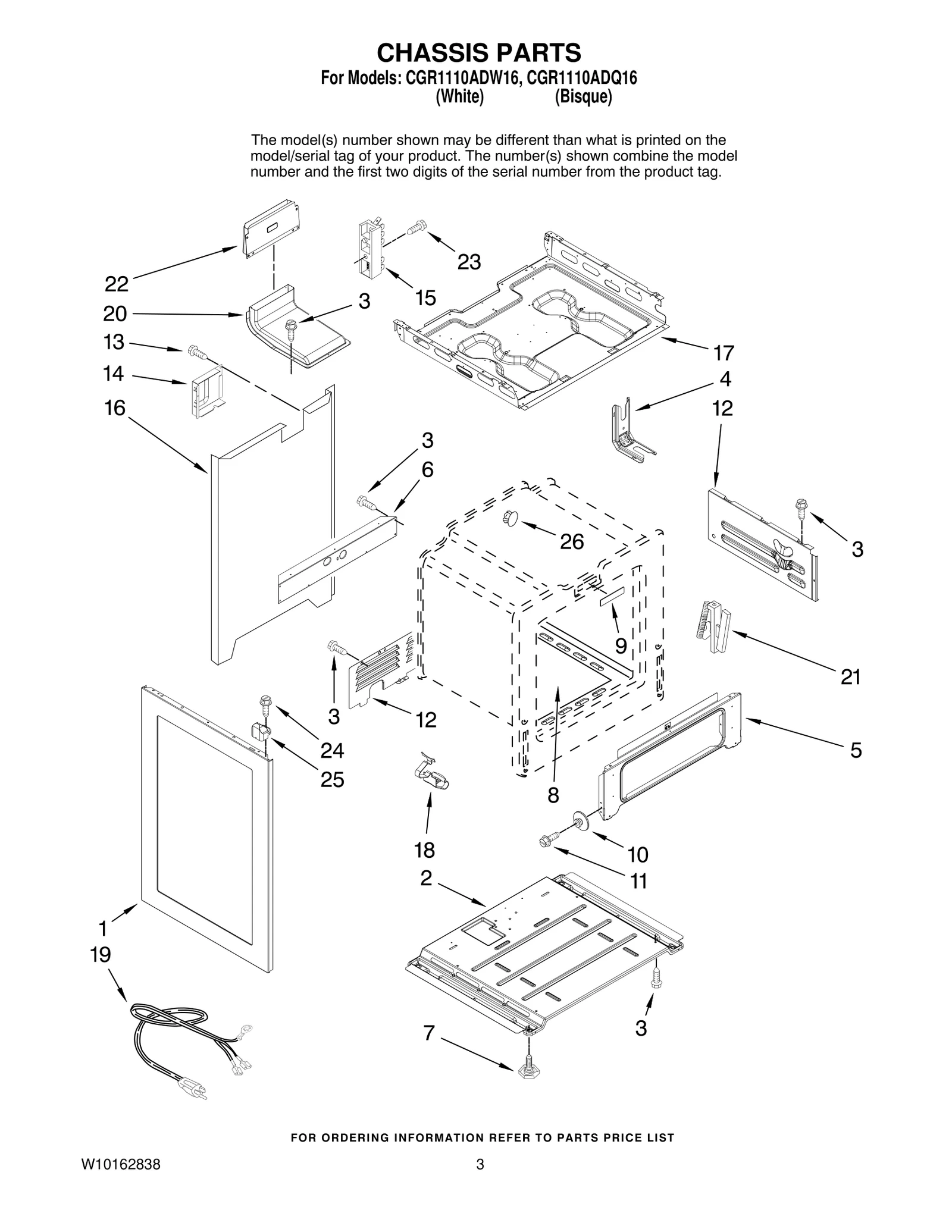

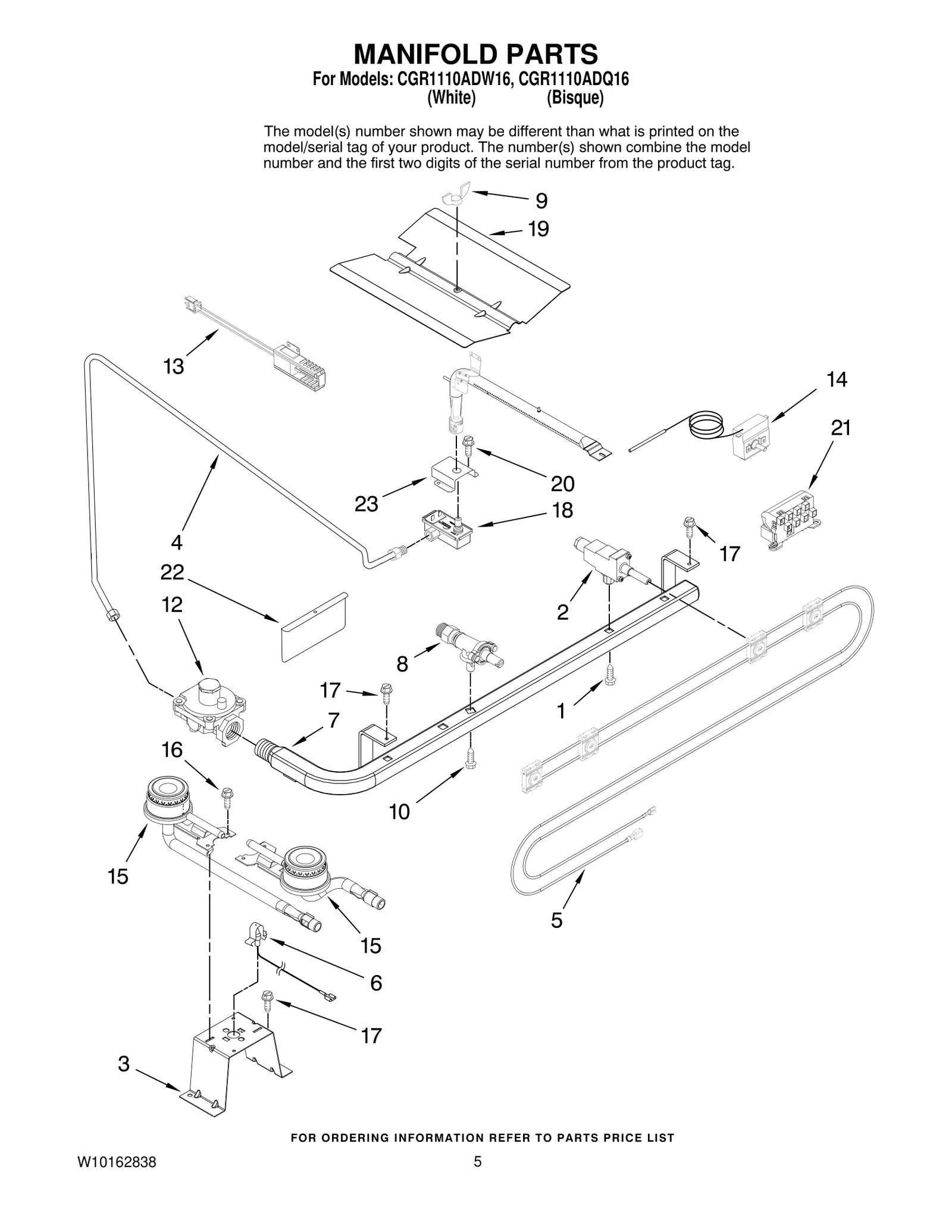

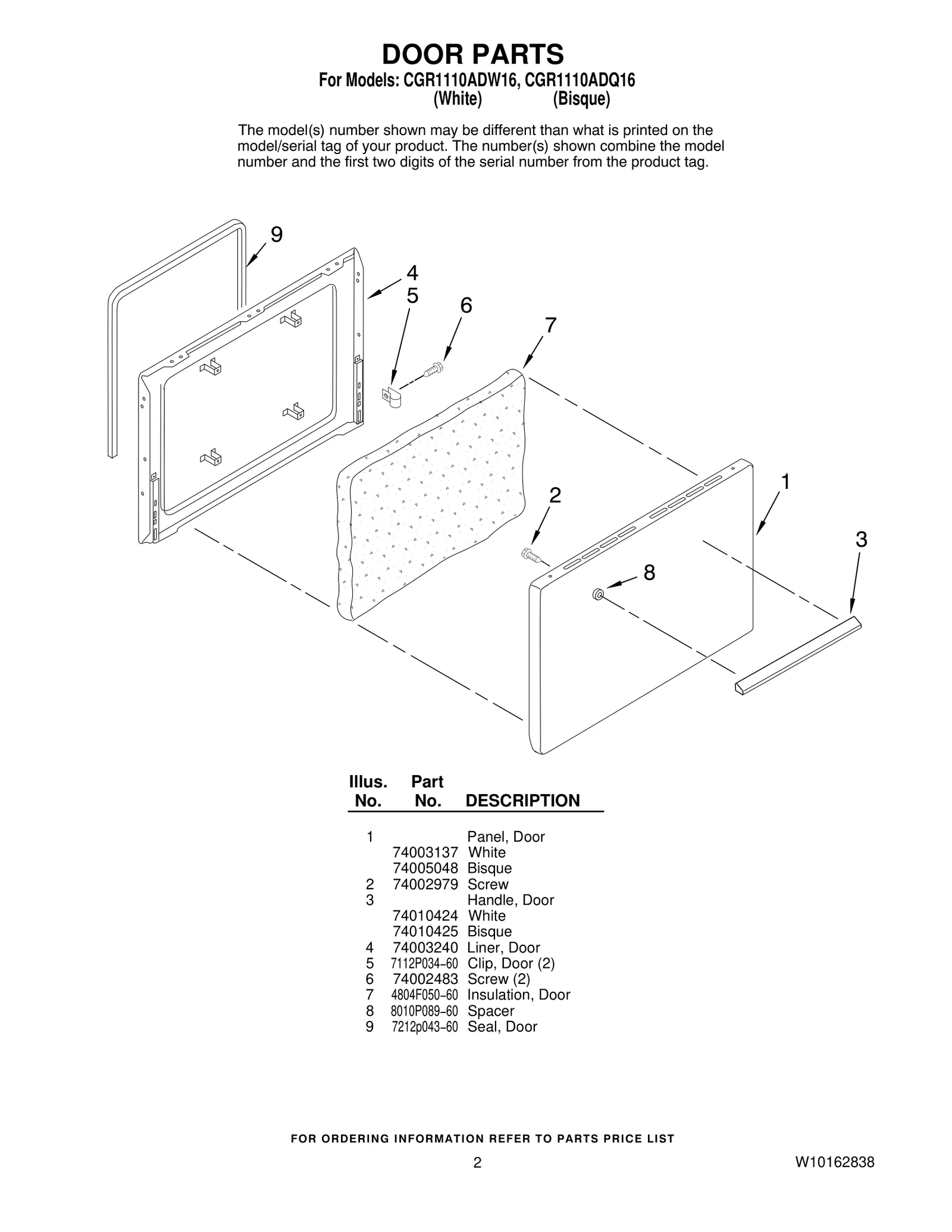

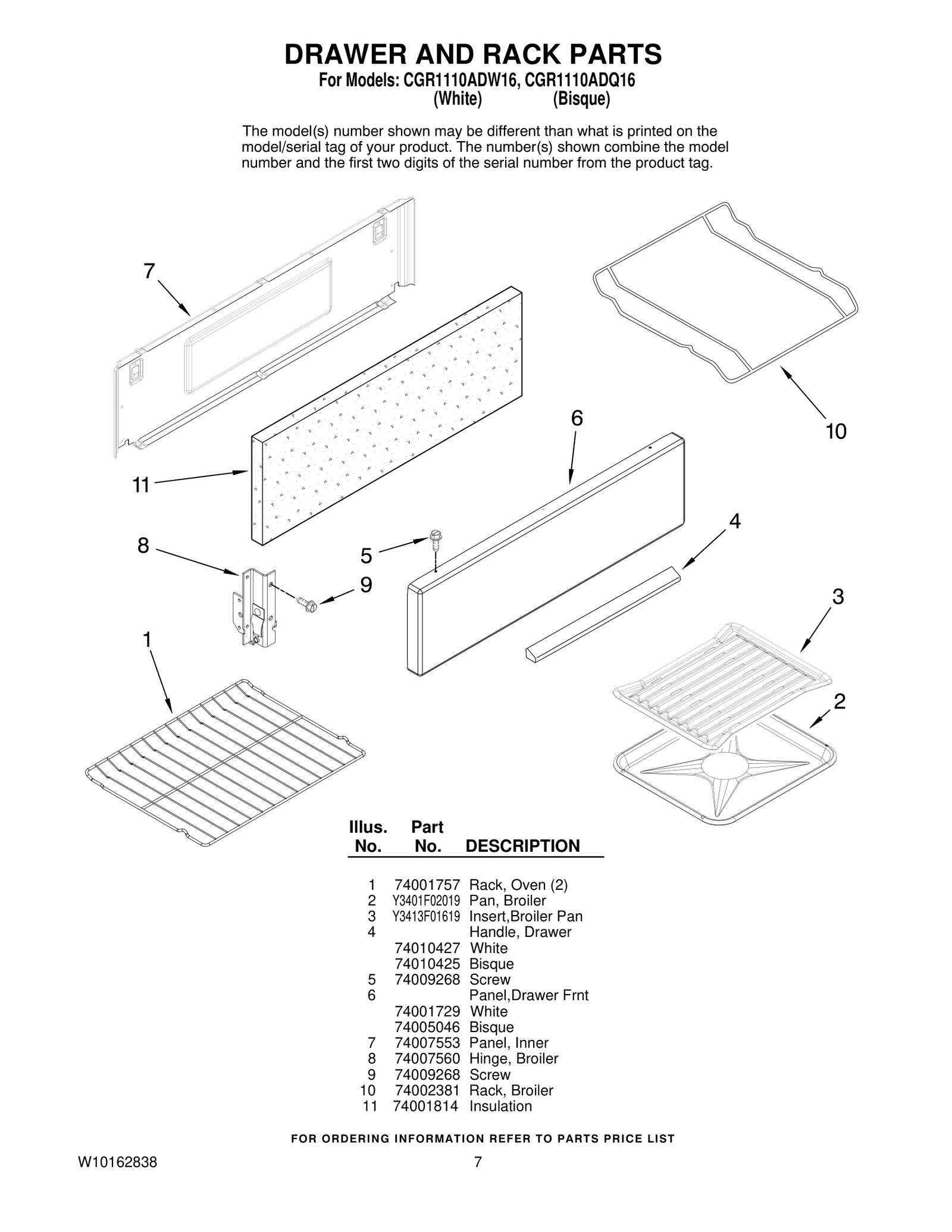

Model Whirlpool CGR1110ADW16 30&quot; Gas Freestanding – Common Parts &amp; Diagrams

1

Panel, Side (2) — White WPL 74003236 Contact Us For Availability

1

Panel, Side (2) — Bisque WPL 74004965 Contact Us For Availability

1

Screw, Valve WPL 74009416 Contact Us For Availability

2

Base, Main WPL 74010140 Contact Us For Availability

2

Valve,Top Burner WPL W10162855 Contact Us For Availability

2

Pan, Broiler WPL Y3401F02019 Contact Us For Availability

3

Handle, Door — White WPL 74010424 Contact Us For Availability

3

Support,Top Burner WPL 74010151 Contact Us For Availability

3

Insert,Broiler Pan WPL Y3413F01619 Contact Us For Availability

4

Handle, Drawer — Bisque WPL 74010425 Contact Us For Availability

4

Liner, Door WPL 74003240 Contact Us For Availability

4

Tubing, Gas Supply WPL 74006417 Contact Us For Availability

4

Handle, Drawer — White WPL 74010427 Contact Us For Availability

5

Oven, Front Lower WPL 74002327 Contact Us For Availability

5

Harness, Igniter Includes Switches WPL W10162856 Contact Us For Availability

6

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

6

Shield, Broiler WPL 74010139 Contact Us For Availability

6

Ignitor, Top — Left WPL 74002386 Contact Us For Availability

6

Ignitor, Top — Right WPL 74004483 Contact Us For Availability

6

Panel,Drawer Frnt — White WPL 74001729 Contact Us For Availability

6

Panel,Drawer Frnt — Bisque WPL 74005046 Contact Us For Availability

7

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

7

Pipe, Manifold WPL 74003913 Contact Us For Availability

7

Panel, Inner WPL 74007553 Contact Us For Availability

8

Bottom, Oven WPL 74011347 Contact Us For Availability

8

Hinge, Broiler WPL 74007560 Contact Us For Availability

9

Plug, Lock Slot WPL 74003406 Contact Us For Availability

10

12002277 Whirlpool Oven Valve Kit & Screw Backorder WPL 12002277 $209.00

10

Rack, Broiler WPL 74002381 Contact Us For Availability

11

Screw, Shoulder WPL 74007476 Contact Us For Availability

11

Burner, Bake WPL 74002434 Contact Us For Availability

11

Insulation WPL 74001814 Contact Us For Availability

Broiler, Side — Left WPL 74002375 Contact Us For Availability

Broiler, Side — Right WPL 74002374 Contact Us For Availability

Broiler, Side — Back WPL 74002379 Contact Us For Availability

Valve/Regulator WPL 74006282 Contact Us For Availability

13

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $41.64

14

WP74002390 Whirlpool Range Thermostat In Stock WPL WP74002390 $170.25

14

Cover, Access WPL 74004591 Contact Us For Availability

15

Front (2) WPL 74010149 Contact Us For Availability

15

Rear (2) WPL 74010148 Contact Us For Availability

16

7101P338−60 Support, Screw (4) WPL N/S Contact Us For Availability

16

Back, Main Gas WPL 74010418 Contact Us For Availability

17

Bottom,Burner Box WPL 74010038 Contact Us For Availability

18

Valve, Safety WPL 74009891 Contact Us For Availability

19

Baffle WPL 74002393 Contact Us For Availability

20

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

20

Box, Assy Vent WPL 74006420 Contact Us For Availability

21

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

21

Spark Module WPL W10162890 Contact Us For Availability

22

Box,Vent Extension WPL W10162913 Contact Us For Availability

22

Shield, Thermostat WPL 74002391 Contact Us For Availability

23

Bracket,Oven Valve Following Parts Not Illust WPL 74005051 Contact Us For Availability

24

Screw (2) WPL 71001185 Contact Us For Availability

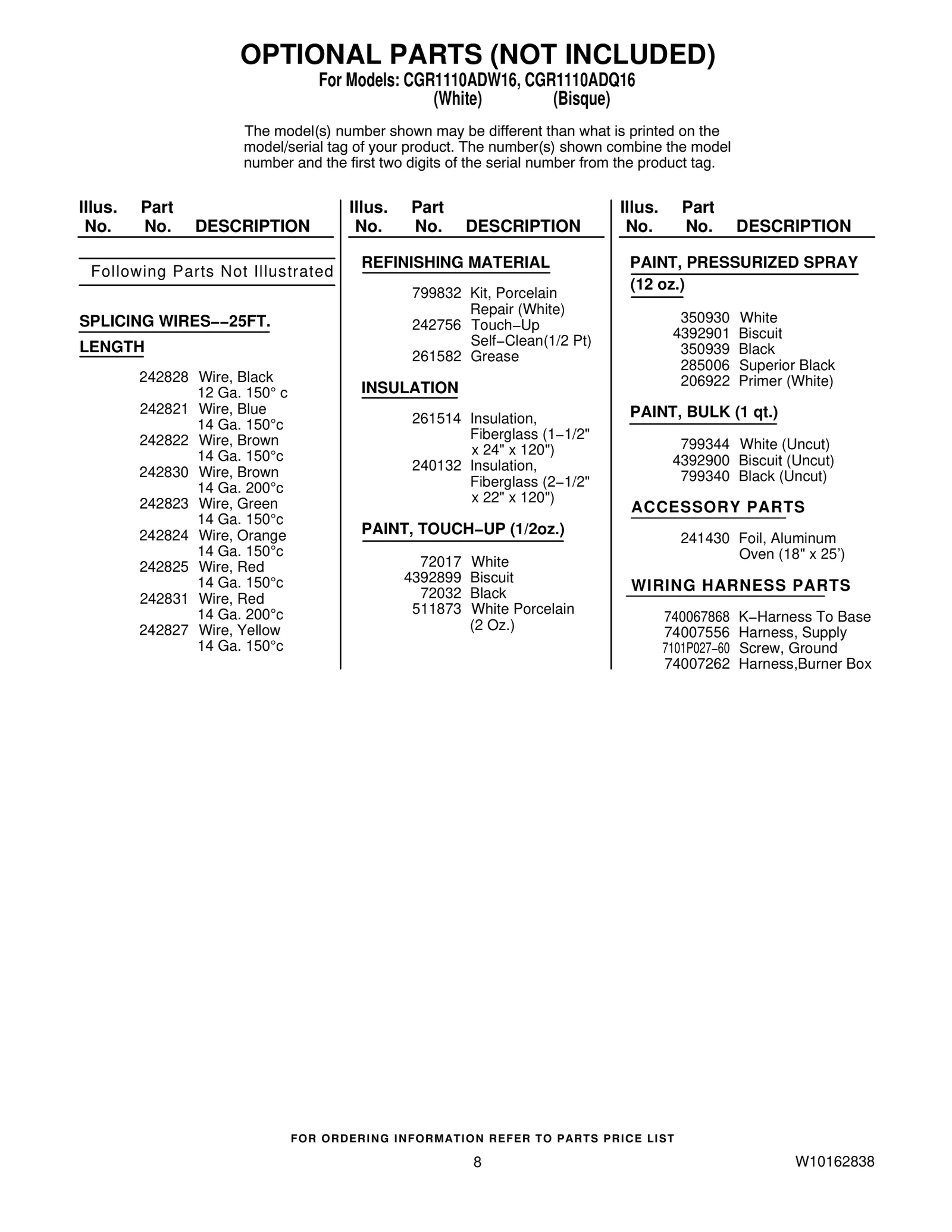

Plug, Hole INSULATION WPL 8215560 Contact Us For Availability

Insulation, Wrap WPL 74002370 Contact Us For Availability

Insulation, Back WPL 74002634 Contact Us For Availability

Insulation, Lower Sides WPL 74009956 Contact Us For Availability

OPT-1

Wire, Black WPL 242828 Contact Us For Availability

OPT-2

Wire, Blue WPL 242821 Contact Us For Availability

OPT-3

Wire, Brown WPL 242822 Contact Us For Availability

OPT-4

Wire, Brown WPL 242830 Contact Us For Availability

OPT-5

Wire, Green WPL 242823 Contact Us For Availability

OPT-6

Wire, Orange WPL 242824 Contact Us For Availability

OPT-7

Wire, Red WPL 242825 Contact Us For Availability

OPT-8

Wire, Red WPL 242831 Contact Us For Availability

OPT-9

Wire, Yellow WPL 242827 Contact Us For Availability

OPT-10

Kit, Porcelain WPL 799832 Contact Us For Availability

OPT-11

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

OPT-12

Grease WPL 261582 Contact Us For Availability

OPT-14

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

OPT-15

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-16

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-17

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

OPT-19

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-20

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-21

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-23

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-24

White (Uncut) WPL 799344 Contact Us For Availability

OPT-25

Biscuit (Uncut) WPL 4392900 Contact Us For Availability

OPT-26

Black (Uncut) WPL 799340 Contact Us For Availability

OPT-27

Foil, Aluminum WPL 241430 Contact Us For Availability

OPT-28

K−Harness To Base WPL 740067868 Contact Us For Availability

OPT-29

Harness, Supply WPL 74007556 Contact Us For Availability

OPT-30

Harness,Burner Box WPL 74007262 Contact Us For Availability
