Model Whirlpool CE38800BAS ELECTRIC RANGE – Common Parts & Diagrams

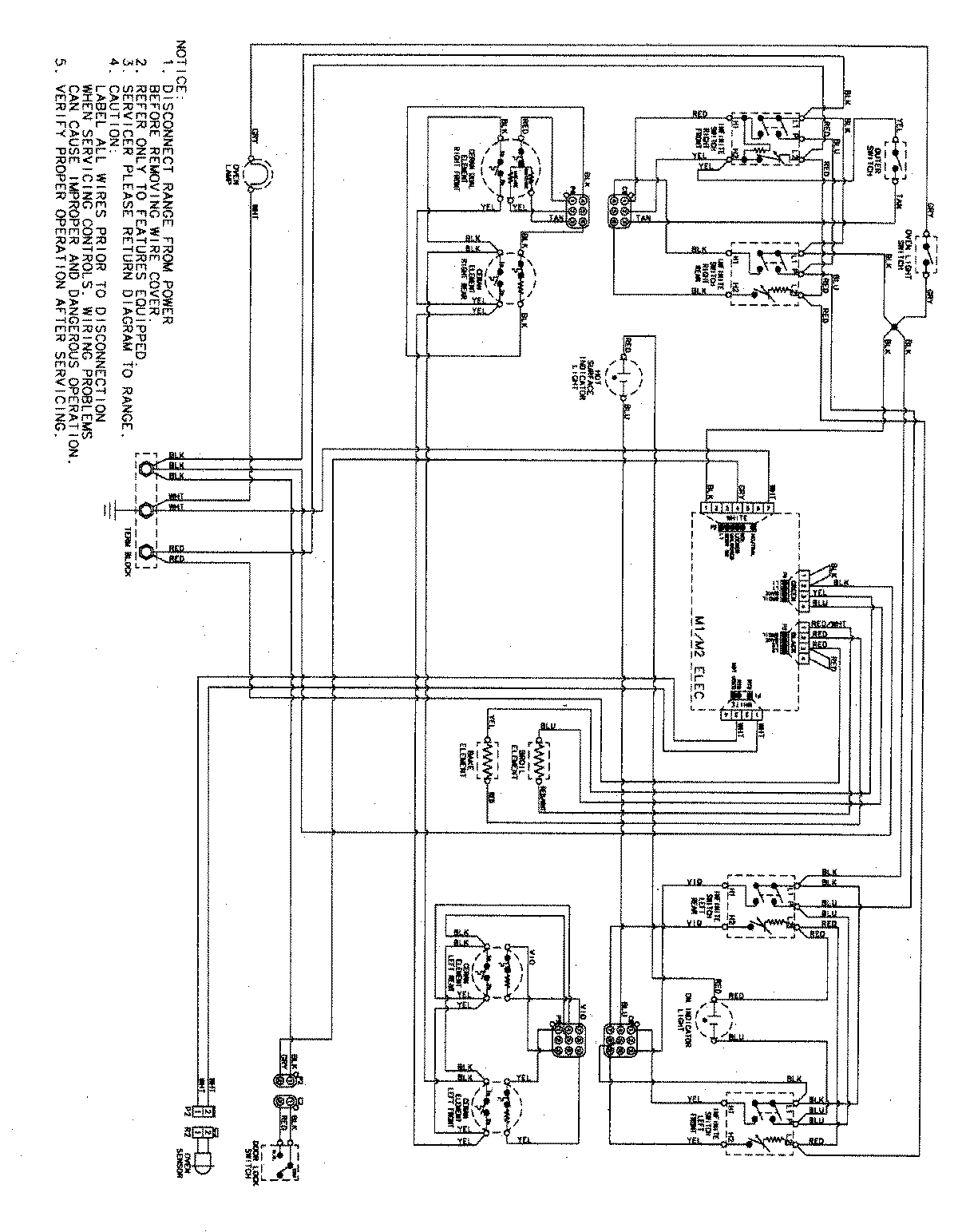

07 - WIRING INFORMATION
04 - DOOR/DRAWER (STL) (SERIES 12)
05 - OVEN/BASE
01 - BODY
02 - CONTROL PANEL/TOP ASSEMBLY
03 - DOOR/DRAWER (STL)
06 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool CE38800BAS ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
1
BACK, MAIN (ELEC) WPL 74011304 Contact Us For Availability
1
PANEL, BACKGUARD (STL-ELEC) WPL 74010422 Contact Us For Availability
1
HANDLE, DOOR (BLK) WPL 74010338 Contact Us For Availability
1
HANDLE, DOOR (PLASTIC) WPL 7701P53960 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability
2
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
2
BRACKET, CLOCK WPL 74008716 Contact Us For Availability
2
INSULATION, FOIL WPL 74010233 Contact Us For Availability
2
PANEL, DOOR (STL) WPL 74011478 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
3
SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability
3
GLASS, OVEN DOOR (STL) WPL 74010042 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
5
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
5
SCREEN, SMOKE ELIMINATOR WPL 74008597 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
6
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
6
EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
RETAINER, DOOR GLASS WPL 74010041 Contact Us For Availability
7
GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability
7
HOUSING, BULB WPL 74003388 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, ACCESS WPL 74010256 Contact Us For Availability
8
SUPPORT, BACKGUARD (RT-BLK) WPL 74010201 Contact Us For Availability
8
SUPPORT, BACKGUARD (LT-BLK) WPL 74010202 Contact Us For Availability
9
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
9
SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability
10
LEVER, LOCK (BLK) WPL 74010244 Contact Us For Availability
10
COVER, BULB WPL 74003389 Contact Us For Availability
10
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
10
FRAME, GLASS WPL 74003644 Contact Us For Availability
11
KNOB (BLK) WPL 74010332 Contact Us For Availability
11
LATCH, DOOR LOCK WPL 74009710 Contact Us For Availability
12
INSULATION, BACK/BOTTOM WPL 74010942 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability
12
ASY., MAIN TOP (BLK) WPL 74010369 Contact Us For Availability
12
BAFFLE, OVEN DOOR WPL 74011339 Contact Us For Availability
13
SHIELD, DOOR (STL) WPL 74010040 Contact Us For Availability
13
RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
14
LINING, DOOR WPL 74011456 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
LINING, DOOR WPL 74003642 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
15
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
15
SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability
16
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
16
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
17
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SCREW WPL 7101P35260 Contact Us For Availability
18
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
18
SHIELD, WIRE WPL 74009978 Contact Us For Availability
19
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
19
GASKET, VENT WPL 74003285 Contact Us For Availability
20
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability
21
HANDLE, DRAWER (STL) WPL 74009841 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
22
PANEL, DRAWER ELECT (STL) WPL 74009842 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
23
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
25
NUT WPL 7103P08260 Contact Us For Availability
26
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
27
SCREW WPL 74009538 Contact Us For Availability
NI
HARNESS, INFINITE (LT) WPL 74009741 Contact Us For Availability
NI
SVC MAN, RANGE, ELECT WPL 16023528 Contact Us For Availability
NI
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
NI
HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability
NI
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
NI
HARNESS, DUAL CERAN TOP WPL 74009763 Contact Us For Availability
NI
HARNESS, MAIN WPL 74010296 Contact Us For Availability
NI
HARNESS, INFINITE (RT) WPL 74010371 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P44760 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P55760 Contact Us For Availability
× ![]()
