Model Whirlpool CDU2J3 DISHWASHER – Common Parts & Diagrams

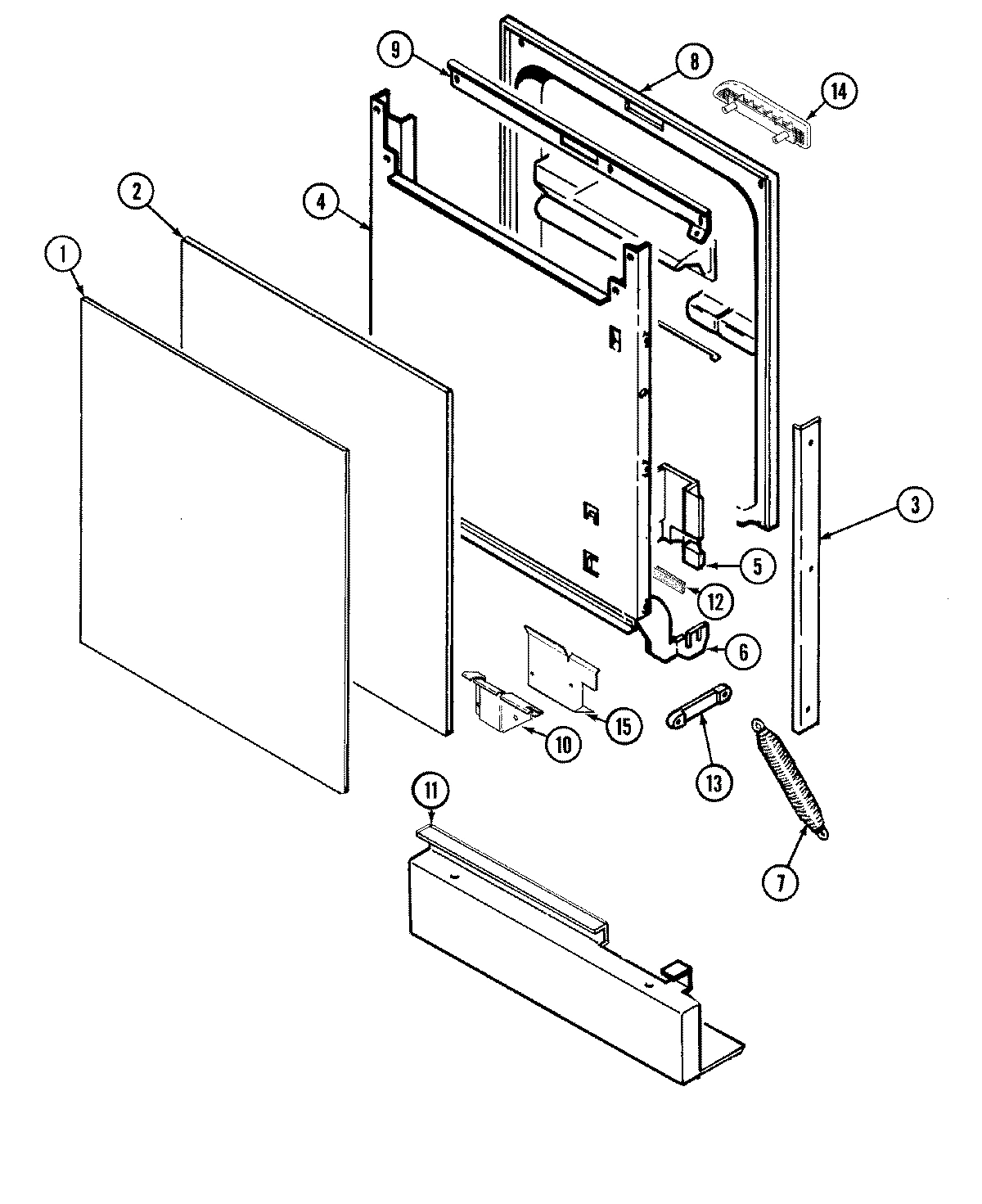

02 - DOOR

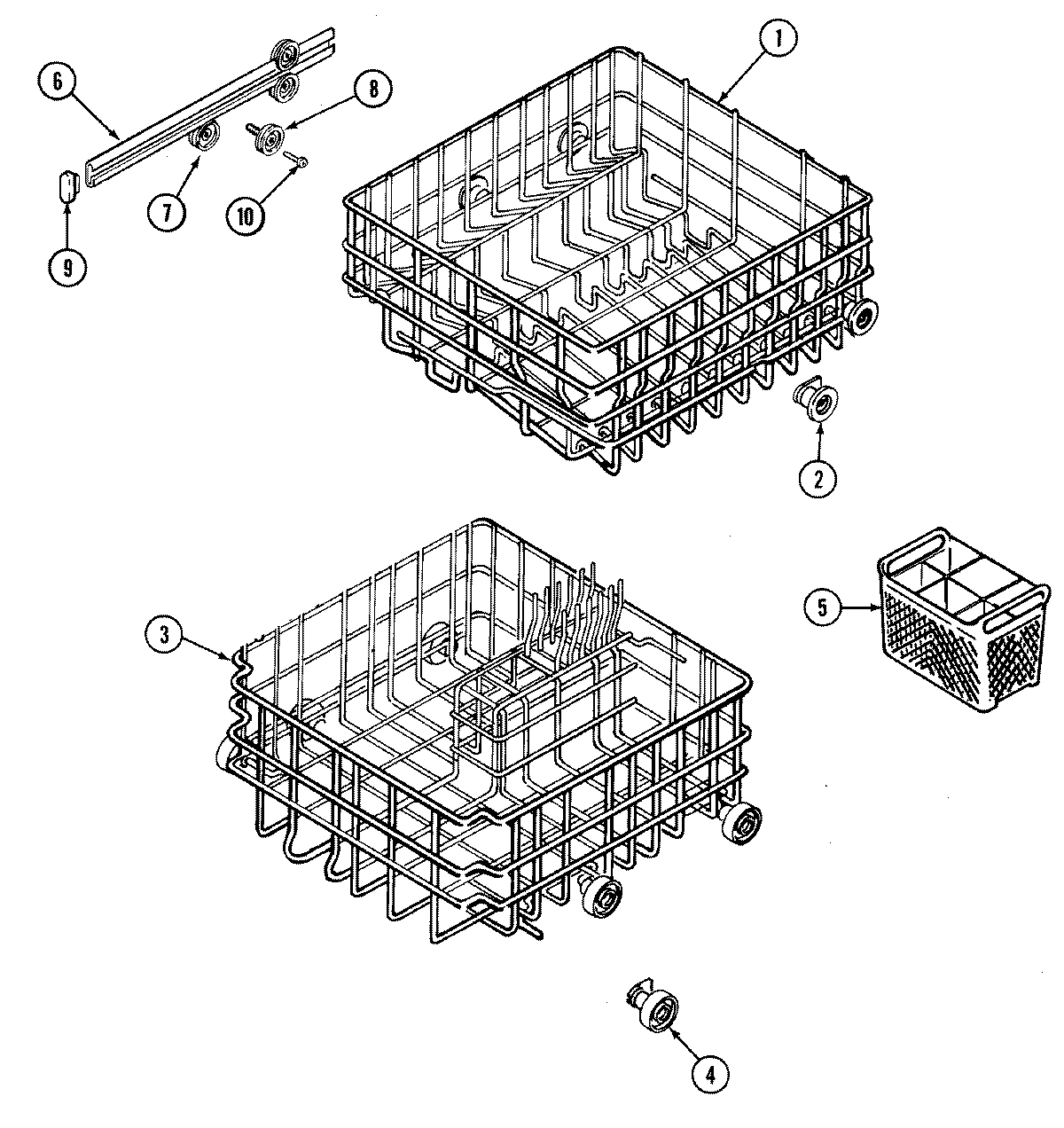

04 - TRACK & RACK ASSEMBLY

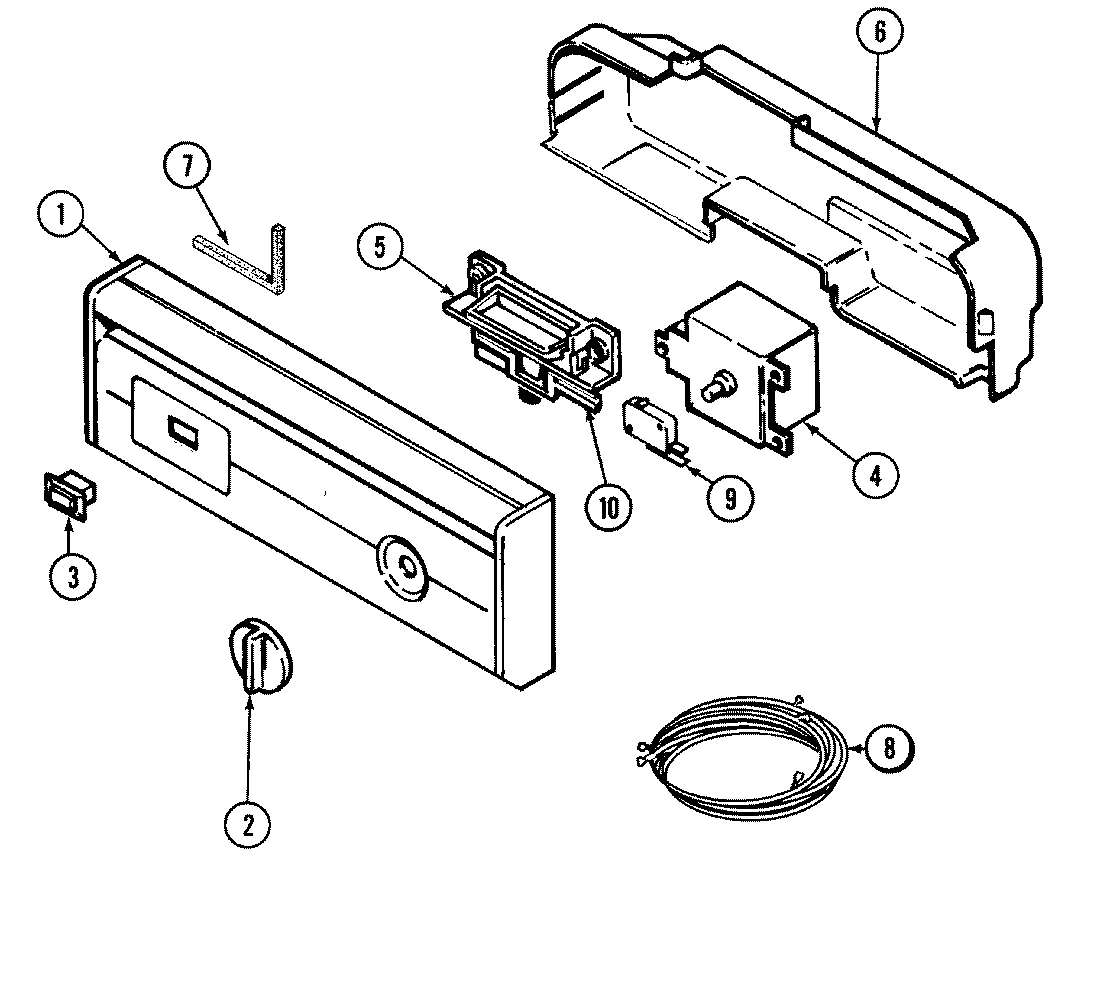

01 - CONTROL PANEL

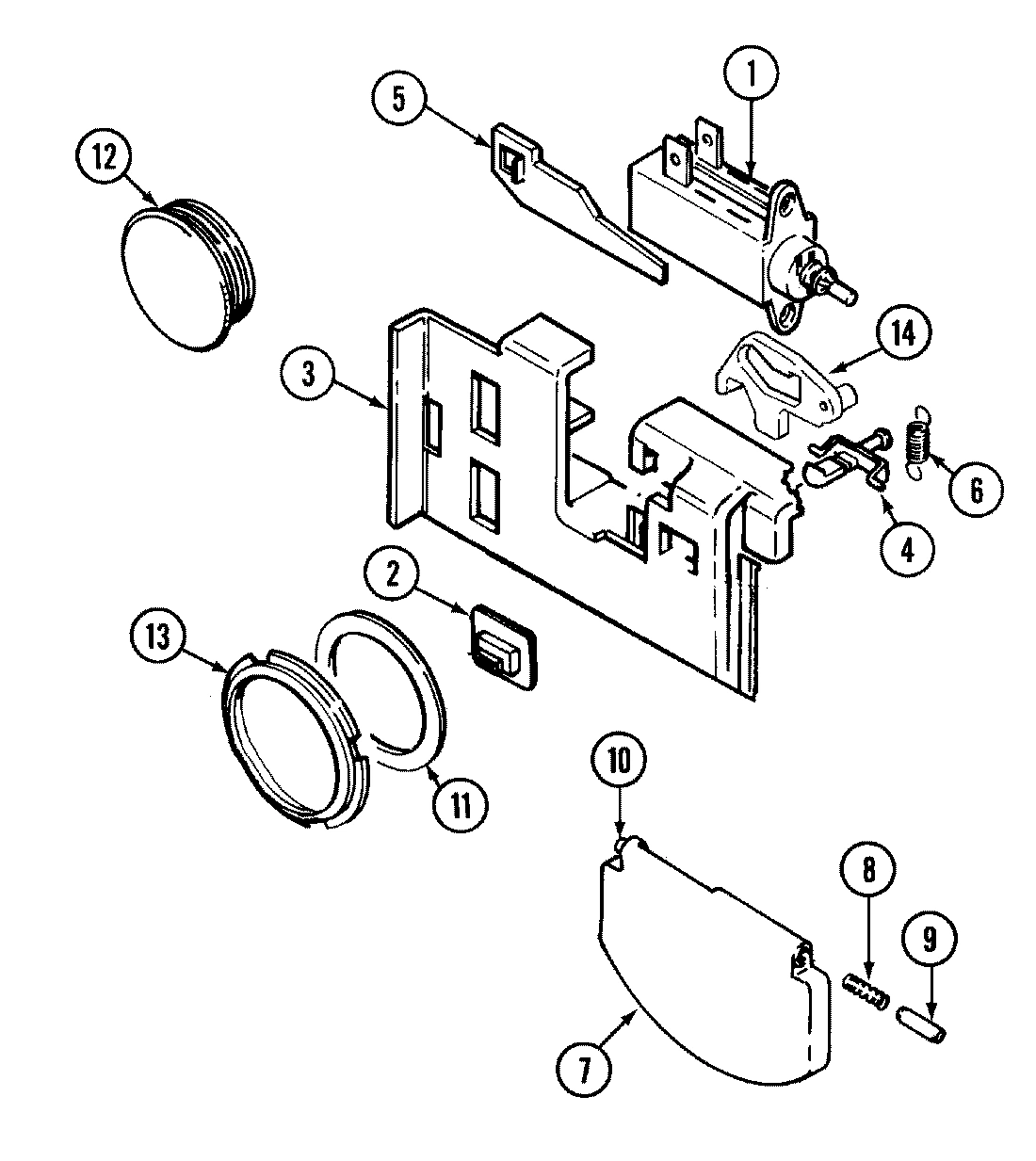

03 - SOAP DISPENSER

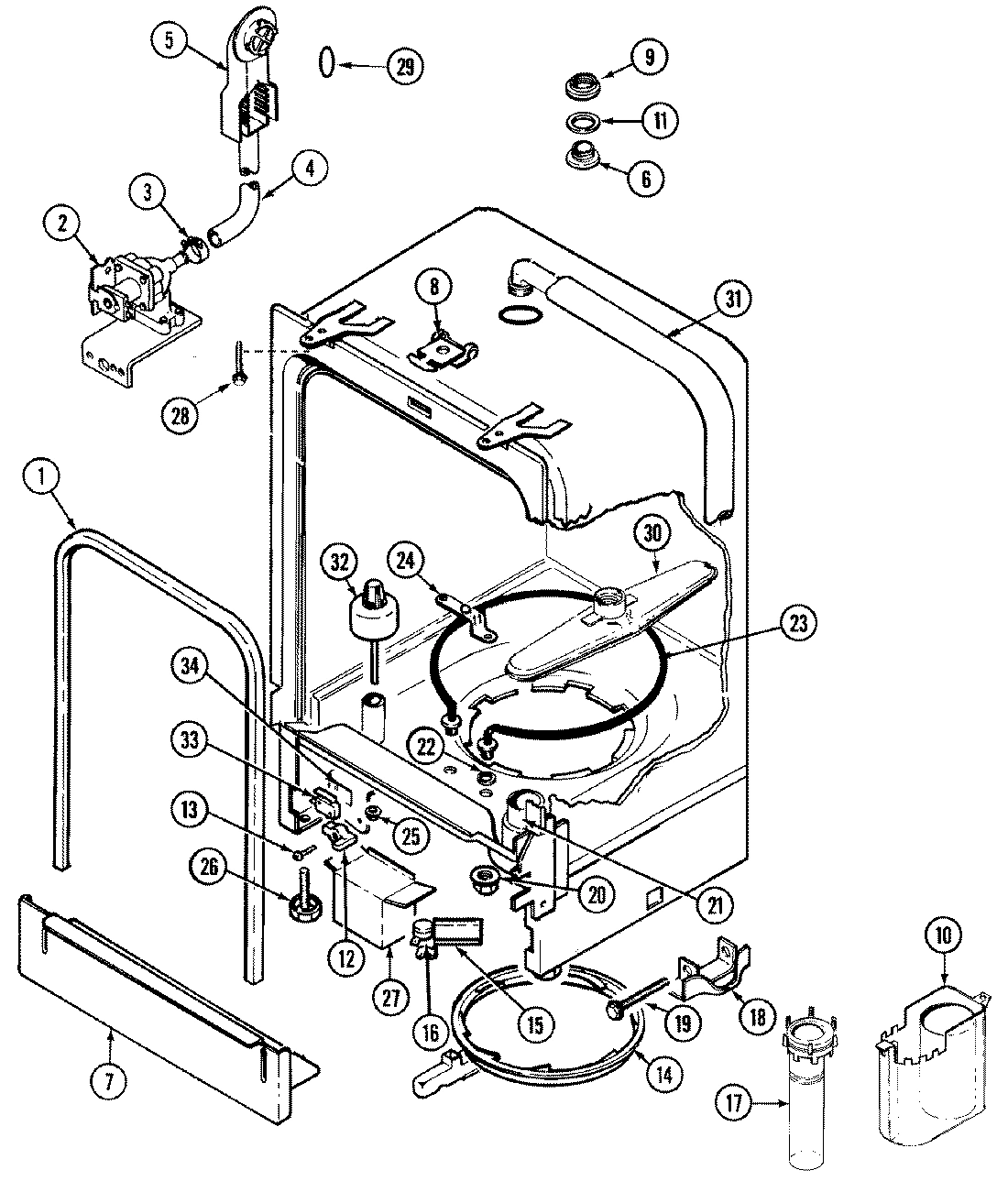

05 - TUB
Common parts from model Whirlpool CDU2J3 DISHWASHER
1
TRIM, BOTTOM (BLK) WPL Y912936 Contact Us For Availability
1
INSERT, FRONT PANEL (WHT/ALM) WPL Y913165 Contact Us For Availability
1
RACK (UPR) WPL 903919 Contact Us For Availability
1
PANEL, CONTROL WPL 903910 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 99001367 Contact Us For Availability
2
GROMMET, DISPENSER WPL W10131752 No Longer Available
2
FILLER, FRONT PANEL WPL Y913184 Contact Us For Availability
2
KNOB, TIMER WPL 903496 Contact Us For Availability
2
VALVE, WATER WPL 903868 Contact Us For Availability
3
TRIM, STRIP WPL 912942 Contact Us For Availability
3
TRIM, SIDE (BLK) WPL 99001350 Contact Us For Availability
3
SCREW WPL Y913157 Contact Us For Availability
3
RACK (LWR) WPL 903921 Contact Us For Availability
3
SWITCH,ROCKER WPL 903495 Contact Us For Availability
3
SHIELD, CONTROL WPL 913180 Contact Us For Availability
3
RETAINER WPL Y912673 Contact Us For Availability
4
HOSE, INJECTOR WPL 912633 Contact Us For Availability
4
PANEL, DOOR WPL 904029 Contact Us For Availability
4
WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability
4
TIMER WPL 903497 Contact Us For Availability
5
RETAINER, WIRE WPL Y912666 Contact Us For Availability
5
BASKET, SILVERWARE WPL Y912919 Contact Us For Availability
5
SLIDER WPL 99001289 Contact Us For Availability
5
LATCH, SLIDER WPL Y912675 Contact Us For Availability
5
INJECTOR, WATER WPL 912533 Contact Us For Availability
6
HINGE (LT) WPL 903070 Contact Us For Availability
6
HINGE (RT) WPL 903071 Contact Us For Availability
6
SCREW WPL 99001075 Contact Us For Availability
6
BARRIER, CONTROL PANEL WPL Y912937 Contact Us For Availability
7
LINER, VENT WPL Y913116 Contact Us For Availability
7
SEAL, VENT OUTLET WPL Y913177 Contact Us For Availability
7
LID, DETERGENT CUP WPL 903687 Contact Us For Availability
7
PANEL, TOE (BLK) WPL 912640 Contact Us For Availability
8
DOOR, INNER (NON RINSE-AID) WPL 99001549 Contact Us For Availability
8
DOOR, INNER WPL Y912918 Contact Us For Availability
8
RETAINER, WIRE WPL 315471 Contact Us For Availability
8
WIRE HARNESS, MAIN WPL 99001042 Contact Us For Availability
8
WIRE HARNESS, MAIN WPL 99001171 Contact Us For Availability
8
SPRING, CUP LID WPL Y912547 Contact Us For Availability
8
SPRING, LATCH WPL 912648 Contact Us For Availability
8
HOOK, LATCH WPL 912649 Contact Us For Availability
8
RETAINER, LATCH WPL 912650 Contact Us For Availability
8
SCREW, LATCH WPL Y912873 Contact Us For Availability
9
BAR, REINFORCEMENT WPL Y913093 Contact Us For Availability
9
SEAL, REINFORCEMENT WPL Y913178 Contact Us For Availability
10
COVER, WIRE (BLK) WPL 912642 Contact Us For Availability
10
KIT, LATCH HANDLE (BLK) WPL 12001117 Contact Us For Availability
10
VENT, INLET WPL Y913095 Contact Us For Availability
11
PANEL, ACCESS (BLK) WPL 912637 Contact Us For Availability
11
GASKET WPL Y912835 Contact Us For Availability
11
WASHER, TUB TOP WPL 910069 Contact Us For Availability
12
PLUG, RINSE AID WPL Y913092 Contact Us For Availability
12
LEVER, ACTUATOR WPL 912014 Contact Us For Availability
13
NUT, RESERVOIR WPL Y913060 Contact Us For Availability
13
PIN, LEVER PIVOT WPL 912015 Contact Us For Availability
14
COVER, VENT WPL Y912910 Contact Us For Availability
14
PIVOT WPL 99001287 Contact Us For Availability
14
RING, LOCKING WPL Y912686 Contact Us For Availability
15
SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability
15
CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability
16
THERMOSTAT, LIMITING WPL 99001006 Contact Us For Availability
17
TUBE, INLET WPL Y913096 Contact Us For Availability
18
BRACKET, ADJUSTING WPL 912651 Contact Us For Availability
19
SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability
20
NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability
20
SLEEVE, INSULATING WPL 99001333 Contact Us For Availability
21
SCREW WPL 912622 Contact Us For Availability
21
CAP, AIR INLET WPL Y912659 Contact Us For Availability
22
WASHER, HEATING ELEMENT WPL 910603 Contact Us For Availability
23
ELEMENT, HEATING WPL 903096 Contact Us For Availability
24
BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability
27
BOX, TERMINAL WPL 912563 Contact Us For Availability
29
SEAL RING, INJECTOR WPL 912644 Contact Us For Availability
31
HOSE, TOP SHOWER WPL 912647 Contact Us For Availability
33
SCREW WPL 912012 Contact Us For Availability
34
BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 99001298 Contact Us For Availability
× ![]()
