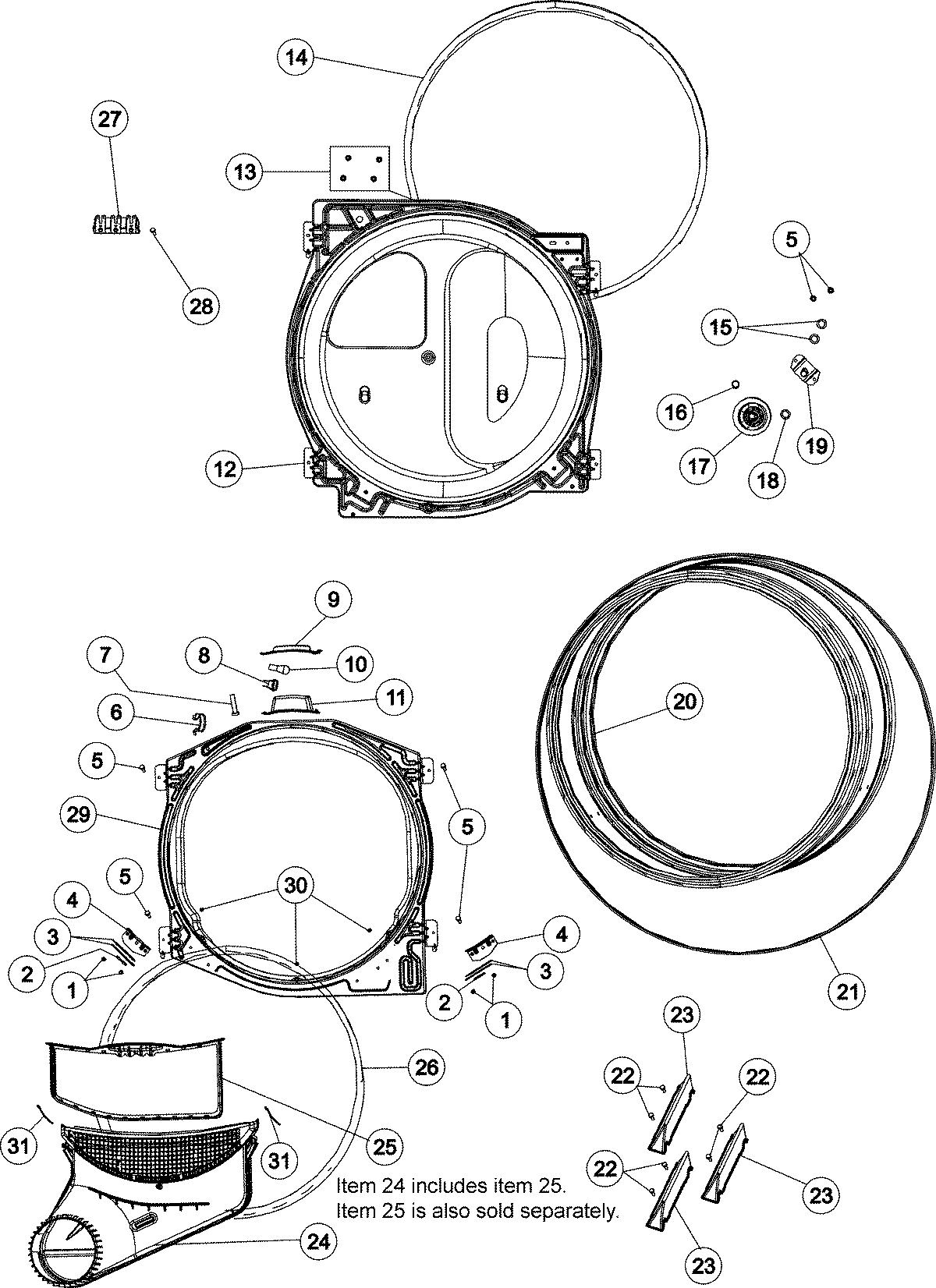

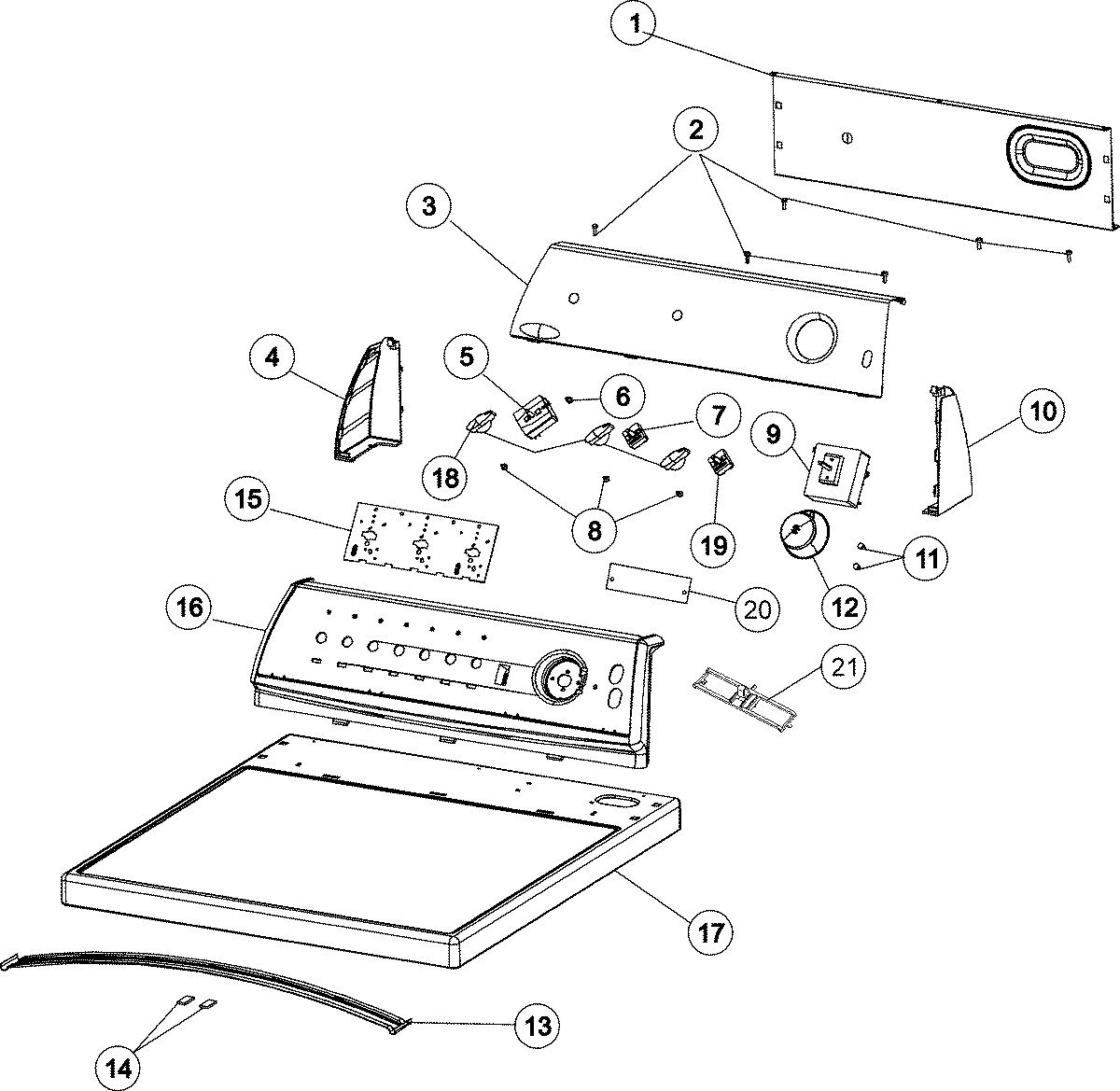

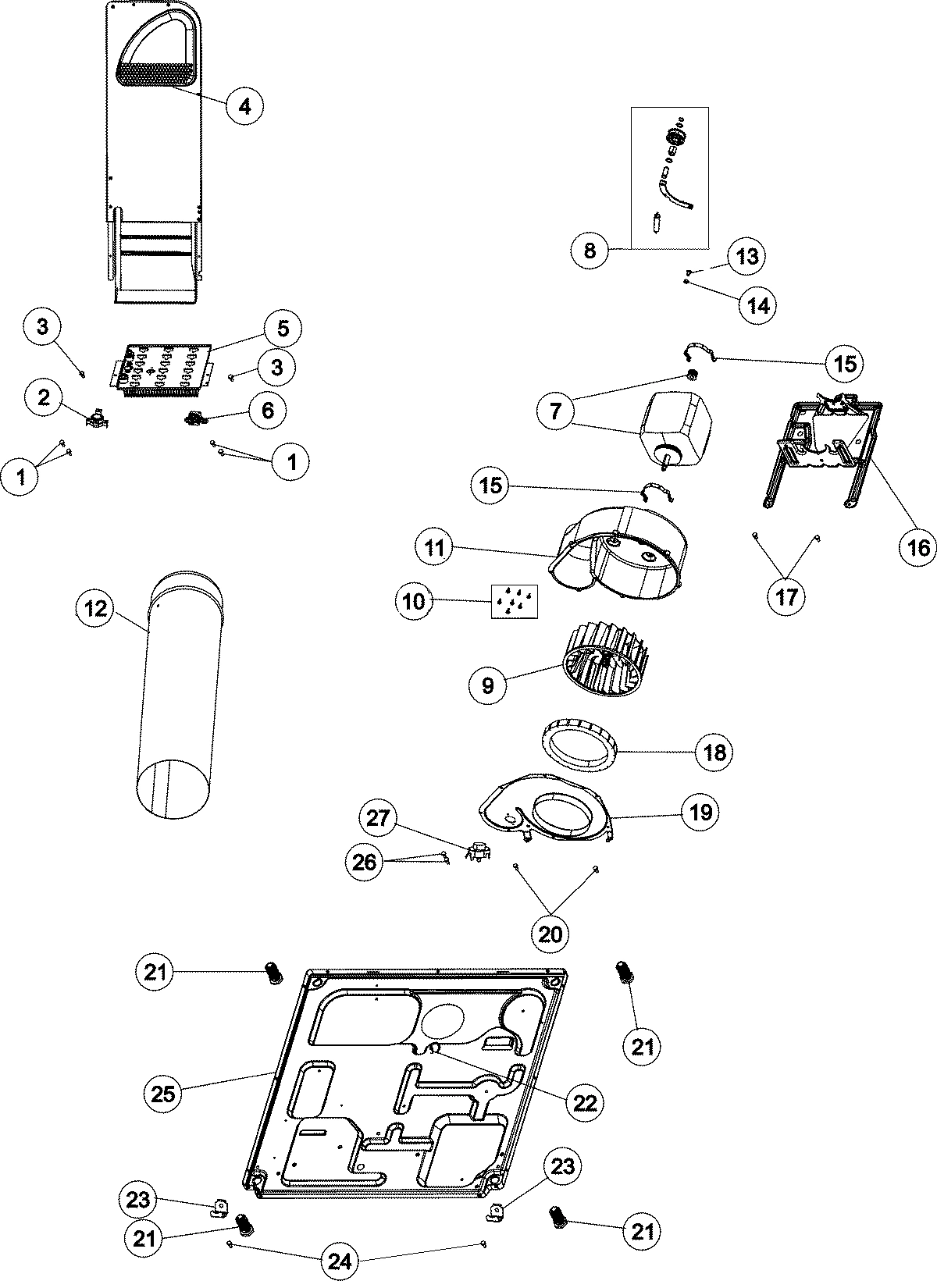

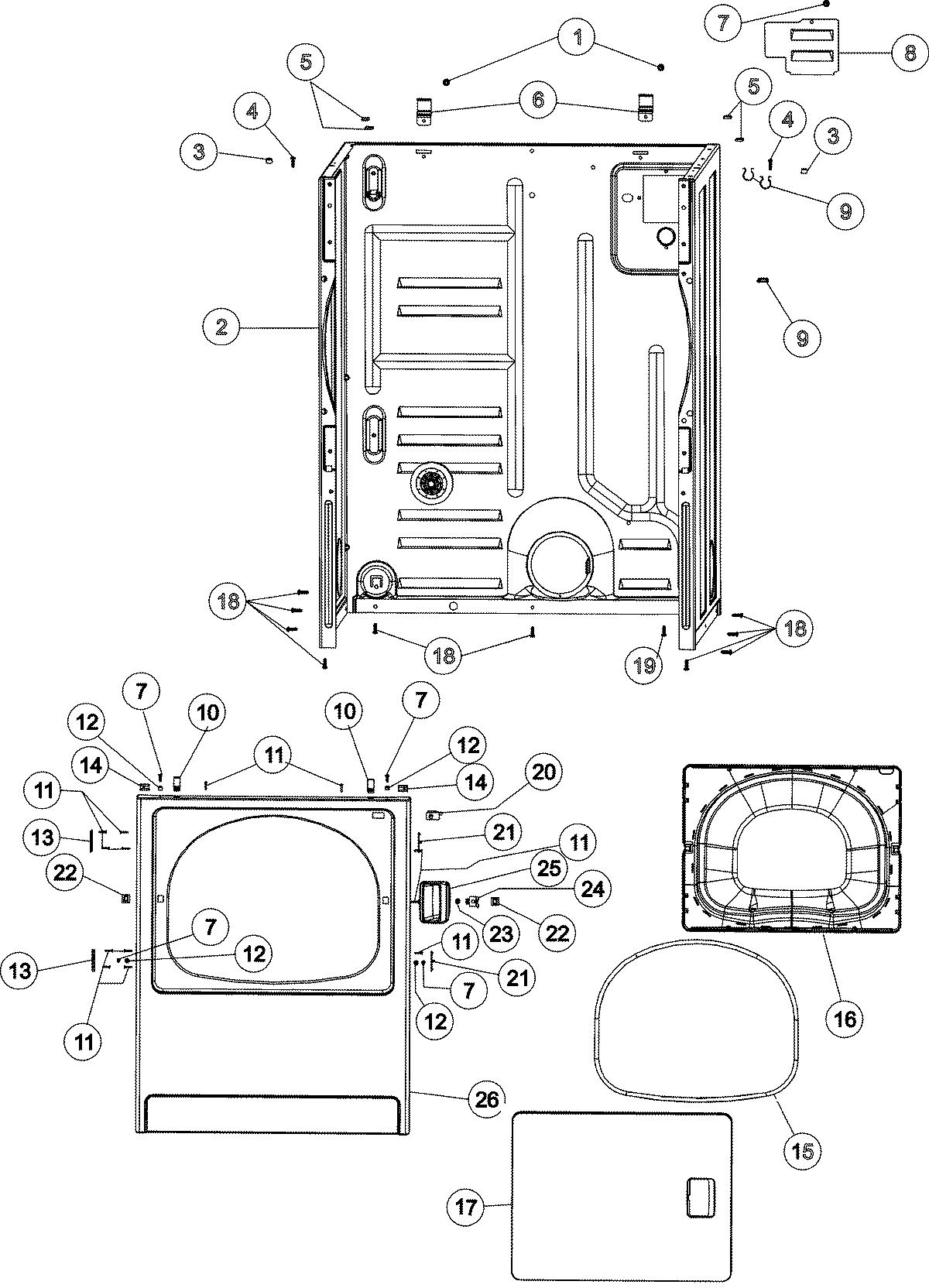

Model Whirlpool CDE9505W ELECTRIC DRYER – Common Parts &amp; Diagrams

1

SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability

2

WP3400888 Whirlpool Compactor Screw Backorder WPL WP3400888 $4.82

2

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

3

FACIA WPL 37001222 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

4

ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability

4

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

5

WPY503978 Whirlpool Heating Element In Stock WPL WPY503978 $42.92

5

SWITCH, TEMP - 4 POSITION WPL 37001165 Contact Us For Availability

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

HINGE, TOP WPL 500003 Contact Us For Availability

7

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

7

BUZZER WPL 31001397 Contact Us For Availability

8

HOLDER, LAMP WPL 504458 Contact Us For Availability

9

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

9

LENS, LIGHT WPL 40094301 Contact Us For Availability

9

TIMER - DRYER WPL 37001241 Contact Us For Availability

10

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

10

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

10

ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability

11

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

11

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

11

BUSHING WPL 560202 Contact Us For Availability

12

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

12

KNOB/SKIRT, TIMER (WHT) WPL 31001388 Contact Us For Availability

12

DUCT, EXHAUST WPL 505518 Contact Us For Availability

13

BRACE, TOP WPL 56486 Contact Us For Availability

13

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

14

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

14

PAD, FELT-COIN WPL 500121 Contact Us For Availability

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability

MOUNT, MOTOR WPL 503613 Contact Us For Availability

17

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

17

COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability

18

WASHER, WAVE WPL Y504082 Contact Us For Availability

18

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

18

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP33001212 Whirlpool Electronic Control Board Backorder WPL WP33001212 $229.02

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

BRACKET, CIRCUIT BOARD WPL 31001507 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

22

CLIP, WIRE WPL 504034 Contact Us For Availability

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

23

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

24

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

25

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

25

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

25

DRYER BASE WPL 37001156 Contact Us For Availability

26

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

26

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

26

FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

WP37001136 Whirlpool Dryer Cycling Thermostat In Stock WPL WP37001136 $115.60

THERMOSTAT, BIAS-HEATED WPL 37001137 Contact Us For Availability

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

28

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

29

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

30

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

31

CLIP, RETAINING HARNESS WPL 40012001 Contact Us For Availability

31

SENSOR, MOISTURE WPL 503625 Contact Us For Availability

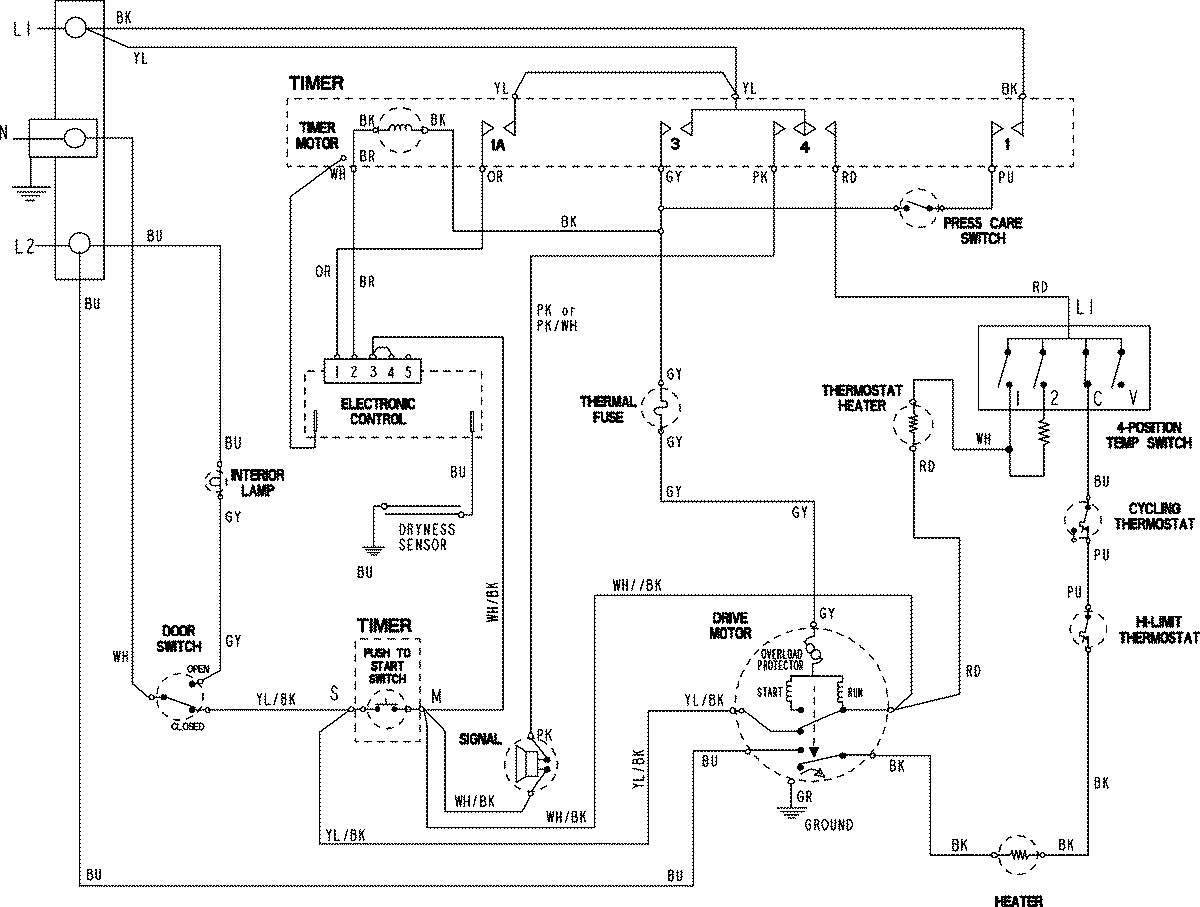

NI

WIRING INFORMATION ELEC WPL 15003814 Contact Us For Availability
