Model Whirlpool CCE1401W ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - WIRING INFORMATION

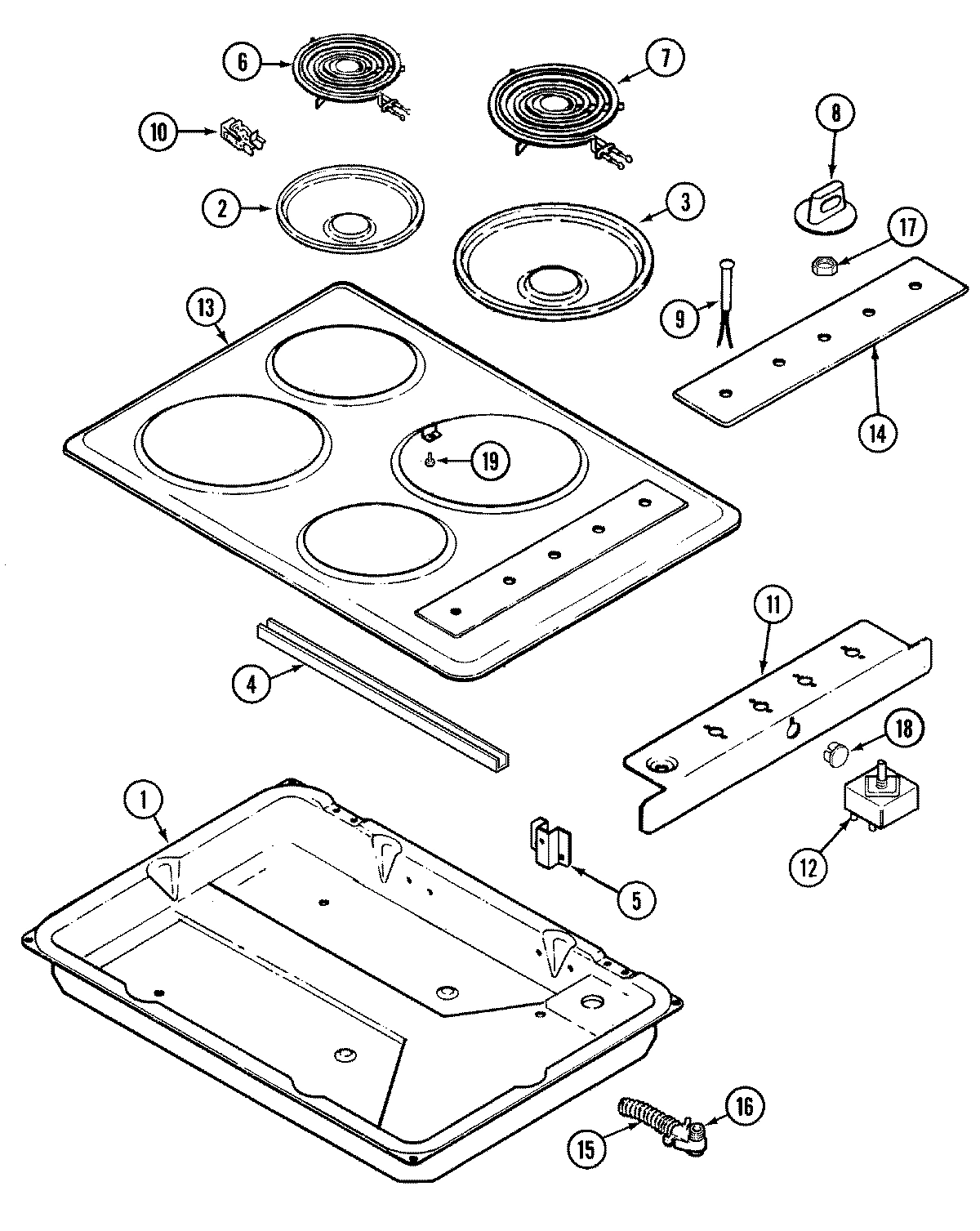

01 - TOP ASSEMBLY
Common parts from model Whirlpool CCE1401W ELECTRIC COOK-TOP
1
BOTTOM, BURNER BOX WPL 4011F14380 Contact Us For Availability
4
BRACE, TOP WPL 3802F07051 Contact Us For Availability
5
BRACKET, MAIN TOP SUPPORT WPL 3801F18345 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
SCREW WPL 7118P00460 Contact Us For Availability
6
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
7
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
8
KNOB, INFINITE SWITCH (WHT) WPL 74003150 Contact Us For Availability
9
LIGHT, INDICATOR WPL 74001480 Contact Us For Availability
9
PLATE, BURNER BOX WPL 8112P00160 Contact Us For Availability
11
SHIELD SWITCH WIRING WPL 3604F13380 Contact Us For Availability
12
SWITCH, INFINITE WPL 7403P02760 Contact Us For Availability
13
TOP, MAIN (WHT) WPL 74001709 Contact Us For Availability
14
PANEL, CONTROL (WHT) WPL 74003148 Contact Us For Availability
15
TUBING, CONDUIT (FLEXIBLE) WPL 3414F03544 Contact Us For Availability
15
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
15
WIRES, CONDUIT TUBING WPL 74001216 Contact Us For Availability
16
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
16
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
17
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
18
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
19
SCREW WPL 7101P34960 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001541 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SERVICE WPL 16010241 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002617 Contact Us For Availability
× ![]()
