Model Whirlpool C3521XRW ELECTRIC RANGE – Common Parts & Diagrams
06 - TOP ASSEMBLY

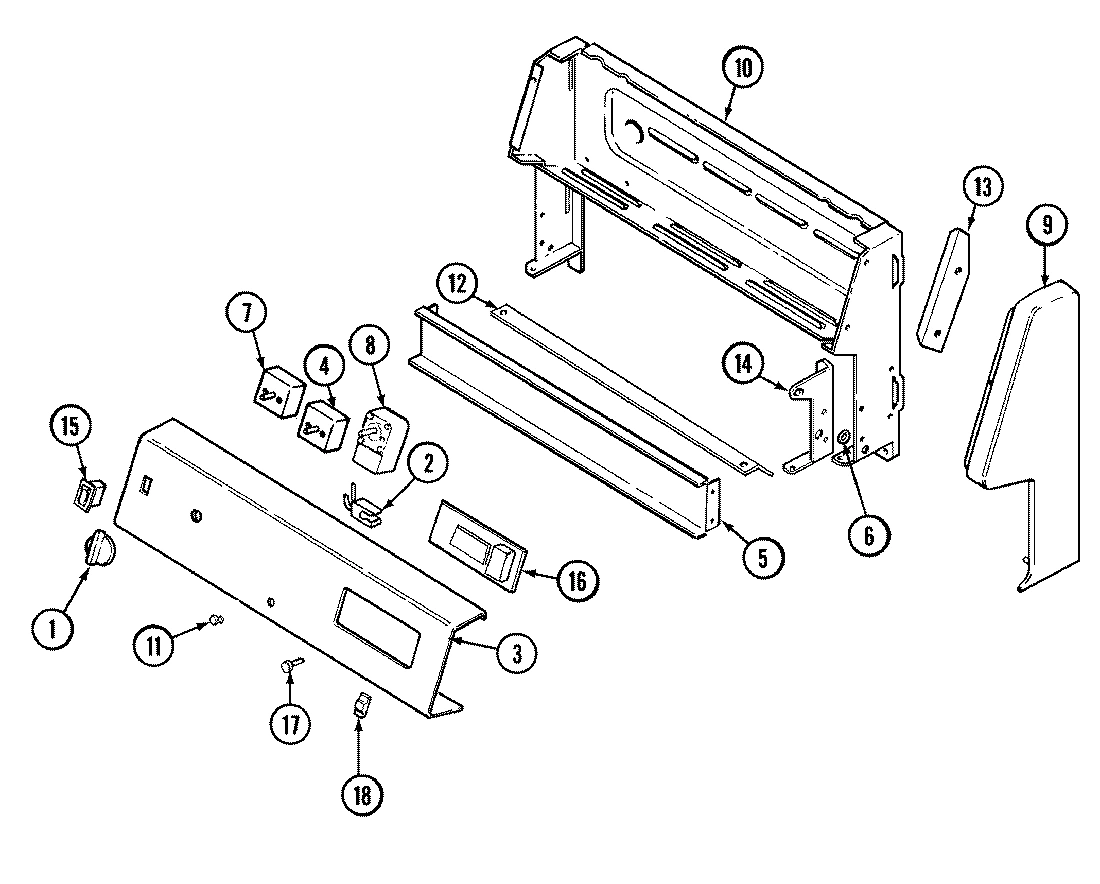

02 - CONTROL PANEL

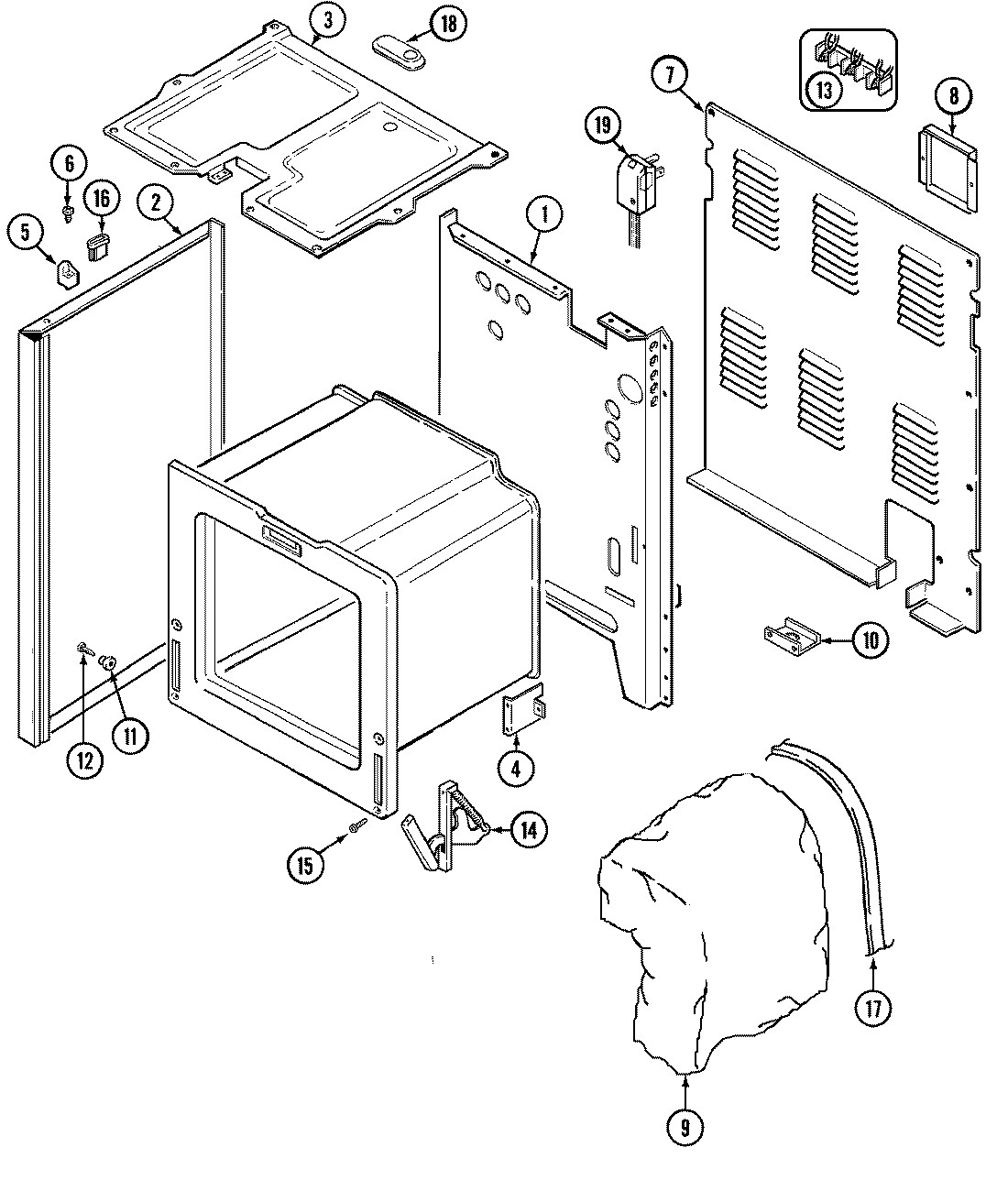

01 - BODY

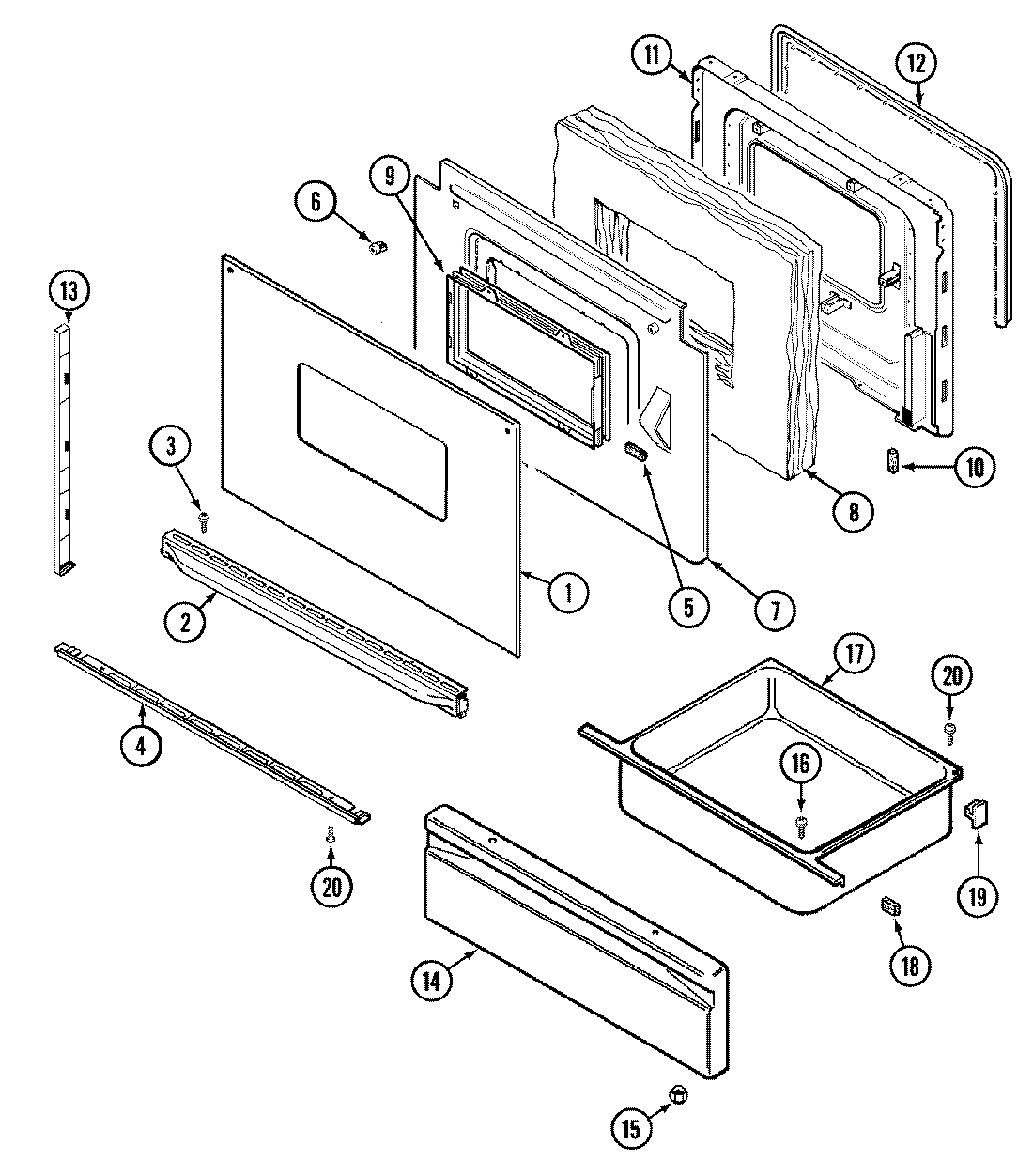

03 - DOOR/DRAWER (SERIES 01)

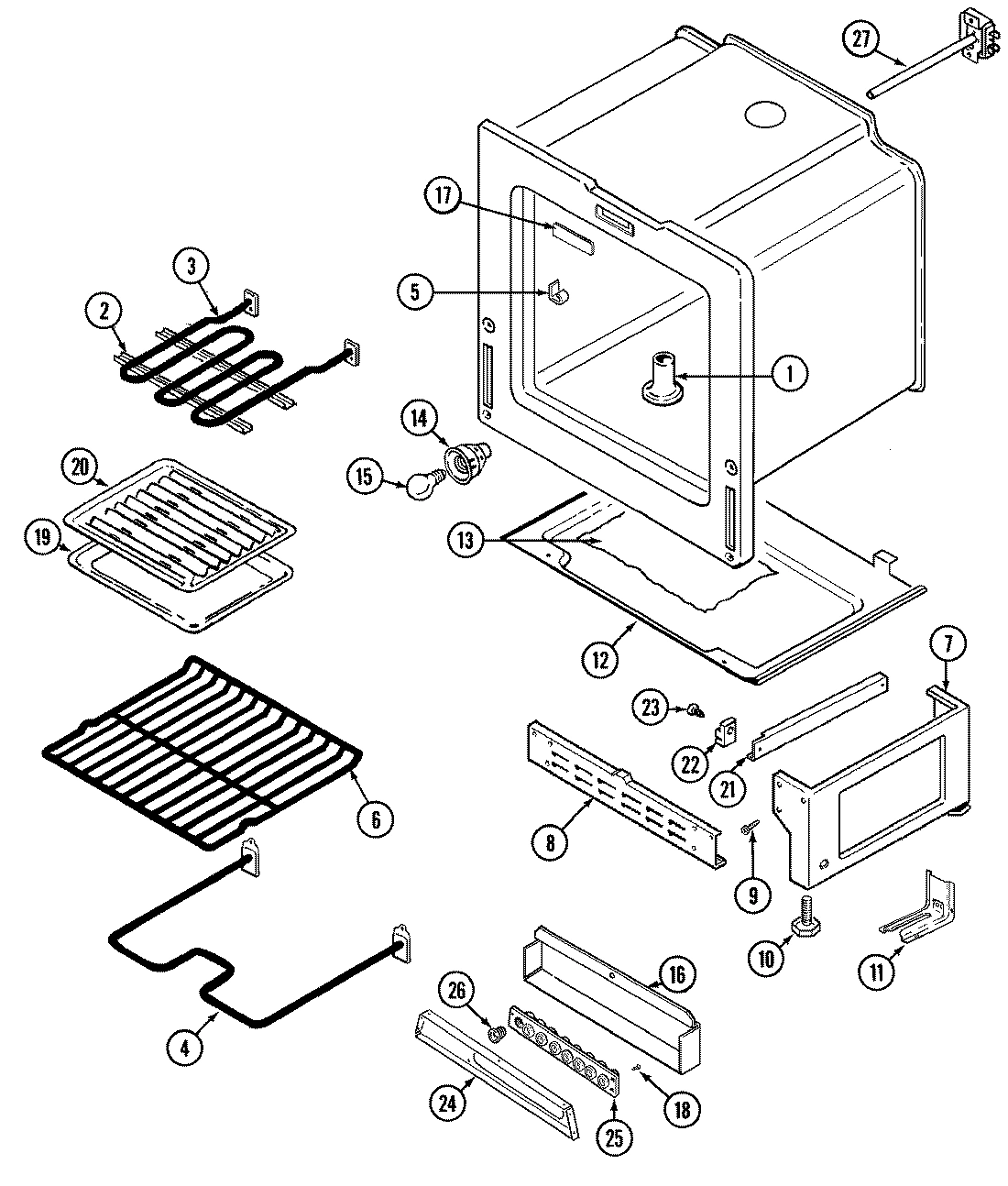

05 - OVEN/BASE

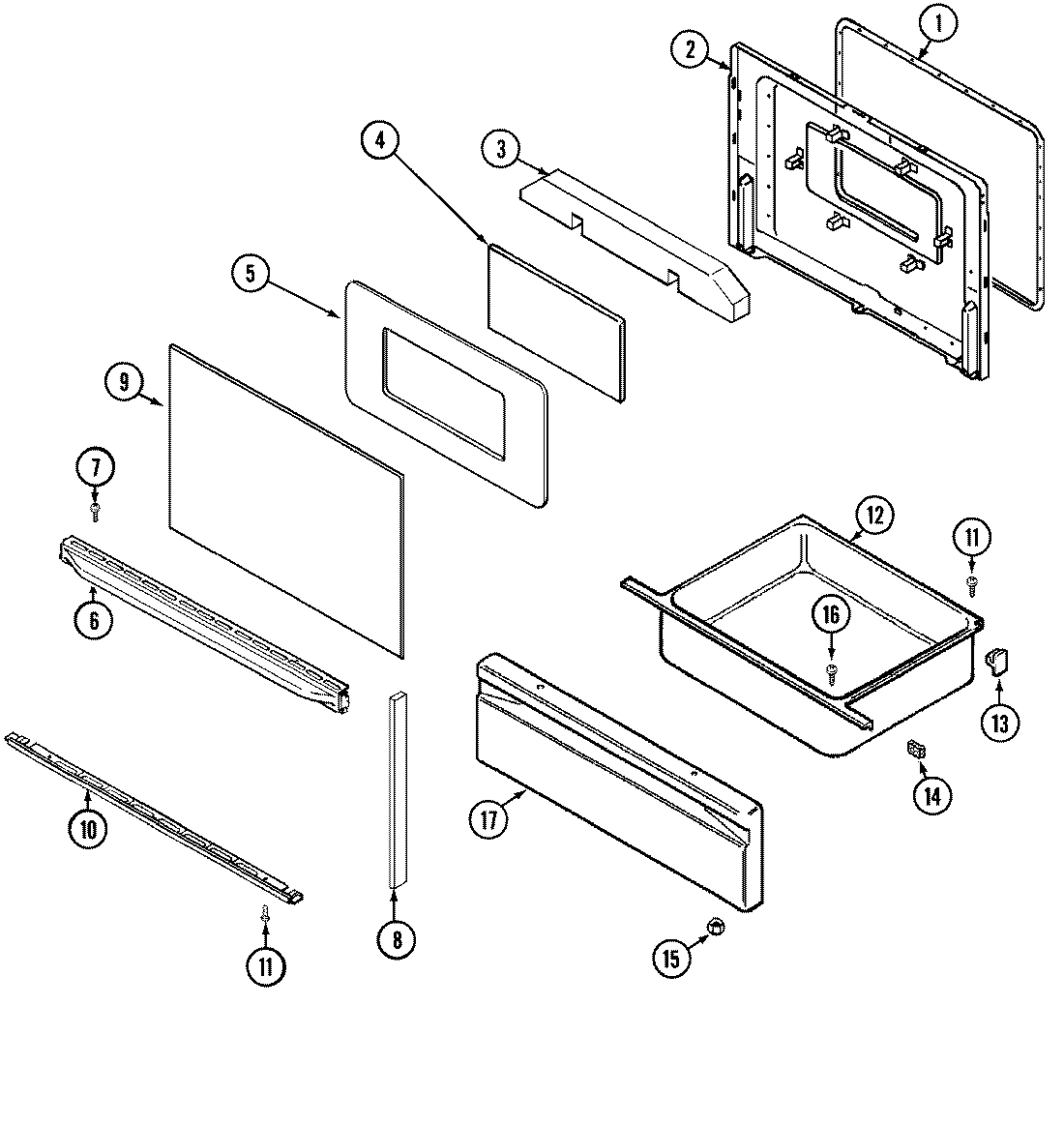

04 - DOOR/DRAWER (SERIES 45)
Common parts from model Whirlpool C3521XRW ELECTRIC RANGE
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
SCREW WPL 7101P29160 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
LINING, DOOR WPL 74002785 Contact Us For Availability
3
PANEL, CONTROL (BLK) WPL 4876S05459 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
5
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
6
NUT, SPEED WPL 7103P12960 Contact Us For Availability
6
NUT, NYLON WPL 7103P04560 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
7
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
8
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
9
SCREW WPL 7101P03260 Contact Us For Availability
9
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
9
TRIM, BACKGUARD (RT) WPL 7726P04560 Contact Us For Availability
9
TRIM, BACKGUARD (LT) WPL 7726P04960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
9
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
10
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
10
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
10
LEG, LEVELING WPL 74001311 Contact Us For Availability
10
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
11
GLIDE WPL 74001663 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
LINING ASSY WPL 2402W19319 Contact Us For Availability
11
LINING, DOOR WPL 2402W21319 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
12
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
12
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
13
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
13
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
13
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
13
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
13
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
14
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
14
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
14
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
14
PANEL, DRAWER (BLK) WPL 2416F03965 Contact Us For Availability
14
SCREW WPL 7101P11560 Contact Us For Availability
14
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
14
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
15
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
15
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
15
BULB, OVEN WPL 7407P09560 Contact Us For Availability
16
SCREW WPL 7101P29360 Contact Us For Availability
16
CLOCK WPL 7602P10460 Contact Us For Availability
16
BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability
16
SCREW WPL 7101P07260 Contact Us For Availability
16
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
17
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
17
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
17
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
SCREW WPL 7118P01360 Contact Us For Availability
18
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
18
COVER VENT WPL 4005F35045 Contact Us For Availability
18
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
19
CORD, POWER WPL 7402P05060 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
22
NUT WPL 7103P08260 Contact Us For Availability
22
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
22
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
23
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
24
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
24
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
25
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
26
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
26
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
27
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 8113P05260 Contact Us For Availability
× ![]()
