Model Whirlpool C31315XBT GAS RANGE – Common Parts & Diagrams
06 - TOP ASSEMBLY

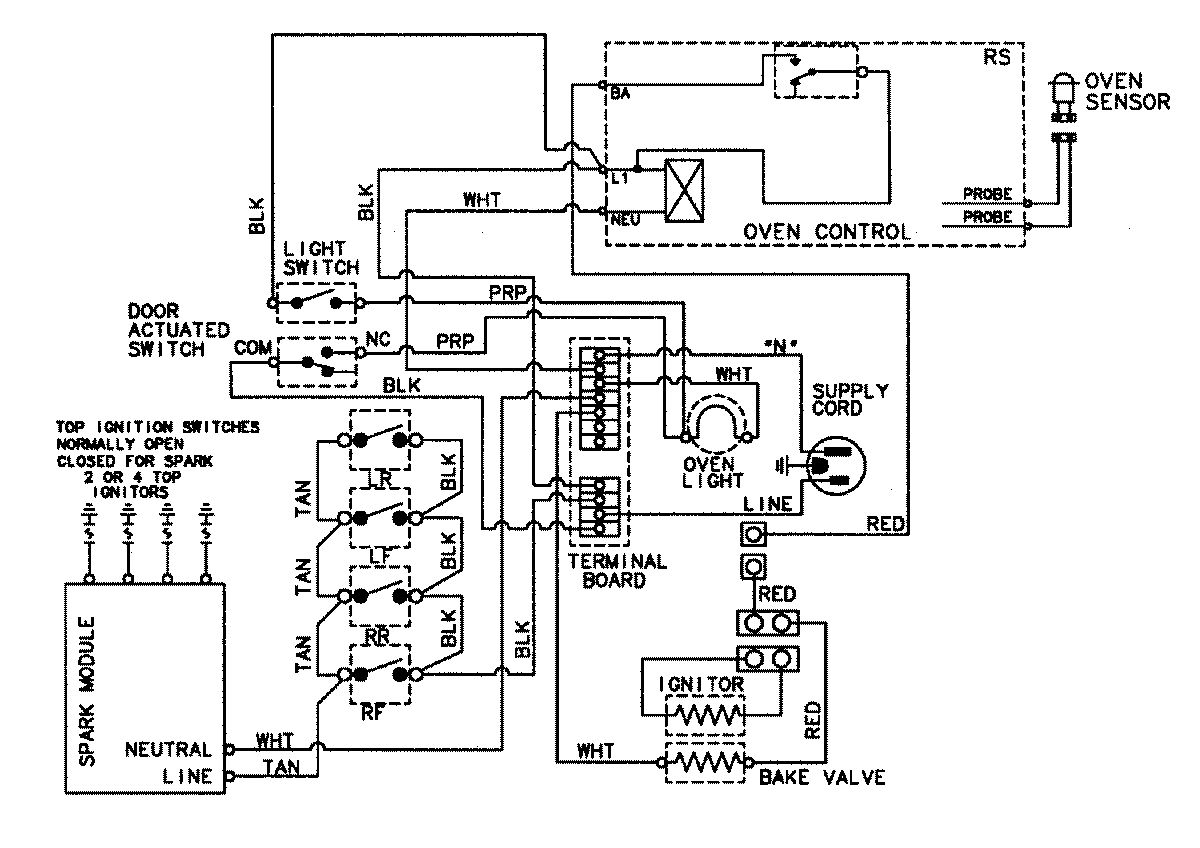

07 - WIRING INFORMATION

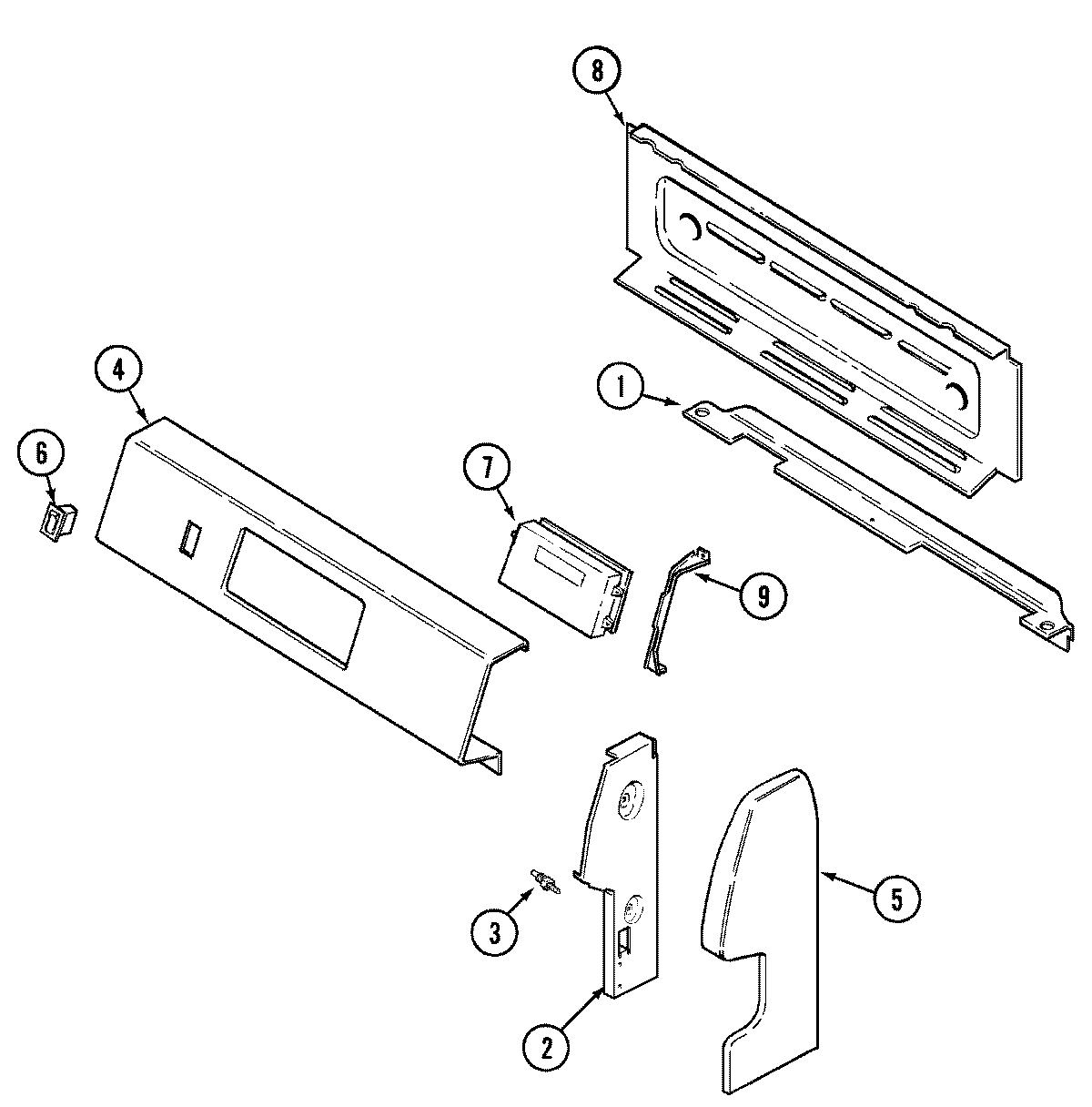

02 - CONTROL PANEL

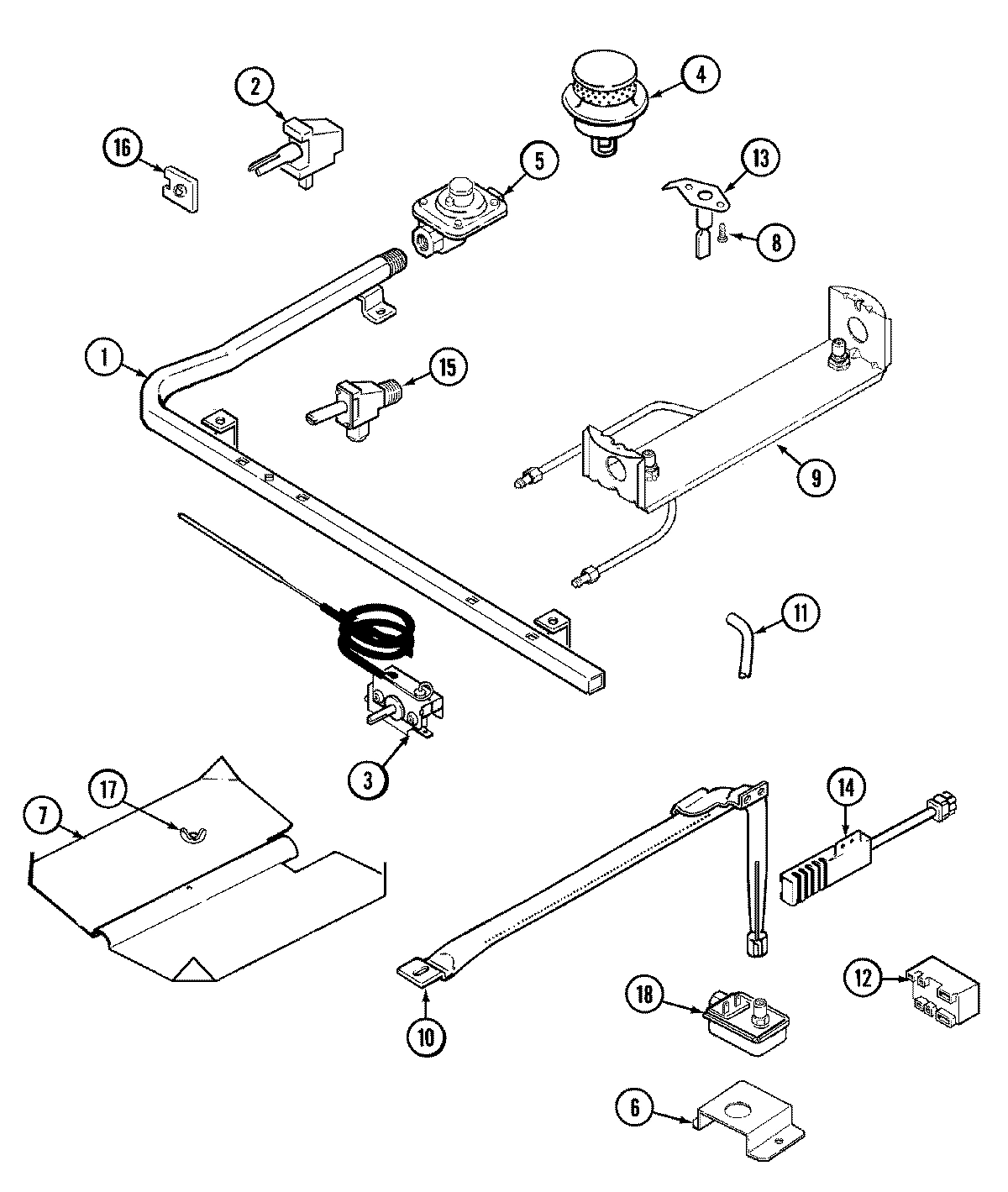

04 - GAS CONTROLS

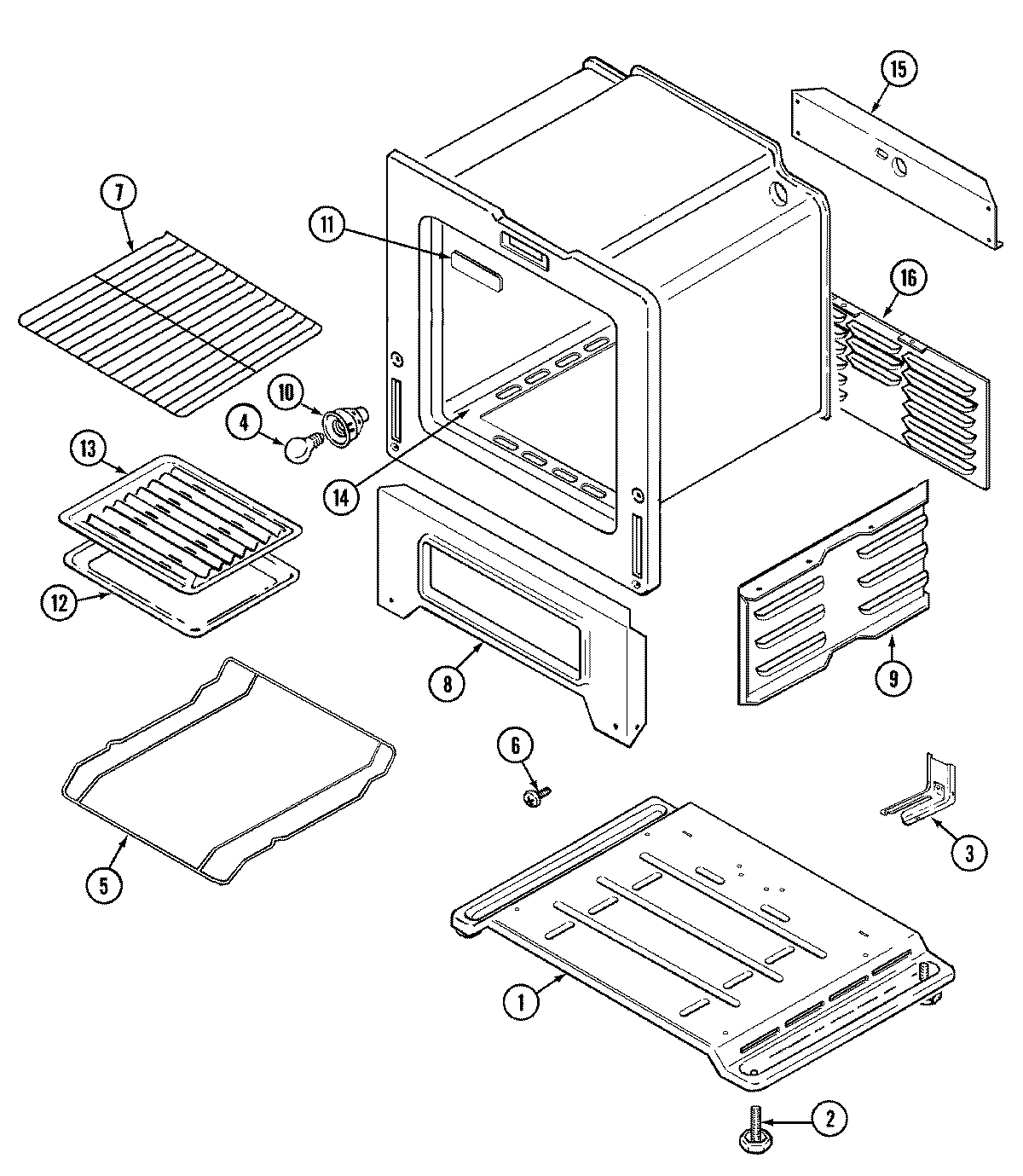

05 - OVEN/BASE

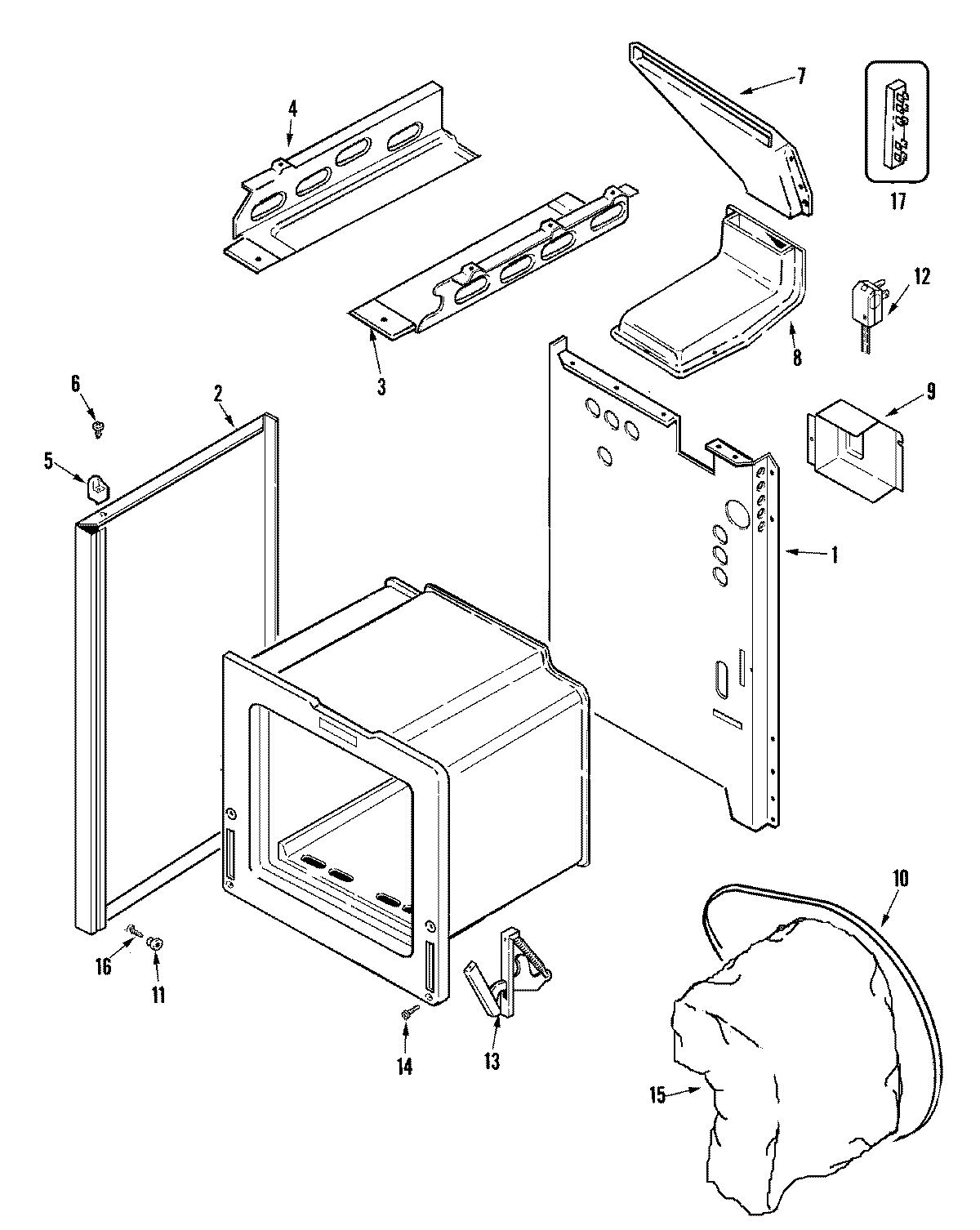

01 - BODY

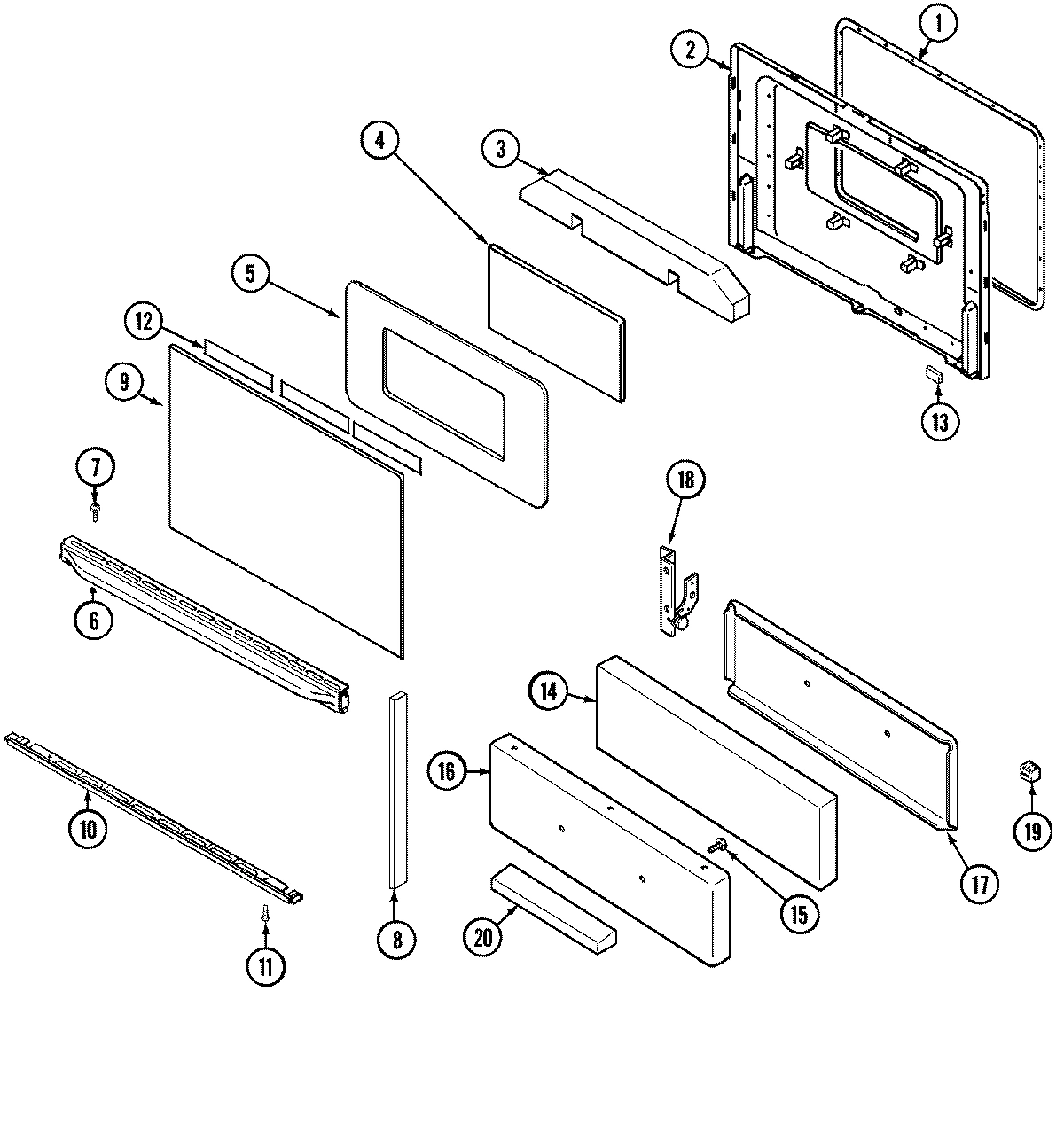

03 - DOOR/DRAWER
Common parts from model Whirlpool C31315XBT GAS RANGE
1
SHIELD, VENT DEFLECTOR WPL 74005319 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74006416 Contact Us For Availability
1
BASE, MAIN WPL 74005215 Contact Us For Availability
1
BACK, MAIN WPL 74005216 Contact Us For Availability
1
BACK, MAIN WPL 74006548 Contact Us For Availability
1
GROMMET WPL 8008P01060 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
2
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
VALVE, BURNER WPL 74002532 Contact Us For Availability
2
VALVE, BURNER WPL 74003925 Contact Us For Availability
2
PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability
2
LINING, DOOR WPL 74005097 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74005149 Contact Us For Availability
4
BULB-OVEN WPL 7407P10360 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74002633 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
WASHER WPL 7109P01560 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74006526 Contact Us For Availability
5
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
5
END CAP, PANEL (LT-BLK) WPL 74002406 Contact Us For Availability
5
END CAP, PANEL (RT-BLK) WPL 74002407 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 74006282 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P20960 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
6
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74005051 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 74002522 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 74002543 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
CLOCK, W/OVERLAY (BLK) WPL 74006561 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
HOUSING, CONTROL PANEL WPL 74005320 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
OVEN FRONT, LOWER WPL 74003007 Contact Us For Availability
8
BOX, VENT WPL 74006420 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74002449 Contact Us For Availability
9
ORIFICE FITTING ASSEMBLY WPL 5187D02660 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
COVER, ACCESS WPL 74004591 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, OVEN BURNER WPL 74006417 Contact Us For Availability
11
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
PANEL, DRAWER (BSQ) WPL 74005046 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
LINING, DRAWER WPL 74002397 Contact Us For Availability
17
LINING, DRAWER WPL 74007553 Contact Us For Availability
18
VALVE, OVEN WPL 74006281 Contact Us For Availability
18
HINGE, DRAWER WPL 74002398 Contact Us For Availability
18
HINGE, DRAWER WPL 74007560 Contact Us For Availability
19
GLIDE WPL 8016P01560 Contact Us For Availability
20
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002639 Contact Us For Availability
NI
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004396 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 74005147 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRES, SWITCH (BLK/TN) WPL 74002363 Contact Us For Availability
NI
WIRES, IGNITER (4-OR) WPL 74002457 Contact Us For Availability
NI
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
× ![]()
