Model Maytag AZF33X20DW03 FREEZER, VERTICAL – Common Parts & Diagrams

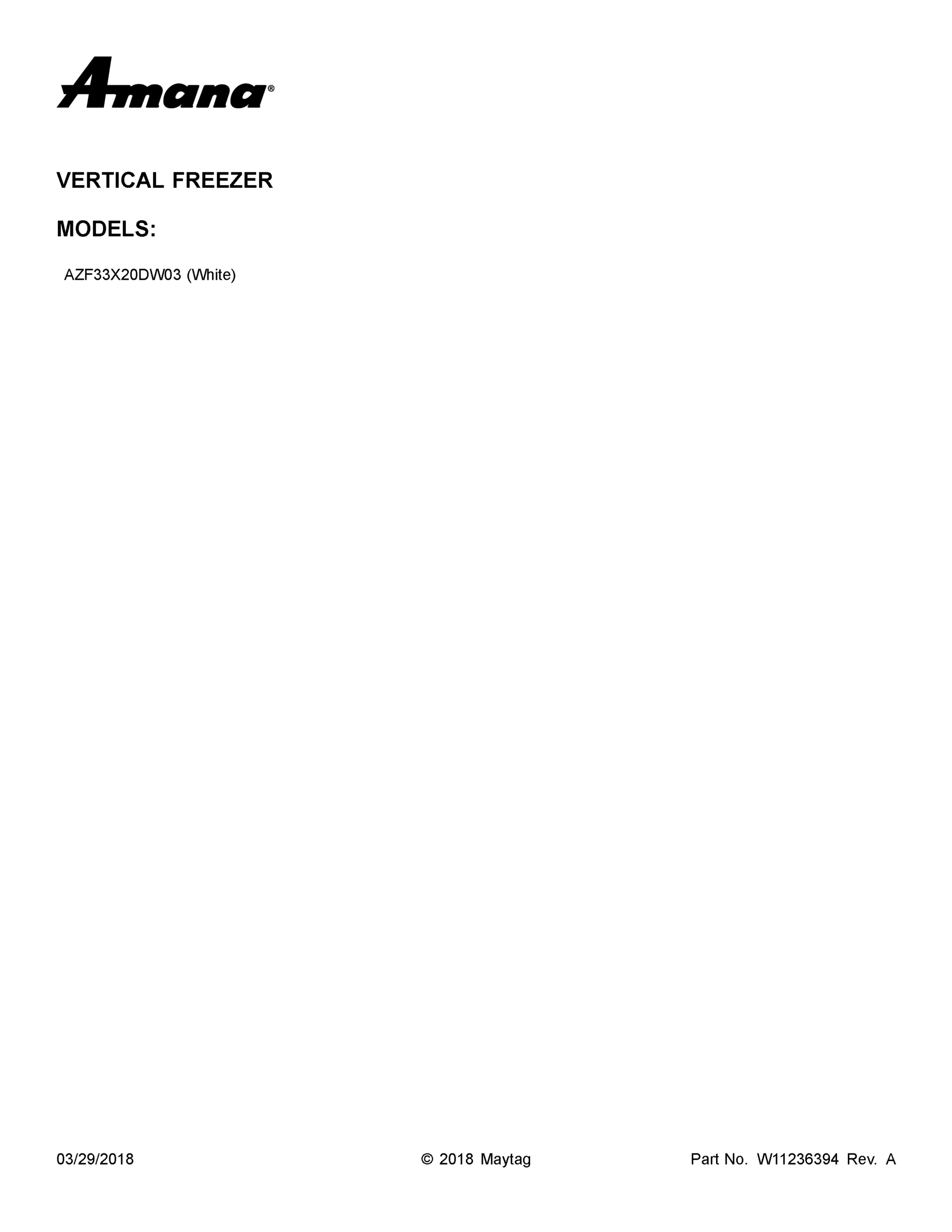

01 - COVER SHEET

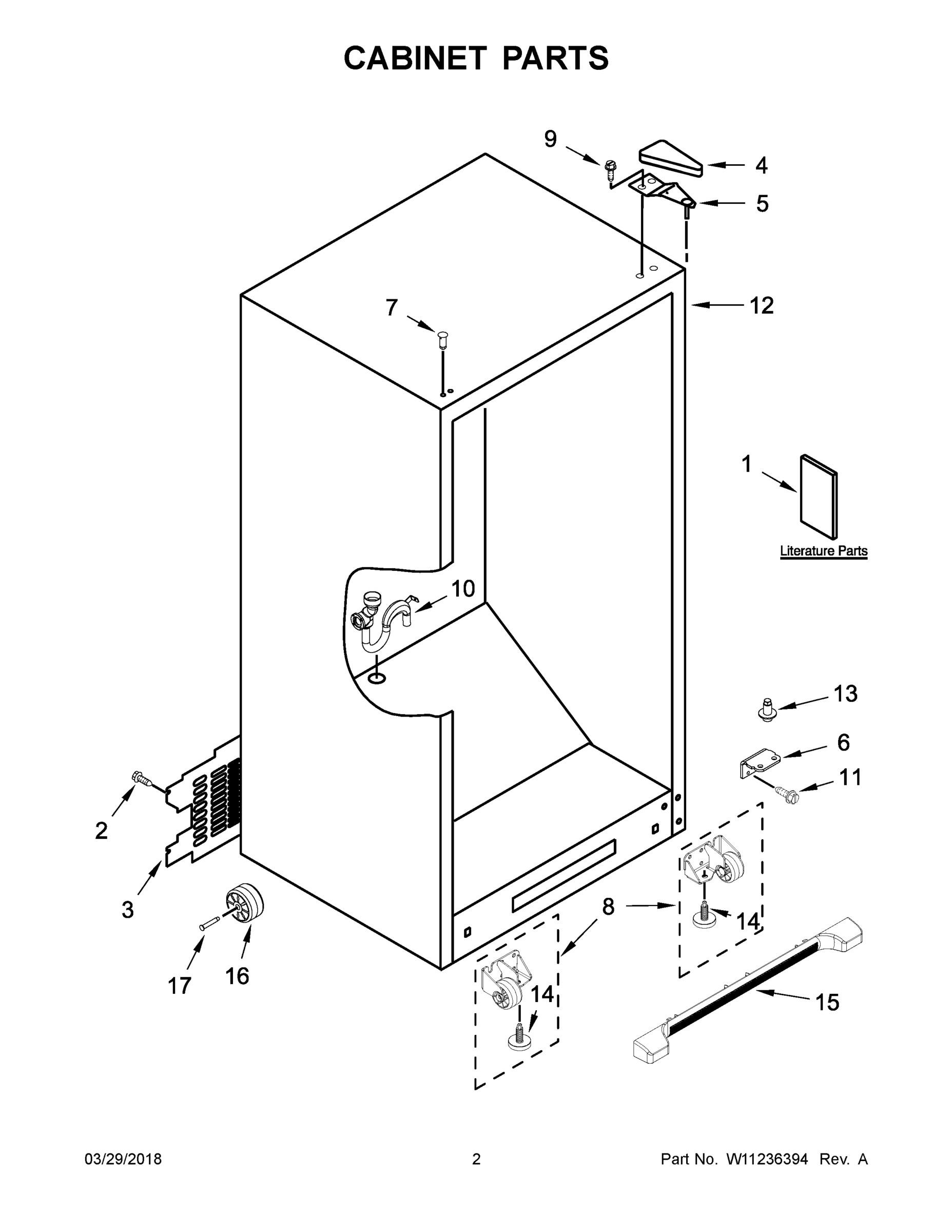

02 - CABINET PARTS

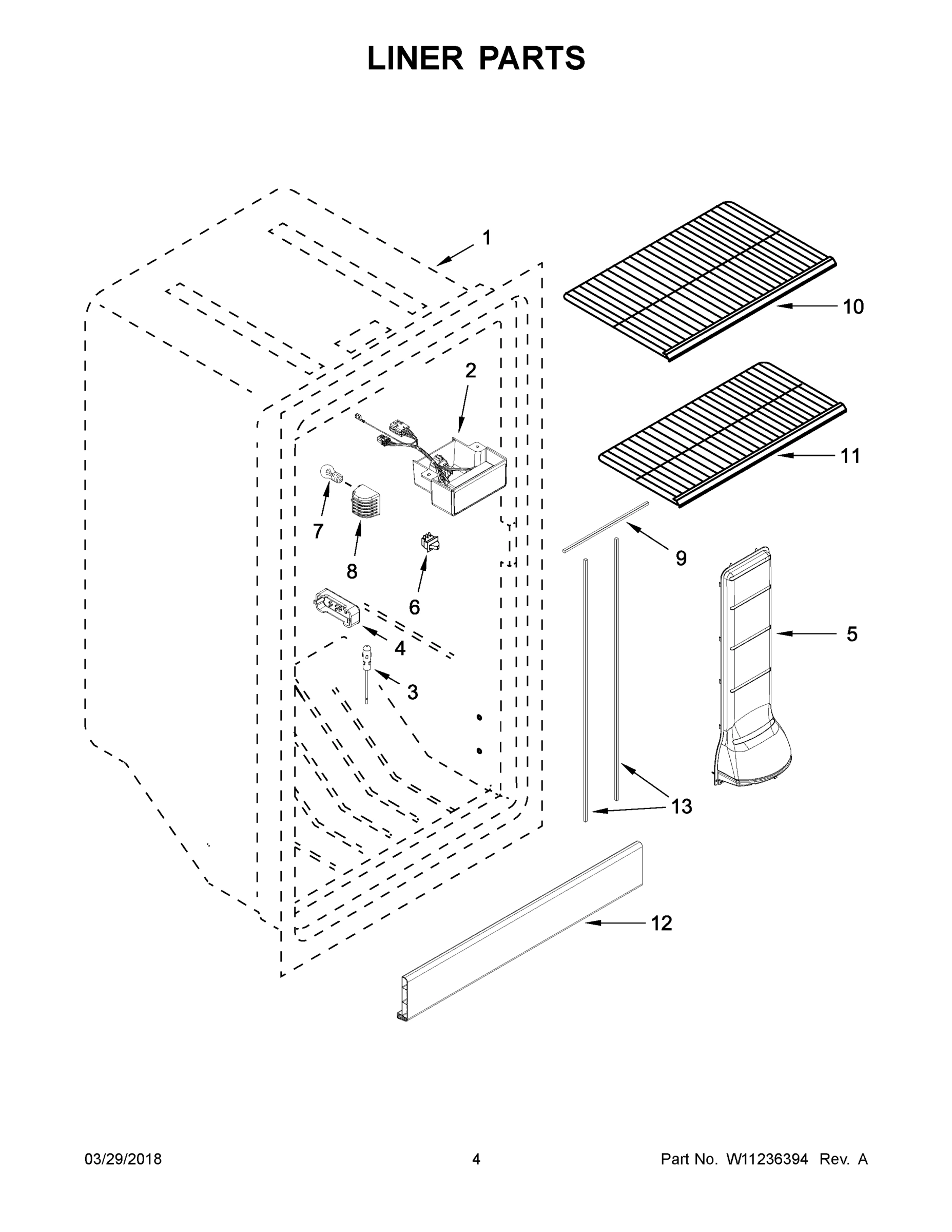

03 - LINER PARTS

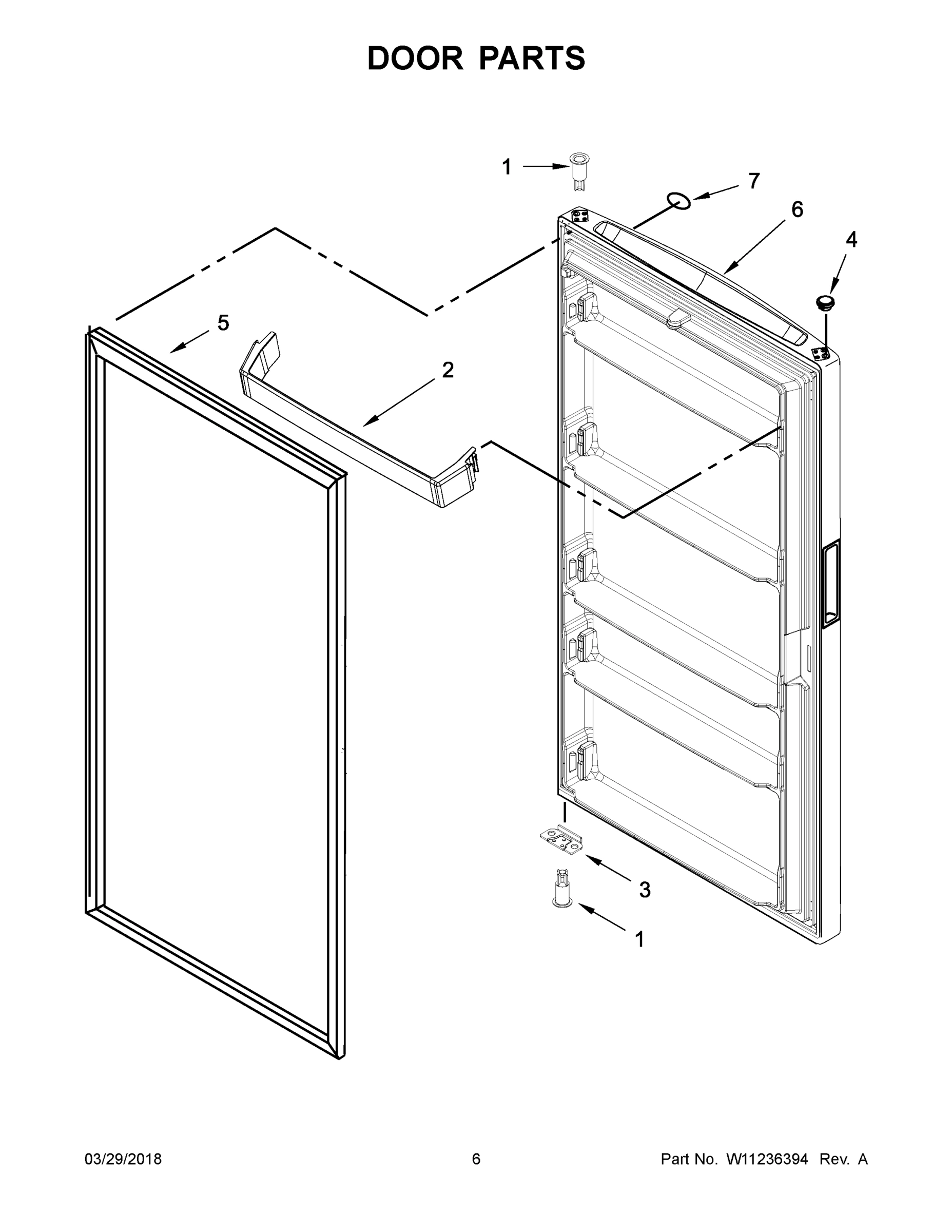

04 - DOOR PARTS

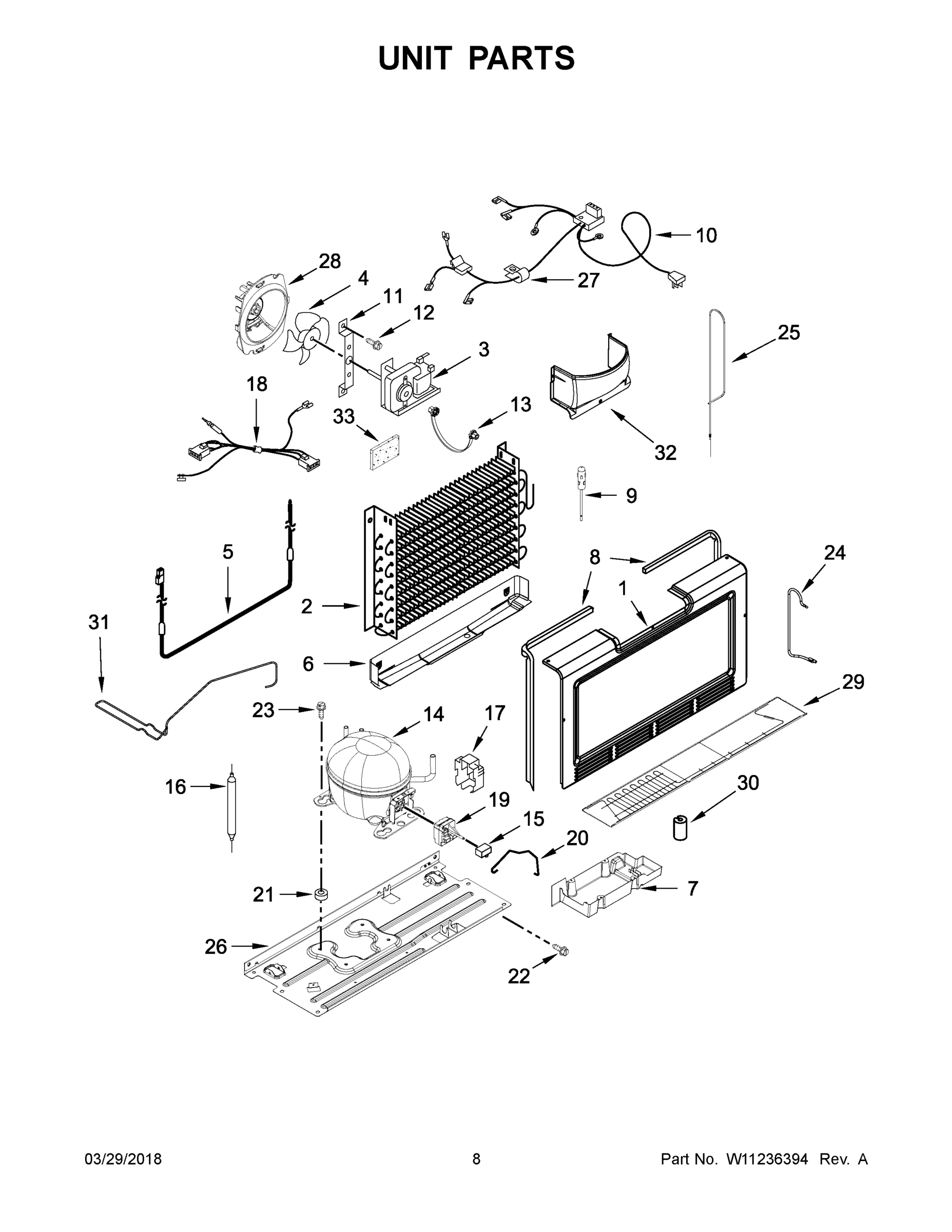

05 - UNIT PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AZF33X20DW03 FREEZER, VERTICAL
1
USE & CARE GUIDE MAY W10668409 Contact Us For Availability
1
THIMBLE MAY 2314293 Contact Us For Availability
1
COVER, EVAPORATOR MAY W10574307 Contact Us For Availability
1A
MAY W11115739 MAY W11115739 Contact Us For Availability
1B
TECH SHEET MAY W10653921 Contact Us For Availability
2
SCREW MAY 3-80675-105 Contact Us For Availability
2
MAY W11221332 MAY W11221332 Contact Us For Availability
2
RAIL, DOOR MAY 4-65451-001 Contact Us For Availability
2
EVAPORATOR MAY W10574283 Contact Us For Availability
3
COVER, UNIT MAY W10845755 Contact Us For Availability
3
THERMISTOR MAY W10384183 Contact Us For Availability
3
BRACKET, DOOR STOP MAY W10628869 Contact Us For Availability
3
MOTOR, FAN MAY W10359880 Contact Us For Availability
4
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
4
COVER, THERMISTOR MAY W10608692 Contact Us For Availability
4
PLUG, HOLE (WHITE) MAY 2212648 Contact Us For Availability
4
BLADE, FAN MAY 2169142 Contact Us For Availability
5
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
5
TOWER, AIR MAY W10574583 Contact Us For Availability
5
GASKET, DOOR (WHITE) MAY W10574475 Contact Us For Availability
5
HEATER, DEFROST MAY W10316428 Contact Us For Availability
6
PLATE, BOTTOM HINGE (WHITE) MAY W10574264 Contact Us For Availability
6
SWITCH, LIGHT MAY W10755325 Contact Us For Availability
6
ASSEMBLY, DOOR (INCLUDES HANDLE CUP) (WHITE) MAY W10574713 Contact Us For Availability
6
SHIELD, HEAT MAY W10314195 Contact Us For Availability
7
PLUG, HOLE (WHITE) MAY W10520304 Contact Us For Availability
7
BULB, LIGHT MAY 2311792 Contact Us For Availability
7
BADGE (WHITE) MAY W11046244 Contact Us For Availability
7
PAN, EVAPORATOR DRAIN MAY W10574291 Contact Us For Availability
8
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
8
LENS, CONTROL BOX MAY W10569269 Contact Us For Availability
8
GASKET, EVAPORATOR COVER MAY W10574305 Contact Us For Availability
8A
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
9
SCREW MAY 3400113 Contact Us For Availability
9
GASKET, AIR TOWER (HORIZONTAL) MAY W10574564 Contact Us For Availability
9
THERMISTOR, EVAPORATOR MAY W10383615 Contact Us For Availability
10
TUBE, DRAIN MAY W10717194 Contact Us For Availability
10
SHELF, DEEP WIRE MAY W10569282 Contact Us For Availability
10
WIRE HARNESS (INCLUDES POWER CORD) MAY W11117597 Contact Us For Availability
11
SCREW MAY W10336489 Contact Us For Availability
11
SHELF, SHALLOW WIRE MAY W10569283 Contact Us For Availability
11
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
12
TRIM, DOOR MAY W10581590 Contact Us For Availability
12
SCREW MAY 3-80732-014 Contact Us For Availability
13
PIN, LOWER HINGE MAY W10574325 Contact Us For Availability
13
GASKET, AIR TOWER (VERTICAL) MAY W10574368 Contact Us For Availability
13
GROMMET, FAN MOTOR MAY W10150583 Contact Us For Availability
14
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
14
COMPRESSOR MAY W10591687 Contact Us For Availability
15
GRILL, FRONT (WHITE) MAY W10534161 Contact Us For Availability
15
CAPACITOR MAY W10350564 Contact Us For Availability
16
ROLLER MAY 2150304 Contact Us For Availability
16
DRIER MAY W10709968 Contact Us For Availability
17
AXLE, RIVET MAY 2179826 Contact Us For Availability
17
SHIELD, CAPACITOR MAY W10574450 Contact Us For Availability
18
HARNESS, EVAPORATOR FAN MAY W11103760 Contact Us For Availability
19
DEVICE, START MAY W10872275 Contact Us For Availability
20
STRAP, BALE MAY W10574470 Contact Us For Availability
21
GROMMET MAY 2183042 Contact Us For Availability
22
BOLT MAY W10142287 Contact Us For Availability
23
SCREW MAY 489473 Contact Us For Availability
24
TUBE, SUCTION MAY W10861955 Contact Us For Availability
26
PAN, COMPRESSOR MAY W10574497 Contact Us For Availability
27
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
28
SHROUD, EVAPORATOR FAN MAY W10574469 Contact Us For Availability
30
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
31
TUBE, DISCHARGE MAY W10574478 Contact Us For Availability
32
COVER, EVAPORATOR FAN MAY W10574581 Contact Us For Availability
33
SEALER, INSULATION MAY 2169104 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.6 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. GRAPHITE) MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
× ![]()
