Model Whirlpool ARTS6650E ELECTRIC RANGE – Common Parts & Diagrams

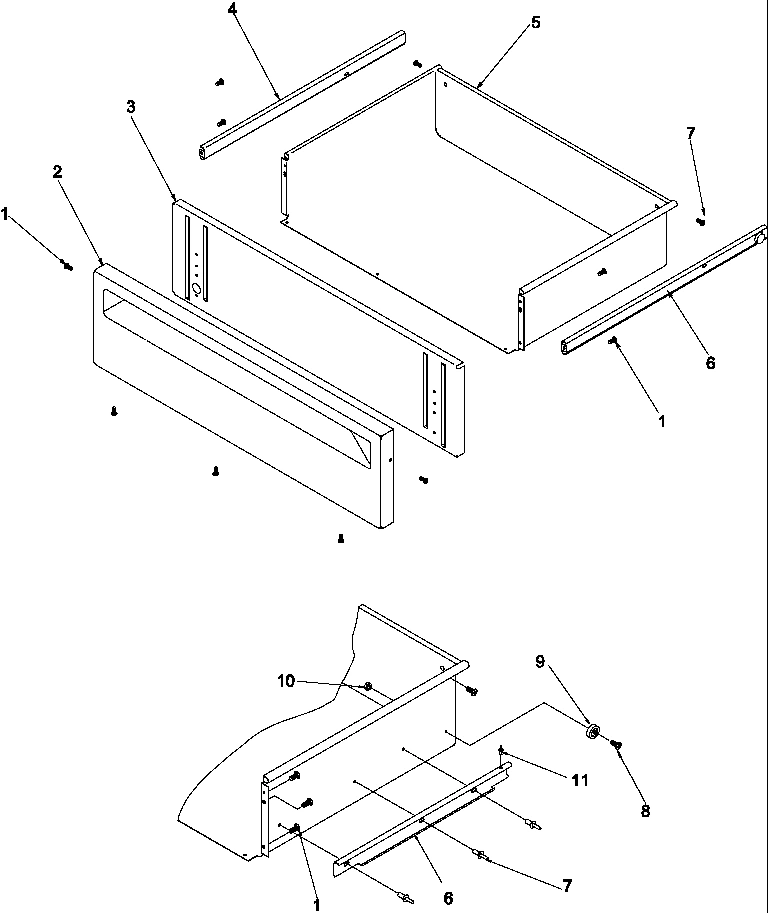

06 - STORAGE DRAWER

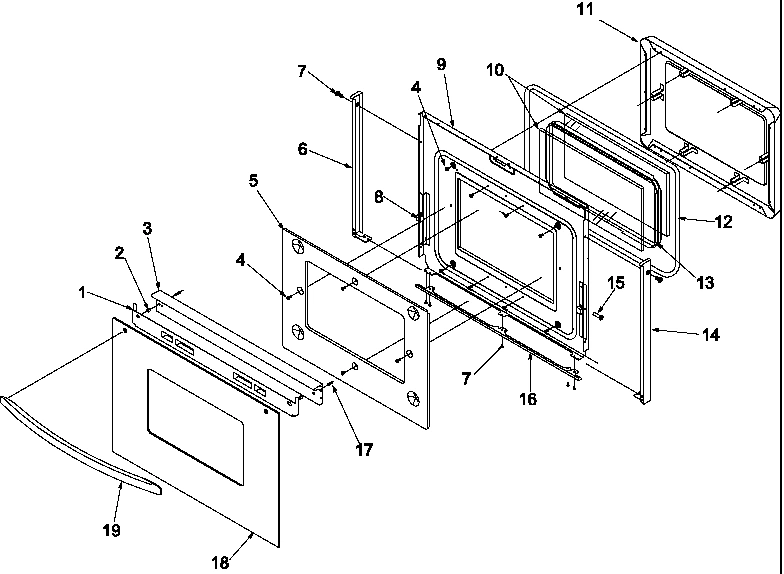

05 - OVEN DOOR

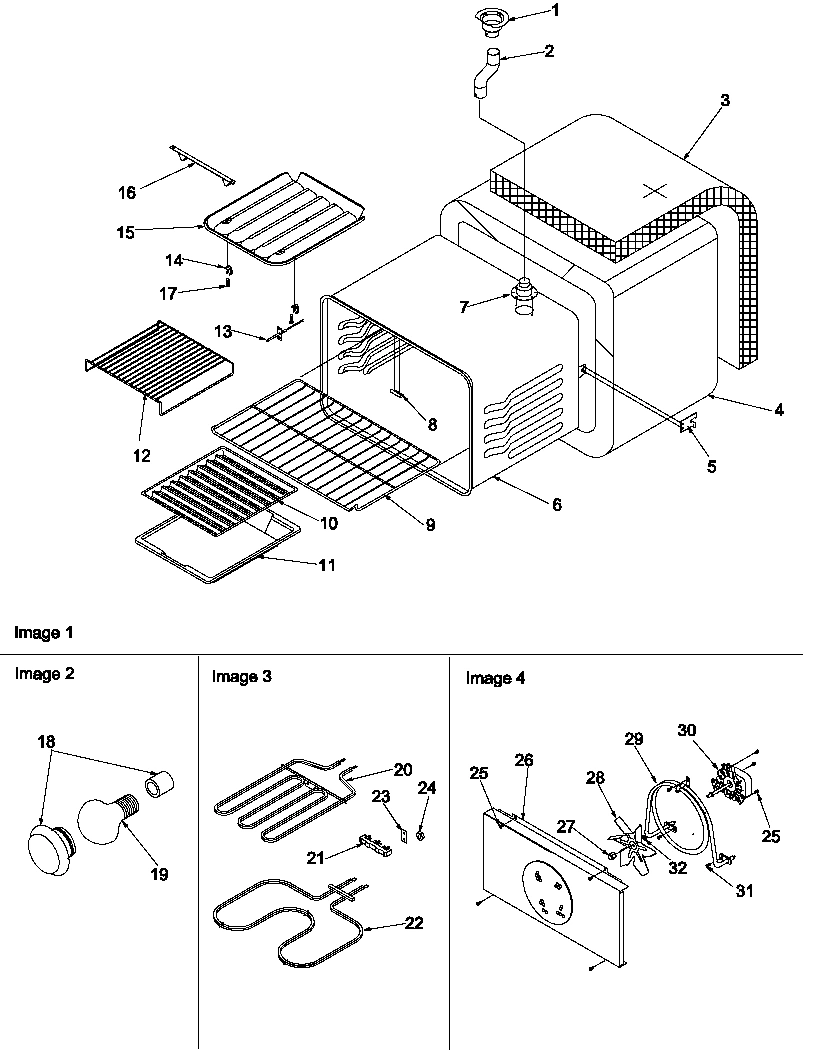

02 - CAVITY

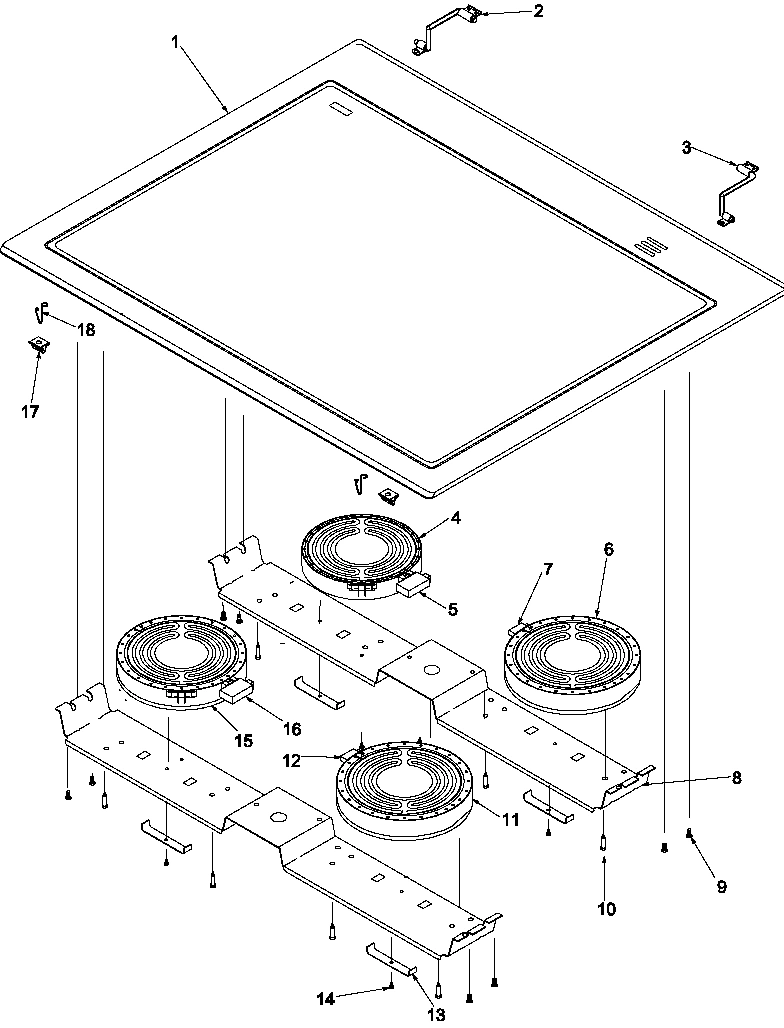

04 - MAIN TOP

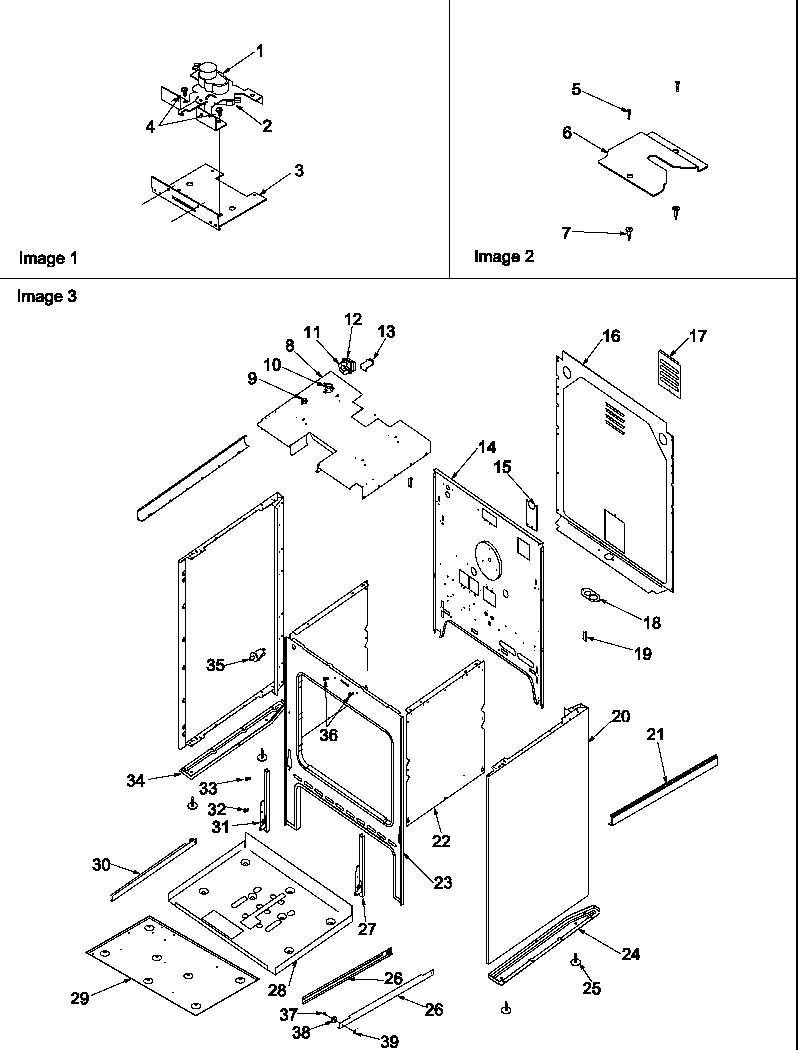

01 - CABINET

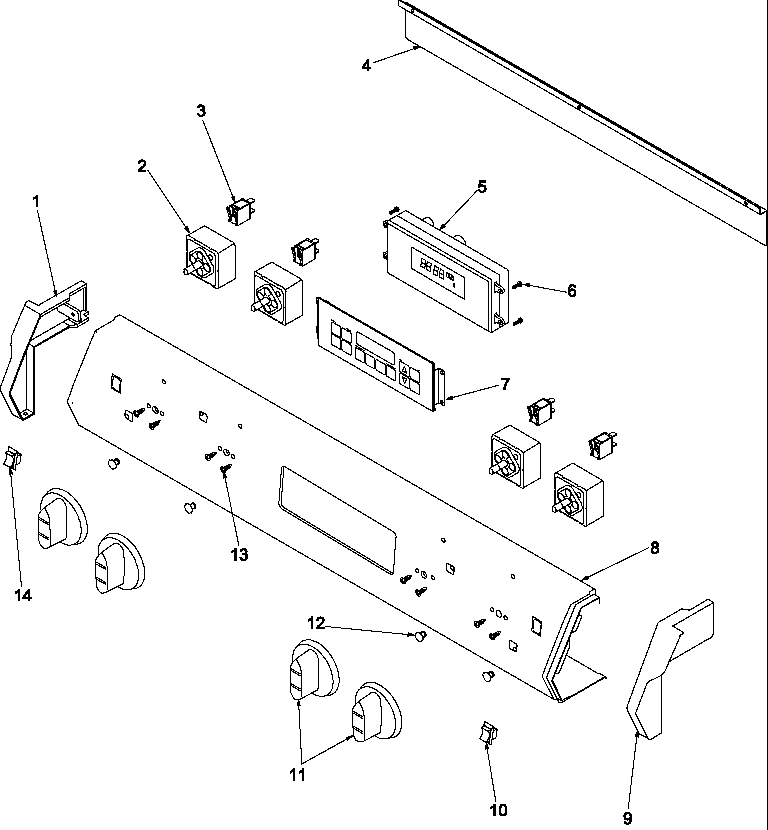

03 - CONTROL PANEL
Common parts from model Whirlpool ARTS6650E ELECTRIC RANGE
1
ASSY, GLASS HEAT SHIELD WPL 316981B Contact Us For Availability
1
ADAPTER, VENT TUBE WPL Y0316762 Contact Us For Availability
1
ASSY,MAINTOP/GLASS(BLACK) WPL 316166B Contact Us For Availability
1
LATCH, AUTO WPL Y0316541 Contact Us For Availability
1
END CAP, CONT PNL (LT-BLK) WPL 31742701B Contact Us For Availability
2
PANEL, DRAWER (BLK) WPL 309176B Contact Us For Availability
2
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
2
TUBE, VENT WPL Y0316169 Contact Us For Availability
2
HINGE, MAIN TOP (LT) WPL 31769702 Contact Us For Availability
2
SWITCH WPL 0316767 Contact Us For Availability
3
LINER, DRAWER PANEL (BLK) WPL 309178B Contact Us For Availability
3
TRIM, DOOR TOP WPL 31782102B Contact Us For Availability
3
INSULATION, REAR WPL Y0300974 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 31769701 Contact Us For Availability
3
BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
4
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
4
HEAT SHIELD, CONTROL PANEL WPL 0316650 Contact Us For Availability
5
DRAWER, STORAGE (WHT) WPL 31733502W Contact Us For Availability
5
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
5
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
5
LIMITER (2000 WATTS) WPL 0316688 Contact Us For Availability
5
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
5
ERC3 (ELECTRIC) WPL Y0315570 Contact Us For Availability
6
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
6
END CAP, DOOR (LT-BLK) WPL 309523B Contact Us For Availability
6
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
7
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
7
RIVET, POP WPL Y0076357 Contact Us For Availability
7
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
7
LIMITER (1500 WATTS) WPL 0316687 Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
7
OVERLAY, MYLAR ERC (BLK) WPL 315851B Contact Us For Availability
8
COVER, CHIP WPL Y0315022 Contact Us For Availability
8
BRACKET, ELEMENT WPL Y0316165 Contact Us For Availability
8
RETAINER, TOP INSULATION WPL 31723601 Contact Us For Availability
8
PANEL, CONTROL (BLACK) WPL 316360B Contact Us For Availability
9
BACKER, OVEN DOOR WPL 317023CG Contact Us For Availability
9
CONTROL, FAN WPL Y0308417 Contact Us For Availability
9
END CAP, CONT PNL (RT-BLK) WPL 31742704B Contact Us For Availability
10
GLASS, DOOR WPL Y0317019 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
THERMOSTAT, HIGH LIMIT WPL Y0316699 Contact Us For Availability
10
SWITCH, ROCKER WPL 316160B Contact Us For Availability
11
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
11
BLADE, FAN WPL Y0314375 Contact Us For Availability
11
KNOB, INFINITE SW (BLK) WPL 316368B Contact Us For Availability
12
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
FAN ASSY, COOLING (W/BLADE) WPL Y0309884 Contact Us For Availability
12
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
13
FRAME, WINDOW PACK WPL Y0317020 Contact Us For Availability
13
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
13
BRACKET, Z FAN WPL 0314183 Contact Us For Availability
13
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
14
END CAP, DOOR (RT-BLK) WPL 309522B Contact Us For Availability
14
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
14
RETAINER, REAR INSUL WPL Y0315778 Contact Us For Availability
14
SWITCH, ROCKER WPL Y0063997 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
15
BRKT, VENT TUBE WPL 0316382 Contact Us For Availability
16
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
16
RIVET, POP WPL Y0097822 Contact Us For Availability
16
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
16
COVER, REAR WPL Y0307342 Contact Us For Availability
17
SCREW, 10-32 X 1.250`` PAN HD WPL Y0316239 Contact Us For Availability
17
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
18
GLASS, OVEN DOOR (BLK) WPL 316238B Contact Us For Availability
18
BULB, LIGHT WPL Y0042175 Contact Us For Availability
18
CLIP, SPRING WPL Y0316394 Contact Us For Availability
18
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
19
HANDLE, OVEN DOOR (BLK) WPL 31689501B Contact Us For Availability
19
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
20
PANEL, SIDE (BLK) WPL 317036B Contact Us For Availability
21
FILLER STRIP (BLK) WPL 316325B Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
23
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
23
SEE NOTE FRONT FRAME-ENAMELED -- (NOT FIELD R WPL Y00000000 Contact Us For Availability
24
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
25
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
26
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
27
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
28
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
29
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
30
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
31
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
34
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
35
SWITCH- OVEN DOOR WPL Y0316882 Contact Us For Availability
36
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
NI
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
NUT, SPEED No.6-32 WPL 31750121 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability
× ![]()
