Model Whirlpool ARTC8600WW ELECTRIC RANGE – Common Parts & Diagrams
03 - CAVITY

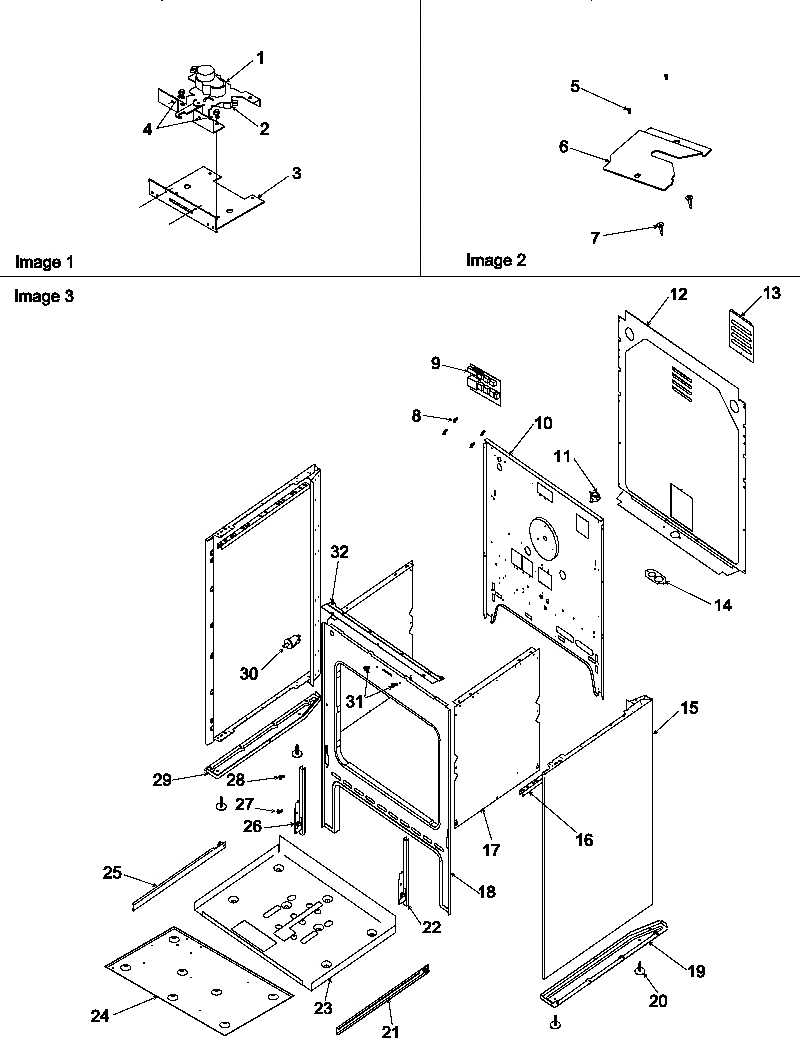

02 - CABINET

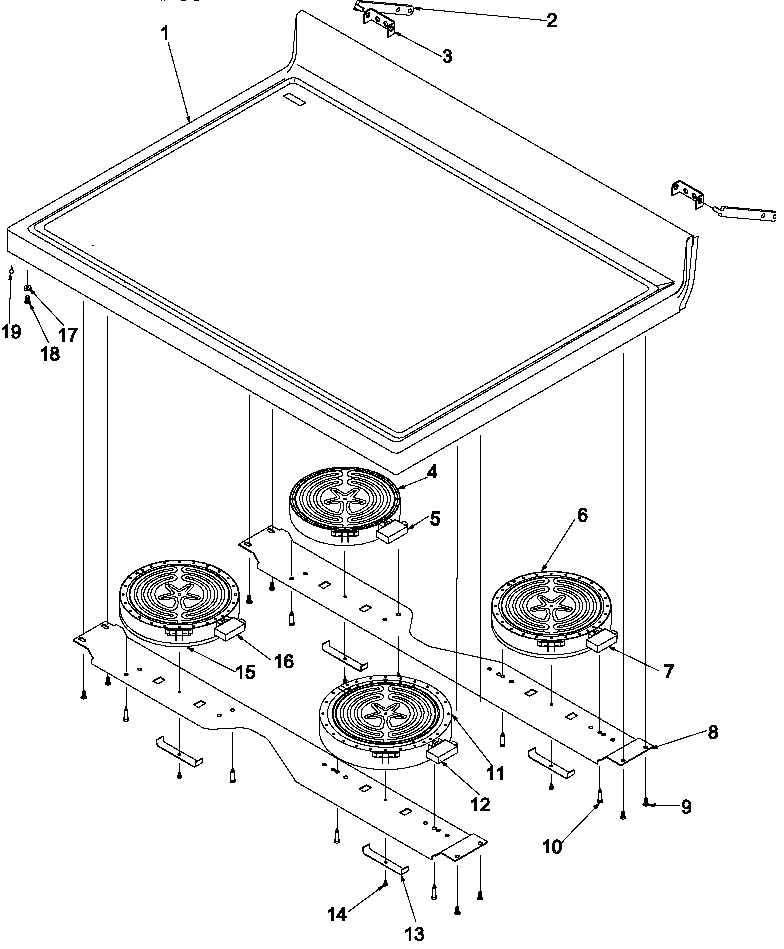

04 - MAIN TOP

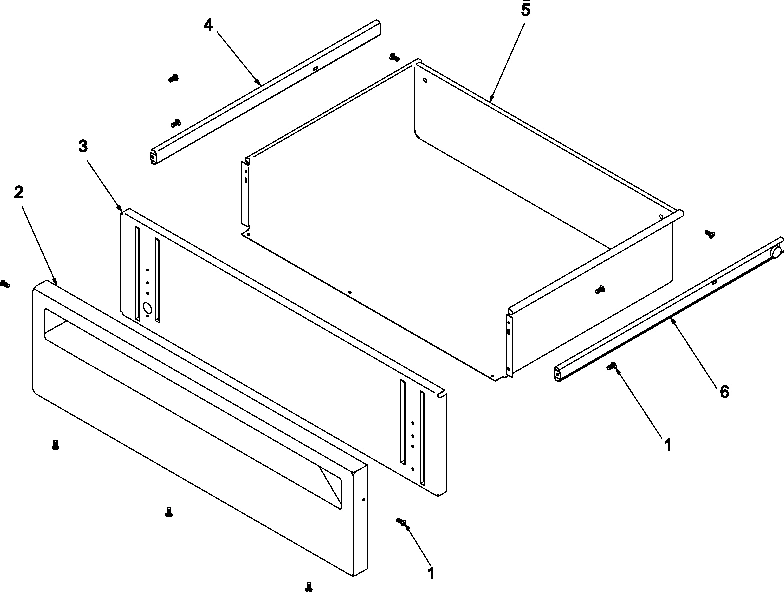

06 - STORAGE DRAWER

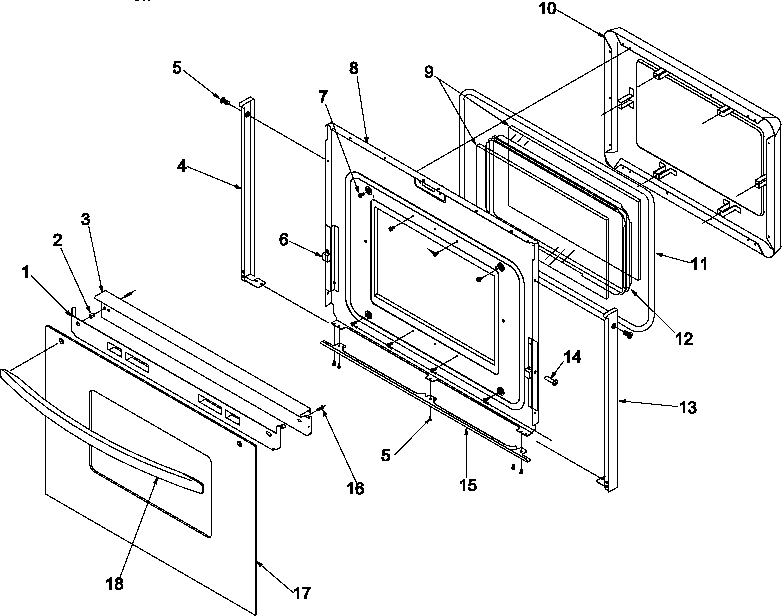

05 - OVEN DOOR

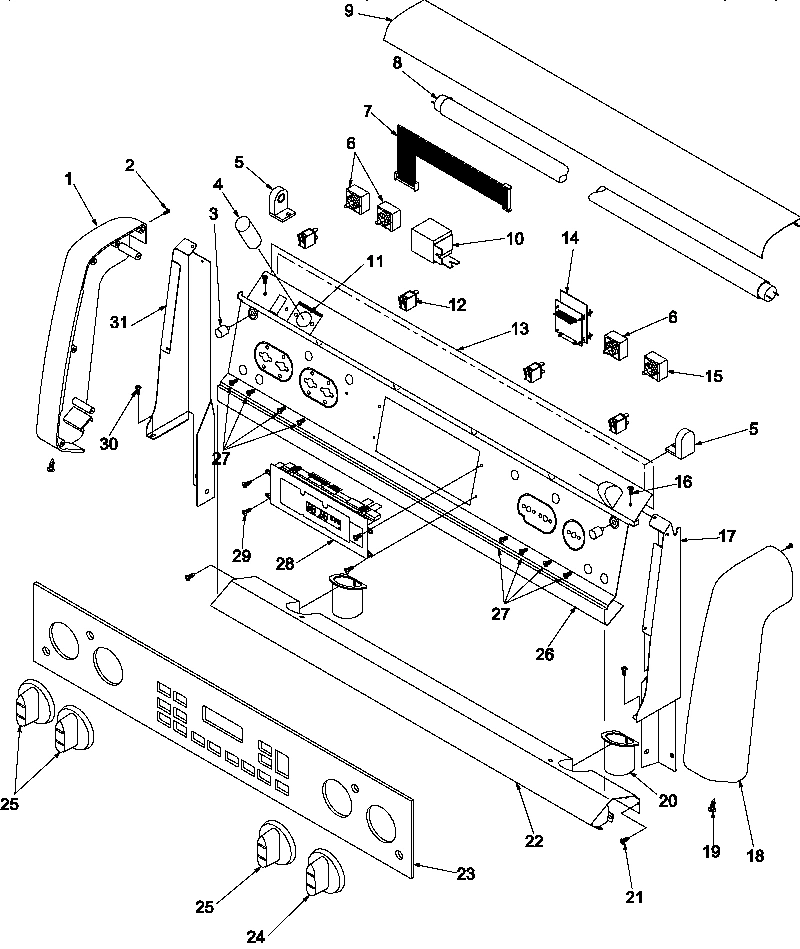

01 - BACKGUARD
Common parts from model Whirlpool ARTC8600WW ELECTRIC RANGE
1
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
1
ASSY,TOP & GLASS(WHITE-WHITE) WPL 316736WW Contact Us For Availability
1
ASSY, GLASS HEAT SHIELD WPL 316981W Contact Us For Availability
1
END CAP-GLASS BKGD LH WPL 315844W Contact Us For Availability
2
INSULATION, REAR WPL Y0316949 Contact Us For Availability
2
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
PANEL, DRAWER (WHT) WPL 309177W Contact Us For Availability
2
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
3
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
3
BRKT, LATCH MTG WPL Y0316243 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
3
TRIM, DOOR TOP WPL 31782104W Contact Us For Availability
3
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
4
END CAP, LT (WHT) WPL 309458W Contact Us For Availability
4
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
5
OVEN, CAVITY (ENAMELLED) WPL 316964CG Contact Us For Availability
5
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
5
LIMITER (2000 WATTS) WPL 0316688 Contact Us For Availability
5
DRAWER, STORAGE (WHT) WPL 316253W Contact Us For Availability
5
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
6
SMOKE ELIMINATOR, SHORT WPL Y0316952 Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
6
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
6
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
7
COVER, CHIP WPL Y0315022 Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
7
LIMITER (1500 WATTS) WPL 0316687 Contact Us For Availability
7
HARNESS, WIRING WPL 0314521 Contact Us For Availability
8
RACK, OVEN WPL 309988J Contact Us For Availability
8
SUPPORT-CIRCUIT BOARD WPL Y0306900 Contact Us For Availability
8
BRKT, ELEMENT WPL Y0316248 Contact Us For Availability
8
BACKER, OVEN DOOR (ELEC) WPL 317028CG Contact Us For Availability
9
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
9
GLASS, DOOR WPL Y0317019 Contact Us For Availability
9
COVER, LIGHT WPL 315834W Contact Us For Availability
10
RETAINER, REAR (ELEC) WPL Y0316960 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
10
BALLAST WPL Y0071869 Contact Us For Availability
11
RACK, BROILER WPL Y0306531 Contact Us For Availability
11
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
11
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
11
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
12
COVER, REAR WPL Y0307342 Contact Us For Availability
12
LIMITER-DUAL WPL 0316689 Contact Us For Availability
12
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
13
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
13
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
13
END CAP, RT (WHT) WPL 309457W Contact Us For Availability
13
COVER, UPPER REAR WPL 0315887 Contact Us For Availability
14
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
14
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
14
BOARD, ADAPTER WPL Y0314034 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
PANEL, SIDE (WHT) WPL 317036W Contact Us For Availability
15
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
15
SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability
15
SWITCH, DUAL INF. WPL Y0315855 Contact Us For Availability
16
RIVET, POP WPL Y0097822 Contact Us For Availability
16
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
16
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
16
SCREW, 10-32 X 1.250`` PAN HD WPL Y0316793 Contact Us For Availability
17
GLASS, OVEN DR (WHITE) WPL 315944W Contact Us For Availability
17
BKGD. SUPPORT-RH WPL 315876W Contact Us For Availability
18
BULB, LIGHT WPL Y0042175 Contact Us For Availability
18
SEE NOTE FRONT FRAME,TALL-S/C W/LIGHT -- (NOT WPL Y00000000 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 316792W Contact Us For Availability
18
END CAP-GLASS BKGD RH WPL 315842W Contact Us For Availability
19
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
19
SPACER, SNAP-IN WPL 31717001 Contact Us For Availability
20
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
21
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
21
SCREW No.8ABX1/4 PH HD WPL Y0041807 Contact Us For Availability
22
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
22
HEAT SHIELD, LOWER BKGD TRIM WPL 31722701 Contact Us For Availability
23
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
23
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
23
GLASS,BACKGUARD WPL 315833W Contact Us For Availability
24
BLADE, FAN WPL Y0307036 Contact Us For Availability
24
KNOB, DUAL INFINITE (WHT) WPL 315848W Contact Us For Availability
25
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
25
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
25
KNOB, INFINITE SWITCH (WHT) WPL 315846W Contact Us For Availability
26
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
26
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
26
MTG. PNL, BKGD CONTROL WPL 315840W Contact Us For Availability
27
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
28
WASHER (ZN) WPL 0307038 Contact Us For Availability
28
ERC, 4800-CONTROL WPL Y0316739 Contact Us For Availability
29
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
29
SCREW, No.8-32 X 3/16`` WPL Y0316546 Contact Us For Availability
30
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
30
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
30
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
31
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
31
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
31
BKGD. SUPPORT-LH WPL 315877W Contact Us For Availability
32
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
NI
WIRE, INSULATION RETAINER 100`` WPL 31715801 Contact Us For Availability
NI
CLIP, TINNERMAN WPL 31730101 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PH TAPTITE) WPL Y0091599 Contact Us For Availability
NI
HARNESS, WIRING WPL Y0314570 Contact Us For Availability
NI
FASTENER, CLIP WPL 0306652 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
HARNESS, WIRE BKGD (CONV) WPL Y0315870 Contact Us For Availability
NI
HARNESS, WIRE BKGD (ERC-RELAY WPL Y0315920 Contact Us For Availability
× ![]()
