Model Whirlpool ART6610WW ELECTRIC RANGE – Common Parts & Diagrams

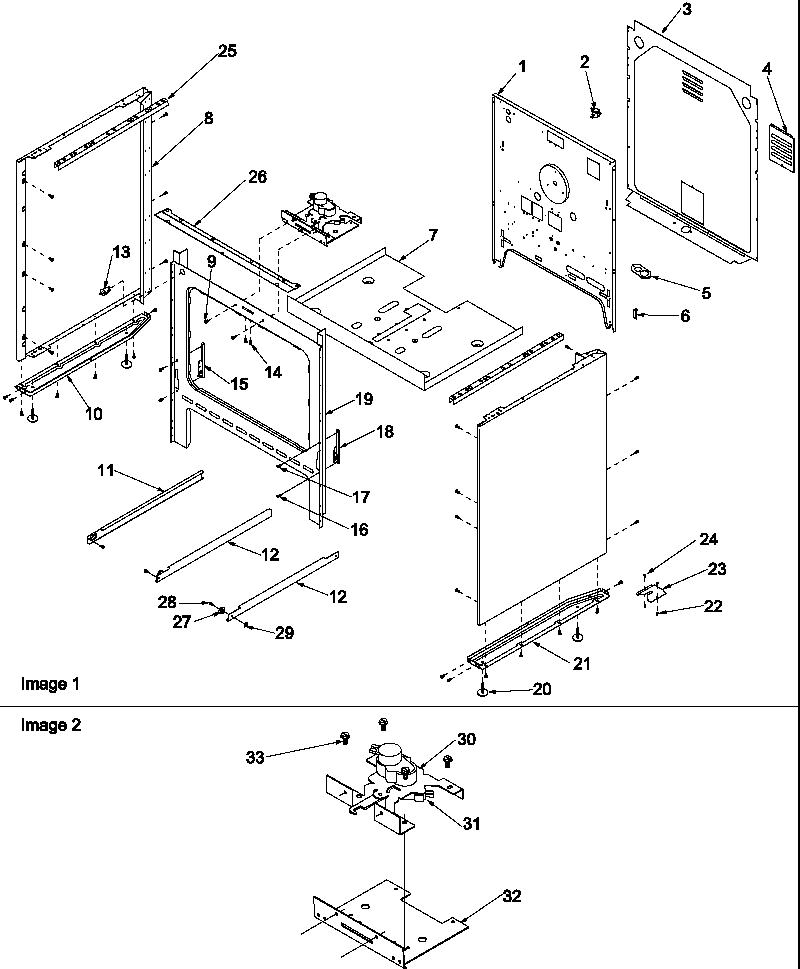

01 - CABINET
02 - CAVITY
04 - OVEN DOOR AND STORAGE DRAWER
03 - MAIN TOP AND BACKGUARD
Common parts from model Whirlpool ART6610WW ELECTRIC RANGE
1
TUBE, VENT WPL Y0316995 Contact Us For Availability
1
ASSY, GLASS HEAT SHIELD WPL 31783001 Contact Us For Availability
1
ASSY,TOP & GLASS(WHITE-WHITE) WPL 31721505WW Contact Us For Availability
2
INSULATION, REAR WPL Y0316949 Contact Us For Availability
2
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
3
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
3
TRIM, DOOR TOP WPL 31782104W Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
4
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
4
END CAP, LT (WHT) WPL 309458W Contact Us For Availability
5
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
5
OVEN SHELL (EL. W/LT) WPL 316953CG Contact Us For Availability
5
LIMITER (2000 WATTS) WPL 0316688 Contact Us For Availability
6
SMOKE ELIMINATOR, SHORT WPL Y0316952 Contact Us For Availability
6
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
7
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
7
COVER, CHIP WPL Y0315022 Contact Us For Availability
7
LIMITER (1500 WATTS) WPL 0316687 Contact Us For Availability
8
PANEL, SIDE (WHT) WPL 31734003W Contact Us For Availability
8
BACKER, OVEN DOOR (ELEC) WPL 317028CG Contact Us For Availability
8
BRACKET, ELEMENT WPL 31720701 Contact Us For Availability
9
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
9
GLASS, DOOR WPL Y0317019 Contact Us For Availability
10
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
10
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
11
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
12
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
12
FRAME, WINDOW PACK WPL Y0317020 Contact Us For Availability
12
LIMITER-DUAL WPL 0316689 Contact Us For Availability
13
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
13
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
13
END CAP, RT (WHT) WPL 309457W Contact Us For Availability
14
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
15
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
15
SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability
15
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
16
SCREW, No.10-32 X 1.250`` PAN HD WPL 31750518 Contact Us For Availability
16
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
17
BULB, LIGHT WPL Y0042175 Contact Us For Availability
17
GLASS, OVEN DR (WHITE) WPL 315944W Contact Us For Availability
17
SPACER, SNAP-IN WPL 31717001 Contact Us For Availability
18
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
18
HANDLE, OVEN DOOR (WHT) WPL 31689503W Contact Us For Availability
19
SEE NOTE FRONTFRAME, S/C W/LIGHT -- (NOT FIEL WPL Y00000000 Contact Us For Availability
19
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
19
END CAP-GLASS BKGD LH WPL 315844W Contact Us For Availability
20
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
21
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
21
PANEL, DRAWER (WHT) WPL 309177W Contact Us For Availability
21
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
22
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
22
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
22
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
23
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
23
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
24
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
24
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
25
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
25
RIVET, POP WPL Y0097822 Contact Us For Availability
25
COVER, LIGHT WPL 315834W Contact Us For Availability
26
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
26
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
26
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
27
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
27
BALLAST WPL Y0071869 Contact Us For Availability
28
COVER, UPPER REAR WPL 0315887 Contact Us For Availability
29
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
30
LATCH, AUTO WPL Y0316541 Contact Us For Availability
31
SWITCH WPL 0316767 Contact Us For Availability
32
BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability
32
BKGD. SUPPORT-RH WPL 315876W Contact Us For Availability
33
END CAP-GLASS BKGD RH WPL 315842W Contact Us For Availability
35
SHIELD, BKGD TRIM HEAT WPL 31722702B Contact Us For Availability
36
SCREW, No.8-18 X 1/4 PTRSHD(BLK) WPL 31750409 Contact Us For Availability
37
GLASS, BKGD WPL 315831W Contact Us For Availability
38
KNOB, INFINITE SWITCH (WHT) WPL 31760202W Contact Us For Availability
39
SWITCH, SPST WPL 315858W Contact Us For Availability
40
BUTTON, ERC WPL 315850W Contact Us For Availability
41
MTG. PNL, BKGD. CONTROL WPL 315839W Contact Us For Availability
42
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
43
ERC3 (ELECTRIC) WPL Y0315570 Contact Us For Availability
44
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
46
BKGD. SUPPORT-LH WPL 315877W Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability
NI
WIRE, INSULATION RETAINER 100`` WPL 31715801 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
NI
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
HARNESS, BKGD ERC WPL Y0315869 Contact Us For Availability
NI
HARNESS, WIRE (RADIANT ELEM LH WPL Y0316502 Contact Us For Availability
NI
HARNESS, WIRE WPL Y0316503 Contact Us For Availability
× ![]()
