Model Whirlpool ART6510WW ELECTRIC RANGE – Common Parts & Diagrams

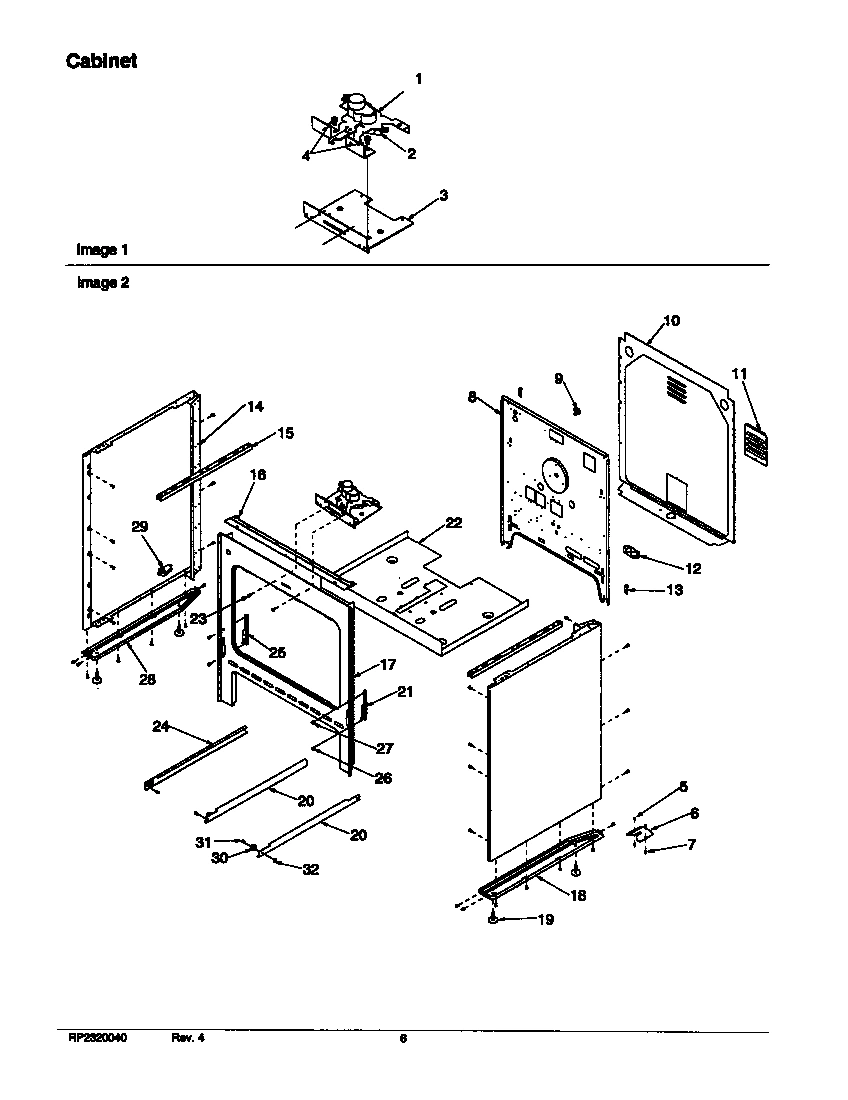

01 - CABINET
03 - MAIN TOP AND BACKGUARD
02 - CAVITY
04 - OVEN DOOR AND STORAGE DRAWER
Common parts from model Whirlpool ART6510WW ELECTRIC RANGE
1
ASSY,TOP & GLASS(WHITE-WHITE) WPL 31722305WW Contact Us For Availability
1
TUBE, VENT WPL Y0316995 Contact Us For Availability
1
ASSY, GLASS HEAT SHIELD WPL 31783001 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
INSULATION, REAR WPL Y0316949 Contact Us For Availability
2
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
3
TRIM, DOOR TOP WPL 31782104W Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
4
END CAP, LT (WHT) WPL 309458W Contact Us For Availability
5
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
5
LIMITER (2000 WATTS) WPL 0316688 Contact Us For Availability
5
OVEN SHELL (EL. W/LT) WPL 316953CG Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
6
SMOKE ELIMINATOR, SHORT WPL Y0316952 Contact Us For Availability
6
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
7
LIMITER (1500 WATTS) WPL 0316687 Contact Us For Availability
7
COVER, CHIP WPL Y0315022 Contact Us For Availability
7
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
8
RETAINER, REAR (ELEC) WPL 31733901 Contact Us For Availability
8
BRACKET, ELEMENT WPL 31720701 Contact Us For Availability
8
BACKER, OVEN DOOR (ELEC) WPL 317028CG Contact Us For Availability
9
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
9
GLASS, DOOR WPL Y0317019 Contact Us For Availability
10
COVER, REAR WPL 31757101 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
11
PLATE, ACCESS WPL 31757201 Contact Us For Availability
11
ELEMENT, RIBBON (2500W) WPL Y0314910 Contact Us For Availability
11
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
12
LIMITER (600 DEGREE C) WPL 0316700 Contact Us For Availability
12
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
12
FRAME, WINDOW PACK WPL Y0317020 Contact Us For Availability
13
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
13
END CAP, RT (WHT) WPL 309457W Contact Us For Availability
14
PANEL, SIDE (WHT) WPL 31825104W Contact Us For Availability
14
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
15
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
15
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
15
SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability
16
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
16
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
16
SCREW, No.10-32 X 1.250`` PAN HD WPL 31750518 Contact Us For Availability
17
SEE NOTE FRONT FRAME,TALL-S/C W/LIGHT(NOT FIE WPL Y00000000 Contact Us For Availability
17
SPACER, SNAP-IN WPL 31717001 Contact Us For Availability
17
GLASS, OVEN DR (WHITE) WPL 315944W Contact Us For Availability
18
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
18
HANDLE, OVEN DOOR (WHT) WPL 31689503W Contact Us For Availability
19
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
19
BULB, LIGHT WPL Y0042175 Contact Us For Availability
19
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
20
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
20
ERC3 (ELECTRIC) WPL Y0315570 Contact Us For Availability
21
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
21
PANEL, DRAWER (WHT) WPL 309177W Contact Us For Availability
22
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
22
OVERLAY, ERC3 MYLAR WPL 315851W Contact Us For Availability
23
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
23
DRAWER, STORAGE (WHT) WPL 31733502W Contact Us For Availability
24
COVER, UPPER REAR WPL 0315887 Contact Us For Availability
24
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
24
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
25
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
25
PANEL, BKGD WPL 31749804W Contact Us For Availability
25
RIVET, POP WPL Y0097822 Contact Us For Availability
26
BKGD. SUPPORT-RH WPL 315876W Contact Us For Availability
27
END CAP RH WPL 315841W Contact Us For Availability
28
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
28
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
28
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
29
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
30
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
30
SHIELD, BKGD TRIM HEAT WPL 31722704B Contact Us For Availability
31
KNOB, INFINITE SWITCH (WHT) WPL 31760102W Contact Us For Availability
32
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
33
SWITCH, ROCKER WPL 301491W Contact Us For Availability
34
BKGD. SUPPORT-LH WPL 315877W Contact Us For Availability
35
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
36
END CAP LH WPL 315843W Contact Us For Availability
NI
CLIP, TINNERMAN WPL 31730101 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
NI
SCREW, No.8-18 X 3/8 PPH (BLK) WPL 31750407 Contact Us For Availability
NI
SCREW, No.8-18 X 3/8 PPH WPL 31750425 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL 31750426 Contact Us For Availability
NI
HARNESS, WIRE (RADIANT ELEM LH WPL Y0316502 Contact Us For Availability
NI
WIRE, INSULATION RETAINER 100`` WPL 31715801 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
× ![]()
