Model Whirlpool ART6112LL ELECTRIC RANGE – Common Parts & Diagrams
01 - CABINET

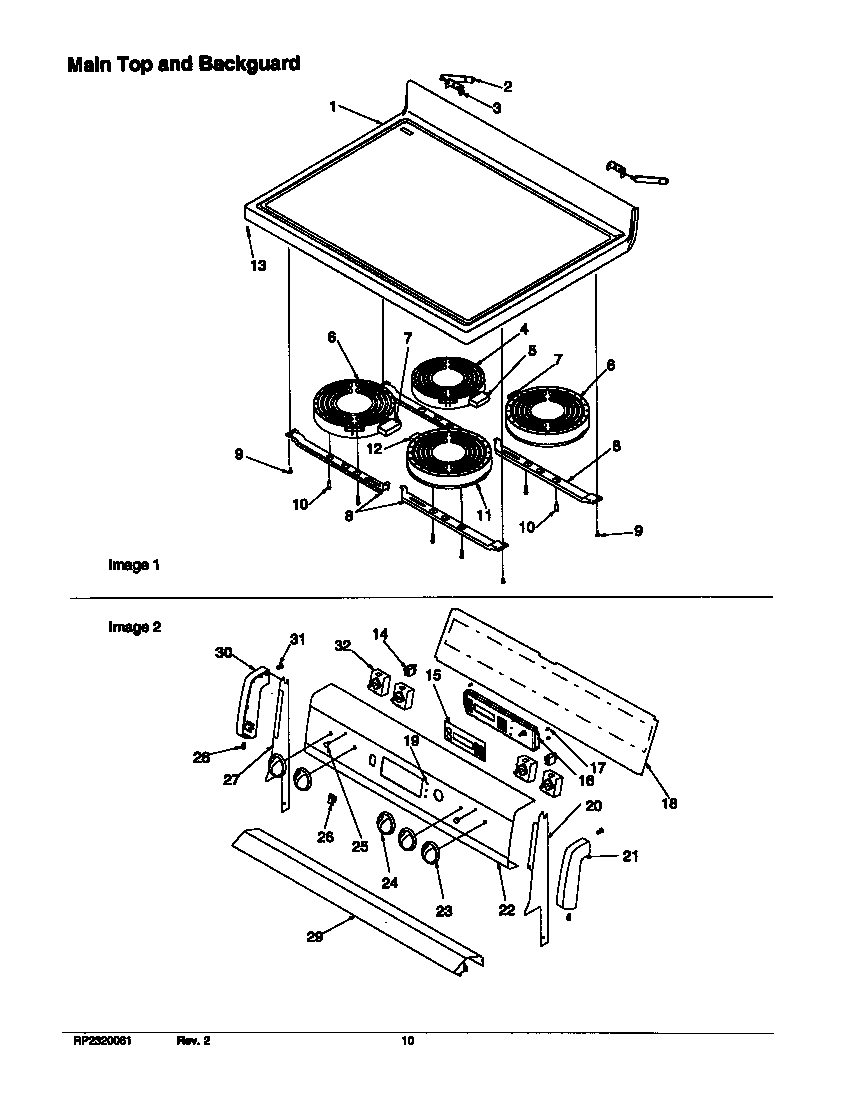

03 - MAIN TOP AND BACKGUARD

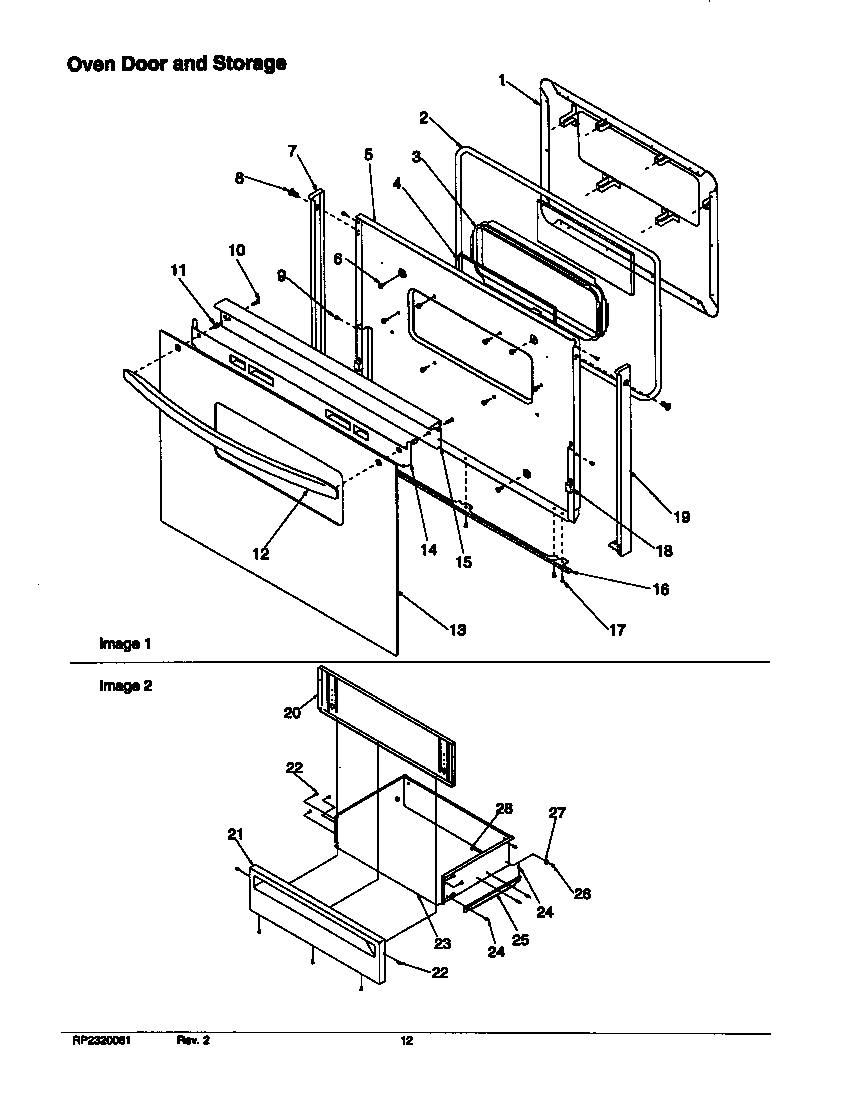

04 - OVEN DOOR AND STORAGE

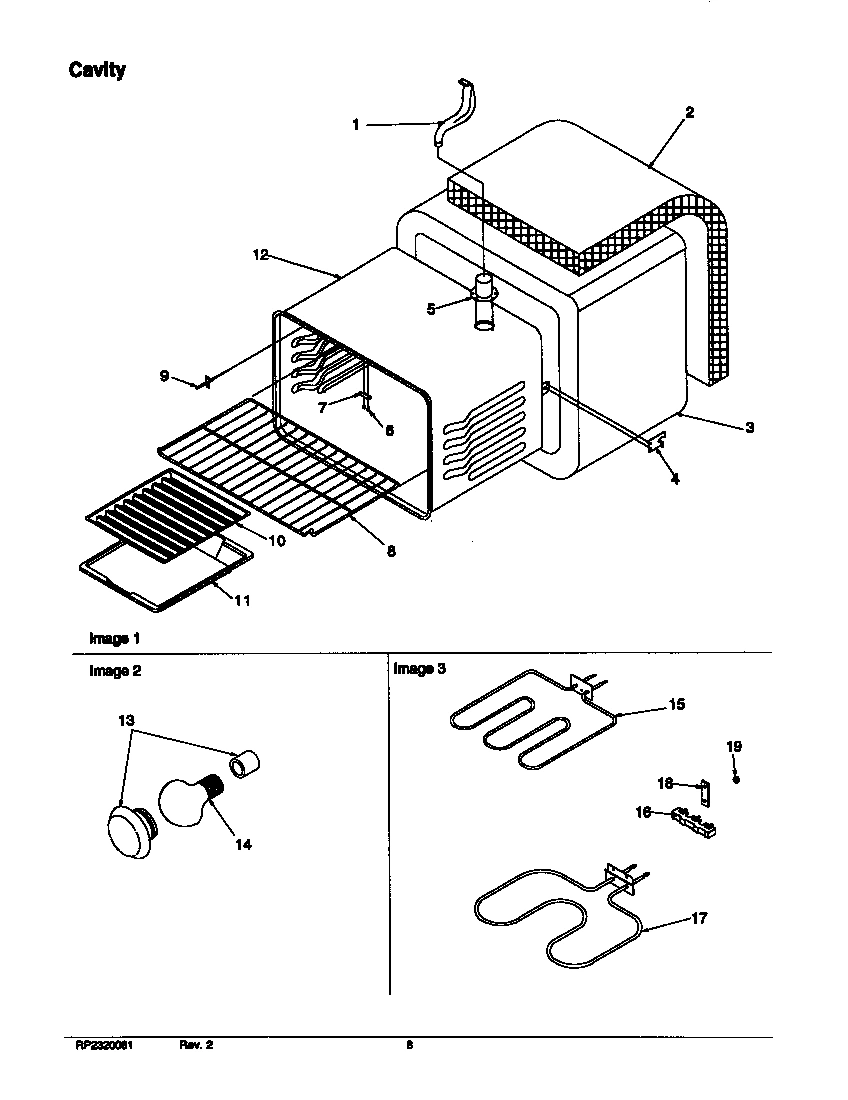

02 - CAVITY
Common parts from model Whirlpool ART6112LL ELECTRIC RANGE
1
ASSY, TOP & GLASS (ART6110 ALD WPL 31721303L Contact Us For Availability
1
PAD, DOOR (ENAMELED) WPL 316976CG Contact Us For Availability
1
TUBE, VENT WPL Y0316995 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
2
INSULATION, REAR WPL Y0316949 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
FRAME, WINDOW PACK WPL Y0316975 Contact Us For Availability
3
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
4
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
4
GLASS, DOUBLE COATED WPL Y0316974 Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
5
PANEL, SIDE (ALM) WPL 31825103L Contact Us For Availability
5
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
5
BACKER, OVEN DOOR (SM WINDOW) WPL 316978CG Contact Us For Availability
5
SMOKE ELIMINATOR, SHORT WPL Y0316952 Contact Us For Availability
6
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
6
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
7
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
7
LIMITER (1500 WATTS) WPL 0316687 Contact Us For Availability
7
END CAP, LT (ALM) WPL 309458L Contact Us For Availability
7
COVER, CHIP WPL Y0315022 Contact Us For Availability
8
SWITCH, OVEN LIGHT WPL Y0314367 Contact Us For Availability
8
BRACKET, ELEMENT WPL 31720701 Contact Us For Availability
9
RIVET, POP WPL Y0302648 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
SCREW, No.10-32 X 1.250`` PAN HD WPL 31750518 Contact Us For Availability
10
PAN, BROILER WPL 31793702CG Contact Us For Availability
11
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
11
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
12
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
12
LIMITER (2000 WATTS) WPL 0316688 Contact Us For Availability
12
HANDLE, OVEN DOOR (ALM) WPL 31689502L Contact Us For Availability
12
OVEN SHELL (EL. W/LT) WPL 316953CG Contact Us For Availability
13
SPACER, SNAP-IN WPL 31717001 Contact Us For Availability
13
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
13
GLASS, OVEN DOOR WPL 315943L Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
14
ASSY, GLASS HEAT SHIELD WPL 31833201 Contact Us For Availability
14
BULB, LIGHT WPL Y0042175 Contact Us For Availability
15
SEE NOTE FRONT FRAME,TALL -- (NOT FIELD REPLA WPL Y00000000 Contact Us For Availability
15
OVERLAY, MYLAR (ALMOND) WPL 31777903L Contact Us For Availability
15
TRIM, DOOR TOP WPL 31782103L Contact Us For Availability
16
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
16
KRC ELECTRIC WPL 31771301 Contact Us For Availability
16
SUPPORT, GLASS (ALM) WPL 309460L Contact Us For Availability
18
COVER, UPPER REAR WPL 0315887 Contact Us For Availability
18
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
19
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
19
LENS, IND LIGHT (MINI SNAP IN) WPL 31780501 Contact Us For Availability
19
END CAP, RT (ALM) WPL 309457L Contact Us For Availability
19
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
20
BKGD. SUPPORT-RH WPL 315876L Contact Us For Availability
20
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
21
END CAP-METAL BKGD RH WPL 315841L Contact Us For Availability
21
PANEL, DRAWER (ALM) WPL 309177L Contact Us For Availability
22
PANEL, BG SCREEN WPL 31779405L Contact Us For Availability
23
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
23
KNOB, INFINITE SWITCH (ALM) WPL 31760103L Contact Us For Availability
23
DRAWER, STORAGE (WHT) WPL 31733502W Contact Us For Availability
24
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
24
KNOB, THERMOSTAT KRC (ALM) WPL 31760309L Contact Us For Availability
24
RIVET, POP WPL Y0097822 Contact Us For Availability
25
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
25
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
25
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
26
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
26
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
26
SWITCH, ROCKER (ALMOND) WPL 301491L Contact Us For Availability
27
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
27
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
27
BKGD. SUPPORT-LH WPL 315877L Contact Us For Availability
28
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
28
SCREW, No.8-18 X 1/4 PTRSHD(BLK) WPL 31750409 Contact Us For Availability
29
SHIELD, BKGD TRIM HEAT WPL 31722704B Contact Us For Availability
30
LATCH, OVEN DOOR (ELEC) WPL 31719901 Contact Us For Availability
30
END CAP LH WPL 315843L Contact Us For Availability
31
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
32
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
33
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
34
INSULATION, ESM WPL Y0091523 Contact Us For Availability
35
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
37
LATCH ARM WPL 303039L Contact Us For Availability
38
HANDLE, LATCH WPL 306830L Contact Us For Availability
39
SCREW, No.6-32 X .375 FLAT HD PH WPL 31750306 Contact Us For Availability
40
BRACKET, LATCH MOUNTING WPL 31848301 Contact Us For Availability
NI
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
NI
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
NI
HARNESS, BKGD (6300/6110) WPL 31778201 Contact Us For Availability
NI
HARNESS, WIRE (RADIANT ELEM LH WPL Y0316502 Contact Us For Availability
NI
HARNESS, ELEMENT WPL Y0316505 Contact Us For Availability
NI
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
WIRE, INSULATION RETAINER 100`` WPL 31715801 Contact Us For Availability
× ![]()
