Model Whirlpool ARR600 ELECTRIC RANGE – Common Parts & Diagrams

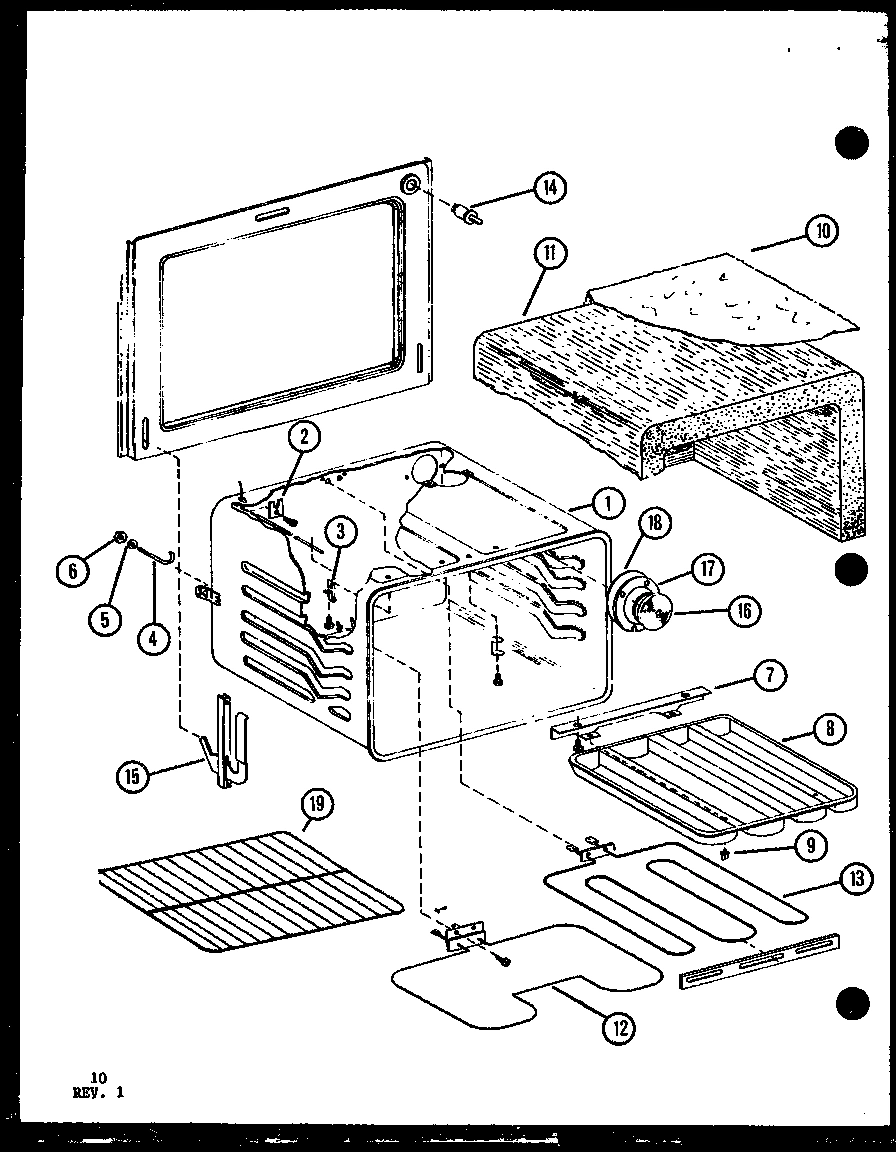

03 - Page 12

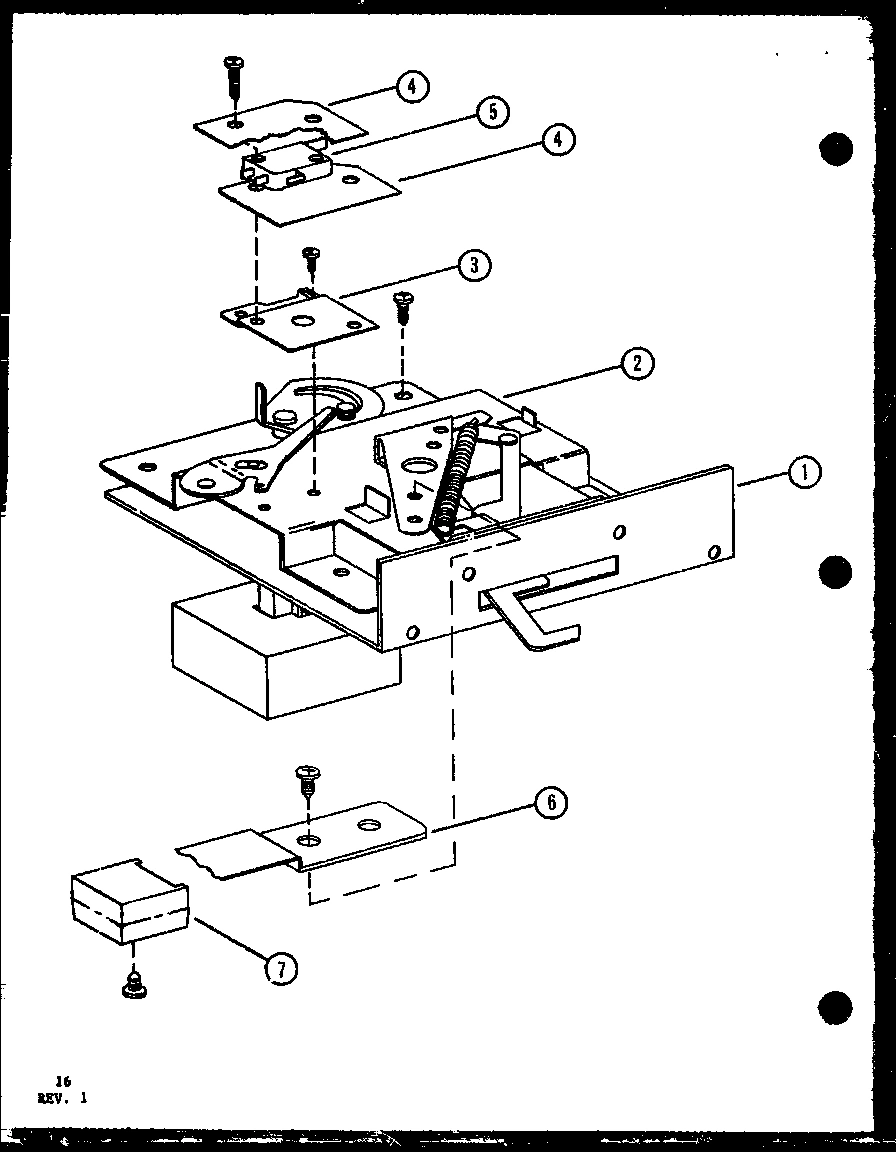

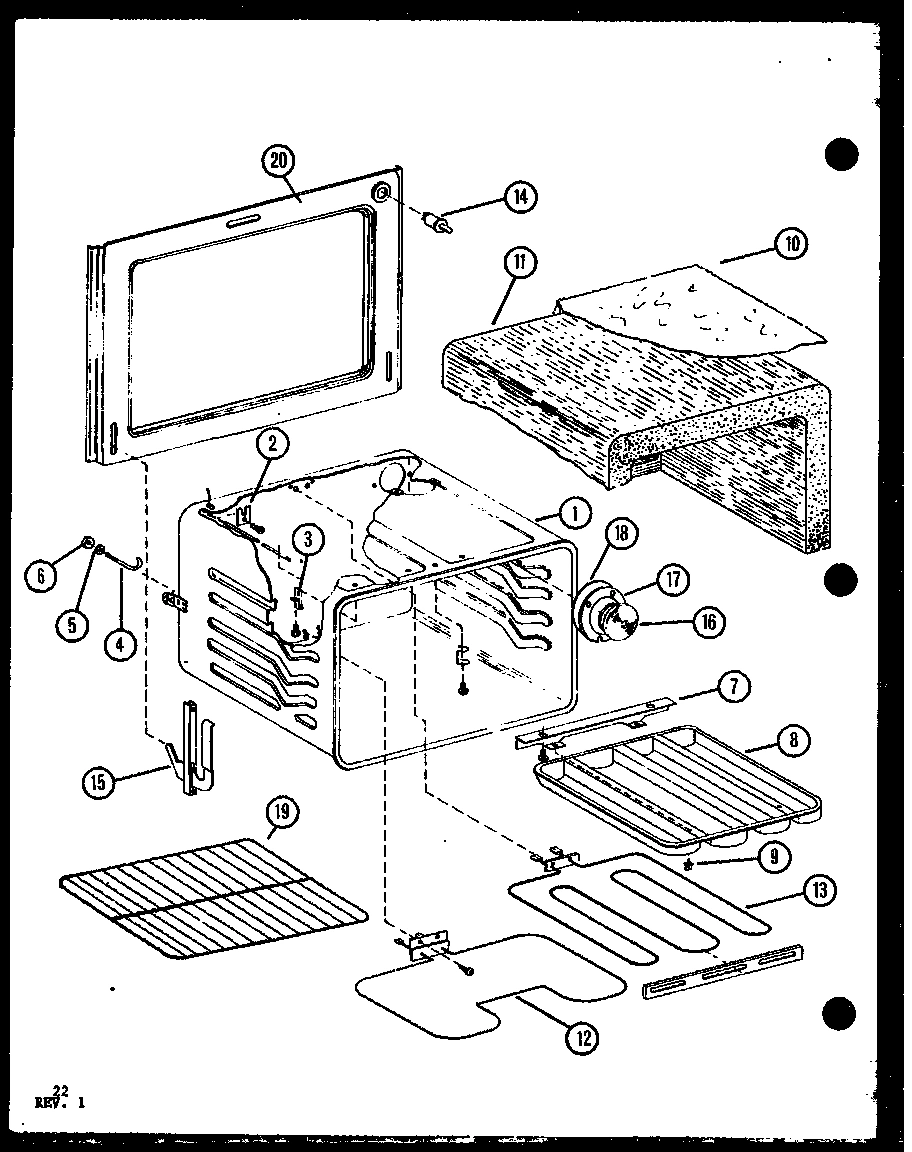

06 - Page 9

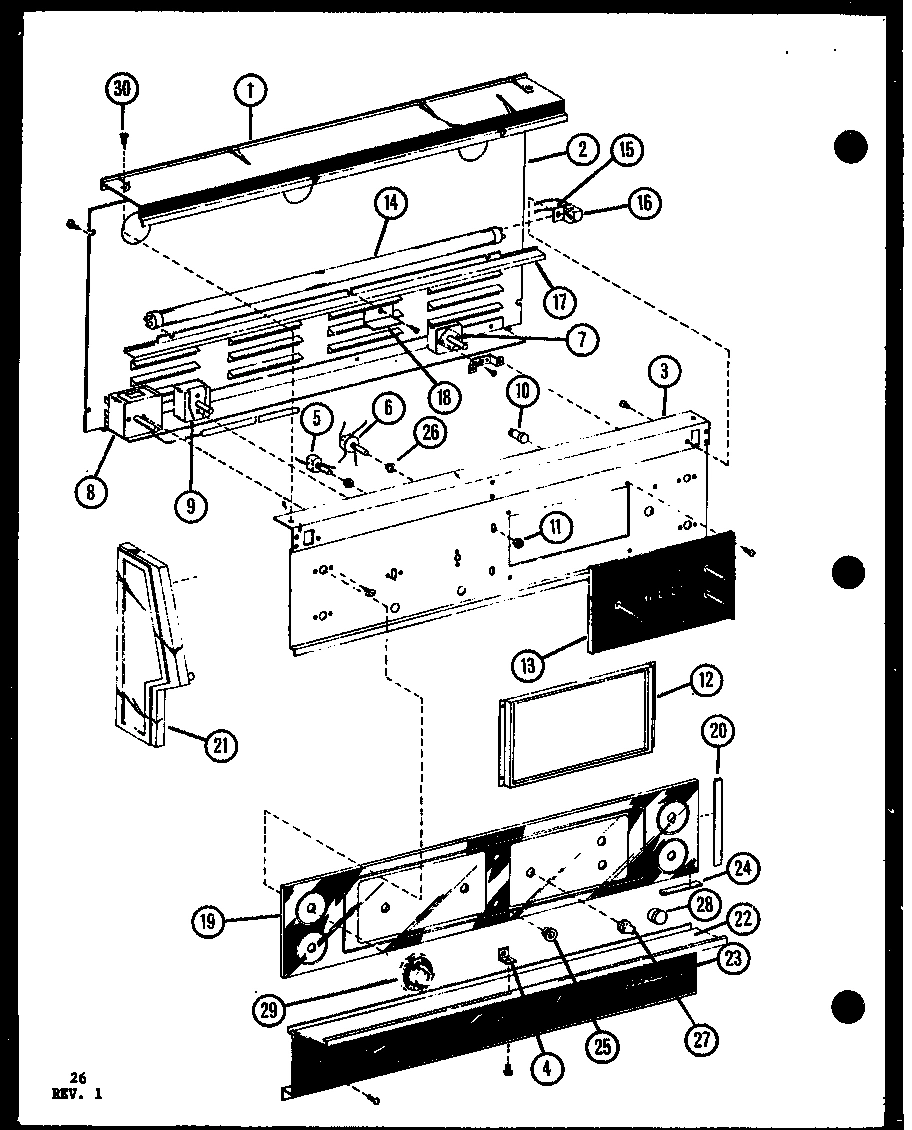

02 - Page 11

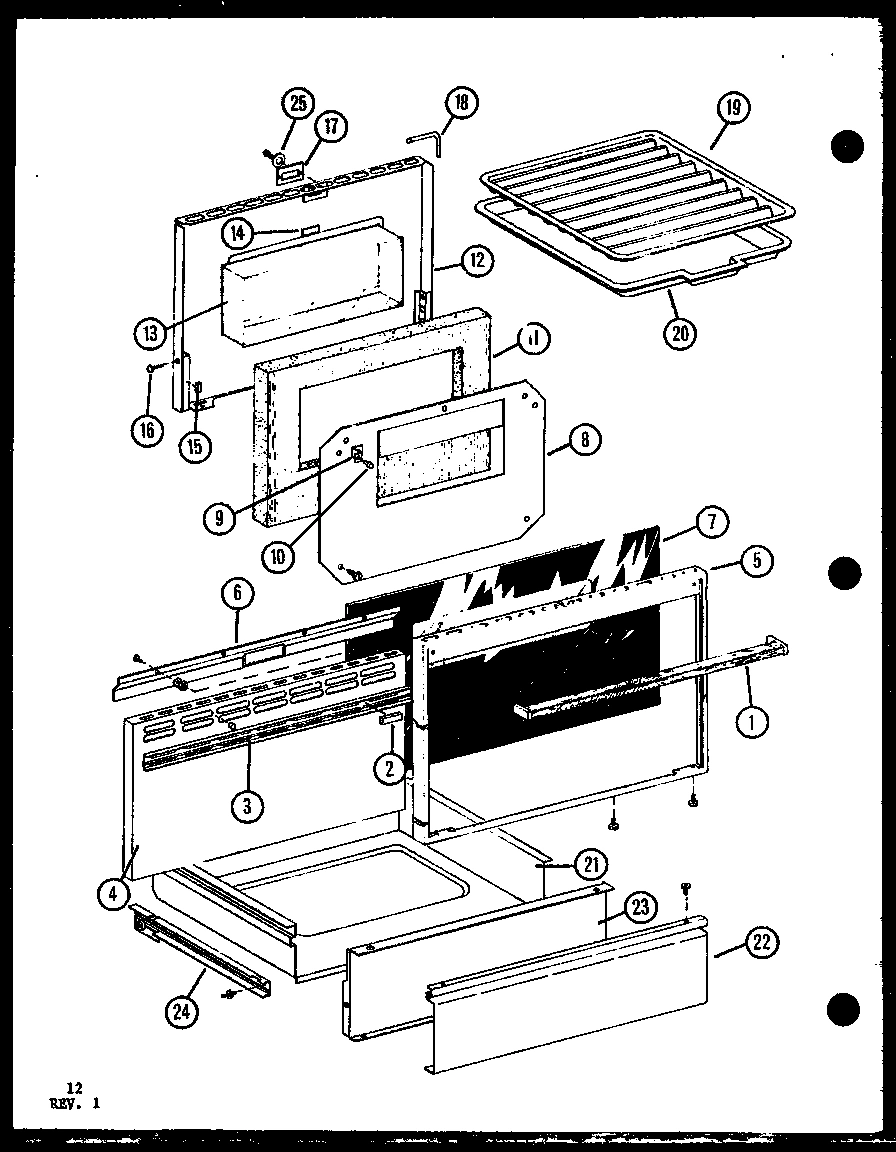

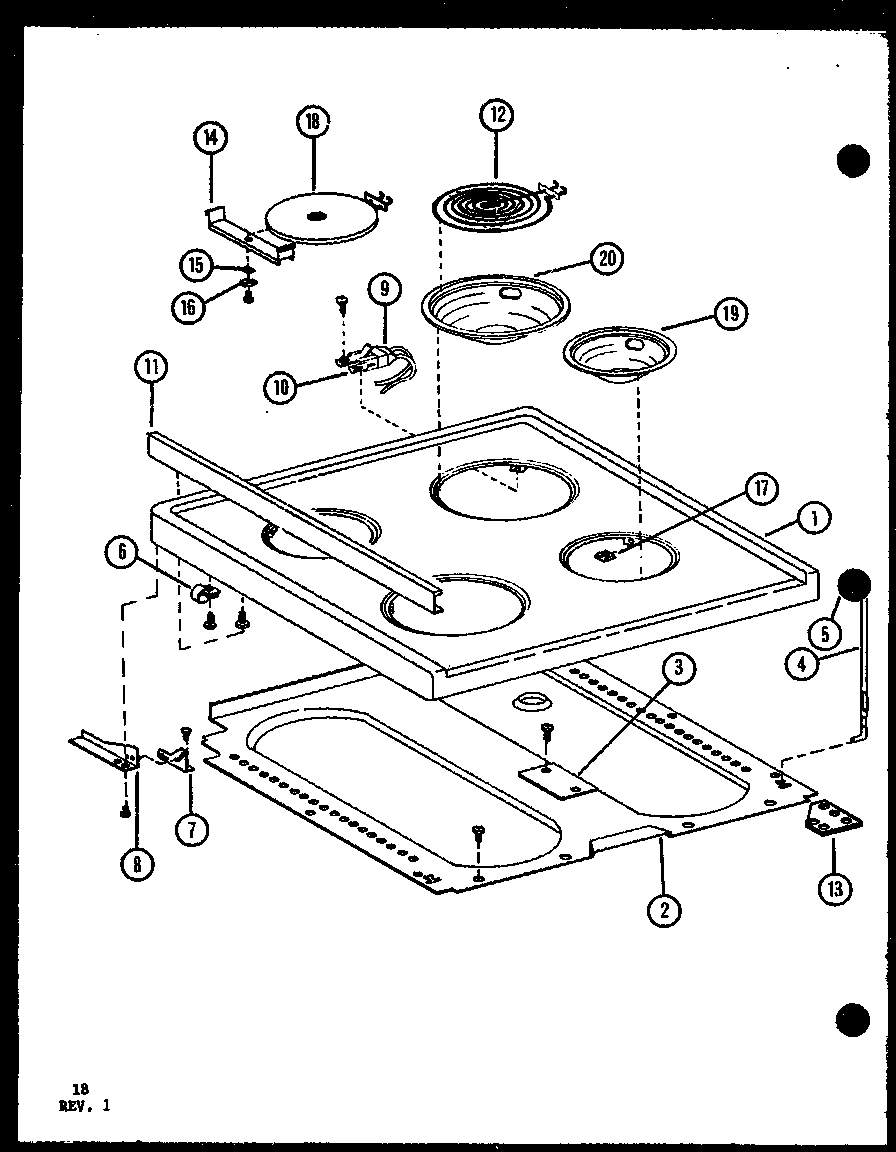

04 - Page 7

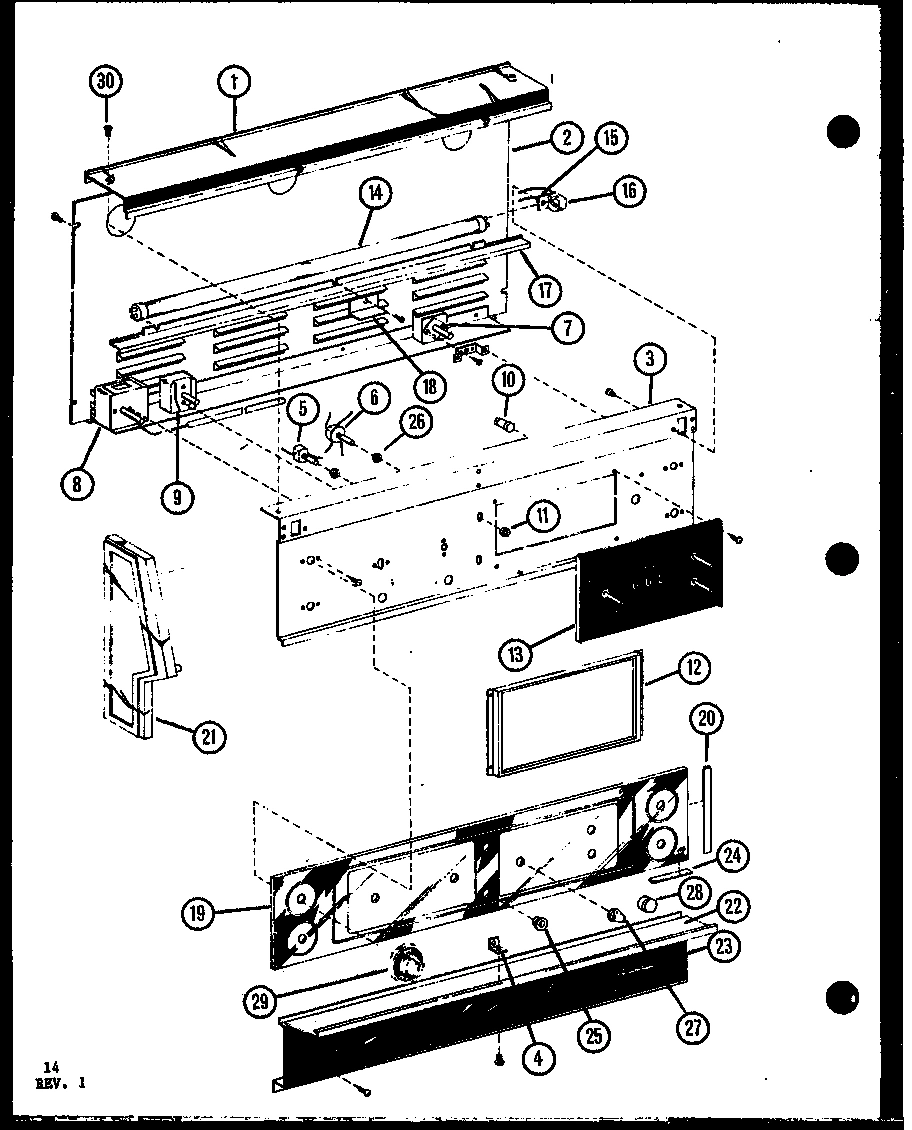

05 - Page 8

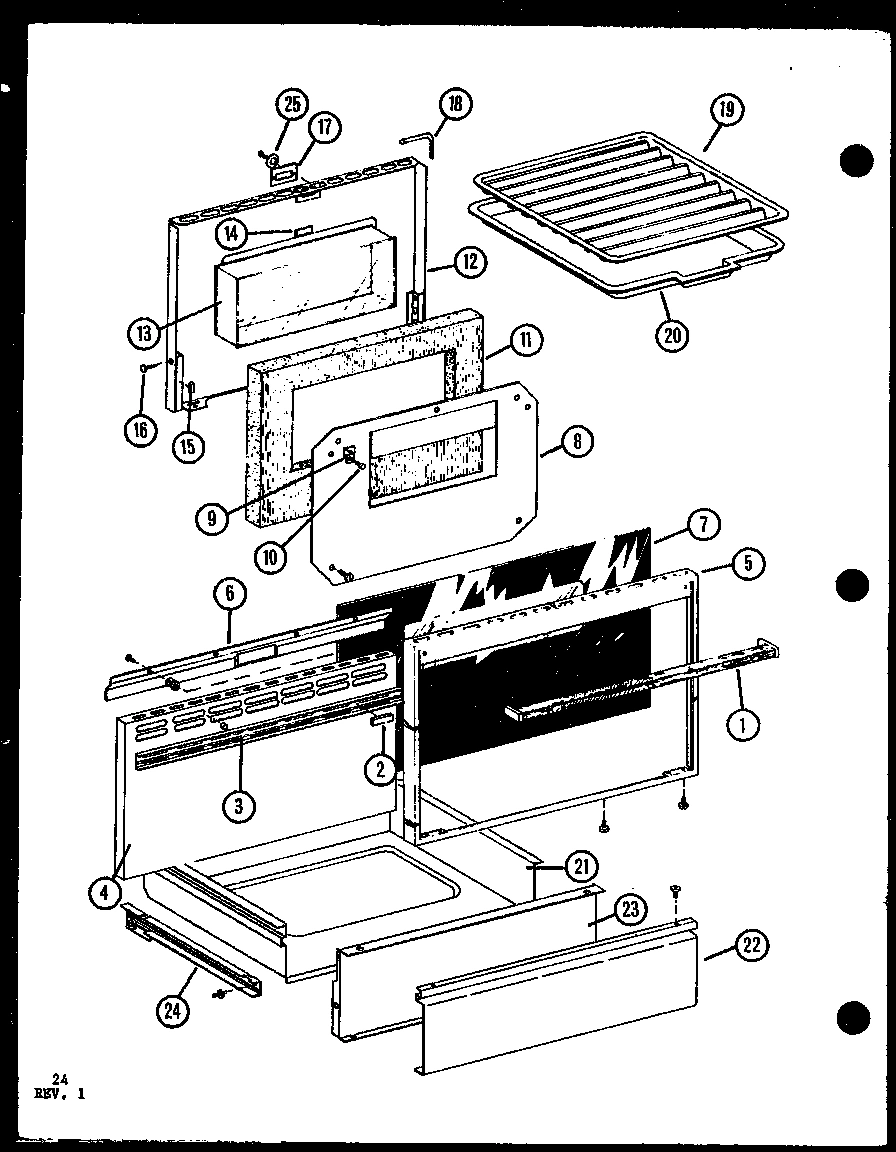

01 - Page 10

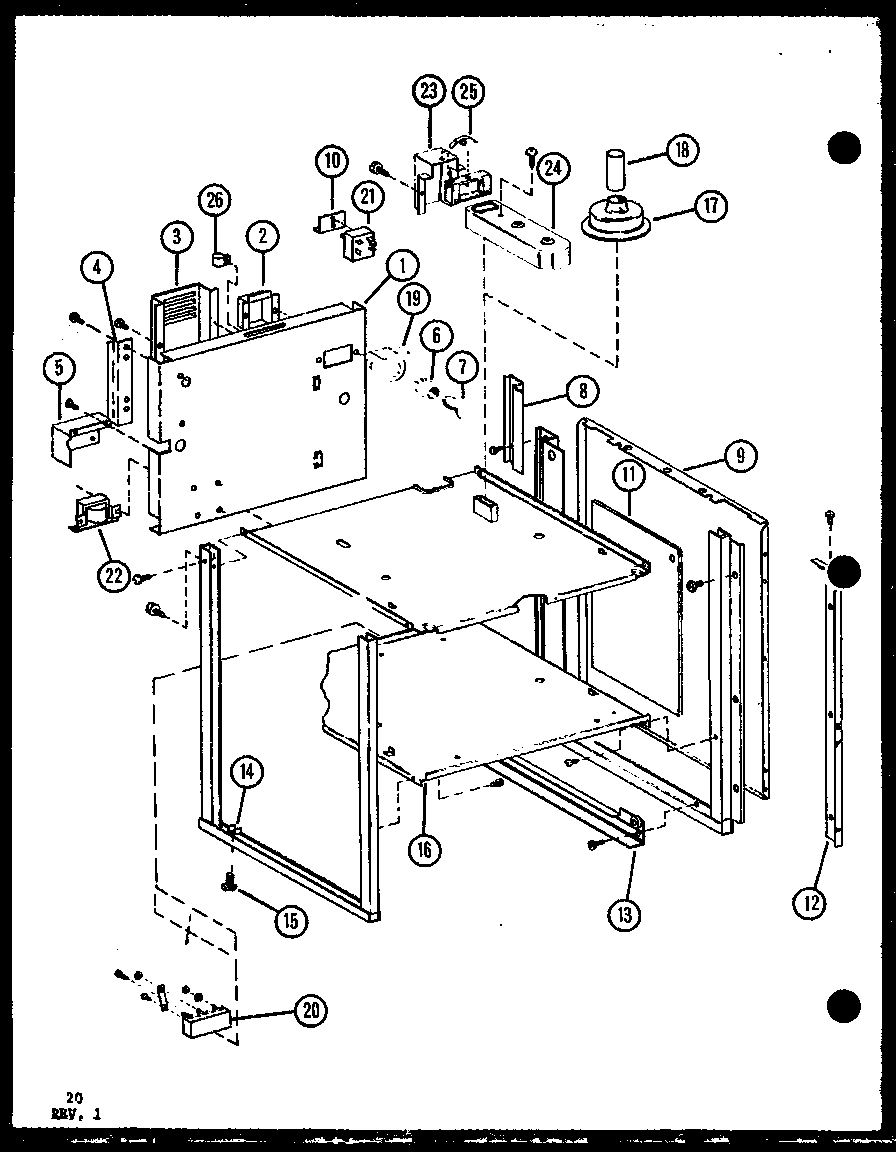

Common parts from model Whirlpool ARR600 ELECTRIC RANGE
1
BRACKET, LATCH MOUNTING WPL R0705638 Contact Us For Availability
1
OVEN SHELL WPL R0703116 Contact Us For Availability
1
TRIM, TOP WPL R0705582 Contact Us For Availability
1
MAIN TOP, WHITE WPL R0178740 Contact Us For Availability
1
MAIN TOP, ALMOND WPL R0178903 Contact Us For Availability
1
PANEL, REAR WPL R0703050 Contact Us For Availability
1
HANDLE, DOOR WPL R0705641 Contact Us For Availability
2
LATCH, OV. DOOR WPL R0705770 Contact Us For Availability
2
CAPILLARY HOLE COVER WPL R0705556 Contact Us For Availability
2
PLATE, REAR COVER WPL R0703059 Contact Us For Availability
2
DRIP BAFFLE, GRAY WPL R0199236 Contact Us For Availability
2
COVER, LAMP CUP WPL R0705629 Contact Us For Availability
2
SPACER DOOR HANDLE WPL R0178839 Contact Us For Availability
3
BRACKET, SWITCH MOUNTING WPL R0705639 Contact Us For Availability
3
CLIP, THERMO CAPILLARY WPL R0705616 Contact Us For Availability
3
MTG. BRKT., CONTROL PANEL WPL R0705651 Contact Us For Availability
3
COVER PLATE, OVEN LAMP WPL R0183058 Contact Us For Availability
3
BOX, COVER, WIRING WPL R0703047 Contact Us For Availability
3
TRIM, DOOR WPL R0705648 Contact Us For Availability
4
INSULATION WPL R0196021 Contact Us For Availability
4
HOOK BOLT WPL R0191036 Contact Us For Availability
4
BRACKET, TRIM SUPPORT WPL R0194033 Contact Us For Availability
4
SUPPORT, MAINTOP WPL R0178739 Contact Us For Availability
4
CAPILLARY COVER WPL R0705640 Contact Us For Availability
4
PANEL, OVEN DR. W/O WINDOW WPL R0703052 Contact Us For Availability
4
PANEL, OVEN DOOR W/O WINDOW WPL R0703067 Contact Us For Availability
5
SWITCH, CLEAN CIRCUIT WPL R0702520 Contact Us For Availability
5
WASHER WPL R0190021 Contact Us For Availability
5
PIN, SUPPORT ROD WPL R0191063 Contact Us For Availability
6
LATCH ARM BLACK WPL R0179020 Contact Us For Availability
6
HEX NUT No.10-32 NICKEL WPL R0189012 Contact Us For Availability
6
WIRE CLAMP WPL R0191039 Contact Us For Availability
6
SOCKET, LAMP WPL R0712502 Contact Us For Availability
7
KNOB, LATCH - BLACK WPL R0181085 Contact Us For Availability
7
SWITCH, INFINITE WPL R0163018 Contact Us For Availability
7
BRACKET WPL R0179014 Contact Us For Availability
7
BRACKET WPL R0179015 Contact Us For Availability
8
THERMOSTAT WPL R0711012 Contact Us For Availability
8
BRACKET ASSEMBLY WPL R0179010 Contact Us For Availability
8
BRACKET ASSEMBLY WPL R0179011 Contact Us For Availability
8
SUPPORT WPL R0194030 Contact Us For Availability
8
SUPPORT CHANNEL, L.H. WPL R0194031 Contact Us For Availability
8
INSULATION RETAINER WPL R0705645 Contact Us For Availability
9
SWITCH, SELECTOR WPL R0702513 Contact Us For Availability
9
PANEL, SIDE RT (WHT) WPL R0703048 Contact Us For Availability
9
PANEL, SIDE RT (ALM) WPL R0703049 Contact Us For Availability
10
INSULATION,WRAPPER WPL R0704508 Contact Us For Availability
10
INDICATOR LIGHT WPL R0165008 Contact Us For Availability
10
MOUNTING BRKT. PLUG BLOCK WPL R0701516 Contact Us For Availability
11
INSULATION,WRAPPER WPL R0704507 Contact Us For Availability
11
NUT WPL R0701013 Contact Us For Availability
11
RETAINER, SIDE, INSULATION WPL R0704510 Contact Us For Availability
11
INSULATION,WRAPPER WPL R0704512 Contact Us For Availability
12
BRACKET, CLOCK MTG. WPL R0705654 Contact Us For Availability
12
TRIM, FRONT, R.H. WPL R0705633 Contact Us For Availability
12
TRIM SIDE PANEL L.H. WPL R0705634 Contact Us For Availability
12
OVEN DOOR, BACK, CHARCOAL GRAY WPL R0703121 Contact Us For Availability
13
CLOCK, AUTOMATIC WPL R0704008 Contact Us For Availability
13
TRACK, DRAWER, R.H. WPL R0705631 Contact Us For Availability
13
TRACK, DRAWER, L.H. WPL R0705632 Contact Us For Availability
14
SWITCH, OVEN LIGHT WPL R0163017 Contact Us For Availability
14
RETAINER NUT WPL R0701011 Contact Us For Availability
15
KIT, DOOR HINGE(RH-SS) WPL R0705635 Contact Us For Availability
15
KIT, DOOR HINGE(LH-HS) WPL R0705636 Contact Us For Availability
15
LEG, LEVELING WPL R0700033 Contact Us For Availability
16
LENS, OVEN LIGHT WPL R0710072 Contact Us For Availability
16
RETAINER, INSULATION BOTTOM WPL R0178766 Contact Us For Availability
16
RIVET WPL R0191052 Contact Us For Availability
17
RETAINER, LENS WPL R0701514 Contact Us For Availability
17
SEAL, BACKGUARD WPL R0705653 Contact Us For Availability
17
SMOKE ELIMINATOR WPL R0705612 Contact Us For Availability
17
LATCH PLATE WPL R0705555 Contact Us For Availability
18
GASKET, OVEN LIGHT LENS WPL R0704509 Contact Us For Availability
18
RETAINER, BACKGUARD SEAL WPL R0705655 Contact Us For Availability
18
TUBE, VENT EXT. WPL R0705617 Contact Us For Availability
18
DR. GASKET WPL R0704511 Contact Us For Availability
19
GLASS, BACKGUARD WPL R0707519 Contact Us For Availability
19
LAMP CUP WPL R0157790 Contact Us For Availability
20
FRONT FRAME WPL R0703112 Contact Us For Availability
20
CHANNEL, GLASS WPL R0710075 Contact Us For Availability
20
TERM BLK 1M-MIN WPL R0199204 Contact Us For Availability
21
END CAP, R.H. WPL R0178992 Contact Us For Availability
21
END CAP, L.H. WPL R0178993 Contact Us For Availability
21
DRAWER PAN WPL R0703055 Contact Us For Availability
22
CENTER TRIM WPL R0176014 Contact Us For Availability
22
BALLAST WPL R0167090 Contact Us For Availability
22
PANEL, DRAWER WHT WPL R0703056 Contact Us For Availability
22
PANEL, DRAWER L WPL R0703057 Contact Us For Availability
23
PANEL, LOWER WPL R0705581 Contact Us For Availability
23
DRAWER LINER, GRAY WPL R0703058 Contact Us For Availability
24
TESAMOL STRIP WPL R0710073 Contact Us For Availability
24
RUNNER, DRAWER, L.H. WPL R0705649 Contact Us For Availability
24
RUNNER, DRAWER, R.H. WPL R0705650 Contact Us For Availability
25
WASHER K WPL R0700503 Contact Us For Availability
26
CLIP, WIRE CABLE WPL R0191041 Contact Us For Availability
27
KNOB, DUAL TIMER WPL R0181089 Contact Us For Availability
29
KNOB, TOP ELEMENT WPL R0703517 Contact Us For Availability
29
KNOB, SELECTOR SWITCH WPL R0703518 Contact Us For Availability
29
KNOB, OVEN SWITCH WPL R0703519 Contact Us For Availability
30
SCREW, No.6-32 X .375 FLAT HD PH WPL R0700034 Contact Us For Availability
NI
SPEED CLIP WPL R0191053 Contact Us For Availability
× ![]()
