Model Whirlpool ARR-402 ELECTRIC RANGE – Common Parts & Diagrams

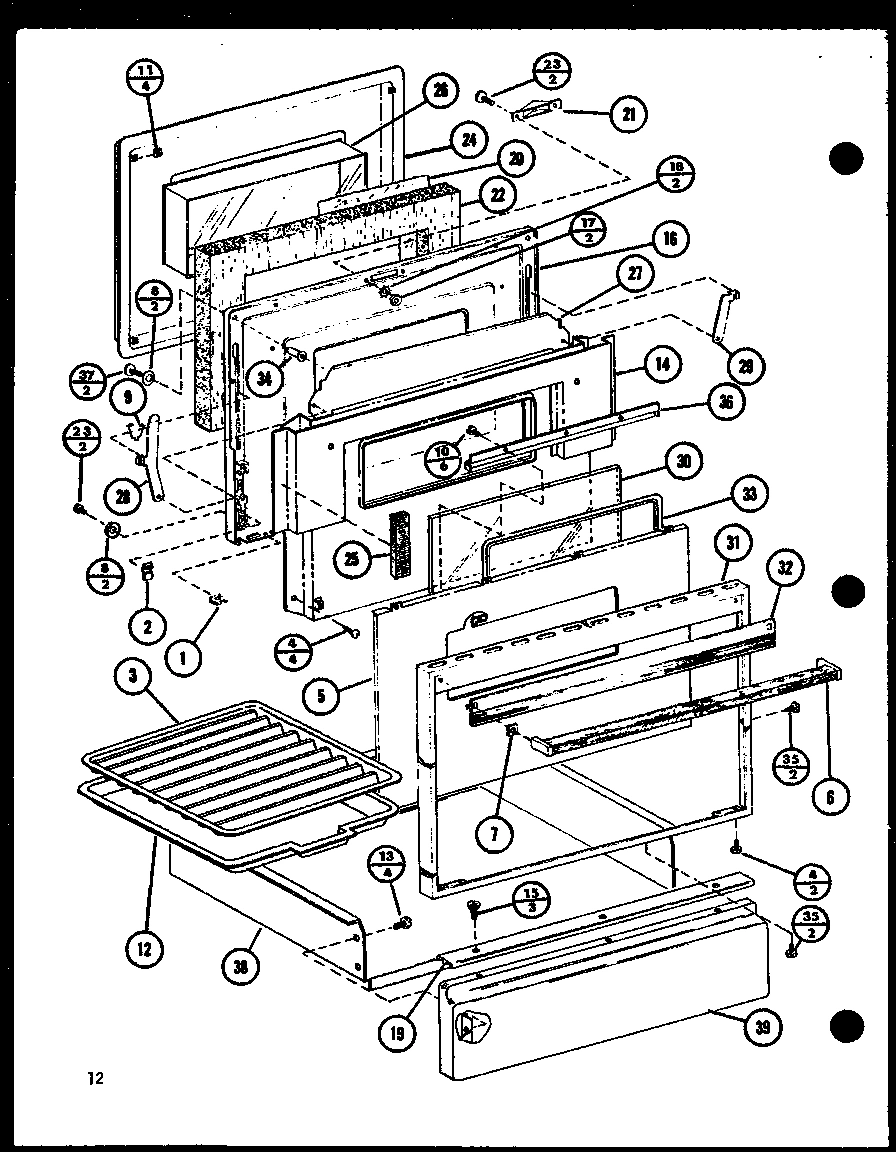

05 - Page 5

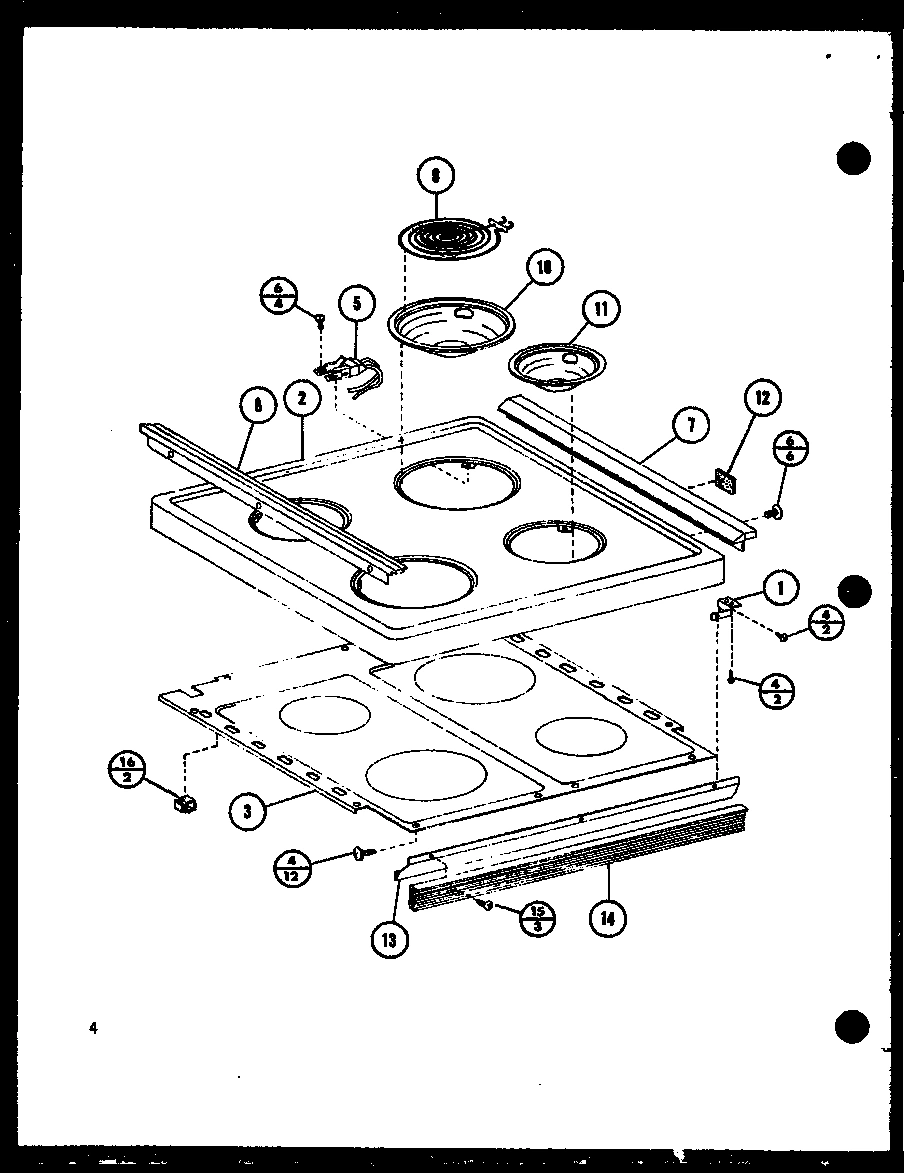

01 - Page 1

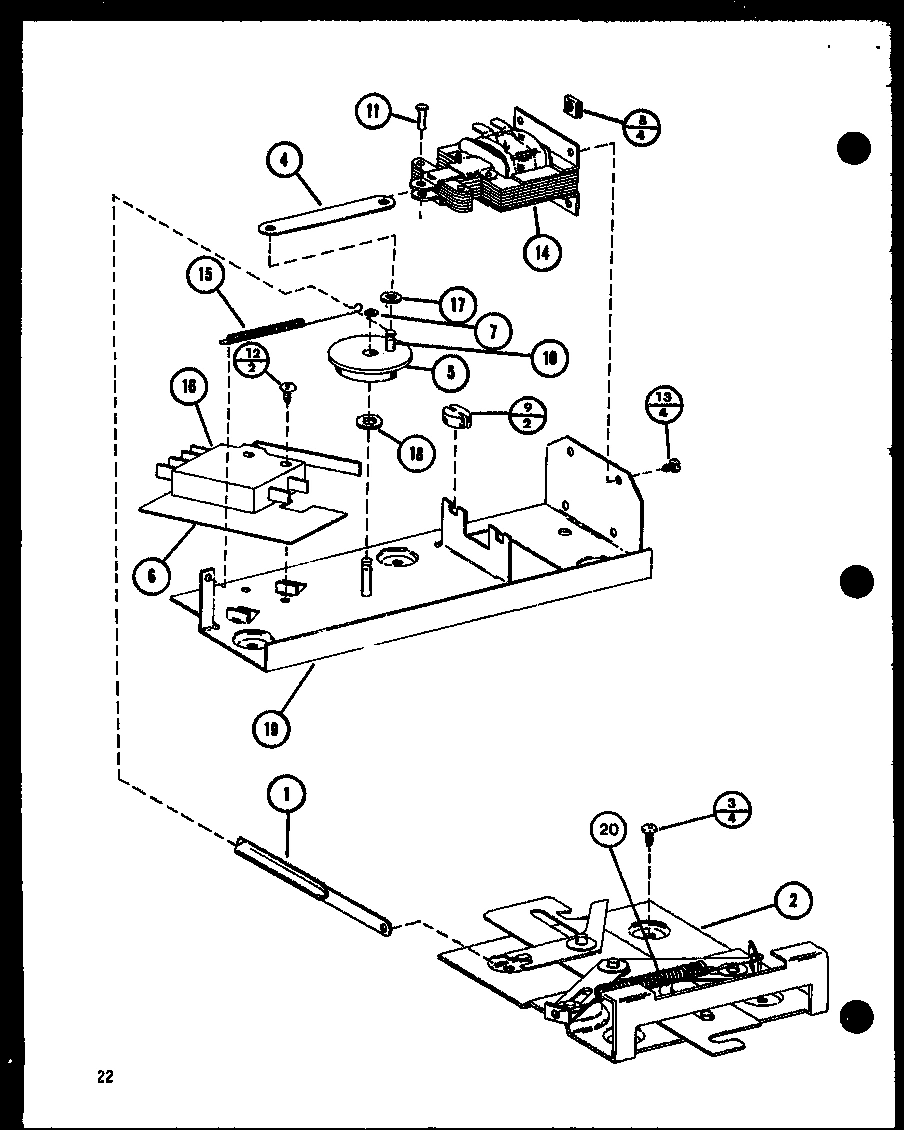

02 - Page 10

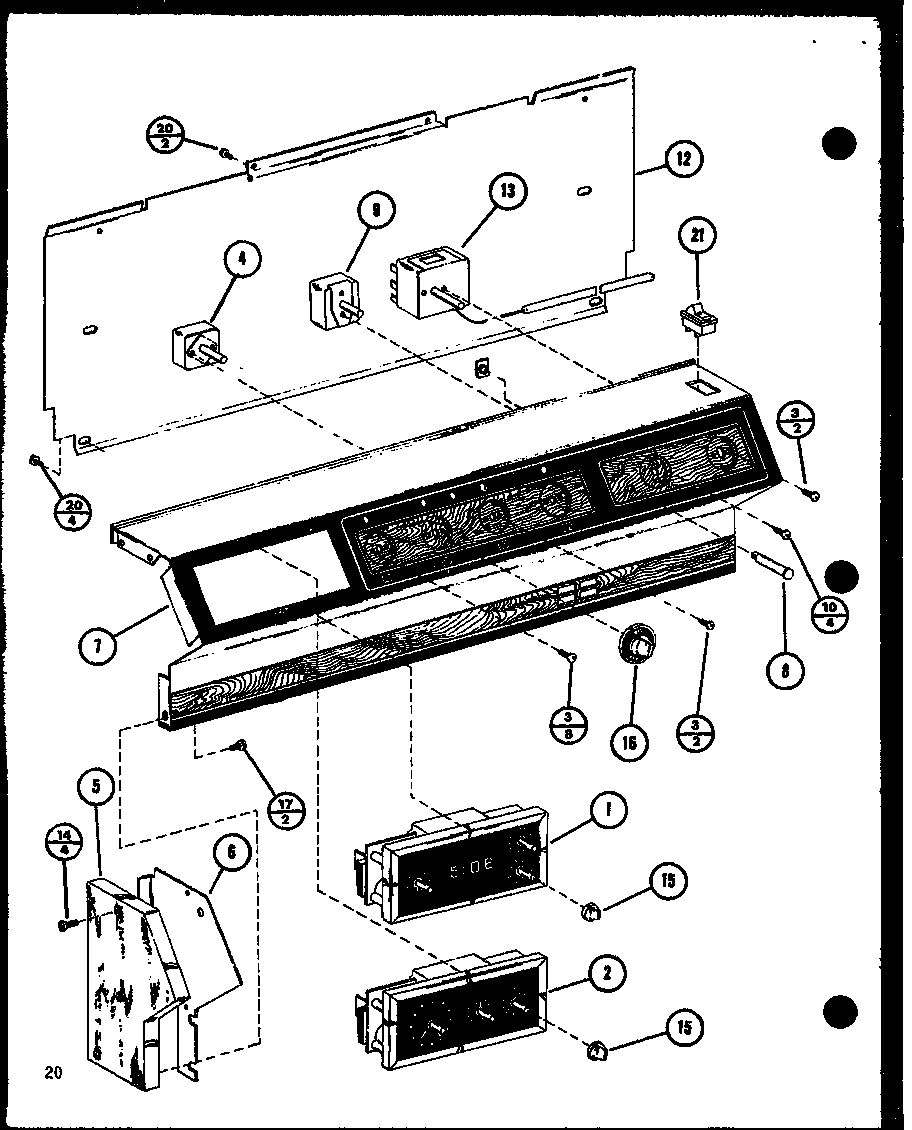

06 - Page 9

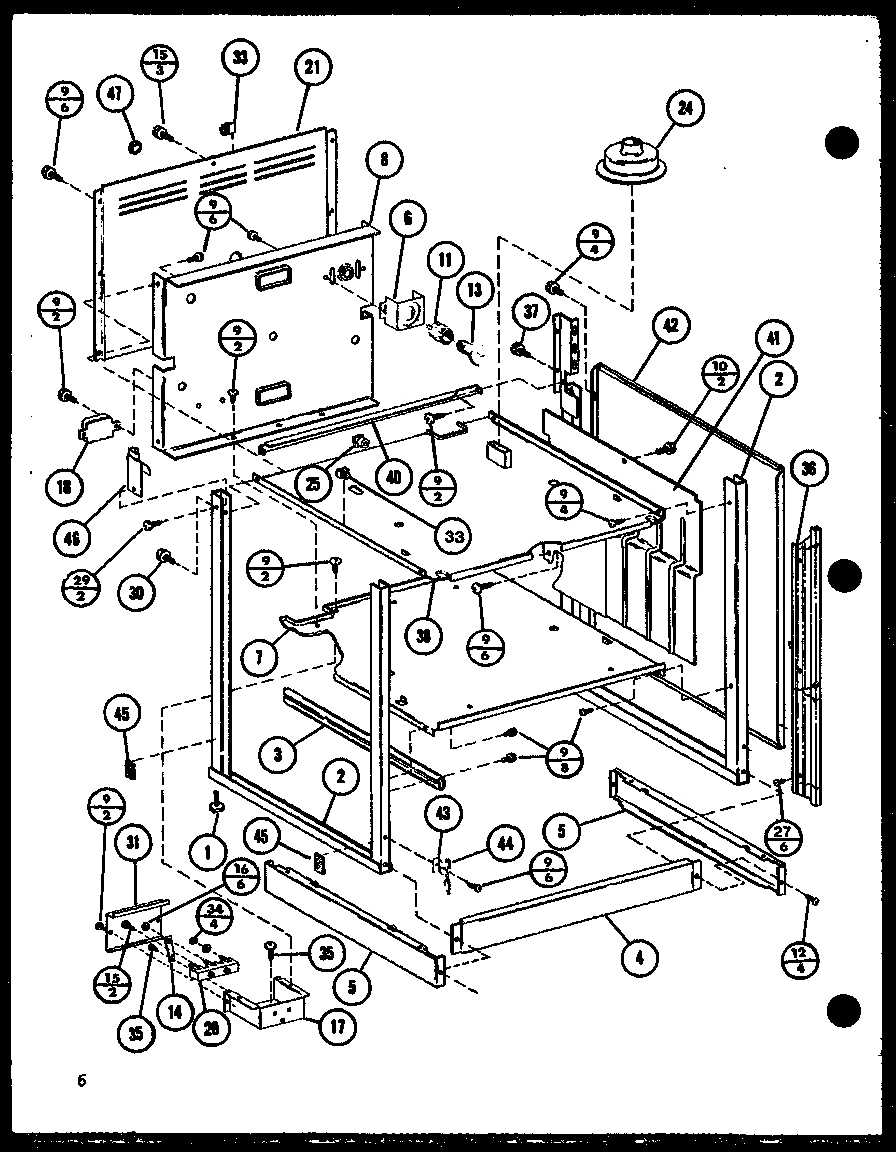

03 - Page 2

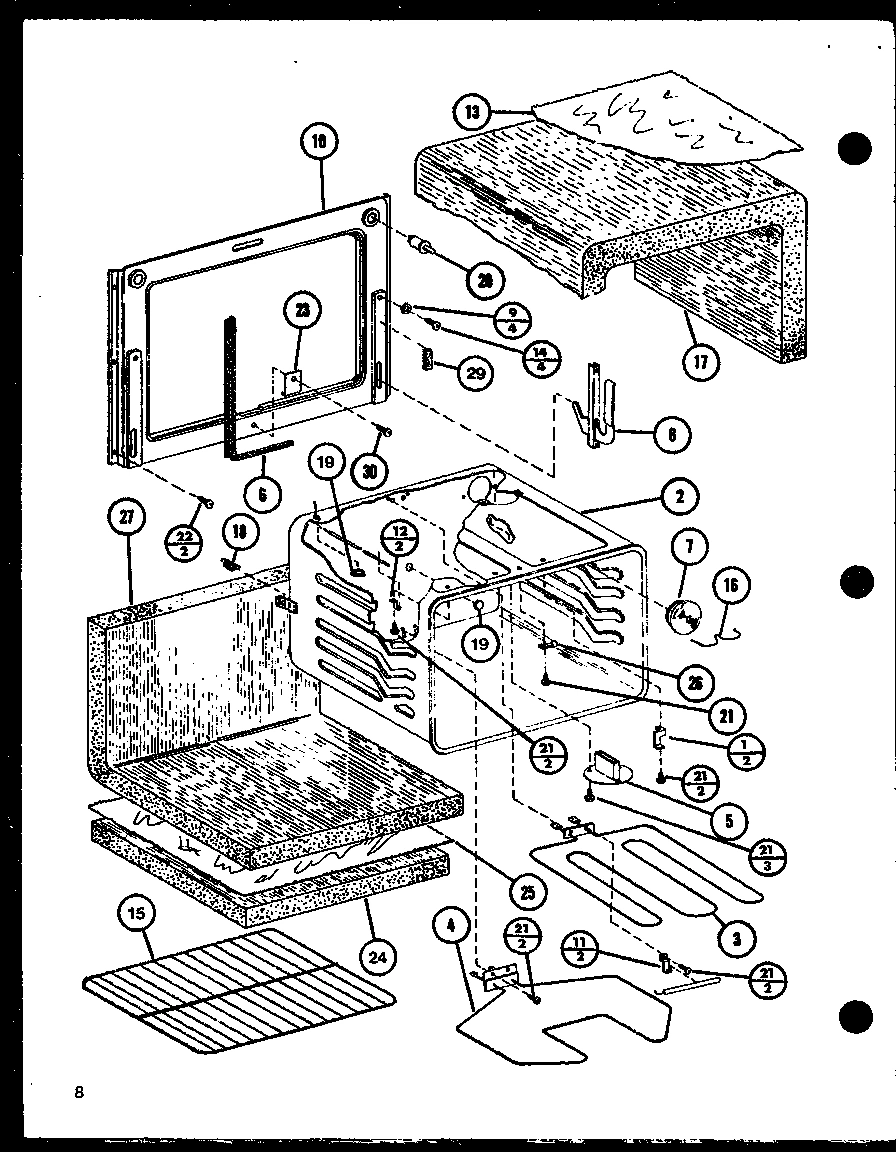

04 - Page 3
Common parts from model Whirlpool ARR-402 ELECTRIC RANGE
1
CLIP-SPEED NUT WPL M0119601 Contact Us For Availability
1
BRKT-FRONT WPL C2709001 Contact Us For Availability
1
BRKT-FRONT LH WPL C2709002 Contact Us For Availability
1
ARM WPL B5004501 Contact Us For Availability
1
TIMER, DIGITAL WPL D8568001 Contact Us For Availability
1
FOOT WPL A4400801 Contact Us For Availability
1
FOOT, LEVEL, REAR WPL A4400802 Contact Us For Availability
1
SUPT-BROILER EL WPL A4416501 Contact Us For Availability
2
SPRING WPL A4407701 Contact Us For Availability
2
RANGE TOP (WHT) WPL D8520106 Contact Us For Availability
2
RANGE TOP (BSQ) WPL D8520107 Contact Us For Availability
2
RANGE TOP (ALM) WPL D8520108 Contact Us For Availability
2
RANGE TOP (GOLD) WPL D8520109 Contact Us For Availability
2
RANGE TOP (ALM) WPL D8520110 Contact Us For Availability
2
ASSY, DOOR LATCH (10442001) WPL D8508301 Contact Us For Availability
2
SIDE FRAME WELD WPL D8504109 Contact Us For Availability
2
SIDE FRAME WELD WPL D8504110 Contact Us For Availability
2
OVEN CAVITY WPL D8510503 Contact Us For Availability
3
BROILER PAN SET WPL D8567001 Contact Us For Availability
3
DRIP PAN WPL D8520203 Contact Us For Availability
3
GLIDE WPL C2705301 Contact Us For Availability
3
ELEMENT,BROIL WPL D8528901 Contact Us For Availability
4
ARM-ACTUATOR WPL A4405801 Contact Us For Availability
4
SWITCH, INFINITE WPL C2702710 Contact Us For Availability
4
KICK PANEL-BLACK WPL C2706704 Contact Us For Availability
4
BAKE ELEMENT WPL C2734101 Contact Us For Availability
5
PNL OUTER DR-PNTD-W WPL D8566602 Contact Us For Availability
5
PNL OUTER DR PNTD-C WPL D8566603 Contact Us For Availability
5
PNL OUTER DR PNTD-A WPL D8566604 Contact Us For Availability
5
PNL OUTER DR PNTD-G WPL D8566605 Contact Us For Availability
5
PNL OUTER DR PNTD-L WPL D8566606 Contact Us For Availability
5
RECEPTACLE WPL C2733503 Contact Us For Availability
5
CAM, LOCK SOLENOID WPL B5004201 Contact Us For Availability
5
END CAP WPL D8515201 Contact Us For Availability
5
END CAP WPL D8515202 Contact Us For Availability
5
KICK PLATE WPL C2706602 Contact Us For Availability
5
ASSY, VENT WPL C2704801 Contact Us For Availability
6
HANDLE WPL D8535902 Contact Us For Availability
6
SCREW WPL M0232702 Contact Us For Availability
6
INSULATOR-SWITCH WPL A4405601 Contact Us For Availability
6
SUPT-END CAP RH WPL C2714501 Contact Us For Availability
6
SUPT-END CAP LH WPL C2714502 Contact Us For Availability
6
REFLECTOR WPL B5000601 Contact Us For Availability
6
GASKET WPL B5002602 Contact Us For Availability
7
PAD, HANDLE WPL A4406402 Contact Us For Availability
7
TRIM WPL D8532903 Contact Us For Availability
7
SPEED NUT A- K WPL M0287901 Contact Us For Availability
7
PANEL CONTROL WPL D8566403 Contact Us For Availability
7
RETAINER WPL D8510401 Contact Us For Availability
7
GLOBE-LAMP WPL B5003301 Contact Us For Availability
8
TRIM WPL D8532904 Contact Us For Availability
8
CLIP WPL M0119701 Contact Us For Availability
8
LIGHT-INDICATOR/ W CLIP WPL M0360204 Contact Us For Availability
8
RETAINER REAR INSUL WPL D8573201 Contact Us For Availability
8
DOOR HINGE ASSY WPL D8559001 Contact Us For Availability
9
WASHER PADDED WPL M0271202 Contact Us For Availability
9
SPRING-SHUTTER WPL C2705101 Contact Us For Availability
9
PAD WPL A4405901 Contact Us For Availability
9
SWITCH K WPL C2731705 Contact Us For Availability
10
SCREW WPL M0232012 Contact Us For Availability
10
PIN-GROOVED WPL A4405701 Contact Us For Availability
10
SCREW WPL M0200414 Contact Us For Availability
10
SCREW WPL M0213129 Contact Us For Availability
10
PANEL FRONT CAVITY WPL D8509807 Contact Us For Availability
11
SPEED NUT WPL A4407601 Contact Us For Availability
11
POP RIVET WPL M0010212 Contact Us For Availability
11
SOCKET, OVEN LIGHT WPL A4400701 Contact Us For Availability
12
BROILER PAN SET WPL D8567101 Contact Us For Availability
12
SCREW WPL M0227520 Contact Us For Availability
12
COVER, UPPER LEADS WPL D8569001 Contact Us For Availability
12
SCREW WPL M0218625 Contact Us For Availability
12
RETAINER-THERMO WPL A4407801 Contact Us For Availability
13
GUARD WPL C2706101 Contact Us For Availability
13
T-STAT K WPL D8557404 Contact Us For Availability
13
FOIL-ALUM WPL A4400603 Contact Us For Availability
14
HEAT SHIELD WELD WPL D8557201 Contact Us For Availability
14
SCREW WPL M0230630 Contact Us For Availability
14
GRILLE WPL D8509402 Contact Us For Availability
14
SOLENOID, LOCK WPL C2711701 Contact Us For Availability
14
STRAP-GRD WPL A4406901 Contact Us For Availability
14
SCREW WPL M0203342 Contact Us For Availability
15
SCREW WPL M0254518 Contact Us For Availability
15
SPRING, SOLENOID WPL A4405501 Contact Us For Availability
15
KNOB, DUAL TIMER WPL B5005101 Contact Us For Availability
15
SCREW WPL M0213145 Contact Us For Availability
15
RACK 15 11/32`` W X 22 29/32`` L WPL D8510001 Contact Us For Availability
16
INNER DOOR WELD WPL D8506903 Contact Us For Availability
16
SWITCH, LIMIT WPL B5004402 Contact Us For Availability
16
KNOB CONTROL K WPL C2734801 Contact Us For Availability
16
KNOB, PROPORTIONER WPL C2734802 Contact Us For Availability
16
KNOB K WPL C2734805 Contact Us For Availability
16
USR 0041847 WPL M0282402 Contact Us For Availability
16
RETAINER-LAMP WPL A4407001 Contact Us For Availability
17
WASHER WPL M0270501 Contact Us For Availability
17
SCREW, No.10-32X 5/16 PAN PH H WPL M0234443 Contact Us For Availability
17
BRKT TERM BLOCK WPL C2705002 Contact Us For Availability
17
INSULATION WPL B5003003 Contact Us For Availability
18
LOCK WASHER WPL M0272803 Contact Us For Availability
18
WASHER WPL M0270515 Contact Us For Availability
18
RELAY, OVEN WPL C2717101 Contact Us For Availability
18
SPRING WPL A4407101 Contact Us For Availability
19
HANDLE, DRAWER WPL D8514301 Contact Us For Availability
19
ASSY, LATCH SOLENOID WPL C2705401 Contact Us For Availability
19
PLUG BUTTON WPL M0311101 Contact Us For Availability
20
FOIL-DOOR PLUG WPL A4406601 Contact Us For Availability
20
SPRING, DOOR LATCH WPL A4406002 Contact Us For Availability
20
COVER- LOWER LOAD WPL D8509504 Contact Us For Availability
20
SWITCH, OVEN DR WPL C2706501 Contact Us For Availability
21
LATCH PLATE ASSY WPL B5003601 Contact Us For Availability
21
SWITCH-LIGHT WPL B5009901 Contact Us For Availability
21
SCREW WPL M0237117 Contact Us For Availability
22
SCREW WPL M0217224 Contact Us For Availability
22
INSULATION WPL B5001102 Contact Us For Availability
23
SCREW WPL M0205218 Contact Us For Availability
23
RETAINER-GASKET K WPL A4427901 Contact Us For Availability
24
DOOR PLUG WELD WPL D8507102 Contact Us For Availability
24
TUBE-OVEN VENT WPL B5012301 Contact Us For Availability
24
INSULATION WPL B5002302 Contact Us For Availability
25
INSULATION WPL B5028802 Contact Us For Availability
25
GROMMET WPL M0580005 Contact Us For Availability
26
WINDOW WPL D8573401 Contact Us For Availability
26
CLIP-OVEN CAVITY WPL B5003201 Contact Us For Availability
27
SHUTTER WPL D8507501 Contact Us For Availability
27
INSULATION WPL B5002403 Contact Us For Availability
28
ARM-SHUTTER LH WPL B5003801 Contact Us For Availability
29
ARM-SHUTTER RH WPL B5003901 Contact Us For Availability
29
BUMPER WPL A4402201 Contact Us For Availability
30
WINDOW-OUTER DOOR WPL B5028701 Contact Us For Availability
30
SCREW WPL M0211543 Contact Us For Availability
31
FRAME WPL D8565501 Contact Us For Availability
31
COVER WPL B5003501 Contact Us For Availability
32
EXT DOOR TRIM WPL D8565801 Contact Us For Availability
33
RING- TRIM WPL C2732601 Contact Us For Availability
33
CLIP WPL M0110503 Contact Us For Availability
34
SPACER WPL A4406301 Contact Us For Availability
34
WASHER WPL M0270001 Contact Us For Availability
35
SCREW, No.8-18 X 3/8 P TRS HD LP WPL M0210217 Contact Us For Availability
35
SCREW WPL M0227817 Contact Us For Availability
36
BRACKET-WINDOW WPL C2732402 Contact Us For Availability
36
TRIM-SIDE LH WPL D8509202 Contact Us For Availability
36
TRIM WPL D8509302 Contact Us For Availability
37
SCREW WPL M0203052 Contact Us For Availability
37
SCREW, No.8-32 X 5/16 PPH (BLK) WPL M0230028 Contact Us For Availability
38
DRAWER PAN PNTD K WPL C2713903 Contact Us For Availability
38
RETAINER-TOP INSUL WPL D8506203 Contact Us For Availability
39
WLD DRAWER-W K WPL C2725202 Contact Us For Availability
39
WLD DRAWER-C K WPL C2725203 Contact Us For Availability
39
WLD DRAWER-A K WPL C2725204 Contact Us For Availability
39
WLD DRAWER-G K WPL C2725205 Contact Us For Availability
39
WLD DRAWER-L K WPL C2725206 Contact Us For Availability
40
SUPT-BACKSPLASH WPL B5018401 Contact Us For Availability
41
RETAINER-INSUL R WPL D8506701 Contact Us For Availability
41
RETAINER-INSUL L WPL D8506801 Contact Us For Availability
42
SIDE PANEL -W WPL D8501112 Contact Us For Availability
42
SIDE PANEL WPL D8501113 Contact Us For Availability
42
SIDE PANEL WPL D8501114 Contact Us For Availability
42
SIDE PANEL WPL D8501115 Contact Us For Availability
42
SIDE PANEL L WPL D8501116 Contact Us For Availability
43
BRKT-SIDE PNL RH WPL B5010201 Contact Us For Availability
43
BRKT-SIDE PNL LH WPL B5010202 Contact Us For Availability
44
BUMPER WPL A4401502 Contact Us For Availability
45
GASKET WPL B5718912 Contact Us For Availability
46
EXT CRNR POST WPL C2732903 Contact Us For Availability
46
EXT CRNR POST WPL C2732904 Contact Us For Availability
47
PLUG K WPL M0311103 Contact Us For Availability
NI
HI TEMP LUBE WPL R0195023 Contact Us For Availability
× ![]()
