Model Whirlpool ARHSC8750WW ELECTRIC RANGE – Common Parts & Diagrams
05 - OVEN DOOR

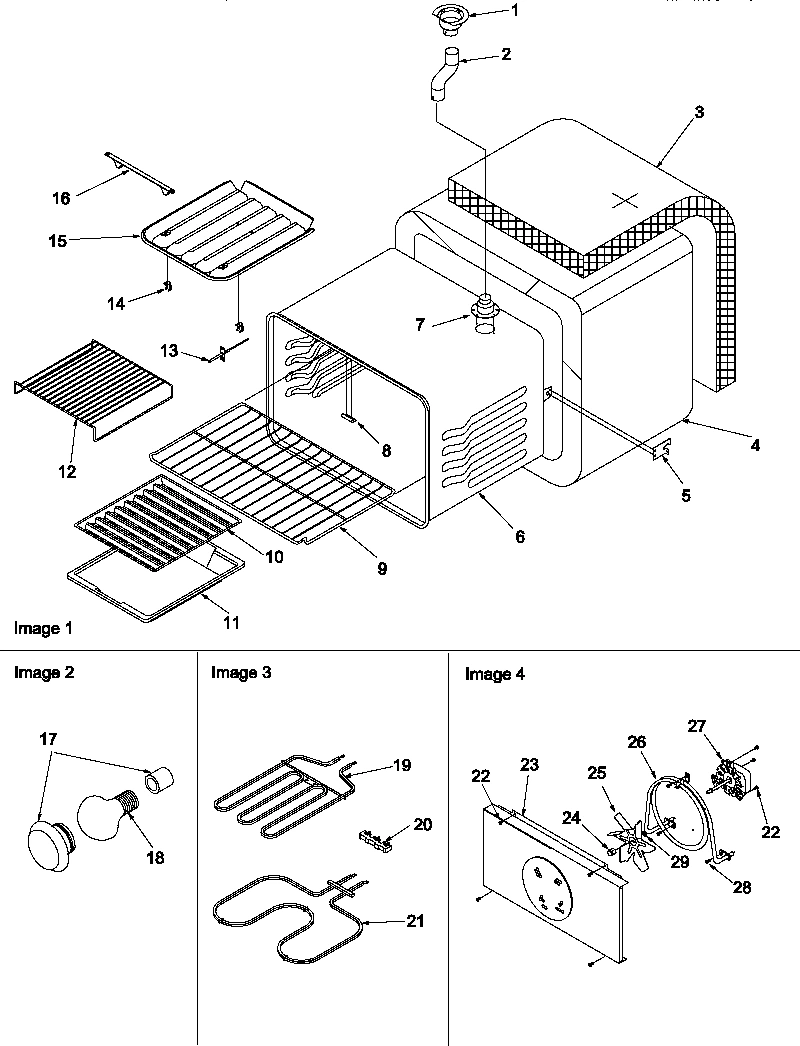

02 - CAVITY

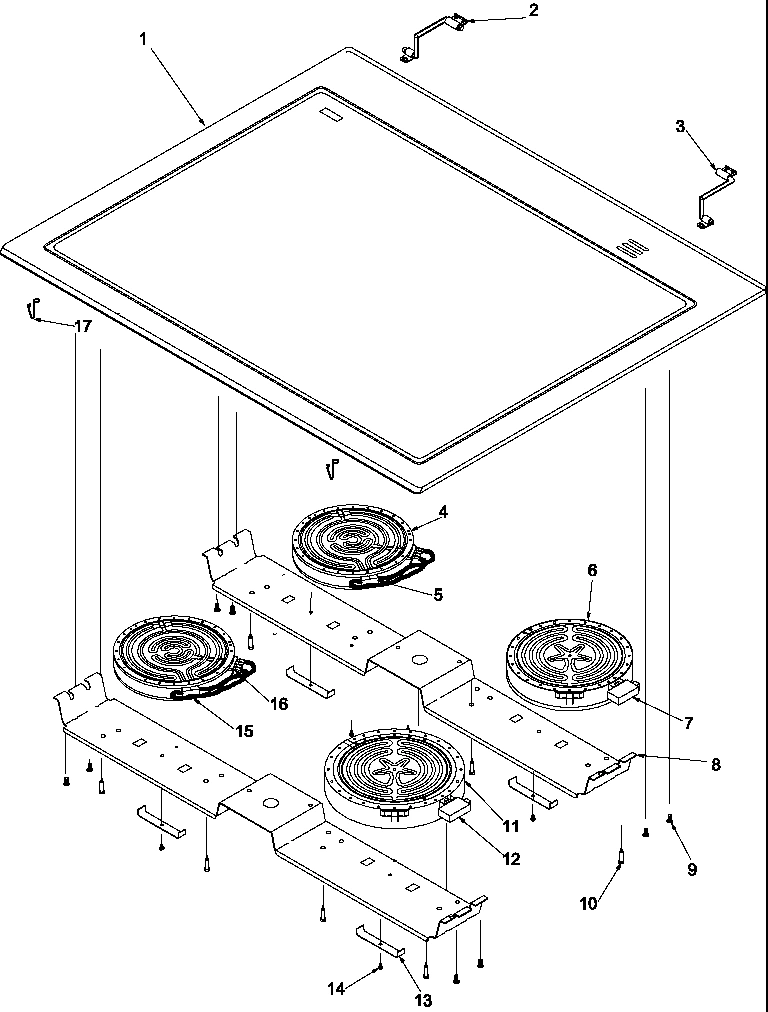

04 - MAIN TOP

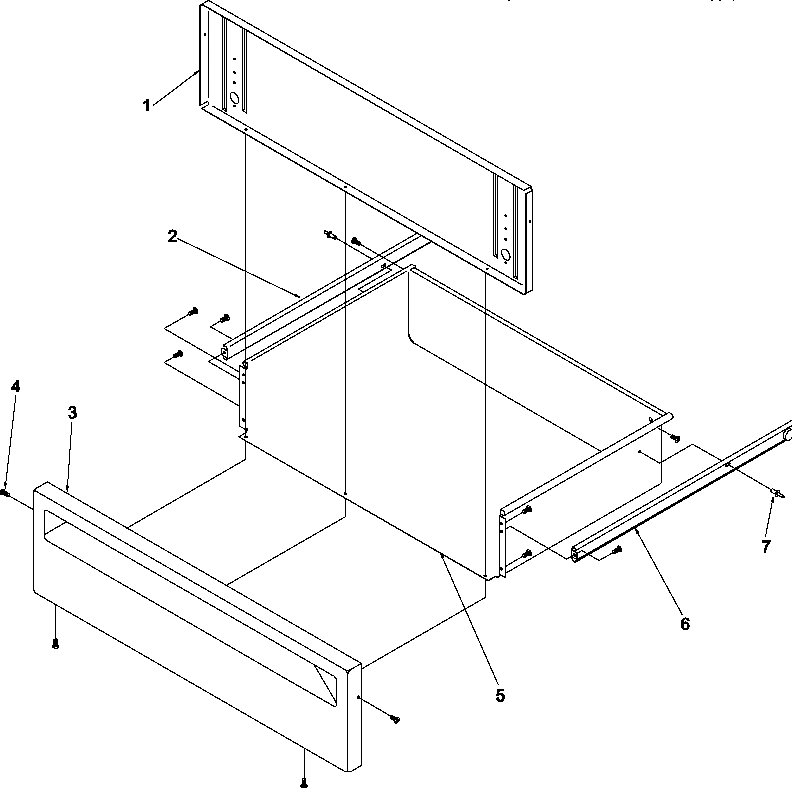

06 - STORAGE DRAWER

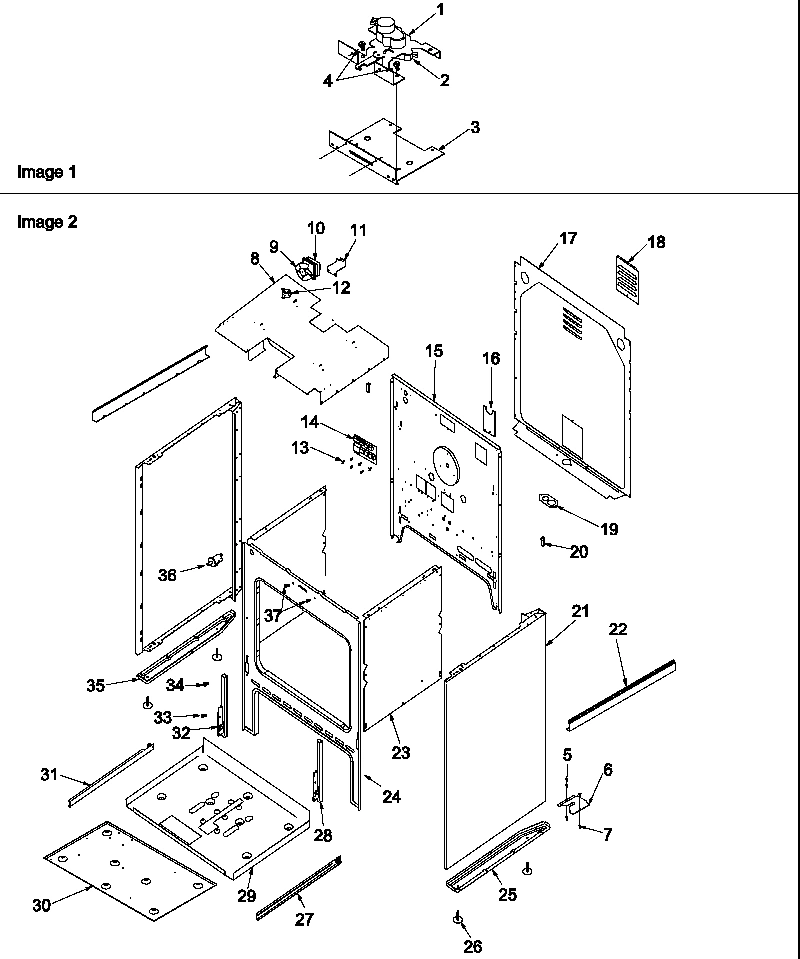

01 - CABINET

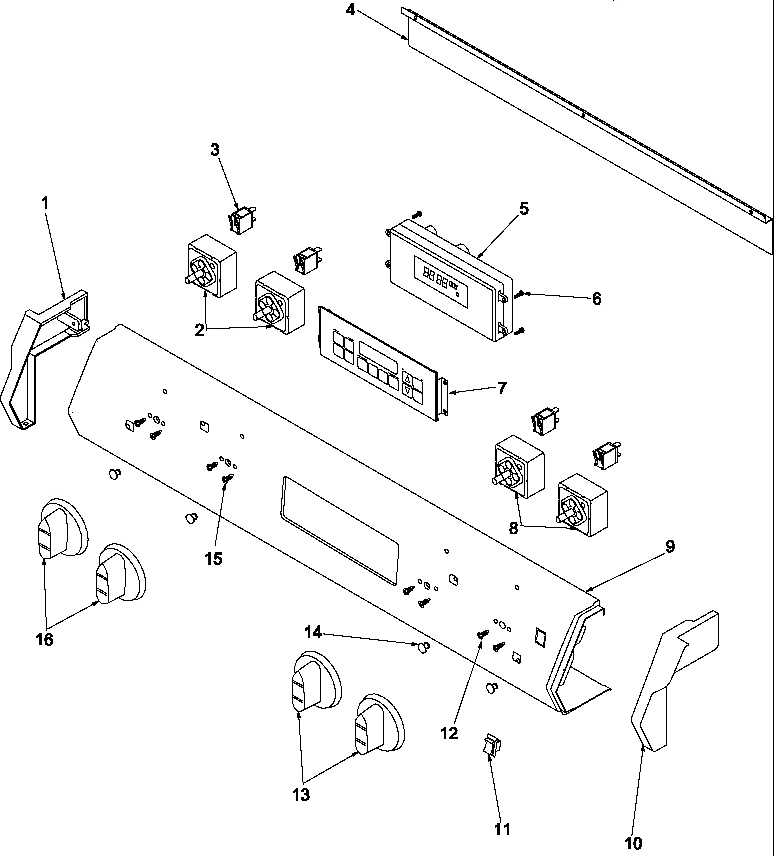

03 - CONTROL PANEL
Common parts from model Whirlpool ARHSC8750WW ELECTRIC RANGE
1
TUBE, VENT WPL Y0316169 Contact Us For Availability
1
ASSY, MAINTOP/GLASS WPL 316318W Contact Us For Availability
1
LINER, DRAWER PANEL (BLK) WPL 309178B Contact Us For Availability
1
LATCH, AUTO WPL Y0316541 Contact Us For Availability
1
END CAP, CONT PNL (LT-WHT) WPL 31742702 Contact Us For Availability
2
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
2
ADAPTER, VENT TUBE WPL Y0316762 Contact Us For Availability
2
HINGE, MAIN TOP (LT) WPL 31769702 Contact Us For Availability
2
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
2
SWITCH WPL 0316767 Contact Us For Availability
2
SWITCH, 10-POS SURFACE WPL Y0315854 Contact Us For Availability
3
TRIM, DOOR TOP (WHT) WPL 316980W Contact Us For Availability
3
INSULATION, REAR WPL Y0300974 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 31769701 Contact Us For Availability
3
PANEL, DRAWER (WHT) WPL 309176W Contact Us For Availability
3
BRACKET, LATCH MOUNTING WPL Y0315910 Contact Us For Availability
4
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
4
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
4
ELEMENT, HALORING-1800 W WPL Y0307433 Contact Us For Availability
4
HEAT SHIELD, CONTROL PANEL WPL 0316650 Contact Us For Availability
5
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
5
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
5
LIMITER, TEMP, LARGE WPL 10061003 Contact Us For Availability
5
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
5
CONTROL, ELECTRONIC RANGE WPL Y0315614 Contact Us For Availability
6
END CAP, DOOR (LT-WHT) WPL 309523W Contact Us For Availability
6
OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability
6
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
6
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
7
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
7
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
7
RIVET, POP WPL Y0076357 Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
7
MEMBRANE, SWITCH PANEL (WHT) WPL 316189W Contact Us For Availability
8
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
8
COVER, CHIP WPL Y0315022 Contact Us For Availability
8
BRACKET, ELEMENT WPL Y0316165 Contact Us For Availability
8
RETAINER, TOP INSULATION WPL 31723601 Contact Us For Availability
9
BACKER, OVEN DOOR WPL 317023CG Contact Us For Availability
9
RACK, OVEN WPL 309988J Contact Us For Availability
9
BLADE, FAN WPL Y0314375 Contact Us For Availability
9
PNL, CONTROL-SCREENED (WHITE) WPL 316359W Contact Us For Availability
10
GLASS, DOOR WPL Y0317019 Contact Us For Availability
10
FAN ASSY, COOLING (W/BLADE) WPL Y0309884 Contact Us For Availability
10
END CAP, CONT PNL (RT-WHT) WPL 31742705 Contact Us For Availability
11
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
11
BRACKET, Z FAN WPL 0314183 Contact Us For Availability
12
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
RACK, BROILER WPL Y0306531 Contact Us For Availability
12
THERMOSTAT, HIGH LIMIT WPL Y0316699 Contact Us For Availability
13
FRAME, WINDOW PACK WPL Y0317020 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
13
SUPPORT WPL Y0300662 Contact Us For Availability
13
KNOB, INFINITE SW (WHT) WPL 316368W Contact Us For Availability
14
END CAP, DOOR (RT-WHT) WPL 309522W Contact Us For Availability
14
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
14
BOARD, RELAY WPL Y0316079 Contact Us For Availability
14
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
15
ELEMENT, HALORING-1500 W WPL Y0307432 Contact Us For Availability
15
RETAINER, REAR INSUL WPL Y0315778 Contact Us For Availability
16
SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability
16
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
16
ELEMENT, HALORING-1500 W WPL 10061005 Contact Us For Availability
16
BRKT, VENT TUBE WPL 0316382 Contact Us For Availability
16
KNOB, 10-POSITION (WHT) WPL 316369W Contact Us For Availability
17
SCREW, 10-32 X 1.250`` PAN HD WPL Y0316239 Contact Us For Availability
17
CLIP, SPRING WPL Y0316394 Contact Us For Availability
17
COVER, REAR WPL Y0307342 Contact Us For Availability
18
GLASS, OVEN DOOR (WHT) WPL 316238W Contact Us For Availability
18
BULB, LIGHT WPL Y0042175 Contact Us For Availability
18
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
19
HANDLE, DOOR (WHT) WPL 316792W Contact Us For Availability
19
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
20
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 317036W Contact Us For Availability
22
FILLER STRIP (WHT) WPL 316325W Contact Us For Availability
23
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
23
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
24
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
24
SEE NOTE FRONT FRAME-ENAMELED -- (NOT FIELD R WPL Y00000000 Contact Us For Availability
25
BLADE, FAN WPL Y0307036 Contact Us For Availability
25
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
26
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
26
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
27
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
27
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
28
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
29
WASHER (ZN) WPL 0307038 Contact Us For Availability
29
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
30
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
31
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
32
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
35
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
36
SWITCH- OVEN DOOR WPL Y0316882 Contact Us For Availability
37
SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
RIVET, POP WPL Y0097822 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
HARNESS,WIRE-HALOG.TOP WPL 0316317 Contact Us For Availability
NI
NUT, SPEED No.6-32 WPL 31750121 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
HARNESS, MAIN,CONVC..S.I. WPL 0316312 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL Y0316004 Contact Us For Availability
NI
METAL SCREW 6X3/8 PHIL PAN HD WPL Y0041796 Contact Us For Availability
× ![]()
