Model Whirlpool ALW450QAC WASHER – Common Parts & Diagrams

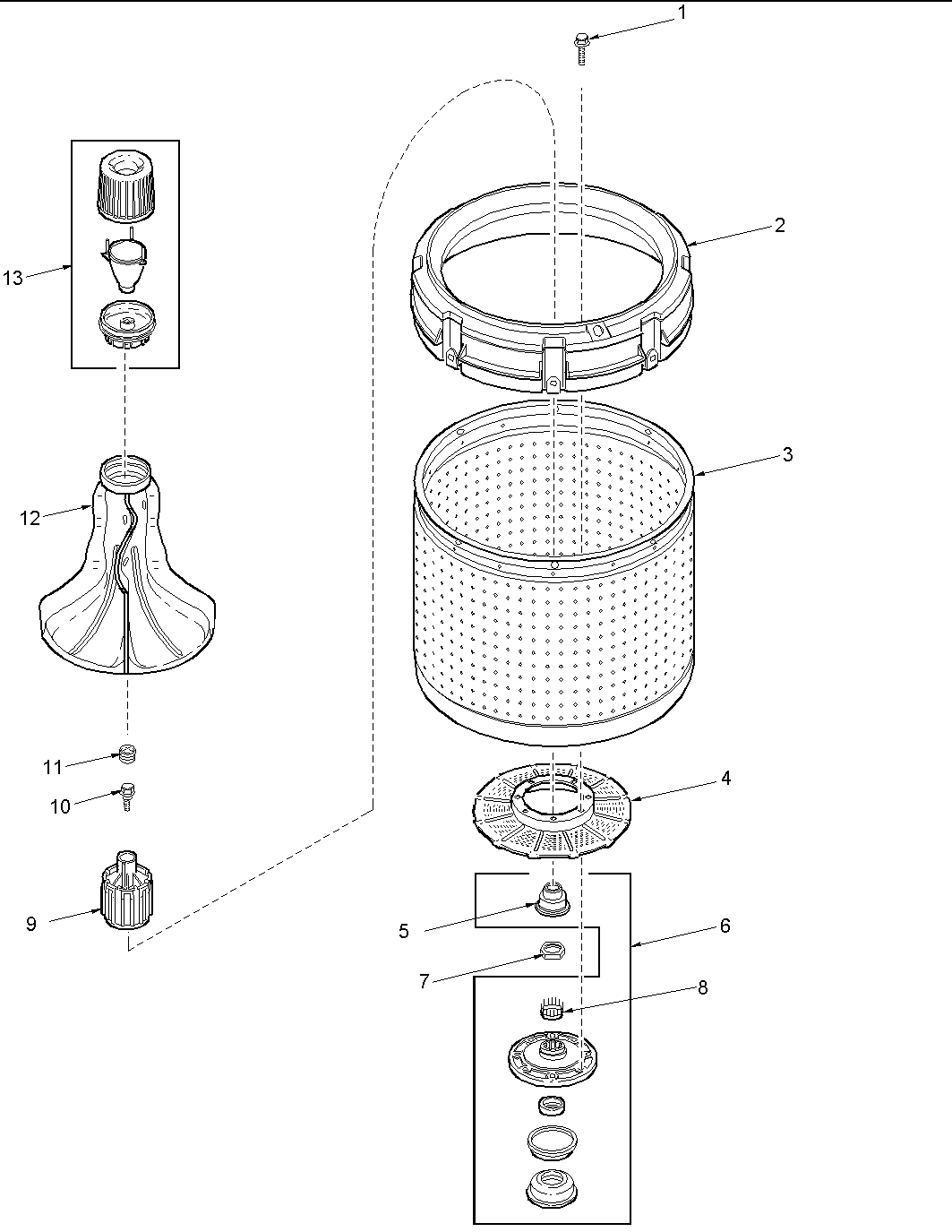

01 - AGITATOR, DRIVE BELL, WASHTUB AND HUB

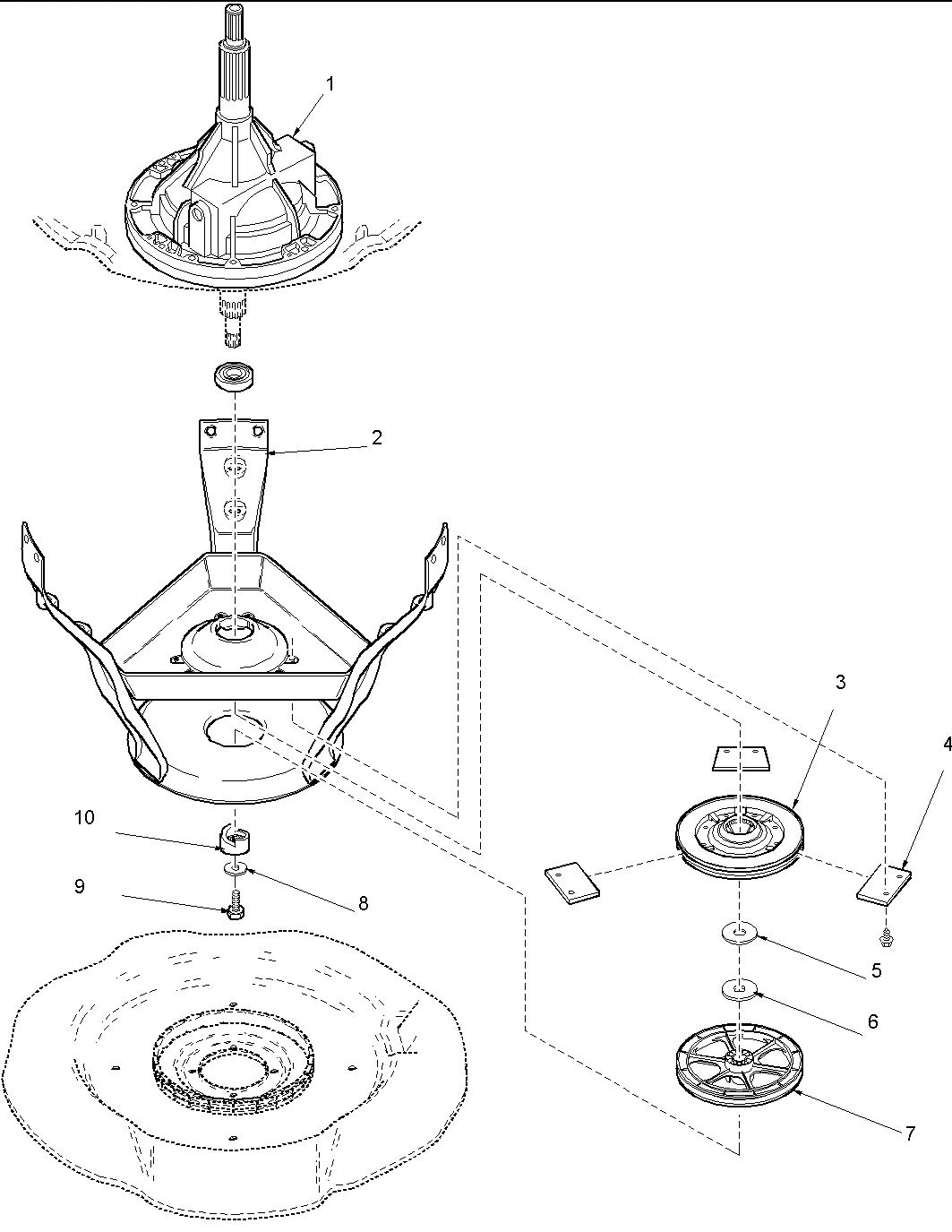

03 - BEARINGS, BRAKE, AND TRANSMISSION

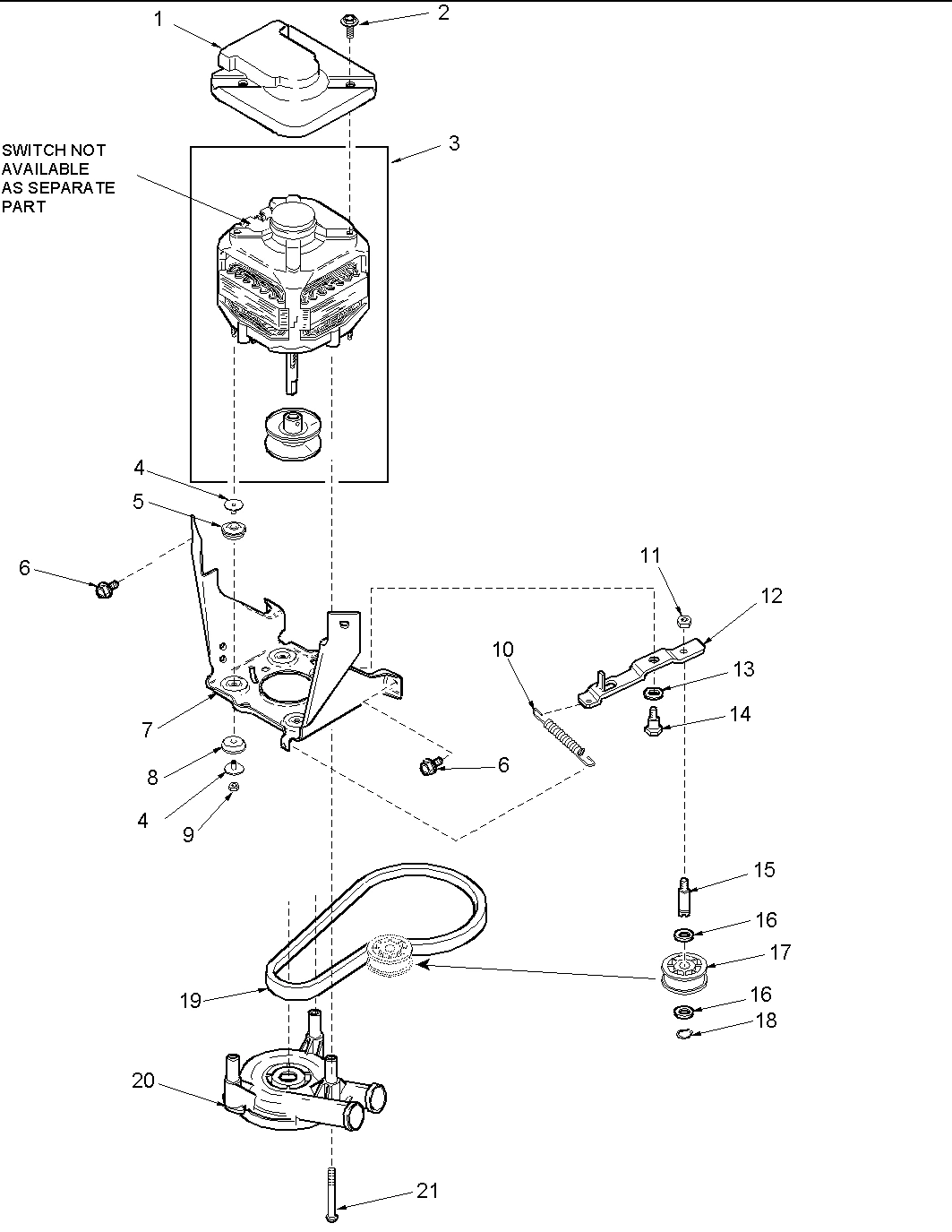

08 - MOTOR, BELT, PUMP, AND IDLER ASSY

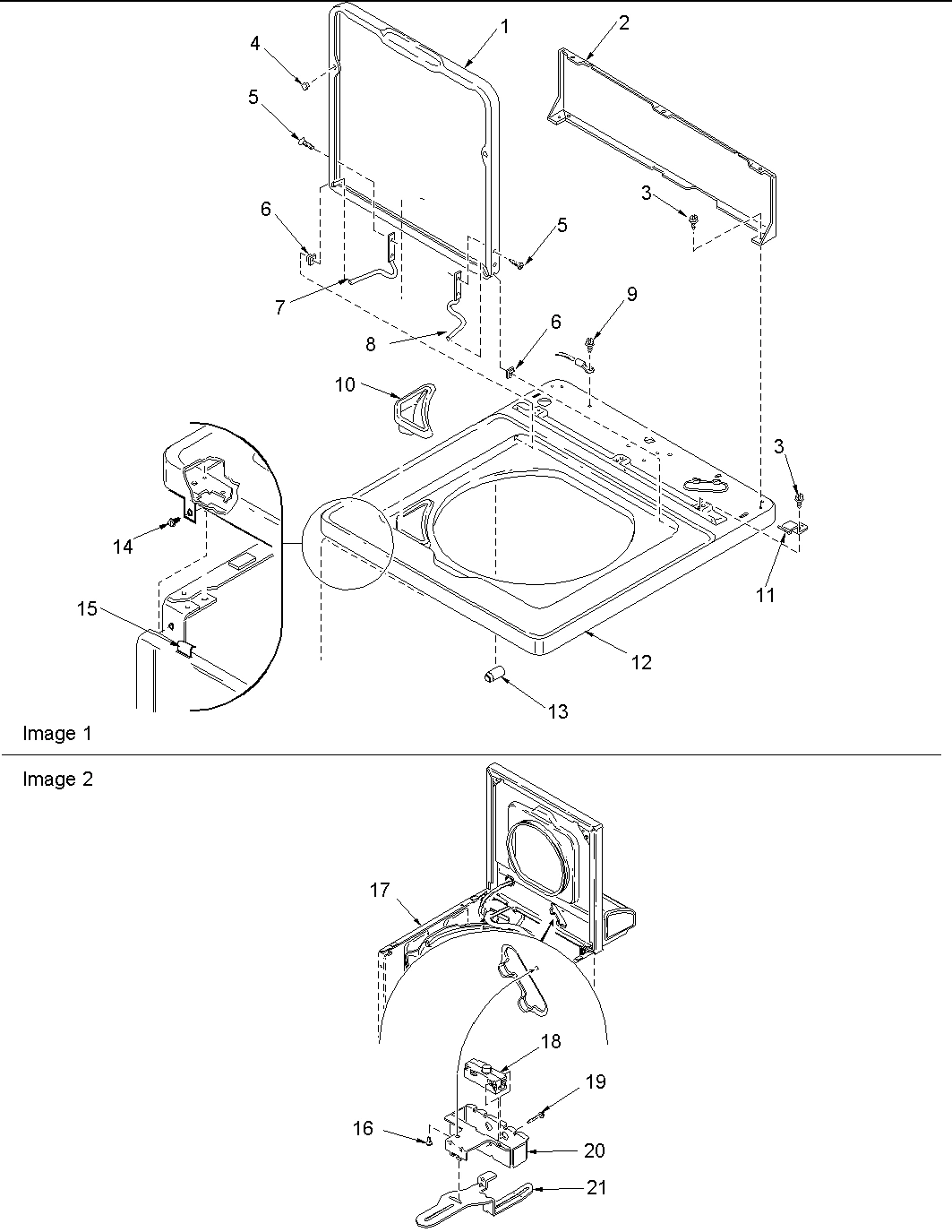

04 - CABINET TOP, DOOR, AND DOOR SWITCH

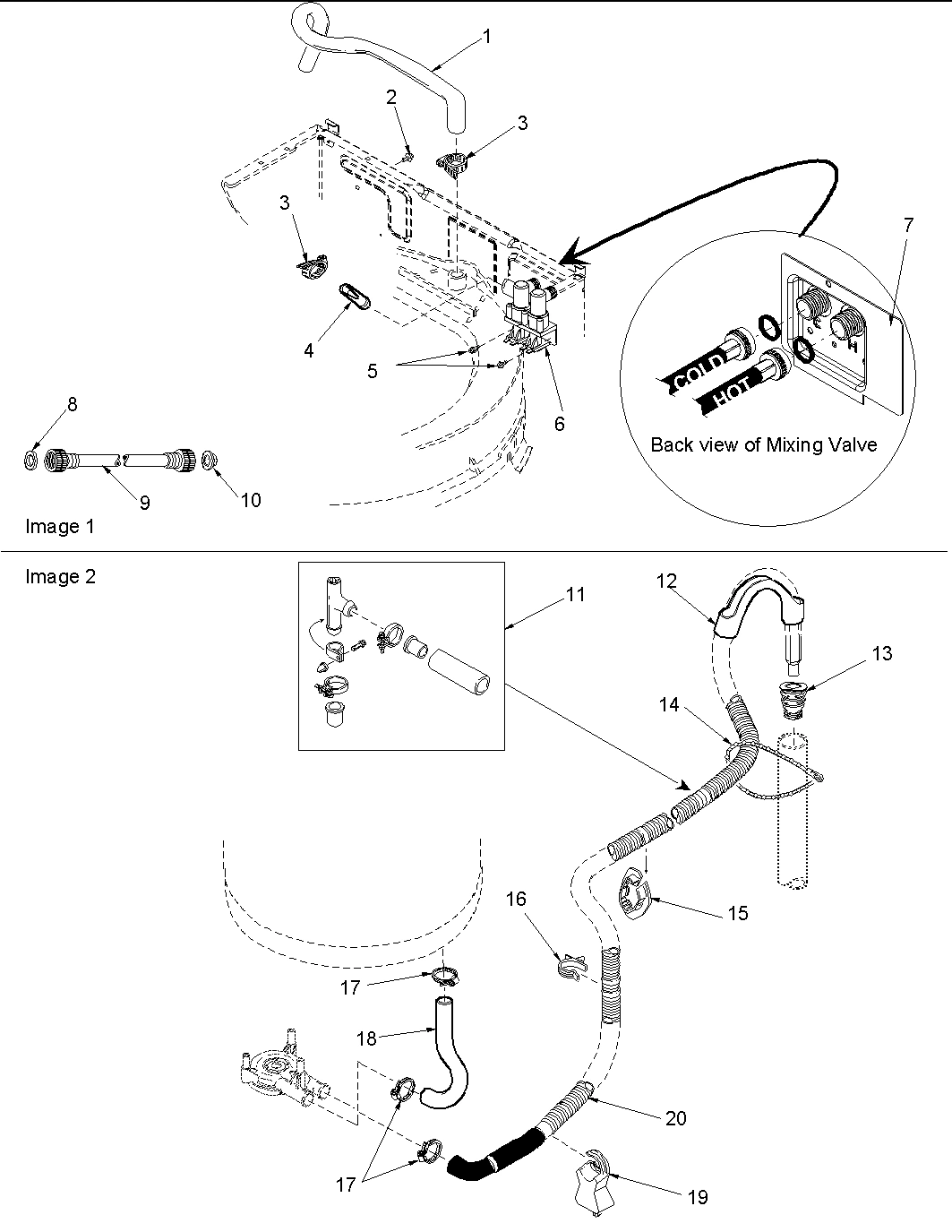

07 - MIXING VALVE AND HOSES

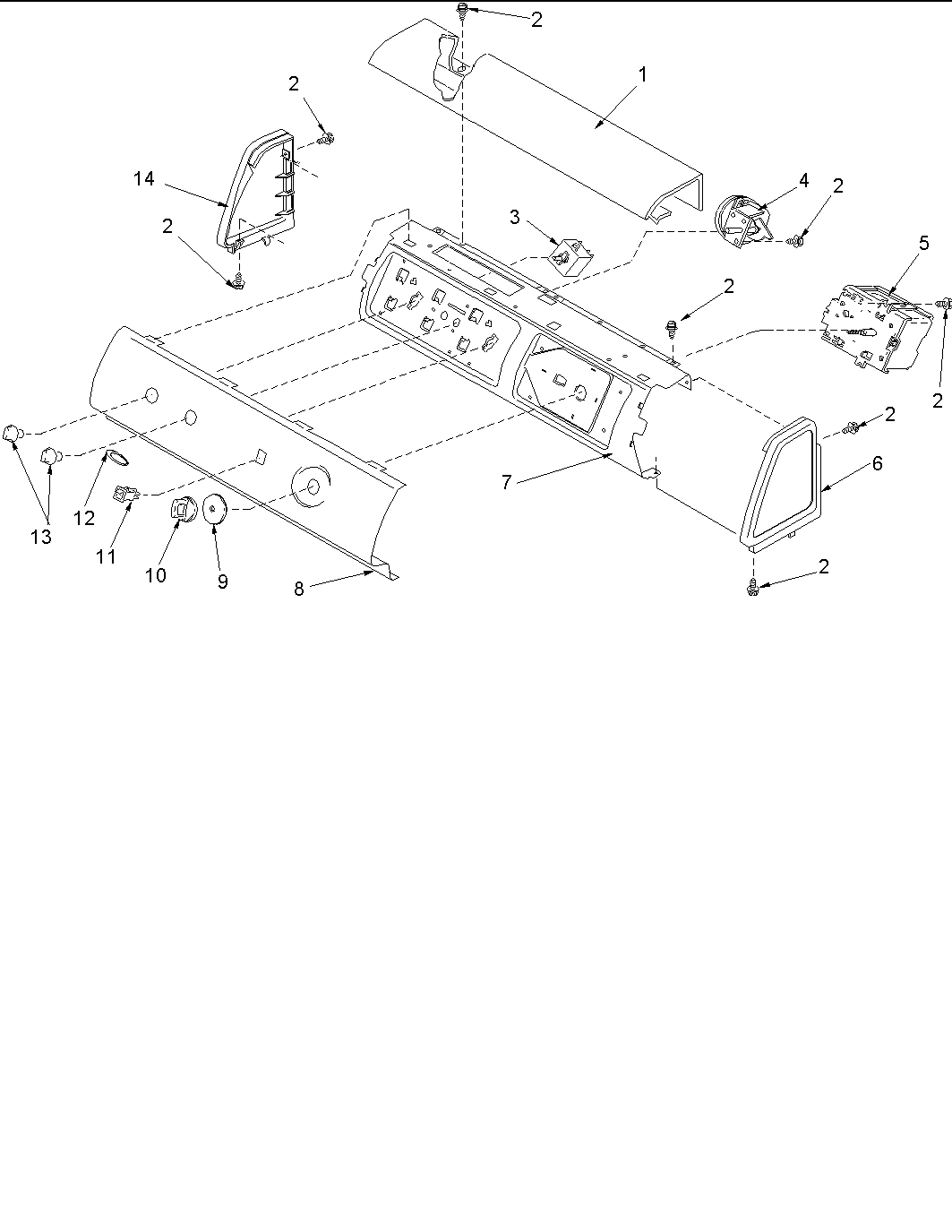

05 - CONTROL PANELS
06 - MISCELLAEOUS INFORMATION

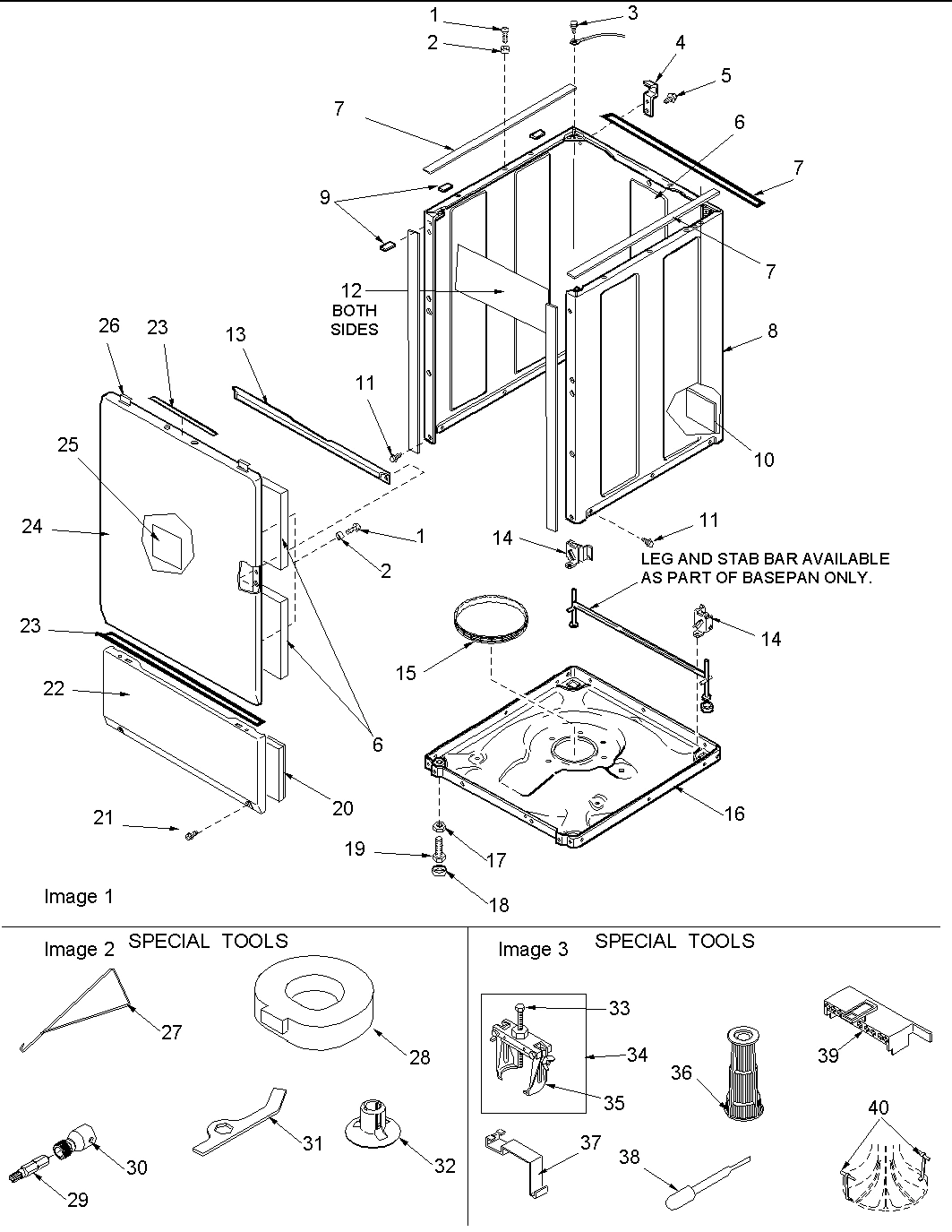

02 - BASE, CABINET, FRONT AND SPECIAL TOOLS

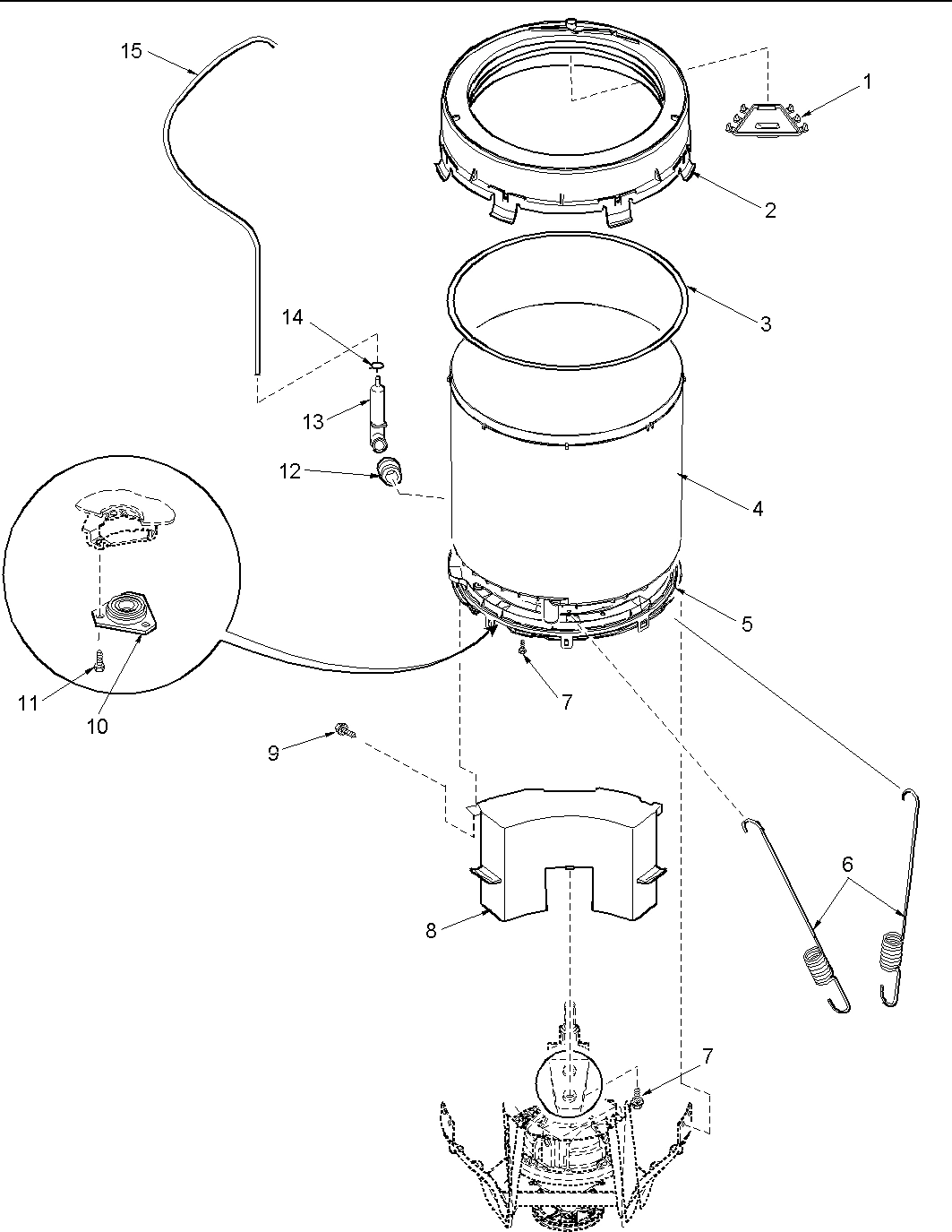

09 - OUTER TUB AND PRESSURE TUBE
Common parts from model Whirlpool ALW450QAC WASHER
0
MNL,PARTS(AUTOMATIC WASHER) WPL RP3100021 Contact Us For Availability
0
MNL, SVC TOP LOAD WSHR WPL RS3100007 Contact Us For Availability
0
SHEET,TECH(AM WSHR)-SEE NOTE WPL RT3100006 Contact Us For Availability
1
ASSEMBLY, TRANSMISSION (640) WPL 40065301 Contact Us For Availability
1
SHIELD, MOTOR WPL 40112301 Contact Us For Availability
1
LID,W/INSTRUCTIONS WPL 40111301C Contact Us For Availability
1
HOSE, MIXING VALVE TO TUB WPL 40098901 Contact Us For Availability
1
COVER, TOP (BSQ) WPL 503674C Contact Us For Availability
1
CHANNEL, WATER INLET WPL 40001901 Contact Us For Availability
2
ASSEMBLY, MILK STOOL WPL 40070002 Contact Us For Availability
2
PANEL,HOME HOOD BACK WPL 40051401 Contact Us For Availability
2
LOCATOR, PANEL WPL 505187 Contact Us For Availability
2
COVER, OUTER TUB WPL 40111101 Contact Us For Availability
3
BRAKE ASSEMBLY WPL 40003103 Contact Us For Availability
3
MOTOR ASSEMBLY WPL 40095003 Contact Us For Availability
3
SWITCH, TEMPERATURE SELECT WPL 40046601 Contact Us For Availability
3
GASKET, TUB COVER WPL 40076601 Contact Us For Availability
4
KIT, BRAKE PAD WPL R0000014 No Longer Available
4
HINGE, TOP WPL 500003 Contact Us For Availability
4
POST, ISOLATOR WPL 40053701 Contact Us For Availability
4
BUMPER WPL 40038001 Contact Us For Availability
4
PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability
4
SWITCH, PRESSURE (3 POS) WPL 40077201 Contact Us For Availability
4
TUB, PLASTIC OUTER WPL 40111001 Contact Us For Availability
5
WASHER, 2 ODX.63 ID WPL 40065701 Contact Us For Availability
5
MOUNT, MOTOR UPPER WPL 40053801 Contact Us For Availability
5
TIMER, 115V/60HZ WPL 40059201 Contact Us For Availability
5
BOTTOM, OUTER TUB WPL 40001102 Contact Us For Availability
6
WASHER, FLAT WPL 40063201 Contact Us For Availability
6
BUSHING, HINGE WPL 40008201 Contact Us For Availability
6
VALVE, MIXING E1 WPL 40097701 Contact Us For Availability
6
ENDCAP (RT-BSQ) WPL 40012701C Contact Us For Availability
6
FOAM, 10`` X 24`` WPL 40091801 Contact Us For Availability
6
SPRING, TALL TUB WPL 40045202 Contact Us For Availability
7
PULLEY, SPIN WPL 40047202 Contact Us For Availability
7
BRACKET,MOTOR MOUNT WPL 40015501 Contact Us For Availability
7
HINGE, LID LEFT STOP WPL 40094002 Contact Us For Availability
7
PLATE, MIXING VALUE WPL 40098801 Contact Us For Availability
7
SUPPORT, CONTROL PANEL WPL 40039601 Contact Us For Availability
7
SCREW, 1/4-15X3/4 HEX WPL 40064301 Contact Us For Availability
8
WASHER WPL 40041501 Contact Us For Availability
8
MOUNT, MOTOR LOWER WPL 40054301 Contact Us For Availability
8
HINGE, LID RIGHT PASS WPL 40094101 Contact Us For Availability
8
CABINET, WASHER (BSQ) WPL 40076401CP Contact Us For Availability
8
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
8
PANEL,GRAPHIC(BISQUE) WPL 40090302C Contact Us For Availability
8
ASSEMBLY COUNTER WEIGHT WPL 40015901 Contact Us For Availability
9
KIT, DRIVE BELL AND SEAL WPL R9900189 Contact Us For Availability
9
SCREW, 1/4-20X5/8 HEX WPL 40063401 Contact Us For Availability
9
DIAL,TIMER KNOB(BISQUE) WPL 40013701C Contact Us For Availability
9
SCREW, 1/4-20X7/8 HEX WPL 40070401 Contact Us For Availability
10
SCREW, SHOULDER 1/4 WPL 40065102 Contact Us For Availability
10
HELIX, PLASTIC WPL 40047401 Contact Us For Availability
10
SPRING, IDLER LEVER WPL 40061401 Contact Us For Availability
10
DISPENSER, BLEACH WPL 40093901 Contact Us For Availability
10
ASSY, TIMER KNOB (BSQ) WPL 40014001C Contact Us For Availability
10
FOAM,5`` X 5`` X 1/2`` WPL 40106301 Contact Us For Availability
11
PLUG, BELL WPL 40008401 Contact Us For Availability
11
SCREW, 5/6-18 X 1/2 WPL 40105601 Contact Us For Availability
11
JAMNUT, 3/8-16 WPL 40038801 Contact Us For Availability
11
CLIP, HOLD DOWN WPL 40063901 Contact Us For Availability
11
SWITCH, ROCKER (BSQ) WPL 38424L Contact Us For Availability
12
AGITATOR, FLEX VANE WPL 40000501W Contact Us For Availability
12
LEVER, IDLER WPL 40041001 Contact Us For Availability
12
PANEL,TOP WPL 40000202C Contact Us For Availability
12
SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability
12
MEDALLION WPL 40083301 Contact Us For Availability
12
GROMMET WPL 40037801 Contact Us For Availability
13
ASSEMBLY, FABRIC SOFTNER WPL 40002101W Contact Us For Availability
13
WASHER WPL 40054701 Contact Us For Availability
13
CAP, HINGE WPL 40102101 Contact Us For Availability
13
ASSY, SELECTOR KNOB (BSQ)` WPL 40013401C Contact Us For Availability
13
BRACE, TOP WPL 56486 Contact Us For Availability
13
ASSEMBLY, PRESSURE BULB WPL 40008501 Contact Us For Availability
14
SCREW, 1/4-20 WPL 40038901 Contact Us For Availability
14
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
14
ENDCAP (LT-BSQ) WPL 40012702C Contact Us For Availability
14
BRACKET, SELF LEVELING WPL 40031501 Contact Us For Availability
15
RING, FRICTION WPL 40037401 Contact Us For Availability
15
RELIEF, STRAIN DRAIN WPL 40058501 Contact Us For Availability
16
CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability
16
ASSY, BASE & LEVEL DOME WPL 40031201P Contact Us For Availability
18
SWITCH, SPST WPL 40035001 Contact Us For Availability
18
FOOT, RUBBER WPL 40016001 Contact Us For Availability
19
SCREW, TAPPING No.6B-20 WPL 40040701 Contact Us For Availability
19
STAND, HOSE WPL 40044901 Contact Us For Availability
20
ASSEMBLY, PUMP COMPLETE WPL 40040301 Contact Us For Availability
20
HOLDER, LID SWITCH WPL 40009801 Contact Us For Availability
20
FOAM,BARRIER 8``X 24`` WPL 40091701 Contact Us For Availability
21
SCREW, 10-16X1.75 WPL 40063701 Contact Us For Availability
21
ARM, LID SWITCH WPL 40009701 Contact Us For Availability
21
SCREW, No.12BX1/2 WPL 40034101 Contact Us For Availability
22
PANEL, ACCESS (BSQ) WPL 40045301CP Contact Us For Availability
24
PANEL, FRONT (BSQ) WPL 40035401CP Contact Us For Availability
27
HOOK, SPRING WPL 289P4 Contact Us For Availability
28
SHIPPING BRACE ASSEMBLY WPL 40068201 Contact Us For Availability
29
T25 TAMPER RESISTANT BIT WPL 282P4 Contact Us For Availability
30
TORX BIT HOLDER WPL 24161 Contact Us For Availability
31
HEX WRENCH WPL 306P4 Contact Us For Availability
32
SHIPPING PLUG WPL 40047301 Contact Us For Availability
33
DRIVE BELL BOLT WPL 294P4B Contact Us For Availability
34
BELL TOOL WPL 294P4 Contact Us For Availability
35
DRIVE BELL ARMS WPL 294P5A Contact Us For Availability
36
SEAL TOOL WPL 293P4 Contact Us For Availability
37
TUB COVER GASKET TOOL WPL 273P4 Contact Us For Availability
38
TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability
39
10 CIRCUIT PLUG WPL 34677 Contact Us For Availability
40
AGITATOR HOOKS WPL 254P4P Contact Us For Availability
60
MNL,OWNERS(WASHER) WPL 40068304 Contact Us For Availability
70
INSTR, INSTAL WPL 40085801 Contact Us For Availability
106
INSTR,INSTALL(FRENCH-WASHER) WPL 40092901 Contact Us For Availability
107
MNL,OWNERS(WASHER)-FRENCH WPL 40093002 Contact Us For Availability
NI
CORD, POWER WPL 40098701 Contact Us For Availability
NI
HARNESS, BASE WIRE WPL 40100001 Contact Us For Availability
NI
ASSY,WIRE HARNESS HOOD WPL 40100401 Contact Us For Availability
× ![]()
