Model Maytag AFI2538AEB3 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

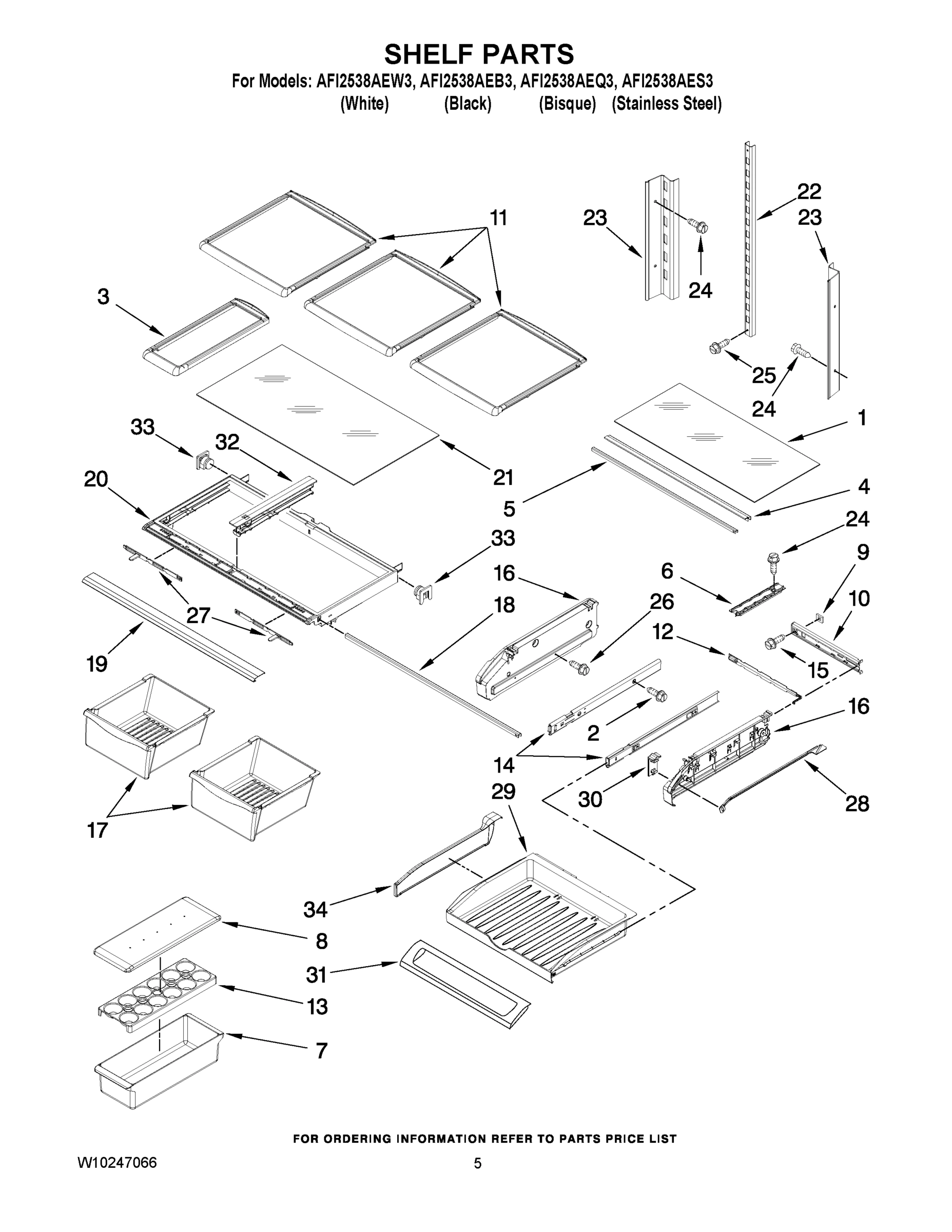

03 - SHELF PARTS

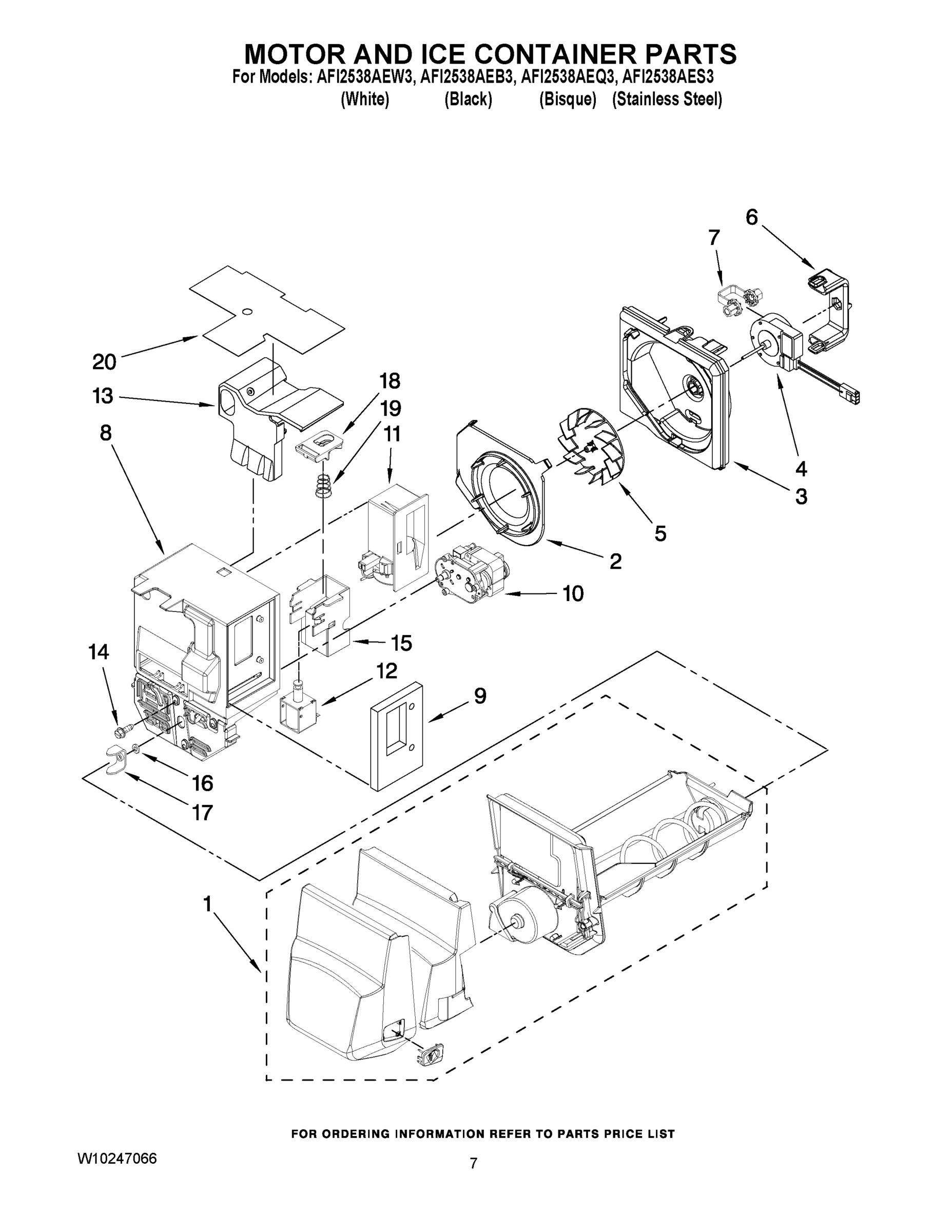

04 - MOTOR AND ICE CONTAINER PARTS

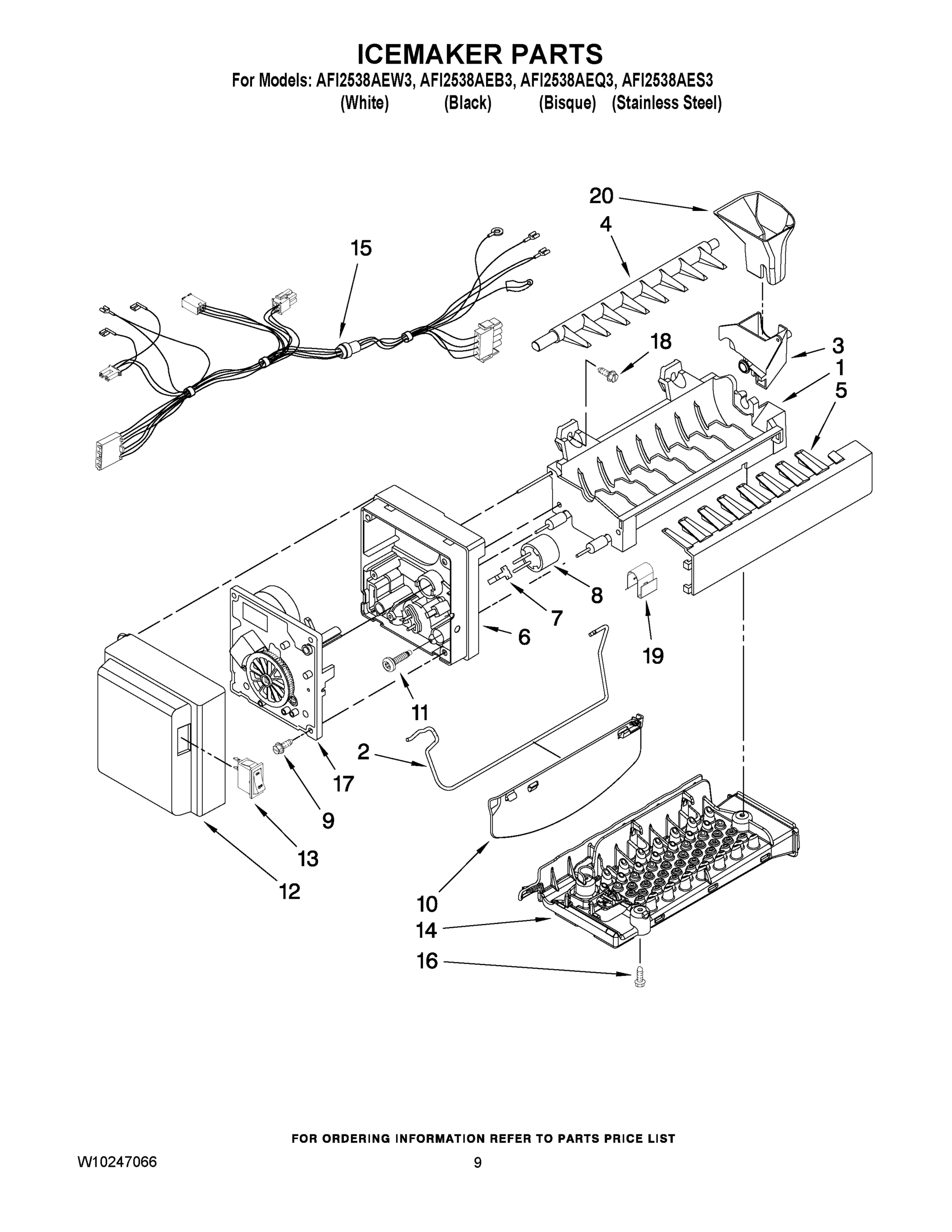

05 - ICEMAKER PARTS
06 - FREEZER LINER PARTS

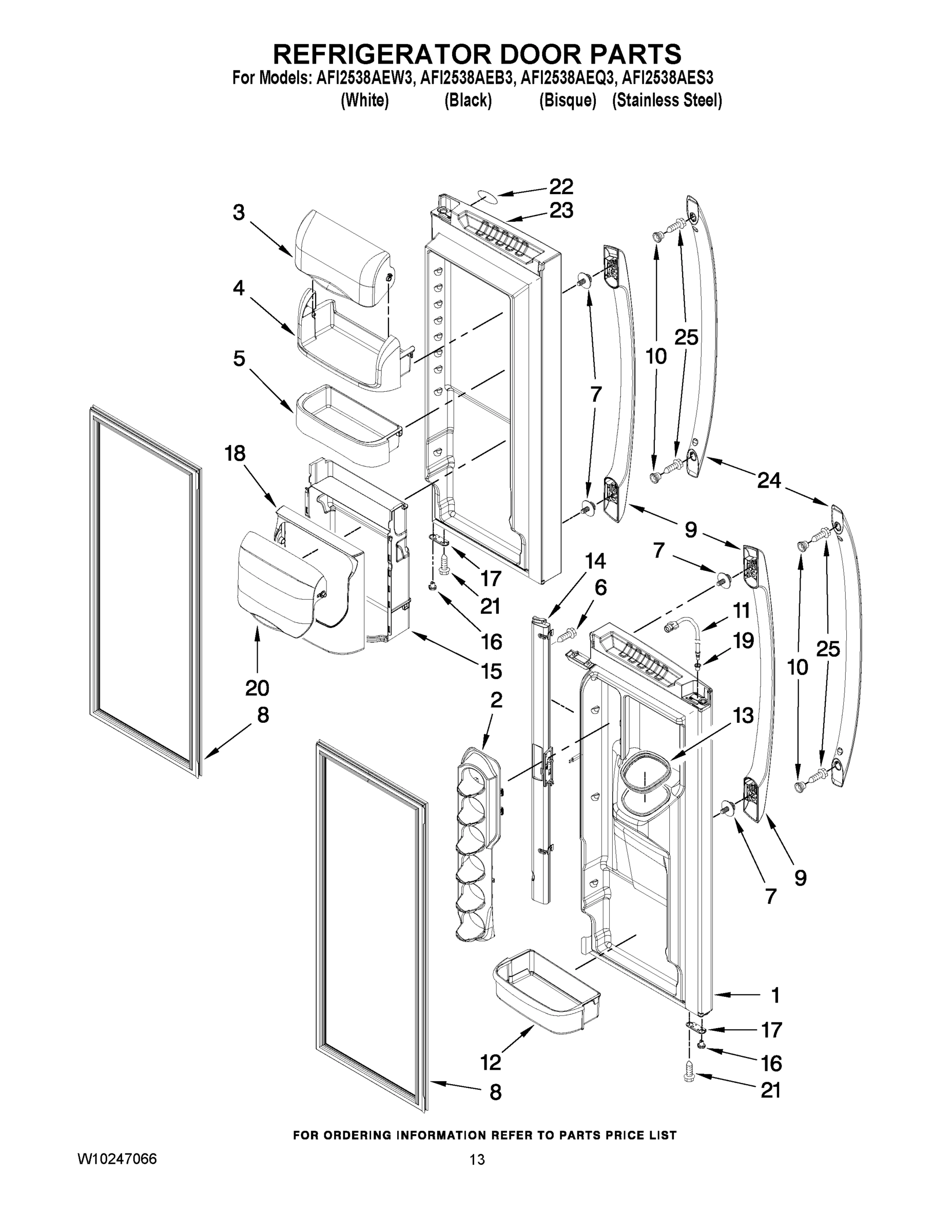

07 - REFRIGERATOR DOOR PARTS

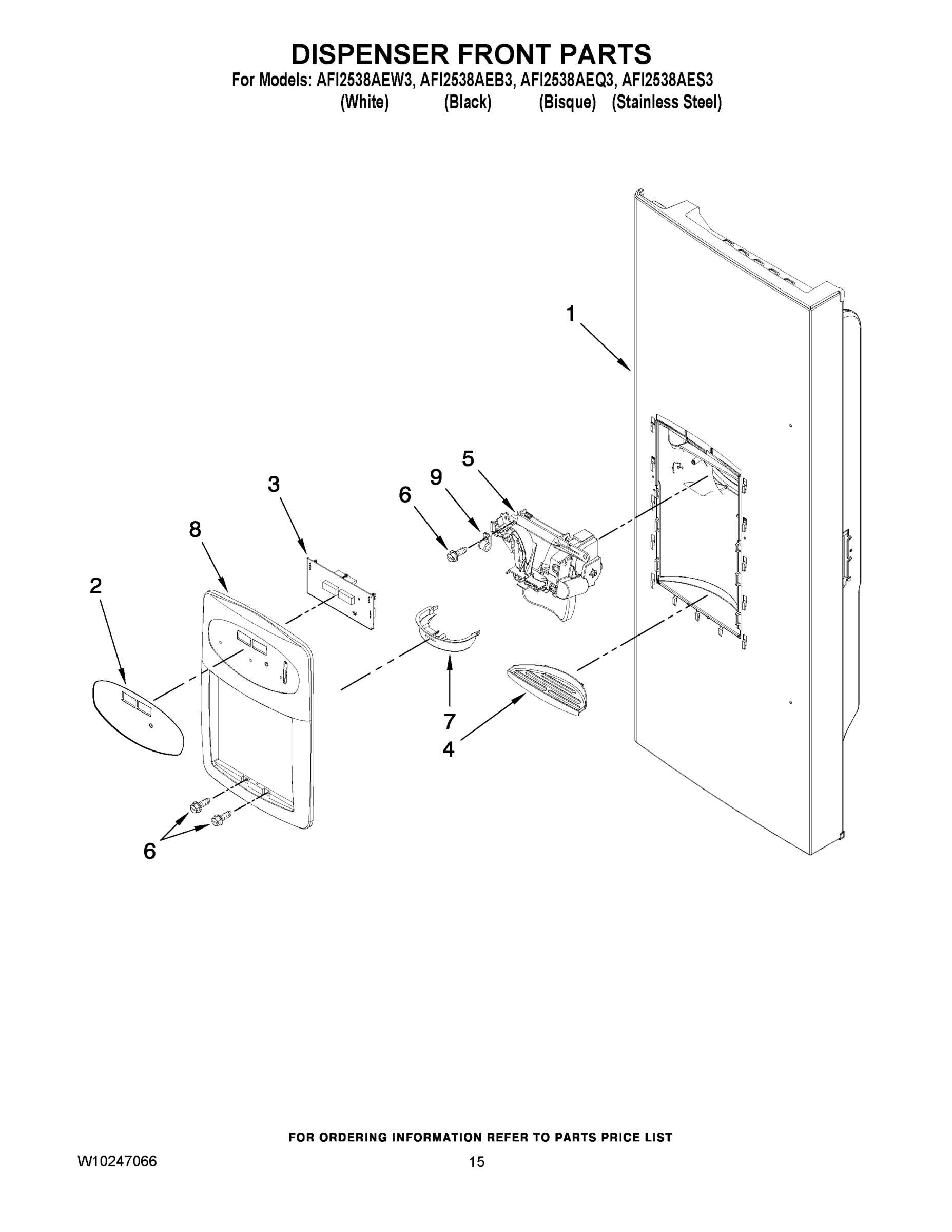

08 - DISPENSER FRONT PARTS

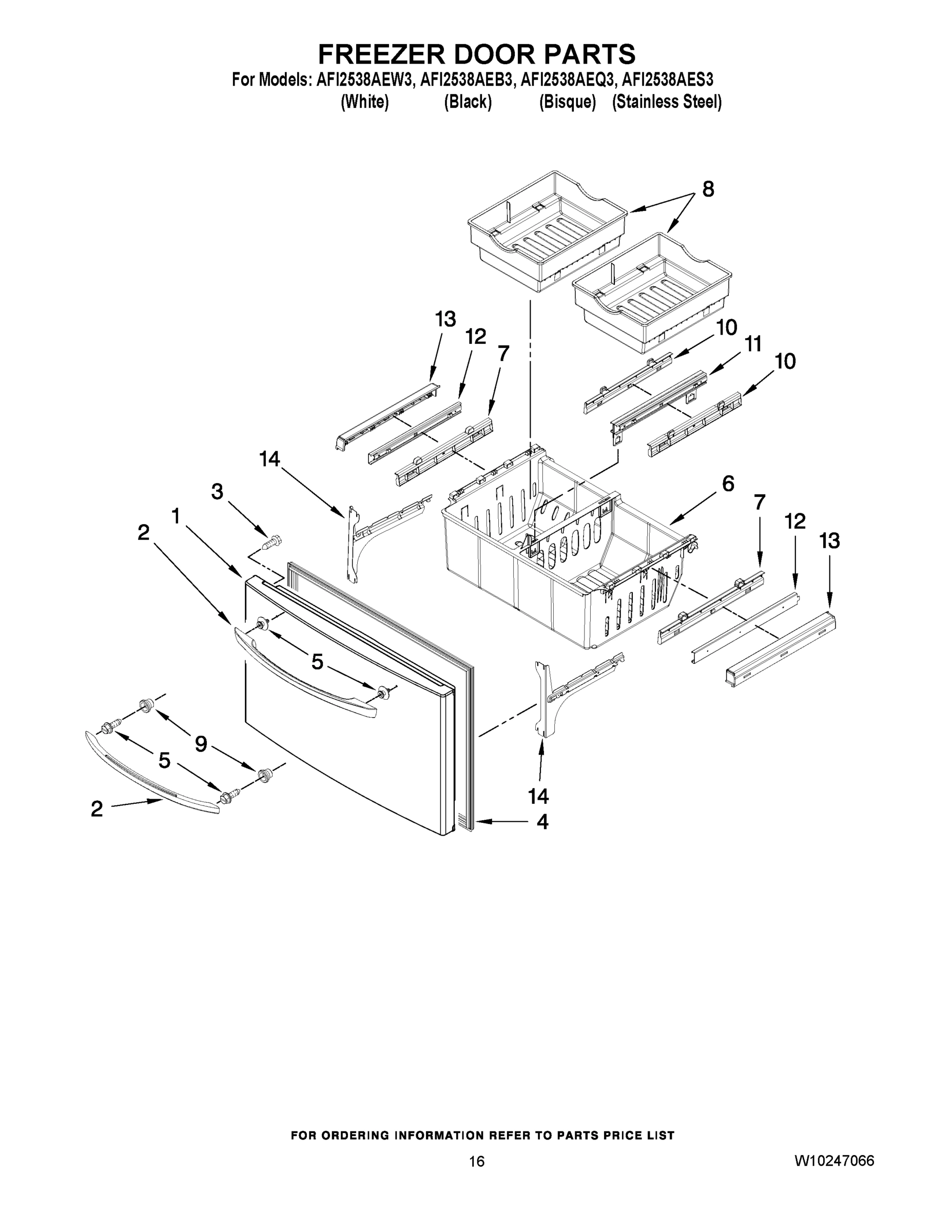

09 - FREEZER DOOR PARTS

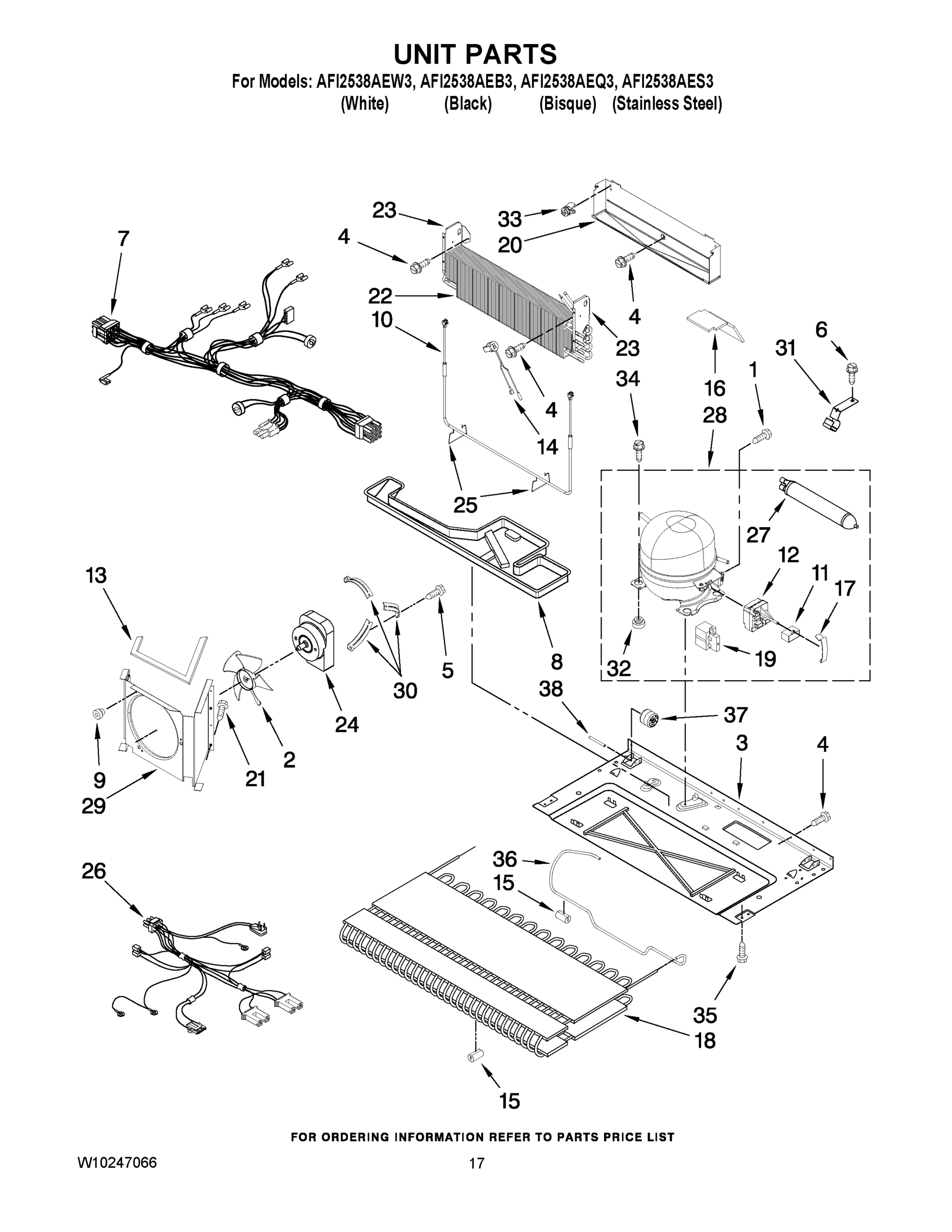

10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AFI2538AEB3 REFRIGERATOR
1
MAY 67002761 MAY 67002761 Contact Us For Availability
1
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability
1
MAY 67007078 MAY 67007078 Contact Us For Availability
1
MAY 67007101 MAY 67007101 Contact Us For Availability
1
MAY 67007124 MAY 67007124 Contact Us For Availability
1
MAY W10162823 MAY W10162823 Contact Us For Availability
1
MAY W10162858 MAY W10162858 Contact Us For Availability
1
MAY W10164156 MAY W10164156 Contact Us For Availability
1
MAY W10164157 MAY W10164157 Contact Us For Availability
1
MAY W10164158 MAY W10164158 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
MAY 67006311 MAY 67006311 Contact Us For Availability
2
MAY 67006955 MAY 67006955 Contact Us For Availability
2
MAY 67006956 MAY 67006956 Contact Us For Availability
2
MAY 67006957 MAY 67006957 Contact Us For Availability
2
Handle (White) MAY W10119669 Contact Us For Availability
2
MAY W10119670 MAY W10119670 Contact Us For Availability
2
Handle (Black) MAY W10119671 Contact Us For Availability
2
MAY W10138765 MAY W10138765 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
3
Gear (Left) MAY 67004430 Contact Us For Availability
3
Base MAY 12457108 Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
4
MAY 67006394 MAY 67006394 Contact Us For Availability
4
MAY 67006440 MAY 67006440 Contact Us For Availability
4
MAY W10162895 MAY W10162895 Contact Us For Availability
4
MAY W10162897 MAY W10162897 Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
5
MAY 13005701B MAY 13005701B Contact Us For Availability
5
MAY 13005701Q MAY 13005701Q Contact Us For Availability
5
MAY 13005701W MAY 13005701W Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
MAY Y12570701 MAY Y12570701 Contact Us For Availability
6
MAY 67006366 MAY 67006366 Contact Us For Availability
6
MAY 67006737 MAY 67006737 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
Gear, (Right) MAY 67004429 Contact Us For Availability
7
MAY 67006370 MAY 67006370 Contact Us For Availability
7
Harness, Evap Heater MAY W10119239 Contact Us For Availability
8
MAY 10436404 MAY 10436404 Contact Us For Availability
8
MAY W10187860 MAY W10187860 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 627985 Contact Us For Availability
8
Screw, Bracket MAY 67006473 Contact Us For Availability
8
MAY W10162891 MAY W10162891 Contact Us For Availability
8
MAY W10162893 MAY W10162893 Contact Us For Availability
8
MAY 67006395 MAY 67006395 Contact Us For Availability
8
MAY 67006396 MAY 67006396 Contact Us For Availability
8
MAY W10164155 MAY W10164155 Contact Us For Availability
8
MAY W10166237 MAY W10166237 Contact Us For Availability
8
MAY 12579803 MAY 12579803 Contact Us For Availability
9
Grommet MAY 61004743 Contact Us For Availability
9
MAY 67006341 MAY 67006341 Contact Us For Availability
9
Screw (3) MAY 489464 Contact Us For Availability
9
Door Handle (Right Door) (White) MAY W10119663 Contact Us For Availability
9
Door Handle (Right Door) (Bisque) MAY W10119664 Contact Us For Availability
9
Door Handle (Right Door) (Black) MAY W10119665 Contact Us For Availability
9
Door Handle (Left Door) (White) MAY W10119666 Contact Us For Availability
9
Door Handle (Left Door) (Bisque) MAY W10119667 Contact Us For Availability
9
Door Handle (Left Door) (Black) MAY W10119668 Contact Us For Availability
9
MAY M0108106 MAY M0108106 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
MAY 67005625 MAY 67005625 Contact Us For Availability
10
MAY W10121440 MAY W10121440 Contact Us For Availability
10
MAY W10163002 MAY W10163002 Contact Us For Availability
10
Evaporator Heater MAY W10162932 Contact Us For Availability
11
MAY 67006411 MAY 67006411 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
MAY 67006383 MAY 67006383 Contact Us For Availability
11
Capacitor (Service) MAY 1118576 Contact Us For Availability
11
MAY 67005562 MAY 67005562 Contact Us For Availability
12
MAY 67003793 MAY 67003793 Contact Us For Availability
12
MAY W10121444 MAY W10121444 Contact Us For Availability
12
MAY 67006404 MAY 67006404 Contact Us For Availability
12
MAY 67006369 MAY 67006369 Contact Us For Availability
12
Overload (Service) MAY 2159596 Contact Us For Availability
12
MAY 67005561 MAY 67005561 Contact Us For Availability
13
MAY 12665101 MAY 12665101 Contact Us For Availability
13
MAY 10436506 MAY 10436506 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
MAY 2313326 MAY 2313326 Contact Us For Availability
13
MAY 67006367 MAY 67006367 Contact Us For Availability
13
MAY 67006368 MAY 67006368 Contact Us For Availability
14
Glide, Drawer(2) MAY 67007026 Contact Us For Availability
14
Impinger Assembly MAY W10121269 Contact Us For Availability
14
MAY W10122147 MAY W10122147 Contact Us For Availability
14
MAY W10122148 MAY W10122148 Contact Us For Availability
14
MAY 67006423 MAY 67006423 Contact Us For Availability
14
MAY 67006401 MAY 67006401 Contact Us For Availability
14
MAY 67006402 MAY 67006402 Contact Us For Availability
14
MAY W10159432 MAY W10159432 Contact Us For Availability
14
MAY 67006387 MAY 67006387 Contact Us For Availability
15
MAY 67007111 MAY 67007111 Contact Us For Availability
15
MAY W10117806 MAY W10117806 Contact Us For Availability
16
MAY 67006346 MAY 67006346 Contact Us For Availability
16
PAD-ACOUSTIC MAY 12820504 Contact Us For Availability
17
Pan, Crisper (2) MAY 67005915 Contact Us For Availability
17
MAY 63052-1 MAY 63052-1 Contact Us For Availability
17
MAY 626678 MAY 626678 Contact Us For Availability
17
Stop, Door (Bisque) MAY 12968202Q Contact Us For Availability
17
MAY 12968202W MAY 12968202W Contact Us For Availability
17
MAY 67007052 MAY 67007052 Contact Us For Availability
18
Support, Crisper Cover MAY 12642303WD Contact Us For Availability
18
MAY 67006347 MAY 67006347 Contact Us For Availability
18
Screw (3) MAY 489276 Contact Us For Availability
18
MAY 67006769 MAY 67006769 Contact Us For Availability
19
MAY 12664501 MAY 12664501 Contact Us For Availability
19
MAY 67004636 MAY 67004636 Contact Us For Availability
19
MAY 67006348 MAY 67006348 Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
Relay (Service Only) MAY 2183454 Contact Us For Availability
20
MAY W10142628 MAY W10142628 Contact Us For Availability
20
Insert, Fill Clip MAY W10121434 Contact Us For Availability
20
MAY 67003731 MAY 67003731 Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
21
MAY W10120017 MAY W10120017 Contact Us For Availability
21
MAY W10120083 MAY W10120083 Contact Us For Availability
21
SCREW MAY 67007110 Contact Us For Availability
22
MAY 67006358 MAY 67006358 Contact Us For Availability
22
MAY 12528501 MAY 12528501 Contact Us For Availability
22
MAY W10162998 MAY W10162998 Contact Us For Availability
23
MAY 67006354 MAY 67006354 Contact Us For Availability
23
MAY 67006424 MAY 67006424 Contact Us For Availability
23
MAY 67007077 MAY 67007077 Contact Us For Availability
23
MAY 67007100 MAY 67007100 Contact Us For Availability
23
MAY 67007125 MAY 67007125 Contact Us For Availability
23
MAY W10162843 MAY W10162843 Contact Us For Availability
23
Support-EV (Left Side) MAY 12963002SP Contact Us For Availability
23
Support-EV (Right Side) MAY 12963102SP Contact Us For Availability
24
Waterline MAY 12962204 Contact Us For Availability
24
MAY 67006400 MAY 67006400 Contact Us For Availability
24
Door Handle (Right Door) (Stainless Steel) MAY W10136873 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
MAY 67006415 MAY 67006415 Contact Us For Availability
26
MAY W10162809 MAY W10162809 Contact Us For Availability
26
Harness, Unit MAY 13060201 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
28
SEAL, O RING MAY M0500703 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 17, 27, & MAY 67005565 Contact Us For Availability
29
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
29
MAY W10162963 MAY W10162963 Contact Us For Availability
30
MAY 67006406 MAY 67006406 Contact Us For Availability
30
MAY 67004953 MAY 67004953 Contact Us For Availability
31
MAY 10547003 MAY 10547003 Contact Us For Availability
32
MAY 4387558 MAY 4387558 Contact Us For Availability
33
STUD, CRISPER FRAME MAY 13062602 Contact Us For Availability
33
MAY 10623002 MAY 10623002 Contact Us For Availability
34
Screw MAY 67006432 Contact Us For Availability
35
MAY 67006573 MAY 67006573 Contact Us For Availability
36
MAY 67001066 MAY 67001066 Contact Us For Availability
36
MAY 12866903 MAY 12866903 Contact Us For Availability
100
MAY W10122533 MAY W10122533 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stainelss Steel MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
