Model Whirlpool AES3760BCS ELECTRIC RANGE – Common Parts &amp; Diagrams

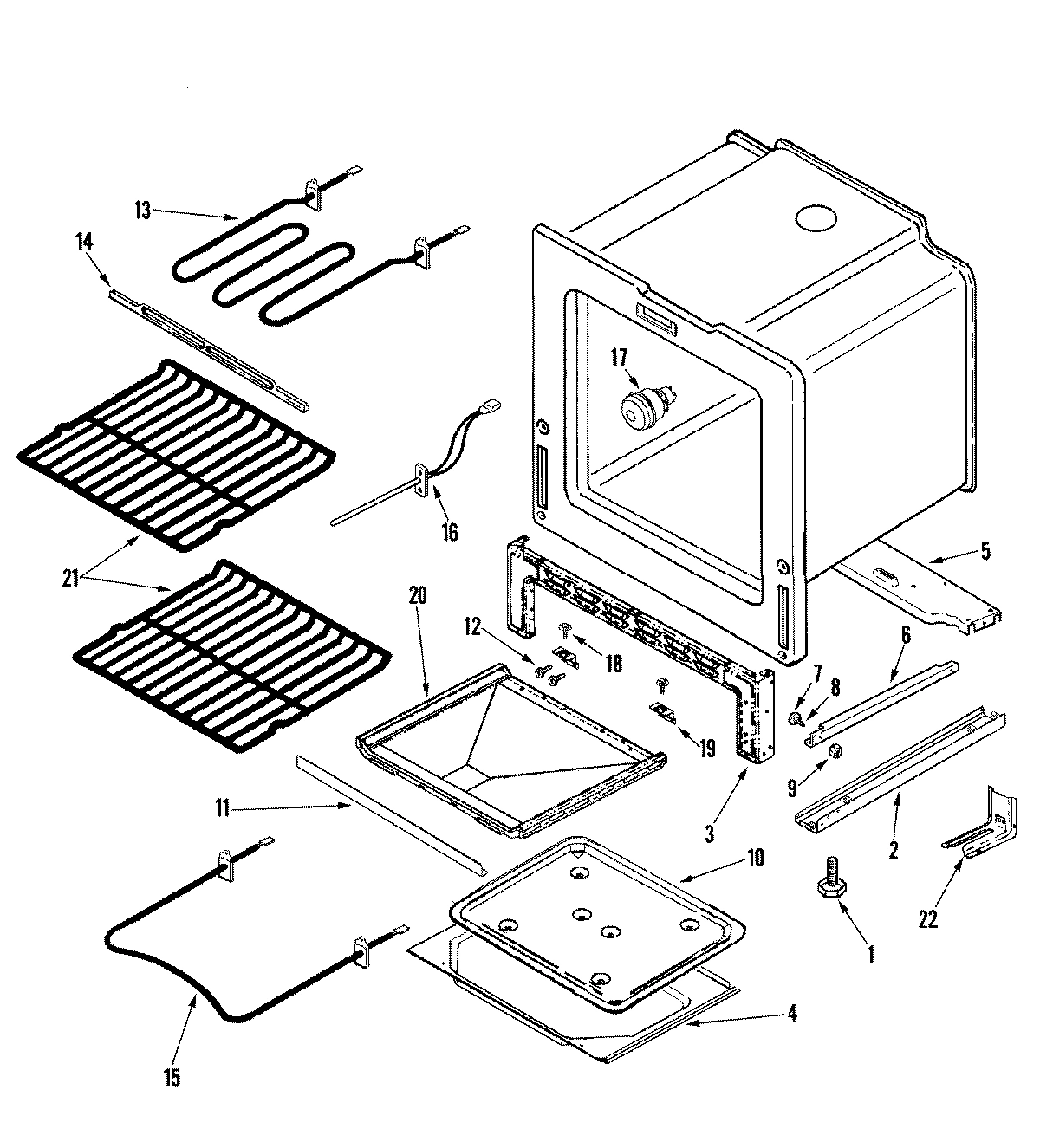

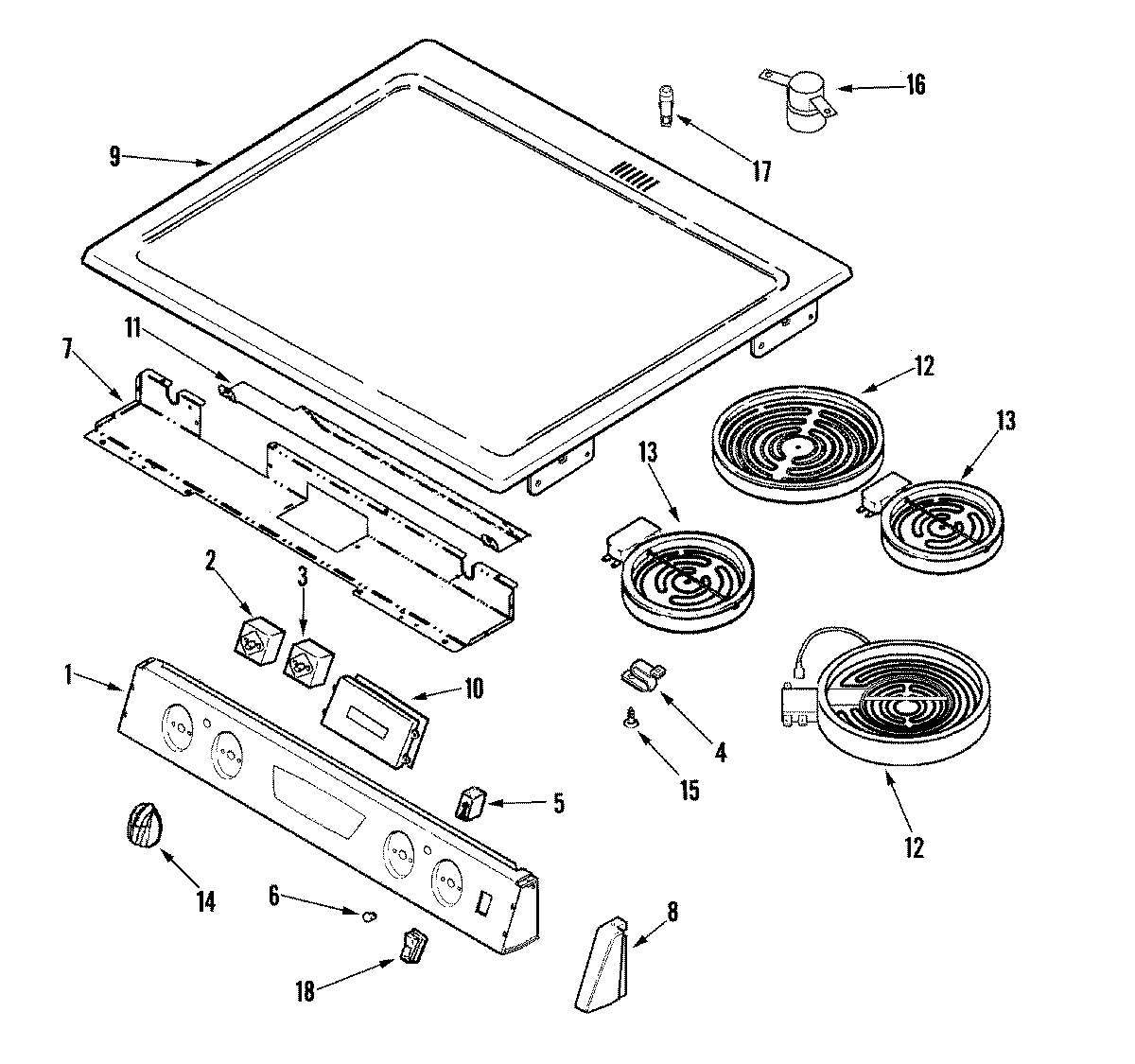

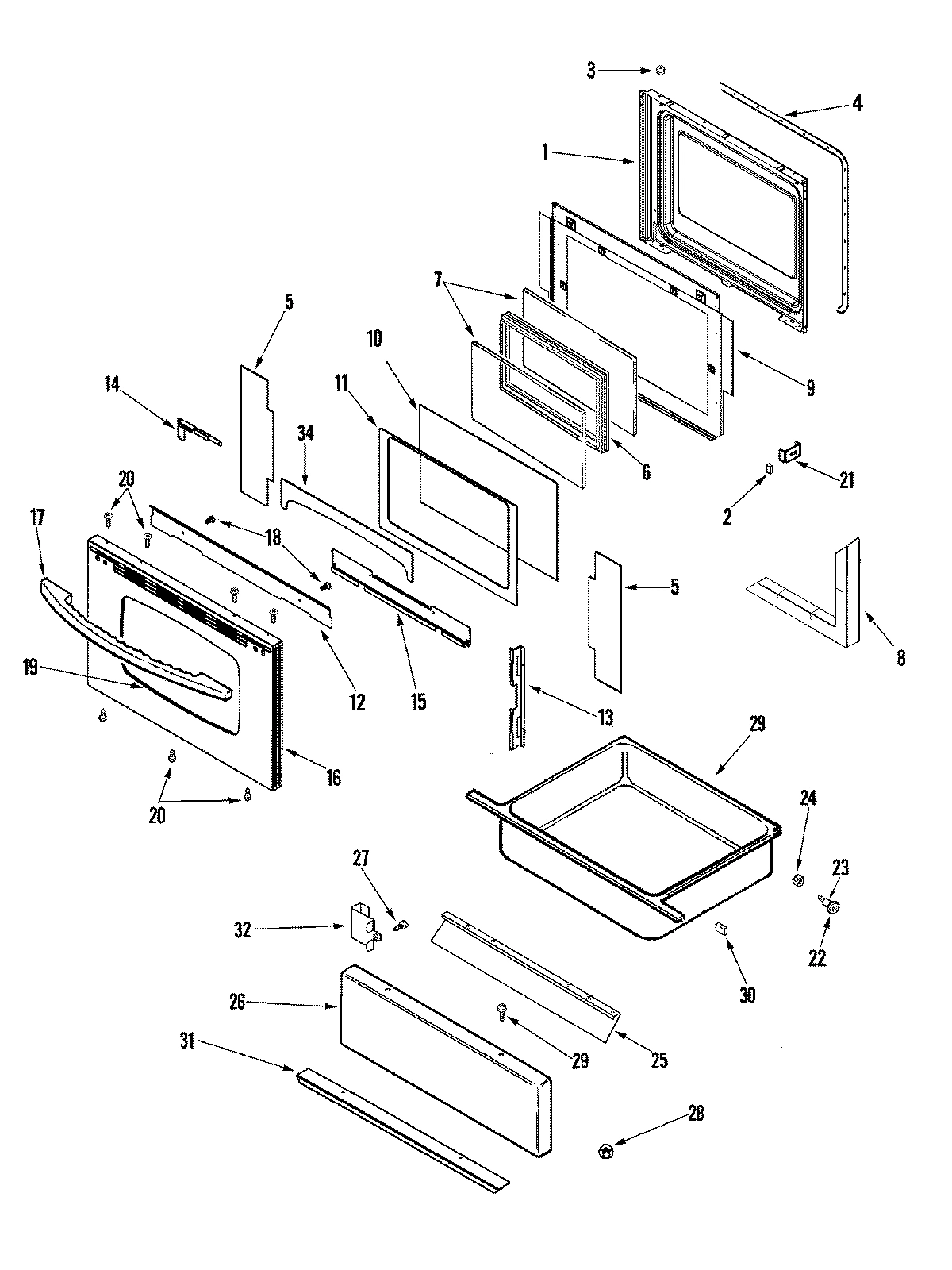

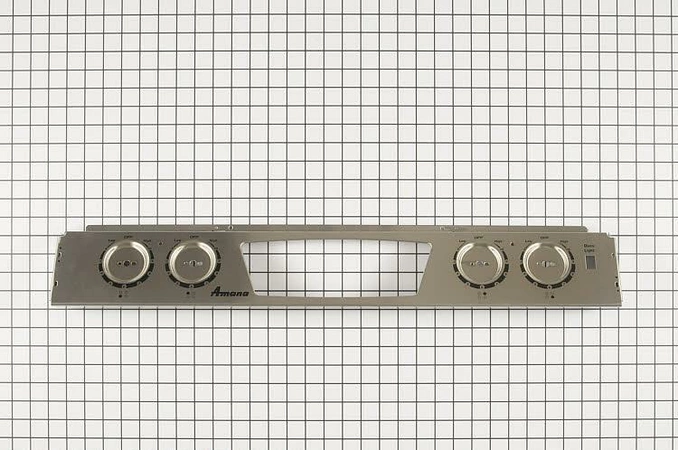

1

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $4.82

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P50360 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P55060 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P76960 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $80.93

2

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

2

HARNESS, MAIN WPL 74011267 Contact Us For Availability

2

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

3

5171P553-60 Whirlpool Wire Harness Backorder WPL 5171P553-60 $130.45

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

SCREW WPL 7101P30960 Contact Us For Availability

3

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $86.64

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

HARNESS, SWITCH (LT) WPL 74011091 Contact Us For Availability

4

SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability

4

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

5

74011048 Whirlpool Range Insulation Backorder WPL 74011048 $57.34

5

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

5

HARNESS, TOP WPL 74011230 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability

6

WP7450P034-60 Whirlpool Limit Switch Backorder WPL WP7450P034-60 $148.74

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

HARNESS, SENSOR WPL 74010890 Contact Us For Availability

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

6

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

MK71FILLS Whirlpool Filler Kit Backorder WPL MK71FILLS $98.19

7

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

7

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

7

SUPPORT, MANIFOLD PANEL WPL 74004785 Contact Us For Availability

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

8

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

8

KIT, SIDE PANEL (STL) WPL UXA1100AAP Contact Us For Availability

8

CAP, END (BLK-RT) WPL 74010834 Contact Us For Availability

8

CAP, END (BLK-LT) WPL 74010835 Contact Us For Availability

9

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

9

BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability

9

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE WPL W10124350 Contact Us For Availability

9

PLUG, SIDE TRIM (BLK) WPL 74011434 Contact Us For Availability

9

TOP ASSEMBLY (BLK) WPL 74010657 Contact Us For Availability

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability

CLOCK/OVERLAY (BLK) WPL 74010691 Contact Us For Availability

PAN, BAKE WPL 74010806 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

GLASS, OVEN DOOR (STL) WPL 74010042 Contact Us For Availability

SHIELD, CONTROL WPL 74010846 Contact Us For Availability

COVER, FRONT WPL 74010807 Contact Us For Availability

12

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $113.71

12

SHIELD, DOOR WPL 74011049 Contact Us For Availability

12

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $124.94

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

RETAINER, GLASS SUPPORT WPL 74011050 Contact Us For Availability

74008731 Whirlpool Range Black Knob Backorder WPL 74008731 $57.15

74011268 Whirlpool Latch Assembly Backorder WPL 74011268 $134.94

RETAINER, GLASS (RT) WPL 74011051 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011052 Contact Us For Availability

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $87.70

EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability

RETAINER, DOOR GLASS WPL 74007215 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability

PANEL, DOOR (STL) WPL 74011227 Contact Us For Availability

TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $61.94

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $228.42

HANDLE, DOOR WPL 74010924 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability

19

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

19

WP74009029 Whirlpool Door Gasket Backorder WPL WP74009029 $113.80

19

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

20

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

20

WP2205F060-19 Whirlpool Range Bottom Backorder WPL WP2205F060-19 $212.76

20

LEVER, LATCH (BLK) WPL 74001075 Contact Us For Availability

21

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

21

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

21

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

22

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

22

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

22

SCREW WPL 7101P35260 Contact Us For Availability

23

CORD, POWER WPL 74006398 Contact Us For Availability

24

RELAY, AUXILIARY (DPDT) WPL 74009845 Contact Us For Availability

24

NUT WPL 7103P08260 Contact Us For Availability

25

LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability

26

PANEL, DRAWER GAS (STL) WPL 74009840 Contact Us For Availability

27

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

28

NUT, LOCK WPL 7103P13960 Contact Us For Availability

29

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

31

HANDLE, DRAWER (STL) WPL 74009841 Contact Us For Availability

32

SCREW WPL 74009538 Contact Us For Availability

33

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

34

INSULATION, DOOR WPL 74008859 Contact Us For Availability

NI

WIRING INFORMATION (FRENCH) WPL 15003755 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003754 Contact Us For Availability
