Model Whirlpool ADB3500AWB DISHWASHER – Common Parts & Diagrams

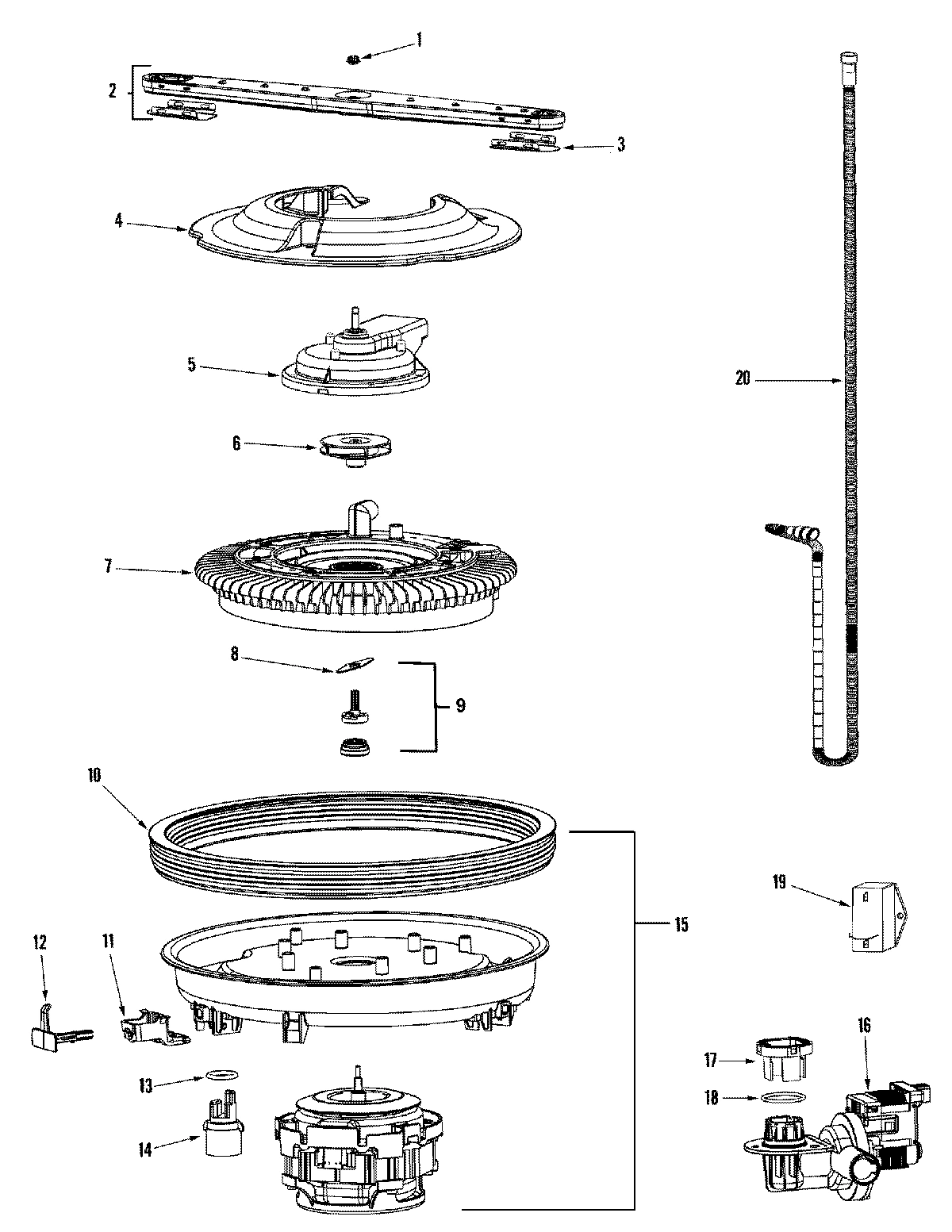

03 - PUMP & MOTOR

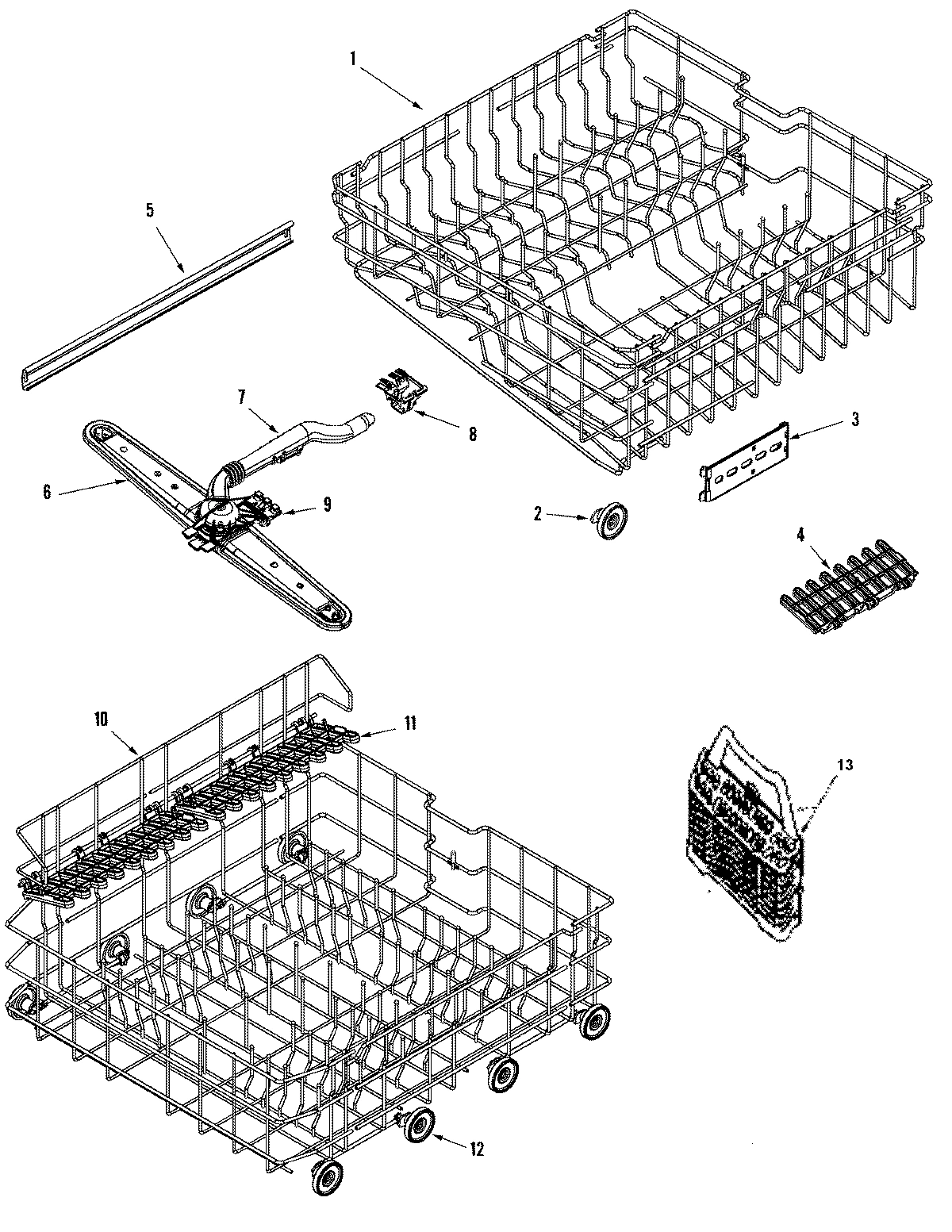

04 - RAIL & RACK ASSEMBLY

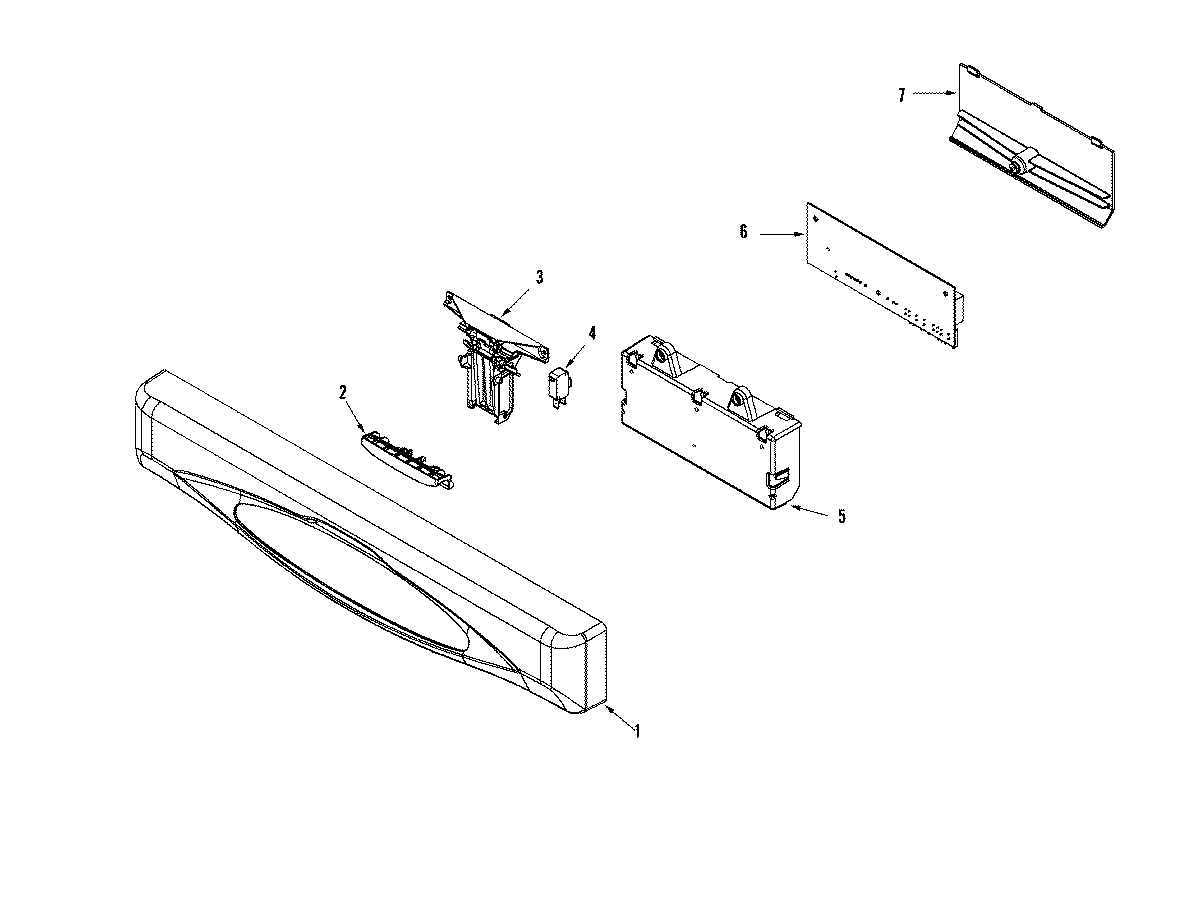

01 - CONTROL PANEL

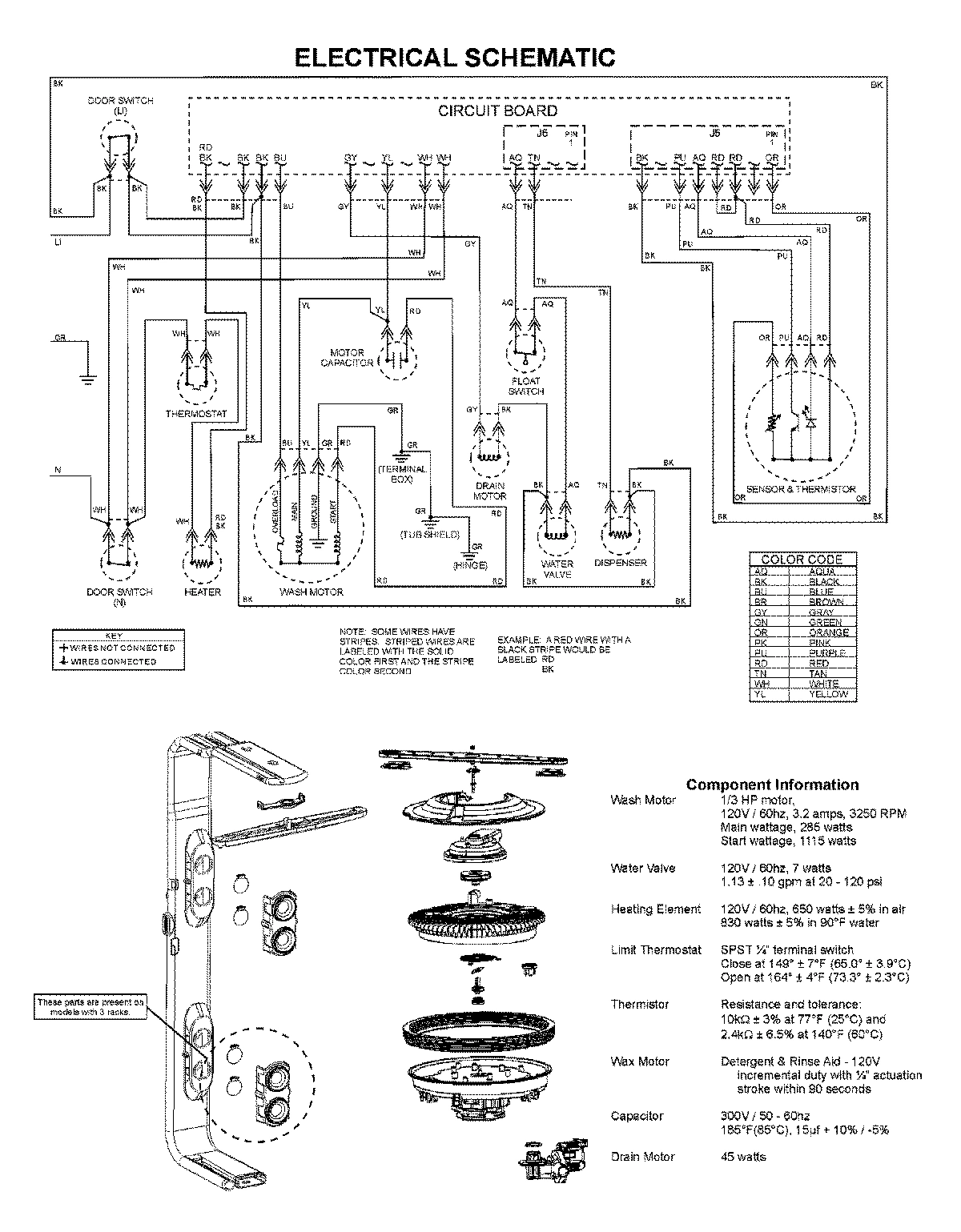

08 - WIRING INFORMATION
05 - SUPPLEMENTAL INFORMATION

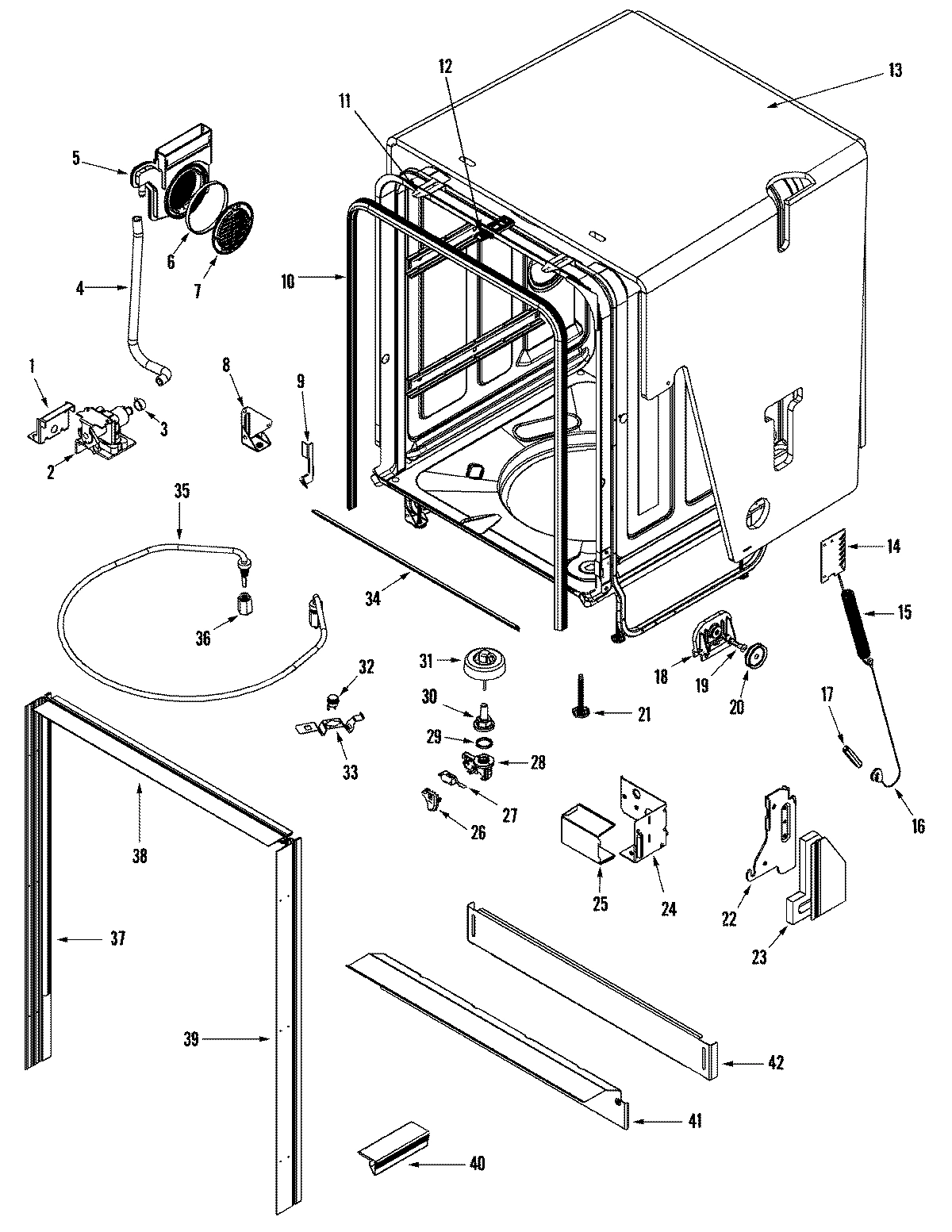

06 - TUB

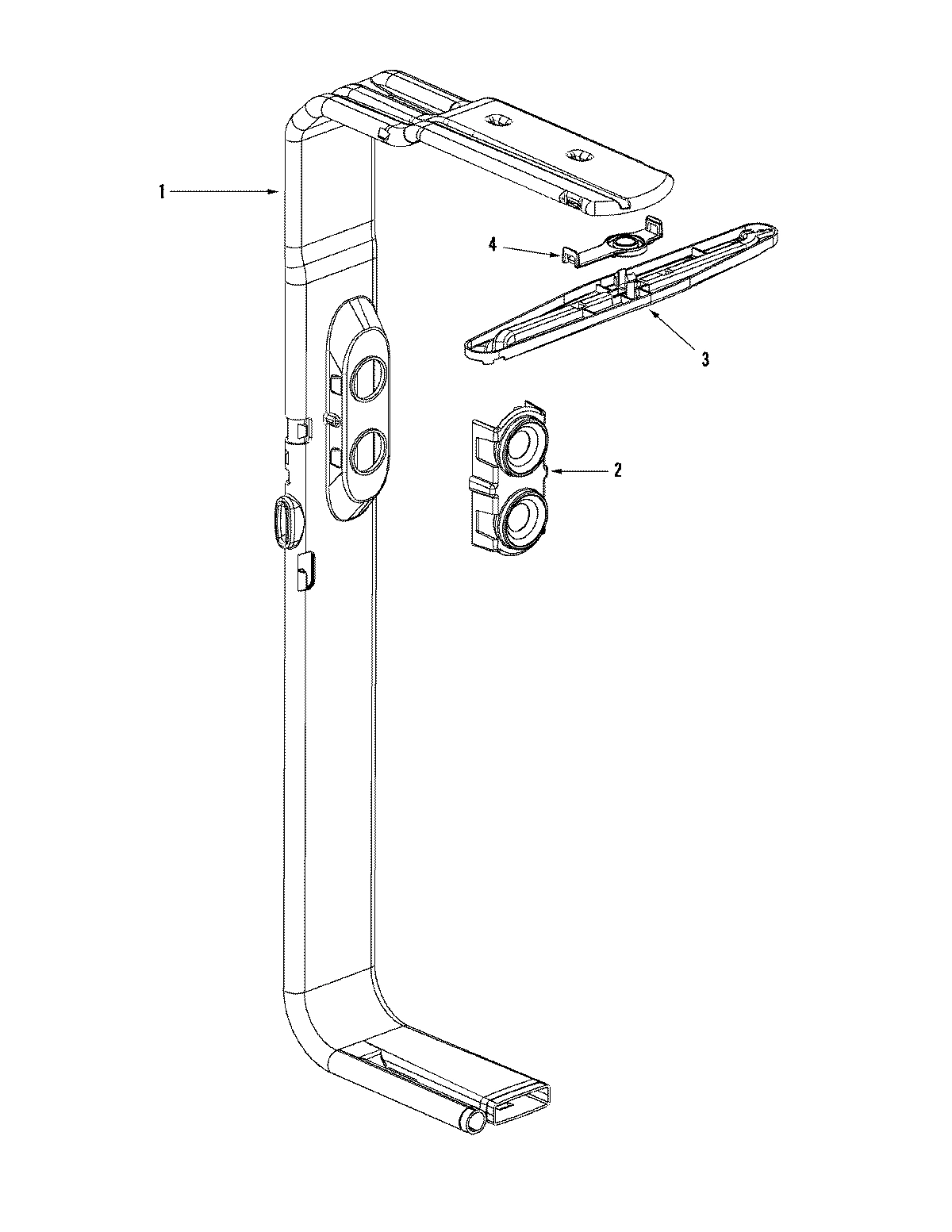

07 - WATER DISTRIBUTION ASSEMBLY

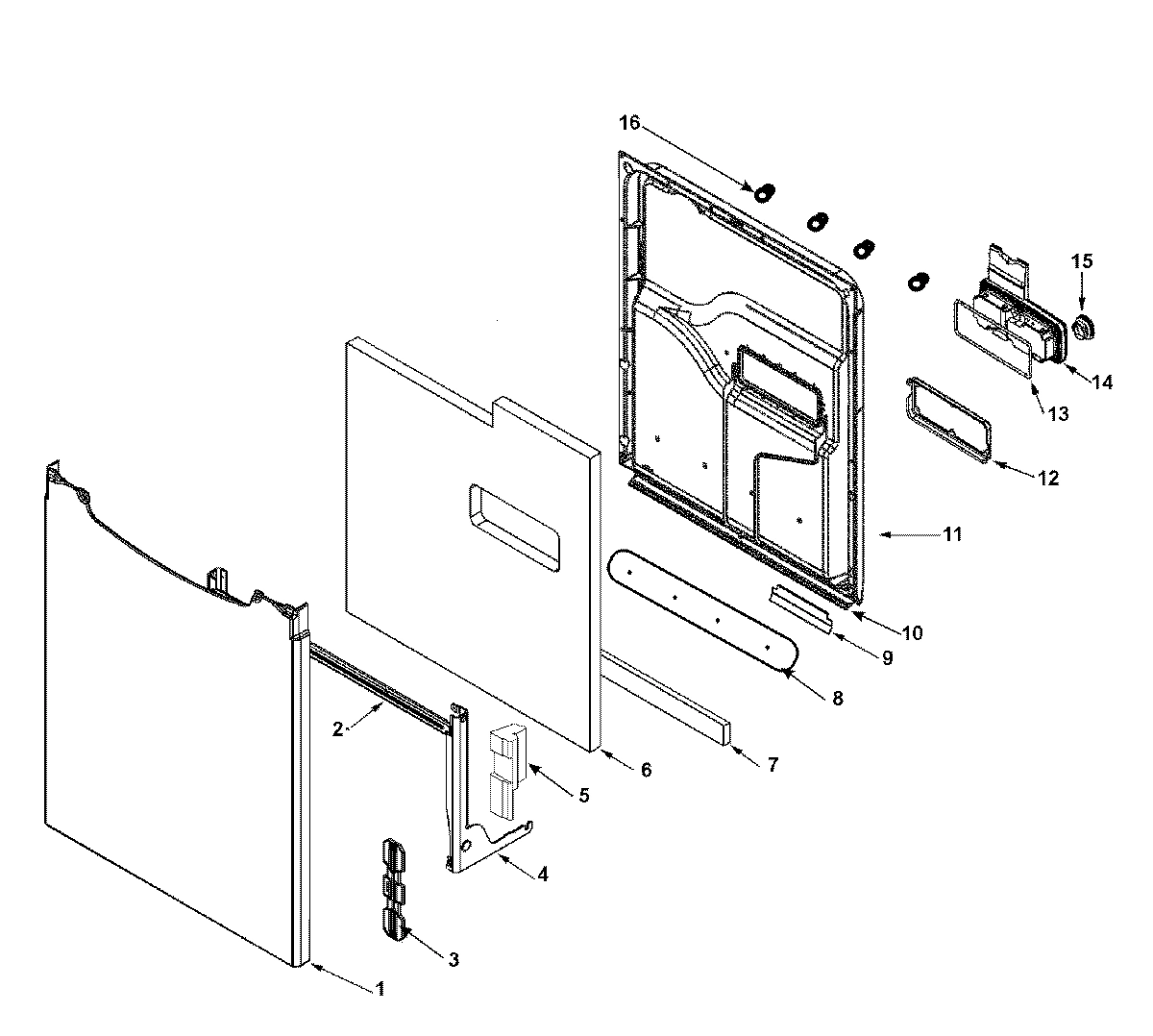

02 - DOOR
Common parts from model Whirlpool ADB3500AWB DISHWASHER
1
RACK ASSEMBLY (UPR) WPL 99003313 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 99003369 Contact Us For Availability
1
MANUAL, USE & CARE WPL 6919418 Contact Us For Availability
1
MANUAL, USE & CARE WPL Y6920184 Contact Us For Availability
1
BRACKET, WATER VALVE WPL 99002629 Contact Us For Availability
1
PANEL, DECO (W/DAMPER-BLK) WPL 99002768 Contact Us For Availability
2
WHEEL ASSEMBLY (UPR) WPL WP99003147 No Longer Available
2
MANUAL, SERVICE DW WPL 16022783 Contact Us For Availability
2
STATION, DOCKING (W/FLAPPER) WPL 99002674 Contact Us For Availability
2
CROSSBRACE, HINGE WPL 99002604 Contact Us For Availability
3
GUARD, RACK (HIGH SIDE) WPL 99003052 Contact Us For Availability
3
GUARD, RACK (LOW SIDE) WPL 99003053 Contact Us For Availability
3
TECH SHT,DISHWASHER WPL 16026394 Contact Us For Availability
3
BACKER, HINGE SEAL (LT) WPL 99002761 Contact Us For Availability
3
WASH ARM, TOP (W/RETAINER) WPL 99002676 Contact Us For Availability
4
SHELF, RACK (UPR) WPL 99003006 Contact Us For Availability
4
SWITCH, DOOR WPL 99002751 Contact Us For Availability
4
GUIDE, ENERGY WPL 99003434 Contact Us For Availability
4
SCREW WPL 99001075 Contact Us For Availability
4
BRACKET, HINGE (LT) WPL 99002929 Contact Us For Availability
4
WRAP, FOAM WPL 99003049 Contact Us For Availability
5
STOP, RAIL (GRAY) WPL WP99003281 No Longer Available
5
SCREW, DISCHARGE HOUSING WPL 99002664 Contact Us For Availability
5
RAIL, INNER SLIDE WPL 99003066 Contact Us For Availability
5
CAGE, BALL BEARING WPL 99003069 Contact Us For Availability
5
MISC. PARTS PACKAGE WPL 99002854 Contact Us For Availability
5
MISC PARTS PACKAGE WPL W10182534 Contact Us For Availability
5
INLET, AIR/WATER WPL 99003028 Contact Us For Availability
5
BLOCK, FOAM (LT) WPL 99003046 Contact Us For Availability
5
BLOCK, FOAM (RT) WPL 99003047 Contact Us For Availability
6
BOARD, CONTROL WPL 12002709 No Longer Available
6
SCREW, IMPELLER WPL 99002987 Contact Us For Availability
6
ARM, WASH (UPR) WPL 99002624 Contact Us For Availability
6
BOARD- CON WPL 99003622 Contact Us For Availability
6
INSULATION, DOOR WPL 99003044 Contact Us For Availability
7
SCREW, STAINLESS PAN HEAD WPL 99002668 Contact Us For Availability
7
WASH MANIFOLD ASSY (UPR) WPL 99002679 Contact Us For Availability
7
HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability
7
BARRIER, FOAM WPL 99003048 Contact Us For Availability
8
CHOPPER WPL 99003427 Contact Us For Availability
8
CLIP, UPR WASH MANIFOLD (BACK) WPL 99002945 Contact Us For Availability
8
BRACKET, SUPPORT (LT) WPL 99002636 Contact Us For Availability
8
STRIP, STUD BACKER WPL 99003593 Contact Us For Availability
9
SEAL KIT, METAL CHOPPER SLEEVE WPL 99003341 Contact Us For Availability
9
CLIP, UPR WASH MANIFOLD (FRT) WPL 99002669 Contact Us For Availability
9
TRIM, CORNER EDGE (LWR-LT) WPL 99003038 Contact Us For Availability
9
GAP SEAL, TOE KICK (WHT) WPL 99002703 Contact Us For Availability
10
GASKET, MOTOR MOUNT WPL 99003055 Contact Us For Availability
10
CAP, RACK (DARK GRAY) WPL 99002905 Contact Us For Availability
10
RACK ASSEMBLY (LWR) WPL 99003470 Contact Us For Availability
10
SEAL, DOOR (BTM) WPL 99003045 Contact Us For Availability
11
LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability
11
SHELF, CUP (LWR) WPL 99003472 Contact Us For Availability
11
BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability
11
DOOR, INNER W/DAMPERS (STNLS) WPL 99003498 Contact Us For Availability
12
PLUNGER, MOTOR MOUNT WPL 99003057 Contact Us For Availability
12
STRIKER, DOOR WPL 99003357 Contact Us For Availability
12
BRACKET, DISPENSER WPL 99002465 Contact Us For Availability
13
BASKET, SILVERWARE (GRAY) WPL 99003429 Contact Us For Availability
13
COVER, SLIVER BASKET WPL 99003499 Contact Us For Availability
13
FASTENER, INSULATION WPL 99002640 Contact Us For Availability
13
SEAL, BASE WPL 99002270 Contact Us For Availability
14
DETERGENT/RINSE AID DISPENSER WPL 99003321 Contact Us For Availability
15
WASH MOTOR ASY (SEAL NOT INCL) WPL 99003146 Contact Us For Availability
15
WASH MOTOR ASY (SEAL NOT INCL) WPL 99003436 Contact Us For Availability
15
SPRING, DOOR WPL 99002598 Contact Us For Availability
16
SCREW, TRUSS HEAD (10-18X.75) WPL 99002740 Contact Us For Availability
16
FLAPPER, DRAIN PUMP VALVE WPL 99002815 Contact Us For Availability
16
DRAIN PUMP ASSEMBLY WPL 99003141 Contact Us For Availability
16
HANGER, BASKET WPL 99003591 Contact Us For Availability
16
O-RING WPL 99003592 Contact Us For Availability
16
SCREW, HEX HEAD WPL 99003594 Contact Us For Availability
17
FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability
18
O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability
18
BRACKET, CABLE WPL 99002607 Contact Us For Availability
18
BRACKET, CABLE WPL 99003686 Contact Us For Availability
18
SHOULDER BOLT, CABLE BRACKET WPL 99003687 Contact Us For Availability
18
NUT, 10-24 WPL 99003688 Contact Us For Availability
19
CAPACITOR, MOTOR WPL 99002665 Contact Us For Availability
19
SHIELD, CAPACITOR WPL 99003440 Contact Us For Availability
19
SHOULDER BOLT, CABLE BRACKET WPL 99002609 Contact Us For Availability
22
SUPPORT, HINGE (RT) WPL 99002927 Contact Us For Availability
22
SUPPORT, HINGE (LT) WPL 99002928 Contact Us For Availability
23
BACKER, HINGE SEAL (RT) WPL 99002762 Contact Us For Availability
24
SCREW 10-32X.400 (T-20 HEAD) WPL 99002601 Contact Us For Availability
24
BRACKET, JUNCTION BOX SUPPORT WPL 99002637 Contact Us For Availability
25
COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability
26
COVER, SWITCH WPL 99003079 Contact Us For Availability
27
SWITCH, FLOAT WPL 99002631 Contact Us For Availability
28
HOLDER, FLOAT SWITCH WPL 99003031 Contact Us For Availability
31
FLOAT WPL 99002630 Contact Us For Availability
32
THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability
33
CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability
35
GASKET, HEATER WPL 99002973 Contact Us For Availability
36
NU WPL 99003033 Contact Us For Availability
37
WPL 99003034 WPL 99003034 Contact Us For Availability
38
WPL 99003036 WPL 99003036 Contact Us For Availability
39
WPL 99002692 WPL 99002692 Contact Us For Availability
39
WPL 99003035 WPL 99003035 Contact Us For Availability
40
WPL 99002701 WPL 99002701 Contact Us For Availability
41
WPL 99002859 WPL 99002859 Contact Us For Availability
42
WPL 99002694 WPL 99002694 Contact Us For Availability
42
WPL 99002765 WPL 99002765 Contact Us For Availability
NI
HARNESS, WIRE WPL 99003308 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003743 Contact Us For Availability
NI
WPL 99003087 WPL 99003087 Contact Us For Availability
× ![]()
