Model Whirlpool ADB2500AWQ DISHWASHER – Common Parts &amp; Diagrams

1

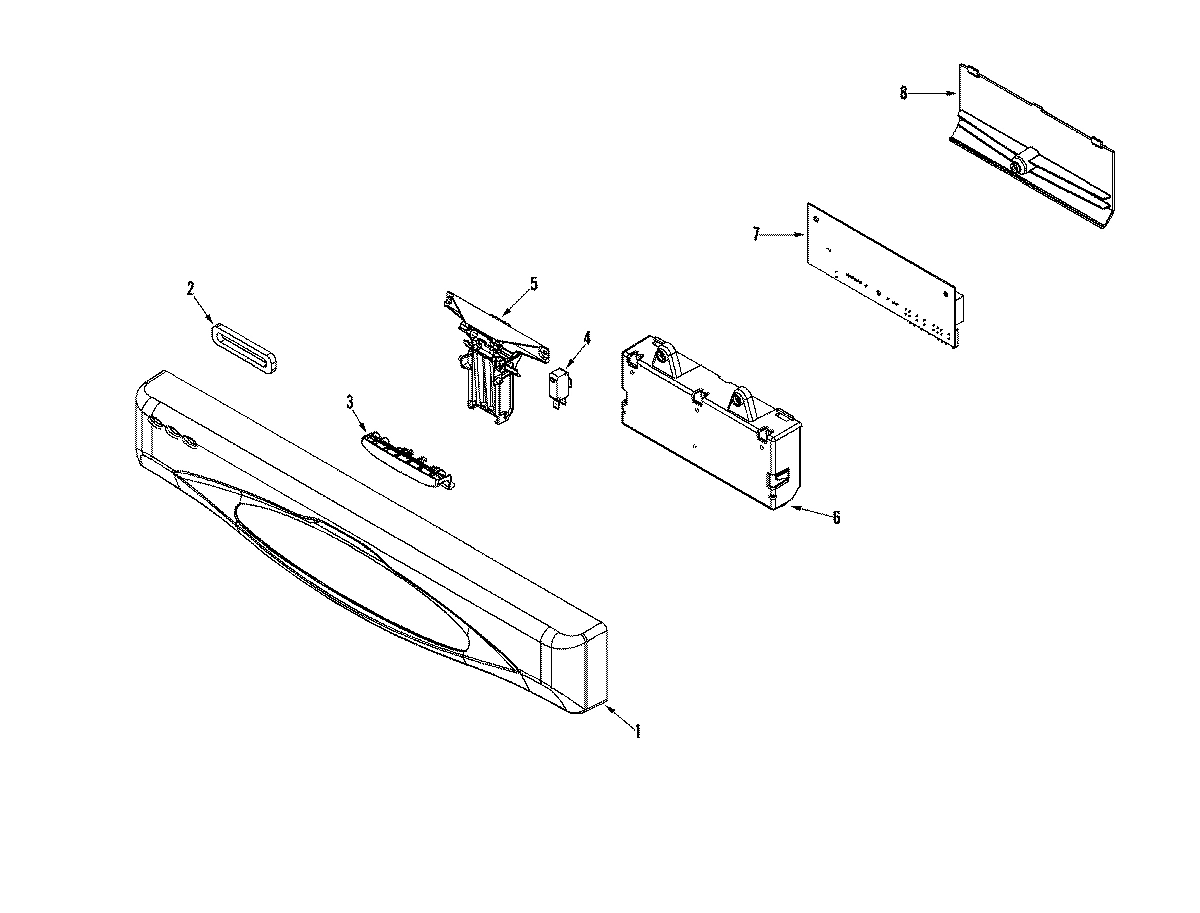

RACK ASSEMBLY (UPR) WPL 99003201 Contact Us For Availability

1

PANEL, CONTROL (BSQ) WPL 99003370 Contact Us For Availability

1

BRACKET, WATER VALVE WPL 99002629 Contact Us For Availability

1

MANUAL, USE & CARE WPL 6919418 Contact Us For Availability

2

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $119.87

2

WPW10261227 Whirlpool Dishwasher Stop Assembl Backorder WPL WPW10261227 $4.82

2

VENT SEAL, CONTROL PANEL WPL 99002931 Contact Us For Availability

2

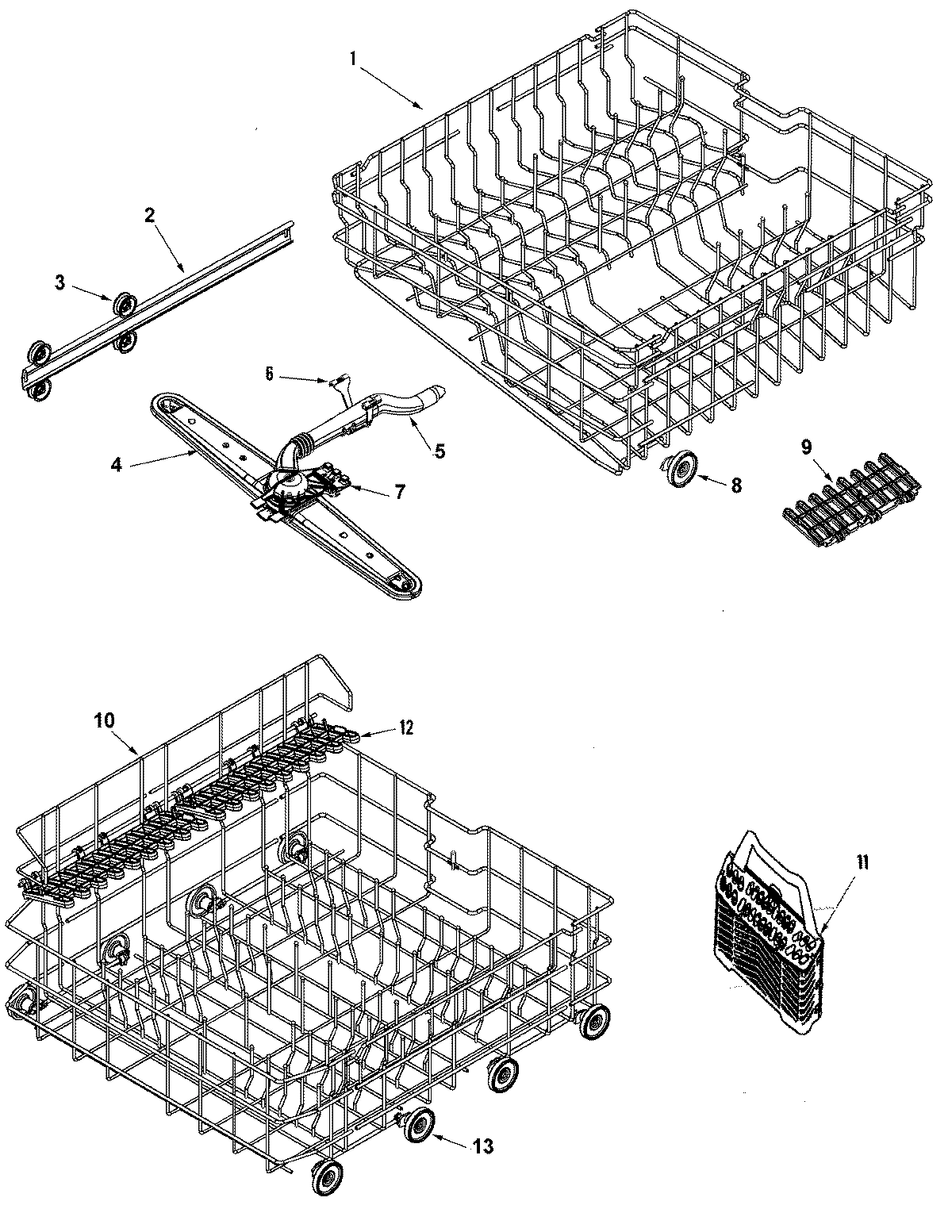

TRACK, RACK WPL 99002621 Contact Us For Availability

2

TALL TUB SERVICE MANUAL WPL 16021814 Contact Us For Availability

3

W10862259 Whirlpool Door Latch In Stock WPL W10862259 $58.82

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

3

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $4.82

3

SHIELD, RADIANT WPL 99002653 Contact Us For Availability

3

STATION, DOCKING (W/FLAPPER) WPL 99002674 Contact Us For Availability

4

SCREW WPL 99002666 Contact Us For Availability

4

ARM, WASH (UPR) WPL 99002624 Contact Us For Availability

4

SCREW, TRUSS HEAD (10-18X.75) WPL 99002740 Contact Us For Availability

4

SWITCH, DOOR WPL 99002751 Contact Us For Availability

4

WASH ARM, TOP (W/RETAINER) WPL 99002676 Contact Us For Availability

4

MISC. PARTS PACKAGE WPL 99002854 Contact Us For Availability

4

GUIDE, ENERGY WPL 99003434 Contact Us For Availability

4

GUIDE, ENERGY WPL W10114399 Contact Us For Availability

4

MISC PARTS PACKAGE WPL W10182534 Contact Us For Availability

5

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

5

SCREW, DISCHARGE HOUSING WPL 99002664 Contact Us For Availability

5

DISCHARGE HOUSING ASSY (UPR) WPL 99002677 Contact Us For Availability

5

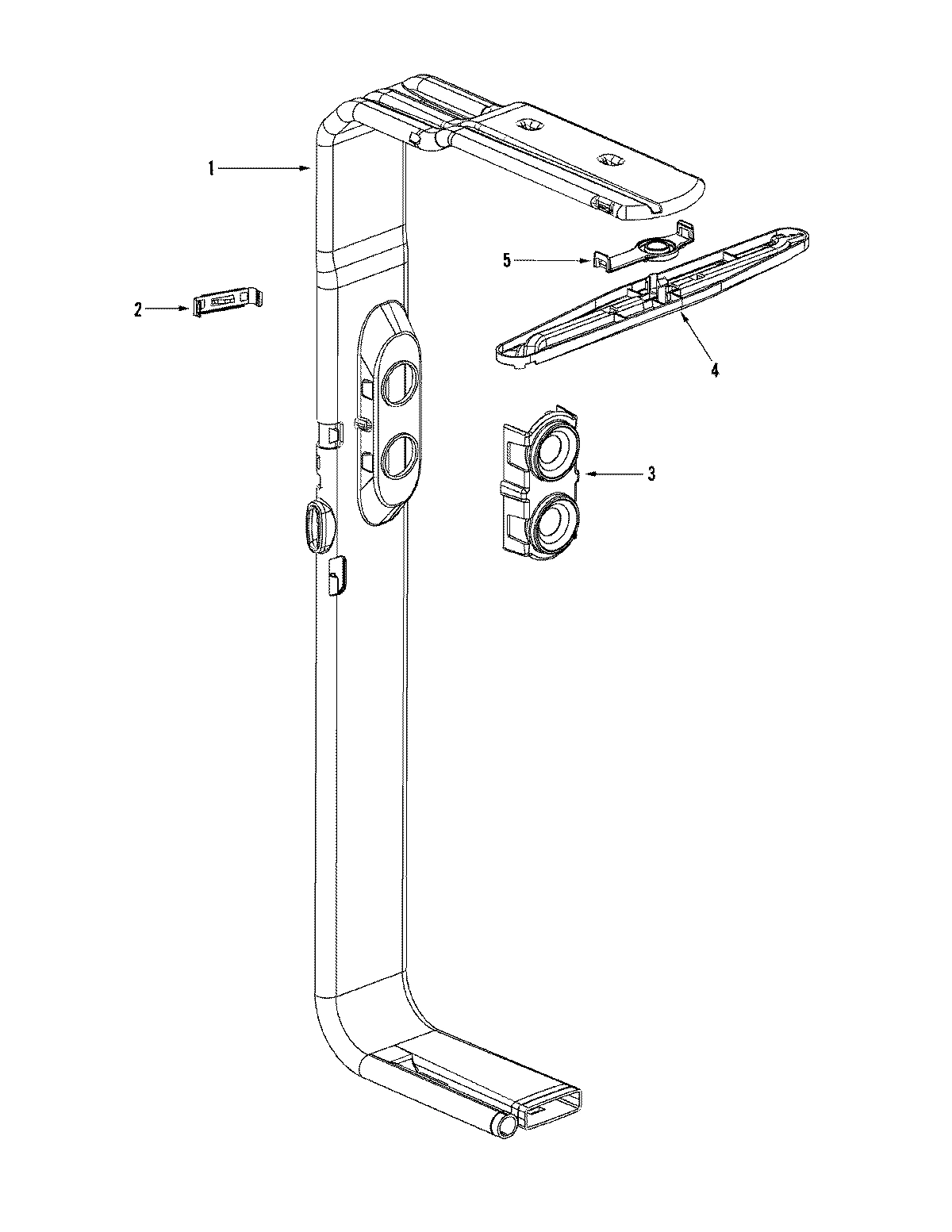

WASH MANIFOLD ASSY (UPR) WPL 99002679 Contact Us For Availability

5

INLET, AIR/WATER WPL 99002645 Contact Us For Availability

5

SEAL, AIR/WATER INLET WPL 99002646 Contact Us For Availability

5

COVER, AIR/WATER INLET WPL 99002948 Contact Us For Availability

5

FELT, AIR/WATER INLET WPL 99002954 Contact Us For Availability

5

FOAM BLOCK, AIR/WATER INLET WPL 99002955 Contact Us For Availability

6

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

6

Foam Strip(Short) WPL 99003482 Contact Us For Availability

6

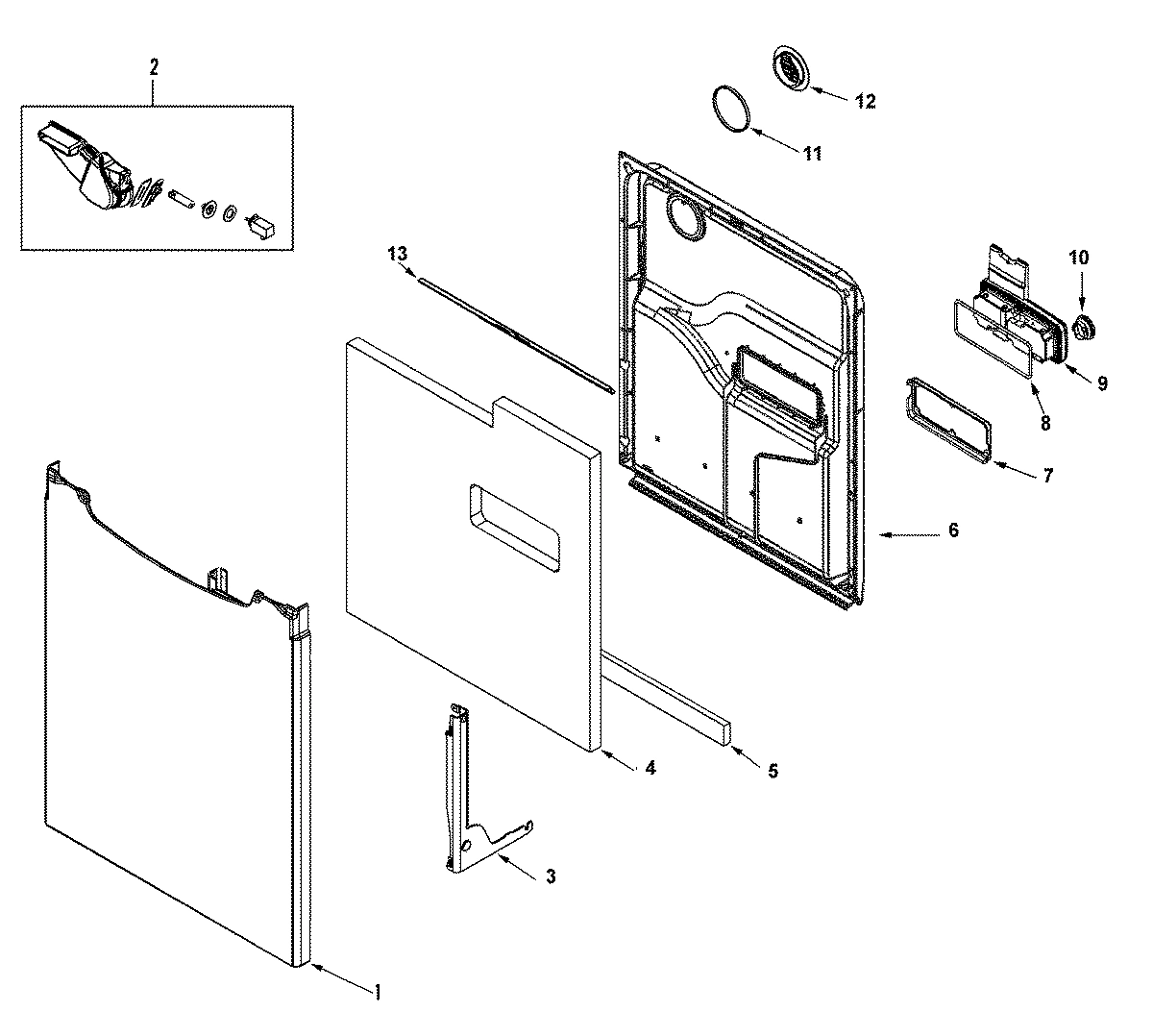

DOOR, INNER W/DAMPER WPL 99003424 Contact Us For Availability

6

Foam Strip(Long) WPL 99003481 Contact Us For Availability

6

DOOR LINER, SECONDARY WPL 99003540 Contact Us For Availability

6

BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability

6

SCREW, IMPELLER WPL 99002660 Contact Us For Availability

6

CLIP, UPR WASH MANIFOLD (BACK) WPL 99002945 Contact Us For Availability

6

SEAL, DOOR WPL 99002588 Contact Us For Availability

7

BOARD, CONTROL WPL 12002709 No Longer Available

7

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

7

SCREW, STAINLESS PAN HEAD WPL 99002668 Contact Us For Availability

7

CLIP, UPR WASH MANIFOLD (FRT) WPL 99002669 Contact Us For Availability

7

BOARD- CON WPL 99003622 Contact Us For Availability

7

BOARD- CON WPL W10111822 Contact Us For Availability

7

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

8

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

8

WP99002781 Whirlpool Dishwasher Wheel In Stock WPL WP99002781 $7.92

8

SEAL, BASE WPL 99002270 Contact Us For Availability

8

CHOPPER WPL 99003427 Contact Us For Availability

8

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

8

WIRE HARNESS, MICROPROCESSOR WPL 99002986 Contact Us For Availability

8

HARNESS, WIRE WPL 99003537 Contact Us For Availability

8

PANEL, TOE (W/DAMPER-BSQ) WPL 99002767 Contact Us For Availability

9

DETERGENT/RINSE AID DISPENSER WPL 99003321 Contact Us For Availability

9

SEAL KIT, METAL CHOPPER SLEEVE WPL 99003341 Contact Us For Availability

9

CAP, RACK (LIGHT GRAY) WPL 99002017 Contact Us For Availability

9

SHELF, RACK (UPR) WPL 99003006 Contact Us For Availability

9

INSULATION, TUB WPL 99002639 Contact Us For Availability

9

FASTENER, INSULATION WPL 99002640 Contact Us For Availability

KNOB, RINSE AID (W/O-RING) WPL 99002992 Contact Us For Availability

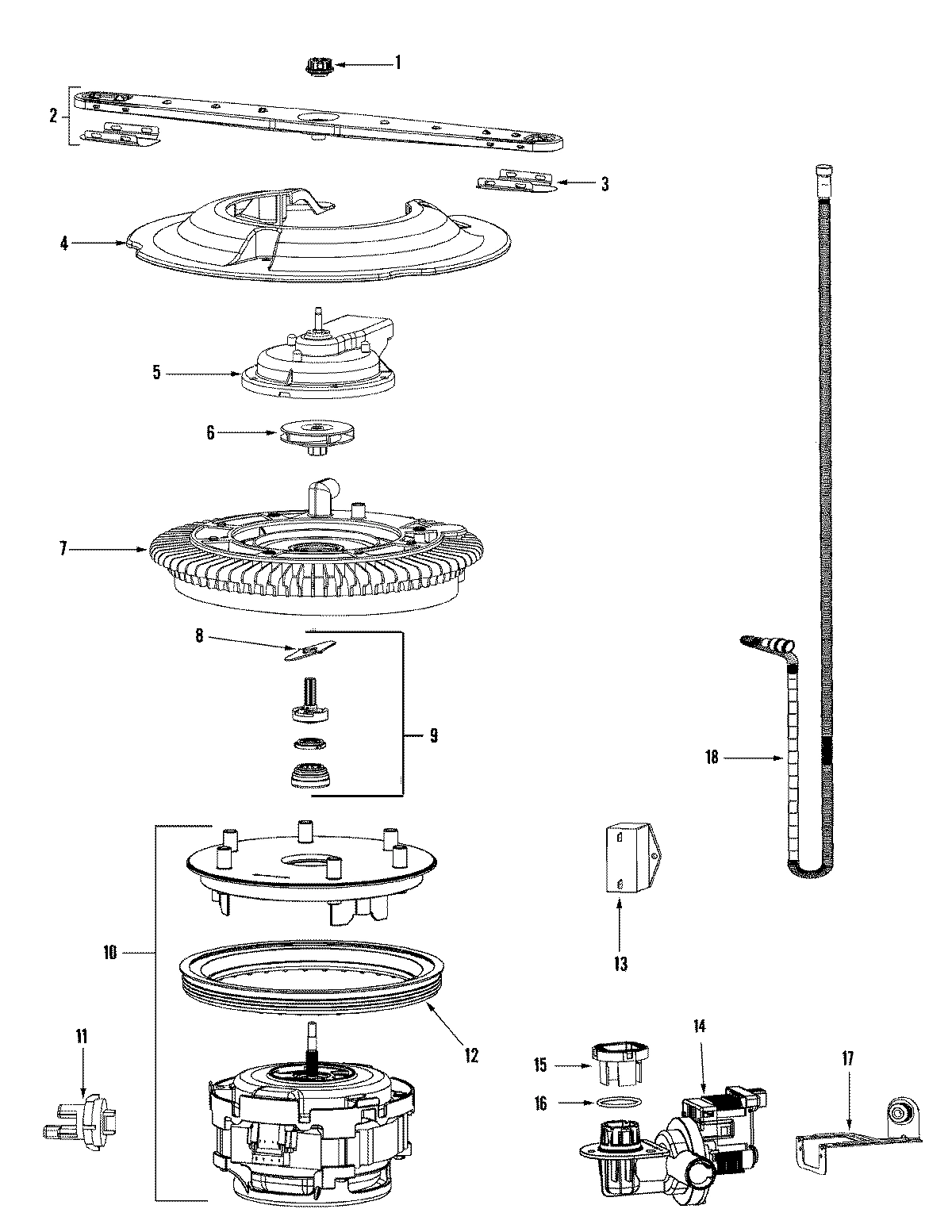

WASH MOTOR ASSY SEAL NOT INCL WPL 99002980 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99003430 Contact Us For Availability

RACK ASSEMBLY (LWR) WPL 99003470 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

SEAL, DOOR VENT WPL 99002186 Contact Us For Availability

BASKET, SILVERWARE (GRAY) WPL 99003429 Contact Us For Availability

SPRING, DOOR WPL 99002598 Contact Us For Availability

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability

GASKET, PUMP WPL 99002663 Contact Us For Availability

SHELF, CUP (LWR) WPL 99003472 Contact Us For Availability

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $9.74

REINFORCEMENT, INNER DOOR WPL 99002586 Contact Us For Availability

CAPACITOR, MOTOR WPL 99002665 Contact Us For Availability

SHIELD, CAPACITOR WPL 99003440 Contact Us For Availability

14

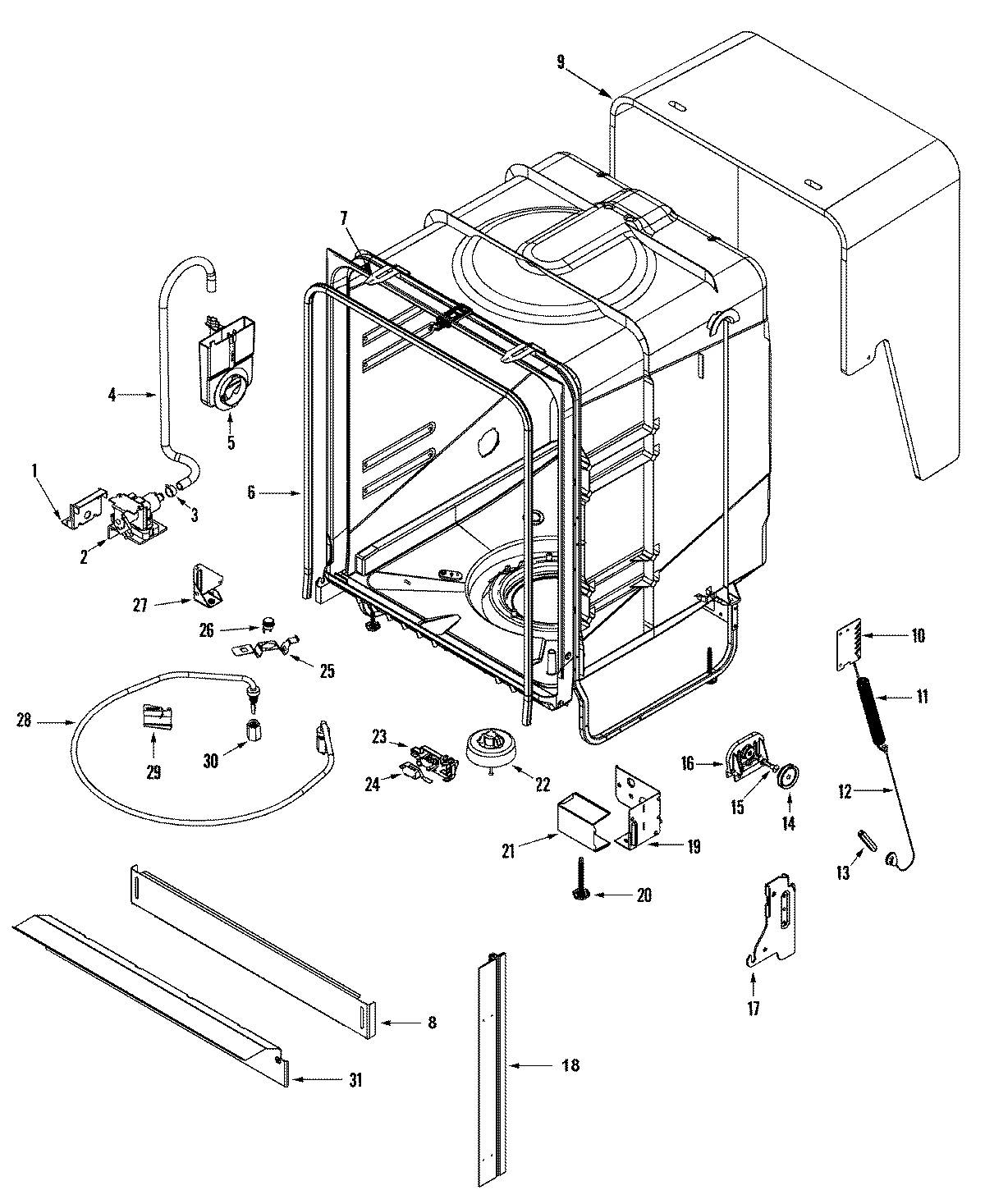

DRAIN PUMP ASSEMBLY WPL 99002750 Contact Us For Availability

14

FLAPPER, DRAIN PUMP VALVE WPL 99002815 Contact Us For Availability

15

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

15

SHOULDER BOLT, CABLE BRACKET WPL 99002609 Contact Us For Availability

15

SHOULDER BOLT, CABLE BRACKET WPL 99003687 Contact Us For Availability

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

BRACKET, CABLE WPL 99002607 Contact Us For Availability

BRACKET, CABLE WPL 99003686 Contact Us For Availability

NUT, 10-24 WPL 99003688 Contact Us For Availability

SCREW, DRAIN PUMP MOUNTING WPL 99002657 Contact Us For Availability

BRKT, DRAIN PUMP (W/GROMMET) WPL 99002752 Contact Us For Availability

SUPPORT, HINGE (RT) WPL 99002927 Contact Us For Availability

SUPPORT, HINGE (LT) WPL 99002928 Contact Us For Availability

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $95.29

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

TRIM STRIP ASSEMBLY (LT) WPL 99003306 Contact Us For Availability

TRIM STRIP ASSEMBLY (RT) WPL 99003307 Contact Us For Availability

19

BRACKET, JUNCTION BOX SUPPORT WPL 99002637 Contact Us For Availability

20

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

21

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

21

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

22

FLOAT WPL 99002630 Contact Us For Availability

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

23

PLATE, SWITCH MOUNTING WPL 99002943 Contact Us For Availability

24

SWITCH, FLOAT WPL 99002631 Contact Us For Availability

25

CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability

26

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

27

SCREW 10-32X.400 (T-20 HEAD) WPL 99002601 Contact Us For Availability

27

BRACKET, SUPPORT (LT) WPL 99002636 Contact Us For Availability

28

W10283681 Whirlpool Dishwasher Heater Backorder WPL W10283681 $97.52

28

GASKET, HEA WPL 99002973 Contact Us For Availability

29

WP6-917262 Whirlpool Dishwasher Heater Bracke Backorder WPL WP6-917262 $104.46

30

WPL 99002972 WPL 99002972 Contact Us For Availability

31

WPL 99002114 WPL 99002114 Contact Us For Availability

31

WPL 99002861 WPL 99002861 Contact Us For Availability

NI

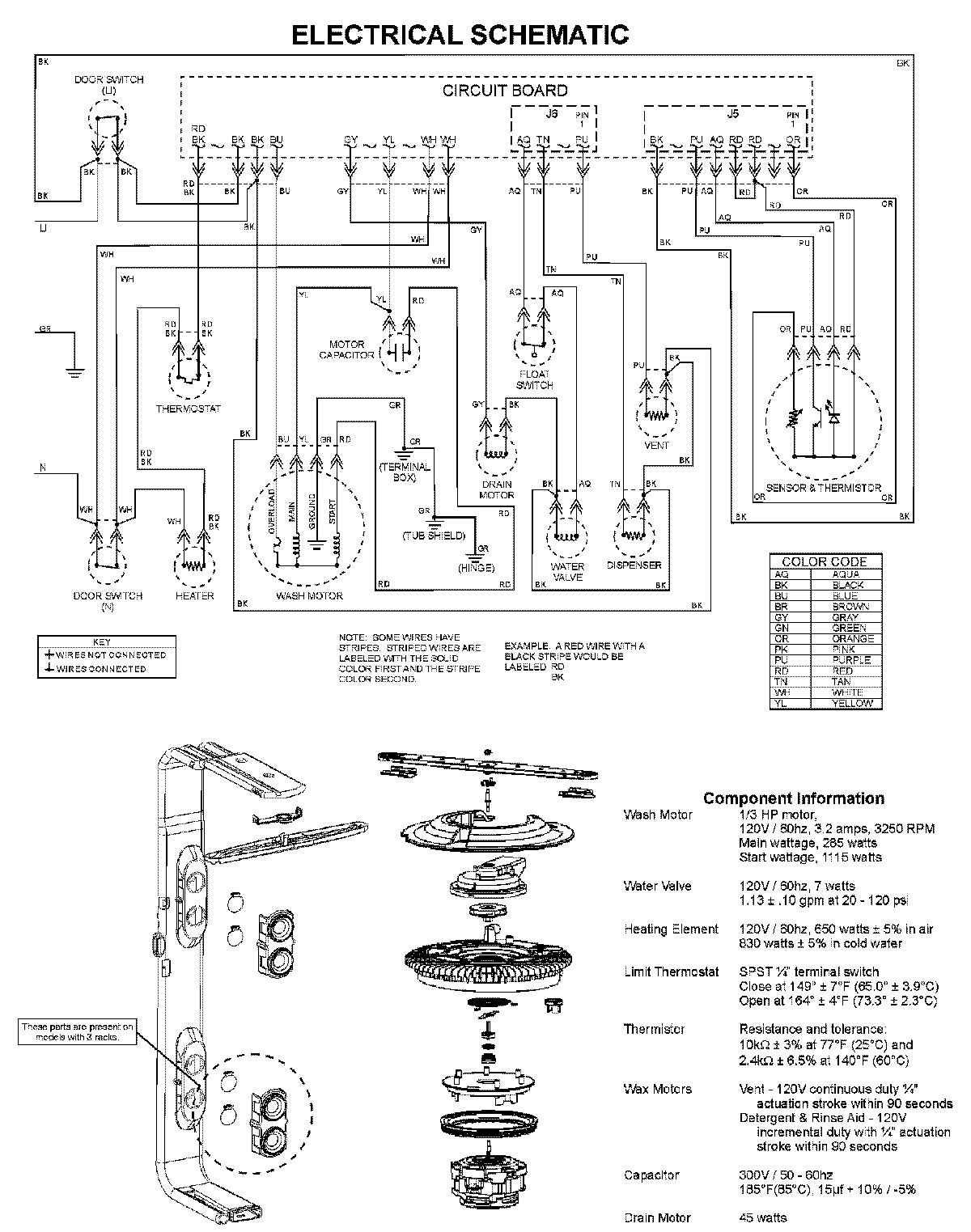

WIRING INFORMATION WPL 15003703 Contact Us For Availability

NI

WPL 99002723 WPL 99002723 Contact Us For Availability
