Model Whirlpool ADB2200AWS DISHWASHER – Common Parts & Diagrams

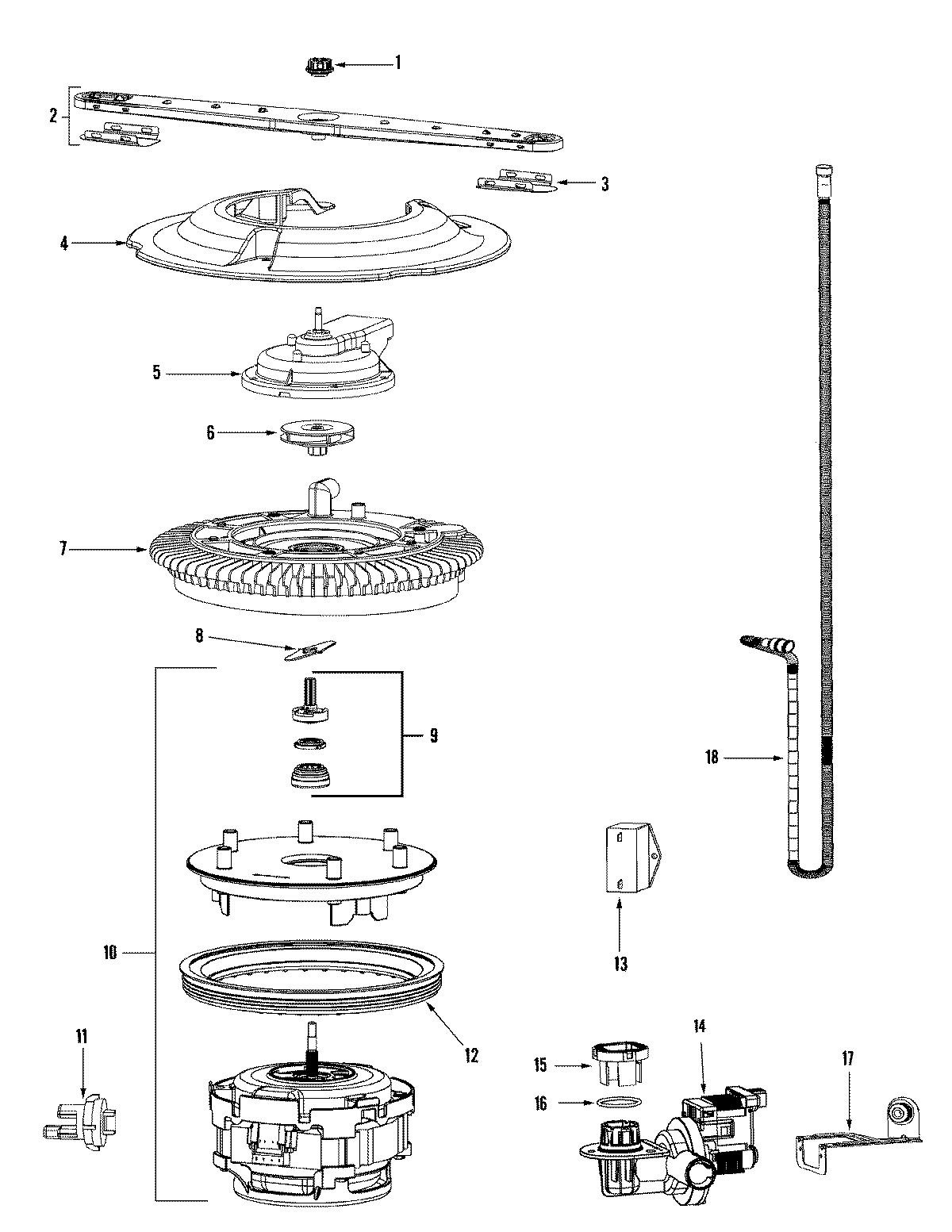

03 - PUMP & MOTOR
04 - SUPPLEMENTAL INFORMATION

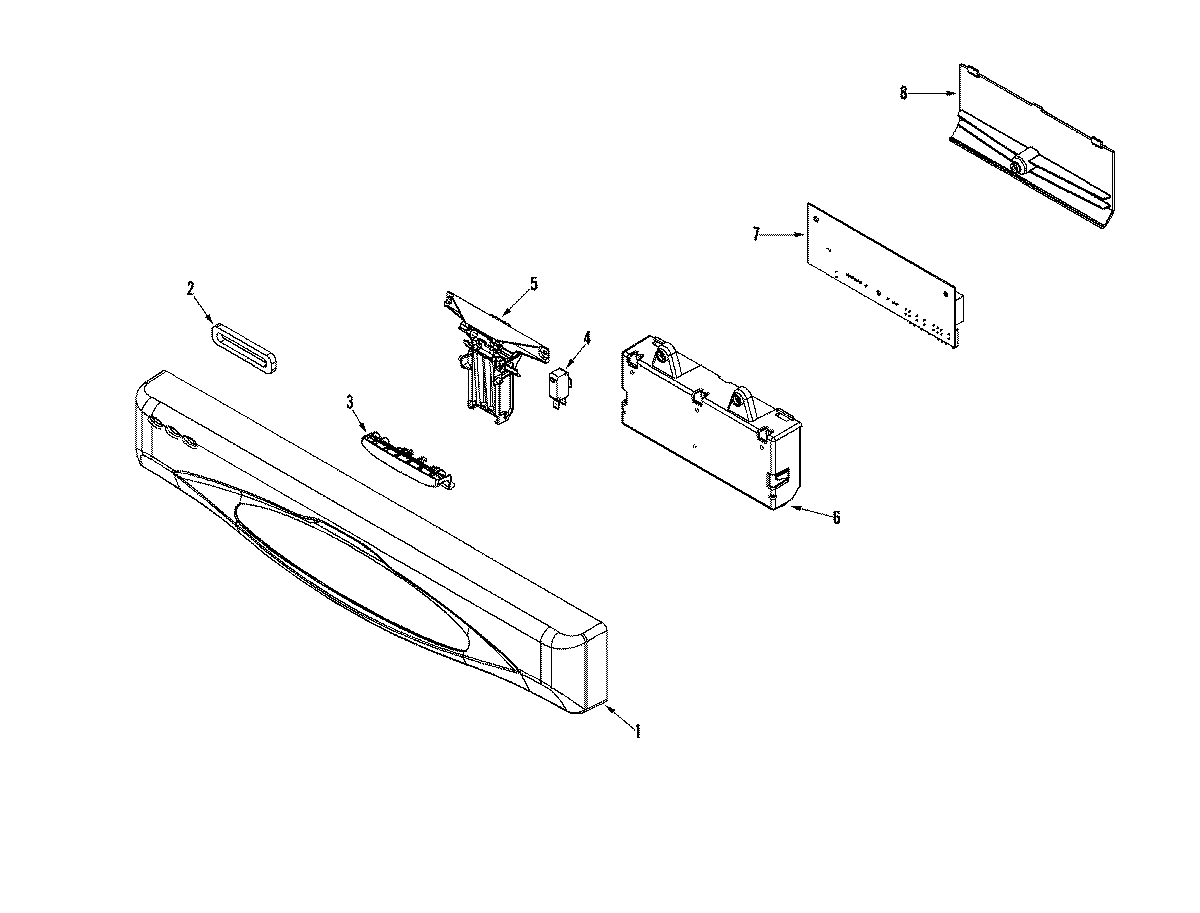

01 - CONTROL PANEL

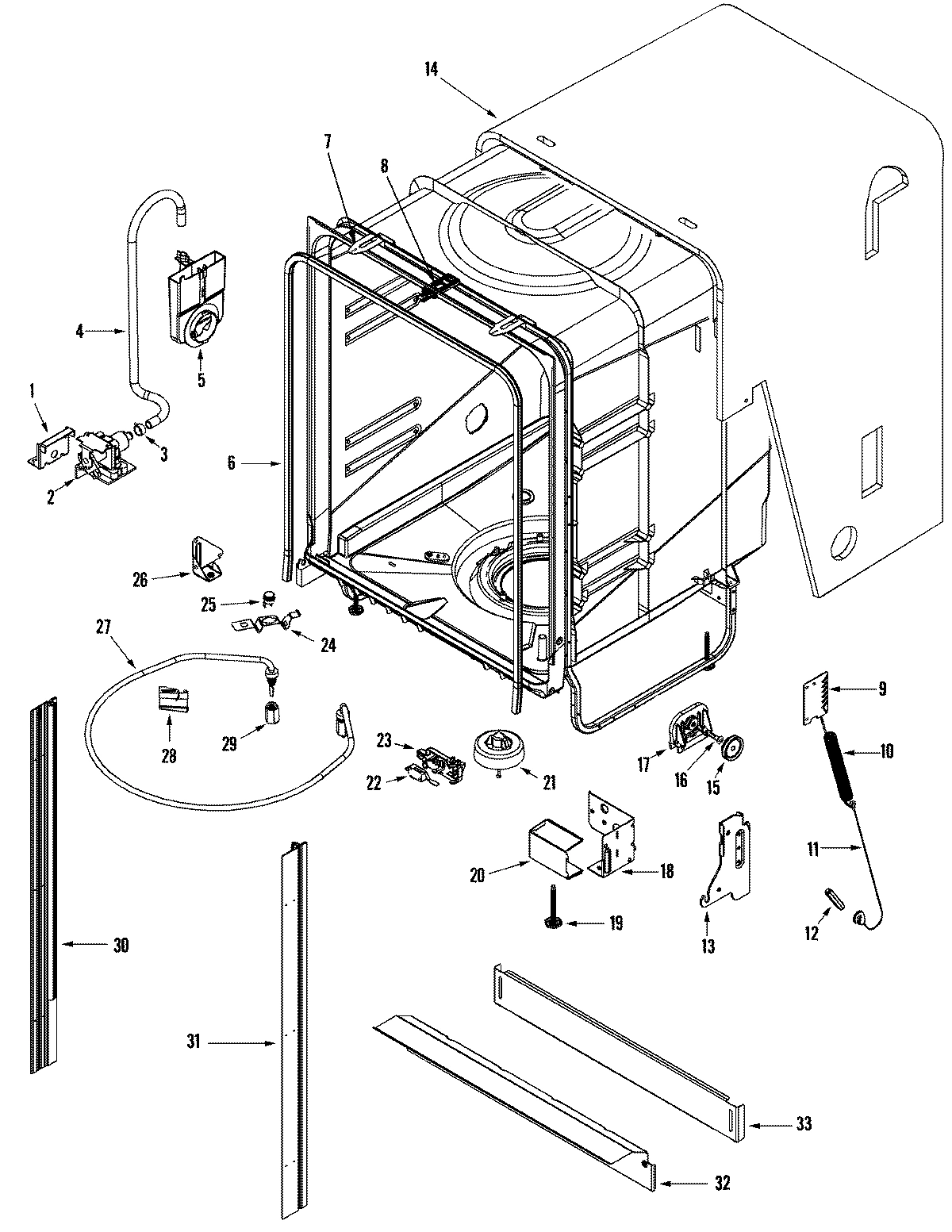

06 - TUB

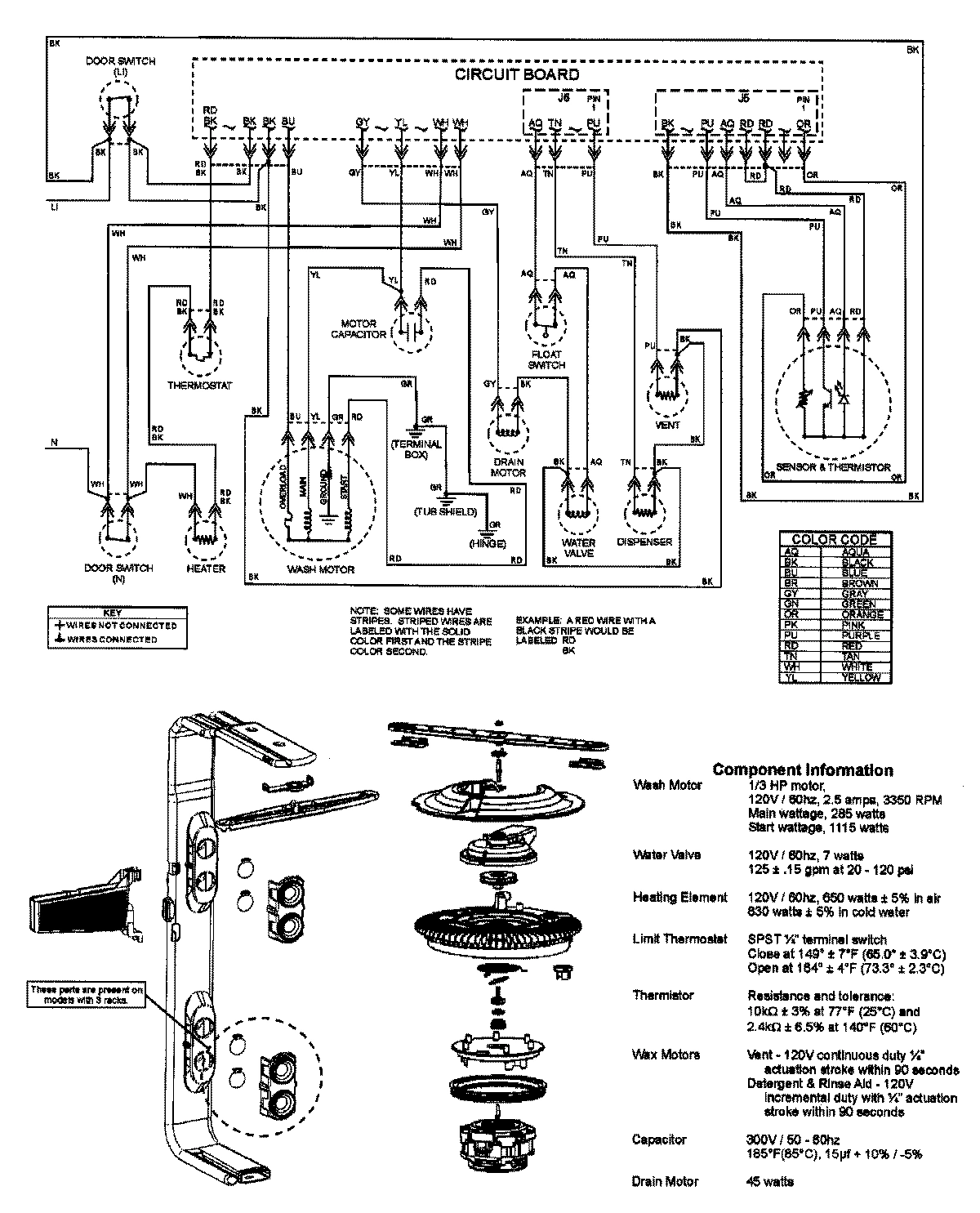

08 - WIRING INFORMATION

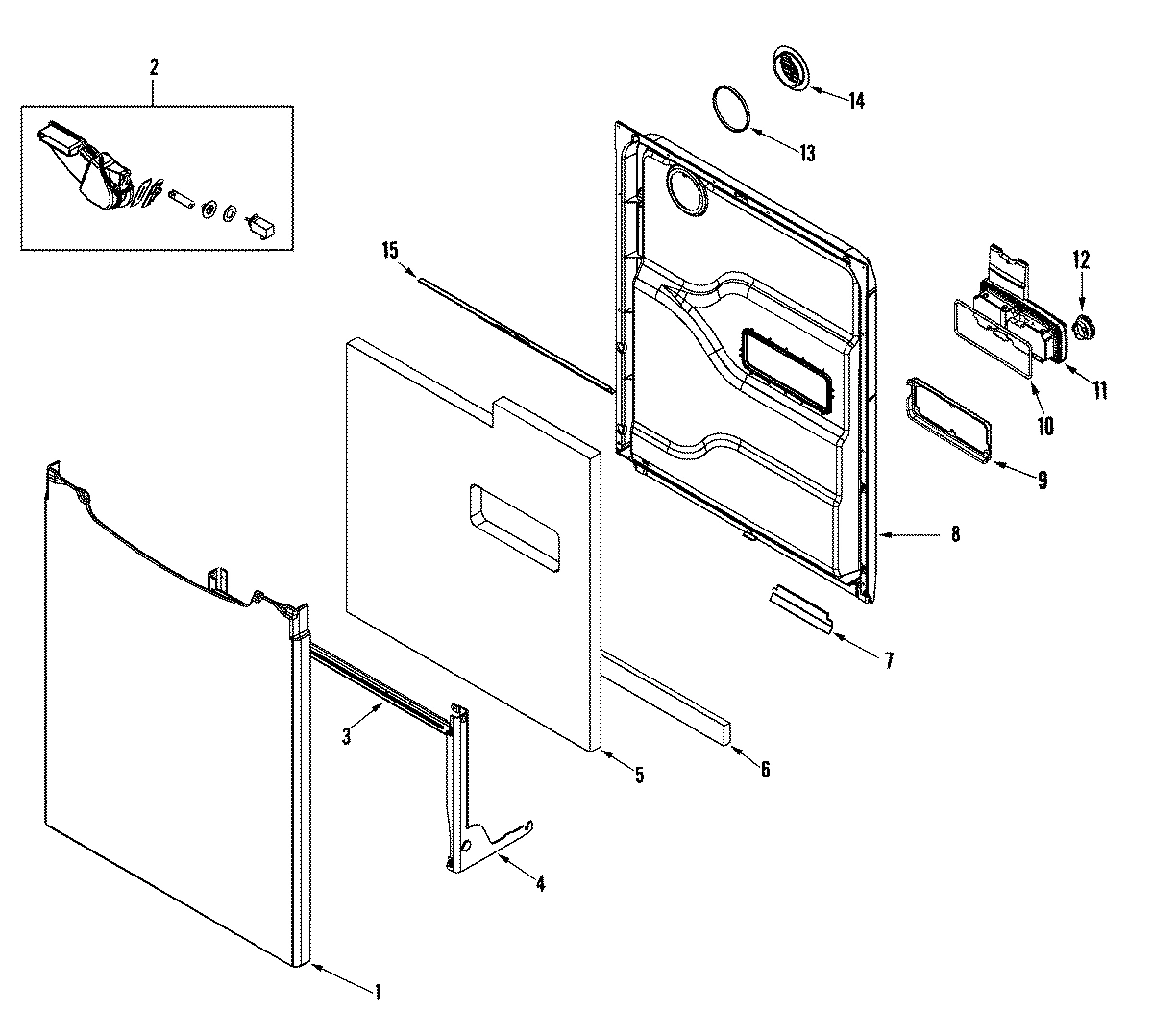

02 - DOOR

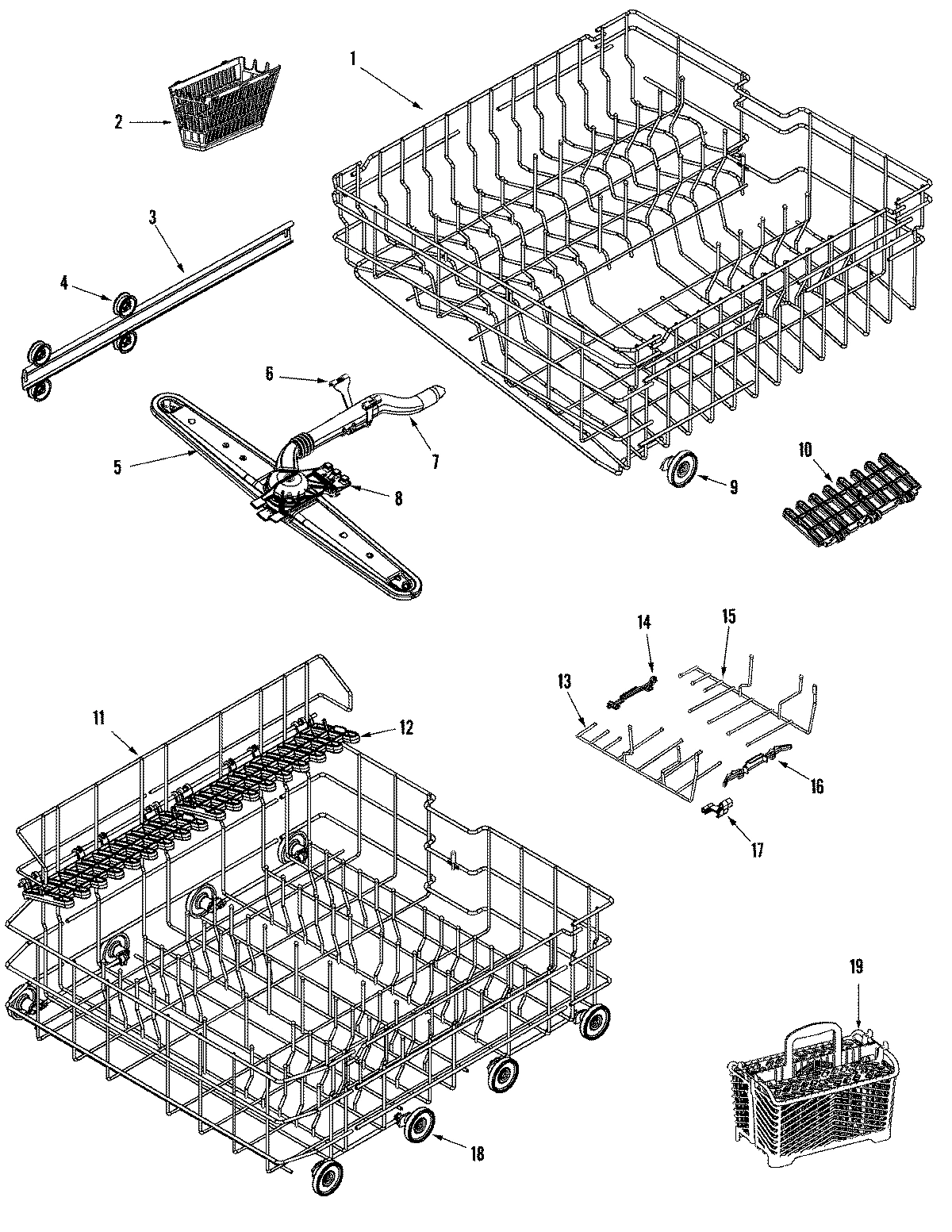

05 - TRACK & RACK ASSEMBLY

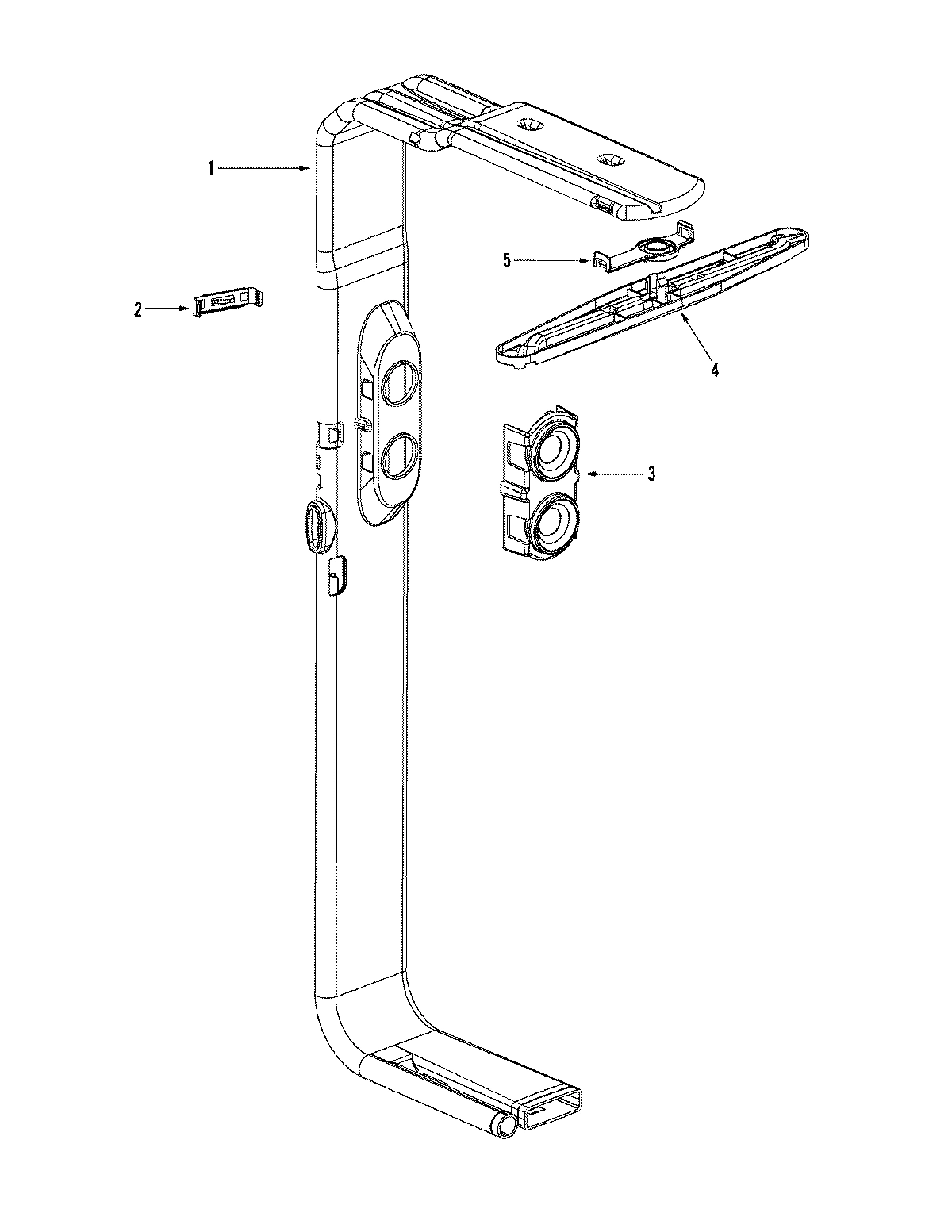

07 - WATER DISTRIBUTION ASSEMBLY
Common parts from model Whirlpool ADB2200AWS DISHWASHER
1
MANUAL, USE & CARE WPL Y6918418 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 99003015 Contact Us For Availability
1
BRACKET, WATER VALVE WPL 99002629 Contact Us For Availability
1
PANEL, DECO (W/DAMPER-STNLS) WPL 99002771 Contact Us For Availability
1
RACK ASSEMBLY (UPR) WPL 99002997 Contact Us For Availability
1
RACK ASSEMBLY (UPR)----SUB WPL 99003202 Contact Us For Availability
2
VENT SEAL, CONTROL PANEL WPL 99002931 Contact Us For Availability
2
TALL TUB SERVICE MANUAL WPL 16021814 Contact Us For Availability
2
VENT HOUSING ASSEMBLY WPL 99002673 Contact Us For Availability
2
BASKET, AUXILLARY WPL 99003001 Contact Us For Availability
3
GUIDE, ENERGY WPL 99002996 Contact Us For Availability
3
GUIDE, ENERGY WPL 99003169 Contact Us For Availability
3
GUIDE, ENERGY WPL 99003434 Contact Us For Availability
3
CROSSBRACE, HINGE WPL 99002604 Contact Us For Availability
3
TRACK, RACK WPL 99002621 Contact Us For Availability
3
STATION, DOCKING (W/FLAPPER) WPL 99002674 Contact Us For Availability
4
MISC. PARTS PACKAGE WPL 99002854 Contact Us For Availability
4
SWITCH, DOOR WPL 99002751 Contact Us For Availability
4
SCREW WPL 99001075 Contact Us For Availability
4
BRACKET, HINGE (LT) WPL 99002929 Contact Us For Availability
4
WASH ARM, TOP (W/RETAINER) WPL 99002676 Contact Us For Availability
5
SCREW, DISCHARGE HOUSING WPL 99002664 Contact Us For Availability
5
TOE PANEL SPACER KIT (BLK) WPL DAX3400AXX Contact Us For Availability
5
INLET, AIR/WATER WPL 99002645 Contact Us For Availability
5
SEAL, AIR/WATER INLET WPL 99002646 Contact Us For Availability
5
COVER, AIR/WATER INLET WPL 99002948 Contact Us For Availability
5
FELT, AIR/WATER INLET WPL 99002954 Contact Us For Availability
5
FOAM BLOCK, AIR/WATER INLET WPL 99002955 Contact Us For Availability
5
INSULATION, DOOR WPL Y99002587 Contact Us For Availability
5
ARM, WASH (UPR) WPL 99002624 Contact Us For Availability
5
SCREW, TRUSS HEAD (10-18X.75) WPL 99002740 Contact Us For Availability
6
TRIM STRIP KIT (WHT) WPL DAX3200AXE Contact Us For Availability
6
TRIM STRIP KIT (BSQ) WPL DAX3200AXN Contact Us For Availability
6
SEAL, DOOR WPL 99002588 Contact Us For Availability
6
CLIP, UPR WASH MANIFOLD (BACK) WPL 99002945 Contact Us For Availability
7
BOARD, CONTROL WPL 12002709 No Longer Available
7
SCREW, STAINLESS PAN HEAD WPL 99002668 Contact Us For Availability
7
WOOD PANEL KIT (BLK) WPL DAX3000AXB Contact Us For Availability
7
BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability
7
PUSHNUT, STAINLESS WPL 99002756 Contact Us For Availability
7
WASH MANIFOLD ASSY (UPR) WPL 99002679 Contact Us For Availability
8
CHOPPER WPL 99003427 Contact Us For Availability
8
HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability
8
STRIKER, DOOR WPL 99003357 Contact Us For Availability
8
DOOR, INNER (W/DAMPER) WPL 99002970 Contact Us For Availability
8
CLIP, UPR WASH MANIFOLD (FRT) WPL 99002669 Contact Us For Availability
9
WASH MOTOR SEAL KIT WPL 99002981 Contact Us For Availability
10
WASH MOTOR ASSY SEAL NOT INCL WPL 99002980 Contact Us For Availability
10
WASH MOTOR ASSY SEAL NOT INCL WPL 99003430 Contact Us For Availability
10
SPRING, DOOR WPL 99002598 Contact Us For Availability
10
SEAL, BASE WPL 99002270 Contact Us For Availability
10
SHELF, RACK (UPR) WPL 99003006 Contact Us For Availability
11
RINSE AID/DETERGENT DISPENSER WPL 99002991 Contact Us For Availability
11
CAP, RACK (DARK GRAY) WPL 99002905 Contact Us For Availability
11
RACK ASSEMBLY (LWR) WPL 99002998 Contact Us For Availability
12
GASKET, PUMP WPL 99002663 Contact Us For Availability
12
KNOB, RINSE AID (W/O-RING) WPL 99002992 Contact Us For Availability
12
SHELF, RACK (LWR) WPL 99003002 Contact Us For Availability
13
CAPACITOR, MOTOR WPL 99002665 Contact Us For Availability
13
SUPPORT, HINGE (RT) WPL 99002927 Contact Us For Availability
13
SUPPORT, HINGE (LT) WPL 99002928 Contact Us For Availability
13
SEAL, DOOR VENT WPL 99002186 Contact Us For Availability
13
TINES, CONVERTIBLE (FRT) WPL 99002717 Contact Us For Availability
14
DRAIN PUMP ASSEMBLY WPL 99002750 Contact Us For Availability
14
FLAPPER, DRAIN PUMP VALVE WPL 99002815 Contact Us For Availability
14
FASTENER, INSULATION WPL 99002640 Contact Us For Availability
14
BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability
15
FLAPPER, DRAIN FILTER WPL 99003058 Contact Us For Availability
15
REINFORCEMENT, INNER DOOR WPL 99002586 Contact Us For Availability
15
TINES, CONVERTIBLE (REAR) WPL 99002718 Contact Us For Availability
16
O-RING, DRAIN PUMP WPL 99002949 Contact Us For Availability
16
SHOULDER BOLT, CABLE BRACKET WPL 99002609 Contact Us For Availability
16
LATCH, CONVERTIBLE TINE WPL 99003004 Contact Us For Availability
17
SCREW, DRAIN PUMP MOUNTING WPL 99002657 Contact Us For Availability
17
BRKT, DRAIN PUMP (W/GROMMET) WPL 99002752 Contact Us For Availability
17
BRACKET, CABLE WPL 99002607 Contact Us For Availability
17
LATCH, SECONDARY CONV. TINE WPL 99003005 Contact Us For Availability
18
BRACKET, JUNCTION BOX SUPPORT WPL 99002637 Contact Us For Availability
19
BASKET, SILVERWARE (W/COVER) WPL 99002999 Contact Us For Availability
19
COVER, SILVERWARE BASKET WPL 99003000 Contact Us For Availability
20
COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability
21
FLOAT WPL 99002630 Contact Us For Availability
22
SWITCH, FLOAT WPL 99002631 Contact Us For Availability
23
PLATE, SWITCH MOUNTING WPL 99002943 Contact Us For Availability
24
CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability
25
THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability
26
SCREW 10-32X.400 (T-20 HEAD) WPL 99002601 Contact Us For Availability
26
BRACKET, SUPPORT (LT) WPL 99002636 Contact Us For Availability
27
GASKET, HEATER WPL 99002973 Contact Us For Availability
29
NUT, HEATER WPL 99002972 Contact Us For Availability
30
STRIP, TRIM/MOUNTING (LT) WPL 99002690 Contact Us For Availability
31
SCREW, TRIM WPL 99002692 Contact Us For Availability
31
STRIP, TRIM/MOUNTING (RT) WPL 99002691 Contact Us For Availability
32
WPL 99002859 WPL 99002859 Contact Us For Availability
33
WPL 99002765 WPL 99002765 Contact Us For Availability
NI
WIRE HARNESS, MICROPROCESSOR WPL 99002986 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003316 Contact Us For Availability
× ![]()
