Model Whirlpool ACS4660AB ELECTRIC RANGE – Common Parts & Diagrams
08 - SUPPLEMENTAL INFORMATION

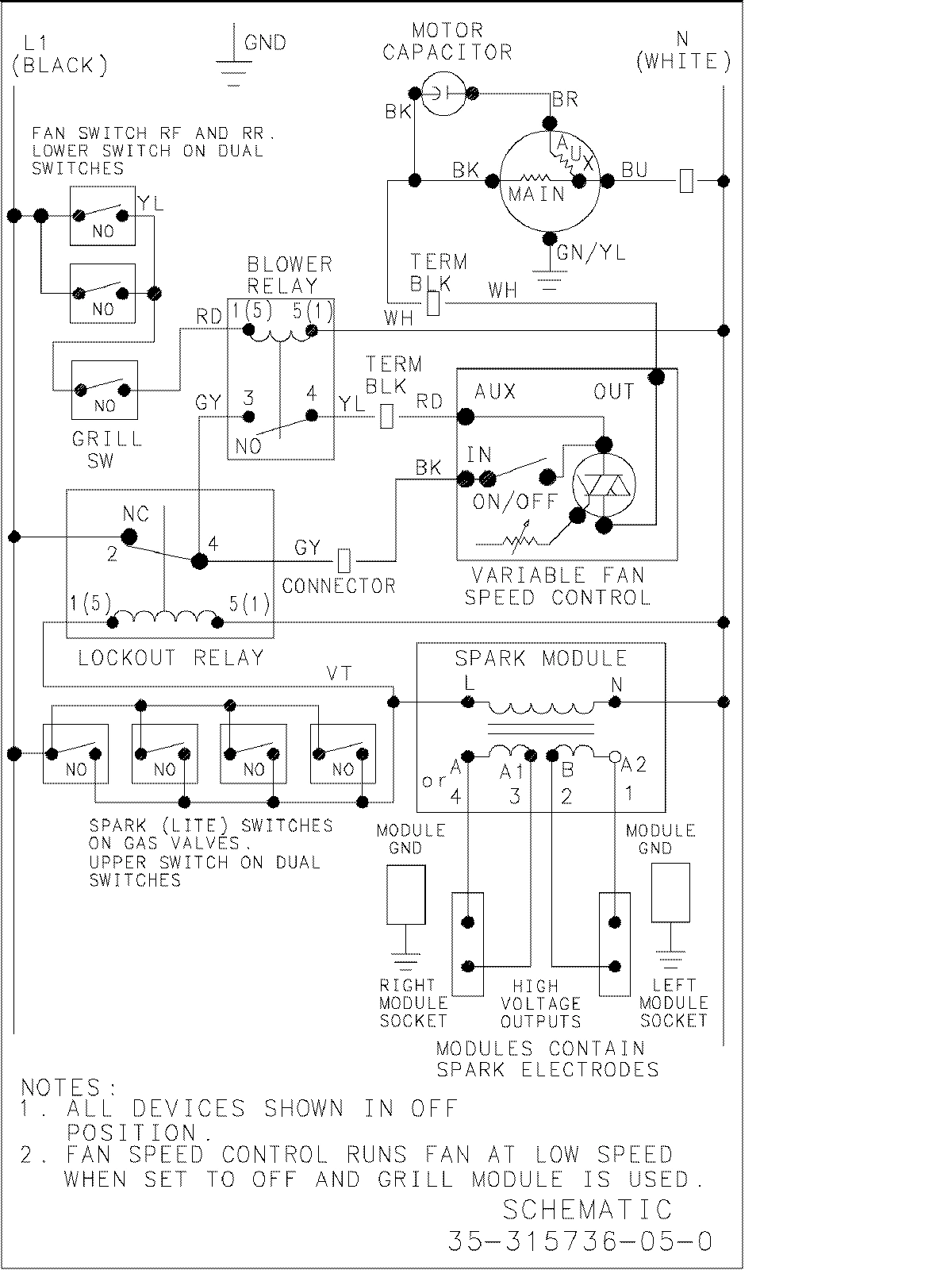

10 - WIRING INFORMATION

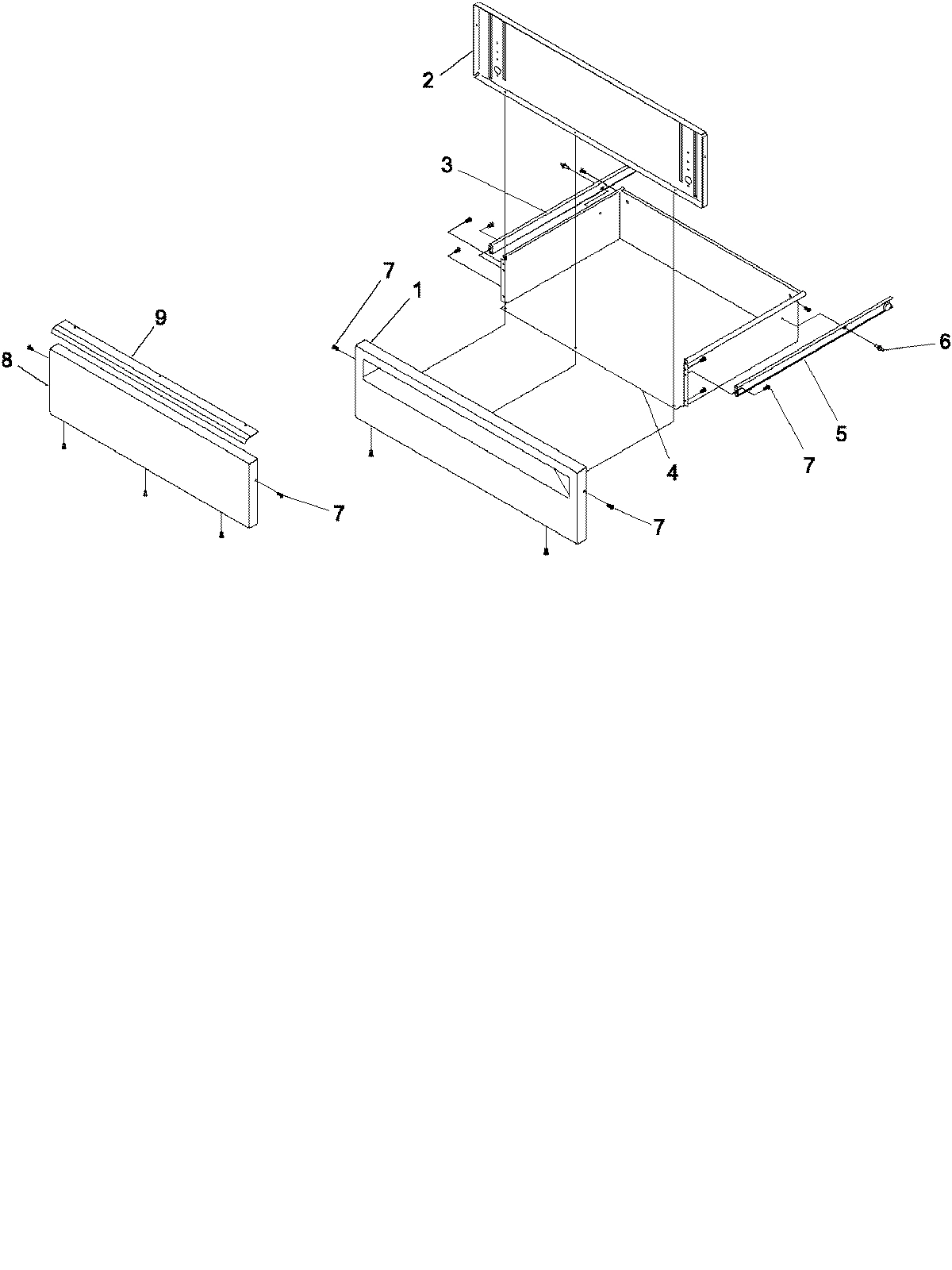

07 - STORAGE DRAWER

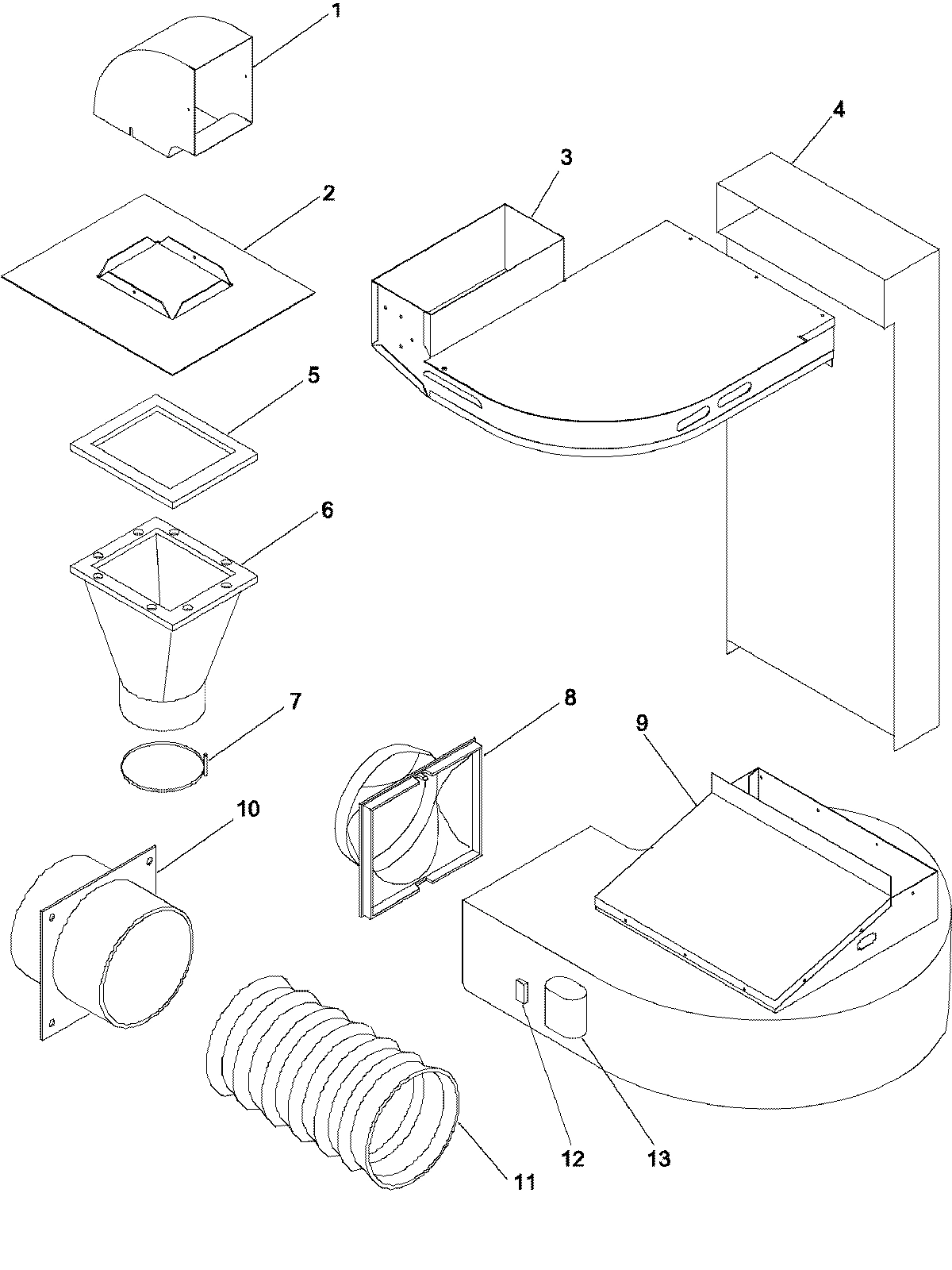

09 - VENTILATION

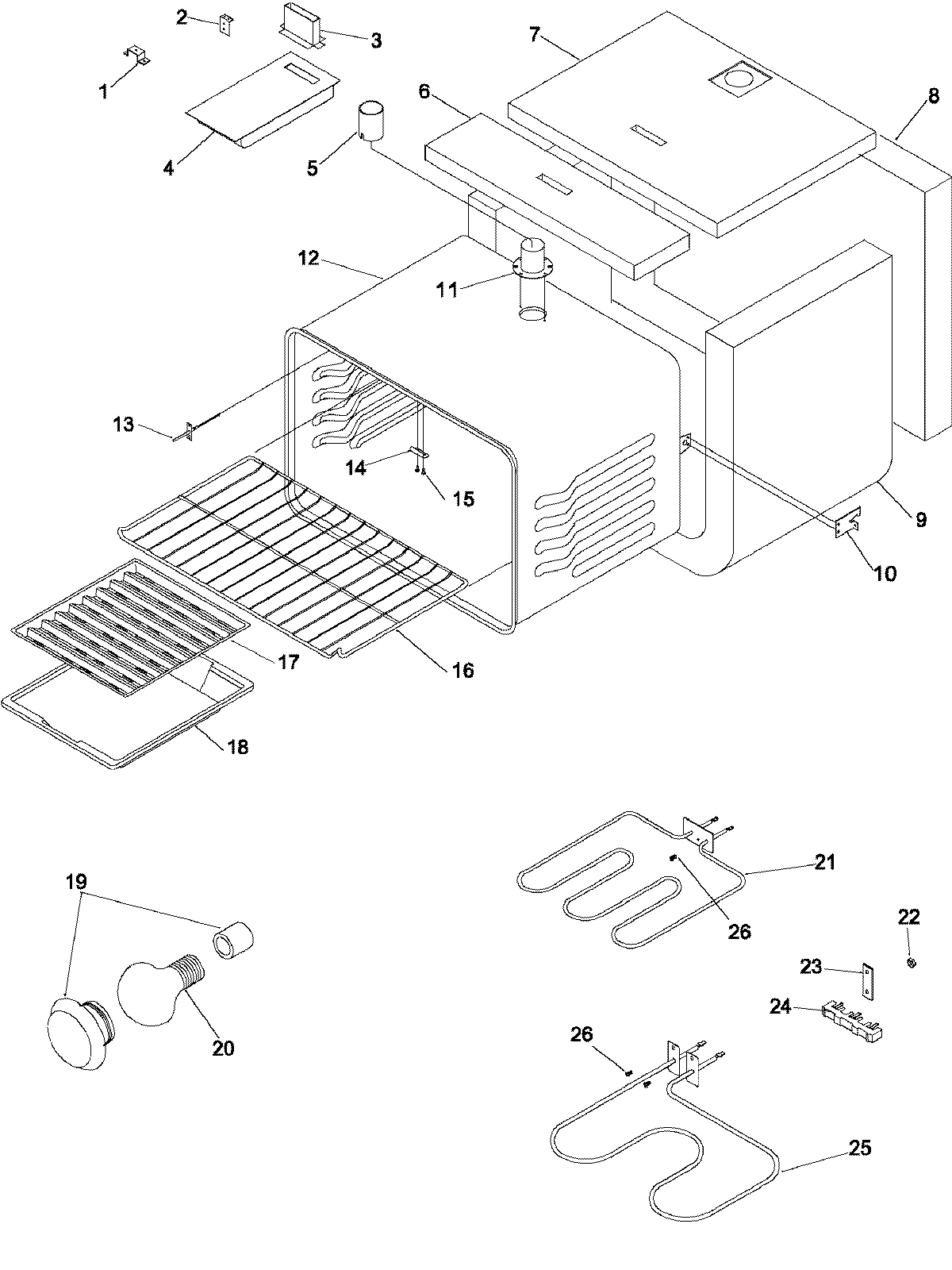

03 - CAVITY

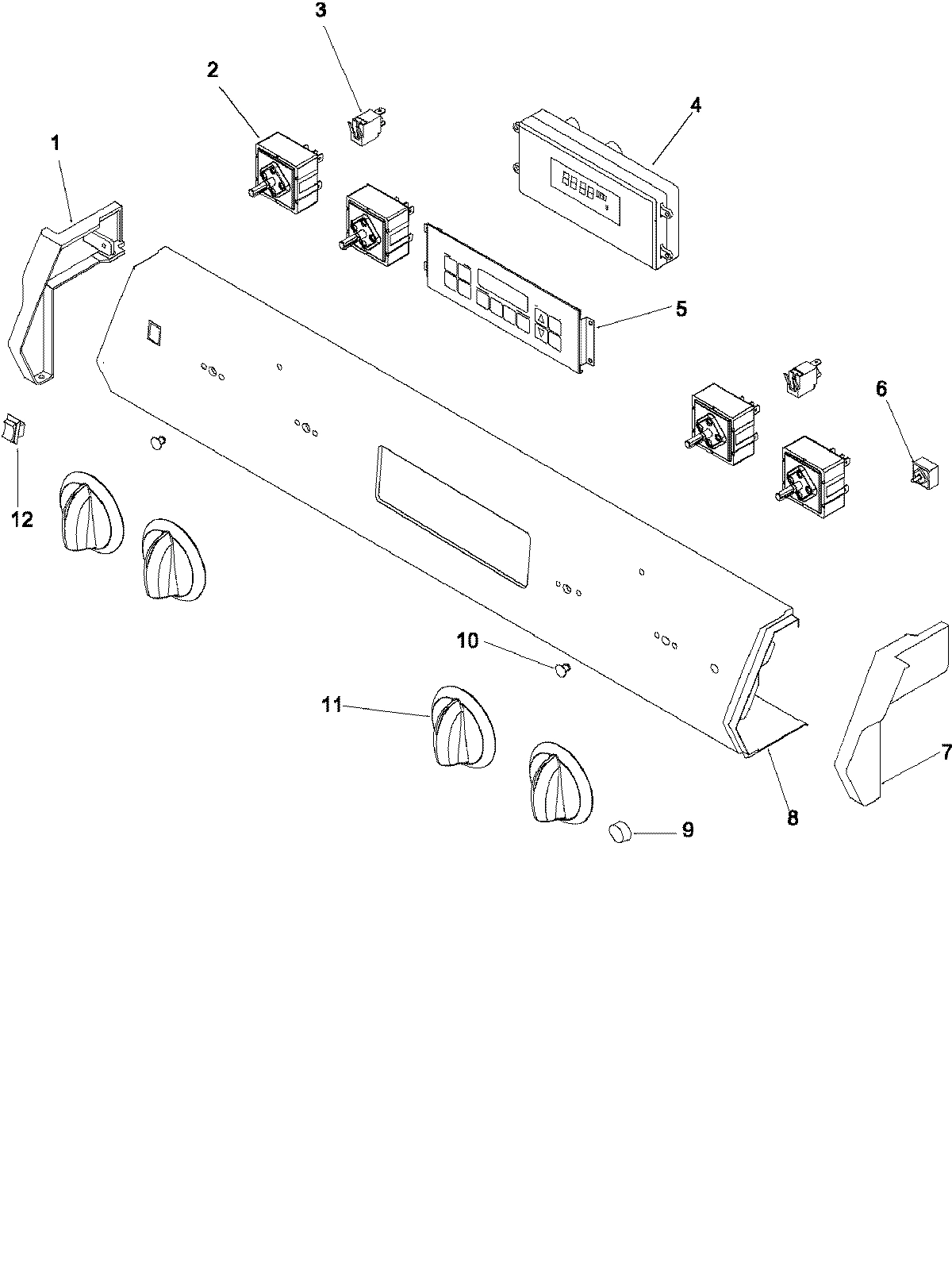

01 - BACKGUARD

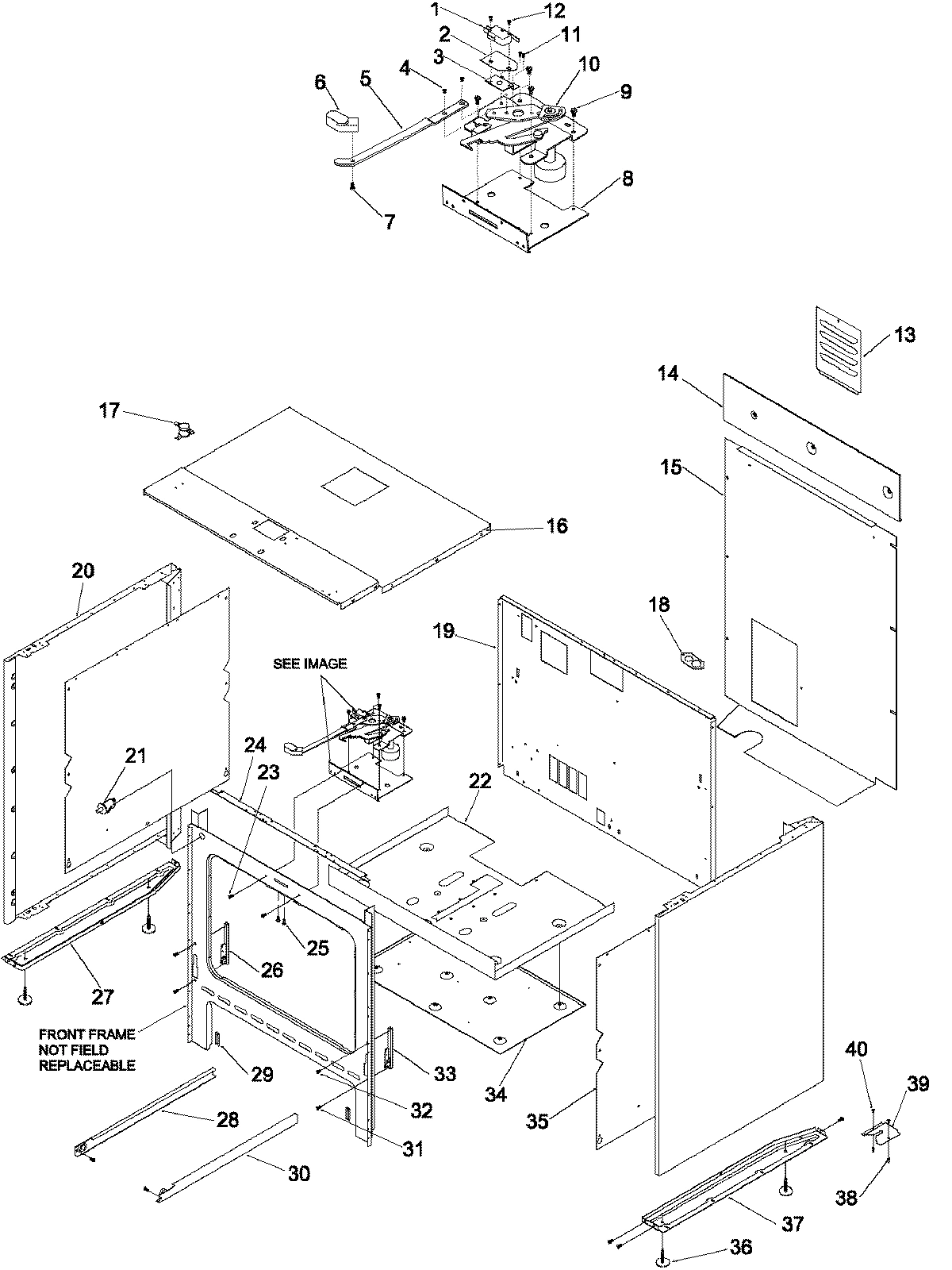

02 - CABINET

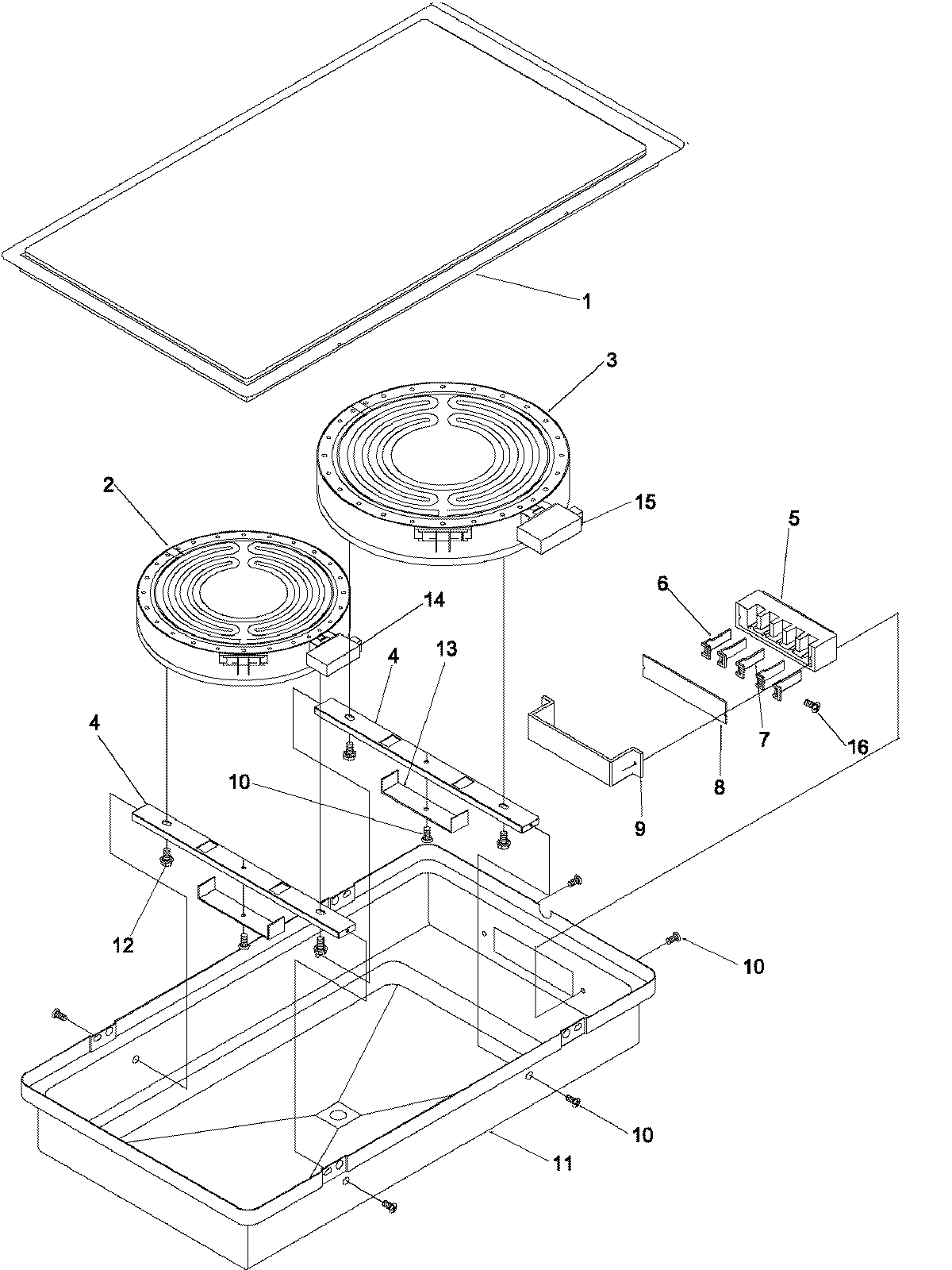

04 - GRILLE MODULE ACT110

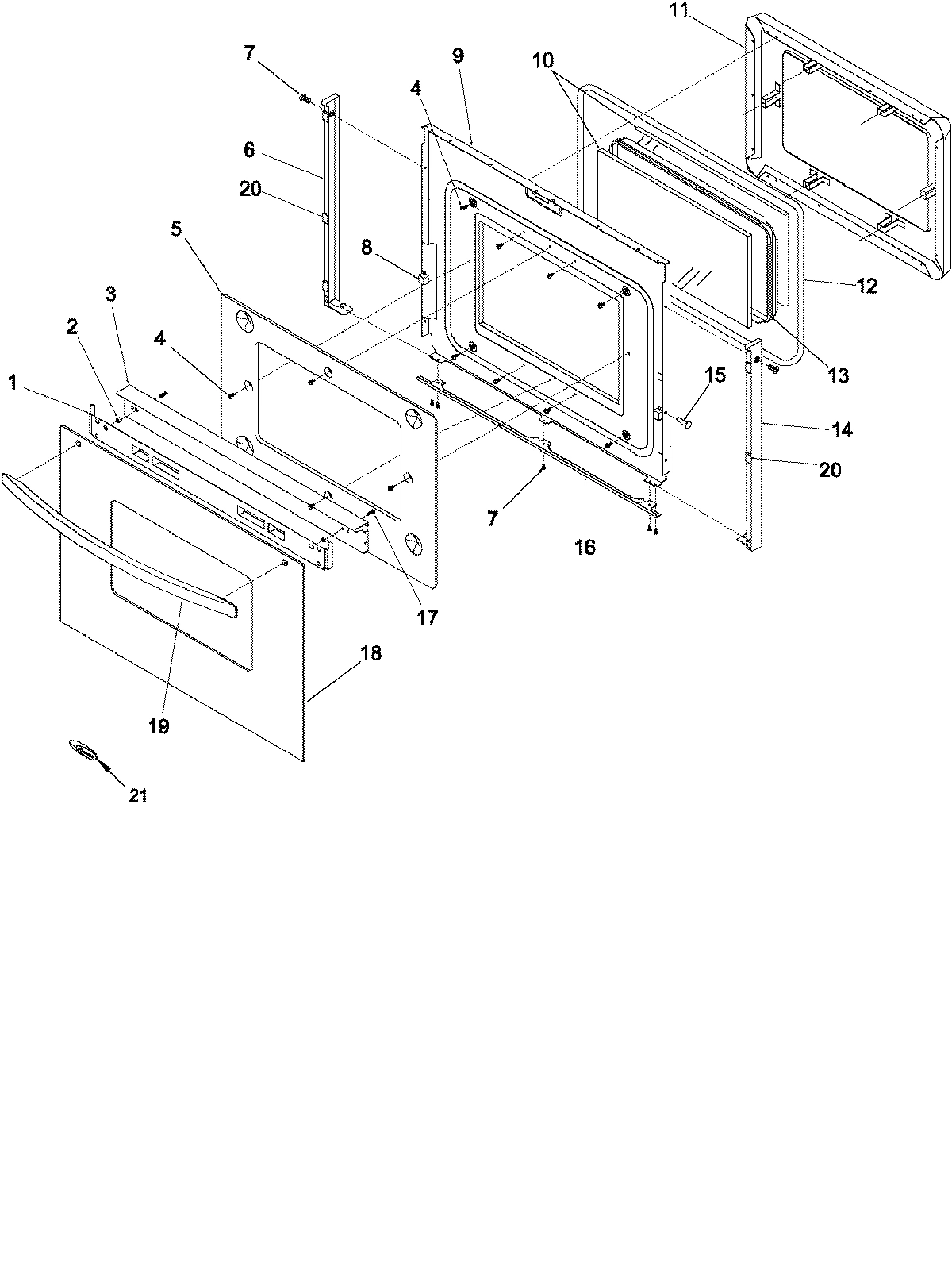

06 - OVEN DOOR

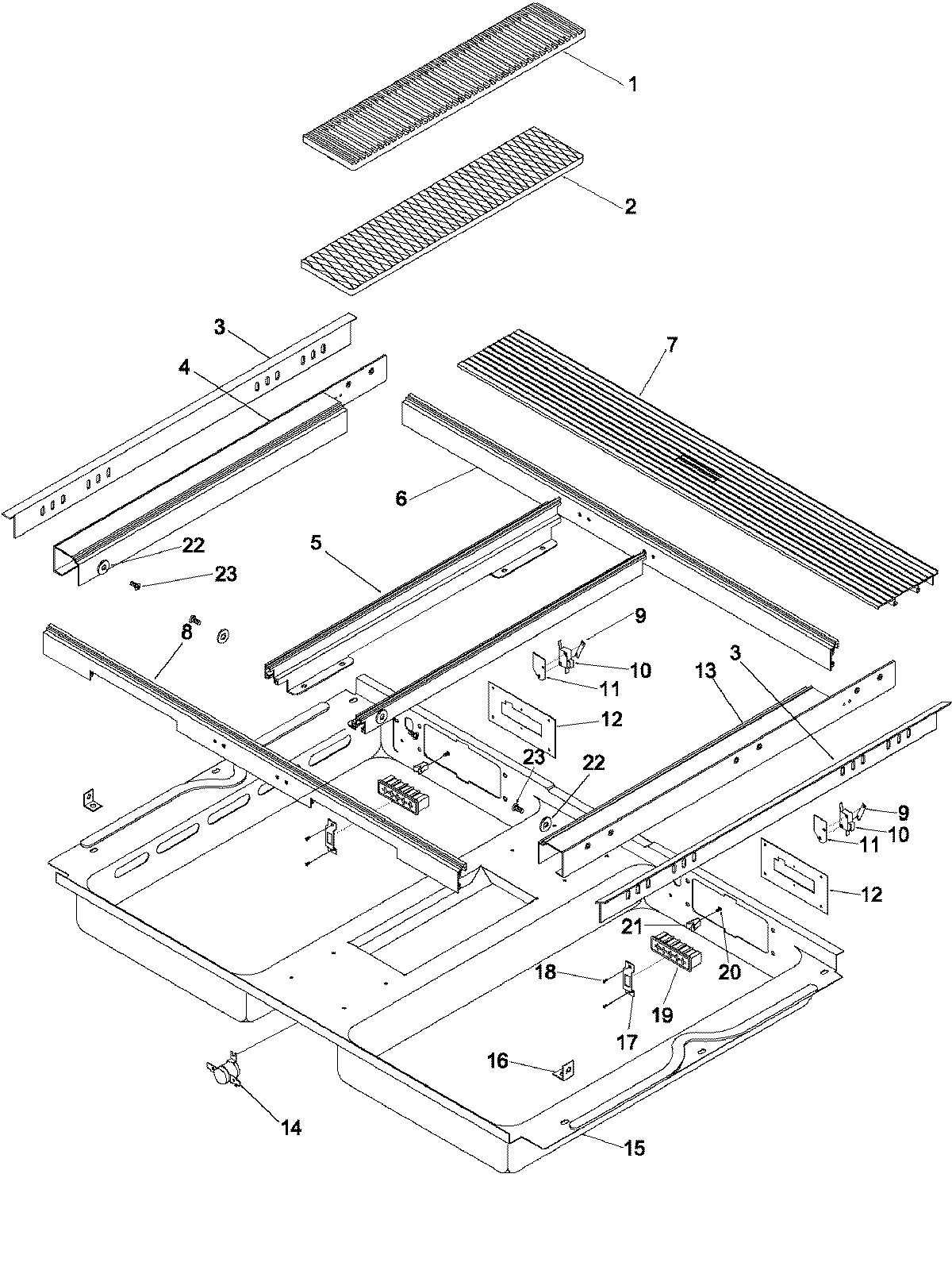

05 - MAIN TOP
Common parts from model Whirlpool ACS4660AB ELECTRIC RANGE
1
AMANA COOKING WPL 16021951 Contact Us For Availability
1
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
1
FLOOR DUCT, ELBOW WPL Y0315331 Contact Us For Availability
1
MTG. BRACKET, VENT WPL Y0300632 Contact Us For Availability
1
END CAP, LT (BLK) WPL 308171B Contact Us For Availability
1
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
1
ASSY, GLASS & FRAME (BLK) WPL 77001160 Contact Us For Availability
1
GLASS, HEAT SHIELD WPL 77001164 Contact Us For Availability
1
COVER, VENT-CASTING WPL Y058902G Contact Us For Availability
2
SRV MAN REPLACES RS2320003 R6 WPL 16021955 Contact Us For Availability
2
LINER, DRAWER PANEL (BLK) WPL 31930601B Contact Us For Availability
2
PLATE, DUCT WPL Y0315330 Contact Us For Availability
2
BRACKET, VENT SUPPORT WPL Y0300943 Contact Us For Availability
2
SWITCH, INFINITE (240TP-1244) WPL 32064402 Contact Us For Availability
2
ELEMENT, RIBBON-1200W WPL 77001162 Contact Us For Availability
2
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
2
FILTER (17.75``X4.0``X.375``) WPL Y0307363 Contact Us For Availability
3
RUNNER, STORAGE DRAWER LT WPL Y0314668 Contact Us For Availability
3
W/A TOP PLENUM WPL 314755CG Contact Us For Availability
3
FLUE BOX, REAR WPL Y0059431 Contact Us For Availability
3
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
3
TRIM, TOP DOOR (BLK) WPL 77001165 Contact Us For Availability
3
TRIM, COUNTERTOP (BLK) WPL 305204B Contact Us For Availability
4
WRAPPER, STORAGE DRAWER (WHT) WPL 314674W Contact Us For Availability
4
W/A REAR PLENUM WPL Y0314779 Contact Us For Availability
4
FLUE BOX WPL Y0300641 Contact Us For Availability
4
ERC2C-ELECTRIC WPL Y0315030 Contact Us For Availability
4
SCREW, No.10-24X9/32 (PH SEMS) WPL 31750508 Contact Us For Availability
4
BRKT, ELEMENT MTG WPL Y0316133 Contact Us For Availability
4
FRAME, SIDE-LT MAIN TOP (BLK) WPL 31943802B Contact Us For Availability
5
RUNNER, STORAGE DRAWER RT WPL Y0314669 Contact Us For Availability
5
GASKET, BONDED WPL Y0301343 Contact Us For Availability
5
TUBE, VENT EXTENSION WPL 0060633 Contact Us For Availability
5
OVERLAY, MYLAR-ERC2C (BLK) WPL 32061801B Contact Us For Availability
5
HANDLE, DOOR LATCH (BLK) WPL 303040B Contact Us For Availability
5
MODULE, PLUG BLOCK WPL Y0314569 Contact Us For Availability
5
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
5
FRAME, CENTER MAIN TOP (BLK) WPL 31943701B Contact Us For Availability
6
RIVET, POP WPL Y0076357 Contact Us For Availability
6
TRANSITION,WALL/FLOOR/SIDE CAB WPL Y0310943 Contact Us For Availability
6
COVER PLATE, LATCH WPL 0302483 Contact Us For Availability
6
SWITCH, FAN WPL Y0300574 Contact Us For Availability
6
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
6
CONTACT, SPADE-POWER WPL Y0052040 Contact Us For Availability
6
END CAP, DOOR (LT-BLK) WPL 309523B Contact Us For Availability
6
FRAME, REAR-ELECTRIC (BLK) WPL 315083B Contact Us For Availability
7
CLAMP, WORM GEAR WPL Y0307680 Contact Us For Availability
7
INSULATION, TOP WPL 31975001 Contact Us For Availability
7
END CAP, RT (BLK) WPL 308172B Contact Us For Availability
7
SCREW, No.6-32 X .375 FLAT HD PH WPL 31750306 Contact Us For Availability
7
CONTACT, SPADE-GROUND WPL Y0052041 Contact Us For Availability
7
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
7
LO-BACKRAIL, ELECTRIC (BLK) WPL 315081B Contact Us For Availability
8
DUCT, BLOWER WPL Y0307508 Contact Us For Availability
8
INSULATION, BACK WPL 31975101 Contact Us For Availability
8
PANEL, CONTROL (BLK) WPL 77001158 Contact Us For Availability
8
BRACKET, LATCH MTG. WPL Y0058918 Contact Us For Availability
8
INSULATOR-COOKTOP MODULE WPL Y0041994 Contact Us For Availability
8
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
8
FRAME, FRONT-MAIN TOP WPL Y058528B Contact Us For Availability
9
ASSY, BLWR BOX W/CAPACITOR WPL Y0314676 Contact Us For Availability
9
INSULATION, WRAPPER WPL 31975201 Contact Us For Availability
9
KNOB, FAN SWITCH (BLK) WPL 77001156 Contact Us For Availability
9
PLUG BLOCK MTG BRKT WPL Y0040964 Contact Us For Availability
9
BACKER, OVEN DOOR WPL 317023CG Contact Us For Availability
9
NUT, SPEED No.4-40 (BLK) WPL 31750107 Contact Us For Availability
10
THIMBLE, 6`` DUCT WPL Y0307592 Contact Us For Availability
10
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
10
LENS, INDICATOR LIGHT WPL 31780502 Contact Us For Availability
10
LATCH, ELECT. SI WPL 0314960 Contact Us For Availability
10
GLASS, DOOR WPL Y0317019 Contact Us For Availability
10
SWITCH, FAN WPL Y0054254 Contact Us For Availability
11
DUCT, FLEX WPL Y0307945 Contact Us For Availability
11
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
11
KNOB, SWITCH (BLK) WPL 31926621B Contact Us For Availability
11
INSULATION, ESM WPL Y0091523 Contact Us For Availability
11
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
11
MODULE PAN, ELECTRIC WPL 31907501 Contact Us For Availability
11
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
12
RELAY WPL Y0054074 Contact Us For Availability
12
OVEN SHELL, ELECTRIC DD WPL 314698CG Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 77001159 Contact Us For Availability
12
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
12
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
12
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
PLATE MTG. PLUG BLOCK WPL Y0300498 Contact Us For Availability
13
CAPACITOR WPL 10099906 Contact Us For Availability
13
SENSOR, TEMPERATURE WPL 31968201 Contact Us For Availability
13
PLATE, ACCESS WPL 31800001 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
13
FRAME, WINDOW PACK WPL Y0317020 Contact Us For Availability
13
FRAME, SIDE-RT MAIN TOP (BLK) WPL 31943801B Contact Us For Availability
14
COVER, CHIP WPL Y0315022 Contact Us For Availability
14
SHIELD, REAR WPL 0314785 Contact Us For Availability
14
END CAP, DOOR (RT-BLK) WPL 309522B Contact Us For Availability
14
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
15
COVER, REAR WIRE WPL Y0314672 Contact Us For Availability
15
WASHER, LOCK 13/64 X 7/16 O.D. WPL 31750014 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
BOX, BURNER WPL 31898201CG Contact Us For Availability
16
RETAINER, INSULATION TOP WPL Y0315622 Contact Us For Availability
16
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
16
BRACKET, FRAME TRIM WPL Y0301154 Contact Us For Availability
17
CONTROL, LIMIT WPL 31933003 Contact Us For Availability
17
SCREW, 10-32 X 1.250`` PAN HD WPL 31750525 Contact Us For Availability
17
PLUG BLOCK MTG BRKT ET590 595 WPL Y0040965 Contact Us For Availability
18
BRACKER, CONDUIT WPL Y0058556 Contact Us For Availability
18
GLASS, OVEN DOOR (BLK) WPL 316238B Contact Us For Availability
19
INSULATION RETAINER (REAR) WPL 31936201 Contact Us For Availability
19
HANDLE, OVEN DOOR (BLK) WPL 77001118 Contact Us For Availability
19
PLUG BLOCK MODULAR TOP WPL Y0042210 Contact Us For Availability
20
BULB, LIGHT WPL Y0042175 Contact Us For Availability
20
PANEL, SIDE (BLK) WPL 31825102B Contact Us For Availability
20
TAPE, FOAM WPL 0043184 Contact Us For Availability
21
ELEMENT, BROIL (240V-3000W) WPL Y0060241 Contact Us For Availability
21
SWITCH, OVEN LIGHT WPL Y0314367 Contact Us For Availability
21
INSULATION, DOOR PAD-LONG WPL 31975501 Contact Us For Availability
21
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
22
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
22
INSULATION RETAINER (BOTTOM) WPL Y0315147 Contact Us For Availability
22
WASHER, FIBER (.188 ID/.500 OD WPL 31750016 Contact Us For Availability
24
FILLER, FRONT FRAME WPL Y0315148 Contact Us For Availability
26
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
27
BRACE, LEVELING LEG (LT) WPL 31854501 Contact Us For Availability
28
TRACK, STORAGE DRAWER LT WPL Y0314666 Contact Us For Availability
29
SUPPORT, STG DWR TRK WPL Y0315150 Contact Us For Availability
30
TRACK, STORAGE DRAWER RT WPL Y0314667 Contact Us For Availability
32
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
33
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
34
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
35
INSULATION RETAINER, (SIDE) WPL Y0314680 Contact Us For Availability
36
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
37
BRACE, LEVELING LEG (RT) WPL 31854502 Contact Us For Availability
38
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
39
BRACKET, ANTI TIP WPL 31945201 Contact Us For Availability
40
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003074 Contact Us For Availability
NI
SCREW, No.6-32 X .375 PANHD(BLK) WPL 31750308 Contact Us For Availability
NI
SCREW, No.8-18 X 3/8 PPH WPL 31750425 Contact Us For Availability
NI
WIRE HARNESS, BLOWER WPL Y0315350 Contact Us For Availability
NI
SHIELD, RELAY WPL Y0315556 Contact Us For Availability
NI
SCREW, No.3-32 X.187 PAN HD PH WPL 31750302 Contact Us For Availability
NI
HARNESS, INPUT WPL 32017201 Contact Us For Availability
NI
WIRE HARNESS,INF SW WPL Y0315407 Contact Us For Availability
NI
ANTI-TIP PACK WPL 31970801 Contact Us For Availability
NI
WIRE HARNESS, BURNER BOX WPL 0306486 Contact Us For Availability
NI
TRIM KIT (BLK) WPL 315014B Contact Us For Availability
NI
SPACER, SNAP-IN WPL 31717001 Contact Us For Availability
NI
NUT, HEX 8-32 WPL 31750101 Contact Us For Availability
NI
SCREW, No.8-18 X 1/2 PFLTHD(BLK) WPL 31750428 Contact Us For Availability
× ![]()
