Model GE 911.99009990 30" Freestanding Range (Kenmore 91199009990) – Common Parts & Diagrams
MAINTOP

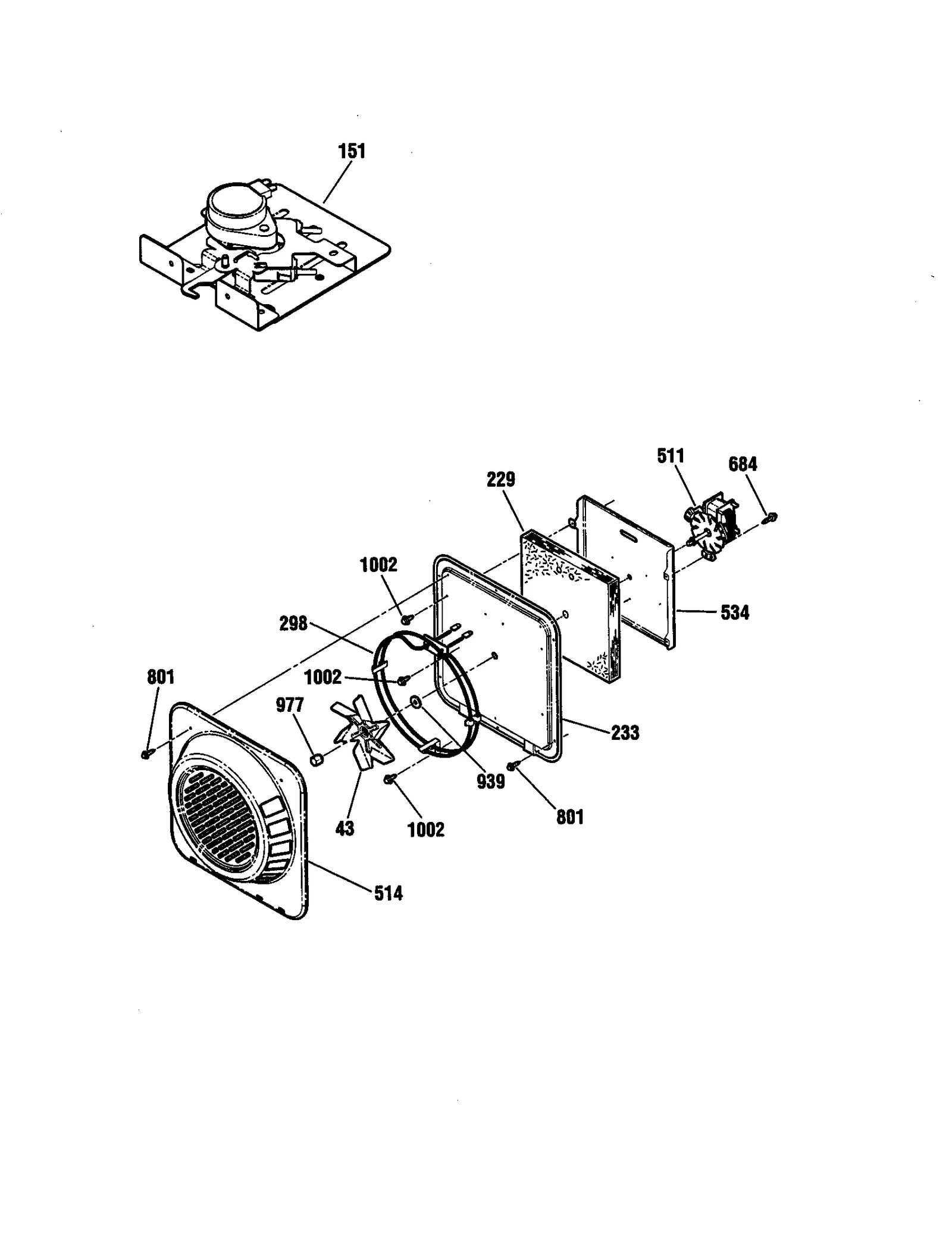

LOCK AND FAN

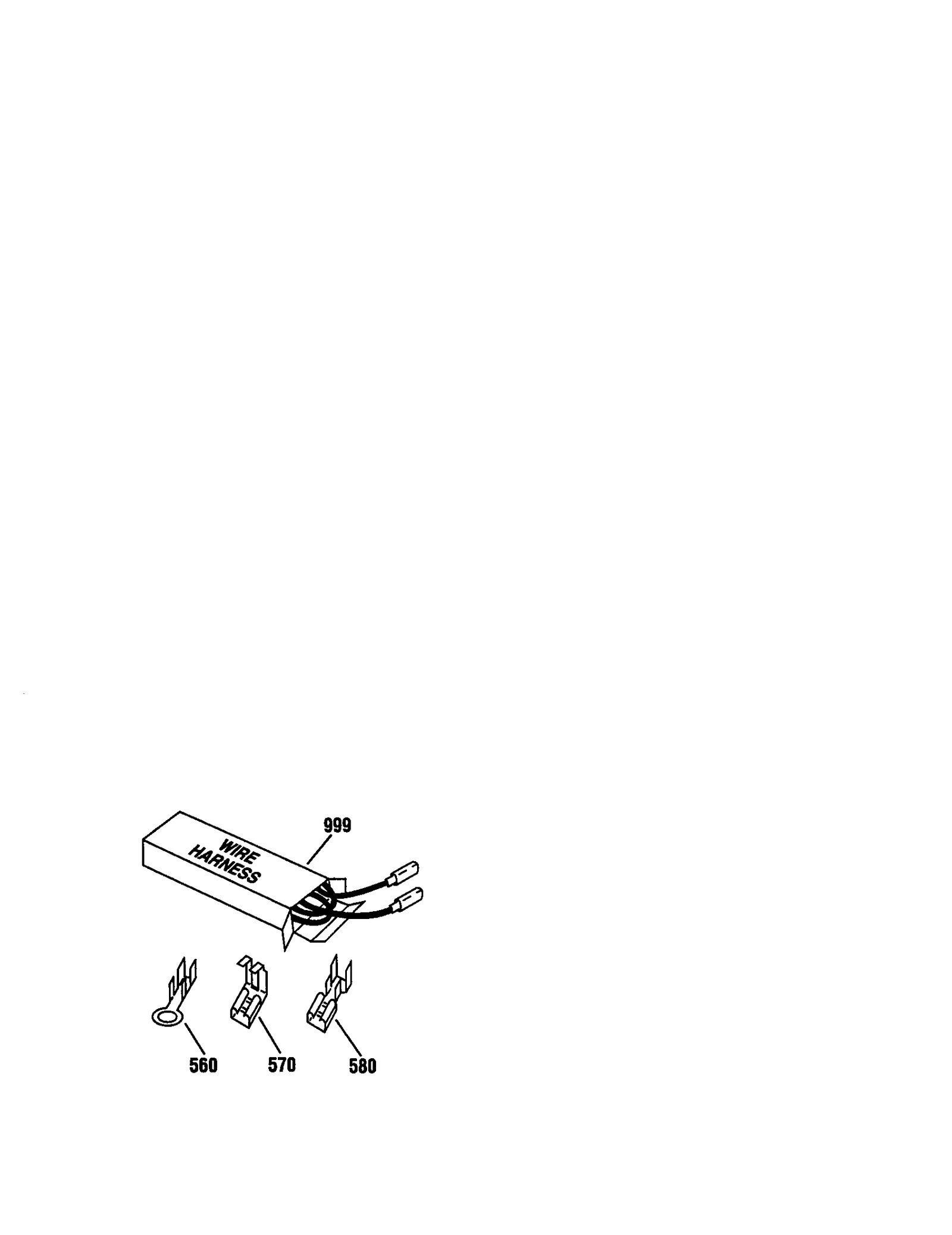

WIRE HARNESS AND COMPONENTS

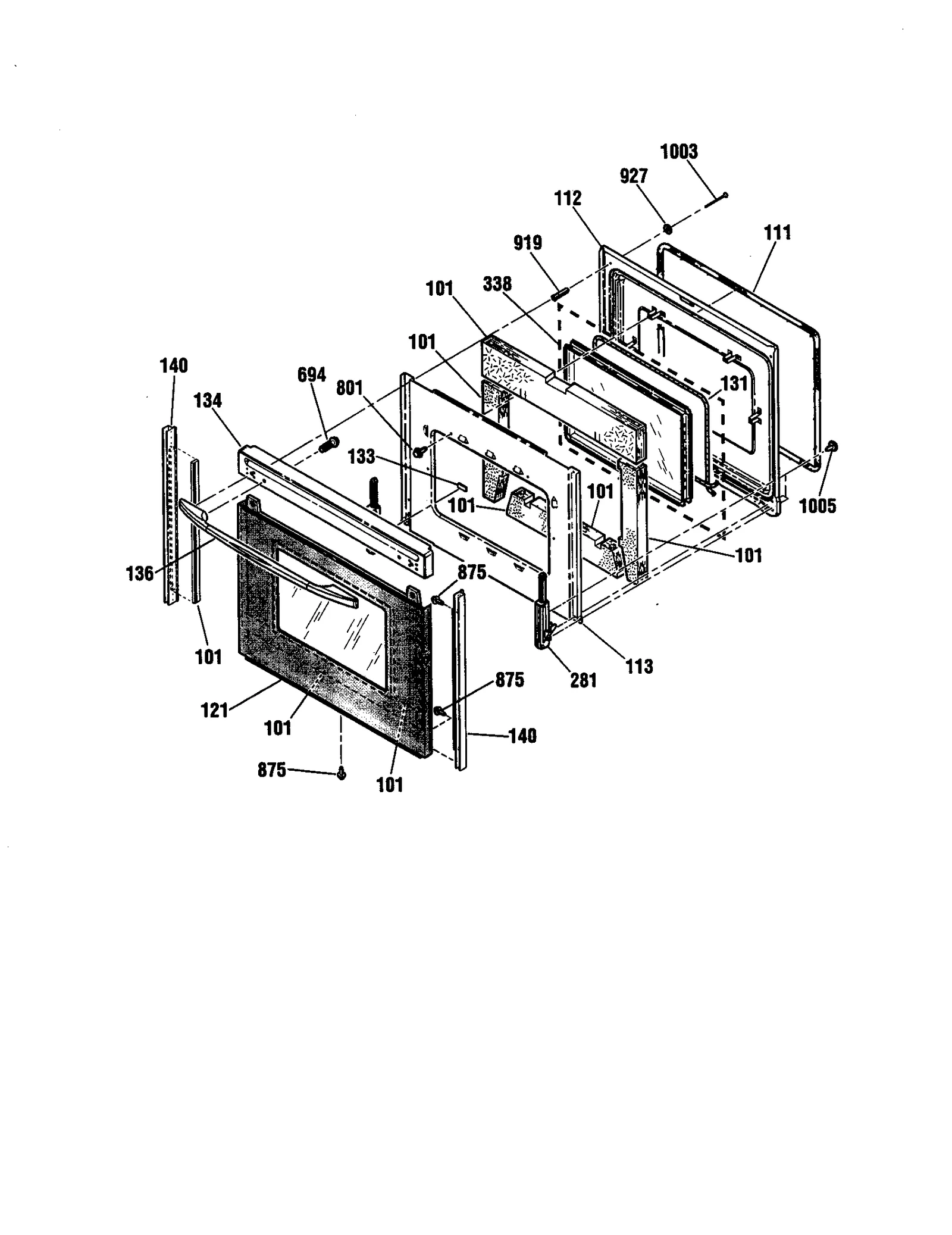

DOOR (91199003990)

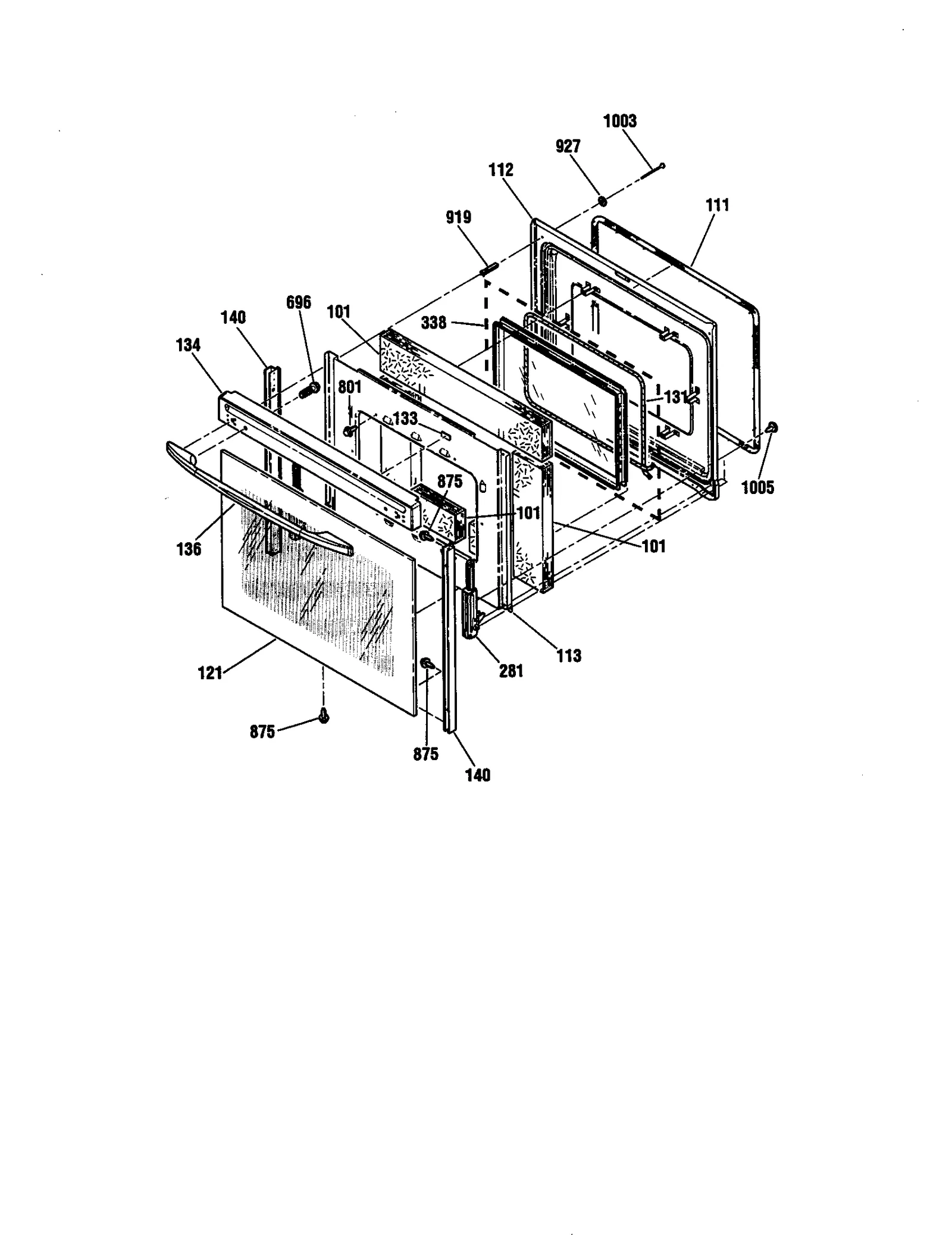

DOOR
BODY

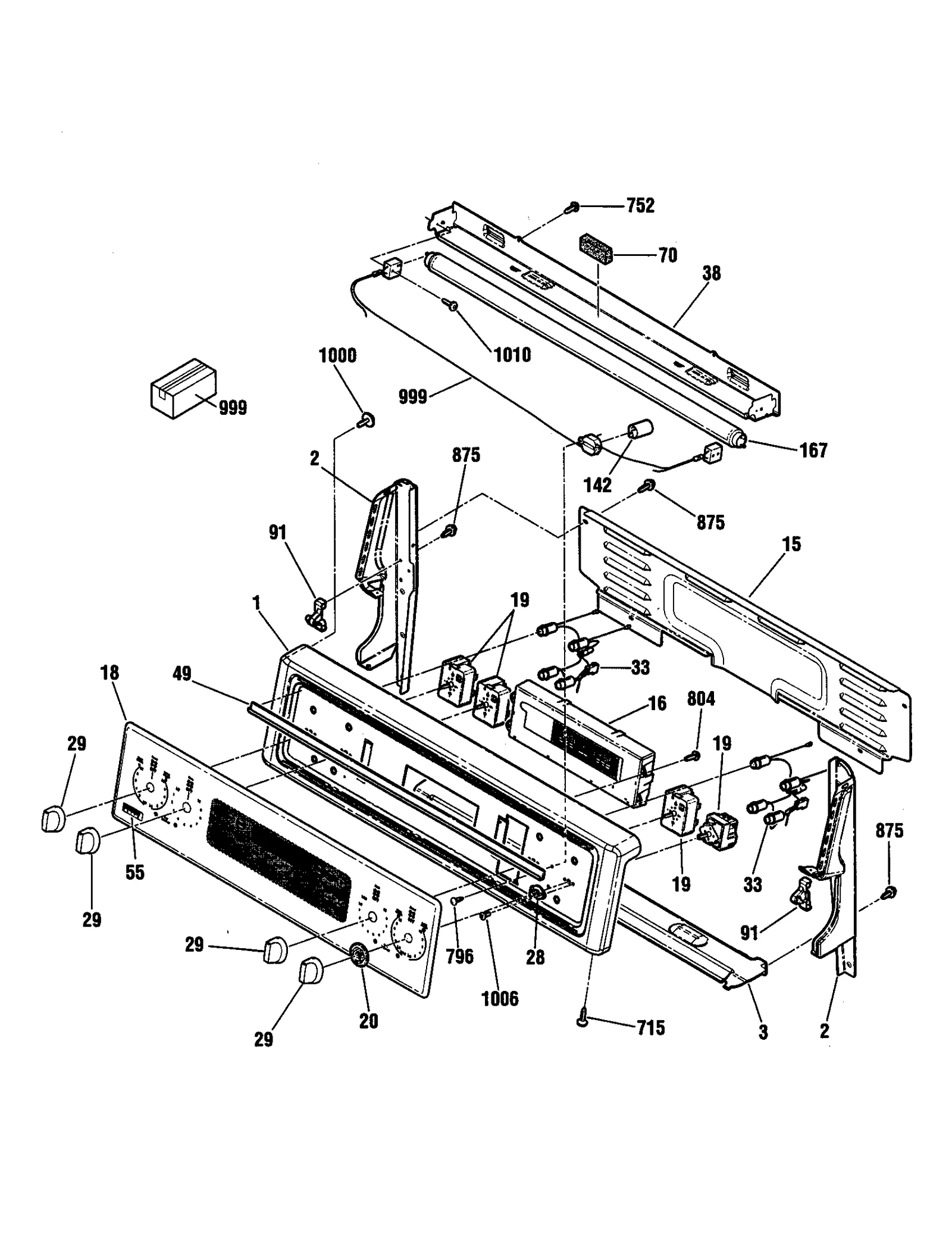

BACKGUARD

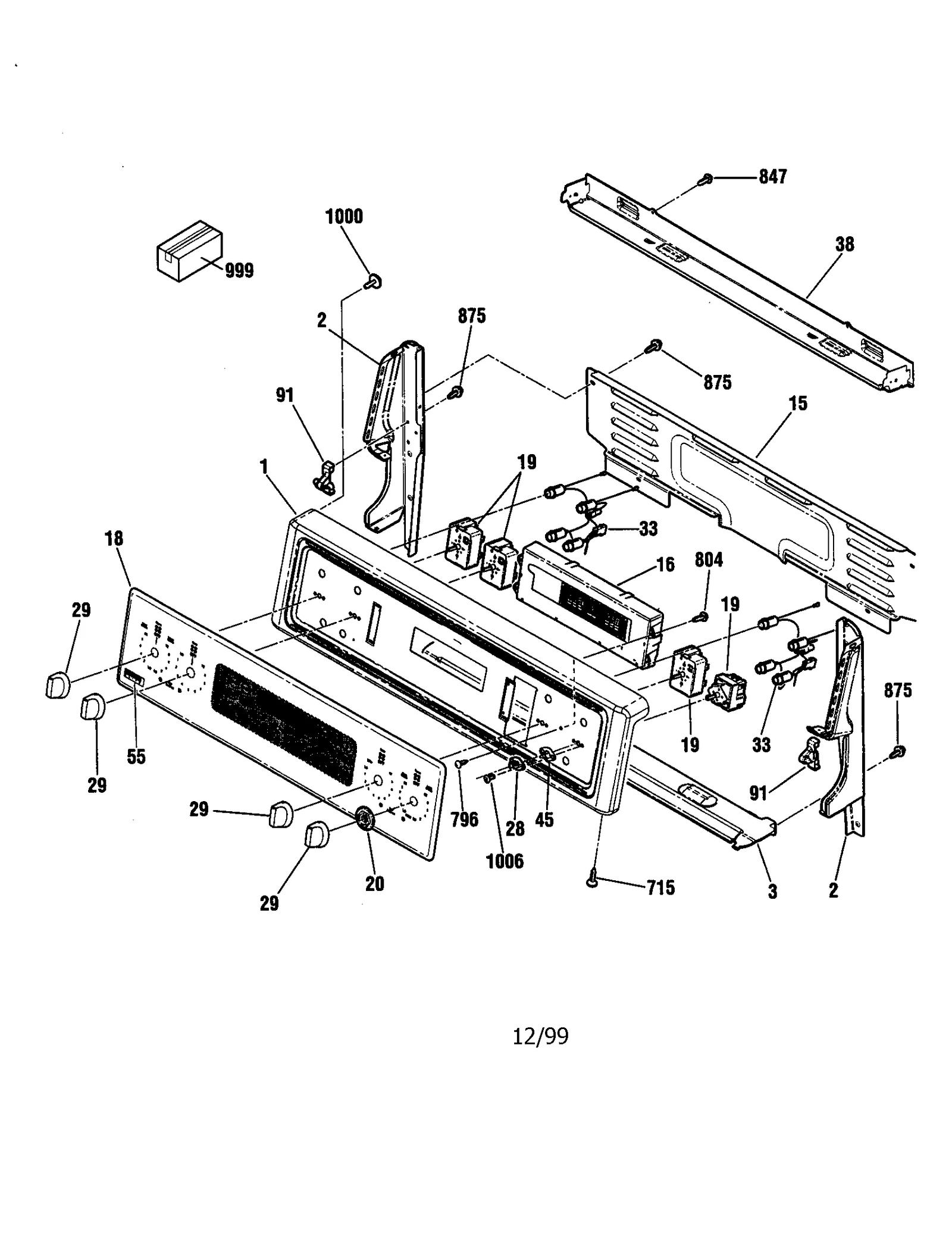

BACKGUARD(91199003990)
Common parts from model GE 911.99009990 30" Freestanding Range (Kenmore 91199009990)
1
Control Panel GEN WB36T10256 Contact Us For Availability
1
Control Trim GEN WB36T10298 Contact Us For Availability
1A
Control Panel GEN WB36T10251 Contact Us For Availability
1B
Control Trim GEN WB36T10299 Contact Us For Availability
2
End Cap GEN WB36T10255 Contact Us For Availability
2
End Cap GEN WB36T10292 Contact Us For Availability
2A
End Cap Rt/b GEN WB36T10254 Contact Us For Availability
2A
End Cap GEN WB36T10291 Contact Us For Availability
2B
End Cap Rt/w GEN WB36T10247 Contact Us For Availability
2C
End Cap GEN WB36T10248 Contact Us For Availability
2D
End Plate GEN WB36T10294 Contact Us For Availability
2E
Plate End (h GEN WB36T10295 Contact Us For Availability
3
Heat Shield GEN WB02T10022 Contact Us For Availability
7
Mounting Ballast GEN WB02T10052 Contact Us For Availability
15
Control Cover GEN WB34T10020 Contact Us For Availability
16
Cntl Ovn (er GEN WB27T10137 Contact Us For Availability
16
Oven Control GEN WB27T10220 Contact Us For Availability
18
Crystal Glass GEN WB27T10160 Contact Us For Availability
18
Crystal Glass GEN WB27T10157 Contact Us For Availability
18A
Crystal Glass GEN WB27T10155 Contact Us For Availability
18B
Crystal Glass GEN WB27T10159 Contact Us For Availability
29
Range Burner Control Knob GEN WB03T10087 Contact Us For Availability
29
Knob GEN WB03T10090 Contact Us For Availability
29A
Knob Asm (wh GEN WB03T10091 Contact Us For Availability
29B
Range Burner Control Knob GEN WB03T10089 Contact Us For Availability
38
Lamp Holder GEN WB36T10252 Contact Us For Availability
45
Crystal Moun GEN WB02T10066 Contact Us For Availability
49
Seal Top Lig GEN WB04T10004 Contact Us For Availability
55
Badge Elite GEN WB02T10059 Contact Us For Availability
66
Enclosure Ra GEN WB34T10018 Contact Us For Availability
70
Foam Strip GEN WB02T10045 Contact Us For Availability
91
Main Top Hinge GEN WB10T10002 Contact Us For Availability
92
Range Ground Strap GEN WB02T10067 Contact Us For Availability
94
Brace Chassi GEN WB02T10038 Contact Us For Availability
101
Range Oven Door Insulation GEN WB35T10019 Contact Us For Availability
101A
Insulation GEN WB35T10018 Contact Us For Availability
101C
Insulation GEN WB35T10025 Contact Us For Availability
101D
Insulation GEN WB35T10026 Contact Us For Availability
112
Door Liner GEN WB55T10050 Contact Us For Availability
113
Retainer Insert GEN WB56T10027 Contact Us For Availability
116
Door Vent Trim GEN WB07T10045 Contact Us For Availability
121A
Panel Asm (b GEN WB56T10055 Contact Us For Availability
131
Window Seal GEN WB04T10002 Contact Us For Availability
134
Door Trim Ki GEN WB07T10142 Contact Us For Availability
134A
Range Oven Door Vent GEN WB07T10116 Contact Us For Availability
134B
DOOR TRIM KIT - BISQUE GEN WB07T100157 Contact Us For Availability
136
Wall Oven Door Handle (Black) GEN WB15T10020 Contact Us For Availability
136A
Oven Door Handle GEN WB15T10019 Contact Us For Availability
136B
Oven Door Handle GEN WB15T10021 Contact Us For Availability
136C
Range Oven Door Handle (Black) GEN WB15T10022 Contact Us For Availability
140
Door Frame GEN WB56T10012 Contact Us For Availability
140A
Door Frame GEN WB56T10016 Contact Us For Availability
140B
Frame Dr Sde GEN WB56T10053 Contact Us For Availability
142
Starter GEN WB06K0007 Contact Us For Availability
143
Handle Ge 30 GEN WB15T10065 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB15T10018 Contact Us For Availability
167
Fluor Lt GEN WB02X4666 Contact Us For Availability
201
Kenmore Elite Oven Weld Body GEN WB53T10004 Contact Us For Availability
202
Frame GEN WB63T10054 Contact Us For Availability
203
Main GEN WB63T10047 Contact Us For Availability
211
Insulation GEN WB02T10028 Contact Us For Availability
219
Cover Receptacle GEN WB34T10011 Contact Us For Availability
221A
Body Side/wh GEN WB63T10048 Contact Us For Availability
221B
Panel GEN WB63T10056 Contact Us For Availability
221C
Body Side/gr GEN WB63T10055 Contact Us For Availability
222
Drawer Panel GEN WB56T10068 Contact Us For Availability
222A
Storage Panel GEN WB56T10065 Contact Us For Availability
222B
Drawer Panel GEN WB56T10066 Contact Us For Availability
222C
Drawer Panel GEN WB56T10047 Contact Us For Availability
227
Insulation GEN WB02T10029 Contact Us For Availability
231
Oven Insulation GEN WB35T10012 Contact Us For Availability
232
Oven Insulation GEN WB35T10023 Contact Us For Availability
233
Insulation H GEN WB35T10022 Contact Us For Availability
237
Drawer Liner GEN WB55T10053 Contact Us For Availability
241
Oven Rack GEN WB48T10022 Contact Us For Availability
241A
Roasting Rack GEN WB48T10018 Contact Us For Availability
246
Grid Broiler GEN WB48T10017 Contact Us For Availability
251
Unit Asm (h/ GEN WB44T10015 Contact Us For Availability
252
Oven Broil Unit GEN WB44T10008 Contact Us For Availability
252A
Range Oven Door Hinge Receiver GEN WB10T10005 Contact Us For Availability
255
Range Terminal Block GEN WB17T10003 Contact Us For Availability
255A
Latch Trim GEN WB07T10109 Contact Us For Availability
256
Oven Lamp Lens GEN WB25T10013 Contact Us For Availability
258
Housing Receptacle GEN WB08T10010 Contact Us For Availability
258A
Housing Receptacle GEN WB08T10011 Contact Us For Availability
266
Base Rivet A GEN WB39T10001 Contact Us For Availability
269
Terminal Box GEN WB17T10002 Contact Us For Availability
281
Range Oven Door Hinge GEN WB10T10008 Contact Us For Availability
282A
Tube Vent Ra GEN WB38T10013 Contact Us For Availability
291
Ballast GEN WB08X5102 Contact Us For Availability
292A
Drawer Support GEN WB02T10031 Contact Us For Availability
511
Range Convection Fan Assembly GEN WB26T10007 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
814
Screw GEN WB01X5967 Contact Us For Availability
846
Screw GEN WB01X1169 Contact Us For Availability
919
Spacer GEN WB02T10035 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
978
Nut 10-32 GEN WB01X5968 Contact Us For Availability
999
Kenmore Elite Wiring Diagram GEN 31-13713 Contact Us For Availability
999
MINI MANUAL W/WIRING DIAG GEN 37-13713 Contact Us For Availability
999A
Range Owner's Manual GEN SR10430 Contact Us For Availability
999B
Owner's Manual GEN SR10438 Contact Us For Availability
999C
Owner's Manual GEN SR10439 Contact Us For Availability
999D
Parts List GEN 31-13768 Contact Us For Availability
999E
Installation Instructions GEN 31-10301 Contact Us For Availability
999F
Installation Instructions GEN 31-10415 Contact Us For Availability
1003
Scr 10-16 Pl GEN WB01T10018 Contact Us For Availability
1004
Screw, #8-18 GEN WB01T10019 Contact Us For Availability
1006
Scr 8-32 Flt GEN WB01T10036 Contact Us For Availability
1010
Scr 6-32 Ca GEN WB01T10029 Contact Us For Availability
× ![]()
