Model GE 911.93461690 30" Electric Freestanding Range (Kenmore 91193461690) – Common Parts & Diagrams
WIRE HARNESSES AND COMPONENTS

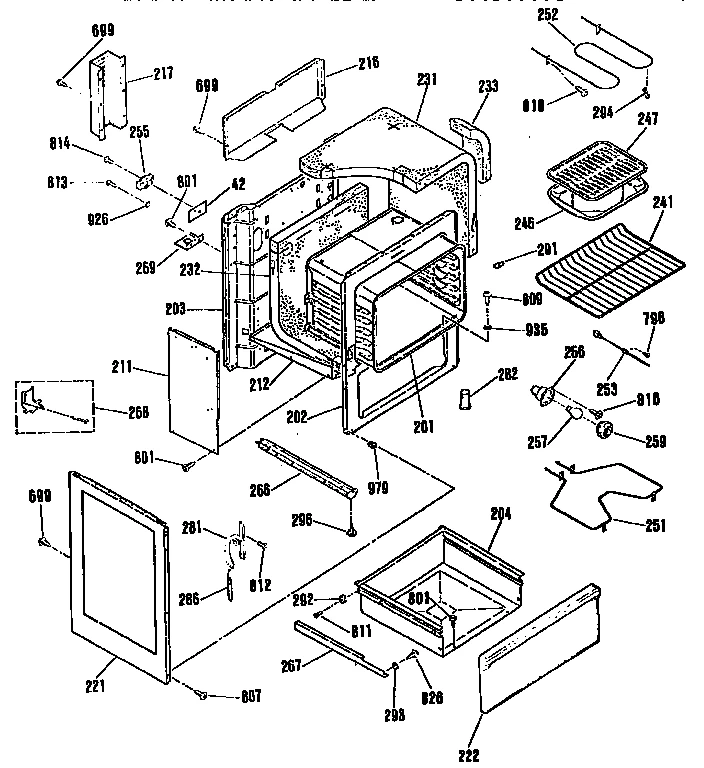

BODY SECTION

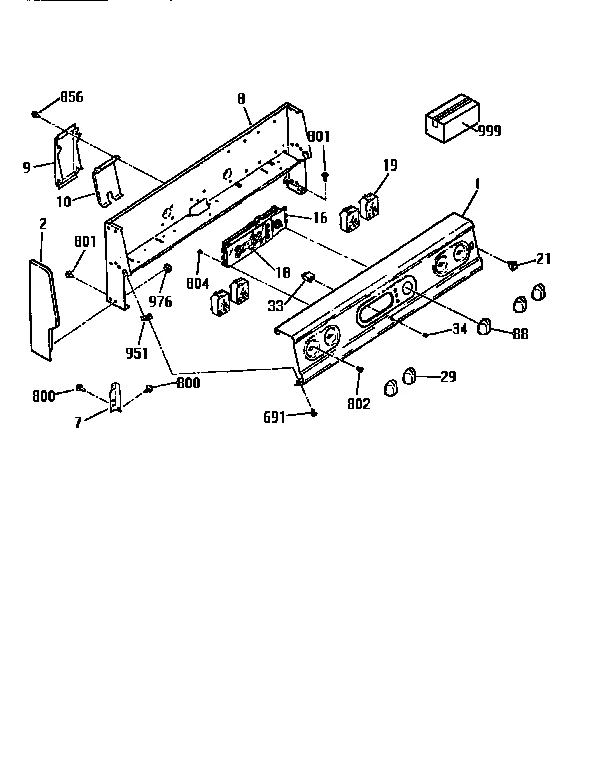

BACKGROUND SECTION

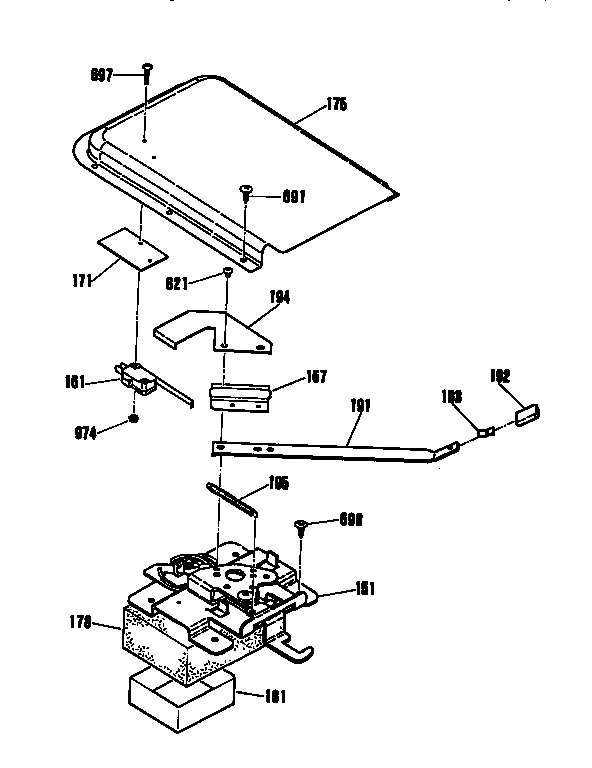

DOOR LOCK SECTION

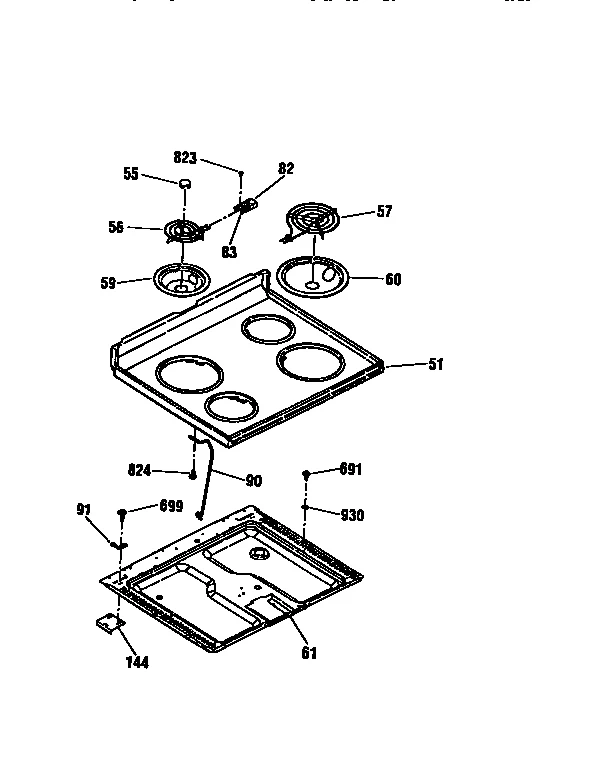

MAIN TOP SECTION

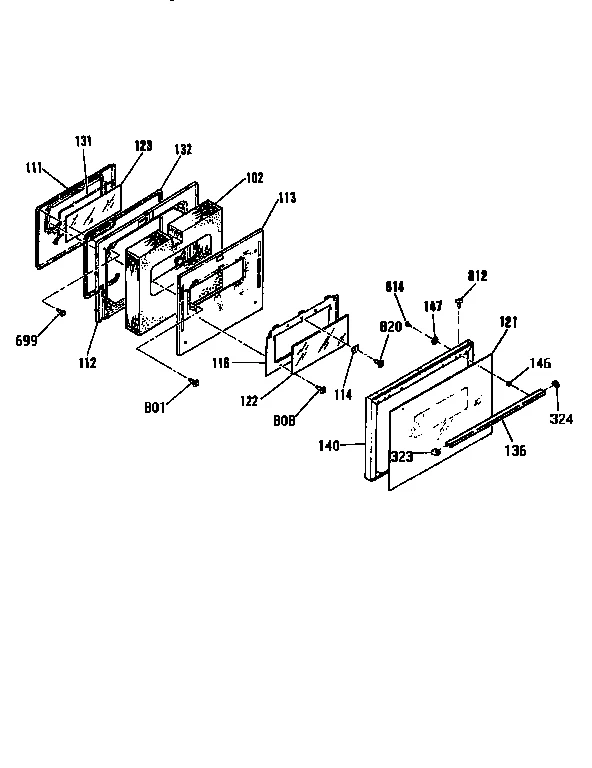

DOOR SECTION 93451590 ONLY

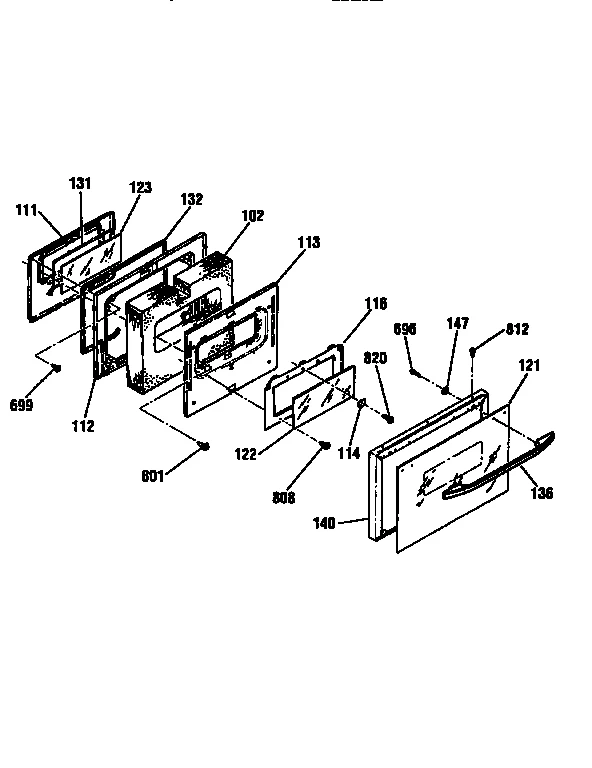

DOOR SECTION 94465690&94466690
Common parts from model GE 911.93461690 30" Electric Freestanding Range (Kenmore 91193461690)
1
Control Panel GEN WB36K5623 Contact Us For Availability
1A
Control Panel GEN WB36K5626 Contact Us For Availability
1B
Control Panel GEN WB36K5722 Contact Us For Availability
2
End Cap GEN WB36K5365 Contact Us For Availability
2A
End Cap GEN WB36K5366 Contact Us For Availability
2B
End Cap GEN WB36K5361 Contact Us For Availability
2C
End Cap Lft GEN WB36K5362 Contact Us For Availability
2D
End Cap GEN WB36K5369 Contact Us For Availability
2E
End Cap GEN WB36K5370 Contact Us For Availability
6
Backguard Body GEN WB37K5039 Contact Us For Availability
7
Backguard Support GEN WB06X0128 Contact Us For Availability
7A
Backguard Support GEN WB06X0127 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
16
Oven Control GEN WB27K5248 Contact Us For Availability
18
Clock Plate GEN WB27K5250 Contact Us For Availability
18A
Clock Plate GEN WB27K5345 Contact Us For Availability
18B
Clock Plate GEN WB27K5249 Contact Us For Availability
21A
Range Rocker Switch GEN WB24K5036 Contact Us For Availability
21B
Rocker Switch GEN WB24K5088 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
29A
Inf Knob Wh GEN WB03K5099 Contact Us For Availability
29B
Inf Knob Ad GEN WB03K5190 Contact Us For Availability
51
Main Top Wh GEN WB62M0017 Contact Us For Availability
51A
Main Top Ad GEN WB62M0018 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
60
8" Pan-blk GEN WB31K5041 Contact Us For Availability
61
Burner Box GEN WB64K5091 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
88
Thermostat Knob GEN WB03K5183 Contact Us For Availability
88A
Thermostat Knob GEN WB03K5192 Contact Us For Availability
88B
Thermostat Knob GEN WB03K5307 Contact Us For Availability
90
Support Rod GEN WB02X9084 Contact Us For Availability
91
Hinge GEN WB14X0126 Contact Us For Availability
91A
Hinge GEN WB14X0127 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (White) GEN WB57K5304 Contact Us For Availability
121A
Oven Door Glass GEN WB57K5215 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136A
HANDLE, ALMOND GEN WB15K115 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
140
Oven Drive Frame GEN WB56K5138 Contact Us For Availability
140A
Oven Door Frame GEN WB56K5132 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
151
Latch GEN WB14X0128 Contact Us For Availability
161
Range Oven Door Lock Switch GEN WB24K5092 Contact Us For Availability
167
Retainer GEN WB02X9433 Contact Us For Availability
171
Insulator Switch GEN WB35K5101 Contact Us For Availability
175
Lock Cover GEN WB02X9431 Contact Us For Availability
178
Lock Box Insert GEN WB35K5027 Contact Us For Availability
181
Drive Insert Retainer GEN WB02K5097 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Wh GEN WB03K5152 Contact Us For Availability
192A
Lock Knob Ad GEN WB03K5191 Contact Us For Availability
192B
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
194
Lever Switch GEN WB02X9432 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221A
Body GEN WB63K5193 Contact Us For Availability
222
Fr Panel GEN WB56K5060 Contact Us For Availability
222A
Front Panel GEN WB56K5059 Contact Us For Availability
222B
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Range Oven Vent GEN WB38K5018 Contact Us For Availability
286
Door Spring GEN WB09X0273 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
697
Screw GEN WB01X1170 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
821
Screw GEN WB01X1265 Contact Us For Availability
824
Screw GEN WB01X1291 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
Washer GEN WB01M0022 Contact Us For Availability
951
Clip Backsplash GEN WB02X9443 Contact Us For Availability
974
Hex Nut GEN WB01X1264 Contact Us For Availability
976
Pal Nut GEN WB01X1251 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
999
Range Wire Harness GEN WB18K5469 Contact Us For Availability
999
MINI MANUAL W/WHIRE DIAGRAM GEN 31-13349 Contact Us For Availability
999A
Owner's Manual GEN 31-10207 Contact Us For Availability
999B
Parts List GEN 31-13351 Contact Us For Availability
999C
Installation Instructions GEN SR10207 Contact Us For Availability
× ![]()
