Model GE 911.93251590 30" Electric Freestanding Range (Kenmore 91193251590) – Common Parts & Diagrams

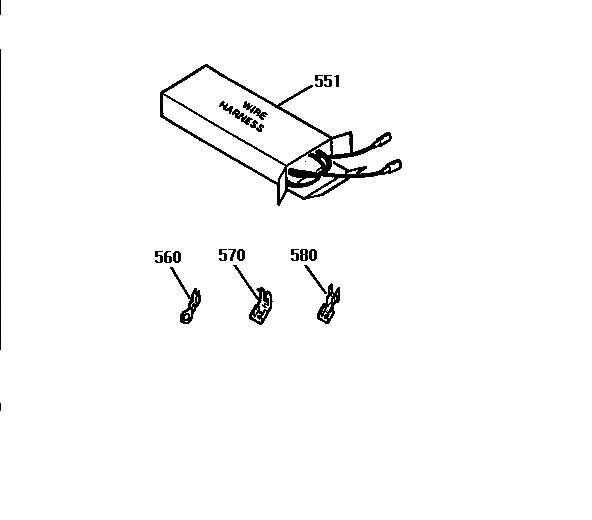

WIRE HARNESSES AND COMPONENTS
DOOR LOCK
All Parts
MAIN TOP
BODY
BACKGUARD
OVEN DOOR
Common parts from model GE 911.93251590 30" Electric Freestanding Range (Kenmore 91193251590)
1
White Control Panel GEN WB36K5206 Contact Us For Availability
1A
Ctl Panel Ad GEN WB36K5207 Contact Us For Availability
2
End Cap GEN WB36K5356 Contact Us For Availability
2A
End Cap GEN WB36K5357 Contact Us For Availability
5
Range Oven Control Thermostat GEN WB20K5020 Contact Us For Availability
6
Backguard Body GEN WB37K5305 Contact Us For Availability
7
Support GEN WB07X1647 Contact Us For Availability
9
Raceway GEN WB02X9415 Contact Us For Availability
10
Raceway Cvr GEN WB06X0134 Contact Us For Availability
16
Clock Dco GEN WB11K5008 Contact Us For Availability
18
Glass Clock GEN WB57K5114 Contact Us For Availability
28
Bracket Clock GEN WB02K5222 Contact Us For Availability
29
Inf Knob Blk GEN WB03K5096 Contact Us For Availability
30
Clock Knob GEN WB03X0787 Contact Us For Availability
35
Selector Switch GEN WB24K5060 Contact Us For Availability
42
Disconnect Shield GEN WB34K5092 Contact Us For Availability
49
Motor Clock GEN WB11X0008 Contact Us For Availability
51
Maintop Wh GEN WB62M0012 Contact Us For Availability
51A
Main Top Ad GEN WB62M0013 Contact Us For Availability
55
Medallion GEN WB32X0105 Contact Us For Availability
61
Burner Box GEN WB64K5063 Contact Us For Availability
88
Therm Knob B GEN WB03K5095 Contact Us For Availability
90
Support Rod GEN WB02K5347 Contact Us For Availability
91
Hinge GEN WB14X0126 Contact Us For Availability
91A
Hinge GEN WB14X0127 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
111
Oven Drive Plug GEN WB55K5037 Contact Us For Availability
112
Ovdr Lining GEN WB55K5038 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Oven Door Glass GEN WB57K5215 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
144
Reinforcement Plate GEN WB02K5316 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
191
Latch Handle GEN WB02X9434 Contact Us For Availability
192
Lock Knob Bl GEN WB03K5154 Contact Us For Availability
193
Knob Clip GEN WB02X9404 Contact Us For Availability
194
Lever Switch GEN WB02X9432 Contact Us For Availability
195
Spring GEN WB09X0251 Contact Us For Availability
201
Oven Body GEN WB63K5109 Contact Us For Availability
202
Frame GEN WB63K5160 Contact Us For Availability
203
Main GEN WB63K5134 Contact Us For Availability
204
Drawer GEN WB58X0065 Contact Us For Availability
211
Insulation Retainer GEN WB02M0038 Contact Us For Availability
212
Insulation Retainer GEN WB02K5093 Contact Us For Availability
216
Wire Cover GEN WB34M0020 Contact Us For Availability
217
Wire Cover GEN WB34K5093 Contact Us For Availability
221
Body Side Wh GEN WB63X0351 Contact Us For Availability
221A
Body-side Ad GEN WB63X0352 Contact Us For Availability
222
Front Panel GEN WB56K5059 Contact Us For Availability
222A
Frt Pnl Ad GEN WB56K5063 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Insert GEN WB35K5029 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
256
Ovlamp Hldr GEN WB08K5042 Contact Us For Availability
259
Oven Lamp Lens GEN WB25M0010 Contact Us For Availability
266
Base GEN WB02K5271 Contact Us For Availability
267
Drawer Support GEN WB56M0003 Contact Us For Availability
269
Mounting Plate GEN WB02X9427 Contact Us For Availability
282
Range Oven Vent GEN WB38K5018 Contact Us For Availability
286
Door Spring GEN WB09X0264 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
292
Rear Block GEN WB02X9146 Contact Us For Availability
293
Block GEN WB02X9148 Contact Us For Availability
296
Leveling Leg GEN WB02X9025 Contact Us For Availability
551
Range Wire Harness GEN WB18K5469 Contact Us For Availability
691
Trim Screw (Black) GEN WB01K5177 Contact Us For Availability
697
Screw GEN WB01X1170 Contact Us For Availability
802
Screw GEN WB01X1265 Contact Us For Availability
811
Screw GEN WB01X1172 Contact Us For Availability
823
Scw 8abx.250 GEN WB01X1425 Contact Us For Availability
824
Screw GEN WB01X1291 Contact Us For Availability
826
Screw GEN WB01X1167 Contact Us For Availability
881
Screw Black GEN WB01K5160 Contact Us For Availability
904
Screw GEN WB01X5550 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
930
Washer GEN WB01M0022 Contact Us For Availability
954
Clip GEN WB02X9105 Contact Us For Availability
974
Hex Nut GEN WB01X1264 Contact Us For Availability
979
Spacer GEN WB01X1177 Contact Us For Availability
NI
Range Drip Pan GEN WB31K5043 Contact Us For Availability
NI
Usr Manual S GEN SR10199 Contact Us For Availability
NI
Installation Instructions GEN SR10207 Contact Us For Availability
NI
Kenmore Range Parts GEN SR13549 Contact Us For Availability
NI
Kenmore Range Parts GEN SR13550 Contact Us For Availability
NI
Range Drip Pan GEN WB31K5042 Contact Us For Availability
× ![]()
